MEC-1036W - Multicooker MIDEA - Free user manual and instructions

Product Type	Multicooker
Brand	Midea
Model	MEC-1036W
Capacity	5.0 L (approx.)
Power Consumption	700 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (L x W x H)	28 x 26 x 24 cm
Weight	3.5 kg
Non-Stick Inner Pot	Yes
Display	LED digital display with timer
Cooking Programs	Rice, Slow Cook, Steam, Sauté, Soup, Porridge, Cake, Keep Warm
Delay Timer	Up to 24 hours
Automatic Keep Warm	Yes, up to 12 hours
Safety Features	Overheat protection, auto shut-off, locking lid with steam release
Material	Stainless steel body, plastic handles
Detachable Power Cord	Yes
Cleaning	Non-stick inner pot dishwasher safe; wipe exterior with damp cloth
Spare Parts	Inner pot, sealing ring, steam basket available separately
Repairability	Modular design; authorized service centers recommended
Accessories Included	Measuring cup, rice paddle, steam basket, recipe booklet
Warranty	1 year
Color	White

Frequently Asked Questions - MEC-1036W MIDEA

What is the capacity of the Midea MEC-1036W?

The Midea MEC-1036W has a capacity of approximately 5.0 liters, suitable for families of 3-5 people.

How do I set the delay timer?

Press the 'Timer' button and use the +/- buttons to set the desired delay hours (up to 24 hours). Press 'Start' to confirm.

Can I use the multicooker for yogurt?

Yes, the multicooker has a yogurt program. Select 'Yogurt', set the time (usually 8-10 hours), and press start.

Is the inner pot dishwasher safe?

Yes, the non-stick inner pot is dishwasher safe. However, hand washing with mild detergent is recommended to extend its life.

What should I do if the lid doesn't close properly?

Ensure the sealing ring is properly seated and the lid is aligned with the handles. If the lid still doesn't close, check for food debris on the rim.

How do I clean the steam vent?

Remove the steam vent cover (if detachable) and wash with warm soapy water. Use a small brush to clear any blockage. Dry thoroughly before reassembly.

Can I use metal utensils with the non-stick pot?

No, avoid metal utensils as they can scratch the non-stick coating. Use silicone, wooden, or plastic utensils.

What is the power consumption of this model?

The MEC-1036W consumes 700 watts of power at 220-240 volts.

Does it have a keep warm function?

Yes, after cooking, the multicooker automatically switches to keep warm mode (up to 12 hours) to maintain food temperature.

Where can I find spare parts?

Spare parts like the inner pot, sealing ring, and steam basket are available from Midea authorized dealers or online stores. Check your user manual for part numbers.

USER MANUAL MEC-1036W MIDEA

All the contents of this Guide have been checked carefully. If there are any printing errors OR misunderstanding, please contact with Midea customer service team.

NOTE: It will be compiled into the new version of the guide without any notice if involve the technical improvements.

Instruction Manual

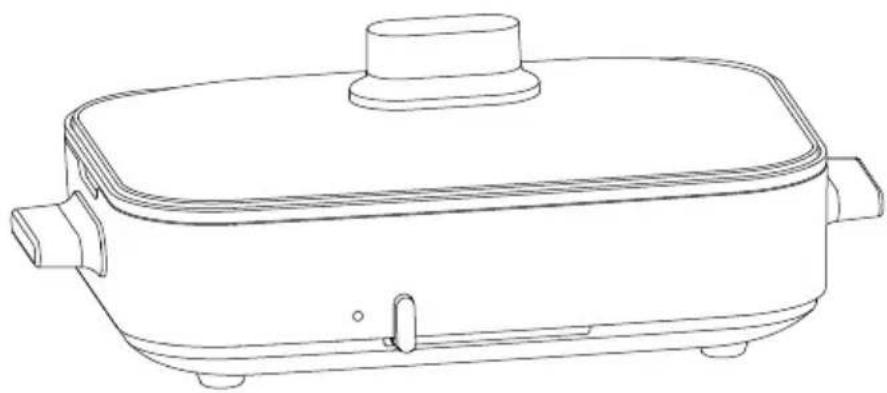

Line drawing of a rectangular rice cooker with lid and side legs (no text or symbols)

caution, hot surface

Appliances are not intended to be operated by means of an external timer or separate remote-control system.

Please follow the correct instruction to use the product, to avoid to cause serious personal injury.

Don't touch the heated element surface after used.

Please read the safety instructions before use the appliance, for avoid to cause the risk of fire, electric hazard and personal injury.

1. This appliance is not intended for use by children over eight years of age or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety, Children should not use this appliance.
2. This appliance is not designed for use by persons with reduced physical, sensory or mental capabilities (including children), or lack relevant knowledge or experience, unless they have been given supervision or instruction concerning safe use of the appliance and understand the risks involved. The cleaning and maintenance of this appliance must not be performed by children children without supervision.
3. Keep distance with the children included the appliance and power cord; Ensure the children do not play with the appliance.
4. Do not touch the hot surface! The main body will become hot during long time use. Please hold the handles at main body if need to move the appliance.
5. CAUTION: To reduce the risk or electric shock, cook only in removable container only.
6. WARNING: Please pay attention to the ingredients overflow the pot due to boiling, to avoid serious scald.
7. WARNING: Spilled food can cause serious burns.
8. Close supervision is necessary when the appliance is operating by or near children.
9. To protect against electrical shock, do not immerse cord, plug, or cooker body in water or other liquid.
10. Do not add water close to the edge of inner pot, or the water will flow out during cooking.
11. Unplug the appliance when do not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
12. Do not use the appliance once the power cord/ appliance damaged, please contact with Midea customer service center for repair.
13. To avoid danger happen, please use the authorized accessory or parts.

SAFETY INSTRUCTION

1. This product is for household use only, intended for countertop use only.
2. The appliance is only for cooking purpose.
3. This product is for household use only, do not use outdoors.
4. Please be careful to move the appliance if the inner pot with hot liquids.
5. Do not let cord hang over edge of table and counter, or touch hot surface.
6. A short power-supply cord is used to reduce the risk resulting from it being grabbed by children, becoming entangled in, or tripping over a longer cord.
7. In the first time to use this appliance, ensure that the power rating in conformity with the current power rate.
8. DO NOT place unit on or near a hot gas or electric burner, or in a heated oven.
9. DO NOT put frozen articles inside the inner pot when it is too much heat, or wash the inner pot with the cold water.
10. DO NOT uncover the lid when in stewing, otherwise the temperature come down and more stewing time will be needed.
11. DO NOT cooking food directly in the Aluminum pot.
12. DO NOT place the inner pot on gas stove.
13. To avoid any cracks or spoilage that may bring to the slow cooker, proper maintenance is necessary..
14. Only carry the slow cooker from the side handles on the cooking base. Do NOT carry from the handle on the lid, even when locked.
15. CAUTION: to prevent damage to the appliance do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent.cedera.
16. Caution, hot surface, The surfaces are liable to get hot during use.
17. Use a cloth to clean the baking tray and utensils after cooking terpisah.
18. WARNING: The appliance must never be used with oil, it should not be used as a frying pan or deep fat fryer!
19. Warning: Avoid spillage on the connector;

WARNING: The appliance must never be used as a frying pan or deep fat fryer!

1. That appliances are not intended to be operated by means of an external timer or separate remote-control system.

2. The heating element surface is subject to residual heat after use.

WARNING: Misuse may cause potential injury.

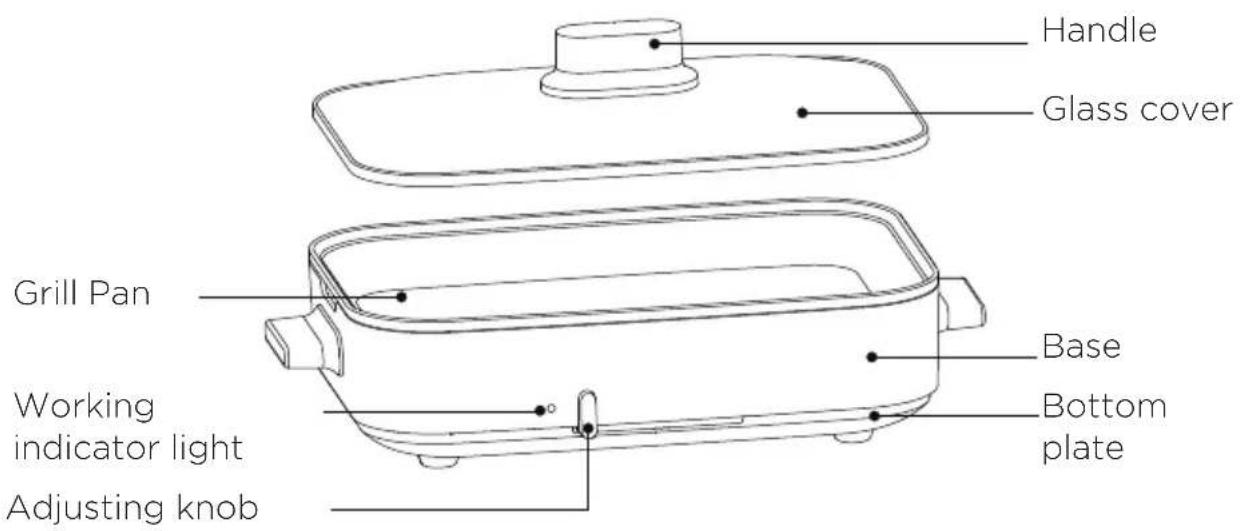

PARTS AND FEATURES

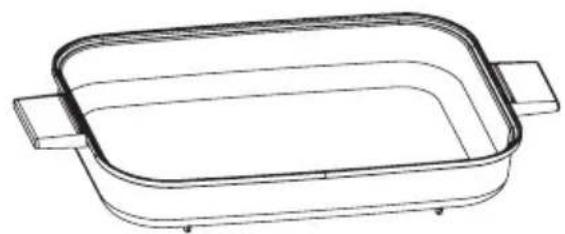

Line drawing of a rectangular kitchen appliance with side handles (no text or symbols)

Stew Pot Pancake Plate

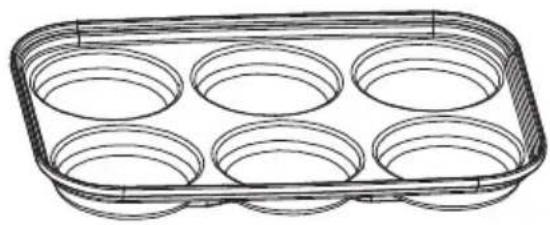

Line drawing of a six-cylinder baking tray (no text or symbols)

Product Information

Product model	Rated voltage	Rated power	Product size (LxWxH)
MEC-1036W	220-240V~50/60Hz	1300W	380x230x146mm	2.46kg

HOW TO USE

1 Insert the power plug to make sure it is plugged in.

Line drawing of a rectangular cooking pot with a power outlet and cable (no text or symbols)

2 Turn the adjusting knob in the front to the high temperature gear.

Line drawing of a rectangular cooking pot with lid and side legs (no text or symbols)

3 Put the seasoning in the baking pan. 4 Add food.

Line drawing of a hand pouring liquid into a rectangular container (no text or symbols)

Line drawing of a rectangular food pot with side handles and a side outlet (no text or symbols)

5 Put on the glass cover, start cooking, open the glass cover and stir the food at the right time to ensure uniform heating.

Line drawing of a rectangular oven or cooking pot with a lid and side handles (no text or symbols)

6 After cooking, unplug the power cord and wipe the baking tray with a wet towel after cooling down.

Line drawing of a hand cleaning a rectangular container with liquid (no text or symbols)

CLEANING AND MAINTENANCE

• Please be sure to unplug the power cord plug after each use, wait for a few minutes after power failure, and then wipe it with a damp cloth. If it is stored for a long time, it should be cleaned with detergent.
• Do not use abrasive cleaning products or solvents for cleaning.
• Do not put the product in water for cleaning in case of electric shock and malfunction.
• Dry all components before storage and put the product in a safe and dry place.

FAULT EXPLANATION

Serial Number	Abnormal Phenomena		Cause	Check Points and Troubleshooting
1	Working light is always off	The heating plate stops functioning	1. The power supply is not connected2. Internal wire is disconnected3. Fuse is burnt out4. The temperature controller is damaged	1. Check whether the switches, plugs, sockets, power leads are intact or not, and ensure that the plugs and sockets are in right place.2, 3, 4 send to the designated maintenance department for maintenance
		The heating plate starts functioning	Indicator light is damaged	Send to the designated maintenance department for maintenance
2	The working light is always on and never off	The heating plate stops functioning	1. The electric heating pipe is damaged2. Internal wire is disconnected	Send to the designated maintenance department for maintenance
		The heating plate starts functioning	The temperature controller is damaged	Send to the designated maintenance department for maintenance
