Product Type	Cordless Grass Trimmer
Model	WG185.9
Brand	Worx
Voltage	40V Max (2 x 20V Max)
No-Load Speed	6000/min
Cutting Diameter	15 in (38 cm)
Line Diameter	0.095 in (2.4 mm) twist line
Line Length (Dual-Exit)	13 ft (4 m)
Battery Compatibility	20V Worx batteries (e.g., WA3012 4.0Ah)
Charger	WA3884, 4.0A
Machine Weight (bare tool)	2.8 kg (6.2 lbs)
Feed Mechanism	Bump-line feed system
Variable Speed Trigger	Yes
ECO Mode	Yes (low speed for extended runtime)
Lock-Off Button	Yes (prevents accidental start)
Battery Indicator Light	5-level LED on machine
Upper Shaft	Aluminum or steel (not specified)
Auxiliary Handle	Yes, included
Safety Guard	Included, with metal bracket
Line Cutter	Integrated on guard
Storage	Hanging slot for wall storage
Ambient Temperature Range (use/storage)	0°C – 45°C
Charging Temperature Range	0°C – 40°C
Maintenance	No lubrication needed; clean with dry cloth
Safety Certifications	Compliant with relevant standards; Prop 65 warning

Frequently Asked Questions - WG185.9 WORX

How do I start the Worx WG185.9 grass trimmer?

Press the lock-off button first, then squeeze the variable-speed trigger to start. The motor runs only when both are engaged.

What batteries are compatible with the WG185.9?

It uses two 20V Max Worx batteries. Recommended capacity is 4.0Ah or higher (e.g., WA3012). Use the same two batteries and charge them simultaneously for best performance.

How does the bump-feed system work?

While the trimmer is running, gently bump the trimmer head on the ground. This releases more line automatically. The line cutter on the guard trims it to the correct length.

How do I replace or wind the trimmer line?

Remove the trimmer head by inserting a hex key into the hole and rotating counterclockwise. Wind the line onto the spool built into the head, leaving about 7.5 inches (19 cm) on each side after winding. Then reassemble clockwise.

What does the ECO button do?

Press the ECO button together with the trigger to run at lower speed, which extends battery runtime for lighter trimming tasks.

How do I check the battery status?

Press the button beside the power indicator light on the machine. Five green lights indicate fully charged; one light means low charge. Flashing patterns indicate over-discharge, overheat, or overload.

What maintenance does the WG185.9 require?

After each use, remove the battery and wipe the trimmer with a dry cloth. Keep ventilation slots clean. No lubrication or user-serviceable parts inside. Store in a dry place at 0°C-45°C.

Why is the trimmer not cutting properly?

Possible causes: broken line (replace), low battery (recharge), grass tangled around head (clean), or motor issue (contact service). See troubleshooting in manual.

Can I use a different line type or thickness?

No, use only 0.095 inch (2.4 mm) twist line. Do not use metal wire or other materials, as they may damage the guard or cause injury.

Where can I get the full manual or spare parts?

The manual is available for free download on notice-facile.com or the Worx website. For spare parts, contact Worx Customer Service at 1-866-354-Worx or an authorized service center.

USER MANUAL WG185.9 WORX

Cordless Grass Trimmer	EN	P06
Taille bordure sans fil	F	P12
Cortadora de césped sin cable	ES	P20

TABLE OF CONTENTS

1. SAFETY INSTRUCTIONS
2. COMPONENT LIST
3. TECHNICAL DATA
4. OPERATING INSTRUCTIONS
5. MAINTENANCE
6. TROUBLESHOOTING

PRODUCT SAFETY

WARNING: This product can expose you to chemicals including lead and Di(2- ethylhexyl)phthalate (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

FOR ALL APPLIANCES:

1) Avoid Dangerous Environment - Don't use appliances in damp or wet locations.
2) Don't Use In Rain.
3) Keep Children Away - All visitors should be kept at a distance from work area.
4) Dress Properly - Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.
5) Use Safety Glasses - Always use face or dust mask if operation is dusty.
6) Use Right Appliance - Do not use appliance for any job except that for which it is intended.
7) Don't Force Appliance - It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
8) Don't Overreach - Keep proper footing and balance at all times.
9) Stay Alert - Watch what you are doing. Use common sense. Do not operate appliance when you are tired.
10) Store Idle Appliances Indoors - When not in use, appliances should be stored indoors in dry, and high or locked-up place - out of reach of children.
11) Maintain Appliance With Care - Keep cutting edge sharp and clean for best performance and

to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease.

12) Check Damaged Parts - Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

FOR ALL BATTERY – OPERATED GARDENING APPLIANCES:

1. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
2. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
3. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
4. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
5. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
6. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
7. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
8. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130° C may cause explosion.

9. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

10. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

11. Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

ADDITIONAL SAFETY RULES FOR GRASS TRIMMER

1. Keep guards in place and in good working order.
2. Keep hands and feet away from cutting area.
3. Do not use heavier lines than recommended in this manual.
4. Do not use line materials of other types – for example, metal wire, rope, and the like.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or fire.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Do not use any battery pack which is not designed for use with the equipment.
g) Keep battery pack out of the reach of children.
h) Always purchase the battery pack recommended by the device manufacturer for the equipment.
i) Keep battery pack clean and dry.
j) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
k) Battery pack needs to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.

I) Do not leave battery pack on prolonged charge when not in use.
m) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
n) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
o) Retain the original product literature for future reference.
p) Use only the battery pack in the application for which it was intended.
q) Remove the battery pack from the equipment when not in use.
r) Dispose of properly.
s) Do not mix cells of different manufacture, capacity, size or type within a device.
t) Keep the battery away from microwaves and high pressure.

SAVE THESE INSTRUCTIONS

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Wear ear protection
	Wear dust mask
	Wear protective gloves
Li-lon	Li-lon battery, battery must be recycled
	Make sure the battery is removed prior to changing accessories.
	Trimming
	Do not burn
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	call 2 recyclePOSITEC Inc. has established a partnership with the RBRC Corporation to recycle any Positec batteries with the RBRC-call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the batteries' life cycle is ended, then please call 1-800-822-8837 for a free service that will properly dispose of the battery.

COMPONENT LIST

1. BATTERY PACK *

2. BATTERY INDICATOR LIGHT

3. LOCK-OFF BUTTON

4. VARIABLE-SPEED TRIGGER

5. ECO BUTTON

6. UPPER SHAFT

7. AUXILIARY HANDLE

8. LOWER SHAFT

9. SAFETY GUARD

10. LINE CUTTER

11. TRIMMER HEAD (BUMP HEAD)

12. RELEASE TAB

* Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

	WG185WG185.X **
Voltage 40 V MAX (2x20V-MAX) ***
No-load speed 6000/min
CuttingDiameter forgrass trimmer	15" (38cm)
Line Diameter	Recommended 0.095" (2.4mm) twist line
Line Length	Recommended 13ft (4m)(Dual-Exit)
MachineWeight(bare tool)	2.8kg(6.2lbs)

** X may be followed by one or two characters. All models are the same except model number and trademark. The suffix in models may be number from "1" to "999" or English letter "A" to "Z" or "M1" to "M9" which means different package or the various of accessories packed in the package.

*** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

Category Model Capacity
20 V Battery	WA3012	4.0 Ah
20 V Charger	WA3884	4.0 A

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

Action	Figure
Assembly

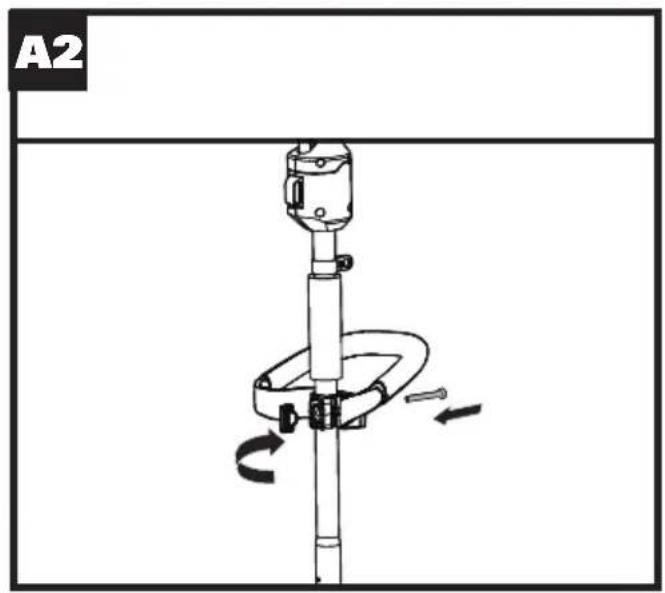

Assembling the Auxiliary Handle	See Fig. A1,A2
Assembling the Safety Guard Insert the metal bracket into the slot on the safety guard, then secure the guard in place using the screw and hex key.	See Fig. B
Installing and Removing the Battery PackNOTE:This machine will only run when 2 batteries are installed.It is recommended to use the same two batteries and charge the two batteries at the same time.When two batteries are used with different amp hours or charge level, the machine will run to the lowest common denominator.It is recommended that using 4.0Ah or above battery pack for better performance and longer run time.	See Fig. C1, C2
Checking the battery charge conditionNOTE:Fig. C3 only applies for the battery pack with battery indicator light.	See Fig. C3
Charging the battery packNOTE:The batteries are shipped uncharged. Each battery must be fully charged before the first use.Always fully charge the two batteries at same time. More details can be found in charger's manual.	See Fig. C4
Battery power indicator on the machineSee details in BATTERY STATUS section	See Fig. C5
Operation
To startWARNING!The cutting head continues to rotate after the trimmer has been switched off; wait until it has completely stopped then lay down the tool.Press the lock-off button first, then press the switch trigger to start the machine.	See Fig. D
ECO SpeedFor longer run time, press the ECO button and switch trigger, then your machine will operate at a low speed.	See Fig. E
Trimming See Fig. F

Bump feed See Fig. G
Assembling and removing the trimmer headInsert the hex key into the hole and rotate the trimmer head until it stops in a locked position. Then, rotate counterclockwise to remove it, and clockwise to assemble it.	See Fig. H
Winding the trimmer lineNOTE: The spool must be wound while inside the trimmer head. The spool cannot be wound with line, then installed into the trimmer head.	See Fig. I

BATTERY STATUS (See Fig. B5)

Before starting or after use, press the button beside the power indicator light on the machine to check the battery capacity. During operation, the battery capacity will be indicated automatically by the battery power indicator.

The indicator constantly senses and displays the battery condition as follows.

For the machine with 2 battery packs with different power, the power indicator light displays the battery condition with the lower one of the two batteries.

Battery power indicator status	Battery condition
Five green lights (■■■■■) are illuminated.	The two batteries are in a highly charged condition.
Two, three or four green lights are illuminated.	The two batteries have a remaining charge. The more lights are illuminated, the more battery capacity.
Only one green light (■is□□□) illuminated.	At least one battery is almost depleted and needs to be charged.
No light is illuminated.	At least one battery is not fully installed or battery may be defective.
Only one light is flashing twice per cycle.	At least one battery is over discharged (please refer to the battery charge condition), please recharge the two batteries at once before use again or storage.
Only one light is flashing three times per cycle.	At least one battery is hot, wait for them cool down before start again.

Only one light is flashing four times per cycle.

The machine is over load. Raise the cutting height or push slowly.

OPERATION INSTRUCTIONS

WARNING! The charger and battery pack are specially designed to work together so do not to use any other devices. Never insert or allow the objects into your charger or battery pack actions because of an electrical failure and will occur.

1. Bump-line feed system (See Fig. G)

The trimmer is equipped with a bump-line system. Just bump the trimmer head while the machine is running, new line will feed out.

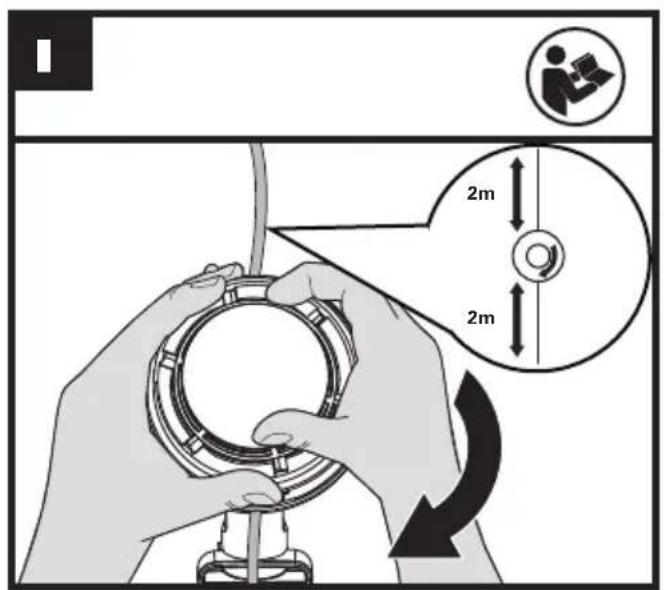

2. Winding the trimmer line (See Fig.1)

Insert the replacement line through the eyelet and feed it through the other side. Ensure both ends of the line are even on each end of the trimmer head (recommended 7') and cut the line. Turn the dial clockwise to wind the line around the spool until about 7.5" remains on either side.

STORING YOUR GRASS TRIMMER

Always remove the battery pack from your trimmer after use.

To store your GRASS trimmer

The trimmer is provided with a hanging slot for storing the trimmer on the wall. (See Fig. J) Store in a dry place where the trimmer and battery can be protected from damage.

MAINTENANCE

Always remove the battery pack from your trimmer after use.

Always check the product prior to being used for any damage.

After use, disconnect the battery from the tool and check for damage.

Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry room temperature location. Keep the motor ventilation slots clean. Keep all working controls free of dust.

FOR BATTERY TOOLS

The ambient temperature range for the use and storage of tool and battery is 0° C- 45° C.

The recommended ambient temperature range for the charging system during charging is 0° C- 40° C.

TROUBLESHOOTING

The following table gives problems and actions that you can perform if your machine does not operate correctly. If these do not identify and correct the problem, contact your Worx Customer Service at 1-866-354-Worx.

WARNING: Switch the machine off and remove the battery prior to any troubleshooting.

Problems Possible	Causes Corrective Action
Trimmer fails to operate.	Battery discharged.Battery too hot/cold.Motor is broken.Internal wiring of machine damaged.	Recharge battery; also see the content in charger manual.Allow to cool/warm.Contact Service Agent.Contact Service Agent.
Trimmer runs intermittently.	Motor is broken.Battery not fully charged.On/Off switch defective.	Contact Service Agent.Recharge battery.Contact Service Agent.
Excessive vibrations/noise.	Machine defective.Line spool is not wound well.	Contact Service Agent.Rewind the line. See “ To fit spool and line assembly.”
Cutting time per battery charge too short.	Battery has not been used for long period or only charged for short term.Grass too high.Battery defective.	Fully charge battery; also see the content in charger manual.Cut in stages.Replace the battery.
Machine does not cut.	Line broken.Battery not fully charged.Motor is broken (speed is too low).Grass entangled around cutting head.	Replace the line.Recharge battery; also see the content in charger manualContact Service Agent.Remove grass.
Continuous lighting of the battery charge indicator.No charging procedure possible.	Battery not (properly) inserted.Battery contacts contaminated.Battery defective.	Properly insert battery into battery charger.Clean the battery contacts or replace the battery.Replace the battery.
Battery charge indicator does not light up.	Plug of battery charger not plugged in (properly).Socket outlet, mains cable or battery charger defective.	Insert mains plug (fully) into the socket outlet.Check the mains voltage; have the battery charger checked by an authorized after-sales service agent.

Positec Technology (China) Co., Ltd.
18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P.R.China
