Product Type	USB Plug MP3 Player with LCD Screen and FM Radio
Brand	jWIN
Model	JX-MP131 (also JX-MP132, JX-MP134)
Memory Capacity	1GB / 2GB / 4GB Flash
Display	132x32 STN Dot Matrix LCD with 7-color backlight
Supported Audio Formats	MP3, WMA
Frequency Response	20Hz - 20kHz
Audio Output	5mW (L) + 5mW (R) into 32Ω
FM Radio Frequency	87.5 - 108 MHz
Recording	Built-in microphone for voice recording; FM radio recording
Equalizer Modes	6 modes: Normal, Pop, Rock, Classical, Jazz, Bass
Repeat Modes	7 modes: Normal, Repeat One, Repeat All, Random Repeat, Dir Normal, Dir All Repeat, Dir Random Repeat
Power Source	Built-in rechargeable 180mAh lithium battery
Charging	Via USB connection to computer
Connectivity	Integrated USB plug (male); 3.5mm stereo headphone jack
System Requirements	Windows 98 / ME / 2000 / XP (driver may be required for 98)
Dimensions (W x H x D)	3.3 x 1 x 0.5 inches (85 x 26 x 13 mm)
Weight	0.8 oz (23 g)
Included Accessories	Necklace-type stereo earphones, driver/instruction manual CD
Special Features	A-B repeat, ID3 tag & lyric display, Hold function, loop for lanyard

Frequently Asked Questions - JX-MP131 JWIN

How do I turn on the JX-MP131?

Press and hold the Play/Pause (▶II) button for a few seconds until the screen turns on.

How do I charge the built-in battery?

Remove the USB cap and plug the integrated USB connector directly into a computer’s USB port. The battery will charge automatically. A full charge takes about 2-3 hours.

Can I use the player while charging?

Yes, the player can be used while connected to a computer, but it is recommended to charge fully before first use.

How do I load music onto the player?

Connect the player to a computer via USB. It will be recognized as a removable drive. Simply drag and drop MP3 or WMA files into the drive’s folder.

Why won’t my computer recognize the player?

Ensure the player is turned on. For Windows 98, you may need to install the driver from the included CD. For Windows 2000/XP, no driver is needed. Try a different USB port or restart the computer.

How do I set the equalizer?

From the main menu, select Settings > EQ. Choose from 6 presets: Normal, Pop, Rock, Classical, Jazz, or Bass.

How do I record FM radio?

In FM Radio mode, press M to enter the submenu, then select Record. Press M to start recording and press ▶II to stop and save.

What should I do if the player freezes?

Use a paperclip to press the Reset button located on the side. This will restart the player without losing your files.

How do I clean the player?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids or cleaners, and avoid getting moisture into any openings.

Can I use the player as a USB flash drive?

Yes, the player functions as a standard USB flash drive when connected to a computer. You can store any type of file in its memory.

USER MANUAL JX-MP131 JWIN

USB Plug MP3 Player with LCD Screen and FM Radio

Instruction Manual JX-MP131 (132, 134)

Please read this manual carefully before operating and save it for future reference.

Have a question? Please visit http://www.jWIN.com

USER SAFETY GUIDE

INSTRUCTIONS ON ENVIRONMENTAL PROTECTION

Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. This symbol on the product means the instructions for use or the packing will inform about the methods for disposal. The materials are recyclable as mentioned in its marking. By recycling, material recycling, or other forms of re-utilization of old appliances, you make an important contribution to protect the environment. Please inquire at your local community administration for the authorized disposal location.

Important Safety Instructions

1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained in a secure place for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be observed.
4. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water, such as near a bathtub, kitchen sink, laundry tub, and/or swimming pool.

USER SAFETY GUIDE

Important Safety Instructions – Continued

1. HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

2. POWER SOURCES - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

3. CLEANING - The appliance should be cleaned with a dry cloth.

4. OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the device's openings.

5. CARTS AND STANDS - The appliance should be used only with a cart or stand that is recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops,

Symbolic icon of a person using a large scale inside a circle (no text or symbols)

excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. SERVICING - The user should not attempt to service the appliance beyond that described in the user's operating instructions. All other servicing should be referred to qualified service professional.

2. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service professional when:

a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance's apertures.
c. The appliance has been exposed to rain.

USER SAFETY GUIDE

Important Safety Instructions – Continued

d. The appliance has been dropped and suffered damage.
e. The appliance does not appear to operate normally, or exhibits a change in performance.

1. BATTERY USAGE - To prevent battery leakage, which may result in bodily injury, property damage or damage to the unit, follow these instructions:

a. Install all batteries correctly according to the polarity (+/-) as marked on the unit.
b. Do not mix old and new batteries, carbon and alkaline, etc.
c. Remove batteries from the unit when the device will not be used for an extended period of time.

1. LEAD AND MERCURY - This product may contain lead and/or mercury. Disposal of these materials may be regulated by your local authorities due to environmental considerations. For more detailed disposal or recycling information, please contact your local authorities or the EIA (Electronic Industries Alliance) – http://www.eiae.org

FCC Notice (USA)

This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

USER SAFETY GUIDE

Do not change or modify this equipment. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Important Notes on Hearing

Your hearing is very important to you and to us. Please take care when operating this equipment. We strongly recommend you to follow the guidelines below in order to prevent possible damage to or loss of hearing.

After continuously listening to the loud sounds, hearing will adapt and will give the impression that the volume has been reduced. What seems normal may, in fact, be harmful. To guard against this BEFORE HEARING ADAPTS, set the volume at a low level and slowly increase the volume level until sound can be heard comfortably and clearly without distortion. Damage to hearing is accumulative and is irreversible. Any ringing or discomfort in the ears indicates that the volume is too loud. Once a comfortable listening level is established, DO NOT INCREASE THE VOLUME LEVEL FURTHER.

In the use of headphones, please take more caution. Hearing experts say that continuous listening to loud music can damage hearing, especially when using headphones.

OPERATING INSTRUCTIONS

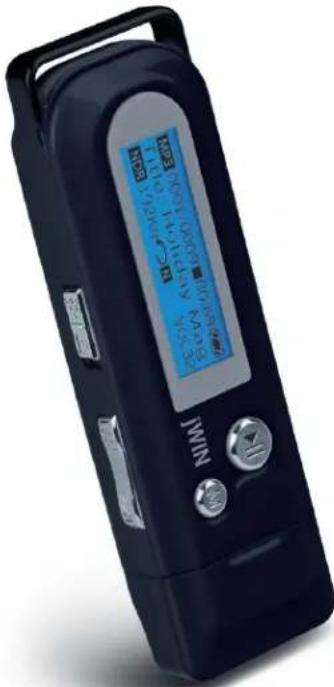

Thank you for purchasing the JX-MP131 (132, 134). Unpack the unit and make sure all the accessories are put aside so they will not be lost. We suggest that you retain the packaging materials for future transporting or moving the product in the future.

USB Plug MP3 Player with LCD Screen and FM Radio

• Compact and stylish design for maximum portability
• Liquid crystal display (LCD) with 7 color backlight
  • Built-in flash memory (1GB / 2GB / 4GB)
  • Built-in USB plug (no cables required)
• File storage
  • USB 2.0 for fast file transfer
• Integrated FM stereo radio (87.5-108MHz)
  • Supports MP3 and WMA files
  • Digital voice recorder / FM radio recorder
  • Supports multiple languages
  • Supports ID3 tag and lyric display
• Hold function
• 6 preset EQ (Normal, Pop, Rock, Classical, Jazz, Bass)
• 7 repeat modes (Normal, Repeat one, Repeat all, Random repeat, Dir normal, Dir all repeat, Dir random repeat)
• Loop for lanyard
  • Built-in rechargeable 180mAh battery

What's Included

• Necklace Type Stereo Earphones
• Driver / Instruction Manual (ENG/SP) CD

OPERATING INSTRUCTIONS

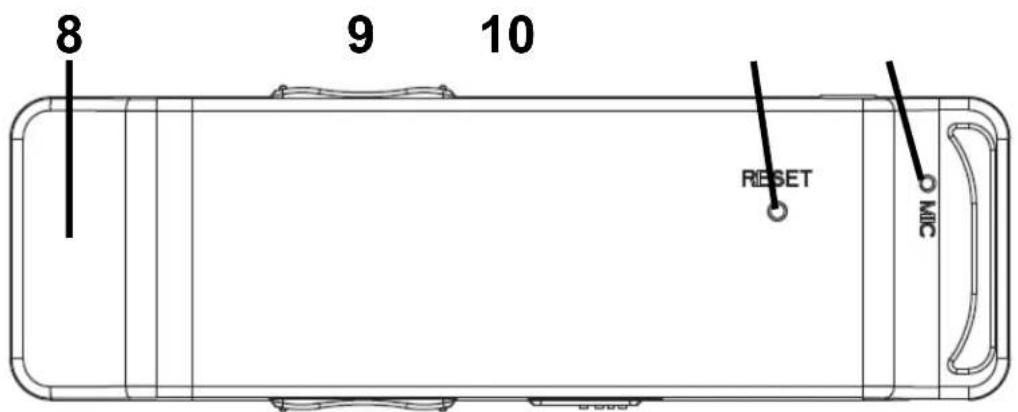

Location of Controls

OPERATING INSTRUCTIONS

Location of Controls-continued

1. Headphone jack	6. FWD/RWD ◀◀/▶▶ button
2. LCD Screen 7. M button
3. Volume - / + button 8. USB cap
4. Play / Pause ▶II button	9. Reset button
5. Hold switch 10. Microphone

Connecting the Player to a Computer

1. Remove the USB cap.
2. Install driver.
3. Plug directly into the USB port on your computer

4. It is not necessary to install this driver program under WINDOWS 2000 / WINDOWS XP or higher operating system.

5. For WINDOWS 98

6. Insert the installation CD into the CD-Rom of computer.

7. Open CD file and click the driver program/Setup.exe.
8. Please follow the prompt of installing program to finish the installation step by step.
9. When installation is done. We suggest you restart the computer.

Note: Always fully charge the built-in rechargeable batteries before using this unit.

OPERATING INSTRUCTIONS

Playing Music

1. Press and hold [▶II] to turn the player on.
2. Press and hold [M] to enter main menu.
3. Press [◄◄ / ►►] to select the music playing menu.
4. Press M] to enter music playing mode.
5. Press ▶II][to play music.

Note: This player supports lyric files of *.LRC and recognizes the synchronous playing of music and lyric. The name of lyric file must be the same with the song file.

During music playback:

1. Press [◄◄ / ►►] to select the last track or the next track.
2. Press and [|◄◄ / ►►] to fast forward or backward.
3. Press ▶II][to pause.
4. Press + / [+] to increase or reduce volume.
5. For Repeat Mode:

a. Press M] during playback to set the start point. "A" will appear on the LCD screen.
b. Press M] again to set end point A-B will appear on the screen. The player will play contents between points A and B.
c. Press M] ∅ne more time to cancel repeat mode and return to the original play mode.

OPERATING INSTRUCTIONS

Recording Mode (set sound source to MIC)

1. Press and hold [▶II] to turn the player on
2. Press and hold [ M] to enter main menu.
3. Press [◄◄ / ►►] to select Voice mode.
4. Press M] to enter.
5. Press M] again to record.
6. Press ▶II][to end and save the recording.

Play recording

1. Press and hold [▶II] to turn the player on.
2. Press and hold [M] to enter main menu.
3. Press [◄◄ / ►►] to select Voice mode.
4. Press M] [o enter.
5. Press ▶II][to play recording. (For basic operation, please refer to the instructions under Playing Music).

Note: In voice stop or pause mode, press [M] to record.

FM Radio mode

1. Press and hold [▶II] to turn the player on.
2. Press and hold [ M] to enter main menu.
3. Press [◄◄ / ►►] to select FM Radio mode.
4. Press M] to enter FM mode
5. Press M] again to enter FM submenu (Save Station, Delete Station, Auto Scan, Record, and Exit).

Save Station: Press [I◄◄ / ►►I] to select the station you wish to save. Press [M] to confirm.

OPERATING INSTRUCTIONS

FM Radio Mode-continued

Delete Station: Press [|◄◄ / ►►] to select the station you wish to delete. Press [M] to confirm.

Auto Scan: Automatically searches for FM radio stations.

Record: Press [M] to start recording. Press [▶II] to store recording

While listening to the radio, press [▶II] to select Search or

Preset.

• In Search, press [|◄◄ / ►►] to select your favorite station
• In Preset, press [|◄◄ / ►►] to select the preset station.
- Press and hold [ M] to exit FM and return to main menu.

Settings

1. Press and hold [▶II] to turn the player on.
2. Press and hold [ M] to enter main menu.
3. Press [|◄◄ / ►►] to select the Settings menu.
4. Press M] [to enter music Settings menu.

Note: Press [▶II] to back out one menu

EQ

The EQ Mode includes 6 Modes (Normal, Pop, Rock, Classical, Jazz and Bass)

Repeat Mode

The Play Mode includes 7 kinds settings, (Normal, Repeat one, Repeat all, Random repeat, Dir normal, Dir all repeat and Dir random repeat)

OPERATING INSTRUCTIONS

Settings-continued

Contrast

Set the LCD contrast

Backlight

Set the backlight time. (Always on, 5sec, 10sec, Always off).

Power Set

Set the idle shutdown time (Disable, 2Min, 5Mins, 10Mins).

Record Set

Set the sample (32kbps, 44kbps, 64kbps, 88kbps).

Language

Select the appropriate language.

Folder

• The Folder setting displays the folders and files (music and recorded) stored in the player.
• When a folder is selected, press [M] to enter folder. When a file is selected, press [M] to call out the submenu. You can play or delete the file in the folder.

Note: The Folder display the music files when you enter the Folder in the state of music play, pause, stop. The Folder displays the recorded files when you enter the Folder during record play, pause, or stop modes.

SPECIFICATIONS

• Memory: (1GB / 2GB / 4GB), Flash
- Display: 132 x 32 STN Dot Matrix LCD, with 7 color backlight
• Audio frequency: 20 – 20kHz
• Audio Output: 5mW (L) + 5mW (R), 32Ω
• Supported file format: MP3, WMA
- Supported language: English, French, Chinese, German, Spanish, Italian, Portuguese, Farsi, Russian, Greek, Korean, Japanese, Thai
- Connectivity
- 3.5mm stereo headphone jack
- Integrated USB plug (male)
• Power Sources
○ Built-in rechargeable 180mAh battery
• Frequency Range:
- FM: 87.5MHz - 108MHz
- System Requirement: Windows 98 / ME / 2000 / XP (May require driver installation)
- Unit Dimensions (W x H x D): 3.3" x 1" x 0.5" (85mm x 26mm x 13mm)
• Unit Weight: 0.8 oz (23 g)

* Features and specifications are subject to change without prior notification. Dimensions and weights are approximate.

jWIN

TEL: [phone]

FAX: [phone]

website: www.jWIN.com

© 2008 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the prior written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including photocopying, recording or use of an information storage and retrieval system. Any unauthorized distribution or reproduction of this printed material or product, or any portion thereof, will be prosecuted to the fullest possible extent of the law.
