BEFORE FIRST USE
General warnings
Top LED light
(Only on some models)
PART-6. BEFORE CALLING AFTER-SALES SERVICE
EN -20-
TECHNICAL DATA
Old and out-of-order fridges 26
Safety warnings 26
Installing and operating your fridge 27
Before Using your Fridge 27
THE VARIOUS FUNCTION AND POSSIBILITIES 28
Control panel 28
Fridge partition temperature setting button 28
Super Cooling Mode 28
Fridge Temperature Settings 29
Temperature Settings Warnings 29
Accessories 30
The Fresh Dial....30
ARRANGING FOOD IN THE APPLIANCE 31
CLEANING AND MAINTENANCE 33
Defrosting the Refrigerator 33
TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 34
BEFORE CALLING YOUR AFTER SALES SERVICE 35
Hints for Energy Saving 36
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 37
TECHNICAL DATA 39
CUSTOMER CARE AND SERVICE 39
The operating instructions apply to several models. Differences may therefore occur.
EN FIRE Warning;
Risk of fire / flammable materials
PART - 1. BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:
If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.
- While carrying and positioning the fridge, do not damage the cooler gas circuit.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- This appliance is intended to be used in household and domestic applications such as:
- staff kitchen areas in shops, offices and other working environments.
- farm houses and by clients in hotels, motels and other residential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate
supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
- This appliance is not intended for use at altitudes exceeding 2000 m.
To avoid contamination of food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase in the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
- One-, two- and three-star compartments are not suitable for the freezing of fresh food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
Old and out-of-order fridges
- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
- Old fridges contain isolation material and refrigerant with CFC. Therefore, take care not to harm the environment when you are discarding your old fridges.
Disposal of your old appliance
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Notes:
- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
- This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.
Safety warnings
- Do not connect your fridge to the mains electricity supply using an extension lead.
- Do not use damaged, torn or old plugs.
- Do not pull, bend or damage the cord.
- Do not use plug adapter.
- This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
- Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
- Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.
Installing and operating your fridge
Before using your fridge for the first time, please pay attention to the following points:
• The operating voltage for your fridge is 220-240 V at 50Hz. - The plug must be accessible after installation. - Your fridge may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge starts to cool. - Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician. - Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance. - The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance). • We do not accept responsibility for any damages that occur due to ungrounded usage. - Place your fridge where it will not be exposed to direct sunlight. - Your fridge must never be used outdoors or exposed to rain. - Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens. - If your fridge is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface. - Do not cover the body or top of fridge with lace. This will affect the performance of your fridge. - Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance. - Do not place heavy items on the appliance. - Clean the appliance thoroughly before use (see Cleaning and Maintenance) - Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge after cleaning. - The installation procedure into a kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.
Before Using your Fridge
- When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.
- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.
THE VARIOUS FUNCTION AND POSSIBILITIES
Control panel
If your product has lighting
When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.
This button allows setting temperature of the fridge. In order to set values for fridge partition, press this button. Use this button also to activate Super Cooling mode.
Alarm light
In case of a problem within the fridge, the alarm led will release red light
Super Cooling Mode
When would it be used?
• To cool huge quantities of food. • To cool fast food. • To cool food quickly. • To store seasonal food for a long time.
How to use?
- Press the temperature set button until the super cooling light comes on. • The super cooling LED will light during this mode.
- For optimal appliance performance in maximum cooling capacity, set the appliance to active Super Cooling mode 6 hours before you put fresh food into the fridge.
During this mode:
If you press the temperature set button, the mode will be cancelled and the setting will be restored from step 2.
Note: "Super cooling" mode will be automatically cancelled after 6 hours or when the cooling sensor temperature drops below 2°C.
Fridge Temperature Settings
- The initial temperature of the Setting Display is 5°C.
- Press the fridge setting button once.
- Every time you press the button, the setting temperature will increase. (2°C, 4°C, 5°C, 6°C, 8°C, super cooling)
- If you press the fridge setting button until the super cooling symbol is displayed on your fridge Settings Display and you do not press any button within the following 3 seconds,
Super cooling will blink.
- If you keep on pressing, it will restart from last value.
Temperature Settings Warnings
- It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency.
- Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
- When you first switch on the appliance, allow it to operate for 24 hours in order to reach normal operating temperature. During this time, do not open the door or place a lot of food inside the appliance.
- If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.
- Your fridge is designed to operate within specific ambient temperature ranges, according to the climate class stated on the information label. We do not recommend operating your fridge outside the stated temperature values limits.
- Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.
Climate class and meaning:
T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.
ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.
N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.
SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.
Stand-By Mode
How To Activate?
Set "2" value and push set button until all leds are blink three times.
How It Works?
In stand-by mode; all components will be disabled. If user push set button while in stand-by mode, all leds will blink three times to show stand-by mode is active.
How To Deactivate?
Push and hold set button until display returns to normal working. After the mode is deactivated, the "Alarm LED" may light on the display because the product may be hot. The "Alarm LED" will turn off when the product reaches normal temperature.
Accessories
The Turbo Fan (if available)
Do not block the air inlet and outlet openings when storing food, otherwise air circulation provided by the turbo fan will be impaired.

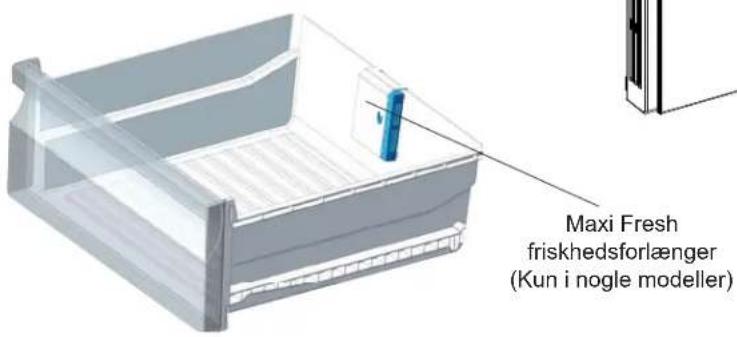

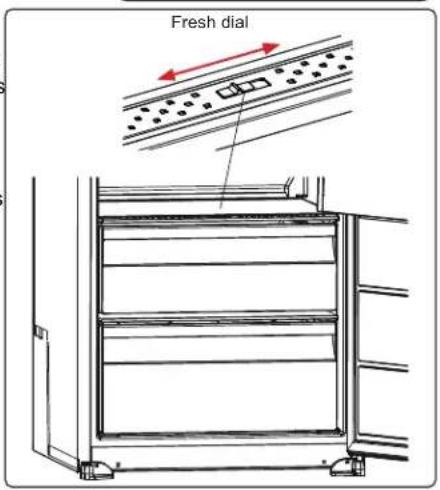

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within.
The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.
Visual and text descriptions in the accessories section may vary according to the model of your appliance.
ARRANGING FOOD IN THE APPLIANCE
- To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
- Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
- Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
- We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
- Store loose fruit and vegetable items in the crisper containers.
- Store loose fruit and vegetables in the crisper.
- Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) from being affected by ethylene-releaser fruits (banana, peach, apricot, fig, etc.).
- Do not put wet vegetables into the refrigerator.
- Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
- To avoid cross-contamination, do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
- Do not put food in front of the air flow passage.
- Consume packaged foods before the recommended expiry date.
- For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4 °C.
- The temperature of the fridge compartment should be in the range of 0-8 °C. Fresh foods below 0 °C are iced and rotted; bacterial load increases above 8 °C, and spoils.
- Do not put hot food in the refrigerator immediately; wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
- Meat, fish, etc. should be stored in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables (if available).
- To prevent cross contamination, meat products and fruit vegetables are not stored together.
- Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.
NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.
The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.
| Food | Maximum storage time | How and where to store |
| Vegetables and fruits 1 week | Vegetable bin | |
| Meat and fish | 2 - 3 Days | Wrap in plastic foil, bags, or in a meat container and store on the glass shelf |
| Fresh cheese 3 - 4 Days On the designated door shelf |
| Butter and margarine 1 week | On the designated door shelf |
| Bottled products e.g. milk and yoghurt | Until the expiry date recommended by the producer | On the designated door shelf |
| Eggs 1 month On the designated egg shelf | |
| Cooked food 2 Days All shelves | |
CLEANING AND MAINTENANCE
Disconnect the unit from the power supply before cleaning.
Do not wash your appliance by pouring water on it.
Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.
- Make sure that no water enters the lamp housing and other electrical components.
- The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.
- Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.
- Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.
The power supply must be disconnected during cleaning.
Defrosting the Refrigerator
- Defrosting occurs automatically in the refrigerator compartment during operation; the water is collected by the evaporation tray and evaporates automatically. • The evaporation tray and the water
drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out.
- You can also clean the drain hole by pouring 1/2 glass of water down it.
Replacing the LED strip
One or two LED strips are used in the fridge to illuminate your appliance. Please call the service man.
Note: The number and location of LED strips may vary depending on the model.
!!! Some versions may not have illumination.
PART - 5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION
Transportation and Changing Positioning
- The original packaging and foam may be kept for re-transportation (optional).
- Fasten your appliance with thick packaging, bands, or strong cords and follow the instructions for transportation on the packaging.
- Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting.
Always carry your appliance in the upright position.
BEFORE CALLING YOUR AFTER SALES SERVICE
Errors
Your fridge will warn you if the temperatures for the fridge are at improper levels or if a problem occurs with the appliance. In case of a problem within the fridge, the alarm LED will release red light.
| Alarm indicator LED is turning on | MEANING WHY WHAT TO DO |
 | "Failure" Warning | There is/are some part(s) out of order or there is a failure in the cooling process. The product is plugged for the first time or a long-time power interruption for 1 hour. | Check the door is open or not and check if the product working 1 hour. If the door is not open and the product had worked 1 hour, call service for assistance as soon as possible. |
If your fridge is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.
Your fridge is not operating
Check if:
- There is power.
- The plug is correctly connected to the socket. The plug or mains fuse has blown.
- The socket is faulty. Examine this by plugging your fridge into a working socket.
Check that:
- You have not overloaded the appliance. The fridge temperature is set to 8. The door is closed perfectly. There is no dust on the condenser.
- There is enough space at the rear and side walls.
Icing on the inside of the cabinet
Check if:
The doors are fully closed. Integrated cabinets may not be closed completely, if they are not correctly closed every time, and icing can form. The appliance is not able to defrost automatically in that case. Note that refrigerators/freezers without NoFrost are not self-defrosting.
Your fridge is operating noisily
Cracking (ice cracking) noise occurs:
During automatic defrosting. When the appliance is cooled or warmed (due to expansion of appliance material).
Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.
Bubbling noise and splash: Due to the flow of the refrigerant in the tubes of the system.
Air blowing noise: Indicates normal operation of the system due to the circulation of air.
There is a build-up of humidity inside the cooler
Check if:
- All food is packed properly. Containers must be dry before being placed in the fridge.
- The fridge door is opened frequently. Humidity of the room enters the fridge when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.
The door is not opening and closing properly
Check if:
- There is food or packaging preventing the door from closing
- The door compartments, shelves and drawers are placed properly • The door joints are broken or torn
- Your fridge is level.
Recommendations
- If the appliance will not be used for a long period of time (such as during holidays), disconnect the plug. Defrost and clean the refrigerator, leaving the door open to prevent the formation of mildew and odour.
- To stop the appliance completely, unplug from main socket (for cleaning and when the door is left open).
- If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.
- This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these instructions, we emphasize that the manufacturer and the dealer will not be responsible for any repair or failure within the guarantee period.
Hints for Energy Saving
- Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
- Allow warm food and drinks to cool before placing them inside the appliance.
- Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
- Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
- Keep the covers of the different temperature compartments (such as the crisper and chiller) closed.
- The door gasket must be clean and pliable. In case of wear, if your gasket is detachable, replace the gasket. If not detachable, you have to replace the door.

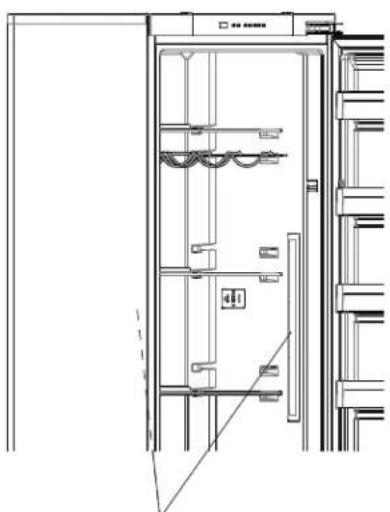

PART - 7. THE PARTS OF IT COMPARTMENTS
This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.
- Control panel
- Turbo fan *
- Wine rack *
- Fridge shelves
- Upper crisper cover *
- Upper crisper *
- Bottom crisper cover
- Bottom crisper
- Bottle shelf
- Adjustable door shelf */ Door shelf
- Door shelves
- Egg holder
* In some models
1.1 Dimensions
EN -38-
TECHNICAL DATA
The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.
The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.
Keep the energy label for reference together with the user manual and all other documents provided with this appliance.
It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance. See the link www.theenergylabel.eu for detailed information about the energy label.
Appliance for any EcoDesign verification shall be compliant with EN 62552.
Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual. Please contact the manufacturer for any other further information, including loading plans.
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.
The information can be found on the rating plate. Subject to change without notice.
The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.
Visit our website:
www.eico.dk
Contents
BEFORE USING YOUR REFRIGERATOR 41
Maxi-fresh preserver
Top LED strip
(On some models)
PART - 6
INNAN DU KALLAR SERVICE
OSA -6. ENNEN KUIN OTAT YHTEYTTÄ HUOLTOON
Maxi Fresh Preserver 85
RETNINGSLINJER FOR OPPBEVARING AV MAT ..... 86
RENGJ∅RING OG VEDLIKEHOLD 87
Tining 88
Skifte ut LED-strimmelen 88
TRANSPORTERE OG FLYTTE 89
Maxi Fresh Preserver
DEL - 6. F∅R DU RINGER ETTER SERVICE
Knuselyd (isknusing):
