RP4-FD11 - Car audio interface PAC - Free user manual and instructions

Product Type	Radio Replacement Interface
Compatibility	Select Ford/Lincoln/Mercury vehicles with MSCAN databus radios
Retained Features	Steering wheel controls, rear seat entertainment, rear seat controls, THX/Sony amplifier
Outputs	RAP (Retained Accessory Power), VSS (Vehicle Speed Sensor), illumination, reverse trigger, parking brake
SWC Compatibility	Alpine, JVC, Kenwood, Clarion, Pioneer, Sony, Valor, Boyo, Dual, Visteon, Advent, Blaupunkt, OEM
Programming	Pre-programmed for default SWC functions; optional reassignment via programming button
Radio Select Switch	Rotary switch on side must be set to correct radio brand before installation
Firmware Update	Via PAC-UP interface (sold separately); visit www.pac-audio.com/firmware
Power	12V DC vehicle battery; Acc output (1 amp)
LED Indicator	Flashes when SWC button is pressed; indicates programming status
Installation	Direct wiring to vehicle harness; no cutting required for most applications
Vehicle-Specific Notes	SYNC must be disconnected for voice button in factory amplified systems; RSE audio mode selection required
Warranty	Standard PAC warranty; contact support for details
Manual Pages	5 pages (EN)

Frequently Asked Questions - RP4-FD11 PAC

Which vehicles are compatible with the PAC RP4-FD11?

The RP4-FD11 is compatible with select Ford, Lincoln, and Mercury vehicles that use an MSCAN databus radio. Examples include many models from 2000s to 2010s. Check the manual or PAC website for a full list.

Do I need to program the steering wheel controls?

No, the interface comes pre-programmed with default SWC functions. You only need to program if you want to reassign buttons. To restore defaults, press the program button once and wait 7 seconds until the LED flashes 4 times.

How do I connect the SWC wire to my aftermarket radio?

Use the SWC connector on the interface. For Kenwood, newer JVC, OEM, or Blaupunkt, use the Blu/Yel wire. For Alpine, JVC, Clarion, Pioneer, Sony, Valor, Boyo, Dual, Visteon, or Advent, use the 3.5mm jack. Your aftermarket radio must support a wired remote input.

What is the radio select rotary switch for?

The rotary switch on the side of the interface must be set to the correct position for your aftermarket radio brand before plugging it in. Refer to the setting chart in the manual (e.g., Alpine=1, Pioneer=7, etc.).

How does the RSE (Rear Seat Entertainment) audio work?

Plug the RSE RCA cables into the AUX input of the aftermarket radio. On the RSE monitor, press the Dual Zone button to toggle between Single Play (audio through all speakers) and Dual Play (audio to IR headphones, front speakers muted). The RSE must be in AUX mode to pass audio.

Why is the factory subwoofer not playing?

The subwoofer RCA cables (from the 8-pin plug) must be connected to the Subwoofer or Non-Fading output of your aftermarket radio. Also verify that the radio select switch is set correctly.

Can I update the firmware?

Yes, the RP4-FD11 can be updated using the PAC-UP interface updater (sold separately). Visit www.pac-audio.com/firmware for available updates and instructions.

What does the LED on the interface indicate?

The LED turns on when ignition is on and the interface is powered. It flashes when a SWC button is pressed. During programming, it turns off when a button is learned and flashes 4 times to confirm programming end.

Why is my voice button not working?

In vehicles with a factory amplified system, the SYNC module must be disconnected for the voice button to work. Otherwise, pressing the voice button will mute the rear speakers. Also, for analog SWC vehicles, you may need to wire the voice button directly.

What should I do if the rear speakers mute when pressing the voice button?

This occurs if SYNC is still connected in amplified vehicles. Disconnect the SYNC module to resolve. Additionally, ensure that the RSE is not in Dual Play mode if you expect rear speaker audio.

USER MANUAL RP4-FD11 PAC

Introduction & Features

The RP4-FD11 interface allows the replacement of a factory radio in select Ford/Lincoln/Mercury vehicles with MSCAN databus radios. Using this interface will retain factory features such as steering wheel controls (SWC), rear seat entertainment (RSE), Rear Seat Controls (RSC) and the THX or Sony amplifier when the original radio is removed. The RP4-FD11 also provides data bus driven outputs such as retained accessory power (RAP), vehicle speed sensor (VSS), illumination, reverse trigger and parking brake.

Important Notes

1. The radio select rotary switch on the side of the interface must be adjusted to the proper radio setting before plugging the interface into the vehicle (see below for setting chart).
2. The interface comes pre-programmed for all of the vehicles factory SWC functions and does not require programming unless you wish to re-assign the SWC functions to different buttons. The SWC can always be restored to default settings by pressing and releasing the program button on the side of the interface once and waiting 7 seconds for the LED to flash 4 times.
3. RSC & LCD buttons that are identical to the SWC will mimic the SWC one for one. All other buttons cannot be programmed.
4. The LED will flash whenever a SWC button is pressed.
5. The RSC must be in AM mode for Track +/- to function. RSC must be set to AUX mode to pass audio to aftermarket radio.
6. Vehicles equipped with a factory amplified system must disconnect SYNC if they wish to use the voice button. Not disconnecting SYNC will result in the rear speakers muting every time the voice button is pressed.
7. Feeding too strong of an audio signal into the headrest monitors will cause the audio output to shut down. If this happens you must turn the tv off and on and lower the audio signal.

Wiring Connection Chart

Interface Connector

Red / White P.B. Output (-)

Purple / White VSS Output

Blue / White Amp Turn On Input

Red Acc. Output (1 amp)

Orange / White Illum. Output (+)

Green Reverse Output (+)

Vehicle Connector

Yellow Battery +12v
Black Ground
Blue Antenna On Input
White Front L + input
White / Black	Front L - input
Grey	Front R + input
Grey / Black	Front R - input
Green	Rear L + input
Green / Black	Rear L - input
Purple	Rear R + input
Purple / Black	Rear R - input

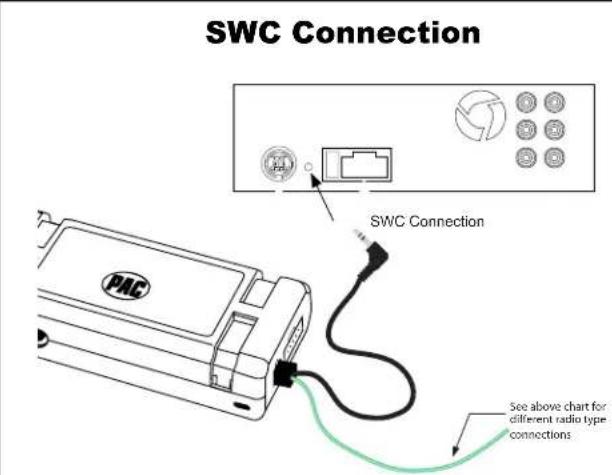

SWC Connector

Blu/Yel	Kenwwod, Newer JVC, OEM or Blaupunkt
3.5mm Jack	Alpine, JVC, Clarion, Pioneer, Sony, Valor, Boyo, Dual, Visteon or Advent

Illustration / Schematic

IMPORTANT! If you wish to use the Voice, OK or Phone button in vehicles equipped with analog SWC you MUST wire them into the RP4-FD11. The wires you need can be found by removing the steering wheel column and accessing the connector shown in Fig. 1. Once you have located the plug you must cut the wires located in pins 4 & 6 as shown in Fig. 2 (Wire colors may vary by vehicle). Finally you must connect the steering wheel side of pins 4 & 6 to the RP4-FD11 interface connector as shown in Fig. 3.

Fig. 1 Fig. 2

Installation Steps

SET RADIO SELECT SWITCH

Alpine	Advent, BOYO, Dual, Visteon, Sony	Blaupunkt	Clarion JVC	Kenwood OEM	Pioneer	Valor
1784	23675

1. The radio select rotary switch on the side of the interface must be adjusted to the proper radio setting before plugging the interface into the vehicle.
2. Make all connections as described in the connection chart on page 1.
3. If the vehicle is equipped with RSE plug the RCA cables labeled "RSE" into the aftermarket radios AUX input. The RSE RCA cables are necessary to allow the headunit to play the RSE media audio through the cabin.
4. If the vehicle is equipped with a factory subwoofer plug the RCA cables connected to the 8 pin plug into the Subwoofer or Non-Fading output of the aftermarket radio.
5. Connect the SWC wire according to the chart on page 1 (aftermarket radio MUST support a wired remote input).
6. If you wish to reassign functions to the SWC follow the programming instructions in the next section.

Optional Steering Wheel Control Programming

IMPORTANT! The interface comes pre-programmed for the functions listed in the chart below and does not require programming unless you wish to re-assign the SWC functions to different buttons. The SWC can always be restored to default settings by pressing the program button on the side of the interface once and waiting for the timeout.

Default SWC Button Assignments

	Alpine	JVC	Kenwood	Clarion	Valor	OEM	Sony/Pioneer	Blaupunkt
Volume +	Volume +	Volume +	Volume +	Volume +	Volume +	Volume +	Volume +	Volume +
Volume -	Volume -	Volume -	Volume -	Volume -	Volume -	Volume -	Volume -	Volume -
Media	Source	Source	Source	Source	Source	Source	Source	Source
Track +	Track +	Track +	Track +	Search +	Track +	Track +	Track +	Track +
Track -	Track -	Track -	Track -	Search -	Track -	Track -	Track -	Track -
Voice	Mute	Attenuation	Mute	Mute	Mute	Mute	Mute	Mute
Phone	Receive	Phone Receive	Answer	Send/End	Cursor Up	Answer	Answer Call	Disc Up
OK	Ent/Ply	Select	Play	Band	OK Play/O	K	Phone Menu	OK

If you wish to re-assign the SWC functions, the interface must be programmed in the specific order shown in the chart below. If you come across a function in the chart that your steering wheel does not have, or you do not want to program, press and release the program button on the side of the interface to skip that function. The LED will flash off and on confirming that you have successfully skipped that function and are ready to proceed to the next one.

SET RADIO SELECT SWITCH

Alpine	Advent, BOYO, Dual, Visteon, Sony	Blaupunkt	Clarion	JVC	Kenwood	OEM	Pioneer	Valor
1	7	8	4	2	3	6	7	5

Optional Programming Order

	Alpine JVC	Kenwood Clarion	Valor OEM				Advent, Boyo, Dual, Visteon, Sony	Pioneer Blaupunkt
1	Volume +	Volume +	Volume +	Volume +	Volume +	Volume +	Volume +	Volume +
2	Volume -	Volume -	Volume -	Volume -	Volume -	Volume -	Volume -	Volume -
3	Mute	Mute	Mute	Mute	Mute	Mute	Mute	Mute
4	Preset +	Source	Source	Source	Source	Source	Preset +	Preset +
5	Preset -	Track +	Play	Search +	Track +	Next	Preset -	Preset -
6	Source	Track -	Track +	Search -	Track -	Previous	Source	Source
7	Track +	Band/Disc +	Track -	Band	Up Cursor	Play/Ok	Track +	Track +
8	Track -	Preset/Disc -	Disc/FM +	Send/End	Down Cursor	Band	Track -	Track -
9	Power	Select	Disc/AM -	Send	Ok	Up Cursor	Band	Band
10	Enter/Play	Attenuation	Answer	End		Down Cursor		Phone Menu
11	Band/Program	Phone Receive				BT Answer		Answer Call
12	Receive	Phone Reject				BT Hangup		End Call
13	End	Voice Dial						Voice Activation
14		Power

Optional Steering Wheel Control Programming (cont.)

Step A.

Turn the vehicle ignition to the ON position.

Step B.

Press and hold the programming button.

LED will turn off.

Step C.

Release the programming button. The LED will turn back on.

Step D.

Within 7 seconds, press and release the button that is to be learned on the steering wheel.

The LED will turn off during this process.

Step E.

Release the button.

The LED will turn on back on.

Step F.

If you need to program more buttons, repeat steps D & E for each additional audio function on the steering wheel.

Program remaining buttons

Step G.

After all buttons are programmed

Once programming is

completed, wait 7 seconds.

The LED will flash four times indicating the end of programming.

Testing & Verification

1. Turn the ignition on. The LED on the interface will turn on & the +12v accessory wire will turn on.
2. Turn on the radio & check balance & fade. Note: Factory amplified Systems will not fade as neither the aftermarket radio or the RP interface have the ability to control the amplifier's fader.
3. Verify that the factory subwoofer (if present) is playing
4. Verify that all SWC are functioning properly.
5. Turn off vehicle & remove key. RAP will be active & keep the radio on for 10 minutes or until the drivers door is opened.
6. The LED & radio will turn off when RAP turns off or the drivers door is opened.

Rear Seat Entertainment (RSE); If equipped

If you would like for the RSE system's audio to play through the aftermarket radio:

First set the aftermarket radio to Aux input. Press the Power button on the RSE & insert a DVD. You should now hear the RSE audio on the aftermarket radio. If the RSE audio is only playing on the front speakers the RSE is set to dual zone mode. Press the Dual Zone button on the RSE controls until "Single Play" is displayed across the top of the RSE screen.

RSE Audio Modes - There are 2 different modes for the RSE audio, they are Single Play & Dual Play.

1. Single Play - Press the Dual Zone button on the RSE controls until "Single Play" is displayed across the top of the RSE screen. In this mode the RSE audio is played throughout all speakers in the cabin.
2. Dual Play - Press the Dual Zone button on the RSE controls until "Dual Play" is displayed across the top of the RSE screen. In this mode the rear speakers will be muted & the RSE audio is transmitted through the factory IR headphones while the front passengers can now listen to whatever source they like.

RSE Operation Notes:

1. If the vehicle is equipped with RSE with single play/ dual play button on the monitor in the headrests, the driver side monitor is the master source unit. The source on
   the passenger headrest cannot be viewed on the driver side.
2. Both monitors must turn headphones off in order to hear rse audio through radio.
3. Monitors without single play/dual play button on monitor operate independently and audio can never be passed to the new radio. In these vehicles rse audio comes from aux in on back of center console.
4. In 2011+ vehicles the car must be in ignition mode for the RSE to operate properly. Being in acc mode will cause erratic behavior.

Product Updates (Firmware)

The RP4-FD11 can be updated with new firmware as it becomes available using the PAC-UP interface updater (sold seperatly).

Please visit www.pac-audio.com/firmware for available updates.

Vehicles With Overhead Monitor

Vehicles With Headrest Monitor
