RAD-OIL FREE - Heating appliance Grunkel - Free user manual and instructions

Brand	Grunkel
Model	RAD-OIL FREE
Type	Oil-free electric radiator
Power Supply	220-240V ~50Hz
Power Consumption	2000W
Heating Settings	Off, Low, Medium, High
Thermostat	Adjustable
Overheating Protection	Yes, automatic shut-off
Tip-over Protection	Yes, automatic shut-off
Assembly Required	Yes, base legs with screws
Cleaning	Dry or slightly damp cloth; unplug and cool down first
Storage	Disconnect, cool down, store in original box in dry place
Safety Certifications	RAEE 2002/96/EC compliance
Warranty	Standard Grunkel warranty (conditions apply)

Frequently Asked Questions - RAD-OIL FREE Grunkel

How do I set the desired heat level on the Grunkel RAD-OIL FREE?

Turn the power switch to one of the three heat positions: Low, Medium, or High. Then adjust the thermostat knob to your preferred room temperature.

What should I do if the heater automatically shuts off?

The heater has both overheating protection and tip-over protection. If it shuts off, turn the power switch off, unplug it, and let it cool completely. Check for blockages or if it has fallen over. Once cool, plug it back in and try to turn it on. If it continues to shut off, contact Official Technical Support.

Can I use this heater in a bathroom or near water?

No. The manual warns not to use the heater near a bathtub, shower, or swimming pool. Keep it away from water to avoid electrical shock.

How do I clean the Grunkel RAD-OIL FREE?

Unplug the heater and allow it to cool completely. Use a dry or slightly damp cloth to wipe the exterior. Do not use aggressive chemicals or immerse the heater in water. Clean the air vents periodically with a vacuum to remove dust.

What is the minimum safe distance from walls or furniture?

Place the heater at least 50 cm from any wall and make sure there are no heat-sensitive or flammable objects within 1 meter around the heater.

Does the Grunkel RAD-OIL FREE operate in vertical position only?

Yes. The heater must be used exclusively in a vertical position. Using it in any other position could cause accidents.

How do I assemble the heater?

Place the heater upside down on a soft surface. Attach the two support legs using the provided screws on each side. Once secure, turn the heater upright onto its base.

Is the Grunkel RAD-OIL FREE safe for use around children?

The heater can get very hot. Children under 8 years old should not use or clean it without adult supervision. Keep the heater and its cord out of reach of children.

How should I store the heater when not in use?

Unplug the heater and let it cool completely. Place it and the instruction manual in its original packaging box and store in a dry, well-ventilated place. Do not place heavy objects on the box.

What should I do if the power cord is damaged?

Do not operate the heater if the power cord or plug is damaged. Contact Official Technical Support for a replacement or repair by a qualified professional.

USER MANUAL RAD-OIL FREE Grunkel

White rectangular electrical heater with six panels, mounted on a stand (no visible text or symbols)

A couple smiling while looking at a document together, with cardboard boxes in the background (no visible text or symbols)

Modern flat-screen TV displaying multiple glossy blue circular objects against a white background, set against a red and white background (no text or symbols visible)

Exterior view of a modern kitchen blender with a black handle and blue control knob (no text or symbols visible)

White microwave oven with control knobs and a screen, set against an orange background (no text or symbols visible)

White portable electric heater with cooling fan and wheels (no visible text or symbols)

Black octagonal oven with control knobs and a clear glass interior, set against an orange background (no text or symbols visible)

3D rendering of a gray vacuum cleaner with orange internal components, set against a solid teal background (no text or symbols visible)

White portable toaster with a black button on the front panel, set against a solid purple background (no text or symbols visible)

White and black blender with green juice being placed on top, against a solid purple background (no text or symbols visible)

Metallic coffee maker with black handle against a solid yellow background (no text or symbols visible)

Exterior view of a modern office desk fan with black and white blades against a blue background (no text or symbols visible)

White digital kitchen scale with a digital display showing 650, set against a solid pink background (no text or symbols on the scale itself)

Blue and white steam iron on a green background (no text or symbols visible)

White kitchen grater with black handle and side slots against purple background (no text or symbols visible)

DESCUBRE TODO LO QUE PODEMOS HACER POR TI EN

www.grunkel.com

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

This instruction manual is an accurate reproduction of the specifications, operation and look of the product you have just bought, except for typographical, print or translation errors. The specifications, operation and features of this product are subject to change without further notice.

Technical line drawing of a server rack with mounting brackets and ventilation slots (no text or symbols)

Funcionamiento

- Please, read carefully the entire instruction manual before using it.

- Pay special attention to the safety indications.

- Keep this instruction manual. If you hand over this application to another person, these instructions must be also be transferred.

- Keep also the guarantee card, purchase ticket or invoice. If possible, keep the original box with all the accessories included for future inquiries.

General safety instructions

Before using the appliance ensure that the main voltage corresponds to the voltage displayed on the rating label. Always plug the appliance into a suitable electrical outlet.

In order to avoid electrical shock risk, please do not inmerse the power cord nor the appliance into water or any other kind of liquid. Check the cleaning instructions.

Do not use unauthorized accessories. This will result in cancellation of the guarantee and could cause accidents.

grunkel

Do not keep the power cording hanging from the table or the shelf. Keep it away from hot sources. Do not allow sharp or blunt objects to touch it. Do not operate the appliance if the power cord or the plug are damaged, or if you notice unusual operation of the appliance.

Do not leave the appliance operating without supervision. Always switch off the appliance and unplug it. Pull the plug, not the power cord.

If any repair is needed, or if the power cord must be replaced, please ask a aqualified professional or contact the Official Technical Support.

CAUTION: to ensure children's safety, keep away packaging material such as plastic bags, carton boxes, etc.

Always watch the appliance when using it near children Never leave the appliance without supervision.

Do not use the appliance near furniture, curtains, sheets or papers.

Do not use the appliance near liquids or flammable materials.

Do not place the appliance near or under an electrical outlet.

Do not let the appliance operating without supervision.

In order to avoid overheating, do not cover the appliance while it is operating.

In case the power cord has been damaged, please get in contact with the Official Technical support.

CAUTION: never cover the appliance as this may use a fire. Do not use as clothesline to dry or warmthes, towels, sheets, etc. If the appliance and its e outlets are covered it may cause a fire.

The appliance must be placed on a plain, stable surface.

Turn off the appliance and unplug it before cleaning. When the appliance is not in use, turn it off and unplug it. Ensure all parts that may cause hazard to children are out of their reach.

Do not place the power cord over the appliance while it is hot.

The appliance must be used in vertical position exclusively.

Do not use the appliance near a bathtub, shower or swimming pool.

grunkel

Keep the appliance clean. Do not allow objects to enter or cover the air outlets. This may cause an electrical shock, fire or damage to the appliance.

Never attempt to open or dismantle the appliance or remove any of its internal parts.

WARNING: some parts of the appliance may reach very hot temperatures and cause burnings. Be extremely careful if the appliance is to be used by children or vulnerable people.

After its use, do not store the appliance until it has cooled down completely. Store the appliance in a dry and clean place while it is not being used.

Accumulated dust and dirt is the most common cause of overheating in the appliance. Ensure they are removed periodically by vacuum or cleaning the air outlets.

Do not place the appliance on a carpet, and do not cover the power cord under a carpet. Place the power cord far from common walking zones in order to avoid tripping.

The appliance should be place at least 50cm far from any wall while it is operating.

Do not use the appliance outdoors.

Do not handle the appliance with wet hands.

WARNING: In case of improper use, injuries and loss of guarantee may occur.

Children must be supervised so they do not play with the appliance.

Keep the appliance and its cord out of reach of children under 8 years old.

WARNING: This appliance is intended for domestic purposes exclusively. Do not use for commercial applications.

CAUTION!

CHILDREN UNDER 8 YEARS OLD SHOULD NOT USE NOR CLEAN THIS APPLIANCE WITHOUT THE SUPERVISION OF AN ADULT. NEITHER CAN BE USED NOR CLEAN BY PEOPLE WITH REDUCED PHYSICAL, MENTAL OR SENSORIAL CAPABILITIES, WITHOUT EXPERIENCE OR KNOWLEDGE CONCERNING THE USE OF THE APPLIANCE, OR WITHOUT HAVING RECEIVED PROPER TRAINING UNDER DIRECT SUPERVISION FROM AN EXPERIENCED PERSON RESPONSIBLE FOR THEIR SAFETY.

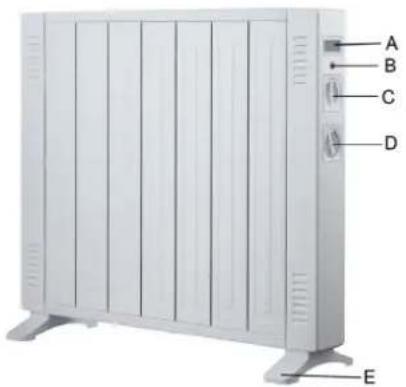

Part identification

Letter Description
A Handle
B Light indicator
C Power switch
D Adjustable thermostat
E Base

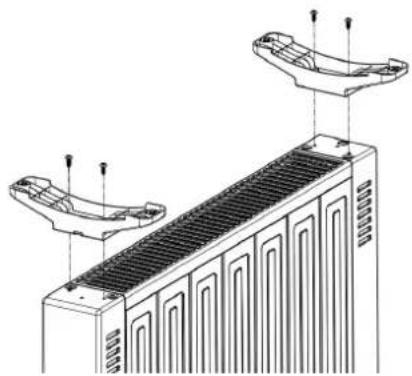

Assmeby

Remove all packaging from the appliance and place it upside down on a soft surface (such as a carpet). Next place the corresponding support legs on each side of the appliance and fasten the corresponding screws. Once they are safely assembled, you can turn over the appliance and place it in horizontal position on its base. The appliance will be ready for use.

Technical line drawing of a server rack with mounting brackets and ventilation grilles (no text or symbols)

Operation

Place the appliance on a heat-resistant flat stable surface. Make sure there are no heat-sensitive or flammable objects and materials in at least 1 meter around. Using the appliance in any other position could cause accidents.

Set the thermostat knob at the minimum position and the power switch at the 0 position. Plug the appliance to a suitable electrical outlet.

Set the power switch to the desired position:

Position Power
0 OFF
●	Low
●●	Medium
●●●	High

Overheating protection device

This appliance is equipped with a safety device that turns it off in any overheating is detected. If this device is activated, please turn off the appliance immediately, unplug it from the electrical outlet and allow it to cool down completely. Check if there is any object blocking the air inlets and outlets. Try to turn on the appliance again.

If the appliance is not working or if the safety device turns off the appliance again, please get in contact with the Official Technical Support for its revision and repair.

Tip-over protection device

This heater is protected with a safety switch that turns off the appliance automatically when the heater falls over, or is at an excessive angle from the horizontal. This helps prevent accidents, and the heater will resume operation when it is put back upright.

Cleaning

Before cleaning the appliance, check it is turned off and unplugged from the electrical outlet, and that it has cool down completely after its use.

Clean frequently the dust accumulated in the plates.

Use a dry or slightly moistened cloth for cleaning.

Do not use aggressive or chemical cleaning products directly on the appliance.

Never immerse the unit into water and never allow water to get into the appliance.

Storage

Always disconnect the appliance and allow it to cool down completely before storing it.

If the appliance is not going to be used for a long time, place the unit and the instruction manual in its original packaging box and store it in a dry and well-ventilated place.

Do not place heavy objects on top of the box while it is stored, as this may damage the appliance.

For your safety

WARNING

This appliance is intended for domestic use. Do not use it for commercial purposes. If so, guarantee would be cancelled.

220-240V \~50Hz / 2000W

Product disposal

Regulation regarding waste from electronic appliances according to RAEE 2002/96/EC. This symbol means the appliance can not be treated as regular domestic waste; it must be returned to the distributor, handed over the corresponding electronic product collection point or delivered to the collection point empowered for such purpose, so its components are recycled and not mixed within domestic waste.

You can also contact your local waste collection service, so it can be collected and treated accordingly following the environment protection instructions, or to receive proper information about the steps to follow for the correct disposal of the appliance.

The correct disposal of an appliance implies avoiding negative consequences for both environment and health. A proper disposal allows to save a significant amount of energy and resources. As a reminder of the necessity of disposing the appliances separately, the product displays the symbol of a crossed out garbage bin.

Technical line drawing of a server rack with mounting brackets and ventilation slots (no text or symbols)
