| Product Type | LED Power Supply / Driver |
| Model | HLG-120H (Vivotek) |
| Input Voltage Range | 90~305VAC (127~431VDC) |
| Input Frequency | 47~63Hz |
| Output Voltage Options | 24V, 48V, 54V |
| Output Current Range | Up to 5A (depending on model) |
| Output Power | 120W (124.2W max for 54V model) |
| Efficiency | Up to 93.5% |
| Power Factor | >0.98/115VAC, >0.95/230VAC, >0.93/277VAC at full load |
| Protections | Short circuit, Over current, Over voltage, Over temperature |
| Cooling Method | Free air convection |
| IP Rating | IP67 (Blank, B, D types) / IP65 (A type) |
| Dimming Function | 3-in-1 dimming: 1~10Vdc, PWM signal, resistance (B type) |
| Operating Temperature | -40~+70°C (derating above 60°C) |
| Storage Temperature | -40~+80°C |
| Dimensions (L x W x H) | 220 x 68 x 38.8 mm |
| Weight | 1.12 kg |
| Warranty | 5 years |
| Safety Standards | UL8750, CSA C22.2 No. 250.0-08, ENEC, TUV EN61347-1 |
| EMC Compliance | EN55015, EN55022 Class B |
| MTBF | 192.2K hrs min (MIL-HDBK-217F) |
| Application | LED lighting, street lighting, dry/damp/wet locations |
Frequently Asked Questions - HLG-120H Vivotek
User questions about HLG-120H Vivotek
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Uncategorized in PDF format for free! Find your manual HLG-120H - Vivotek and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HLG-120H by Vivotek.
USER MANUAL HLG-120H Vivotek
■ Features :
• Universal AC input / Full range (up to 305VAC)
• Built-in active PFC function
• High efficiency up to 93.5%
• Protections: Short circuit / Over current / Over voltage / Over temperature
• Cooling by free air convection
• OCP point adjustable through output cable or internal potentiometer
• IP67 / IP65 design for indoor or outdoor installations
Three in one dimming function (1\~10Vdc or PWM signal or resistance)
• Suitable for LED lighting and street lighting applications
• Compliance to worldwide safety regulations for lighting
• Suitable for dry / damp / wet locations
• 5 years warranty (Note.10)







SELV
IP65 IP67






HLG-120H-12 A
Blank: IP67 rated. Cable for I/O connection.
A: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
B: IP67 rated. Constant current level adjustable through output cable with 1\~10Vdc or 10V PWM signal or resistance.
D (option, safety pending): IP67 rated. Timer dimming function, contact MEAN WELL for details.
SPECIFICATION
| MODEL | HLG-120H-24 | HLG-120H-48 | HLG-120H-54 | |
| OUTPUT | DC VOLTAGE | 24V | 48V | 54V |
| CONSTANT CURRENT REGION Note.4 | 12~24V | 24~48V | 27~54V | |
| RATED CURRENT | 5A | 2.5A | 2.3A | |
| RATED POWER | 120W | 120W | 124.2W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE Note.6 | 22~27V | 43~53V | 49~58V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer A type only | |||
| 2.5~5A | 1.2~2.5A | 1.1~2.3A | ||
| VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME Note.8 | 1200ms,50ms/115VAC 500ms,50ms/230VAC at full load; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load | |||
| HOLD UP TIME (Typ.) | 12ms at full load 230VAC / 115VAC | |||
| INPUT | VOLTAGE RANGE Note.5 | 90~305VAC 127~431VDC | ||
| FREQUENCY RANGE | 47~63Hz | |||
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |||
| TOTAL HARMONIC DISTORTION | THD<20% when output loading ≧50% at 115VAC/230VAC input and output loading ≧75% at 277VAC input | |||
| EFFICIENCY (Typ.) | 93% | 93.5% | 93.5% | |
| AC CURRENT (Typ.) | 1.4A / 115VAC 0.6A / 230VAC 0.55A / 277VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 60A(width=375us measured at 50% peak) at 230VAC | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| PROTECTION | OVER CURRENT | 95~108% | ||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 28~34V | 54~63V | 59~65V | |
| Protection type: Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| ENVIRONMENT | WORKING TEMP. | -40~+70°C (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20~95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40~+80°C, 10~95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/°C (0~50°C) | |||
| VIBRATION | 10~500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS Note.7 | UL8750, CSA C22.2 No. 250.0-08, ENEC, TUV EN61347-1, EN61347-2-13 independent IP65 or IP67, J61347-1, J61347-2-13 approved; design refer to UL60950-1, TUV EN60950-1 | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH | |||
| EMC EMISSION | Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (≥50% load); EN61000-3-3 | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||
| OTHERS | MTBF | 192.2K hrs min. MIL-HDBK-217F (25°C) | ||
| DIMENSION | 220*68*38.8mm (L*W*H) | |||
| PACKING | 1.12Kg; 12pcs/14.4Kg/0.8CUFT | |||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.3. Tolerance includes set up tolerance, line regulation and load regulation.4. Please refer to "DRIVING METHODS OF LED MODULE".5. Derating may be needed under low input voltages. Please check the static characteristics for more details.6. A type only.7. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18.8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.10. Refer to warranty statement.11. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains. | |||

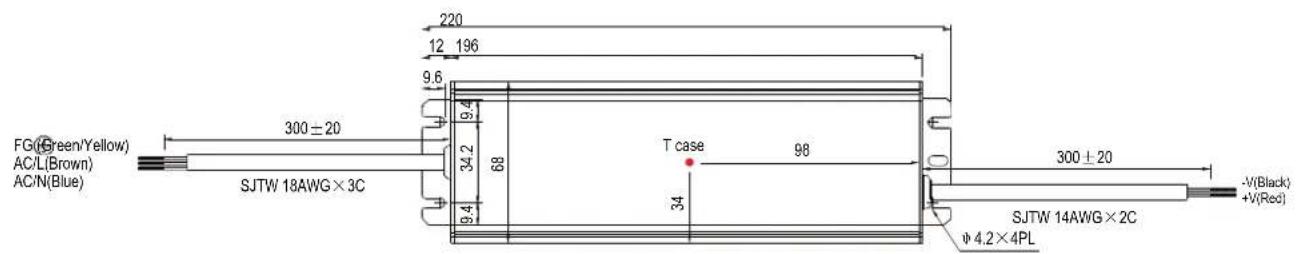

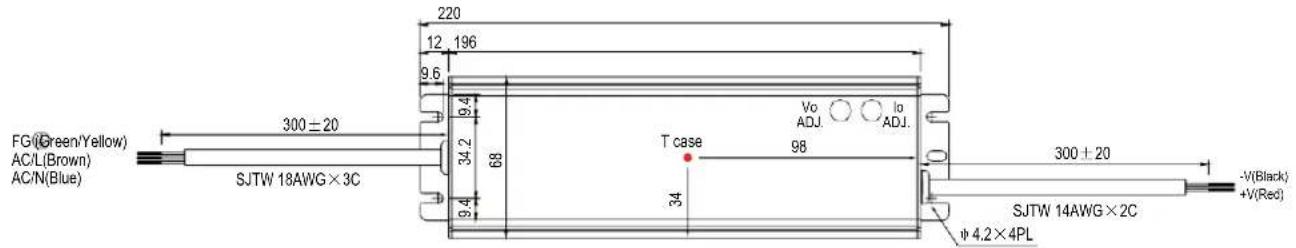

■ Mechanical Specification
Case No.994A Unit:mm

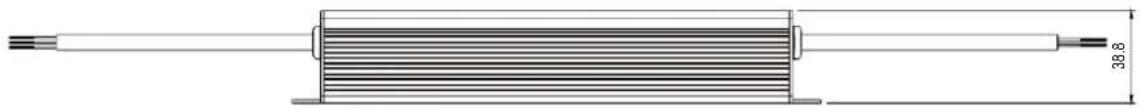

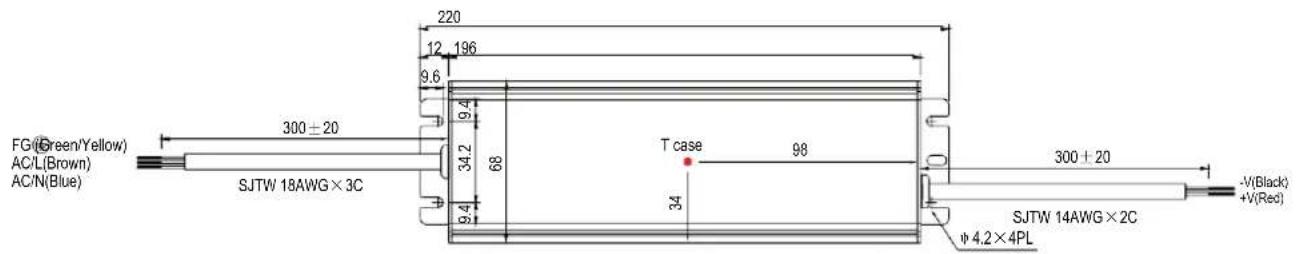

Blank:(HLG-120H)

※T case: Max. Case Temperature.


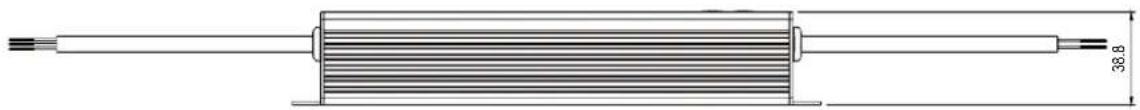

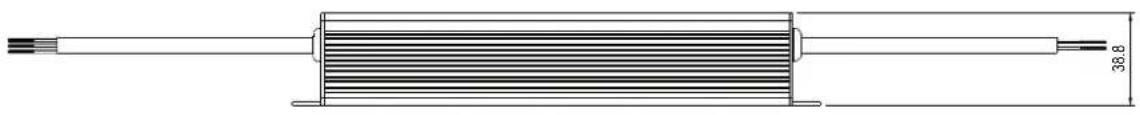

A Type:(HLG-120H-_A)

※ T case: Max. Case Temperature.


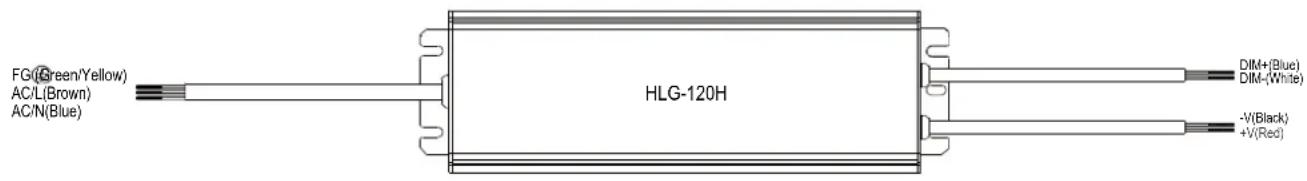

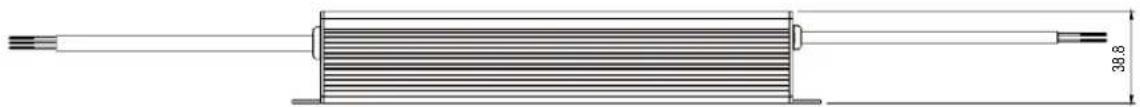

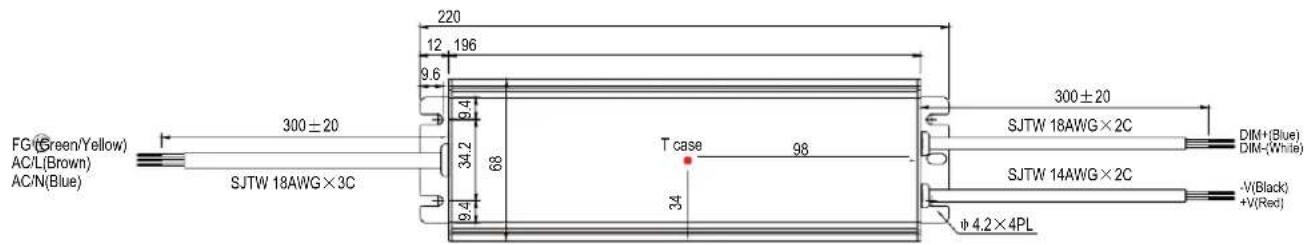

B Type:(HLG-120H-_B)

※ T case: Max. Case Temperature.

※T case: Max. Case Temperature.


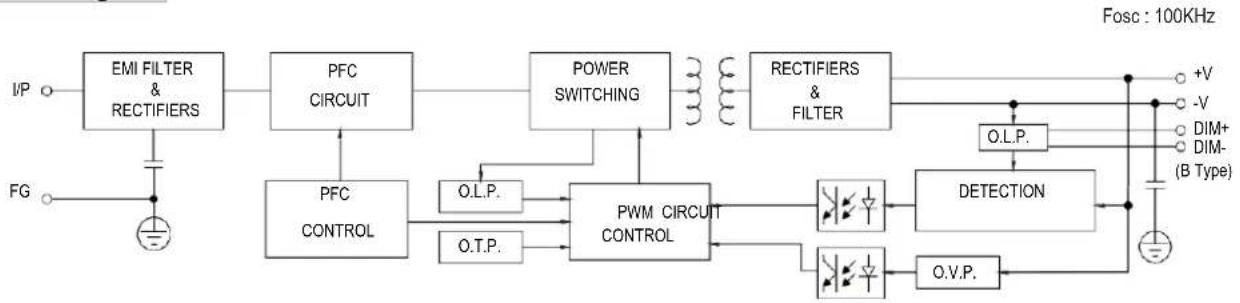

■ Block Diagram


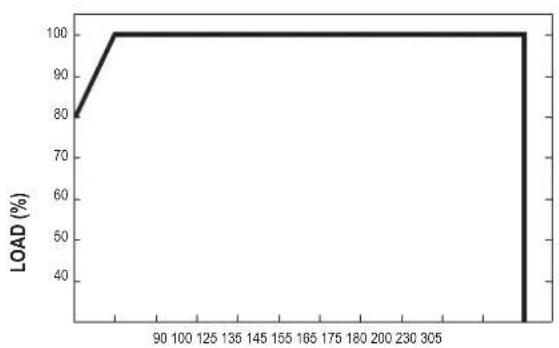

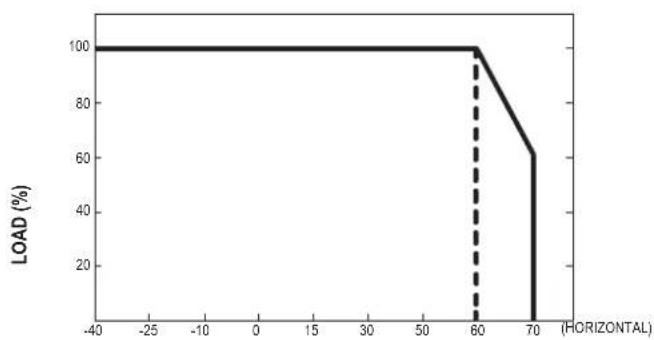

Derating Curve

line
| Horizontal | LOAD (%) | | ----------- | -------- | | -40 | 100 | | 60 | 100 | | 70 | 60 |AMBIENT TEMPERATURE (°C)
■ Static Characteristics

line
| X | LOAD (%) | | ---- | -------- | | 0 | 80 | | 90 | 100 | | 100 | 100 | | 125 | 100 | | 135 | 100 | | 145 | 100 | | 165 | 100 | | 175 | 100 | | 180 | 100 | | 200 | 100 | | 230 | 100 | | 305 | 100 | | >305 | 0 |INPUT VOLTAGE (V) 60Hz

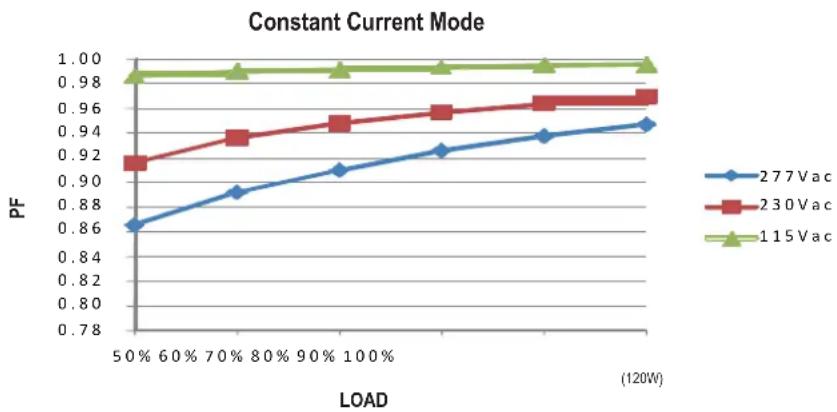

Power Factor Characteristic

line
| LOAD (120W) | 277Vac | 230Vac | 115Vac | | ----------- | ------ | ------ | ------ | | 50% | 0.86 | 0.91 | 0.99 | | 60% | 0.88 | 0.93 | 0.99 | | 70% | 0.89 | 0.94 | 0.99 | | 80% | 0.90 | 0.95 | 0.99 | | 90% | 0.91 | 0.95 | 0.99 | | 100% | 0.92 | 0.96 | 0.99 | | 110% | 0.93 | 0.96 | 0.99 | | 120% | 0.94 | 0.97 | 0.99 |■ EFFICIENCY vs LOAD (48V Model)

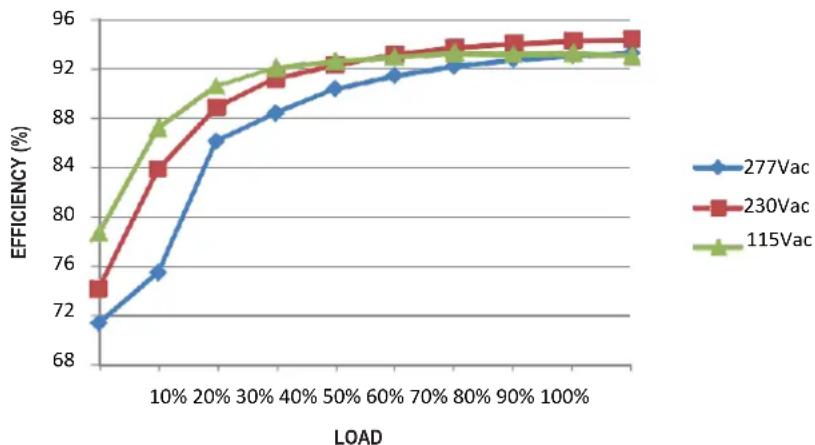

HLG-120H series possess superior working efficiency that up to 93.5% can be reached in field applications.

line
| LOAD | 277Vac | 230Vac | 115Vac | |-------|--------|--------|--------| | 0% | 71.5 | 74.5 | 78.0 | | 10% | 76.0 | 84.0 | 88.0 | | 20% | 85.0 | 88.5 | 91.0 | | 30% | 87.5 | 90.0 | 92.0 | | 40% | 89.0 | 91.5 | 92.5 | | 50% | 90.5 | 92.5 | 93.0 | | 60% | 91.5 | 93.0 | 93.5 | | 70% | 92.0 | 93.5 | 93.5 | | 80% | 92.5 | 94.0 | 93.5 | | 90% | 93.0 | 94.5 | 93.5 | | 100% | 93.5 | 95.0 | 93.5 |DRIVING METHODS OF LED MODULE
There are two major kinds of LED drive method "direct drive" and "with LED driver".
A typical LED power supply may either work in "constant voltage mode (CV) or constant current mode (CC)" to drive the LEDs.
Mean Well's LED power supply with CV+ CC characteristic can be operated at both CV mode (with LED driver, at area (A) and CC mode (direct drive, at area (B)).

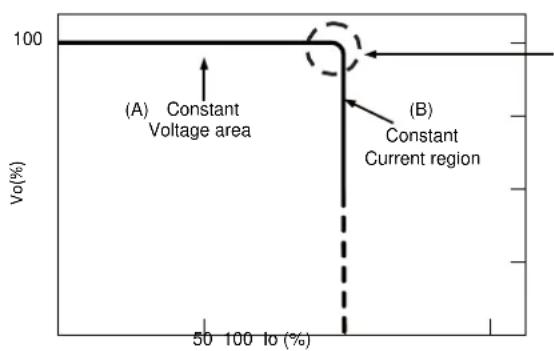

Typical LED power supply I-V curve
In the constant current region, the highest voltage at the output of the driver depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
DIMMING OPERATION (for B-type only)

※ Built-in 3 in 1 dimming function, IP67 rated. Output constant current level can be adjusted through output cable by connecting a resistance or 1 \~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
※ Please DO NOT connect "DIM-" to "-V".
※ Reference resistance value for output current adjustment (Typical)
| Resistance value | Single driver | 10K Ω | 20K Ω | 30K Ω | 40K Ω | 50K Ω | 60K Ω | 70K Ω | 80K Ω | 90K Ω | 100K Ω | OPEN |
| Multiple drivers(N=driver quantity for synchronized dimming operation) | 10K Ω /N | 20K Ω /N | 30K Ω /N | 40K Ω /N | 50K Ω /N | 60K Ω /N | 70K Ω /N | 80K Ω /N | 90K Ω /N | 100K Ω /N | ---- | |
| Percentage of rated current | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | 95%~108% | |
※ 1 \~ 10V dimming function for output current adjustment (Typical)
| Dimming value | 1V | 2V | 3V | 4V | 5V | 6V | 7V | 8V | 9V | 10V | OPEN |
| Percentage of rated current | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | 95%~108% |
※ 10V PWM signal for output current adjustment (Typical): Frequency range :100Hz \~ 3KHz
| Duty value | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | OPEN |
| Percentage of rated current | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | 95%~108% |
※ Using the built-in dimming function on B-type model can't turn the lighting fixture totally dark. Please refer to the connection method below to achieve 0% brightness of the lighting fixture connecting to the LED power supply unit.
※Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.

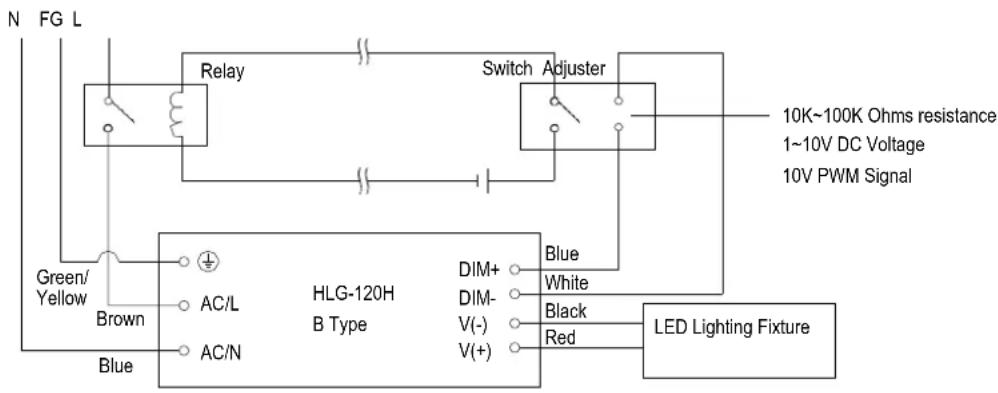

Dimming connection diagram for turning the lighting fixture ON/OFF :

Using a switch and relay can turn ON/OFF the lighting fixture.
- Output constant current level can be adjusted through output cable by connecting a resistance or 1\~10Vdc or 10V PWM signal between DIM+ and DIM-. 2. The LED lighting fixture can be turned ON/OFF by the switch.
WATERPROOF CONNECTION

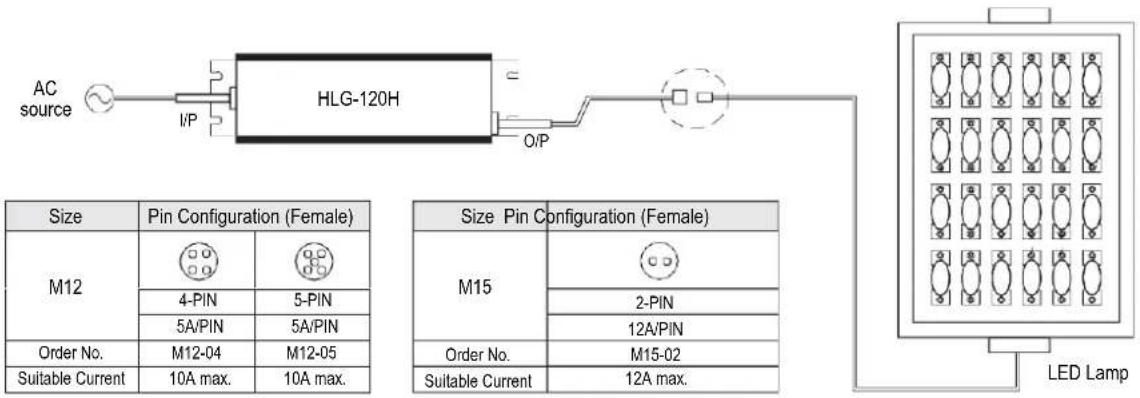

◎ Waterproof connector
Waterproof connector can be assembled on the output cable of HLG-120H to operate in dry/wet/damp or outdoor environment.

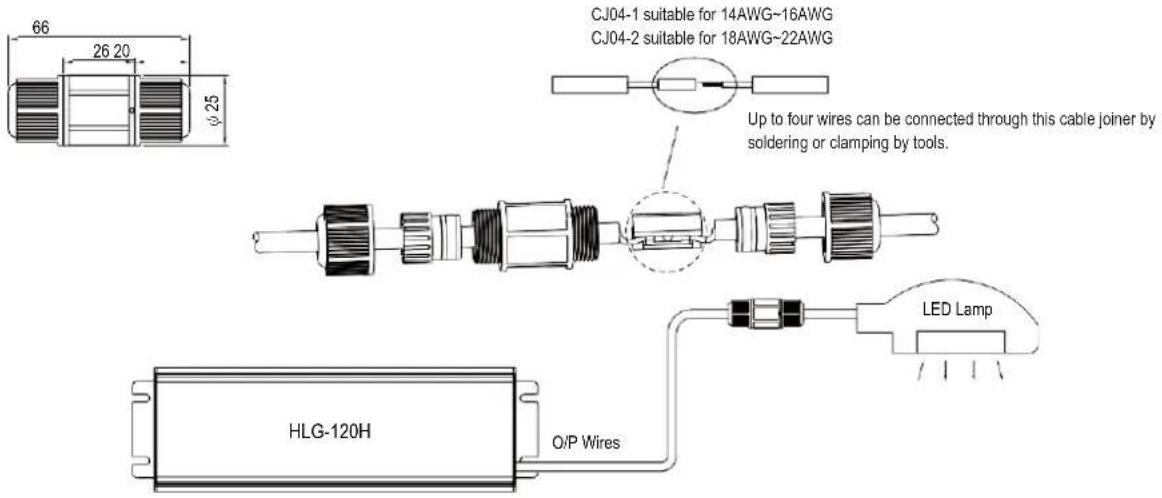

© Cable Joiner

※CJ04 cable joiner can be purchased independently for user's own assembly.
MEAN WELL order No.: CJ04-1, CJ04-2.

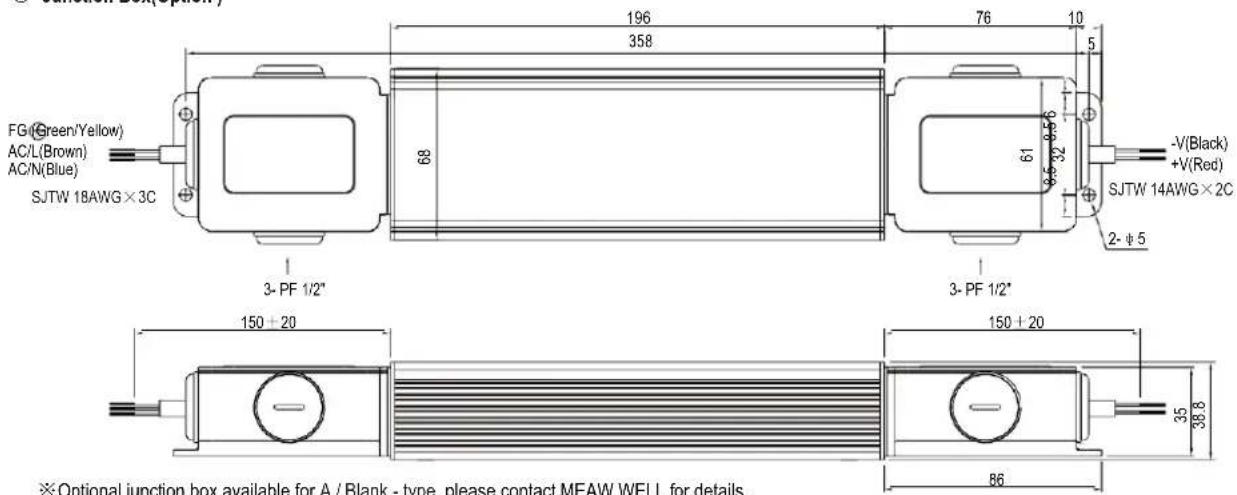

◎ Junction Box(Option)
