CG-110972 - Hob Emerio - Free user manual and instructions

Product Type	Portable Electric Hob
Brand	Emerio
Model	CG-110972
Power Supply	220-240V ~ 50/60Hz
Rated Power	2000W
Number of Cooking Zones	1
Cooking Zone Type	Induction
Control Type	Touch Control with Digital Display
Temperature Range	60°C - 240°C
Timer Function	Yes, up to 180 minutes
Safety Features	Overheat Protection, Auto Shut-off, Child Lock, Pan Detection
Dimensions (W x D x H)	35 x 30 x 6 cm
Weight	2.5 kg
Surface Material	Glass Ceramic
Cable Length	1.2 m
Cleaning and Maintenance	Wipe with a damp cloth after cooling; do not immerse in water
Warranty	2 years

Frequently Asked Questions - CG-110972 Emerio

What type of cookware can I use on this induction hob?

Use ferromagnetic cookware such as stainless steel or cast iron with a flat base. Check with a magnet if unsure.

How do I clean the hob surface?

Allow the hob to cool completely, then wipe with a damp cloth and mild detergent. Avoid abrasive cleaners.

What does the 'E' error code mean?

An 'E' code indicates a malfunction such as overheating or sensor failure. Turn off and unplug, let it cool, and restart. If persists, contact support.

Can I use a pan that is smaller than the cooking zone?

Yes, but the hob may not detect pans smaller than 12 cm in diameter. Use appropriate sized cookware for best efficiency.

Is the hob safe to leave unattended?

Always supervise the hob during use. It has auto shut-off features, but do not leave it unattended with cooking in progress.

How do I set the timer?

After selecting power level, press the timer button and adjust with +/- keys. The hob will turn off automatically when time expires.

Why does the hob not heat up?

Ensure the pan is compatible and centered on the zone. Check that the hob is plugged in and power is on. If problems persist, contact service.

Can I use the hob with a generator?

It is recommended for indoor use only with stable mains power. Using a generator may cause damage or erratic operation.

How do I lock the controls?

Press and hold the lock button for 3 seconds. A lock symbol appears. Repeat to unlock.

What is the maximum power consumption?

The hob has a maximum power of 2000W. Ensure your electrical circuit can handle the load.

USER MANUAL CG-110972 Emerio

Black and white photo of a black and white coffee maker with a clear lid (no visible text or symbols)

Coffee grinder (EN)

Kaffeemühle (DE)

Kaffekvarn (SE)

Koffiemolen (NL)

Kahvimylly (FI)

Kaffekvern (NOR)

Kaffekværn (DK)

Content – Inhalt – Innehåll – Inhoud – Pitoisuus – Innhold – Indhold

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Warning: Potential risk of injuries from misuse.
2. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
5. Children shall not play with the appliance.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

8. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
11. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
12. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
13. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
14. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
15. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
16. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
17. Never leave the appliance unattended during use.
18. This appliance is not designed for commercial use.
19. Do not use the appliance for other than intended use.
20. Do not wind the cord around the appliance and do not bend it.
21. Place the appliance on a stable, level surface from which it cannot fall off.
22. Do not hold the motor part under running water for cleaning or immerse it entirely in water.
23. Never remove the lid before the blades stop rotating completely.
24. Regarding the instructions for cleaning the surfaces which come in contact with food and operating times, please refer to the below paragraph of the manual.

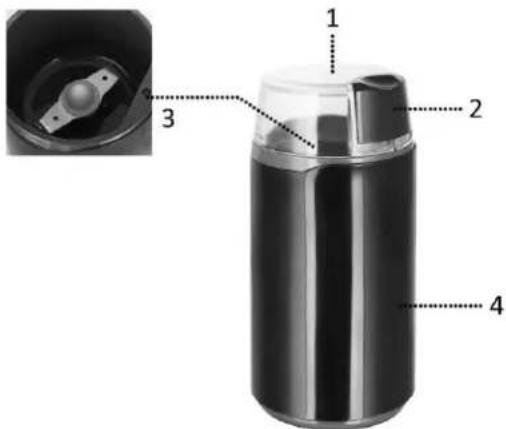

PARTS DESCRIPTION

1. Lid
2. On/off button
3. Blades
4. Motor base

OPERATING INSTRUCTIONS

1. Remove the lid from the unit and pour in the coffee beans. Do not fill coffee beans beyond the brim of the unit.
2. Replace the lid onto the motor base.
3. Plug in the unit. Press and hold down the on/off button to run the unit.
4. To stop it, simply release the on/off button.
5. Unplug the unit after use.

NOTE: Do not continuously operate the unit for more than 30 seconds for one operation cycle. Make at least

1-2 minutes break between operation cycles.

NOTE: Do not put more than 45g coffee beans into the unit at a time.

CLEANING AND MAINTENANCE

• Unplug the unit before cleaning.
• Clean the outside of the motor base with a slightly damp cloth and then wipe dry.
  • Use a small brush to clean the inside of the unit. Be careful with the cutting blades.
  ATTENTION! The cutting edges of the blades are very sharp. Handle them very carefully!

- Wash the lid with warm water; rinse and dry thoroughly.

- Do not immerse the motor base into any liquids. Do not wash it under a water jet.

- Do not clean the appliance in a dishwashing machine.

STORAGE

• Clean and dry the appliance thoroughly before taking it away for long storage.
• Keep the appliance away from children in a cool dry place.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power: 200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.
