HC-124158 - Curling iron Emerio - Free user manual and instructions

Product Type	Curling Iron
Brand	Emerio
Model	HC-124158
Barrel Diameter	25 mm (1 inch)
Barrel Material	Ceramic with tourmaline coating
Temperature Range	150°C - 200°C
Heat Settings	Adjustable thermostat with 5 levels
Heating Time	Approximately 60 seconds
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	25 W
Swivel Cord	Yes, 360° swivel cord for ease of use
Cool Tip	Yes, heat-resistant tip for safe handling
Auto Shut-Off	Yes, after 60 minutes of inactivity
Overheat Protection	Yes, with automatic cutoff
Cord Length	1.8 m
Dimensions (approx.)	35 x 3 x 3 cm (length x barrel diameter x barrel diameter)
Weight (approx.)	0.3 kg
Cleaning	Unplug and clean with a damp cloth; do not immerse in water
Spare Parts Available	Replacement cord available from service centers
Reparability	Repair by qualified technician; no user-serviceable parts

Frequently Asked Questions - HC-124158 Emerio

How do I adjust the temperature on the Emerio HC-124158 curling iron?

The temperature is adjusted using the dial on the handle. Turn it to your desired heat level (typically 150°C to 200°C). The indicator light will stop flashing when the set temperature is reached.

Can I use the curling iron on wet hair?

No, always use the curling iron on dry hair to avoid damage and burns. Towel-dry and style after your hair is completely dry.

How long does it take to heat up?

The iron heats up in about 60 seconds. The ready indicator will let you know when it's at the set temperature.

Does the curling iron have an automatic shut-off feature?

Yes, the Emerio HC-124158 includes an auto shut-off that turns the iron off after 60 minutes of inactivity for safety.

What is the barrel diameter and material?

The barrel is 25 mm (1 inch) in diameter and made of ceramic with tourmaline for even heat distribution and reduced frizz.

How should I clean the curling iron?

Unplug the iron and let it cool completely. Wipe the barrel and handle with a damp cloth. Do not use abrasive cleaners or immerse in water.

What voltage does the curling iron support?

It operates on 220-240 V ~ 50/60 Hz. Check your local voltage before use; a voltage converter may be needed for other regions.

Is the cord swivel?

Yes, the cord has a 360° swivel at the base, preventing tangling and making styling easier.

Can I replace the cord if damaged?

Only an authorized technician should replace the cord. Contact Emerio service centers for spare parts and repairs.

What safety precautions should I take?

Always unplug after use, keep away from water, do not use on synthetic hair, and place on a heat-resistant surface. The cool tip prevents burns during handling.

USER MANUAL HC-124158 Emerio

White handheld electronic device with metallic tip and control buttons (no visible text or symbols)

Hair curler (EN)

Lockenzance (DE)

Locktång (SE)

Haarkruller (NL)

Kiharrinrauta (FI)

Krøllejern (DK)

Content – Inhalt – Innehåll – Inhoud – Pitoisuus– Indhold

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. This appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
5. This appliance contains batteries that are non-replaceable.
6. Always unplug the USB plug when it is fully charged or before cleaning. When unplugging, make sure to grasp by the USB plug and not the cable.
7. WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
8. Do not immerse the appliance or USB cable in water or other liquids. There is danger to life due to electric shock!

9. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

10. Do not use the appliance for other than intended use.

11. Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.
12. Never leave the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
13. Do not use the device outdoors.
14. Store the appliance in a cool, dry place. Make sure that your hands are completely dry before plugging in.
15. The plastic bag of the product should be placed in a place that is not accessible to infants and young children.
16. Be careful to avoid direct contact with the hot surface of the product, especially the eyes, ears, face and neck.
17. Do not insert metal objects into the product to avoid electric shock.
18. Ensure that the product is sufficiently cooled before storing the product.
19. When using, choose the appropriate temperature and time, too high temperature, too long time may cause hair damage.

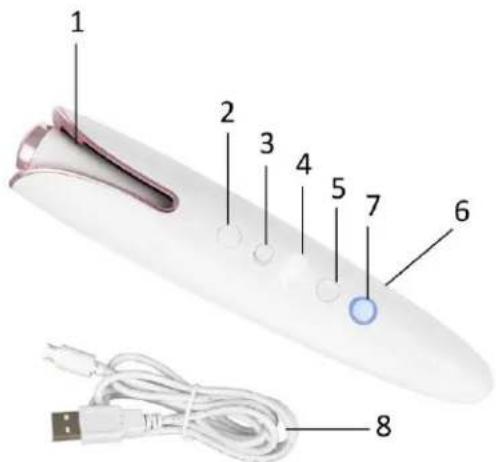

PARTS DESCRIPTION

1. Curling chamber
2. Start button
3. Direction button
4. LED display
5. Timer button
6. USB charge jack
7. On/off/temperature button
8. USB cable

HOW TO CHARGE

1. Connect one end of the USB cable to the charge jack of the appliance, and the other end to the USB adaptor port. Be sure it fits tightly.
2. During charging, the indicator light will blinking red. When the battery is full, the indicator light will turn blue. Fully charged, the appliance can keep working for about 30 minutes.
3. The appliance cannot be used during charging.

Note: When the power is low, the blue indicator will blink. Now you need to charge your appliance.

INSTRUCTIONS FOR USE

Before use:

• Before using, please fully charge the product to get the best performance and please make sure you read all the instruction you need to pay attention to when using this product.
• When using this product for the first time, there may be a slight burnt smell or a little smoke. This is caused by the high temperature of the oil in the rotating mechanism of the appliance. It will disappear after a period of time, which is normal. Please feel free to use it.

Operation:

Make sure the appliance is used on dry hair only.

1. Press and hold the "On/off/temperature" button for 2s to turn on the appliance, coming with "beep" sound and LED display is on.
2. Short press the "On/off / temperature" button to choose Temperature: 140°C, 160°C, 180°C, 200°C.
3. Short press the "Timer" button to choose the timer: 8S, 10S, 12, 14S, 16S.
4. Switch the "Direction" button to choose the rotation direction of the curling wand: Left or right.
5. After setting, the set temperature will blink in the display, the appliance begins to heat up. You will hear "beep-beep" sound when it reaches the temperature, and the set temperature will stop blinking.
6. Comb through to remove any tangles and divide the hair into sections, no more than 2cm wide, and only thin hair lops each time. Otherwise the hair can get stucked in the curler.
7. Place one section of hair through curling chamber like below picture.

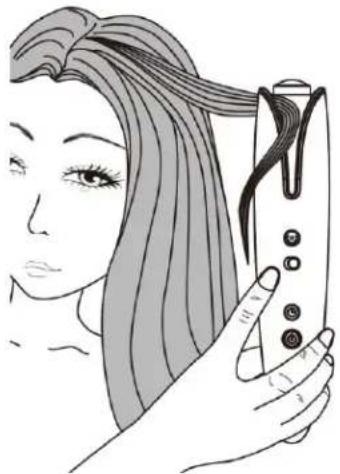

If you choose the rotation direction: left

It is recommend to place the section of hair through the right side of the curling chamber:

Illustration of a person holding a hairdryer with a magnifying glass (no text or symbols)

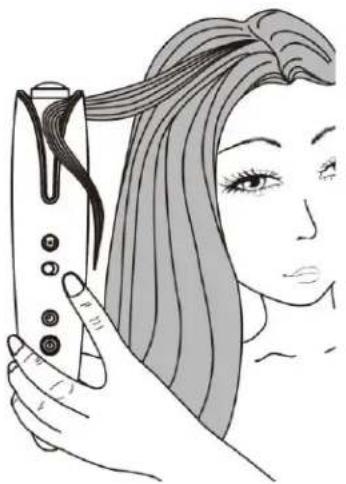

If you choose the rotation direction: right

It is recommend to place the section of hair through the left side of the curling chamber:

Illustration of a person holding a hairdryer with a button, no text or symbols present

1. Press and hold the "Start" button to active the motor to draw hair into curling chamber.
2. Release the button, the timer counts. You will hear the beep sound.
3. When the beep sound is over, the automatic curling is finished. You can withdraw that section of hair and start with the next section.
4. After use, press and hold the "On/off/temperature" for 2 seconds to turn off the appliance.

Tips:

• Before using, please fully charge the product to get the best performance.
- Before preparing to store this product for a long time, please fully charge the product and ensure that the product is charged once every three months to keep the product in the best condition.
- When the hair is blocked in curling chamber, the auto curling will be stopped. Please release "start" button and withdraw your hair.
- The product will be auto shut off when the battery is lower than factory setting.

CLEANING

• Make sure the product has completely cooled down before carrying out cleaning and maintenance.
- This product does not have waterproof function. When cleaning, care should be taken to prevent water or other liquid from entering the product.
• Clean up the foreign matter such as hair or dander remaining on the curling wand and chamber after each use.
- Do not use sharp or corrosive, volatile thinner cleaners.

- Use a soft, damp cloth (a small amount of non-irritating, volatile, flammable detergent) to clean and wipe the product. When finished, dry with a soft, dry cloth.

TECHNICAL DATA

INPUT: DC 5V

POWER: 55W

Battery Voltage: DC 3.65V

Battery capacity: 4000mAh

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.
