Product Type	Pushchair (Stroller) with Carrycot
Brand	Silver Cross
Model	Midnight
Suitable From	Birth (with carrycot) up to 9 kg
Suitable From (Seat Unit)	6 months up to 25 kg
Maximum Weight (Carrycot)	9 kg
Maximum Weight (Seat Unit)	25 kg
Seat Positions	3 forward-facing, 3 rearward-facing
Handle Height Adjustment	4 positions
Front Wheels	Swivel, lockable
Brake	Red pedal (engage), green button (release)
Hood Positions	3 (fully open, semi-open, fully covered)
Hood Features	Ventilation panel, pop-out sunvisor
Harness	3 shoulder strap heights, adjustable waist and crotch strap
Bumper Bar	Detachable, must be attached when child is in seat
Footrest	Adjustable multi-position
Rain Cover	Included
Cup Holder	Included
Foldable	Yes, with seat unit attached in forward-facing upright position
Safety Standards	EN 1888:2012 (pushchair), EN 1466:2014 (carrycot)
Care Instructions	Hand wash mattress cover; wipe chassis with dry cloth
Accessories	Carrycot, bumper bar, rain cover, cup holder

Frequently Asked Questions - Midnight Silver Cross

What is the maximum weight limit for the carrycot?

The carrycot is suitable for a child who cannot sit up unaided, roll over, or push up on hands and knees. Maximum weight is 9 kg.

How do I attach the seat unit to the chassis?

Hold the seat unit above the chassis, locate the connector posts into the seat attachment slots on the chassis, and push down until it 'clicks'. Lift gently by the bumper bar to check it is locked. The seat unit can be fitted forward or rearward facing.

How do I adjust the handle height?

Press and hold the handle height adjustment/folding button, then slide the handle up or down to one of the 4 positions. Release the button and ensure it clicks into place.

How do I fold the pushchair?

First lock the swivel wheels and engage the brake. Remove all items from the basket. Press and hold the fold release button, pull the fold release triggers towards you, push the handle downward gently until the fold lock engages. Ensure the storage latch is engaged before lifting.

Can I use this pushchair from birth?

Yes, from birth you must use the included Pioneer Carrycot. The carrycot is suitable up to 9 kg. The seat unit is suitable from 6 months up to 25 kg.

How do I clean the fabric?

Do not machine wash, tumble dry, iron, or bleach. Hand wash the mattress cover only (remove foam insert first). For other fabric, refer to the care guide. Keep away from direct heat and strong sunlight.

How do I adjust the harness?

The shoulder straps have 3 height positions. Lift the flap on the back of the seat unit, thread the harness buckle through the appropriate button hole, and secure. The waist and crotch strap are adjustable via slides. Always use the crotch strap together with waist and shoulder straps.

How do I engage the brake?

Press down on the red brake pedal until you hear a 'click'. To disengage, press the green brake release button. Always check the brake is fully engaged by gently rocking the pushchair.

Is a rain cover included?

Yes, a rain cover is included. It should be used with the hood attached to either the seat unit or carrycot. Slide it over the hood and zip for access.

Can I use a car seat with this pushchair?

Yes, the pushchair is designed to be used with the Simplicity Car Seat (sold separately). The car seat must always be rearward facing. Remove car seat adaptors before folding to avoid damage.

USER MANUAL Midnight Silver Cross

Pushchair and Carrycot

1.1 1.2

1.7

Line drawing of a car backrest with seatbelt and side-mounted sensors (no text or symbols)

1.8

Simple line drawing of a rounded rectangular object with two horizontal bars at the top (no text or symbols)

1.9

Simple rounded rectangle outline with no text or symbols

IMPORTANT:

READ THE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE

Your child's safety may be affected if you do not follow these instructions.

Your Pioneer Pushchair is a high quality Silver Cross product. It meets current safety standards and care and regular light maintenance will ensure long service.

This pushchair is suitable from birth up to 9kg with the Carrycot and from 6 months, up to 25 kg using the Seat Unit.

If somebody unfamiliar is using your Pioneer Pushchair always ensure that they read these instructions carefully so that they understand how the product works best.

The Pioneer Pushchair is designed and tested to be used with the Pioneer Carrycot and the Simplicity Car Seat (sold separately).

THE SAFETY OF YOUR CHILD IS YOUR RESPONSIBILITY.

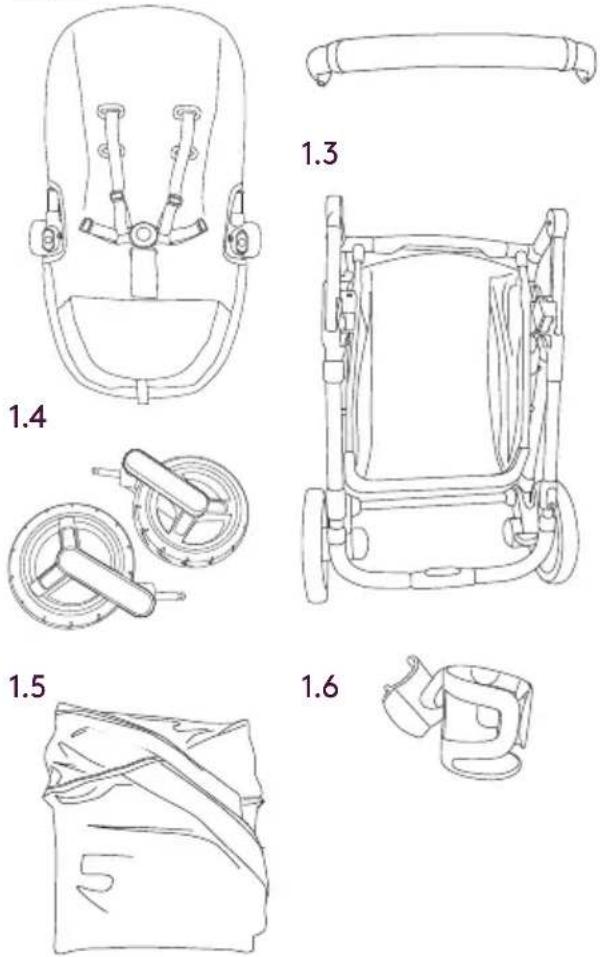

Contents

First check all your parts have been supplied. Your Pioneer pushchair includes:

1.1 Seat Unit with Harness
1.2 Bumper Bar
1.3 Chassis
1.4 Front Wheels
1.5 Rain Cover
1.6 Cup Holder
1.7 Carrycot Outer
1.8 Carrycot Liner
1.9 Carrycot Mattress

2.1

Diagram of a car wheel assembly with a lever and adjustment arrow (no text or symbols)

Preparation for use

Remove all packaging material from your Pioneer pushchair. To use your Pioneer pushchair from birth you must use the Pioneer Carrycot (included).

Pioneer chassis

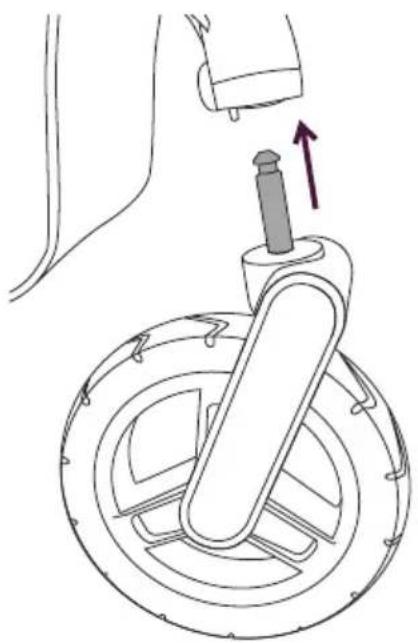

2.1 Attach the front wheels by inserting the axles into the Pioneer frame until they 'click' into position.

2.2 Release the folding lock and lift the handle upwards.

WARNING: CHECK THE WHEEL IS SECURE BY PULLING GENTLY DOWNWARDS.

WARNING: CHECK THAT THE CARRYCOT OR SEAT UNIT OR CAR SEAT ATTACHMENT DEVICES ARE CORRECTLY ENGAGED BEFORE USE.

2.3

Line drawing of a baby stroller with wheels and handle, no text or symbols present

Line drawing of a stroller with two wheels and handle (no text or symbols)

Pioneer chassis

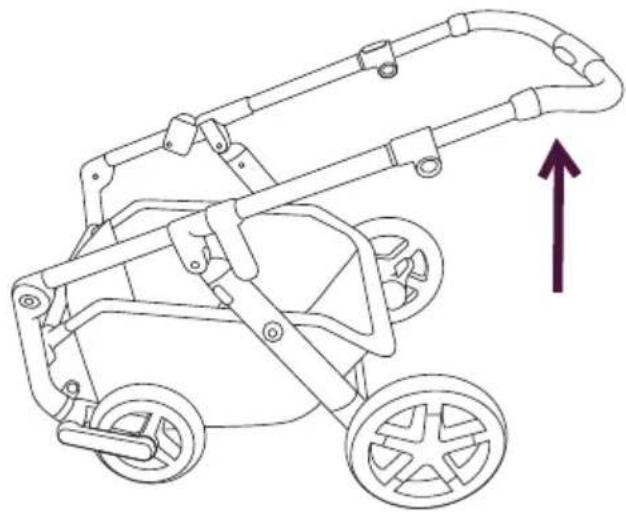

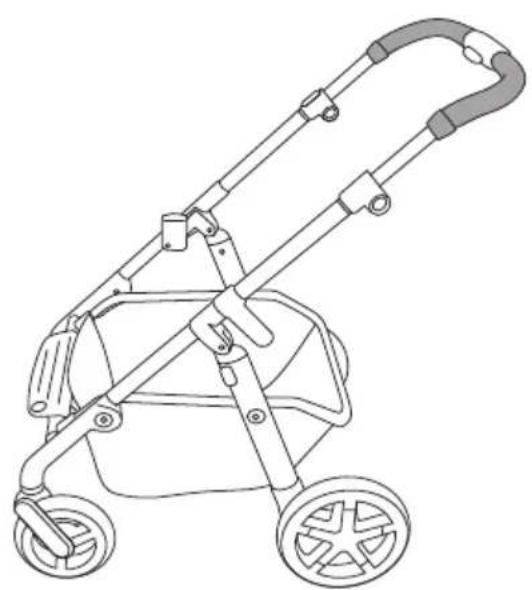

2.3 Continue to lift the handle upwards until the frame 'clicks' and locks into position. Always check that the frame is secure.

Using the brake

WARNING: ALWAYS APPLY THE PARKING BRAKE WHEN YOU ARE STANDING STILL.

WARNING: ALWAYS APPLY THE BRAKE WHEN PLACING AND REMOVING THE CHILD.

3.1 To engage the brake, press down on the red brake pedal. Listen for the 'click'.

NOTE: Always check that your brake is fully engaged by gently rocking the pushchair.

To disengage the brake, gently press down on the green brake release button. Rock the pushchair backwards before moving forward.

4.1

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

5.1

Diagram of a cable or connector with a shaded rectangular component and an arrow pointing to it (no text or symbols present)

Operating the swivel wheels

Your Pioneer chassis has lockable front swivel wheels. We advise locking the front wheels if pushing the pushchair straight ahead for a long period.

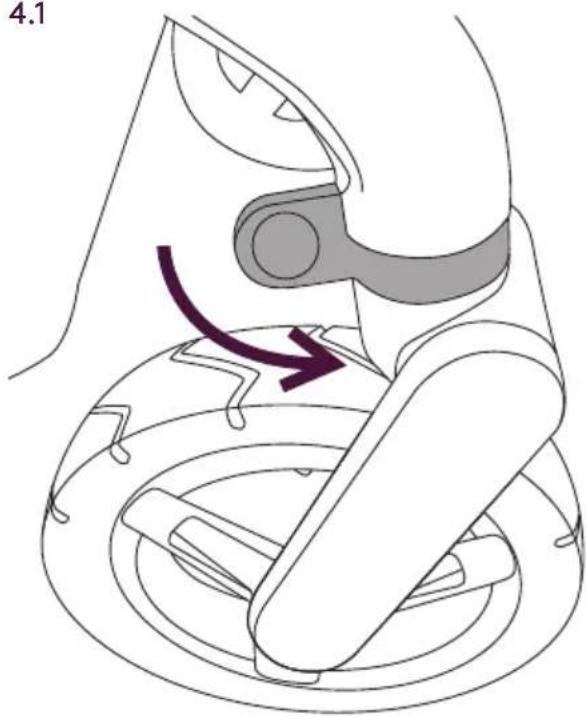

4.1 Rotate the swivel release lever sideways to lock the wheels into the fixed position.

Always apply brake when placing and removing the child.

Operating the height adjustable handle

Your Pioneer has a 4-position handle height.

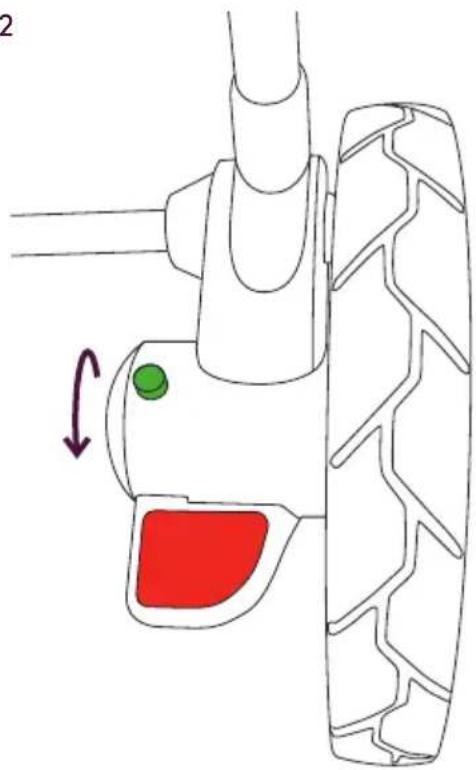

5.1 Press and hold the handle height adjustment/folding button.

5.2 Slide the handle up or down to required height and release the adjustment button. The handle will lock and 'click' into place.

Mechanical diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

6.2

Diagram of a tractor's wheel and head assembly with a green dot indicating a specific component (no text or symbols present)

Folding your Pioneer chassis

NOTE: To ensure your Pioneer chassis folds correctly remove all items from the shopping basket before attempting to fold.

NOTE: If using as a travel system (with a car seat) or pram (with Pioneer carrycot) please ensure each part has been removed before folding.

Your Pioneer chassis can be folded with the seat unit attached and in a forward-facing, upright position. In all other positions it is recommended to remove the seat unit.

6.1 Ensure the swivel wheels are locked (see 4.1)
6.2 Engage the brake pedal (see 3.1)

Folding your Pioneer chassis

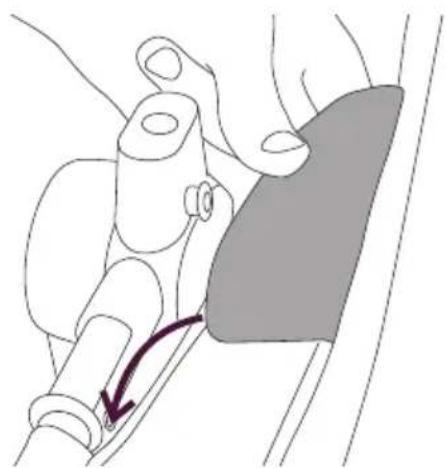

6.3 Press and hold the fold release button. Pull the fold release triggers towards you. Push the handle downwards gently and lower the handle downwards until the fold lock engages. Lift the handle upwards gently to ensure that the chassis is folded correctly.

WARNING: TO AVOID POSSIBLE INJURY OR DAMAGE, ALWAYS ENSURE THE STORAGE LATCH HAS BEEN ENGAGED BEFORE LIFTING THE PRAM/STROLLER.

CARRY THE PRAM USING THE MAIN HANDLE, ONCE STORAGE LATCH HAS BEEN ENGAGED.

WARNING: DUE CARE SHOULD BE TAKEN WHEN FOLDING AND UNFOLDING THIS PUSHCHAIR. PLEASE ENSURE FOLDING MECHANISMS ARE KEPT CLEAR TO AVOID POSSIBLE FINGER ENTRAPMENTS OR INJURIES TO PARTS OF THE BODY.

7.1

Line drawing of a hand holding a car seatbelt with a red arrow pointing to the seatbelt (no text or symbols present)

Line drawing of a curved mechanical component with a hand adjusting it (no text or symbols)

7.3

Medical illustration showing a hand holding a car seatbelt with a red arrow indicating force or movement (no text or symbols present)

7.4

Illustration of a hand holding a smooth, curved object with a directional arrow indicating rotation (no text or symbols)

Using your Pioneer from birth with the carrycot

Preparing the carrycot for use

Remove all packaging material from your Pioneer carrycot.

7.1 First erect the carrycot outer. Lay the carrycot outer down onto its base. Press the 2x metal bars into the locators on internal base of carrycot. A small groove in the locator holds the frame in position.
72 Attach the carrycot liner to the carrycot outer. Fasten each inner zip. There is one at each end of the liner.
73 Pass the two D-shaped parts of the liner between the liner and the outer and fasten the Velcro patches to secure the liner in place.
7.4 Place the mattress into the base of the liner.

WARNING: DO NOT LEAVE YOUR CHILD UNATTENDED.

WARNING: NEVER USE THE CARRYCOT ON A STAND.

WARNING: DO NOT LET OTHER CHILDREN PLAY UNATTENDED NEAR THE CARRYCOT.

CAUTION: Do not force the zip

8.1

Line drawing of a hand holding a curved object with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with a red arrow indicating a specific part (no text or symbols present)

Attaching the apron to the carrycot

8.1 To fit the apron, unzip the lower part of the apron and keep it in a safe place.

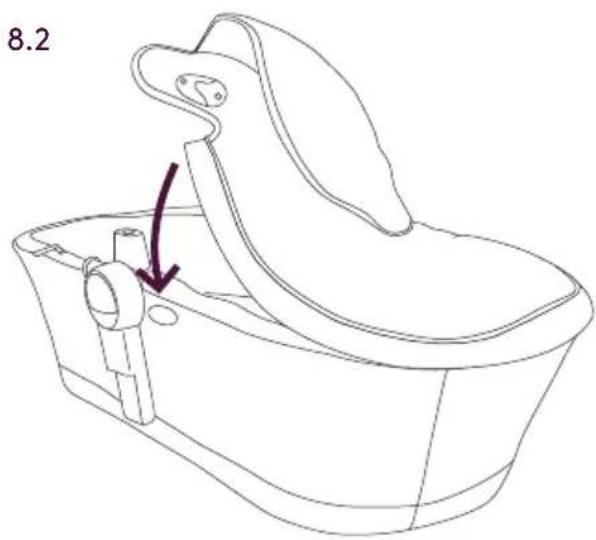

8.2 Place the apron over the top of the carrycot and secure in place using the velcro tabs.
8.3 Slide the apron flap clips over the attachment points inside the carrycot frame.

THIS CARRYCOT IS SUITABLE FOR A CHILD WHO CANNOT SIT UP UNAIDED, ROLL OVER AND CANNOT PUSH ITSELF UP ON ITS HANDS AND KNEES. MAXIMUM WEIGHT OF CHILD: 9KG

WARNING: USE A HARNESS AS SOON AS YOUR CHILD CAN SIT UNAIDED.

WARNING: ONLY USE ON A FIRM, HORIZONTAL LEVEL AND DRY SURFACE.

CAUTION: The head of the child in the carrycot should never be lower than the body of the child.

9.1

Mechanical assembly diagram showing a belt buckle adjustment mechanism (no text or symbols)

Attaching the hood to the carrycot

9.1 Attach the hood by pressing the hood clips onto the slots on either side of the carrycot frame.

Slide the back of the Pioneer hood over the rear edge of the carrycot.

9.2 Your Pioneer hood can be used in 3 positions. Fully open, semi-open and fully covered.

9.2

Technical line drawing of a mechanical device with no visible text or symbols

10.1

Line drawing showing a hand adjusting a car seatbelt with two arrows indicating the process (no text or symbols present)

Line drawing of a hand gripping a wrist with a curved arrow indicating motion (no text or symbols)

10.2

Attaching the bumper bar to the carrycot or seat unit

10.1 Attach the bumper bar by pressing the ends of the bumper bar into the attachment points of the carrycot/seat unit frame. Wait to hear them 'click' into place. Lift gently to ensure the bumper bar is locked in place. Fold the apron flap over the bumper bar to hold it in place.
10.2 To detach, press the bumper bar release button on the carrycot/seat unit frame with one hand and pull the bumper bar away from the connector point with the other hand. The bumper bar will rotate.
To detach both sides repeat point (10.2) above. With one side of the bumper bar removed the carrycot/seat unit is easily accessible.

WARNING: THE BUMPER BAR MUST BE SECURELY CONNECTED AT ALL TIMES WHEN IN USE. THE SAFETY OF YOUR CHILD IS YOUR RESPONSIBILITY.

WARNING: ALWAYS REMOVE YOUR CHILD FROM THE SEAT UNIT BEFORE ATTEMPTING TO LIFT AND REMOVE THE SEAT UNIT.

11.1

Line drawing of a baby stroller with decorative wings and wheels (no text or symbols)

Attaching the carrycot to your chassis

11.1 To attach your Pioneer carrycot to the Pioneer chassis hold the carrycot above the chassis. Locate the carrycot chassis connector posts into the attachment slots on the chassis. Ensure that the carrycot 'clicks' into place. The carrycot should be fitted rearward facing. Lift the carrycot gently by the bumper bar to check the carrycot has locked into place.

WARNING: NEVER USE THIS CARRYCOT ON A STAND.

11.2

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

Detaching the carrycot from your chassis

11.2 With the Pioneer carrycot facing you, pull both carrycot release handles outwards and lift the carrycot clear of the chassis.

Always ensure your bumper bar is attached when your child is in the carrycot.

This product is suitable for a child who cannot sit up by itself, roll over and cannot push its self up on its hands and knees. Max weight of child: 9kg.

CAUTION: Only use replacement parts supplied and approved by the manufacturer.

Line drawing of a hand holding a fiber tied with a small hole, showing curved and straight strands (no text or symbols)

Using your liner and mattress

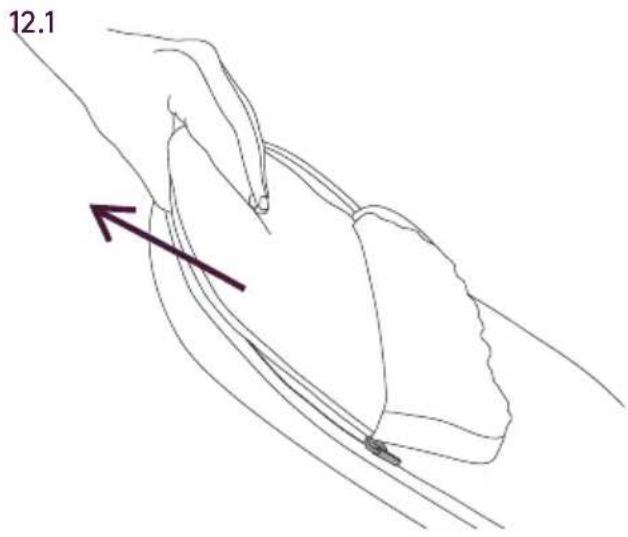

12.1 Your Pioneer Carrycot mattress is removable. Simply lift it out of the liner. The mattress cover can be hand washed. Remove the foam mattress insert prior to washing by opening the flap on the back of the mattress cover and removing the foam mattress.

12.2 The Pioneer Carrycot has a removable liner. Simply unzip each end and release the Velcro fastenings to remove it.

To fit the liner and mattress see preparation for use (see 7.1 -7.4)

WARNING: DO NOT ADD A MATTRESS OTHER THAN THE ONE PROVIDED.

CAUTION: DO NOT FORCE THE ZIP

Using your Pioneer as a pushchair

Your Pioneer seat unit can be fitted to the chassis in rearward-facing position (infant facing you) or forward-facing position (infant facing away from you). Follow (18.1) to attach the seat unit to the chassis.

Attaching the hood to the seat unit

13.1 First, slide the back of the hood over the back of the seat unit. Locate the slot in the fabric at the back of the hood and slide over the seat recline adjustment lever.
13.2 Attach the hood by pressing the hood clips onto the slots on either side of the seat unit frame. Note your Pioneer pushchair has a function where you have the option to raise or lower the height of the hood provided. The height position can be adjusted by connecting the hood to one of the two height locations provided. Velcro the lower front corners of the hood onto the seat unit.

14.1

Technical line drawing of a mechanical assembly with no visible text or symbols

Using your hood

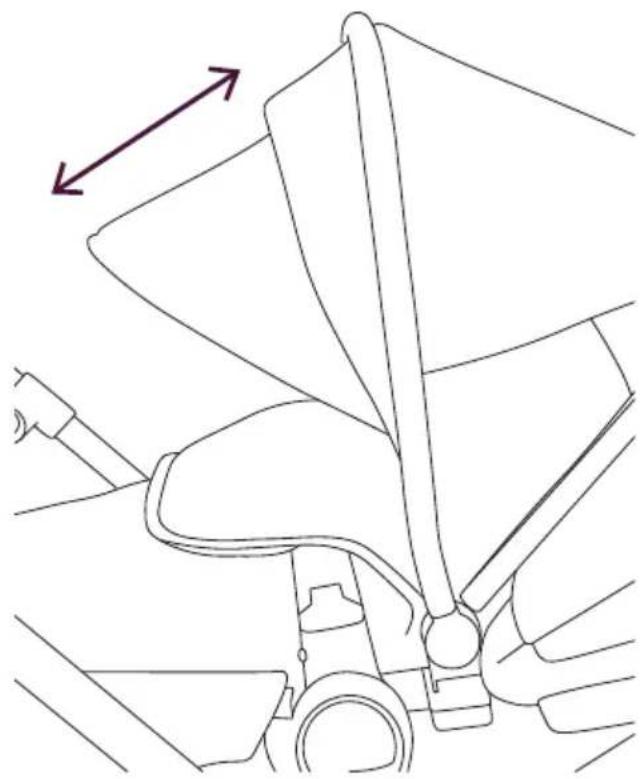

14.1 Your Pioneer hood can be used in 3 positions. Fully open, semi-open and fully covered.

Line drawing of a mechanical linkage or lever mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

14.2

Line drawing of a mechanical component with shaded area and directional arrow (no text or symbols)

14.3

Line drawing of a car seatbelt mechanism with directional arrow indicating motion (no text or symbols)

Using your hood

Your Pioneer hood features a ventilation panel and pop-out sunvisor.

14.2 To open the ventilation panel, lift the flap and secure under the viewing window flap using the magnets either side of the hood.
14.3 To use the sunvisor, pull out of the hood. To store, push back into the hood.

Line drawing of a hand holding a pen, with no visible text or symbols

Preparing the harness

15.1 The shoulder straps have 3 height positions. To adjust, first lift the flap on the back of the seat unit. Thread the harness buckle from the front of the seat unit through to the back of the seat unit and allow the buckle to lay flat behind the seat securing the shoulder strap in place.

Thread the harness through the button hole in the seat unit relative to the size of your child, and secure the harness buckle. (see 16.1).

WARNING: THE HARNESS CAN FORM LOOPS WHICH MAY BE A STRANGULATION HAZARD. NEVER LEAVE THE HARNESS CONNECTED WHEN NOT FITTED TO A CHILD IN THE PUSHCHAIR.

Using the harness

WARNING: ALWAYS USE THE CROTCH STRAP IN COMBINATION WITH THE WAIST AND SHOULDER STRAPS

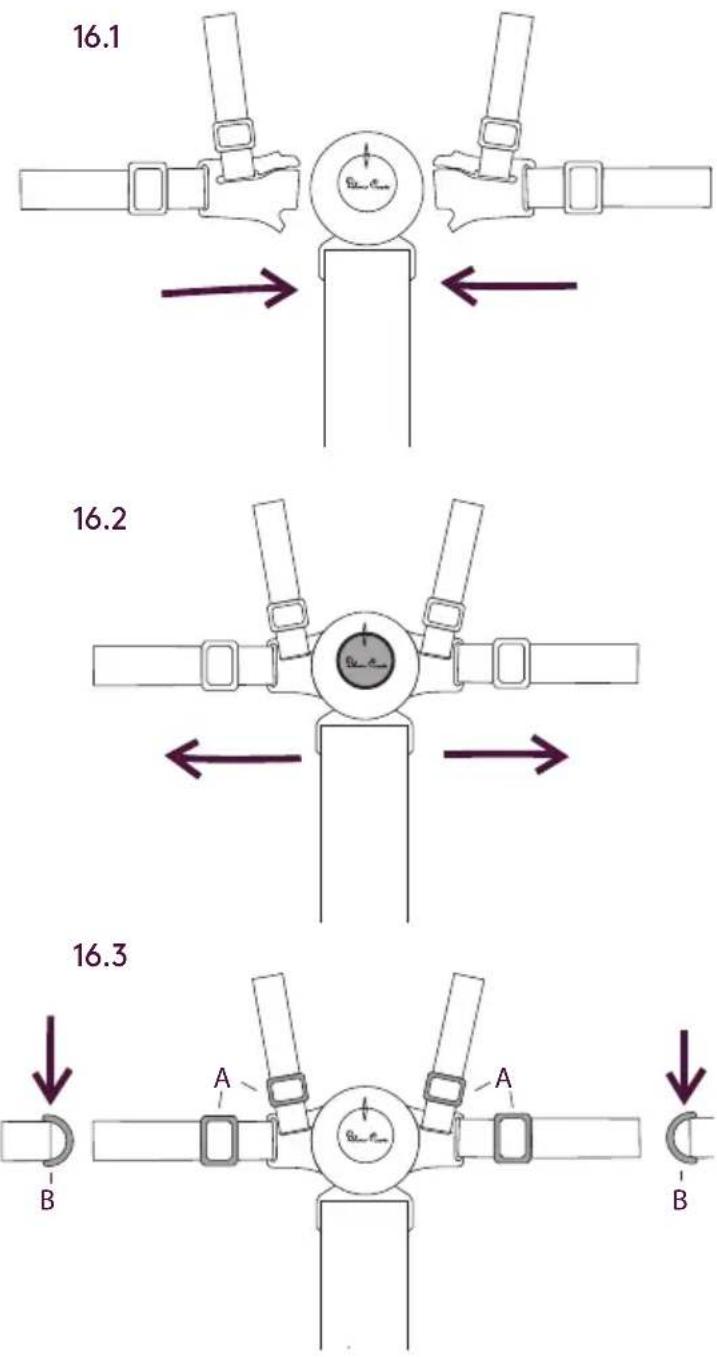

16.1 To fasten the harness insert both buckle clips into each side of the buckle. Listen for the 'click'.

WARNING: ALWAYS USE THE RESTRAINT SYSTEM.

16.2 To release the harness press the button at the centre of the buckle and pull apart. The shoulder straps can be unhooked from the buckle if required.
16.3 Your harness is fully adjustable by moving the slides (A), to make fitting easy. Your child should always be harnessed in and should never be left unattended, even for short periods of time.

Your Pioneer harness can be adjusted for the size of your child.

'D' rings are provided for fitting a separate harness if required (B).

17.1

Line drawing of a hand holding a curved object with an arrow indicating direction (no text or symbols)

17.2

Diagram of a mechanical component with a highlighted circular feature and arrow indicating rotation (no text or symbols)

Line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

Using your apron

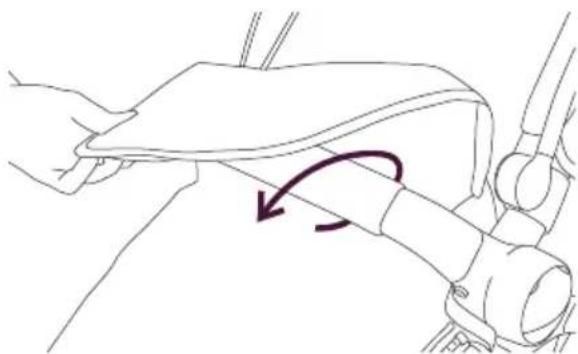

17.1 The Pioneer apron comes in 2 parts. Zip on the lower part of the apron and slide the apron over the bottom of the seat unit.

172 Clip the apron flap clips onto the attachment points on the inside of the seat frame. Fold the apron flap over the bumper bar to enclose and secure your child.

Follow (10.1 - 10.2) to attach/ detach the bumper bar to the seat unit.

WARNING: ALWAYS ENSURE YOUR BUMPER BAR IS ATTACHED WHEN YOUR CHILD IS IN THE SEAT UNIT.

18.1

Mechanical assembly diagram showing a clamping mechanism with a downward arrow indicating motion (no text or symbols present)

18.2

Line drawing of a stroller with a magnified inset showing internal anatomy (no text or symbols)

Attaching the seat unit to your chassis

WARNING: ENSURE ALL LOCKING DEVICES ARE ENGAGED BEFORE USE.

18.1 To attach your Pioneer seat unit to the Pioneer chassis hold the seat unit above the chassis. Locate the seat unit chassis connector posts into the seat attachment slots on the chassis. Ensure that the seat unit 'clicks' into place. The seat unit can be fitted forward or rearward facing. Lift the seat unit gently by the bumper bar to check the seat unit has locked into place. To adjust the seat position (see 20.1)

Detaching the seat unit from your chassis

18.2 With the seat unit facing you, pull both seat release handles outwards and lift the seat unit clear of the chassis.

CAUTION: REMOVE THE CHILD FROM THE SEAT UNIT BEFORE DETACHING FROM YOUR CHASSIS.

19.1

Line drawing of a car interior showing steering wheel, dashboard, and seatbelt (no text or symbols)

Line drawing of a baby stroller with wheels and a curved blade, showing no text or symbols

Adjusting the seat position

Your Pioneer has 3 forward-facing and 3 rearward-facing seat positions.

19.1 To adjust the seat position in either forward or rearward facing mode, lift and hold the seat recline adjustment lever on the back of the seat unit. Move the seat unit upwards or downwards to upright, semi-recline or full recline. Release the recline adjustment lever and wait to hear a 'click' for each position to lock into place.

19.2 Your Pioneer has an adjustable multi-position footrest.

To adjust the footrest, press the adjuster buttons located on each side of the footrest. Once buttons are pressed gently adjust the footrest to its lowest position. Once in the lowest position you can gently lift the footrest up to a more desired position if required.

19.2

20.1

Line drawing of a baby stroller with directional arrows indicating motion (no text or symbols)

Using your raincover with the carrycot or seat unit

20.1 Your Pioneer raincover should be used when the Pioneer hood is attached to either the seat unit or carrycot. First slide over the hood and down towards the toe of the seat unit or carrycot.

20.2 A zip gives easy access to your child.

Line drawing of a baby stroller with directional arrows indicating motion (no text or symbols)

20.2

Line drawing of a baby stroller with an inset showing internal mesh structure (no text or symbols)

WARNING: BEFORE FOLDING YOUR PIONEER PUSHCHAIR, THE CAR SEAT ADAPTORS MUST BE REMOVED, OTHERWISE DAMAGE WILL BE CAUSED.

WARNING: YOUR SIMPLICITY INFANT CARRIER SHOULD ALWAYS BE REARWARD FACING.

WARNING: THIS CAR SEAT DOES NOT REPLACE A COT OR BED. SHOULD YOUR CHILD NEED TO SLEEP THEN IT SHOULD BE PLACED IN A SUITABLE PRAM BODY OR COT.

WARNING: ONLY USE ON A FIRM HORIZONTAL AND DRY SURFACE – IF NOT BEING USED WITH PIONEER CHASSIS.

CAUTION: The handle and the bottom should be inspected regularly for signs of damage and wear.

Safety Notes

Your Pioneer Pushchair is a high quality Silver Cross product. It complies with EN: 1888:2012 and with correct use and maintenance will give good service. If, however you should have any problems with your pushchair, please contact your Silver Cross retailer who will take appropriate action. The Pioneer carrycot complies with EN: 1466:2014.

WARNING:

THIS PRODUCT IS NOT SUITABLE FOR RUNNING OR SKATING.

ENSURE THE PARKING DEVICES ARE ENGAGED WHEN PLACING AND REMOVING YOUR CHILD.

CHECK THAT THE PRAM BODY OR SEAT UNIT, OR CAR SEAT ATTACHMENT DEVICES ARE CORRECTLY ENGAGED BEFORE USE.

DO NOT LET YOUR CHILD PLAY WITH THIS PRODUCT.

DO NOT LET OTHER CHILDREN PLAY UNATTENDED NEAR THE CARRYCOT.

THIS SEAT UNIT IS NOT SUITABLE

FOR CHILDREN UNDER 6 MONTHS.

DO NOT USE IF ANY PART IS BROKEN, TORN OR MISSING.

BE AWARE OF THE RISK OF OPEN FIRES, GAS FIRES ETC. IN THE NEAR VICINITY OF THE CARRYCOT.

THE HANDLES AND THE BOTTOM OF THE CARRY COT SHOULD BE CHECKED REGULARLY FOR SIGNS OF DAMAGE AND WEAR.

ONLY THE MATTRESS PROVIDED SHOULD BE USED WITH THE CARRYCOT.

CAR SEATS DO NOT REPLACE A COT OR BED. SHOULD YOUR CHILD NEED TO SLEEP, THEN IT SHOULD BE PLACED IN A SUITABLE PRAM BODY, COT OR BED.

ANY LOAD ATTACHED TO THE HANDLE AND/OR BACKREST AND/OR SIDES OF THE VEHICLE WILL AFFECT STABILITY OF THE VEHICLE. A BABY'S SAFETY IS YOUR RESPONSIBILITY.

ONLY REPLACEMENT PARTS AND ACCESSORIES APPROVED BY SILVER CROSS SHOULD BE USED.

CHANGING BAG: MAXIMUM LOAD = 1KG (SOLD SEPARATELY)

CUP HOLDER: MAXIMUM LOAD = 340G

BASKET: MAXIMUM LOAD = 5KG

The child should always wear a safety harness complying with BS6684. 'D' rings are provided for the attachment of an additional harness. These are located on the existing harness close to where it is attached to the seat frame. Do not hang shopping bags or other objects from the handle. This may cause the pushchair to tip up. Extra shopping or luggage should only be carried in the basket and should not exceed 5kg in weight, evenly distributed.

Always hold the seat when making adjustments.

Never try to fold your Pioneer when the child is seated as this may trap the child. If you have difficulty in folding or unfolding the pushchair, do not force. This will cause damage. Read the "To fold or unfold" instructions carefully in the Pioneer Instructions. It may be unsafe to fit accessories or spare parts other than those supplied or recommended by Silver Cross. If anyone other than the owner is going to use the Pushchair (e.g. grandparent, child minder), please show them how to use it correctly.

Care and Maintenance

Chassis

Always check your pushchair for signs of wear. Regularly lubricate all moving parts. Check for freedom of movement of all locking devices. Polish metal work with a clean, dry cloth.

Fabric items and seat unit

For fabric wash care instructions please refer to the care guide included with your pram. Keep away from direct heat and strong sunlight. A certain degree of fading may occur over time through everyday use. Never machine wash, tumble dry, iron or bleach.

Never leave accessories such as the Sunshade or raincover where heat and light may discolour the fabrics or distort the plastics, e.g. on the car parcel shelf in hot weather.
