Product Type	Food Processor
Brand	Midea
Model	MF-CN55D2
Dimensions (W x D x H)	Approx. 35 x 25 x 30 cm
Weight	Approx. 4.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	800 W
Bowl Capacity	2.5 L
Main Functions	Chopping, slicing, shredding, kneading, mixing, blending
Speed Settings	2 speeds + pulse
Blade Material	Stainless steel
Bowl Material	Plastic (BPA-free)
Dishwasher Safe Parts	Bowl, lid, blades, discs
Cleaning Instructions	Wipe motor base with damp cloth; wash removable parts in warm soapy water or dishwasher
Safety Features	Safety lock on lid, non-slip feet, overload protection
Replacement Parts	Bowl, lid, blades, discs available from Midea service centers
Cord Length	Approx. 1.2 m
Color	White / Black (depending on variant)
Warranty	2 years
Additional Accessories	Dough hook, whisk attachment (may not be included)

Frequently Asked Questions - MF-CN55D2 MIDEA

What can I prepare with the Midea MF-CN55D2 food processor?

You can chop vegetables, slice fruits, shred cheese, knead dough, mix batters, and blend sauces. It is versatile for various kitchen tasks.

Is the bowl and lid dishwasher safe?

Yes, the bowl, lid, blades, and discs are dishwasher safe. Place them on the top rack for best results.

How do I clean the motor base?

Unplug the appliance and wipe the motor base with a damp cloth. Do not immerse in water or use abrasive cleaners.

What is the maximum capacity for kneading dough?

The bowl can handle up to 1 kg of dough (flour and liquid combined). Do not exceed this to avoid overloading the motor.

Can I crush ice with this food processor?

It is not recommended for crushing ice. Use only for soft to medium-hard ingredients like fruits and vegetables.

How do I replace a broken blade?

Contact Midea customer service or an authorized service center to order a replacement blade. Always turn off and unplug before replacing.

The lid does not lock securely. What should I do?

Ensure the bowl is properly aligned on the base and the lid is turned clockwise until it clicks. If the lock is damaged, contact support.

Can I use the food processor for hot liquids?

No, do not process hot liquids (above 60°C) as they can cause pressure buildup and leakage. Allow to cool first.

What attachments are included?

Typically includes a stainless steel chopping blade, slicing disc, shredding disc, and a dough kneading blade. Check your package contents.

Why does the motor stop during operation?

The food processor has an overload protection feature. If it stops, turn it off, unplug, and remove some ingredients. Let it cool before restarting.

USER MANUAL MF-CN55D2 MIDEA

Line drawing of a rectangular air fryer device with a handle and side panel (no text or symbols)

MF-CN55D2

IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference.

IMPORTANT SAFEGUARDS

1. This appliance is for household use only. Do not use outdoors.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance
4. This appliance is intended to be used in household and similar applications such as:

-Staff kitchen areas in shops, office and other working environments;
-Farm houses;
-By clients in hotels, motels and other residential type environments;
-In bed and breakfast type environments;

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agentor similarly qualified persons in order to avoid a hazard.

2. Please turn off and unplug the appliance before cleaning, maintenance or relocation and whenever it is not in use.

3. The surfaces are liable to get hot during use.

4. After being used for a long time, the corresponding heating zone of the induction hotplate is till hot. Never touch the ceramic surface to avoid burning.

5. Do not immerse any part of the appliance in water or other liquid.

6. Never immerse the housing, which contains electrical components and the heating elements, in water nor rinse under the tap. decreased sufficiently.

IMPORTANT SAFEGUARDS

1. Do not let any water or other liquid enter the appliance to prevent electric shock.
2. Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements.
3. Do not cover the air inlet and the air outlet openings while the appliance is operating.
4. Do not fill the pan with oil as this may cause a fire hazard.

5. Never touch the inside of the appliance while it is operating.

6. Keep the mains cord away from hot surfaces.

7. Never connect this appliance to an external timer switch or separate remote-control system in order to avoid a hazardous situation.

8. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.

9. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.

Please pay attention to scald where there is a high temperature symbol.

The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old appliances, you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.

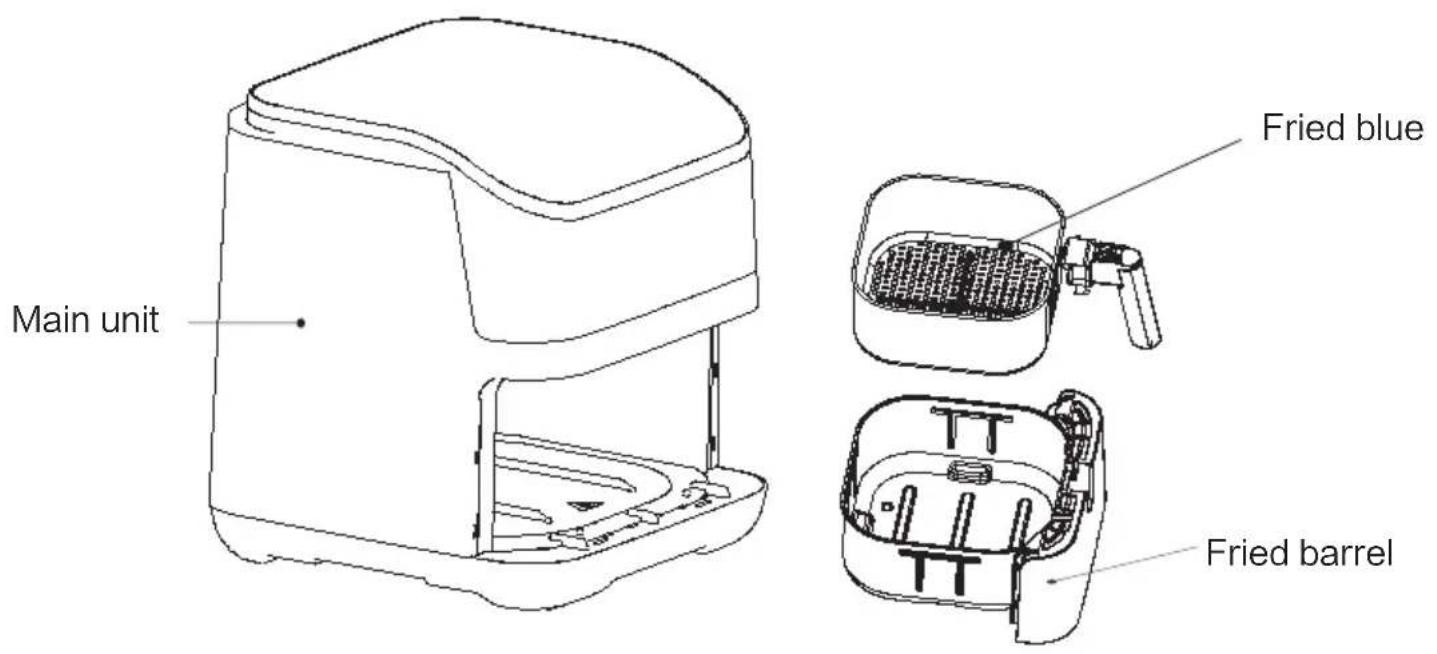

Product components

The product is subject to the actual product and configuration.

Electrical parameters

Model Voltage	Power	Frequency
MF-CN55D2 220-240V~ 1550-1850W	50/60Hz

Instructions for use

Instructions for use

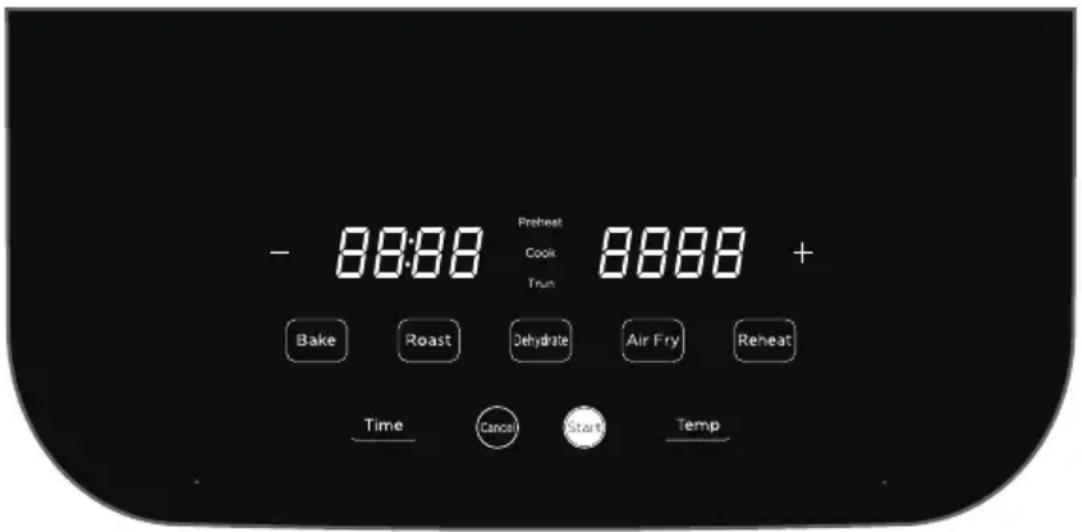

Operation process of the panel: power on the machine, touch “☐” button (the machine enters the state of function selection mode) – touch “☐” button to select functions (after select menu, touch “☐” button to select if enter time or temperature setting, press the “⊕/⊖” key to DIY time and temperature) - touch “▶” button, the product go into the working state - touch the “▶” button again, the product stop working. Touch and hold “▶” button to return to the energy saving interface.

Note: Function selection Status: function indicator light and key indicator light are on, only the selected function light blinking, and the digital tube displays the default temperature. If there is no operation for 2 minutes in the off state, it will return to the energy saving state.

Setting status: The selected function indicator start blinking, while other function lights will be on. The setting parameters displayed in the digital tube will be blinking, if doesn't operate within 5s, the machine will go into new set status and continue working.

Working status: The selected function indicator light is on, while other function lights are off. The buttons indicator lights up. Digital tube displays countdown.

The default menu pre-sets the heating temperature and time:

Menu function	Temperature (°C)		Time (Min)
	Pre-setting	Adjustment range Pre-setting		Adjustment range
Defrost 80 6		35-90 1-60
French fries 180 1	580-200 1-60
Chicken wings 180	1580-200 1-60
Steak 200 9		80-200 1-60
Shrimp 180 108	0-200 1-60
Fish 180 1380	-200 1-60
Cupcake 170 98	0-200	1-60
Dehydrate	70 20	35-90 1-60

Instructions for use

Preparation

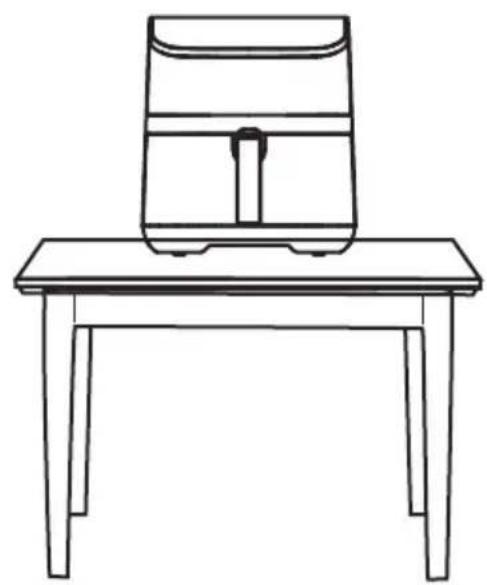

1. The product should be stably placed on a flat table (Figure 1), so that the power cord has a sufficient length to be plugged into the socket, and the air around the product should be kept in circulation, and should not be close to flammable items.

Line drawing of a simple air fryer on a wooden table (no text or symbols)

Figure 1

Instructions for use

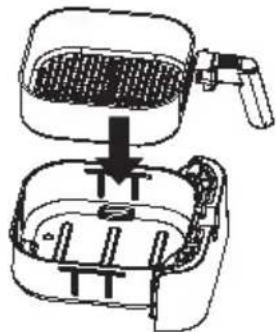

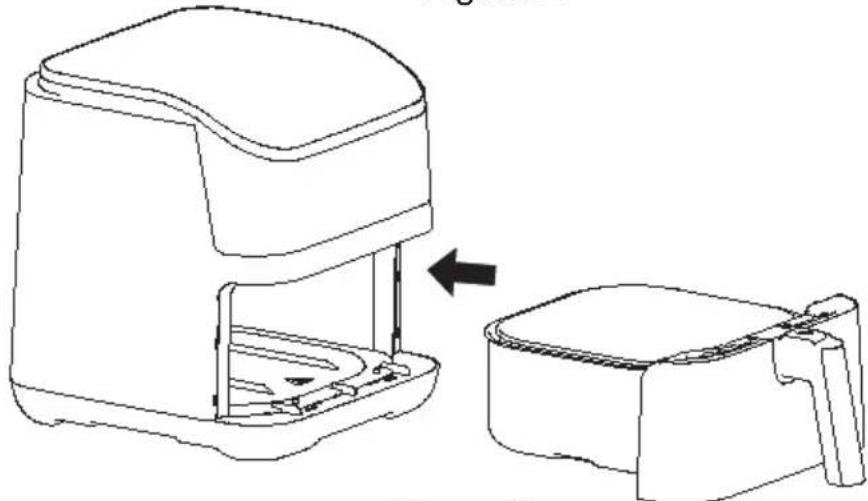

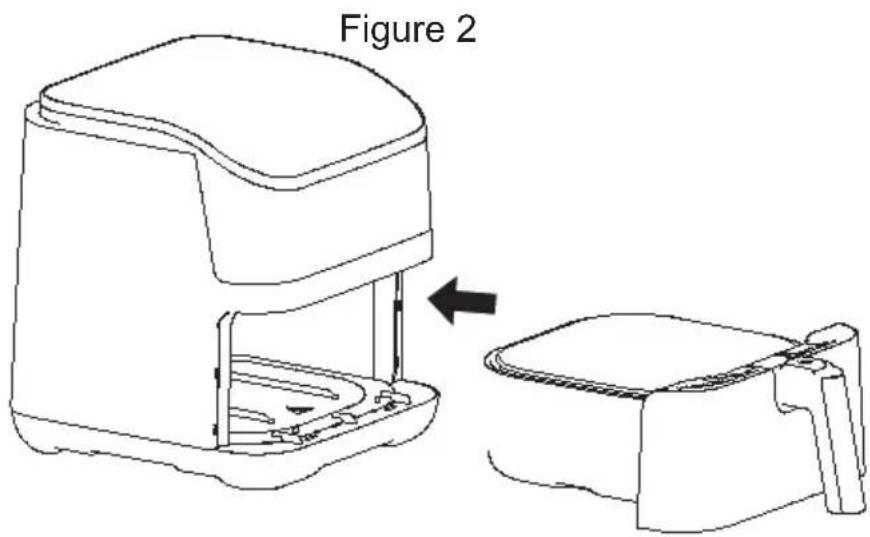

1. According to different configurations install the barrel assembly (Figure 2), then push it into the Main unit (Figure 3).

Diagram of a device being processed into a motor housing (no text or symbols visible)

Figure 3

1. Before placing ingredients, preheat the machine for 3-5 minutes, the cooking effect will be better.

Instructions for use

Instructions

1. Turn on the power, then touch “☐” button to select the corresponding function and touch “▶” button to let the machine run for preheating.
2. After the preheating is completed, the machine will beep and dispaly shows "ADD", hold the top of the machine with one hand, and pull the barrel out by holding the handle of the barrel with the other hand. The barrel must be placed on a stable table.
3. Put the ingredients on the bakware or basket in the fried barrel.

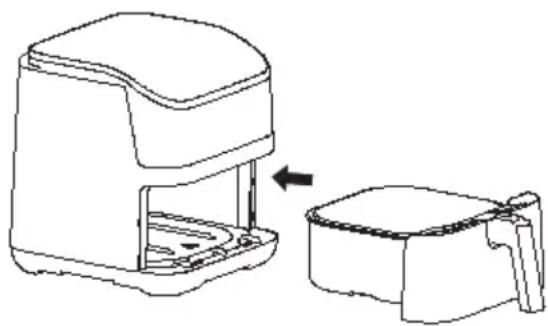

4. Push the frying barrel into the machine, after the machine is powered on, it will continue to work and the interface shows the set time or DIY through the control panel to set the certain temperature and time, then touch “▶” button to start. Then the machine enters the heating work state, cooks and heats the food material.

Note: When the frying barrel is not thoroughly pushed in the micro switch is not triggered; the machine is at the power-off state of getting the barrel and it won't work. At that time, you only need to totally push the frying barrel into the machine. The machine has the fuction of 10 minutes power off memory. After taking out of the frying barrel and stirring the food in the process of food cooking, fully push the frying barrel into the machine and the machine restores the working state when the frying barrel is not taken out, and continues to cook and heat the food materials.

Line drawing of an air fryer with a side view showing the device's internal structure (no text or symbols)

Line drawing of a device with a bell icon above it (no text or symbols)

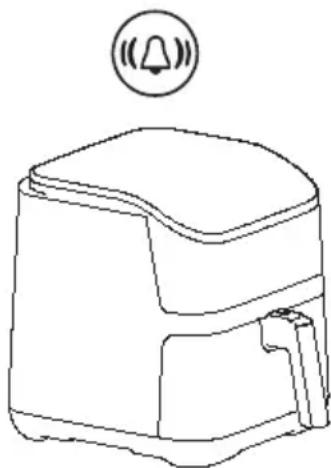

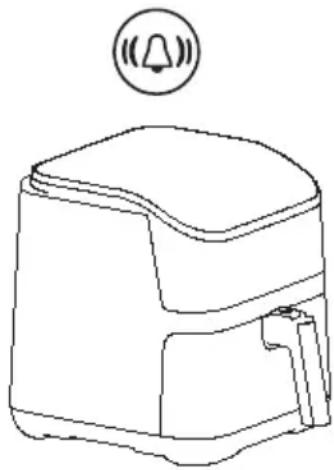

1. After reaching half of the set heating, the machine beeps 3 times, you can put out the barrel, flip sides of the food.
2. The machine beeps after cooked, unplug the power plug. Unplug the socket put it on the desk flatwise and take out the cooked food with the auxiliary tool (such as chopsticks and clamp).

Please carefully take it out. Do put it on the desk flatwise so as to avoid being scalded by steam or topping over the frying barrel which may lead to scalding by oil or high temperature food. In addition, the auxiliary tools (such as chopsticks) are suggested to be used in the process of taking out food.

Warm reminder

• The first use requires 10 minutes of dry burning. A small amount of white smoke or odor may appear during the dry burning process, which is normal. Do not panic.
• Before the product works, please check whether the bakeware or fried blue is in place to avoid malfunction.
• If you find that the product is malfunctioning, please stop using it and contact our service department immediately.
• Please use the bakeware or fried blue and fried barrel together in the whole machine, and avoid using them separately.
• After using, unplug the power plug and allow the air fryer to cool completely before moving.

Cleaning and maintenance

• Please clean the air fryer to prevent it from being burned.
  ●After using, please clean the bakeware or fried blue and fried barrel in time to avoid the damage of the coating due to the erosion of food residue oil.
• Do not use strong abrasive cleaners to prevent damage to the machine and your health.
• Use a soft, clean cloth to wipe the air fryer. Please do not use an over-wet cloth to clean the air fryer, to prevent water from entering the air fryer, which may cause short circuit and fire.
• Please do not use other cleaning equipment such as a dishwasher to clean the air fryer, otherwise it may cause damage and affect the use.
• Use neutral detergent or clean water to clean the frying pans and drums.
• Please do not use hard and sharp items (such as wire balls, blades, etc.) to clean the bakeware or fried blue and fried barrel to prevent scratching.
