Product Type	Heating Appliance
Brand	Fakir
Model	RF-11 Turbo Plus
Dimensions (approx.)	200 x 150 x 250 mm
Weight (approx.)	1.5 kg
Power Supply	230 V AC, 50 Hz
Power Consumption	2000 W
Heat Settings	2 (low and high)
Fan Only Mode	Yes
Thermostat Control	Adjustable thermostat
Heating Element	PTC ceramic
Air Flow Rate	150 m³/h (max)
Noise Level	< 45 dB
Cleaning	Wipe with damp cloth; clean dust filter monthly
Safety Features	Overheat protection, tip-over switch, cool-touch housing
Spare Parts Available	Heating element, fan motor, air filter, power cord
Warranty	2 years (EU)

Frequently Asked Questions - RF-11 Turbo Plus FAKIR

How do I clean my Fakir RF-11 Turbo Plus?

Unplug the device and let it cool. Wipe the exterior with a damp cloth. Remove the dust filter and clean it with a vacuum or soapy water. Reinstall the filter when dry.

Can I use the heater in a bathroom?

No, this heater is not rated for bathroom use. It should only be used in dry, well-ventilated areas away from water sources.

What does the tip-over switch do?

The tip-over switch automatically turns off the heater if it is knocked over, preventing fire hazards.

How do I adjust the thermostat?

Turn the thermostat knob to your desired temperature. The heater will cycle on and off to maintain that temperature.

Why does the heater turn off by itself?

Possible reasons: overheat protection activated, tip-over switch engaged, or thermostat reached set temperature. Check for blockages and ensure stable placement.

What is the power consumption?

The heater consumes up to 2000 W on high setting. On low setting, it consumes approximately 1000 W. Fan-only mode uses minimal power.

Can I use an extension cord?

It is not recommended. If necessary, use a heavy-duty cord rated for at least 15A and keep it fully uncoiled.

How do I replace the dust filter?

Locate the filter cover on the back, slide it off, remove the old filter, and insert a new one. Ensure the filter is properly seated before use. Replacement filters are available from Fakir.

What spare parts are available for this model?

Common spare parts include: heating element, fan motor, air filter, and power cord. Contact Fakir service centers for orders.

How long is the warranty?

The standard warranty is 2 years from the date of purchase, covering manufacturing defects. Proof of purchase is required.

USER MANUAL RF-11 Turbo Plus FAKIR

This product is only suitable for well insulated spaces or occasional use

White industrial air conditioner unit with a coiled solar panel, no visible text or symbols on the device itself.

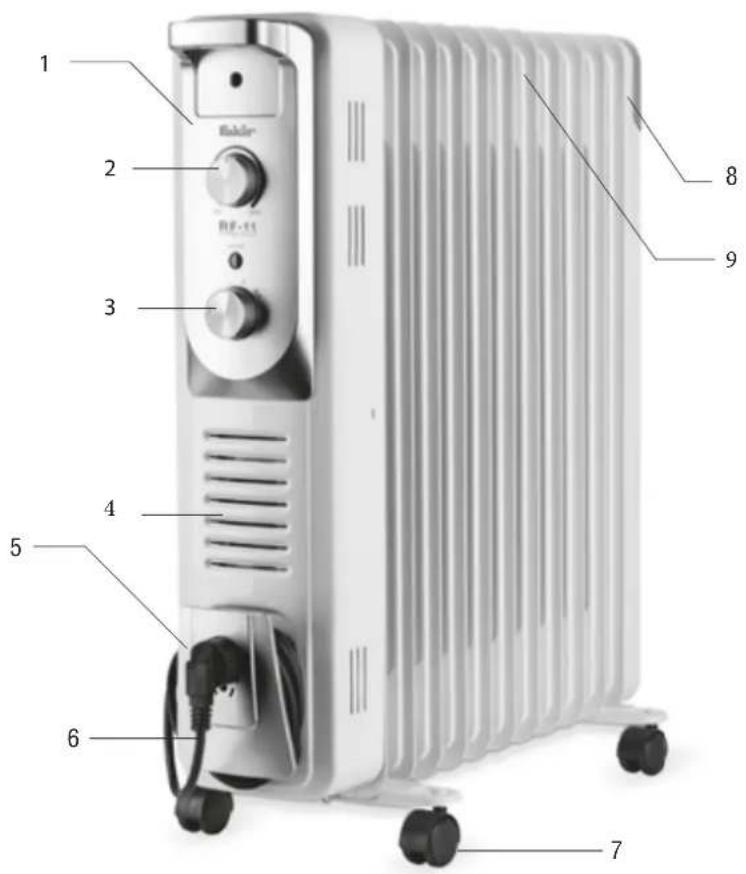

RF-11 Turbo Plus

White plastic mechanical component with interlocking brackets, no visible text or symbols

Close-up of a metallic cooling fan with heat exchanger (no visible text or symbols)

Metallic tray with perforated side and side brackets (no text or symbols visible)

Top-down view of a metal rack with perforated metal tray and wheels (no visible text or symbols)

Metallic industrial machine component with internal grid structure (no visible text or symbols)

Unauthorized Use....14

Safety is Important....14

Safety Instruction....15

Technical Specifications....16

Castors installation 17

Clothe Rack and humidifier 17

Installation of Cloth Rack With Humifier 18

Maintenance and Cleaning....19

Waste Disposal....20

Dispatch....20

Thank you for purchasing Fakir prestige RF-11 Turbo Plus Oil Filled Radiator which has been designed and manufactured to give you many years of trouble-free service.

You may already be familiar with using a similar product, but do please take time to read these instructions - they have been written to ensure you get the very best from your purchase. If you are experiencing any problem with the product please apply to Authorized Fakir Service. Safety is important. To ensure your safety and the safety of others, please ensure you read the Safety Instructions before you operate this product. Keep this information in a safe place for future reference. Safety is important. To ensure your safety and the safety of others, please ensure you read the Safety Instructions before you operate this product.

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

The appliance fulfills the requirements of the Appliance and Product Safety Law - ProdSG-, and Energy-related Products Act - EVPG -, as well as the EU Directives 2014/30/EC “Electromagnetic Compatibility”,

2014/35/EC "Low-Voltage-Directive,

2001/95/EC "General product safety",

2011/65/EC "RoHS-Directive".

2009/125/EG "Eco design Directive".

Fakir reserves the right to change design and equipment

Liability

Fakir will accept no liability for damages resulting from failure to comply with the operating instructions. We cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly by a different service than Fakir.

Unauthorized Use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

• This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.
• Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.
• Keep packaging films away from children - danger of suffocation! Otherwise children can hurt themselves by eating!

Safety is Important

For yours and others safety please read the instructions before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too. Remove all packaging, but keep it until you are sure that the appliance is working.

THIS PRODUCT SHOULD NEVER BE LEFT UNATTENDED WHEN CONNECTED TO THE MAINS SUPPLY.

The appliance fulfils the requirements of the Appliance and Product Safety Law - ProdSG-, and Energy-related Products Act - EVPG -, as well as the EU Directives 2014/30/EC "Electromagnetic Compatibility", 2014/35/EC "Low-Voltage-Directive, 2001/95/EC "General product safety", 2011/65/EC "RoHS-Directive". 2009/125/EG "Eco design Directive". Fakir reserves the right to change design and equipment

Safety Instruction

Oil filled radiator requires a 220 to 240V AC 50 Hz supply. Do not use any other supply.

• This product is designed for indoor household use. Do not use it outdoor.
• Keep children away from the appliance. Do not let children use the appliance.
• Never handle the mains plug or appliance with wet hands.
• Do not leave the appliance unattended when heating up, during use or when cooling down.
• Do not use the appliance, if it has been dropped, damaged, left outdoors or immersed in water.
• Do not carry the appliance by the power cable.
• Do not put any objects in openings in the accessories.
• When not in use, store the appliance in a cool dry area indoors.
• Use in a well lit work area.
• Never turn the appliance over or on its side during use.
• Never let the appliance touch directly to people, pets, plants, and equipment with electrical components.
• Do not immerse the appliance in water or any other liquids.
• If the appliance is used with an extension lead, make sure that the lead is suitably rated and includes the provision of a protective earthing conductor. Always take care when using extension leads to avoid creating a hazard.
• Do not use the appliance if the mains lead or plugs are damaged. Refer to Fakir Authorized Service.
• The radiator should be placed on flat ground. You must not rush to mount it precipitately or tipsily.
• Please do not use the radiator in a place full of combustible or explosive gas, bathroom, a shower or a swimming pool. Do not put your hand or a stick into the hole or slot of the radiator for your safety. (Especially for children). When using, the distance between the radiator and the wall and any other things should be above 20cm.
• Within 1m above its top there should not be any other thing for the gas convection.
• Please do not use the same electrical outlet with other appliance.
• Please do not put your clothes or towels on the radiator because of the risk of over heating.
• If you want to clean the radiator, please take the plug off first and let the unit cool down.

• This radiator is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leakage.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.

• If nobody is in the room, please put off the plug-in.
• During using the radiator, please do not open the door or window continually otherwise it will influence the heating effect.
• There are no user-serviceable parts in the steam cleaner. If there is a malfunction or a damage at the product, please refer to Authorized Fakir Service

TECHNICAL SPECIFICATIONS

Model

RF-11 Turbo Plus oil filled radiator

Electrical Information

Voltage: 220-240V AC 50-60Hz

Life time: 10 years

Power

Stage 1: 1000W

Stage 2: 1500W

Stage 3: 2500W

Fan: 400W

Total power: 2900W

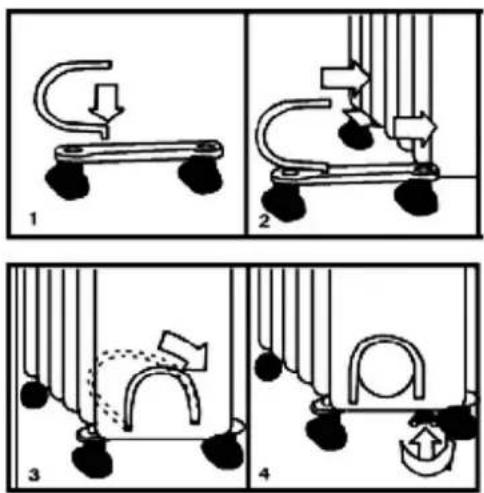

Castors installation

There are two indicator switch for power setting, you can turn on and off them on your requirement. Please make sure that the rated voltage is suitable and the rated electric current is not lower than 10A. When using, turn the temperature switch deasil to the max position and the room temperature will rise higher and higher. During using, if you feel the room temperature is too high and you want lower temperature, just adjust it to “middle” or “low” position. During using, the radiator will keep the required temperature, when the room temperature gets to the require temperature, the radiator will stop automatically. When the room temperature is lower than the required temperature, the radiator will start working automatically. Turn off the two power switches at the same time, the indicator light will be off.

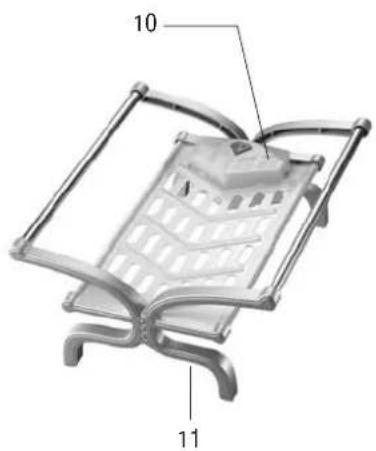

Clothe Rack and humidifier

By using the clothe you could dry your clothes safety. Here fore you have to ensure that the clothe hang not over the rack size. While using the radiator you could also humidify your room. Here fore you have to fill water into the humidifier tank.

Installation of Cloth Rack With Humifier

Check the accessories:

Close-up of a white plastic object with interlocking rods, possibly a mechanical or architectural component (no visible text or symbols)

• bracket 2pcs,
• metallic board 1pc,
• steel tube 2pcs,
• water box 1pcs

Close-up of a metallic cooling fan with heat exchanger (no visible text or symbols)

Insert the steel tubes into the bracket holes.

Metallic metal tray with perforated side and side brackets (no text or symbols visible)

Insert the brackets into the metal plate

Top-down view of a metal rack with perforated metal tray and wheels (no text or symbols visible)

Then put the water box on the clothes rack.

Metallic industrial machine component with grid-like structure and side brackets (no visible text or symbols)

Put the clothes rack on oil radiator fins, make sure the groove aligned to fins. The bracket can make span adjusting.

Maintenance and Cleaning

There are no user servicable parts. If you have problems with the product, please apply to Fakir Authorized Service.

WARNING!

THE OIL FILLED RADIATOR MUST BE SWITCHED OFF AND UNPLUGGED FROM THE MAINS POWER SUPPLY AND ALLOWED TO COOL DOWN BEFORE ALL CLEANING AND MAINTENANCE TASKS.

Make sure that the plug is taken off from the mains socket Make sure that unit is cooled down after each use. Wipe the body with a soft, dry cloth. Do not use any abrasive cleaners. Store the radiator in a dry, cool place.

Waste Disposal

Each user can protect the natural environment. It is neither difficult nor expensive. In order to do it:

Put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

This appliance is compatible with 2012/19/EU WEEE directive.

Dispatch:

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

RF-11 Turbo Plus

TR

Genel 22

Sorumluluk....23

White plastic mechanical component with interlocking brackets, placed on a dark surface (no visible text or symbols)

• 2 dirsek
- 1 metal levha
• 2 demir çubuk
• 1 su haznesi

Close-up of a metallic heating element with cooling fins and heat exchanger (no visible text or symbols)

Metallic perforated metal bracket with side connectors (no text or symbols visible)

Metallic tray with perforated metal frame and wheels, no visible text or symbols

Metallic industrial machine component with internal grid structure (no visible text or symbols)
