Bronx 2329 - Coffee maker OBH NORDICA - Free user manual and instructions

Product Type	Drip Coffee Maker
Brand	OBH Nordica
Model	Bronx 2329
Color	Black/Stainless Steel
Dimensions (H x W x D)	Approx. 35 x 25 x 20 cm
Weight	Approx. 1.5 kg
Power Consumption	1000 W
Voltage	220-240 V ~ 50/60 Hz
Water Tank Capacity	1.25 L (approx. 10 cups)
Brewing Capacity	Up to 10 cups (approx. 125 ml per cup)
Filter Type	Paper filter (size #4) or permanent filter
Warming Plate	Yes, automatic keep warm function
Anti-Drip Function	Yes, pause and serve
Auto Shut-off	Yes, after 40 minutes
Water Level Indicator	Yes, transparent window with markings
Reusable Filter Included	Yes, permanent mesh filter
Cord Storage	Yes, under the base
Cleaning and Descaling	Descale every 2-3 months with vinegar or descaling solution
Safety Features	Auto shut-off, non-slip feet, cool-touch handle
Spare Parts Availability	Carafe, filter basket, water tank available from OBH Nordica
Warranty	2 years

Frequently Asked Questions - Bronx 2329 OBH NORDICA

How do I descale my OBH Nordica Bronx 2329 coffee maker?

Mix equal parts of white vinegar and water in the water tank, run a brew cycle, then rinse with two cycles of fresh water. Repeat every 2-3 months.

Can I use a permanent filter instead of paper filters?

Yes, the Bronx 2329 comes with a permanent mesh filter included. You can also use standard #4 paper filters for a cleaner taste.

What should I do if the coffee maker stops brewing mid-cycle?

First, check the water level and ensure the tank is not empty. Also, verify that the carafe is properly placed on the warming plate to activate the anti-drip valve.

How long does the auto shut-off feature keep the coffee warm?

The warming plate stays on for 40 minutes after brewing, then the machine automatically shuts off for safety.

Why is my coffee not hot enough?

Ensure the warming plate is clean and the carafe is seated correctly. If the problem persists, the heating element may need descaling due to mineral buildup.

Can I brew fewer than 10 cups?

Yes, you can brew any amount up to 10 cups. For best results, use the corresponding amount of ground coffee (1 tablespoon per cup).

Is the carafe dishwasher safe?

The carafe is not recommended for dishwasher use. Wash it with warm soapy water and a soft sponge to avoid damage.

What type of coffee grounds should I use?

Use medium-ground coffee for drip machines. Too fine a grind may clog the filter, while too coarse may result in weak coffee.

How do I clean the permanent filter?

Rinse the mesh filter under running water and gently scrub with a soft brush. For deep cleaning, soak in vinegar solution for 15 minutes.

Where can I find spare parts like the carafe or filter basket?

Spare parts are available through OBH Nordica customer service or authorized retailers. The model number Bronx 2329 helps identify compatible parts.

USER MANUAL Bronx 2329 OBH NORDICA

DESIGNING GOOD LIFE

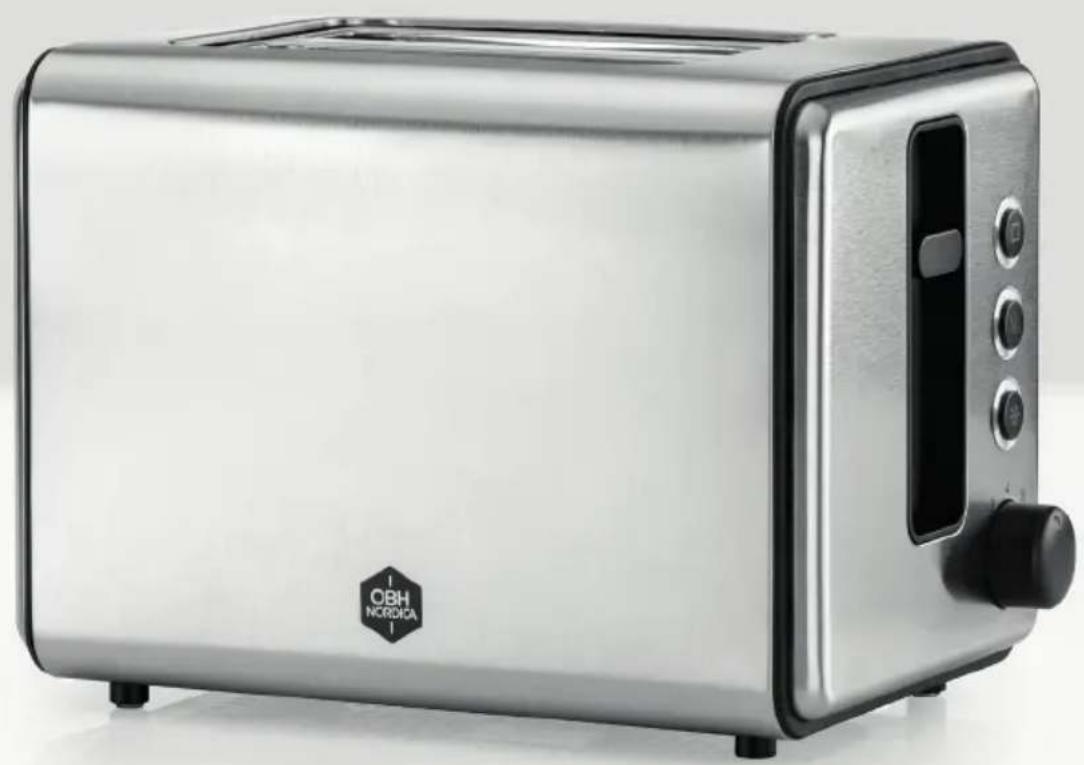

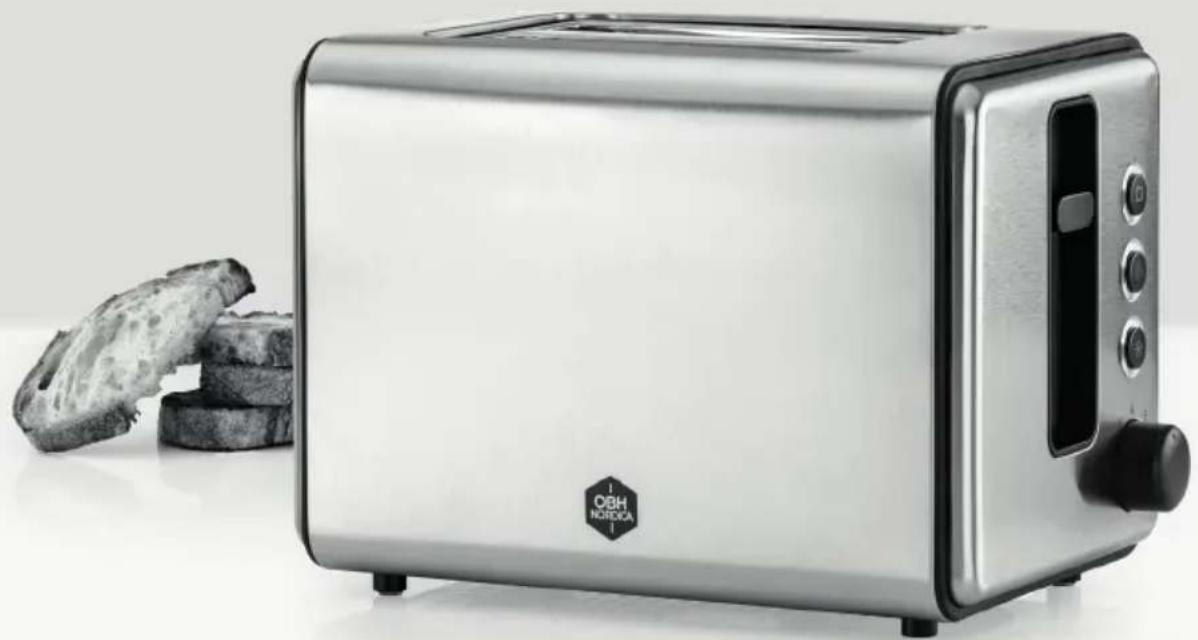

Toaster BRONX STEEL

For golden brown toast

Making good!

Bruksanvisning - svenska......sida 4 - 9
Brugsanvisning - dansk......side 10 - 15
Bruksanvisning - norsk......side 16 - 21
Käyttöohjeet - suomi......sivu 22 - 27
Instructions of use - english......page 28 - 33

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica 2255

220-240V\~50Hz

730-870 W

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240 V only, and use the appliance only for the intended use.
3. Always unplug from the mains supply when the appliance is not in use.
4. Never immerse the appliance in water or any other liquid.
5. This appliance can be used by persons (including children from the age of 8) with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
6. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
7. Cleaning and maintenance shall not be made by children, unless they are over the age of 8 and supervised.
8. Position the appliance and the cord out of the reach of children under the age of 8.
9. Check that the cord is not hanging free from the edge of the table.

10. Do not place the appliance on or near hotplates, open fire or the like.

11. WARNING! Bread can burn. Consequently, do not use the toaster close to or underneath combustible material, such as e.g. curtains. The appliance should only be used under supervision.

12. NOTE! The surfaces of the appliance get hot during use, so do not touch these parts.

13. Never use metallic utensils in or on the toaster and never touch the heating element of the toaster.

14. WARNING! In order to avoid a hazard due to inadvertent resetting, this appliance must not be supplied through an external switching device, such as e.g. a timer, or be connected to a circuit that is regularly switched on and off automatically.

15. Always check the appliance, the cord and the plug before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.

16. Extra protection can be obtained by installation of a residual current device of 30mA. Check with your installer.

17. The appliance is for domestic use only.

18. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any consequential damages to the product or other things are not covered by the warranty.

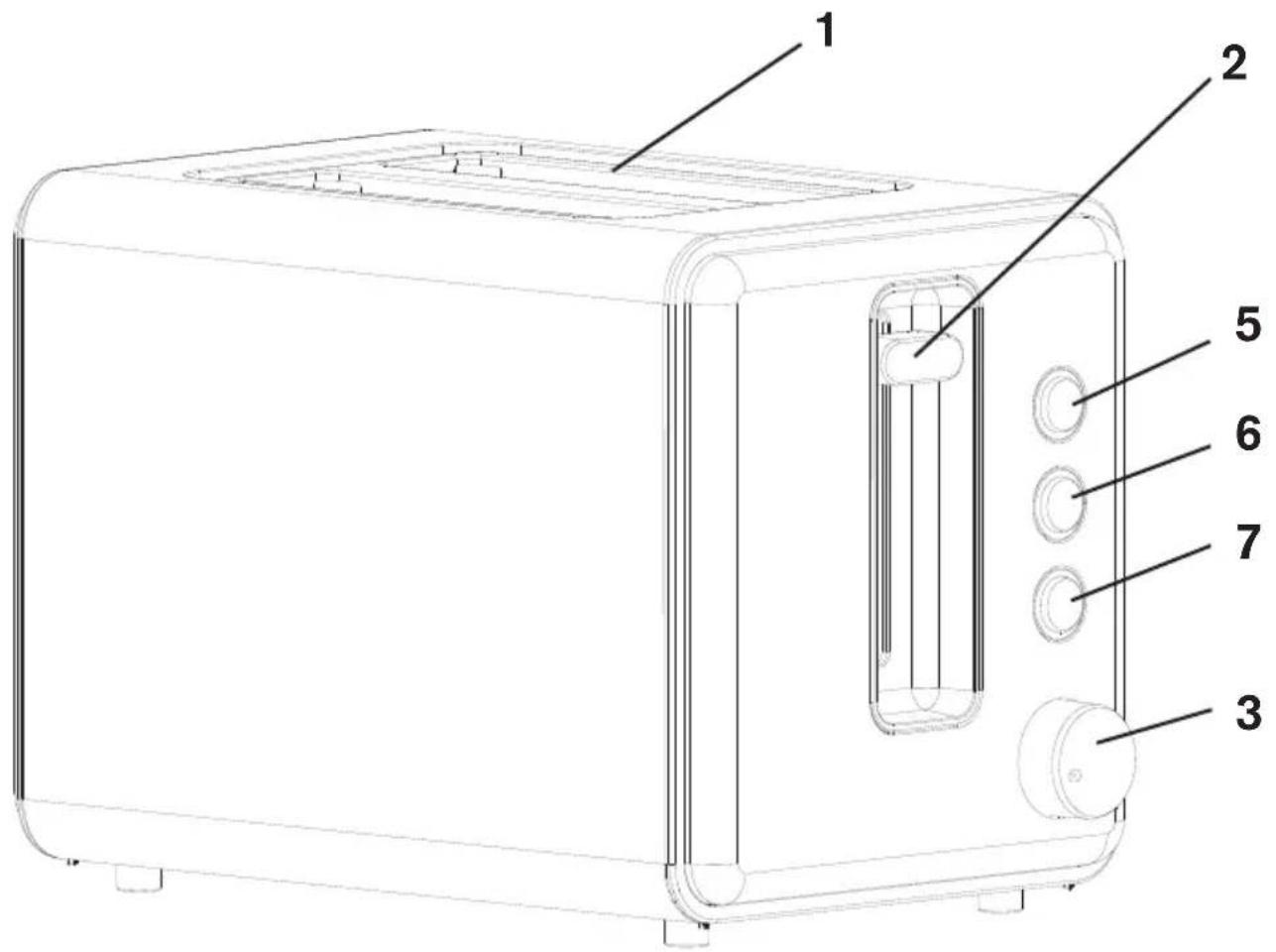

Parts of the appliance (see image on page 3)

1. Bread slots
2. Elevator (high rise function)
3. Thermostat button
4. Crumb tray (placed under the toaster but not showed in the picture)
5. Stop button
6. Heating button
7. Defrosting button

Functions

Stop function (5)

By pressing the stop button you can interrupt the toasting at any time. The control lamp of the stop button goes out and the elevator ascends.

Heating function (6)

If you want to heat bread that has already been toasted, you should use this function. Position the bread and push the elevator and press the button for heating (6). The control lamp will light to indicate that the bread has been heated without further toasting.

Defrosting function (7)

This function defrosts the bread for later toasting, which increases the toasting time somewhat. Put in the slices and set the degree of toasting. At the lowermost setting (1) the bread will defrost but not toasted. Press the elevator and then press the button for defrosting (7) and the control lamp will go on.

High rise function

If it is difficult to get the bread after toasting, the high rise function can be used. The elevator rises, which makes it easier to get the bread.

Toasting

Position the toaster on an even and heat-resistant surface. Plug the switch to a wall outlet. Before you use the toaster for the first time, let it get warm without any bread in order to get rid of any impurities. Turn the thermostat button to 7. Next, press the bread elevator. After a while the elevator will rise and the toaster is ready for use.

Put the bread in the slots and set the wanted degree of toasting (1-7) by means of the thermostat button. Step 1 is the shortest toasting cycle and step 7 is the longest toasting cycle (the darkest one). The further up the scale, the longer toasting cycle. Press the elevator until it locks in he lowermost position. When the toasting is done, the elevator will rise automatically and the toasting is interrupted.

If you only intend to toast 1 slice of bread, set the thermostat to a lower temperature compared to if there were bread in both slots. This is because heat from the empty slot will be transferred to the slot containing bread. Therefore the bread will burn with a high thermostat setting.

If you want to stop the toasting before the elevator rises automatically, press the stop button and the toasting stops.

IMPORTANT! The elevator will not be locked, if the toaster is not connected to a wall outlet.

If bread gets stuck in the toaster, pull the switch and leave the toaster to cool. You may turn the toaster upside down and carefully shake it to get the bread out. If that does not work, try to carefully get the bread out. Never let metallic utensils touch the heating element, which may be damaged and such damage will not be covered by the warranty.

IMPORTANT! Bread may catch fire!

Always keep an eye on the toaster when in use and do not place it close to or under curtains, cupboards or other combustible material.

IMPORTANT: Never cover the toaster with tinfoil or other material, when you use the toaster, as warm air should circulate around the appliance. Any consequential damages will not be covered by the warranty.

NOTE! Never toast bread with butter or meat or similar. If you toast bread that contains raisins (or other fruit/berry), remove any lose raisins/fruit/berry in order that they do not catch fire at the bottom of the toaster or burn to the heating element.

The toaster is only for use indoor and should not be handled with wet or humid hands.

Be aware that the wires of the heating stretch somewhat when the toaster is used and turn red. This is quite normal and has no effect on the result of the toasting.

If the cord is in the way it can easily be attached under the toaster.

Tips

The result of the toasting may be affected by the temperature of the bread. If the bread has room temperature, the toasting will be faster than if the bread is cold. The freshness of the bread will also affect the result of the toasting. Fresh bread normally has a higher degree of humidity and will therefore require a longer toasting cycle.

Cleaning and maintenance

Unplug from the wall outlet and let the bread toaster cool before cleaning.

Bread crumbs are collected in the crumb tray at the bottom of the toaster. Pull out the crumb tray and clean it with e.g. a brush or similar before putting it back in the toaster. Clean the casing with a damp cloth and wipe with a completely dry cloth. Never use scratching detergents, as such products may damage the surface of the appliance.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product

• scaling (any de-scaling must be carried out according to the instructions for use)

• damage as a result of lightning or power surges

• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

172 66 Sundbyberg

Phone: [phone]

www.obhnordica.com

Technical data

OBH Nordica 2255

220-240V\~50Hz

730-870 W

Defrosting and reheating function

Stop function

High rise function

Variable thermostat

Crumb tray

CE

These instructions are subject to alterations and improvements.
