Product Type	Heat Pump (Inverter Split Type)
Brand	Electrolux
Model	EPN09V78HWI
Cooling Mode	Yes (Room Temp 16°C-32°C, Outdoor 0°C-50°C)
Heating Mode	Yes (Room Temp 0°C-30°C, Outdoor -30°C-30°C)
Dry Mode	Yes (Room Temp 10°C-32°C, Outdoor 0°C-50°C)
Fan Mode	Yes (displays room temperature)
Sleep Function	Yes (adjusts temperature by 1°C per hour for 2 hours, then holds 6 hours)
Turbo Function	Yes
Silence Function	Yes (optional, reduces operating frequency)
Swing Function	Yes (vertical and horizontal louver adjustment, auto-swing)
Intelligent Eye	Optional (detects human activity, adjusts airflow)
Wireless Control	Optional (via mobile phone and wireless connection)
Air Filter Cleaning Reminder	Yes (flashes "CL" after 240 hours of use)
Air Filter Replacement Reminder	Yes (flashes "nF" after 2,880 hours of use)
Anti-Mildew	Yes (runs at low power after Cool/Auto Cool/Dry to dry condensate)
Auto-Restart	Yes (restores previous settings after power loss)
Low Ambient Heating	Yes (down to -30°C with inverter technology)
Low Ambient Cooling	Yes (down to -15°C, outdoor fan speed adjusts)
Refrigerant Type	Flammable (R32) – refer to safety precautions
Manual Operation	Yes (button on indoor unit for forced auto/cool)
Remote Control Included	Yes (infrared)

Frequently Asked Questions - EPN09V78HWI ELECTROLUX

How do I clean the air filter?

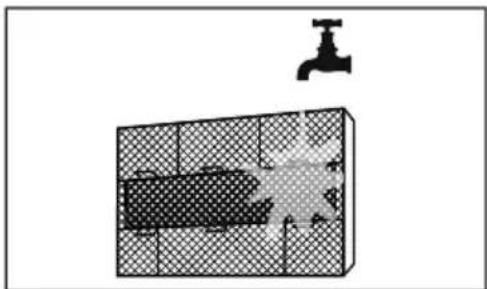

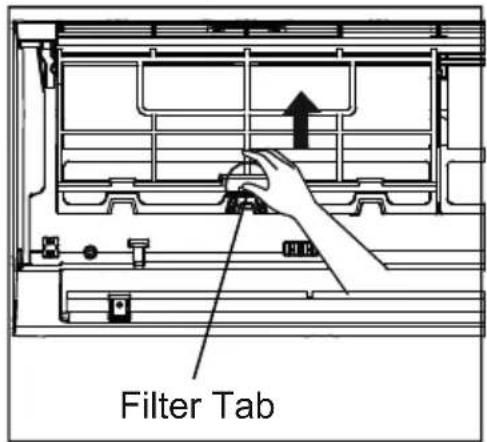

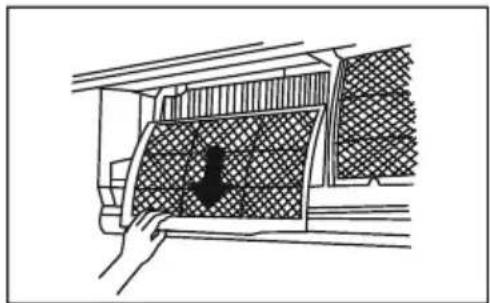

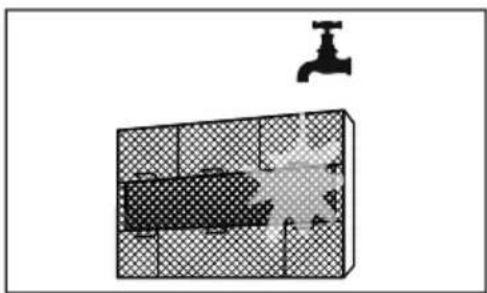

Open the front panel, press the tab on the filter to release it, and pull it out. Wash the filter with warm soapy water using a mild detergent, rinse, and shake off excess water. Dry in a cool, dry place away from direct sunlight before reinstalling. Clean every two weeks.

What does "CL" on the display mean?

"CL" stands for Clean Filter. It appears after 240 hours of use as a reminder to clean the air filter. To reset, press the LED button on the remote control 4 times or the MANUAL CONTROL button 3 times.

What does "nF" on the display mean?

"nF" stands for New Filter. It appears after 2,880 hours of use as a reminder to replace the air filter. To reset, press the LED button 4 times or the MANUAL CONTROL button 3 times.

How do I reset the filter reminder?

To reset the filter cleaning or replacement reminder, press the LED button on the remote control 4 times or press the MANUAL CONTROL button on the indoor unit 3 times.

Why is my unit not turning on?

Possible causes: power failure, the power is off, a blown fuse, dead remote control batteries, or the unit's 3-minute protection feature is active (wait 3 minutes). Also check if the timer is set. If the issue persists, contact service.

Why is the unit blowing white mist?

White mist can occur in humid regions when there is a large temperature difference between the room air and the conditioned air. In HEAT mode after defrosting, mist may also appear due to moisture from the defrosting process. This is normal.

How do I use the manual control button?

Lift the front panel until it clicks. Locate the MANUAL CONTROL button on the right side of the display box. Press once for FORCED AUTO mode, again for FORCED COOLING mode, and a third time to turn off. Use only if remote is lost or for emergency.

What should I do if I smell burning?

Immediately turn off the unit, unplug it, and contact an authorized service provider. A burning smell may indicate electrical damage or fire risk. Do not attempt to fix yourself.

How do I set the louver angle?

Use the SWING button on the remote control. For vertical angle, press the vertical SWING button to adjust by 6° each press. Press and hold for 2 seconds for continuous swing. For horizontal angle, use the horizontal SWING button similarly. Do not move louver by hand.

What are the operating temperature ranges for cooling and heating?

For COOL mode: Room 16°C-32°C, Outdoor 0°C-50°C. For HEAT mode: Room 0°C-30°C, Outdoor -30°C-30°C. For DRY mode: Room 10°C-32°C, Outdoor 0°C-50°C. Using outside these ranges may trigger safety protections.

USER MANUAL EPN09V78HWI ELECTROLUX

1. SAFETY PRECAUTIONS....3
2. UNIT SPECIFICATIONS AND FEATURES ....5
3. MANUAL OPERATION (WITHOUT REMOTE) 9
4. CARE AND MAINTENANCE....10
5. TROUBLESHOOTING 12
6. EUROPEAN DISPOSAL GUIDELINES....16

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number

Warning / Caution-Safety information.

General information and tips.

Environmental information.

Subject to change without notice.

1. SAFETY PRECAUTIONS

Read Safety Precautions Before Installation

Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION.

WARNING!

This symbol indicates that ignoring instructions may cause death or serious injury.

CAUTION!

This symbol indicates that ignoring instructions may cause moderate injury to your person, or damage to your appliance or other property.

WARNING!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

INSTALLATION WARNINGS

• Ask an authorized dealer to install this air conditioner. Inappropriate installation may cause water leakage, electric shock, or fire.
• All repairs, maintenance and relocation of this unit must be performed by an authorized service technician. Inappropriate repairs can lead to serious injury or product failure.

WARNINGS FOR PRODUCT USE

• If an abnormal situation arises (like a burning smell), immediately turn off the unit and pull the power plug. Call your dealer for instructions to avoid electric shock, fire or injury.
• Do not insert fingers, rods or other objects into the air inlet or outlet. This

may cause injury, since the fan may be rotating at high speeds.

• Do not use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause fire or combustion.
• Do not operate the air conditioner in places near or around combustible gases. Emitted gas may collect around the unit and cause explosion.
• Do not operate the air conditioner in a wet room (e.g., bathroom or laundry room). This can cause electrical shock and cause the product to deteriorate.
• Do not expose your body directly to cool air for a prolonged period of time.

ELECTRICAL WARNINGS

• Only use the specified power cord. If the power cord is damaged, it must be replaced by the manufacturer or certified service agent.
• Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty plugs can cause fire or electric shock.
• Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling directly on the cord can damage it, which can lead to fire or electric shock.
• Do not use an extension cord, manually extend the power cord, or connect other appliances to the same outlet as the air conditioner. Poor electrical connections, poor insulation, and insufficient voltage can cause fire.

CLEANING AND MAINTENANCE WARNINGS

• Turn off the device and pull the plug before cleaning. Failure to do so can cause electrical shock.
• Do not clean the air conditioner with excessive amounts of water.
• Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents can cause fire or deformation.

CAUTION!

• If the air conditioner is used together with burners or other heating devices, thoroughly ventilate the room to avoid oxygen deficiency.
• Turn off the air conditioner and unplug the unit if you are not going to use it for a long time.

• Turn off and unplug the unit during storms.
  • Make sure that water condensation can drain unhindered from the unit.

• Do not operate the air conditioner with wet hands. This may cause electric shock.

• Do not use device for any other purpose than its intended use.
• Do not climb onto or place objects on top of the outdoor unit.
• Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high.

Explanation of symbols displayed on the indoor unit or outdoor unit:

	WARNING! This symbol shows that this appliance used a flammable refrigerant. If therefrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
	CAUTION! This symbol shows that the operation manual should be read carefully.
	CAUTION! This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
	CAUTION!
	CAUTION! This symbol shows that information is available such as the operatingmanual or installation manual.

2. UNIT SPECIFICATIONS AND FEATURES

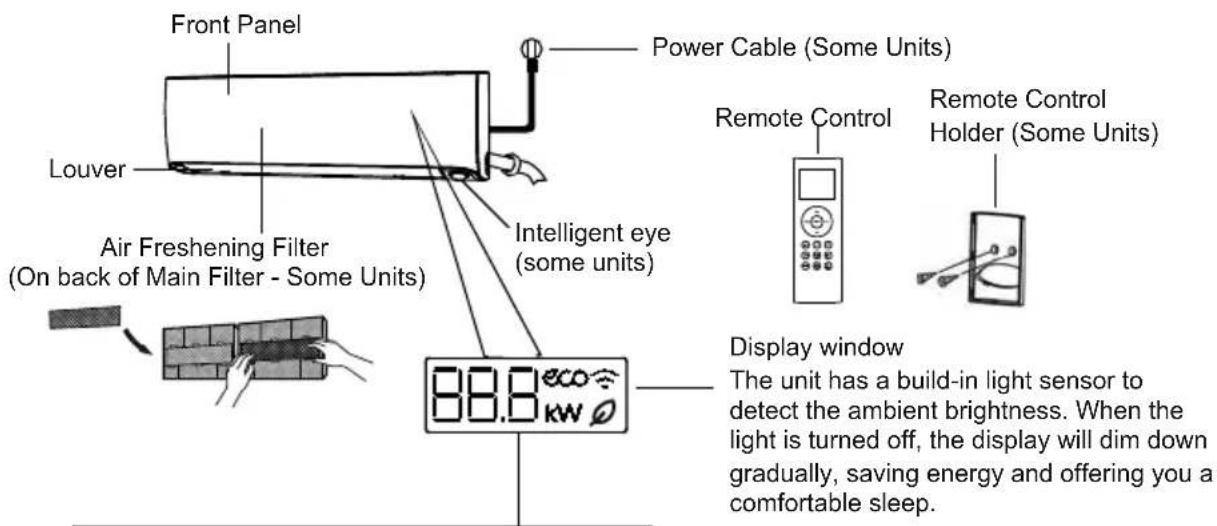

Unit Parts

“ 80.isplays temperature, operation feature and Error codes:

“on” for 3 seconds when:

- TIMER ON is set

- FRESH, SWING, TURBO, or SILENCE features are turned on

“OF” for 3 seconds when:

- TIMER OFF is set

- FRESH, SWING, TURBO, or SILENCE features are turned off

“ cF ” when anti-cold air feature is turned on

“df” when defrosting

“ 5C ” when unit is self-cleaning (some units)

“FP” when 8^ C( 46^ F) or 12^ C( 54^ F) heating mode is turned on (some units)

“ ” when fresh feature is turned on (some units)

“eco” when ECO feature is activated (some units)

“ ” when wireless control feature is activated (some units)

“ kW ” Indicates the current operation power (some units)

In Fan mode, the unit will display the room temperature.

In other modes, the unit will display your temperature setting.

Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after seconds, it will turn on the display screen.

Display Code Meanings

NOTE: A guide on using the infrared remote is not included in this literature package.

Achieving Optimal Performance

Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following temperature ranges.

When your air conditioner is used outside of these ranges, certain safety protection features will activate and cause the unit to perform less than optimally.

Inverter Split Type

	COOL mode HEAT mode DRY mode
Room Temperature	16°C - 32°C(60°F - 90°F)	0°C - 30°C(32°F - 86°F)	10°C - 32°C(50°F - 90°F)
Outdoor Temperature	0°C - 50°C(32°F - 122°F)	-30°C - 30°C(-22°F - 86°F)	0°C - 50°C(32°F - 122°F)
	-15°C - 50°C(5°F - 122°F)(For models with low temp. cooling systems.)
	0°C - 60°C(32°F - 140°F)(For special tropical models)		0°C - 60°C(32°F - 140°F)(For special tropical models)

FOR OUTDOOR UNITS WITH AUXILIARY ELECTRIC HEATER

When outside temperature is below 0^ C ( 32^ F), we strongly recommend keeping the unit plugged in at all time to ensure smooth ongoing performance.

Fixed-speed Type

	COOL mode HEAT mode DRY mode
Room Temperature	16°-32°C(60°-90°F)	0°-30°C(32°-86°F)	13°-32°C(55°-90°F)
Outdoor Temperature	18°-43°C(64°-109°F)	-7°-24°C(19°-75°F)	18°-43°C(64°-109°F)
	-7°-43°C(19°-109°F)(For models with low-temp cooling systems)		18°-43°C(64°-109°F)
	18°-54°C(64°-129°F)(For special tropical models)		18°-54°C(64°-129°F)(For special tropical models)

To further optimize the performance of your unit, do the following:

• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
  • Regularly inspect and clean air filters.

For a detailed explanation of each function, refer to the Remote Control Manual.

Other Features

- Auto-Restart

If the unit loses power, it will automatically restart with the prior settings once power has been restored.

• Low Ambient Heating

The advanced inverter technology to withstand the most extreme weather conditions. You can enjoy comfortable and heating air even when the outdoor temperature is as low as -30^(-22^) .

• Low Ambient Cooling

With low ambient cooling function, the outdoor fan speed can be changed according to the condenser temperature and AC can run smoothly under the temperature as low as -15^(5^) .

• Intelligent Eye function (some units)

– The system is controlled intelligently under Intelligent eye mode. It can detect the people's activities in the room. The wind can flow away from people, but also can follow people.

- In Cooling mode, when you are away for 30 minutes, the unit automatically lowers the frequency to save energy (for inverter models only). But this function is disable when the light sensor detects the light is turned off.

- When the room temperature is between 32^ and 40^(90^-104^) , the wind flow follows people feature is disable.

- Wireless Control (some units) Wireless control allows you to control your air conditioner using your mobile phone and a Wireless connection. For the USB device access, replacement, maintenance operations must be carried out by professional staff.

- Louver Angle Memory (some units) When turning on your unit, the louver will automatically resume its former angle.

• Refrigerant Leakage Detection (some units)

The indoor unit will automatically display "EC" when it detects refrigerant leakage.

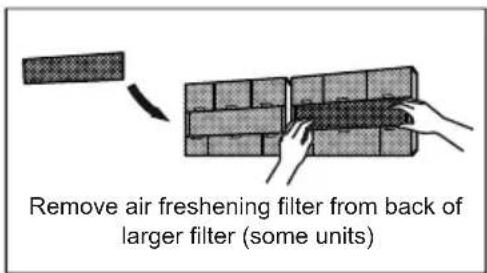

• Air Fresh function (some units) Innovated Air Fresh technology, eectively eliminates bacteria, virus, microbes, and other harmful substances and refresh the air.

- 8°C & 12°C (46°F & 54°F) heating function

When the air conditioner operates under heating mode with the set temperature of 16^ C( 60^ F), scrolls through operation mode as follows by pressing Temp “-” button twice in one second:

8^ C( 46^ F) heating 12^ C( 54^ F) heating Previous heating mode.

• Anti-mildew (some units)

When turning off the unit from COOL, AUTO (COOL), or DRY modes, the air conditioner will continue operate at very low power to dry up condensed water and prevent mildew growth.

NOTE ON ILLUSTRATIONS

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. The actual shape shall prevail.

Setting Angle of Air Flow

- Setting vertical angle of air flow While the unit is on, use the SWING (vertical air flow) button to set the direction of airflow.

1. Press the SWING (vertical air flow) button on the remote control once

to activate the louver. Each time you press the button, it will adjust the louver by 6°. Press the button until the direction you prefer is reached (see Fig. A)

1. To make the houver swing up and down continuously, press and hold the SWING (vertical air flow) button for 2 seconds. Press it again to stop the automatic function.

- Setting horizontal angle of air flow While the unit is on, use the SWING (horizontal air flow) button to set the direction of airflow.

1. Press the SWING (horizontal air flow) button on the remote control once to activate the louver. Each time you press the button, it will adjust the louver by 6°. Press the button until the direction you prefer is reached (see Fig.B).

2. To make the houver swing left and right continuously, press and hold the SWING (horizontal air flow) button for 2 seconds. Press it again to stop the automatic function.

NOTE ON LOUVERS

Do not move louver by hand. This will cause the louver to become out of sync. If this occurs, turn off the unit and unplug it for a few seconds, then restart the unit. This will reset the louver.

• Intelligent Eye Operation

While the unit is on, press the Intelligent eye button on the remote control to select wind flow follow people feature or wind flow away from people feature. The intelligent eye can detect people's activities in the room and adjust the horizontal angle of air flow to implement wind flow follow people feature and wind flow away from people feature.

NOTE: The wind flow follow people feature is only available for a single people area. If press the SWING button on the remote control, this feature will stops automatically.

Diagram of airflow or heat transfer between a car air conditioner unit (no text or symbols)

Fig. A

Diagram of airflow or cooling process on a car air conditioner panel, showing arrows indicating direction (no text or symbols)

Fig. B

CAUTION!

Do not put your fingers in or near the blower and suction side of the unit. The high-speed fan inside the unit may cause injury.

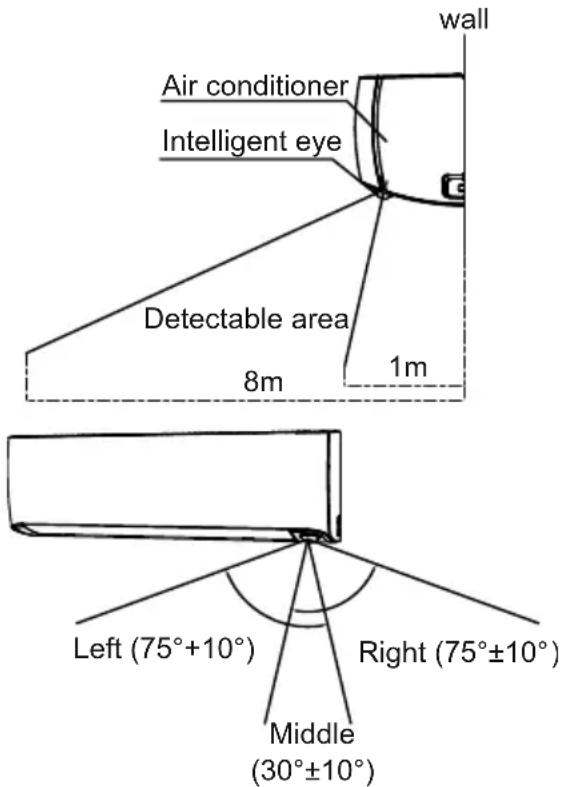

For example: Detectable area at 25^ C. The detectable range is varied according to the room temperature.

Fig. C

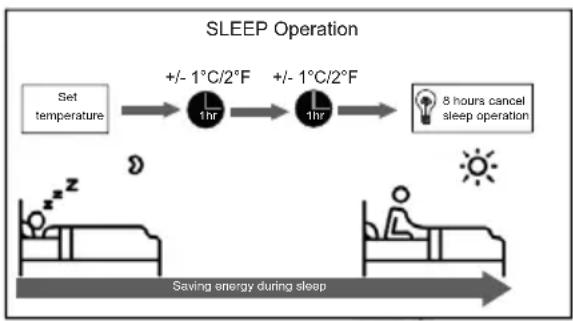

Sleep Operation

The SLEEP function is used to decrease energy use while you sleep (and don't need the same temperature settings to stay comfortable). This function can only be activated via remote control.

Activate the sleep feature when you are ready to go to sleep. When in COOL mode, the unit will increase the temperature by 1^ C ( 2^ F) after 1 hour, and will increase an additional 1^ C ( 2^ F) after another hour. When in HEAT mode, the unit will decrease the temperature by 1^ C ( 2^ F) after 1 hour, and will decrease an additional 1^ C ( 2^ F) after another hour. And the fan speed is low.

It will hold the new temperature for 6 hours, then the sleep operation stops, the unit will revert back to the previous operation mode, but the temperature will not change.

Note: The SLEEP function is not available in FAN or DRY mode.


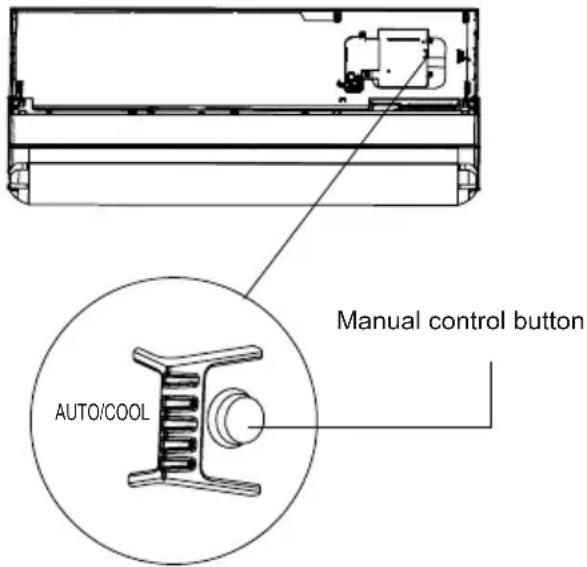

3. MANUAL OPERATION (WITHOUT REMOTE)

How to operate your unit without the remote control

In the event that your remote control fails to work, your unit can be operated manually with the MANUAL CONTROL button located on the indoor unit. Note that manual operation is not a long-term solution, and that operating the unit with your remote control is strongly recommended.

Unit must be turned off before manual operation.

To operate your unit manually:

1. Lift the front panel of the indoor unit, and raise it until it clicks in place.
2. Locate the MANUAL CONTROL button on the right-hand side of the display box.
3. Press the MANUAL CONTROL button one time to activate FORCED AUTO mode.

4. Press the MANUAL CONTROL button again to activate FORCED COOLING mode.

5. Press the MANUAL CONTROL button a third time to turn the unit off.

6. Close the front panel.

CAUTION!

The manual button is intended for testing purposes and emergency operation only. Please do not use this function unless the remote control is lost and it is absolutely necessary. To restore regular operation, use the remote control to activate the unit.

4. CARE AND MAINTENANCE

Cleaning Your Indoor Unit

BEFORE CLEANING OR MAINTENANCE

Always turn off your air conditioner system and disconnect its power supply before cleaning or maintenance.

CAUTION!

Only use a soft, dry cloth to wipe the unit clean. If the unit is especially dirty, you can use a cloth soaked in warm water to wipe it clean.

• Do not use chemicals or chemically treated cloths to clean the unit
• Do not use benzene, paint thinner, polishing powder or other solvents to clean the unit. They can cause the plastic surface to crack or deform.
• Do not use water hotter than 40°C (104°F) to clean the front panel. This can cause the panel to deform or become discolored.

Cleaning Your Air Filter

A clogged air conditioner can reduce the cooling efficiency of your unit, and can also be bad for your health. Make sure to clean the filter once every two weeks.

1. Lift the front panel of the indoor unit.
2. First press the tab on the end of filter to loosen the buckle, lift it up, then pull it towards yourself.

3. Now pull the filter out.

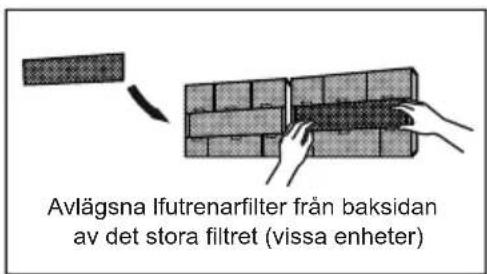

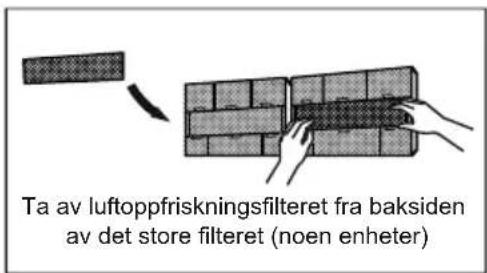

4. If your filter has a small air freshening filter, unclip it from the larger filter. Clean this air freshening filter with a hand-held vacuum.

5. Clean the large air filter with warm, soapy water. Be sure to use a mild detergent.

6. Rinse the filter with fresh water, then shake off excess water.

7. Dry it in a cool, dry place, and refrain from exposing it to direct sunlight.

8. When dry, re-clip the air freshening filter to the larger filter, then slide it back into the indoor unit.

9. Close the front panel of the indoor unit.

Diagram showing a hand pressing down on a car air vent with a downward arrow indicating airflow direction (no text or symbols present)

Diagram showing a water tank with a faucet above it, no text or symbols present

CAUTION!

Only use a soft, dry cloth to wipe the unit clean. If the unit is especially dirty, you can use a cloth soaked in warm water to wipe it clean.

• Before changing the filter or cleaning, turn off the unit and disconnect its power supply.
• When removing filter, do not touch metal parts in the unit. The sharp metal edges can cut you.
• Do not use water to clean the inside of the indoor unit. This can destroy insulation and cause electrical shock.
• Do not expose filter to direct sunlight when drying. This can shrink the filter.

Air Filter Reminders (Optional) Air Filter Cleaning Reminder

After 240 hours of use, the display window on the indoor unit will flash "CL." This is a reminder to clean your filter. After 15 seconds, the unit will revert to its previous display

To reset the reminder, press the LED button on your remote control 4 times, or press the MANUAL CONTROL button 3 times. If you don't reset the reminder, the "CL" indicator will flash again when you restart the unit.

Air Filter Replacement Reminder

After 2,880 hours of use, the display window on the indoor unit will flash "nF." This is a reminder to replace your filter. After 15 seconds, the unit will revert to its previous display.

To reset the reminder, press the LED button on your remote control 4 times, or press the MANUAL CONTROL button 3 times. If you don't reset the reminder, the "nF" indicator will flash again when you restart the unit.

CAUTION!

• Any maintenance and cleaning of outdoor unit should be performed by an authorized dealer or licensed service provider.
• Any unit repairs should be performed by authorized dealer or licensed service provider.

Maintenance – Long Periods of Non-Use

If you plan not to use your air conditioner for an extended period of time, do the following:

Diagram of a 3D grid structure with a small arrow pointing to the top-right corner (no text or symbols)

Clean all filters

Simple line drawing of a house with wavy lines inside, no text or symbols present

Turn on FAN function until unit dries out completely

Symbol of a crossed-out electrical hazard zone, no text or numbers present

Turn off the unit and disconnect the power

Line drawing of a smartphone with internal components (no text or symbols)

Remove batteries from remote control

Maintenance – Pre-Season Inspection

After long periods of non-use, or before periods of frequent use, do the following:

Check for damaged wires

Diagram of a 3x3 grid structure with shaded cells and an arrow indicating direction (no text or symbols)

Clean all files

Simple line drawing of a device with no text, numbers, or symbols

Replace batteriesCheck for leak

Make sure nothing is blocking all air inlets and outlets

5. TROUBLESHOOTING

SAFETY PRECAUTIONS

If ANY of the following conditions occurs, turn off your unit immediately!

The power cord is damaged or abnormally warm

• You smell a burning odor
• The unit emits loud or abnormal sounds
• A power fuse blows or the circuit breaker frequently trips
  • Water or other objects fall into or out of the unit

Do not attempt to fix these yourself!

Contact authorized service provider immediately!

Common Issues

The following problems are not a malfunction and in most situations will not require repairs.

Issue Possible Causes
Unit does not turn on when pressing ON/OFF button	The Unit has a 3-minute protection feature that prevents the unit from overloading. The unit cannot be restarted within three minutes of being turned off.
The air conditioner turns to FAN only mode from COOL or HEAT (For cooling and heating models only) mode	When indoor temperature reaches the temperature setting on air conditioner, the compressor will stop automatically, and the air conditioner turns to FAN only mode. The compressor will start again when the indoor temperature rises on COOL mode or falls on HEAT mode (For cooling and heating models only) to the set point.

Issue Possible Causes
The indoor unit emits white mist	In humid regions, a large temperature difference between the room's air and the conditioned air can cause white mist.
Both the indoor and outdoor units emit white mist	When the unit restarts in HEAT mode after defrosting, white mist may be emitted due to moisture generated from the defrosting process.
The indoor unit makes noises	A rushing air sound may occur when the louver resets its position.
	A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit's plastic parts.
Both the indoor unit and outdoor unit make noises	Low hissing sound during operation: This is normal and is caused by refrigerant gas flowing through both indoor and outdoor units.
	Low hissing sound when the system starts, has just stopped running, or is defrosting: This noise is normal and is caused by the refrigerant gas stopping or changing direction.
	Squeaking sound: Normal expansion and contraction of plastic and metal parts caused by temperature changes during operation can cause squeaking noises.
The outdoor unit makes noises	The unit will make different sounds based on its current operating mode.
Dust is emitted from either the indoor or outdoor unit	The unit may accumulate dust during extended periods of non-use, which will be emitted when the unit is turned on. This can be mitigated by covering the unit during long periods of inactivity.
The unit emits a bad odor	The unit may absorb odors from the environment (such as furniture, cooking, cigarettes, etc.) which will be emitted during operations.
	The unit's filters have become moldy and should be cleaned.
The fan of the outdoor unit does not operate	During operation, the fan speed is controlled to optimize product operation.
Operation is erratic, unpredictable, or unit is unresponsive	Interference from cell phone towers and remote boosters may cause the unit to malfunction.In this case, try the following:Disconnect the power, then reconnect.Press ON/OFF button on remote control to restart operation.

NOTE: If problem persists, contact a local dealer or your nearest customer service center. Provide them with a detailed description of the unit malfunction as well as your model number.

Troubleshooting

When troubles occur, please check the following points before contacting a repair company.

Problem Possible Causes Solution
Poor Cooling Performance	Temperature setting may be higher than ambient room temperature	Lower the temperature setting
	The heat exchanger on the indoor or outdoor unit is dirty	Clean the affected heat exchanger
	The air filter is dirty Remove the filter and clean it according to instructions
	The air inlet or outlet of either unit is blocked	Turn the unit off, remove the obstruction and turn it back on
	Doors and windows are open	Make sure that all doors and windows are closed while operating the unit
	Excessive heat is generated by sunlight	Close windows and curtains during periods of high heat or bright sunshine
	Too many sources of heat in the room (people, computers, electronics, etc.)	Reduce amount of heat sources
	Low refrigerant due to leak or long-term use	Check for leaks, re-seal if necessary and top off refrigerant
	SILENCE function is activated (optional function)	SILENCE function can lower product performance by reducing operating frequency. Turn off SILENCE function.
The unit is not working	Power failure Wait for the power to be restored
	The power is turned off Turn on the power
	The fuse is burned out Replace the fuse
	Remote control batteries are dead	Replace batteries
	The Unit's 3-minute protection has been activated	Wait three minutes after restarting the unit
	Timer is activated Turn timer off
The unit starts and stops frequently	There's too much or too little refrigerant in the systemIncompressible gas or moisture has entered the system.	Check for leaks and recharge the system with refrigerant.Evacuate and recharge the system with refrigerant
	The compressor is broken	Replace the compressor
	The voltage is too high or too low	Install a manostat to regulate the voltage
Poor heating performance	The outdoor temperature is exetremtly low	Use auxiliary heating devic
	Cold air is entering through doors and windows	Make sure that all doors and windows are closed during use
	Low refrigerant due to leak or long-term use	Check for leaks, re-seal if necessary and top off refrigerant
Indicator lamps continue flashing	The unit may stop operation or continue to run safely. If the indicator lamps continue to flash or error codes appear, wait for about 10 minutes. The problem may resolve itself.
Error code appears in the window display of indoor unit:• E0, E1, E2...• P1, P2, P3...• F1, F2, F3...	If not, disconnect the power, then connect it again. Turn the unit on.If the problem persists, disconnect the power and contact your nearest customer service center.

NOTE: If your problem persists after performing the checks and diagnostics above, turn off your unit immediately and contact an authorized service center.

6. EUROPEAN DISPOSAL GUIDELINES

This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste.

When disposing of this appliance, you have the following options:

• Dispose of the appliance at designated municipal electronic waste collection facility.
• When buying a new appliance, the retailer will take back the old appliance free of charge.
• The manufacturer will take back the old appliance free of charge.
• Sell the appliance to certified scrap metal dealers.

Special notice

Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain.

INNHOLDSFORTEGNELSE

1. SIKKERHETSMESSIGE FORHOLDSREGLER ....19
2. SPESIFIKASJONER OG FUNKSJONER FOR ENHETEN ....21
3. MANUELL DRIFT (UTEN FJERNKONTROLL)....25
4. RENGJ∅RING OG VEDLIKEHOLD....26
5. PROBLEML∅SING....28
6. EUROPEISKE RETNINGSLINJER FOR AVFALLSHÄNDTERING....32

VI TENKER PÅ DEG

www.electrolux.com/productregistration

Diagram of airflow or heat transfer between a rectangular device with directional arrows indicating flow direction (no text or symbols)

Fig. A

Diagram of a car air conditioner unit with airflow arrows indicating airflow direction (no text or symbols)

Fig. B

FORSIKTIG!

Diagram showing a hand pressing down on a car's air vent with a black arrow indicating downward pressure (no text or symbols present)

Diagram showing a water tank with a faucet above it, no text or symbols present

FORSIKTIG!

3D grid diagram with shaded cells and a small arrow pointing to the top-right corner (no text or symbols)

Rengjør alle filtre

Simple line drawing of a house-shaped structure with wavy lines inside, no text or symbols present.

Line drawing of a smartphone with internal components (no text or symbols)

Diagram of a grid-like structure with shaded cells, no text or symbols present

Rengjør alle filtre

Pure mechanical assembly diagram without any text, numbers, or symbols

www.electrolux.com/productregistration

Diagram of airflow or heat transfer between a rectangular device with directional arrows indicating flow direction (no text or symbols)

Fig. A

Diagram of a car air conditioner unit with airflow arrows indicating airflow direction (no text or symbols)

Fig. B

BEMÆRK!

Diagram showing a hand pressing down on a car air vent with a black arrow indicating downward motion (no text or symbols present)

Diagram showing a water tank with a faucet above it, no text or symbols present

BEMÆRK!

Simple 3D grid diagram with shaded cells and a small arrow pointing upward (no text or symbols)

Rengør alle filtre

Simple line drawing of a house with wavy lines inside, no text or symbols present

Technical line drawing of a device with internal components (no text or symbols)

Maintenance – Pre-Season Inspection

Diagram of a 3D grid structure with a small arrow pointing upward (no text or symbols)

Rengør alle filtre

Line drawing of a smartphone with internal components (no text or symbols)

INNEHÅLLSFÖRTECKNING

1. SÄKERHETSFÖRESKRIFTER....51
2. SPECIFICATIONER OCH FUNKTIONER....53
3. MANUELL ANVÄNDNING (UTAN FJÄRRKONTROLL) 57
4. SKÖTSEL OCH UNDERHÅLL 58
5. FELSÖKNING....60
6. EUROPEISKA RIKTLINJER FÖR AVFALLSHANTERING ....64

VI HAR DIG I ÅTANKE

www.electrolux.com/productregistration

Diagram of airflow or fluid flow around a rectangular object with directional arrows indicating movement (no text or symbols)

Fig. A

Diagram of airflow or cooling process on a car air conditioner panel, showing downward arrows indicating airflow direction (no text or symbols)

Diagram showing a hand pressing down on a car's side panel with a downward arrow (no text or symbols)

Diagram showing a water tank with a faucet above it, no text or symbols present

FÖRSIKTIGHET!

3D diagram of a rectangular block with grid pattern and an arrow pointing upward (no text or symbols)

Rengör alla filter

Simple line drawing of a house with wavy lines inside, no text or symbols present

Pure technical line drawing of a device with internal components (no text or symbols)

Ta ut batterierna ur fjärrkontrollen

Diagram of a 3D grid structure with shaded cells and an arrow indicating direction (no text or symbols)

Rengör alla filter

Prohibition sign with diagonal line and droplet symbols (no text)

Pure mechanical assembly diagram without any text, numbers, or symbols

Byt batterier

Diagram of airflow or heat transfer between a car air conditioner unit (no text or symbols)

Kuva A

Diagram of airflow or heat transfer between a car air conditioner unit with arrows indicating direction (no text or symbols)

Kuva B

HUOMIO!

Diagram showing a hand opening a car's side panel with a black arrow pointing downward (no text or symbols present)

Diagram showing a water tank with a faucet above it, no text or symbols present

HUOMIO!

Diagram of a 3x3 grid with shaded cells and an arrow labeled 'E' pointing to the top-right corner (no text or symbols beyond basic grid lines)

Simple line drawing of a house with wavy lines indicating airflow or ventilation (no text or symbols)

Technical line drawing of a device with internal components (no text or symbols)

Grid pattern with a small arrow pointing upward on the right edge (no text or symbols)

Simple line drawing of a device with no text, numbers, or symbols

Vaihda paristot

Repeating pattern of gray geometric shapes on white background, no text or symbols present
