| Product Type | Built-in Microwave Oven |
| Brand | Bosch |
| Model | Serie 8 CMG633BB1A |
| Dimensions (H x W x D) | 548 x 594 x 455 mm |
| Mains Connection | 220-240 V, 50/60 Hz |
| Microwave Power Levels | 90 W, 180 W, 360 W, 600 W, Max (1000 W) |
| Heating Types | 4D Hot Air, Hot Air Eco, Circulated Air Grilling, Grill Large Area, Grill Small Area, Plate Warming, Drying |
| AutoPilot | Yes, with pre-programmed dishes |
| Microwave | Standalone and MicroCombi combination |
| Rapid Heating | Yes, for 4D Hot Air |
| Childproof Lock | Yes, with 4-second press |
| Timer | Yes, up to 23h59min |
| Cooking Time Setting | Yes, up to 23h59min |
| End Time Delay | Yes, up to 23h59min |
| Interior Light | LED |
| Cooling Fan | Yes, automatic |

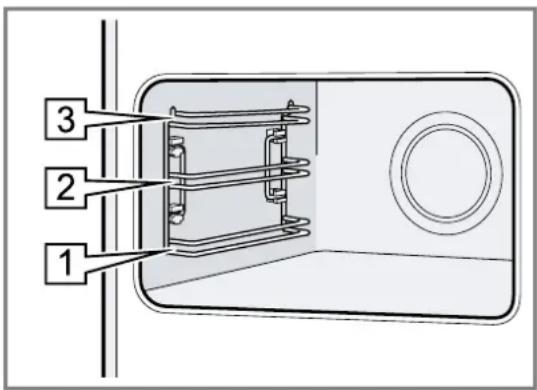

| Number of Shelf Positions | 3 |
| Accessories Supplied | Wire rack, Universal pan |
| Cleaning | Enamel interior, removable rails, drying function |
| Safety Features | Childproof lock, automatic shut-off, residual heat indicator, overheating protection |
| Installation Type | Built-in |
Frequently Asked Questions - Serie 8 CMG633BB1A BOSCH
User questions about Serie 8 CMG633BB1A BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Oven in PDF format for free! Find your manual Serie 8 CMG633BB1A - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Serie 8 CMG633BB1A by BOSCH.
USER MANUAL Serie 8 CMG633BB1A BOSCH
[en] User manual and installation instructions
Table of contents
USER MANUAL
1 Safety.... 2
2 Preventing material damage 5
3 Environmental protection and saving energy 6
4 Familiarising yourself with your appliance ..... 8
5 Operating modes 10
6 Accessories.... 11
7 Before using for the first time 13
8 Basic operation ...... 13
9 Rapid heating 14
10 Time-setting options.... 14
11 Microwave 16
12 AutoPilot.... 18
13 Childproof lock.... 19
14 Basic settings.... 19
15 Cleaning and servicing.... 20
16 Drying 21
17 Rails 22
18 Appliance door.... 23
19 Troubleshooting.... 24
20 Disposal.... 26
21 Customer Service.... 26
22 How it works.... 26
23 INSTALLATION INSTRUCTIONS 34
23.1 General installation instructions.... 34
1 Safety
Observe the following safety instructions.
1.1 General information
- Read this instruction manual carefully.
- Keep the instruction manual and the product information safe for future reference or for the next owner.
■ Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
This appliance is designed only to be built into kitchen units. Read the special installation instructions.
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under the warranty.
Only use this appliance:
■ To prepare meals and drinks.
- For household use and similar applications, such as: In kitchens for employees in shops, offices and other commercial sectors; in agriculture; by customers in hotels and other residential facilities; in bed and breakfasts.
■ Up to an altitude of max. 4000 m above sea level.
This appliance complies with the standards EN 55011 and CISPR 11. It is a group 2, class B product. Group 2 means that microwaves are produced for the purpose of heating food. Class B means that the appliance is suitable for private households.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.
Children must not play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised.
Keep children under the age of 8 years away from the appliance and power cable.
1.4 Safe use
Always place accessories in the cooking compartment the right way round.
→ "Accessories", Page 11
⚠ WARNING – Risk of fire!
Combustible objects that are left in the cooking compartment may catch fire.
▶ Never store combustible objects in the cooking compartment.
▶ If smoke is emitted, the appliance must be switched off or the plug must be pulled out
and the door must be held closed in order to stifle any flames.
Loose food remnants, fat and meat juices may catch fire.
▶ Before using the appliance, remove the worst of the food residues and remnants from the cooking compartment, heating elements and accessories.
Opening the appliance door creates a draught. Greaseproof paper may come into contact with the heating element and catch fire.
▶ Never place greaseproof paper loosely over accessories when preheating the appliance and while cooking.
▶ Always cut greaseproof paper to size and use a plate or baking tin to hold it down.
⚠ WARNING – Risk of burns!
The appliance and its parts that can be touched become hot during use.
▶ Caution should be exercised here in order to avoid touching heating elements.
- Young children under 8 years of age must be kept away from the appliance.
Accessories and cookware get very hot.
▶ Always use oven gloves to remove accessories or cookware from the cooking compartment.
When the cooking compartment is hot, any alcoholic vapours inside may catch fire.
▶ Only use small quantities of drinks with a high alcohol content in food.
▶ Open the appliance door carefully.
⚠ WARNING – Risk of scalding!
The accessible parts of the appliance become hot during operation.
▶ Never touch these hot parts.
- Keep children at a safe distance.
Hot steam may escape when you open the appliance door. Steam may not be visible, depending on the temperature.
▶ Open the appliance door carefully.
- Keep children at a safe distance.
If there is water in the cooking compartment when it is hot, this may create hot steam.
▶ Never pour water into the cooking compartment when the cooking compartment is hot.
⚠ WARNING – Risk of injury!
Scratched glass in the appliance door may develop into a crack.
- Do not use any harsh or abrasive cleaners or sharp metal scrapers to clean the glass on the oven door, as they may scratch the surface.
The hinges on the appliance door move when the door is opened and closed, which could trap your fingers.
- Keep your hands away from the hinges.
Components inside the appliance door may have sharp edges.
▶ Wear protective gloves.
⚠ WARNING – Risk of electric shock!
Incorrect repairs are dangerous.
▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
An ingress of moisture can cause an electric shock.
- Do not use steam- or high-pressure cleaners to clean the appliance.
If the appliance or the power cord is damaged, this is dangerous.
▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 26
⚠ WARNING – Danger: Magnetism!
Permanent magnets are used in the control panel or in the controls. These may affect electronic implants, e.g. heart pacemakers or insulin pumps.
▶ Wearers of electronic implants must stay at least 10 cm away from the control panel.
⚠ WARNING – Risk of suffocation!
Children may put packaging material over their heads or wrap themselves up in it and suffocate.
- Keep packaging material away from children.
- Do not let children play with packaging material.
Children may breathe in or swallow small parts, causing them to suffocate.
- Keep small parts away from children.
▶ Do not let children play with small parts.
1.5 Microwave
CAREFULLY READ THE IMPORTANT SAFETY INSTRUCTIONS AND KEEP THEM SAFE FOR FUTURE USE
⚠ WARNING – Risk of fire!
Using the appliance for anything other than its intended purpose is dangerous and may cause damage. For example, heated slippers and pillows filled with grain or cereal may catch fire, even several hours later.
▶ Never dry food or clothing with the appliance.
▶ Never heat up slippers, pillows filled with grain or cereal, sponges, damp cleaning cloths or similar with the appliance.
- The appliance must only be used to prepare food and drink.
Food and its packaging and containers may catch fire.
▶ Never heat food in heat-retaining packaging.
- Do not leave food unattended while it is heating in containers made of plastic, paper or other combustible materials.
▶ Never set the microwave power too high or the cooking time too long. Follow the instructions provided in this user manual.
▶ Never use the microwave to dry food.
▶ Never defrost or heat food with a low water content, such as bread, at too high a microwave power or for too long.
Cooking oil may catch fire.
▶ Never use the microwave to heat cooking oil on its own.
⚠ WARNING – Risk of explosion!
Liquids and other food may easily explode when in containers that have been tightly sealed.
▶ Never heat liquids or other food in containers that have been tightly sealed.
⚠ WARNING – Risk of burns!
Foods with peel or skin may burst or explode during heating, or even afterwards.
▶ Never cook eggs in their shell or heat hard-boiled eggs in their shell.
▶ Never cook shellfish or crustaceans.
▶ Always prick the yolk of eggs before microwaving.
The skin of foods that have a peel or skin, such as apples, tomatoes, potatoes and sausages, may burst. Before heating, prick the peel or skin.
Heat is not distributed evenly through baby food.
▶ Never heat baby food in closed containers.
▶ Always remove the lid or teat.
▶ Stir or shake well after heating.
▶ Check the temperature before giving the food or drink to a child.
Heated food gives off heat. The cookware may become hot.
▶ Always use oven gloves to remove cookware or accessories from the cooking compartment.
Airtight packaging may burst when food is heated.
▶ Always follow the instructions on the packaging.
▶ Always use oven gloves to remove the dishes from the cooking compartment.
The accessible parts of the appliance become hot during operation.
▶ Never touch these hot parts.
- Keep children at a safe distance.
At the highest settings in microwave only mode, the drying function will automatically switch on an additional heating element to heat the cooking compartment.
▶ Never touch the inside surfaces of the cooking compartment or the heating elements while they are hot.
- Keep children at a safe distance.
Using the appliance for anything other than its intended purpose is dangerous. This is because, for instance, overheated slippers, pillows filled with grain or cereal, sponges and damp cleaning cloths, etc., may cause burns to the skin.
▶ Never dry food or clothing with the appliance.
▶ Never heat up slippers, pillows filled with grain or cereal, sponges, damp cleaning cloths or similar with the appliance.
- The appliance must only be used to prepare food and drink.
⚠ WARNING – Risk of scalding!
There is a possibility of delayed boiling when a liquid is heated. This means that the liquid reaches the boiling temperature without the usual steam bubbles rising to the surface. Exercise caution even when only gently shaking the container. The hot liquid may suddenly boil over and splatter.
▶ Always place a spoon in the container when heating liquids. This prevents delayed boiling.
⚠ WARNING – Risk of injury!
Unsuitable cookware may crack. Porcelain or ceramic cookware can have small perforations in the handles and lid. These perforations conceal a cavity below. If moisture penetrates this cavity, it could cause the cookware to crack.
▶ Only use microwave-safe cookware.
Cookware and containers made from metal or cookware with metal edging may lead to sparks being formed during simple microwave operation. The appliance is damaged.
▶ Never use metal containers during microwave-only operation.
▶ Only use microwave-safe cookware or use the microwave in combination with a type of heating.
⚠ WARNING – Risk of electric shock!
The appliance uses a high voltage.
▶ Never remove the casing.
⚠ WARNING – Risk of serious harm to health!
Inadequate cleaning may destroy the surface of the appliance, reduce its service life, and lead to dangerous situations, such as escaping microwave energy.
- Clean the appliance on a regular basis, and remove any food residue immediately.
▶ Always keep the cooking compartment, door seal, door and door stop clean. → "Cleaning and servicing", Page 20
Never operate the appliance if the cooking compartment door or the door seal is damaged. Microwave energy may escape.
▶ Never use the appliance if the cooking compartment door, the door seal or the plastic door frame is damaged.
▶ Any repair work must only be carried out by the after-sales service.
Microwave energy will escape from appliances that do not have any casing.
▶ Never remove the casing.
- Contact our after-sales service if maintenance or repair work is needed.
2 Preventing material damage
2.1 General
ATTENTION!
Objects on the cooking compartment floor at over 50 °C will cause heat to build up. The baking and roasting times will no longer be correct and the enamel will be damaged.
- Do not place any accessories, greaseproof paper or foil of any kind on the cooking compartment floor.
▶ Only place cookware on the cooking compartment floor if a temperature above 50 °C has been set.
When the cooking compartment is hot, any water inside it will create steam. The change in temperature may cause damage.
▶ Never pour water into the cooking compartment when it is still hot.
▶ Never place cookware containing water on the cooking compartment floor.
The prolonged presence of moisture in the cooking compartment leads to corrosion.
- Allow the cooking compartment to dry after use.
- Do not keep moist food in the cooking compartment for a long time with the door closed.
- Do not store food in the cooking compartment.
Leaving the appliance to cool down with the door open will damage the front of neighbouring kitchen units over time.
▶ Always allow the cooking compartment to cool down with the door closed after cooking at high temperatures.
▶ Take care not to trap anything in the appliance door.
▶ Only leave the cooking compartment to dry with the door open if a lot of moisture was produced during operation.
Fruit juice dripping from the baking tray leaves stains that cannot be removed.
- When baking very juicy fruit flans, do not pack too much on the baking tray.
▶ If possible, use the deeper universal pan.
Using oven cleaner in a hot cooking compartment damages the enamel.
▶ Never use oven cleaner in the cooking compartment when it is still warm.
- Remove all food remnants from the cooking compartment and the appliance door before you next heat up the appliance.
If the seal is very dirty, the appliance door will no longer close properly during operation. This may damage the front of adjacent kitchen units.
- Keep the seal clean at all times.
▶ Never operate the appliance if the seal is damaged or missing.
Sitting or placing objects on the appliance door may damage it.
- Do not place or hang objects on the appliance door.
- Do not place cookware or accessories on the appliance door.
With certain models, accessories may scratch the door pane when closing the appliance door.
▶ Always push accessories fully into the cooking compartment.
2.2 Microwave
Follow these instructions when using the microwave.
ATTENTION!
Metal touching the wall of the cooking compartment will cause sparks, which may damage the appliance or the inner door pane.
▶ Metal (e.g. a spoon in a glass) must be kept at least 2 cm from the cooking compartment walls and the inside of the door.
Using accessories directly on top of one another causes sparks.
- Do not combine the wire rack with the universal pan.
▶ Always place accessories on different levels.
The universal pan and baking tray are not suitable for use with microwave-only mode. Using either of these may create sparks, which will damage the cooking compartment.
- Place accessories on the wire rack supplied.
Placing aluminium containers in the appliance may cause sparks, which will damage the appliance. - Do not use aluminium containers in the appliance.
Operating the appliance without food in the cooking compartment may lead to overloading. - Do not switch on the microwave unless there is food inside. The only exception to this rule is when performing a short cookware test.
If you prepare microwave popcorn at a microwave power level that is too high, the door pane may crack due to overloading.
▶ Never set a microwave power level that is too high.
▶ Use a maximum microwave output of 600 watts.
▶ Always place the popcorn bag on a glass plate.
3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compatible and can be recycled.
- Sort the individual components by type and dispose of them separately.
3.2 Saving energy
If you follow these instructions, your appliance will use less power.
Only preheat the appliance if the recipe or the recommended settings tell you to do so.
■ Not preheating the appliance can reduce the energy used by up to 20%.
Use dark-coloured, black-coated or enamelled baking tins.
■ These types of baking tin absorb the heat particularly well.
Open the appliance door as little as possible during operation.
- This will maintain the temperature in the cooking compartment and eliminate the need for the appliance to reheat.
When baking multiple dishes, do so in succession or in parallel.
- The cooking compartment is heated after baking the first dish. This reduces the baking time for the second cake.
If the cooking time is relatively long, you can switch the appliance off 10 minutes before the cooking time ends.
■ There will be enough residual heat to finish cooking the dish.
Remove any accessories that are not being used from the cooking compartment.
■ Accessories that are not being used do not need to be heated.
Allow frozen food to defrost before cooking.
■ This will save the energy that would otherwise be required to defrost it.
4 Familiarising yourself with your appliance
4.1 Control panel
You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
Note: On certain models, specific details such as colour and shape may differ from those pictured.
1 Buttons
The buttons on the left- and right-hand side of the control panel have a pressure point. Pressing a button will execute its function. On appliances without a stainless steel front, the buttons are also touch-sensitive.
2 Touch fields
Touch fields are touch-sensitive surfaces. To select a function, simply press lightly on the relevant field.
3 Control ring
The control ring can be turned infinitely in either direction. Press down lightly on the control ring and move it in the direction you require.
4 Display
The display shows the current settings, options or relevant information.
4.2 Buttons
Use the buttons on the left- and right-hand side of the control panel to switch your device or the operating mode on and off.
Button Function Use
| 1 | On/Off Switch the appliance on or off. |
| D | Start/Stop Short press: Start or pause operation.Press and hold for approx. three seconds: Cancel operation. |
4.3 Touch fields
Use the touch fields to select different functions directly.
The touch fields on the outside of the control panel are designed for general functions; the touch fields on the inside of the control panel are for the cooking mode.
The touch field for the function that is currently selected lights up red.
| Touch field on the outside | Function Use |
| Timer Select the timer. | |
| Childproof lock Press and hold for approx. four seconds: Activate or deactivate the child-proof lock. | |
| Information Display additional information about a function or setting.To call up the basic settings, press and hold this for approx. three seconds when the appliance is switched off. | |
| Interior lighting Switch the lighting in the cooking compartment on or off. | |
| Touch field on the in-side | Function Use |
| Types of heating Select the operating mode types of heating. | |
| Temperature Select the temperature in the cooking compartment. | |
| AutoPilot Select the AutoPilot operating mode with cooking programmes. | |
| Weight Select the weight for the operating mode. | |
| Microwave Select the microwave operating mode. | |
| MicroCombi Select the MicroCombi operating mode. | |
| Time-setting options Select the time-setting options. | |
| Rapid heating Starts or cancels rapid heating for the cooking compartment. |
4.4 Control ring
You can use the control ring to change the setting values that are shown in the display. If you have reached the maximum value for setting values, such as the temperature, minimum or maximum value, this value remains in the display. If required, use the control ring to turn the value back again. For lists, e.g. the types of heating, the first value starts again after the last value.
4.5 Display
The display shows the current setting values on different levels.
| Value in the foreground | The value in the foreground is highlighted in white. You can use the control ring to change the value directly.Once operation has started, the temperature or level is displayed in the foreground.When using the microwave, the cooking time is displayed in the foreground. |
| Value in the background | Values in the background are displayed in grey. To change the value using the control ring, select the required function in advance. |
| Enlarge-ment | As long as you use the control ring to change a value, only this value will be displayed as enlarged. |
Display ring
The display ring is located around the outside of the display.
■ Position indicator
If you change a value, the display ring shows you where you are in the selection list. The display ring may be continuous or divided into segments depending on the settings area and the length of the selection list.
■ Progress indicator
During operation, the display ring displays the progress and turns red at second-long intervals. As the cooking time counts down, one segment of the display ring disappears every second.
Temperature display
The heating line and the residual heat indicator show you the temperature in the cooking compartment. Due to thermal inertia, the temperature that is displayed may differ slightly from the actual temperature inside the cooking compartment.
■ Heating line
Once operation has started, the white line below the temperature turns red as the cooking compartment heats up. When you are preheating the appliance, the optimal time to place your food in the cooking compartment is as soon as the entire line has turned red.
With set levels such as grill settings, the heating line turns red immediately.
The heating line does not appear when using the microwave.
■ Residual heat indicator
When the appliance is switched off, the display ring shows the residual heat in the cooking compartment. As the residual heat dissipates, the display ring gets darker before eventually disappearing completely.
4.6 Cooking compartment
The functions in the cooking compartment make your appliance easier to use.

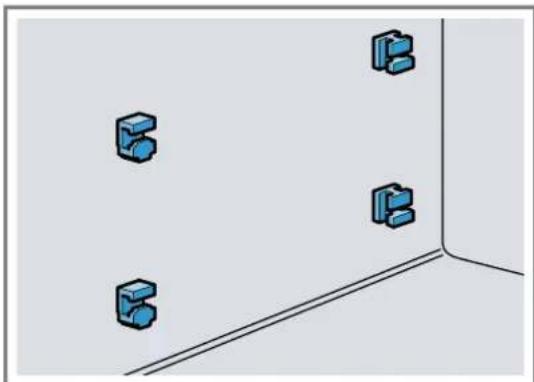

Shelf supports
The rails in the cooking compartment enable you to place accessories at different heights.
→ "Accessories", Page 11
Your appliance has three shelf positions. The shelf positions are numbered from bottom to top.

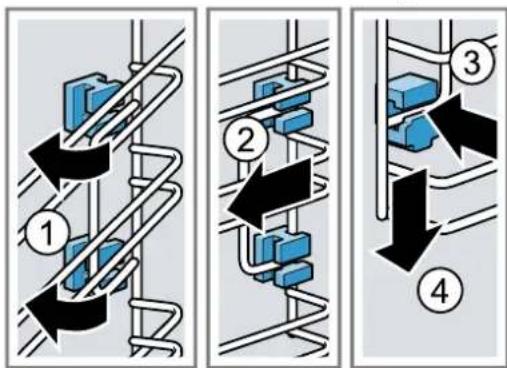

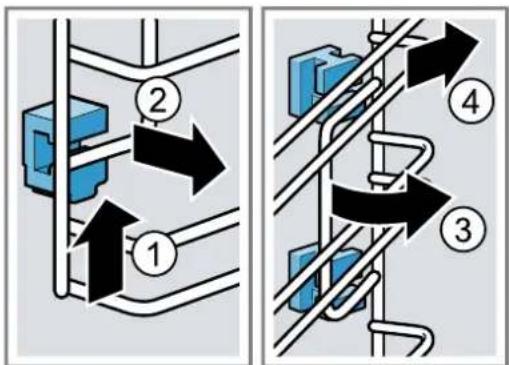

You can remove the rails, e.g. for cleaning.
→ "Rails", Page 22
Lighting
One or more oven lights illuminate the cooking compartment.
When you open the appliance door, the light in the cooking compartment switches on. If the appliance door remains open for longer than 15 minutes, the light switches off again.
For most operating modes, the lighting is switched on during operation. The lighting switches off again when the operation ends.
Cooling fan
The cooling fan switches on and off depending on the appliance's temperature. The hot air escapes above the door.
ATTENTION!
Do not cover the ventilation slot above the appliance door. The appliance overheats.
▶ Ensure that the ventilation slots are unobstructed.
To ensure that the appliance cools down more quickly after operation, the cooling fan continues to run for a certain period afterwards.
Appliance door
If you open the appliance door during operation, the operation stops. When you close the appliance door, the operation continues automatically.
In microwave mode, when you close the appliance door, you have to press ▷to continue.
5 Operating modes
This is where you can find an overview of your appliance's operating modes and main functions.
| Operating mode | Use |
| Types of heating | Select finely tuned types of heating for the optimal preparation of your food. → "Types of heating", Page 10 |
| AutoPilot Programmed, recommended settings for various types of food. → "AutoPilot", Page 18 | |
| Microwave Cook, heat or defrost quicker with the microwave. → "Microwave", Page 16 | |
| MicroCombi To reduce the cooking time, switch on the microwave for a type of heating. → "MicroCombi", Page 17 | |
| Cleaning Select the cleaning function for the cooking compartment. | |
5.1 Types of heating
To ensure that you always use the right type of heating to cook your food, we explain the differences and applications below.
The symbols for each type of heating help you to remember them.
When you select a type of heating, the appliance suggests a suitable temperature or setting. You can use these values or change them within the specified range.
For temperature settings above 275 °C and grill setting 3, the appliance reduces the temperature to approx. 275 °C or grill setting 1 after approx. 40 minutes.
| Symbol | Type of heating Temperature range | What it's used for and how it works Possible additional options |
| 4D hot air 30–275 °C Bake and roast on one or more levels. The fan distributes the heat from the ring-shaped heating element in the back wall evenly around the cooking compartment.Hot air eco 30–275 °C Cook selected dishes gently on one level without preheating.The fan distributes the heat from the ring-shaped heating element in the back wall evenly around the cooking compartment. The food is cooked in phases using residual heat.This type of heating is most effective between 125 and 275 °C.Always keep the appliance door closed when cooking.This type of heating is used to determine the energy consumption in air recirculation mode and the energy efficiency class. | ||
| Circulated air grilling 30–300 °C Roast poultry, whole fish or larger pieces of meat.The grill element and the fan switch on and off alternately. The fan circulates the hot air around the food. | ||
| Grill, large area Grill settings:1 = low2 = medium3 = high | Grill flat items such as steak and sausages, or make toast. Gratinate food.The entire area below the grill element becomes hot. | |
| Grill, small area Grill settings:1 = low2 = medium3 = high | Grill small quantities, such as steak, sausages or toast. Gratinate small quantities of food.The central area below the grill element becomes hot. | |
| Plate warming 30–70 °C Plate warming. | ||
| Drying 150 °C To prevent residual moisture, dry the cooking compartment following operation with the microwave. | ||
5.2 Microwave power settings
This is where you can find an overview of the different microwave power settings and when to use them. The microwave power settings are levels and do not always correspond to the exact wattage that the appliance uses.
| Microwave power setting in watts | Maximum cooking time in hours | Use |
| 90 W 1:30 Defrosting delicate foods. | ||
| 180 W 1:30 Defrosting food and continuing cooking. | ||
| 360 W 1:30 Cooking fish and meat. Heating up delicate foods. | ||
| 600 W 1:30 Heating and cooking food. | ||
| Max. 00:30 Heating liquids. | ||
Note: The maximum microwave power setting is not designed for heating food. To protect the appliance, the maximum power of the microwave is gradually reduced to 600 watts during the first few minutes. Full power is made available again after a cooling period.
6 Accessories
Use original accessories. These have been made especially for your appliance.
Note: Accessories may become deformed if they get hot. Deformation has no effect on function. As the accessory cools down, it will regain its original shape.
The accessories supplied may differ depending on the appliance model.
Accessories Use
Wire rack ■ Cake tins
■ Cookware
■ Meat, e.g. roasting joints or steak
■ Frozen meals
■ Baked items
- Bread
Large roasts
■ Frozen meals
■ Catch dripping liquids, e.g. fat when grilling food on the wire rack.
6.1 Information on accessories
Some accessories are only suitable for certain types of heating.
Microwave accessories
The wire rack that is supplied is only suitable for operation solely using the microwave.
Baking trays, e.g. the universal pan or the baking tray, may create sparks and are not suitable.
Observe the information about the microwave.
→ "Cookware and accessories with microwave", Page 16

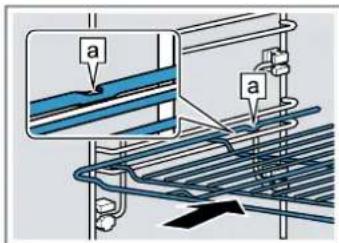

6.2 Locking function
The locking function prevents the accessories from tilting when they are pulled out.
You can pull out the accessories approximately halfway without them tipping. The accessories must be inserted into the cooking compartment correctly for the tilt protection to work properly.
6.3 Sliding accessories into the cooking compartment
Always slide the accessory into the cooking compartment the right way round. This is the only way to ensure that accessories can be pulled out approximately halfway without tipping.
- Turn the accessories so that the notch ☐s at the rear and is facing downwards.
- Insert the accessory between the two guide rods for a shelf position.
Wire rack Push the wire rack in with the curvature - pointing downwards. The word "microwave" must be at the front at the appliance door.

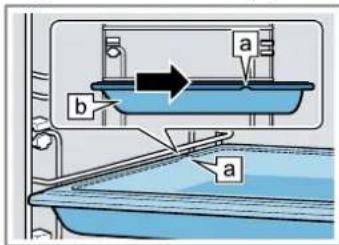

Baking tray E.g. universal pan or baking tray
Slide the tray in with the sloping edge towards the appliance door.
- Push the accessory all the way in, making sure that it does not touch the appliance door.
Note: Take any accessories that you will not be using out of the cooking compartment while the appliance is in operation.
6.4 Other accessories
You can purchase other accessories from our after-sales service, specialist retailers or online.
You will find a comprehensive range of products for your appliance in our brochures and online: www.bosch-home.com
Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance.
You can find out which accessories are available for your appliance in our online shop or from our after-sales service.
7 Before using for the first time
Configure the settings for initial start-up. Clean the appliance and accessories.
7.1 Initial configuration
When the appliance is connected to the electricity supply for the first time or following a lengthy power cut, you need to configure the settings before you can use it. It may take a few seconds for the settings to appear in the display.
- Turn the control ring to change the setting as required.
Possible settings:
- Language
- Clock
- Press ☐ to confirm.
√ The next setting appears.
3. Work through the settings and make changes as required.
√ After the last setting, a note appears in the display confirming that the initial configuration is complete.
√ The time that is set appears on the display.
4. To check the appliance before heating for the first time, open and close the appliance door once.
7.2 Cleaning the appliance before using it for the first time
Clean the cooking compartment and accessories before using the appliance to prepare food for the first time.
- Remove the product information and the accessories from the cooking compartment. Remove any leftover packaging, such as polystyrene pellets, and the adhesive tape that is in or on the appliance.
- Wipe the smooth surfaces in the cooking compartment with a soft, damp cloth.
- Press ① to switch the appliance on.
- Apply the following settings:
Type of heating 4D hot air
Temperature Maximum
Cooking time 1 hour
→ "Basic operation", Page 13
- Press ▷to start.
- Keep the kitchen ventilated while the appliance is heating.
√ Once the time has elapsed, an audible signal sounds and the display shows the time as zero. - Press ① to switch the appliance off.
- Once the appliance has cooled down, clean the smooth surfaces in the cooking compartment with soapy water and a dish cloth.
- Clean the accessories thoroughly using soapy water and a dish cloth or soft brush.
8 Basic operation
8.1 Switching on the appliance
▶ Press ① to switch the appliance on.
√ The Bosch logo appears in the display. The types of heating then appear.
8.2 Switching off the appliance
Switch your appliance off when you are not using it. The appliance will switch itself off automatically if it is not used for a certain period of time.
▶ Press ① to switch the appliance off.
√ The appliance switches off. Any functions currently in progress are cancelled.
√ The time or residual heat indicator appears in the display.
8.3 Starting operation
You must start each operation.
ATTENTION!
If there is water on the cooking compartment floor when operating the appliance at temperatures above 120 °C , this will damage the enamel.
- Do not use the appliance if there is water on the cooking compartment floor.
- Wipe away any water on the cooking compartment floor before operation.
▶ Press ▷to start.
√ The settings, the running time, the display ring and the heating line appear in the display.
8.4 Pausing or cancelling operation
You can briefly pause operation and then continue. If you cancel operation completely, the settings will be reset.
-
To pause operation briefly:
-
Briefly press ▷
-
To continue operation, press ▷
-
To cancel operation completely, press and hold ▷ for approx. 3 seconds.
√ Operation will stop and all the settings will be reset.
8.5 Setting the operating mode
Once you have switched on the appliance, it suggests an operating mode, e.g. types of heating.
-
If you want to use a different operating mode to the one suggested, press the relevant touch field.
√ The touch field lights up red.
→ "Operating modes", Page 10 -
To implement other settings, press the relevant touch fields.
- Use the control ring to change the values.
- Press ▷to start.
8.6 Setting the type of heating and temperature
Requirement: The operating mode "Types of heating" has been selected.
- Use the control ring to set the required type of heating.
- Press
√ The temperature is highlighted in white. - Use the control ring to set the temperature.
- Press ▷to start.
√ The appliance starts heating.
√ The target temperature, the time and how long the appliance has already been in operation are shown in the display. - When the food is ready, press ① to switch the appliance off.
Tip: The most suitable type of heating for your food can be found in the description of the type of heating. → "Types of heating", Page 10
Note: You can also set a cooking time and end time on the appliance.
→ "Time-setting options", Page 14
Changing the type of heating
When you change the type of heating, the other settings will also be reset.
- Press ▷ to pause operation.
- Press
√ The first type of heating appears in the display with the corresponding default temperature. - Use the control ring to change the type of heating.
Changing the temperature
Once operation has started, you can change the temperature directly.
▶ Use the control ring to change the temperature.
√ The temperature is applied immediately.
8.7 Displaying information
In most cases, you can call up information about the function that you have just started. The appliance displays some information, e.g. to ask you to do/confirm something or to issue a warning, automatically.
- Press i.
√ If available, information is displayed for a few seconds. - Use the control ring to scroll through longer passages of text.
9 Rapid heating
To save time, you can shorten the preheating time for set temperatures of 100 °C and higher. You can use rapid heating for this type of heating:
■ 4D hot air
9.1 Setting rapid heating
To ensure an even cooking result, do not place the food in the cooking compartment until rapid heating has come to an end.
Note: Do not set a cooking time until rapid heating has come to an end.
- Set a suitable type of heating and a temperature of at least 100 °C .
- Press
√ The symbol lights up red. - Press ▷to start.
√ Rapid heating starts.
√ When rapid heating has come to an end, an audible signal sounds. The red symbol goes out. - Place the food in the cooking compartment.
Cancelling rapid heating
▶ Press
√ The red symbol goes out.
10 Time-setting options
Your appliance has different time-setting options, with which you can control its operation.
10.1 Overview of the time-setting options
You can set a cooking time and end time for the operation. The timer can be set independently of the appliance when it is in operation.
Time-setting Use option
| Timer The timer can be set independentlyof the appliance when it is in operation. It does not affect the appliance. |
| Time-setting option | Use |
| Cooking time If you set a cooking time for the operation, operation of the appliance stops automatically once this time has elapsed. | |
| End For the cooking time, you can set the time at which operation ends. The appliance starts up automatically so that it finishes cooking at the required time. | |
10.2 Setting the timer
The timer runs independently of the appliance when it is in operation. The timer can be set when the appliance is switched on or off, up to 23 hours and 59 minutes. The timer has its own audible signal so that you can tell whether it is the timer or a cooking time which has elapsed.
- Press
√ The symbol lights up red.
2. Use the control ring to set the timer duration.
3. Press ☒ to start the timer.
The timer starts automatically after a few seconds.
√ The timer counts down.
√ When the appliance is switched off, you will still be able to see the timer counting down in the display.
√ When the appliance is switched on, the display shows the settings for the current operation. To display the timer for a few seconds, press ✉
√ An audible signal sounds once the timer duration has elapsed. The red symbol goes out.
-
Once the timer duration has elapsed:
-
To stop the signal early, press any touch field.
- To set another timer, press and use the control ring to set the time.
Changing the timer
You can change the timer duration at any time.
- Press
- Use the control ring to change the duration of the timer.
- Press ☒ to confirm.
Cancelling the timer
You can cancel the timer duration at any time.
- Press
- Use the control ring to reset the duration of the timer to zero.
- Press ☒ to confirm.
√ The red symbol goes out.
10.3 Setting the cooking time
You can set a cooking time for operation of up to 23 hours 59 minutes.
Requirement: An operating mode and temperature or setting have been set.
- Press 🔒
√ The symbol lights up red. - Use the control ring to set the cooking time.
Direction of rotation Default value
| Left 10 minutes | |
| Right 30 minutes |
The cooking time can be set in one-minute increments up to one hour, and then in five-minute increments. The end time is calculated automatically.
- Press ▷ to start.
√ The appliance starts to heat and the cooking time counts down.
√ When the time has elapsed, a signal sounds. The time shown in the display is zero. - When the cooking time has elapsed:
- To stop the signal early, press any touch field.
- To set another cooking time, press 📄 and use the control ring to set the time.
- To continue without setting a cooking time, press to start.
- When the food is ready, press Ⓞ to switch the appliance off.
Changing the cooking time
You can change the cooking time at any time.
- Press 🔒
- Use the control ring to change the cooking time.
- Press ☐ to confirm.
Cancelling the cooking time
You can cancel the cooking time at any time.
- Press
- Use the control ring to reset the cooking time to zero.
- Press ☐ to confirm.
- To continue without setting a cooking time, press to start.
10.4 Setting the end time
You can delay the time at which cooking is due to finish by up to 23 hours and 59 minutes.
Notes
In order to achieve a good cooking result, do not delay the end time once the appliance is already in operation.
; Food will spoil if you leave it in the cooking compartment for too long.
Requirements
; An operating mode and temperature or setting have been set.
; A cooking time is set.
- Press @again.
- Use the control ring to delay the end time.
- Press ▷to start.
√ The display shows the start time. The appliance is in standby mode.
√ Once the start time has been reached, the appliance starts to heat up and the cooking time starts counting down.
√ When the time has elapsed, a signal sounds. The time shown in the display is zero.
-
When the cooking time has elapsed:
-
To stop the signal early, press any touch field.
- To set another cooking time, press and use the control ring to set the time.
- To continue without setting a cooking time, press to start.
- When the food is ready, press ⓣ to switch the appliance off.
Changing the end time
In order to achieve a good cooking result, only change the set end time before operation starts and the cooking time is counting down.
- Press ▷to pause operation.
- Press twice.
- Use the control ring to change the end time.
- Press ▷to continue operation.
Cancelling the end time
You can delete the set end at any time.
- Press ▷to pause operation.
- Press twice.
-
Use the control ring to reset the end time to zero.
-
Press ▷ to continue operation.
√ The appliance starts to heat and the cooking time counts down.
11 Microwave
You can use the microwave to cook, heat up, bake or defrost food very quickly. The microwave can be used on its own or in combination with a type of heating.
11.1 Cookware and accessories with microwave
To heat food evenly and avoid damaging your appli- ance, it is important to only use the right cookware and accessories.
Follow the cookware manufacturer's instructions. Unless otherwise specified, place the cookware and accessory on level 1.
Microwave-safe
| Cookware and accessories | Information |
| Cookware made from heat-resistant, microwave-safe material:■ Glass■ Glass ceramic■ Porcelain■ Temperature-resistant plastic■ Fully glazed ceramic without cracks | These materials allow microwaves to pass through and are not damaged. |
Serving dishes You do not need to transfer your food.
Note: Only use cookware with decorative gold or silver trim if the manufacturer guarantees its suitability for microwave use.
Supplied wire rack Only the wire rack that is supplied is suitable for operation solely using the microwave.
Note: Baking trays, e.g. the universal pan or the baking tray, may create sparks and are not suitable.
Not microwave-safe
Note: Observe the specifications for preventing material damage.
→ "Microwave", Page 6
| Cookware and accessories | Information |
| Metal cookware and bakeware | Microwaves cannot pass through metal. The food is barely heated or not heated at all.Note: Metal may create sparks in pure microwave operation. |
Cookware and accessories with MicroCombi
By combining the microwave and a type of heating, metal cookware and accessories are also possible.
| Cookware and accessories | Information |
| Metal cookware and bakeware | Metal can be used with Micro-Combi.Note: Metal must be kept at least 2 cm from the cooking compartment walls and the inside of the door. |
| Accessories supplied:■ Wire rack■ Universal pan | The supplied accessory is suitable for MicroCombi. No sparks are created. |
Testing cookware for microwave suitability
If you are unsure whether your cookware is suitable for use in the microwave, carry out a cookware test.
ATTENTION!
Operating the appliance without food in the cooking compartment may lead to overloading.
- Do not switch on the microwave unless there is food inside. The only exception to this rule is when performing a short cookware test.
⚠ WARNING – Risk of scalding!
The accessible parts of the appliance become hot during operation.
▶ Never touch these hot parts.
- Keep children at a safe distance.
- Place the empty cookware in the cooking compartment.
- Set the appliance to run for 30 seconds to 1 minute at maximum power.
- Start the operation.
- Check the cookware several times:
- If the cookware remains cold or warm to the touch, it is suitable for microwave use.
- If the cookware becomes hot or sparks are created, stop the cookware test. The cookware is not microwave-safe.
11.2 Configuring the microwave settings
Notes
■ Note the correct way to handle the microwave:
- → "Safety", Page 2
- → "Preventing material damage", Page 5
- → "Microwave power settings", Page 11
- → "Cookware and accessories with microwave", Page 16
- To prevent condensation, the appliance automatically switches on a heating element at the maximum microwave power settings of 600 watts and max. The cooking compartment and the accessories become hot. The cooking result is not affected by this. You can switch off this drying function in the basic settings.
→ "Basic settings", Page 19
WARNING – Risk of burns!
At the highest settings in microwave only mode, the drying function will automatically switch on an additional heating element to heat the cooking compartment.
▶ Never touch the inside surfaces of the cooking compartment or the heating elements while they are hot.
- Keep children at a safe distance.
- Press
√ The microwave power setting is highlighted in white.
-
Use the control ring to set the microwave power setting.
-
Press
√ The cooking time is highlighted in white.
-
Use the control ring to set the cooking time.
-
Press ▷ to start.
√ The microwave starts and the cooking time counts down. The heating line does not appear.
√ When the time has elapsed, a signal sounds. The time shown in the display is zero.
- When the cooking time has elapsed:
- To stop the signal early, press any touch field.
- If necessary, set a microwave power setting and a cooking time again.
- When the food is ready, press Ⓞto switch the appliance off.
- If you have switched off the drying function for the microwave in the basic settings, dry the cooking compartment.
→ "Drying", Page 21
Note: If you open the appliance door during operation, the operation stops. When you close the appliance door, you have to press ▷to continue. If you have changed the basic setting, make sure that the microwave does not resume operation without food inside.
→ "Basic settings", Page 19
Changing the microwave power setting
If you change the microwave power setting, the cooking time is reset.
- Press ▷ to pause operation.
√ The microwave power setting is highlighted in white. - Use the control ring to change the microwave power setting.
- Press ▷ to continue operation.
Changing the cooking time
After the start of the microwave operation, you can change the cooking time directly.
▶ Use the control ring to change the cooking time.
√ The change is applied immediately.
11.3 MicroCombi
To reduce the cooking time, you can use some types of heating in combination with microwave mode.
Possible combinations include:
■ 90 watts + 4D hot air
■ 90 watts + Hot air grill
■ 180 watts + Hot air grill
■ 360 watts + Hot air grill
Setting MicroCombi
Note:
Note the correct way to handle the microwave:
■ → "Safety", Page 2
■ → "Preventing material damage", Page 5
■ → "Microwave power settings", Page 11
■ → "Cookware and accessories with microwave", Page 16
- Press
√ The combination is highlighted in white.
-
Turn the control ring to set the required combination.
-
Press
√ The temperature is highlighted in white.
-
Use the control ring to set the temperature.
-
Press
√ The cooking time is highlighted in white.
-
Use the control ring to set the cooking time.
-
Press ▷to start.
√ The appliance starts to heat and the cooking time counts down.
√ When the time has elapsed, a signal sounds. The time shown in the display is zero.
-
When the cooking time has elapsed:
-
To stop the signal early, press any touch field.
- If necessary, set a combination again.
- When the food is ready, press ① to switch the appliance off.
Changing the temperature
Once the MicroCombi operation has started, you can change the temperature directly.
▶ Use the control ring to change the temperature.
√ The change is applied immediately.
Changing the cooking time
After the start of the MicroCombi operation, you can change the cooking time at any time.
-
Press
-
Use the control ring to change the cooking time.
√ The change is applied immediately.
Changing the combination
If you change the combination of the type of heating and the microwave power setting, all of the other settings are reset.
- Press ▷to pause operation.
√ The combination is highlighted in white. - Use the control ring to change the combination.
12 AutoPilot
The "AutoPilot" operating mode helps you to use your appliance to prepare different dishes by selecting the optimum settings automatically.
12.1 Cookware
The cooking result depends on the composition of the meat and the size of cookware.
You should therefore use heat-resistant cookware that is suitable for temperatures up to 300 °C . Glass or glass ceramic cookware is best. The joint should cover approx. two thirds of the cookware base.
Cookware made from the following material is not suitable:
■ Bright, shiny aluminium
■ Unglazed clay
■ Plastic or plastic handles
Note: For some dishes, the appliance switches on the microwave. A notification appears in the display stating that you should use cookware that is suitable for microwave use.
→ "Cookware and accessories with microwave",
Page 16
12.2 Settings for the dishes
To make the dishes perfectly, the appliance uses different settings.
Note: The cooking result depends on the quality and composition of the food. Use fresh and, ideally, chilled food.
Information on the settings
Once you start a dish, the display shows relevant information for this dish, e.g.:
■ Suitable shelf position
■ Suitable accessory or cookware
■ Added liquid
■ Time for turning or stirring
When this time is reached, a signal sounds.
Programmes
The ideal type of heating, temperature and cooking time are preset for programmes.
In order to obtain an optimal cooking result, you must also set the weight. Unless otherwise indicated, set the total weight for your dish. You can set the weight only in the intended range.
Microwave dishes
The appliance activates the microwave automatically for certain dishes. This significantly reduces the cooking time.
Take note of the information for the microwave.
→ "Microwave", Page 16
12.3 Overview of the dishes
You can see which individual dishes are available to you here.
Meals
■ Pizza with thin base, x 1
Lasagne
■ Chicken, unstuffed
Chicken pieces
■ Meat loaf made from fresh mince
■ Steaming fish fillet
■ Vegetables, fresh
■ Vegetables, frozen
■ Baked potatoes, whole
■ Boiled potatoes
■ Long-grain rice
■ Defrosting poultry pieces
■ Defrosting meat
■ Defrosting fish fillet
12.4 Adjusting the dish
Note: Once it has started, you can no longer change or interrupt the dish and the settings.
Requirement: To start the operation, the cooking compartment must be cooled down.
- Press 📊
- Use the control ring to set the required dish.
- Press
-
Turn the control ring to set the weight of your dish. The cooking time is calculated automatically.
-
For some dishes, you can also delay the end time.
→ "Setting the end time", Page 15 -
Press ▷ to start.
√ The appliance starts to heat and the cooking time counts down. The heating line does not appear.
√ Once the dish is ready, a signal sounds. The appliance stops heating.
-
When the cooking time has elapsed:
-
To stop the signal early, press any touch field.
- For some dishes, you can continue cooking if necessary.
"Adding extra cooking time", Page 18
- When the dish is ready, press Ⓞto switch the appliance off.
Adding extra cooking time
For some dishes, the appliance offers the option to add extra cooking time once the cooking time has elapsed. You can do this as often as required.
- If you do not want to continue cooking, press and switch off the appliance using ①
- To continue cooking the dish, press ▷.
√ A cooking time appears in the display. - Use the control ring to change the cooking time, if required.
- Press ▷to start.
√ The appliance starts to heat and the cooking time counts down.
√ When the time has elapsed, a signal sounds. The appliance stops heating. The notification to continue cooking appears again.
-
When the cooking time has elapsed:
-
To stop the signal early, press any touch field.
- If you want to continue cooking again, press ▷
- When the dish is ready, press 📋 and use to switch the appliance off.
13 Childproof lock
You can secure your appliance to prevent children from accidentally switching it on or changing the settings.
13.1 Activating and deactivating the childproof lock
You can activate and deactivate the childproof lock regardless of whether the appliance is switched on or off.
- Press and hold for approx. 4 seconds to activate the childproof lock.
√ A confirmation note appears on the display.
√ The control panel is locked. The appliance can only be switched off using ①
√ When the appliance is on, ≈ lights up. When the appliance is off, ≈ does not light up.
2. Press and hold for approx. 4 seconds to deactivate the childproof lock.
√ A confirmation note appears on the display.
14 Basic settings
You can configure the appliance to meet your needs.
14.1 Overview of the basic settings
Here you can find an overview of the basic settings and factory settings. The basic settings depend on the features of your appliance.
| Basic setting Selection | |
| Language See selection on the appli-ance. | |
| Clock Clock in 24-hour format. | |
| Audible signal Short duration (30 seconds)Medium duration (1 minute) ^1 Long duration (5 minutes) | |
| Button tone Switched onSwitched off (tone remains for ^1 | |
| Display brightness 5 settings | |
| Clock display OffDigital ^1 | |
| Lighting Off during operationOn during operation ^1 | |
| Automatic continue (only applicable for the Microwave operating mode) | No microwave ^1 When closing the door |
| Operation after switch-on | Main menuTypes of heating ^1 MicrowaveMicroCombiAutoPilot |
| Warning: Baking tray in microwave | Display ^1 Do not display |
| Night-time dimming Switched off ^1 Switched on | |
| Brand logo Display ^1 Do not display | |
| ^1 Factory setting (may vary according to model) | |
| Basic setting Selection | |
| Dry microwave Switched on Switched off | 1 |
| Fan run-on time Recommended Minimum | 1 |
| Sabbath mode | Switched on Switched off1 |
| Factory setting | Reset Do not reset1 |
| 1 Factory setting (may vary according to model) | |
14.2 Changing the basic settings
Requirement: The appliance is switched off.
- Press and hold if for approx. three seconds.
- Press ☐ to confirm the messages in the display.
√ The first basic setting is shown in the display. - Use the control ring to change the basic setting.
- Press 🔒
√ The next basic setting appears in the display. - Use ☐ to scroll through the basic settings and, if required, use the control ring to change any of these settings.
- To save the changes, press and hold if for approx. three seconds.
Note: Your changes to the basic settings will be retained even after a power failure.
Discarding changes to the basic settings
▶ Press ①
√ All changes will be discarded and not saved.
14.3 Setting the time
Requirement: The appliance is switched off.
- Press and hold if for approx. three seconds.
- Press ☐ to confirm the messages in the display.
√ The first basic setting is shown in the display. - Press 🔒
√ The "Time" basic setting is shown in the display. -
Use the control ring to change the time.
-
To save the change, press and hold i for approx. three seconds.
15 Cleaning and servicing
To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.
15.1 Cleaning products
In order to avoid damaging the various oven surfaces on the appliance, do not use unsuitable cleaning products.
WARNING – Risk of electric shock!
An ingress of moisture can cause an electric shock.
- Do not use steam- or high-pressure cleaners to clean the appliance.
ATTENTION!
Unsuitable cleaning products may damage the surfaces of the appliance.
▶ Do not use harsh or abrasive cleaning products.
- Do not use cleaning products with a high alcohol content.
- Do not use hard scouring pads or cleaning sponges.
- Do not use any special cleaners for cleaning the appliance while it is hot.
Using oven cleaner in a hot cooking compartment damages the enamel.
▶ Never use oven cleaner in the cooking compartment when it is still warm. - Remove all food remnants from the cooking compartment and the appliance door before you next heat up the appliance.
New sponge cloths contain residues from production. - Wash new sponge cloths thoroughly before use.
Suitable cleaning agents
Only use cleaning agents that are suitable for the different surfaces on your appliance.
Follow the instructions on cleaning the appliance.
→ "Cleaning the appliance", Page 21
Appliance front
| Surface Suitable cleaning agents Information | ||
| Stainless steel ■ | Hot soapy water■ Special stainless steel cleaning products suitable for hot surfaces | To prevent corrosion, remove any limescale, grease, starch or albumin (e.g. egg white) stains on stainless steel fronts immediately.Apply a thin layer of the stainless steel cleaning product with a soft cloth. |
| Plastic or painted surfacesE.g. control panel | ■ Hot soapy water Do not use glass cleaner or a glass scraper.To avoid permanent stains, remove any descaling agent that gets onto the surface immediately. | |
Appliance door
| Area Suitable cleaning agents Information | ||
| Door panels ■ Hot soapy water Do not use a glass scraper or a stainless steel wool. | ||
| Tip: Remove the door panels in order to clean them thoroughly. → "Appliance door", Page 23 | ||
| Door cover ■ Made of stainless steel: Stainless steel cleaner ■ Made of plastic: Hot soapy water | Do not use glass cleaner or a glass scraper. Do not use stainless steel care products. Tip: Remove the door cover for thorough cleaning. → "Appliance door", Page 23 | |
| Stainless steel interior door frame | Stainless steel cleaner Discolouration can be removed using stainless steel cleaner. Do not use stainless steel care products. | |
| Door handle ■ Hot soapy water To avoid permanent stains, remove any descaling agent that gets onto the surface immediately. | ||
| Door seal ■ Hot soapy water Do not remove or scrub. | ||
Cooking compartment
| Area Suitable cleaning agents Information | ||
| Enamel surfaces ■ | Hot soapy water■ Vinegar water■ Oven cleaner | Soak any heavily soiled areas and use a brush or steel wool.Leave the appliance door open to dry the cooking compartment after cleaning it.Notes■ Enamel burns at very high temperatures, causing minor discolouration. The functionality of your appliance is not affected by this.■ The edges of thin trays cannot be completely enamelled and may be rough. This does not impair corrosion protection.■ Food residues will leave a white coating on the enamel surfaces. The coating does not pose a health risk. The functionality of your appliance is not affected by this. You can remove residues with lemon juice. |
| Glass cover for the oven light | ■ Hot soapy water Use oven cleaner to remove very heavy soiling. | |
| Rails ■ | Hot soapy water Soak any heavily soiled areas and use a brush or steel wool.Note:To clean thoroughly, detach the rails.→ "Rails", Page 22 | |
| Accessories ■ | Hot soapy water■ Oven cleaner | Soak any heavily soiled areas and use a brush or steel wool.Enamelled accessories are dishwasher-safe. |
15.2 Cleaning the appliance
In order to avoid damaging the appliance, you must clean your appliance only as specified, and with suitable cleaning products.
WARNING – Risk of burns!
The appliance and its parts that can be touched become hot during use.
- Caution should be exercised here in order to avoid touching heating elements.
- Young children under 8 years of age must be kept away from the appliance.
WARNING – Risk of fire!
Loose food remnants, fat and meat juices may catch fire.
Before using the appliance, remove the worst of the food residues and remnants from the cooking compartment, heating elements and accessories.
Requirement: Read the information on cleaning products.
→ "Cleaning products", Page 20
- Clean the appliance using hot soapy water and a dish cloth.
- For some surfaces, you can use alternative cleaning agents.
"Suitable cleaning agents", Page 20
- Dry with a soft cloth.
16 Drying
To prevent residual moisture, dry the cooking compartment following operation.
ATTENTION!
If there is water on the cooking compartment floor when operating the appliance at temperatures above 120 °C , this will damage the enamel.
- Do not use the appliance if there is water on the cooking compartment floor.
- Wipe away any water on the cooking compartment floor before operation.
16.1 Drying the cooking compartment
You can dry the cooking compartment by hand or use the "Drying" function.
- Allow the appliance to cool down.
- Remove dirt from the cooking compartment.
- Wipe away the water in the cooking compartment.
-
Dry the cooking compartment.
-
Leave the cooking compartment to dry with the appliance door open for 1 hour.
- To use the "Drying" function, set "Drying".
→ "Setting the drying process", Page 21
Setting the drying process
Requirement: → "Drying the cooking compartment", Page 21
-
Press
-
Set the "Drying" type of heating.
√ The temperature and duration are shown in the display. These cannot be changed.
- Press ▷to start.
√ The drying process starts and the duration counts down.
√ Once the drying process has ended, an audible signal sounds and the display shows the cooking time as zero.
-
Press ① to switch the appliance off.
-
To dry the cooking compartment completely, leave the appliance door open for 1 to 2 minutes.
17 Rails
To thoroughly clean the rails and the cooking compartment, or to replace the rails, you can remove the rails.
17.1 Detaching the rails
WARNING – Risk of burns!
The shelf supports get very hot
▶ Never touch the shelf supports when hot.
▶ Always allow the appliance to cool down.
- Keep children at a safe distance.
-
Lift the rail forwards slightly ① and detach it .②
-
Swivel the entire rail outwards ③ and unhook it at the rear ④
17.2 Fitting the retainers
The retainers may fall out when you detach the rails.
Note:
The retainers at the front differ from those at the rear.
Hook the front retainers with the hook into the round hole at the top and set them at a slight angle ①
-
Hook the front retainers in at the bottom and straighten them ②
- Hook the rear retainers with the hook into the top hole ① and push them into the bottom hole .②
17.3 Attaching the rails
Notes
■ When hanging the rails, ensure that the sloping edge is at the top of the rail.
■ The rails fit both the left- and right-hand sides.
1. Set the rear rail at an angle, hooking it into the retainers at the top and bottom ①
2. Pull the rail forwards ②
3. Hook in the rail at the front ③ and press it down .④
18 Appliance door
To clean the appliance door thoroughly, you can disassemble the appliance door.
18.1 Removing the door cover
The stainless steel inlay in the door cover may discol- our. Remove the door cover in order to clean it and the stainless steel inlay, or to remove the door panes.
- Open the appliance door slightly.
- Press down on the left- and right-hand sides of the door cover.
- Remove the door cover and carefully close the appliance door.
18.2 Removing the door panes
WARNING – Risk of injury!
Scratched glass in the appliance door may develop into a crack.
- Do not use any harsh or abrasive cleaners or sharp metal scrapers to clean the glass on the oven door, as they may scratch the surface.
The hinges on the appliance door move when the door is opened and closed, which could trap your fingers.
- Keep your hands away from the hinges.
Components inside the appliance door may have sharp edges.
▶ Wear protective gloves.
Requirement: The door cover has been removed.
- Undo and remove the screws on the left and right of the appliance door.
- Place a folded-up tea towel in the appliance door.
- Close the appliance door.
- Pull the front pane up and out.
-
Place the front pane down on a flat surface with the door handle facing down.
-
⚠️ WARNING – Risk of serious harm to health! If the screws are undone, the safety of the appliance can no longer be guaranteed. Microwave energy may escape.
▶ Never undo the screws. Never unscrew the four black screws on the frame.
WARNING – Risk of injury!
The hinges on the appliance door move when the door is opened and closed, which could trap your fingers.
- Keep your hands away from the hinges.
Components inside the appliance door may have sharp edges.
▶ Wear protective gloves.
- Attach the front pane downwards into the left- and right-hand retainers a.①
- Push the front pane to the appliance until the left-and right-hand hook a is opposite the support b ②
- Push the front pane in at the bottom ① until you hear it click into place.
- Open the appliance door slightly and remove the tea towel.
-
Screw both screws back in on the left and right of the appliance door.
-
Put the door cover in position and push down on it ② until you hear it click into place.
- Close the appliance door.
Note: Do not use the cooking compartment again until the door panes have been correctly fitted.
19 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.
WARNING – Risk of injury!
Improper repairs are dangerous.
▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ If the appliance is defective, call Customer Service.
WARNING – Risk of electric shock!
Incorrect repairs are dangerous.
- Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
19.1 Malfunctions
Fault Cause and troubleshooting
| The appliance is not working. | The circuit breaker is faulty.▶ Check the circuit breaker in the fuse box. |
| There has been a power cut.▶ Check whether the lighting in your kitchen or other appliances are working. | |
| "Sprache Deutsch" appears in the display. | There has been a power cut.▶ Implement the settings for the initial configuration.- Language- Clock |
| The operation does not start or is interrupted. | Different causes are possible.▶ Check any notifications that appear in the display.→ "Displaying information", Page 14 |
| Malfunction▶ Call the after-sales service.→ "Customer Service", Page 26 | |
| Appliance does not heat up. | Demo mode is activated in the basic settings; □ appears in the display.1. Briefly disconnect the appliance from the power supply by switching the circuit breaker in the fuse box off and back on again.2. Deactivate demo mode within three minutes in the → "Basic settings", Page 19. |
| There has been a power cut.▶ Open and close the appliance door once after a power failure.√ The appliance is checked and is ready to use. | |
| Fault Cause and troubleshooting | |
| The time is not dis-played when the ap-pliance is switched off. | Basic setting has been changed.► Change the basic setting for the time display.→ "Basic settings", Page 19 |
| The control ring has fallen out of the mount in the control panel. | The control ring has been detached.1. Insert the control ring into the mount in the control panel.2. Push the control ring into the mount so that it clicks into place and can be turned. |
| The control ring is dif-ficult to turn. | There is dirt below the control ring.The control ring can be removed.Note:To ensure that the mount remains stable, do not remove the control ring too often.1. To loosen the control ring, press on the outer edge of the control ring.√ The control ring tilts and is easier to grip.2. Remove the control ring from the mount.3. Clean the control ring and its mount on the appliance carefully using soapy water and a dish cloth. Dry with a soft cloth.Do not use any harsh or abrasive cleaning agents.Do not soak the control ring.Do not clean the control ring in the dishwasher. |
| During simple mi-crowave operation, the cooking compa-ment becomes hot. | The drying function is switched on.To prevent condensation during simple microwave operation, the appliance automatically switches on the top heating for levels 600 W and max. The cooking result is not affected by this.► You can change the basic setting for the drying function during microwave operation.→ "Basic settings", Page 19- Take note of the information for the microwave.→ "Microwave", Page 16 |
| The interior lighting does not work. | The LED light is defective.Note:Do not remove the glass cover.► Call the after-sales service.→ "Customer Service", Page 26 |
| Maximum operating time reached. | To prevent an unwanted permanent operation, the appliance automatically stops heating after several hours if the settings are unchanged. A message appears in the display. The point at which the maximum operating time is reached is determined by the corres-ponding settings for an operating mode.1. To continue the operation, press any touch field and turn the control ring.2. If you do not need to use the appliance, use ➊to switch it off.Tip:To prevent the appliance from switching off when you do not want it to, set a cooking time.→ "Setting the cooking time", Page 15 |
| A message with "D" or "E" appears in the display, e.g. D0111 or E0111. | The electronics have detected a fault.1. Switch the appliance off and on again.√ If the fault was a one-off, the message disappears.2. If the message appears again, call the after-sales service. Please specify the exact error message when calling.→ "Customer Service", Page 26 |
| The cooking result is not satisfactory. | Settings were unsuitable.Setting values, e.g. temperature or cooking time, depend on the recipe, quantity and food.► Next time, set lower or higher values.Tip:A lot of information about the food preparation and corresponding setting values can be found on our website www.bosch-home.com. |
20 Disposal
Find out here how to dispose of old appliances correctly.
20.1 Disposing of old appliance
Valuable raw materials can be reused by recycling.
- Unplug the appliance from the mains.
- Cut through the power cord.
- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
21 Customer Service
If you have any queries on use, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.
The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
This product contains light sources from energy efficiency class G. These light sources are available as a spare part and should only be replaced by trained specialist staff.
21.1 Product number (E-Nr.) and production number (FD)
You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate. You will see the rating plate with these numbers if you open the appliance door.
Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.
22 How it works
Here, you can find the ideal settings for various types of food as well as the best accessories and cookware. We have perfectly tailored these recommendations to your appliance.
22.1 General cooking tips
Please take note of the following information when cooking all types of food.
- The temperature and cooking time depend on the amount of food and the recipe. Settings ranges are specified for this reason. Try using the lower values to start with.
■ The setting values apply to food placed in the cooking compartment while the cooking compartment is still cold. Do not place accessories into the cooking compartment until it has finished preheating.
■ Remove any accessories that are not being used from the cooking compartment.
22.2 Baking tips
■ Dark-coloured metal baking tins are most suitable for baking cakes, bread and other baked goods.
- Use wide, shallow cookware for bakes and gratins. Food takes longer to cook in deep, narrow cookware and it browns more on top.
■ Silicone moulds are not suitable.
■ If you are cooking bakes directly in the universal pan, place the universal pan into the cooking compartment at level 1. - The setting values for bread dough apply to both dough placed on a baking tray and dough placed in a loaf tin.
ATTENTION!
When the cooking compartment is hot, any water inside it will create steam. The change in temperature may cause damage.
▶ Never pour water into the cooking compartment when it is still hot.
▶ Never place cookware containing water on the cooking compartment floor.
Shelf positions
If you bake on one level, use shelf position 1.
Baking on 2 levels Shelf position
| Universal pan | 3 |
| Baking tray | 1 |
| Baking tins on two wire racks 3 | 1 |
Use the 4D hot air heating function.
Notes
■ Items that are placed in the appliance on baking trays or in baking tins/dishes at the same time will not necessarily be ready at the same time.
■ If you opt for cooking in combination with the microwave mode, you can only cook on one level.
22.3 Roasting, braising and grilling tips
■ The recommended settings are for fridge-temperature food and unstuffed, oven-ready poultry.
■ Place the poultry onto the cookware breast-side or skin-side down.
■ Turn roasting joints, grilled items or whole fish after approx. 12 to 23 of the specified time.
Calculating the cooking time, e.g. 20+35:
■ To calculate the cooking time, assume 20 minutes per 500 g of meat. Then add an extra 35 minutes to that figure.
■ For 1.5 kg, the cooking time would therefore be 95 minutes.
Cooking time range, e.g. 10-15:
- Your food will be ready within the specified range of time (in minutes).
Roasting on the wire rack
Food roasted on the wire rack will become very crispy on all sides. You can roast large poultry, for example, or multiple individual pieces at the same time.
■ Roast pieces of a similar weight and thickness. The grilled food will brown evenly and will remain succulent and juicy.
■ Place the food to be roasted directly on the wire rack.
■ To catch any liquids that drip down, place the universal pan into the cooking compartment one level below the wire rack.
- Add up to 12 litre of water to the universal pan, depending on the size and type of food that you want to roast.
You can make a sauce from the juices that are collected. This also means that less smoke is produced and the cooking compartment does not become as dirty.
Roasting in cookware
If you cover the cookware when you cook your food, this will keep the cooking compartment cleaner.
General information about roasting in cookware
■ Use heat-resistant, ovenproof cookware.
■ Place the cookware on the wire rack.
■ Glass cookware is best.
■ Follow the manufacturer's instructions for your roasting dishes.
Roasting in uncovered cookware
■ Use a deep roasting dish.
■ If you do not have any suitable cookware, you can use the universal pan.
Roasting in covered cookware
■ Use a suitable lid that seals well.
- When roasting meat, there should be at least 3 cm between the food and the lid. The meat may expand.
⚠ WARNING – Risk of scalding!
Very hot steam may escape when the lid is opened after cooking. Steam may not be visible, depending on the temperature.
▶ Lift the lid in such a way that the hot steam can escape away from you.
- Keep children away from the appliance.
Grilling
Grill food if you want it to be crispy.
The "Grill" heating function is good for cooking thinner pieces of poultry, meat and fish such as steaks, drumsticks and burgers. It is also excellent for toasting bread.
Circulated air grilling is very well suited to cooking whole poultry and fish, as well as meat, e.g. roast pork with crackling.
- When grilling several food items, choose pieces that are of a similar weight and thickness. The grilled food will brown evenly and will remain succulent and juicy.
■ Place the food to be grilled directly onto the wire rack.
■ To catch any liquids that drip down, place the universal pan into the cooking compartment at least one level below the wire rack.
Notes
■ The grill element switches on and off continuously. This is normal. The grill setting that you use determines how frequently this occurs.
■ Smoke may be produced when grilling.
22.4 Cooking instructions for ready meals
■ The cooking result greatly depends on the quality of the food. Pre-browning and irregularities are sometimes already present on the raw product.
- Do not use frozen products that are covered with a thick layer of ice. Remove any ice on the food.
- Distribute foods that are in the form of separate pieces, such as bread rolls and potato products, so that they are spread out flat and evenly on the accessory. Leave a little space between the individual pieces.
■ Follow the manufacturer's instructions on the packaging.
- If the packaging specifies a higher value than the maximum power of the appliance, use the next lowest a higher value the next lowest wattage setting on the appliance. To achieve the same results, increase the cooking time.
22.5 Microwave cooking
If you use the microwave mode, you can reduce the cooking time considerably.
General information
- When using the microwave mode, the cooking time is determined based on the total weight. If you want to cook a quantity that differs from the specified quantity, the general rule is Double the quantity requires just under double the cooking time.
■ The food transfers heat to the cookware. The cookware can become very hot.
In the main part of the instruction manual, you will find information on how to configure the microwave and microwave combination oven settings.
- → "MicroCombi", Page 17
- → "Microwave", Page 16
Cooking, braising or steaming using the microwave mode
- Use microwave-safe cookware with a lid. Alternatively, you can use a plate or special microwaveable film to cover the dish.
- For cereal products, e.g. rice, use deep cookware with a lid. Cereal products foam a lot during cooking. Add liquid in accordance with the instructions and information provided in the recommended settings tables.
- Do not wash or dry food. Add 1-3 tablespoons of water or lemon juice to the food.
- Spread the food out so that as much of it as possible is in contact with the bottom of the cookware. Food that is in contact with the bottom will cook more quickly than food that is piled up.
■ Use salt and seasoning sparingly. When cooking food using the microwave mode, most of the food's natural flavour will be retained.
■ Turn or stir the food 2-3 times during cooking.
■ After cooking, leave the food to rest for 2-3 minutes.
Steaming fish in the microwave
You can steam fish quickly and easily in the microwave.
- Place the fish in microwave-safe cookware with a lid.
- Add salt and season the fish sparingly.
- If you are steaming a whole fish, add 1–3 tsp of water or lemon juice.
- Use the recommended settings when configuring the appliance settings.
- Leave the cooked fish to rest for 2–3 minutes after cooking.
Making blancmange from blancmange powder
-
Use a deep, microwave-safe receptacle.
-
Pour the blancmange powder and all of the milk and sugar into the receptacle and mix.
- Place the receptacle onto the wire rack and slide the rack into the cooking compartment.
- Use the recommended settings when configuring the appliance settings.
- As soon as the milk starts to rise, stir thoroughly.
- Repeat the process until the required consistency is achieved.
Making rice pudding
- Weigh the rice.
- Add 4 times the amount of milk.
- Pour the rice and milk into a deep, microwave-safe receptacle.
You can use the universal pan for large quantities. - Use the recommended settings when configuring the appliance settings.
- As soon as the milk starts to rise, stir thoroughly.
- Reduce the microwave power as indicated in the recommended settings tables.
- Stir several times during the remaining cooking time.
Making compote
- Weigh the fruit and place it in a closable, microwave-safe receptacle.
- Add 1 tablespoon of water for every 100 g of fruit.
- Add sugar and spices to taste.
- Cover the receptacle.
- Use the recommended settings when configuring the appliance settings.
- Stir two or three times during the cooking time.
Using the microwave mode to make popcorn
⚠ WARNING – Risk of burns!
Airtight packaging may burst when food is heated.
▶ Always follow the instructions on the packaging.
▶ Always use oven gloves to remove the dishes from the cooking compartment.
-
Use shallow, heat-resistant glass cookware, e.g. the lid of an ovenproof dish. Do not use porcelain or deep plates.
-
Place the popcorn bag onto the cookware according to the instructions on the packaging.
-
Use the recommended settings when configuring the appliance settings.
-
The time may need to be adjusted, depending on the product and quantity in question.
-
Remove the popcorn bag after 1½ minutes and shake it to ensure that the popcorn doesn't burn.
-
Place the popcorn bag back into the oven and leave it to continue popping.
-
Once you can only hear popping noises once every 2-3 seconds, switch off the appliance and take the popcorn bag out of the oven.
-
Wipe the cooking compartment clean afterwards.
22.6 List of foods
Recommended settings for a variety of foods, sorted into food categories.
Recommended settings for various types of food
| Food Accessory/cook-ware | Shelf position | Heating function → Page 10 | Temperature in °C | Microwave power setting in W | Cooking time in mins |
| Victoria sponge cake x 2Baking tin, dia.20 cm | 1 160 - 17 | 1 | -20 - 30 | ||
| Rich fruit cake High ∅ 23 cm tin 1 140–160 - 120–180 | |||||
| Fruit pie Plate ∅ 20 cmorPie tin | 1 170 - 1955 - 70 | ||||
| Fruit pie Plate ∅ 20 cmorPie tin | 1 170–1960–75 | ||||
| Quiche Dark coatedquiche tin | 1 190–21035–45 | ||||
| Bread or white bread Loaf tin, 1 x 900 gor 2 x 450 g | 1 190 - 21 | 1 | -20 - 30 | ||
| Bread or white bread Loaf tin, 1 x 900 gor 2 x 450 g | 1 190–20045–55 | ||||
| Scones Baking tray 1 180 - 200 | 3 | 1 | -10 - 14 | ||
| Biscuits Baking tray 2 140 - 160 | 3 | 1 | -10 - 25 | ||
| Small cakes 12-cup-tin 1 140 - 160 | 3 | 1 | -20 - 35 | ||
| Pavlova Baking tray 2 90 - 100 | 3 | 1 | -120 - 180 | ||
| Yorkshire pudding 12-cup-tin 1 200 - 220 | 3 | 1 | -15 - 25 | ||
| Pizza, home-made Baking tray | 1 220 - 230 - 25 | ||||
| Pizza, home-made, thin crust | Pizza tray | 1 230 - 240 - 20 - 30 | |||
| Biscuits, 2 levels | x 2Baking tray | 3+1 140 - 160 | 1 | -15 - 30 | |
| Top side, top rump | Uncovered cook-ware | 1 160 - 17030 + 25 | |||
| Leg, bone-in Uncovered cook-ware | 1 160 - 17025 + 25 | ||||
| Belly | Uncovered cook-ware | 1 170 - 18030 + 25 | |||
| Chicken, whole | Uncovered cook-ware | 1 170 - 18025 + 15 | |||
| Turkey, crown2 | Uncovered cook-ware | 1 150 - 16020 + 15 | 3 | ||
| Turkey, whole, 4-8 kg | Universal pan | 1 150 - 16012 + 12 | 4 | ||
| Meat loaf, 1 kg, + 50 ml water | Uncovered cook-ware | 1 170 - 190360 30 - 40 | |||
| 1Preheat the appliance.2Bone side down3Do not turn4Add the food after approx. one hour.5Preheat the appliance for 5 minutes.6Preheat the appliance for three minutes.7Turn the dish several times.8Skin side down9Stir the food one or two times during cooking.10Place the sealed bag on the cookware. | |||||
| Food Accessory/cook-ware | Shelf position | Heating function → Page 10 | Temperature in °C | Microwave power setting in W | Cooking time in mins | |
| Complete meal with chicken | Wire rack + Uncovered cook-ware | 3+1 180 - | Formula- | tion for chicken (see table above) | ||
| Bacon rashers Wire rack 2 3 | 5 | - 1. First | side 4-52. Second side 3-4 | |||
| Sausages, 2-4 cm thick Wire rack 2 3 | 6 | - 10-15 | 7 | |||
| Belly Uncovered cook-ware | 1 200-220 | 30 + 25 | ||||
| Gammon joint Uncovered cook-ware | 2 180-200 | 30 + 25 | ||||
| Chicken, whole Wire rack 1 200-220 - 25 + 15 | ||||||
| Chicken, whole, 1 kg Covered cookware 1 230-250 360 | 25-35 | |||||
| Chicken portion, 4 pieces, 250 g each8 | Uncovered cook-ware | 1 190-210 | 360 | 20-30 | ||
| Trout, whole, 300 g each | Wire rack | 2 | 230 - 250 | 90 | 15 - 20 | |
| Vegetables, fresh, 250 g | Covered cookware | 1 | - | 600 | 8-129 | |
| Mixed vegetables, 250 g, + 25 ml water | Covered cookware 1 - | 600 | 10-14 | |||
| Long-grain rice, 250 g, + 500 ml water | Covered cookware 1 - | 1. 600 | 1. 7 - 92. 13 - 16 | |||
| Couscous, 250 g, + 500 ml water | Covered cookware 1 - | 600 | 6-8 | |||
| Custard made from cus-tard powder | Covered cookware 1 - | 600 | 5-8 | |||
| Microwave popcorn, 1 x 100 g pack10 | Uncovered cook-ware | 1 - | 600 | 4-6 | ||
| Rice pudding, 125 g + 500 ml milk | Covered cookware 2 - | 1. 600 | 1. 102. 20-259 | |||
| Yoghurt | Individual moulds | Cooking compartment floor | 40-45 | - 8-9 hrs | ||
^1 Preheat the appliance.
^2 Bone side down
^3 Do not turn
^4 Add the food after approx. one hour.
^5 Preheat the appliance for 5 minutes.
^6 Preheat the appliance for three minutes.
^7 Turn the dish several times.
^8 Skin side down
^9 Stir the food one or two times during cooking.
^10 Place the sealed bag on the cookware.
22.7 Special cooking methods and other applications
Information and recommended settings for special cooking methods and other applications, e.g. slow cooking or preserving.
Defrosting
You can defrost frozen food in your appliance.
Tips for defrosting food
- You can use the "microwave" mode to defrost frozen fruit, vegetables, poultry, meat, fish or baked goods.
■ Remove frozen food from its packaging before you defrost it.
■ Use heat-resistant, microwave-safe cookware.
■ The recommended settings are for freezer-temperature food (-18 °C).
■ Defrosting works best if you divide it into more than one step. The steps are listed one after the other in the recommended settings tables.
- Stir or turn the food 1-2 times during defrosting. Turn large items several times. Split the food into smaller pieces as it defrosts. Remove pieces that have already defrosted from the cooking compartment.
■ Once the food has defrosted, switch off the appliance and leave the food in the appliance for another 10 to 30 minutes to allow the temperature to equalise.
Recommended settings for defrosting
| Food Accessory/cook-ware | Shelf position | Heating function → Page 10 | Temperature in °C | Microwave power setting in W | Cooking time in mins | |
| Bread, 500 g Uncovered cook-ware | 1 - 1. 180 | 2. 90 | 1. 32. 10 - 15 | |||
| Bread rolls Wire rack 1 140 - 160 90 2 - 4 | ||||||
| Cakes, moist, 500 g Uncovered cook-ware | 1 - 1. 180 | 2. 90 | 1. 22. 10 - 15 | |||
| Cakes, dry, 750 g Uncovered cook-ware | 1 - 90 10 - 15 | |||||
| Meat, whole, e.g. joint, raw meat, 1 kg | Uncovered cook-ware | 1 - 1. 180 | 2. 90 | 1. 152. 20 - 30 | ||
| Minced meat, mixed, 500 g | Uncovered cook-ware | 1 - 1. 180 | 2. 90 | 1. 52. 10 - 15 | ||
| Chicken, whole, 1.2 kg Uncovered cook-ware | 1 - 1. 180 | 2. 90 | 1. 102. 10 - 15 | |||
| Fish, whole, 300 g Uncovered cook-ware | 1 - 1. 180 | 2. 90 | 1. 32. 10 - 15 | |||
| Berries, 300 g Uncovered cook-ware | 1 - 180 5 - 10 | |||||
| Butter, defrosting, 125 g Uncovered cook-ware | 1 - 90 7 - 9 | |||||
^1 Turn the dish halfway through the cooking time.
Warming up food using the microwave mode
You can use the microwave mode to warm up food or to defrost and warm up food in a single step.
Tips for warming up food using the microwave mode
■ Use microwave-safe cookware with a lid.
■ Turn or stir the food 2-3 times during warming.
■ After warming up the food, leave it to rest for 1-2 minutes.
■ The food transfers heat to the cookware. The cookware can become very hot.
■ Make sure that you do the following when you are warming up baby food:
- Place bottles on the wire rack without the teat or lid.
- Shake or stir the baby food well after warming it up.
- Always check the temperature of the baby food.
■ Wipe the cooking compartment dry after using it to warm up food.
⚠ WARNING – Risk of scalding!
There is a possibility of delayed boiling when a liquid is heated. This means that the liquid reaches boiling temperature without the usual steam bubbles rising to the surface. Even if the container only vibrates a little, the hot liquid may suddenly boil over and spatter.
▶ Always place a spoon in the container when heating liquids. This will prevent delayed boiling.
ATTENTION!
Metal touching the wall of the cooking compartment will cause sparks, which may damage the appliance or the inner door pane.
▶ Metal (e.g. a spoon in a glass) must be kept at least 2 cm from the cooking compartment walls and the inside of the door.
Recommended settings for warming up food using the microwave mode
| Food Accessory/cook-ware | Shelf position | Heating function → Page 10 | Temperature in °C | Microwave power setting in W | Cooking time in mins |
| Drinks, warming up, 200 ml | Uncovered cook-ware | 1 - 1000 1 | 1 | ||
| Baby food, heating up, e.g. baby bottle, 150 ml | Uncovered cook-ware | 1 - 360 1 | 1 | ||
| Vegetables, chilled, 250 g | Covered cookware | 1 - 600 3 - 8 | |||
| Side dishes, e.g. pasta, dumplings, potatoes, rice Chilled | Covered cookware | 1 - 600 5 - 1 | |||
| Soup, stew, 400 ml Chilled | Covered cookware | 1 - 600 5 - 7 | |||
| Plated meal, 1 portion Chilled | Covered cookware | 1 - 600 4 - 8 | |||
| Bakes, 400 g, e.g. lasagne, potato gratin | Uncovered cook-ware | 1 180 - 200 80 20 -25 | |||
| Side dishes, 500 g, e.g. pasta, dumplings, pota-toes, rice Frozen | Covered cookware | 1 - 600 7 - 1 | |||
| Soup, stew, 200 ml Frozen | Covered cookware | 1 - 600 4 - 6 | 1 | ||
| Plated meal, 1 portion Frozen | Covered cookware | 1 - 600 11 - 15 | |||
| 1 Stir the food well. | |||||
22.8 Test dishes
The information in this section is provided for test institutes to facilitate testing of the appliance in accordance with EN 60350-1:2013 or IEC 60350-1:2011 and EN 60705:2012 or IEC 60705:2010.
Baking
■ The setting values apply to food that is placed into a cold cooking compartment.
- Please take note of the information on preheating in the recommended settings tables. These setting values assume that the rapid heat-up function is not being used.
■ For baking, use the lower of the specified temperatures to start with.
■ Items that are placed in the appliance on baking trays or in baking tins/dishes at the same time will not necessarily be ready at the same time.
- Shelf positions when baking on 2 levels:
- Universal pan: Shelf position 3
Baking tray: Shelf position 1
- Hot water sponge cake
- When baking on two levels, place the springform tins at diagonally opposite corners of the wire racks.
Recommended settings for baking
| Food Accessory/cookware Shelf posi- | tion | Heating function → Page 10 | Temperature in °C Cooking time in mins | ||
| Viennese whirls Baking tray 1 | 140–150 | ∞ | 1 | 25–35 | |
| Small cakes Baking tray 1 | 150 | ∞ | 1 | 20–30 | |
| Small cakes, 2 levels Universal pan +Baking tray | 3+1 140 | ∞ | 1 | 30–40 | |
| Hot water sponge cake Springform cake tin,diameter 26 cm | 1 160–170 | ∞ | 2 | 30–45 | |
^1 Preheat the appliance for five minutes. Do not use the rapid heating function.
^2 Preheat the appliance. Do not use the rapid heating function.
Recommended settings for grilling
| Food Accessory/cookware Shelf pos- | ition | Heating function → Page 10 | Temperature in °C/grill setting | Cooking time in mins |
| Toasting bread Wire rack 3 3 2–6 |
Microwave cooking
■ If you use the wire rack, slide it into the cooking compartment with the Microwave imprint facing the appliance door and the bump pointing downwards.
■ To test the microwave mode on its own, switch off the drying function in the basic settings. → Page 19
Recommended settings for defrosting food using the microwave mode
| Food Accessories/cook-ware | Shelf position | Heating function → Page 10 | Microwave power setting in W | Cooking time in mins |
| Meat | Uncovered cookware 1 1. 180 | 2. 90 | 1. 52. 10–15 |
Recommended settings for microwave cooking
| Food Accessories/cook-ware | Shelf position | Heating function → Page 10 | Microwave power setting in W | Cooking time in mins |
| Egg wash | Uncovered cookware 1 1.360 | 2.180 | 1.202.20–25 | |
| Sponge | Uncovered cookware 1 600 | 7–9 | ||
| Meat loaf | Uncovered cookware 1 | 600 | 22–27 |
Recommended settings for cooking in combination with the microwave mode
| Food | Accessory/cook-ware | Shelf position | Heating function → Page 10 | Temperature in °C | Microwave power setting in W | Cooking time in mins |
| Potato gratin | Uncovered cook-ware | 1 | 150 - 170 | 360 | 25 - 30 | |
| Cakes | Uncovered cook-ware | 1 | 190 - 210 | 90 | 18 - 23 |
23 Installation instructions
Observe this information when installing the appliance.
23.1 General installation instructions
Follow these instructions before you start with the installation of the appliance.
- The installation cabinet must not have a back panel behind the appliance. There should be a gap of at least 35 mm between the wall and the cabinet base as well as the rear panel of the cabinet situated above.
■ Ventilation slots and intake openings must not be covered.
■ The safe operation of this appliance can only be guaranteed if it has been installed to a professional standard in accordance with these installation instructions. The installer shall be liable for damages incurred as a result of incorrect installation. - Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transit.
■ Before starting up the appliance, remove any packaging material and adhesive film from the cooking compartment and the door.
■ Proceed in accordance with the installation sheets for installing accessories.
■ Fitted units must be heat-resistant up to 95 °C, and adjacent unit fronts up to 70 °C. - Do not install the appliance behind a decorative door or the door of a kitchen unit. There is a risk of overheating.
- Cut-out work on the units should be carried out before installing the appliance. Remove any shavings. Otherwise, the correct operation of electrical components may be adversely affected.
- The mains socket for the appliance must either be located in the hatched area abr outside of the area where the appliance is installed.
Any unsecured units must be secured to the wall using a standard bracket b
■ Wear protective gloves so that you do not cut yourself. Parts that are accessible during installation may have sharp edges.
■ Dimensions of the figures in mm.
WARNING – Danger: Magnetism!
Permanent magnets are used in the control panel or in the controls. They may affect electronic implants, e.g. pacemakers or insulin pumps.
▶ Wearers of electronic implants must stay at least 10 cm away from the control panel or controls during the installation.
WARNING – Risk of fire!
It is dangerous to use an extended power cord and non-approved adapters.
▶ Do not use multiple socket strips.
▶ Only use extension cables that are certified, have a minimum cross section of 1.5 mm^2 and comply with the applicable national safety requirements.
▶ If the power cord is too short, contact customer service.
- Only use adapters approved by the manufacturer.
ATTENTION!
Carrying the appliance by the door handle could break it. The door handle cannot support the weight of the appliance.
▶ Do not carry or hold the appliance by the door handle.
23.2 Appliance dimensions
You will find the dimensions of the appliance here
23.3 Installation below a worktop
Observe the installation dimensions and the installation instructions when installing below a worktop.
■ To ventilate the appliance, the intermediate floor must have a ventilation cut-out.
■ The worktop must be secured to the built-in unit.
- Observe any available installation instructions for the hob.
23.4 Installation underneath a hob
If the appliance is installed under a hob, the following minimum dimensions must be adhered to (including substructure, if applicable).
The minimum worktop thickness ba is based on the required minimum clearance a
Hob type a raised in mm a flush in mm b in mm
| Induction hob 42 43 5 |
| Full-surface induction hob 52 53 5 |
| Gas hob 32 43 5 |
| Electric hob 32 35 2 |
23.5 Installation in a tall unit
Observe the installation dimensions and the installation instructions when installing in a tall unit.
■ To ventilate the appliance, the intermediate floors must have a ventilation cut-out.
In order to ensure sufficient ventilation of the appliance, there must be a ventilation opening of at least. 200 cm ^2 in the base area. To do this, trim the base panel or fit a ventilation grille. Ensure that the air exchange is guaranteed in accordance with the diagram.
■ Only fit the appliance up to a height which allows accessories to be easily removed.
23.6 Corner installation
Observe the installation dimensions and the installation instructions when installing in a corner.
- To ensure that the appliance door can be opened, you must take the minimum dimensions into consideration when installing in a corner. The dimension is dependent on the thickness of the unit front and the handle.
23.7 Electrical connection
In order to safely connect the appliance to the electrical system, follow these instructions.
■ The appliance corresponds to protection class I and must only be operated with a protective earth connection.
■ The fuse protection must correspond to the power rating specified on the appliance's rating plate and to local regulations.
- The appliance must be disconnected from the power supply whenever installation work is being carried out.
■ The appliance must only be connected using the power cable provided.
- The power cable must be plugged in at the rear of the appliance until you hear a clicking sound. A 3 m power cable can be obtained from the after-sales service.
■ The power cable must only be replaced with a cable from the original manufacturer. This is available from after-sales service.
■ Contact protection must be ensured during the installation.
Electrically connect the appliance with the protective contact plug
Note: The appliance must only be connected to a protective contact socket that has been correctly installed.
- Insert the plug into the protective contact socket. When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access to the mains plug is impossible, an all-pole isolating switch must be integrated into the permanent electrical installation in accordance with the installation regulations.
Electrically connecting an appliance without a protective contact plug
Note: Only a licensed professional may connect the appliance. Damage caused by incorrect connection is not covered under the warranty.
An all-pole isolating switch must be integrated into the permanent electrical installation according to the installation regulations.
- Identify the phase and neutral conductors in the socket. The appliance may be damaged if it is not connected correctly.
- Connect the hob in accordance with the connection diagram. See the rating plate for the voltage.
-
Connect the wires of the mains power cable according to the colour coding:
-
Green/yellow = Protective conductor ⊕
- Blue = Neutral conductor
- Brown = Phase (external conductor)
23.8 Installing the appliance
- Slide the appliance in fully and centre it.
- Screw the appliance into place.
-
For handleless kitchens with vertical bar handle strips:
-
Attach a suitable filling piece ① in order to cover any sharp edges and to guarantee a safe installation.
- Pre-drill aluminium profiles to establish a screw connection ②
- Secure the appliance using a suitable screw ③
Note: The gap between the worktop and the appliance must not be closed by additional battens.
Thermal insulation strips must not be fitted to the side panels of the surround unit.
23.9 Removing the appliance
- Disconnect the appliance from the power supply.
- Undo the fastening screws.
- Lift the appliance slightly and pull it out completely.
Thank you for buying a Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
- Expert tips & tricks for your appliance
- Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand - Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
BOSCH HOME APPLIANCES SERVICE
Looking for help? You'll find it here.
Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
