CO232E - Freezer SMEG - Free user manual and instructions

Brand	SMEG
Model	CO232E
Product type	Freezer
Refrigerant	R600a (environmentally friendly)
Defrost type	Manual
Interior lighting	Yes (replaceable interior bulb)
Main functions	Freezing and food preservation
Storage tips	Food storage guide included in the manual
Safety	Do not obstruct air circulation, do not use mechanical devices to defrost, do not damage the refrigeration circuit, do not use electrical appliances inside
Maintenance	Periodic cleaning and replacement of the interior bulb
Recycling	Tips for recycling the old appliance and packaging
Transport	Transport instructions in the manual
Power supply	Standard domestic electrical connection
Installation	Must allow free air circulation around the appliance
Disconnection	Electrical disconnection instructions in the manual

Frequently Asked Questions - CO232E SMEG

How do I properly defrost the SMEG CO232E freezer?

To defrost the freezer, disconnect it from the power supply, remove the food, and let the ice melt naturally. Do not use mechanical devices or electrical appliances to speed up the process, as this could damage the refrigeration circuit.

What type of refrigerant does the CO232E use?

The freezer uses R600a, an ecological refrigerant that is flammable only under certain conditions. Therefore, it is important not to damage the refrigeration circuit.

Can I use electrical appliances inside the freezer?

No, unless expressly recommended by the manufacturer. The use of unauthorized electrical appliances inside can be dangerous.

How do I clean the interior of the freezer?

Clean periodically with a soft cloth and warm water with a neutral detergent. Avoid abrasive products. Consult the manual for more details on cleaning the appliance.

What should I do if the interior bulb burns out?

Disconnect the appliance from the power supply, remove the bulb cover, and replace the lamp with one of the same type. See the section Replacing the interior bulb in the manual.

How to transport the freezer safely?

The manual includes transport instructions. It is recommended to keep it upright and avoid sudden tilting to avoid damaging the refrigeration circuit.

What safety precautions should I take into account?

Do not obstruct air circulation, do not use mechanical devices to defrost, do not damage the refrigeration circuit, and do not use electrical appliances inside the food compartment without authorization.

How to recycle the old freezer?

At the end of its useful life, the appliance should be delivered to a selective collection point for recycling. The packaging should also be recycled following local regulations.

What do I do if the freezer is not cooling properly?

Check that air circulation is not obstructed, that the door closes properly, and that the thermostat is adjusted. Consult the troubleshooting guide in the manual.

Can I speed up defrosting with tools like a knife?

No, it is prohibited to use mechanical devices not recommended by the manufacturer. It could puncture the refrigeration circuit and cause R600a leaks.

USER MANUAL CO232E SMEG

WARNING!

In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:

• Do not hinder the free circulation of the air around the appliance.
• Do not use mechanical devices in order to accelerate the defrosting, others than the ones recommended by the manufacturer.
• Do not destroy the refrigerating circuit.
  Do not use electric appliances inside the food keeping compartment, other than those that might have been recommended by the manufacturer.

ATTENTION!

Advice for recycling of the old appliance /1

Packing Recycling /2

Transport instructions /2

Warnings and special advice /2

Setting up /3

Electric connection /3

Switching off /3

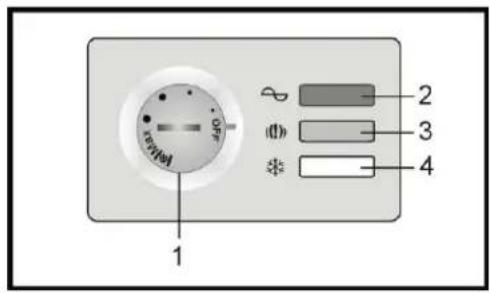

Appliance description /4

Freezer operation /4

Advice for food conservation /4

Defrosting of the appliance /5

Cleaning of the appliance /4

Replacing the interior light bulb /6

Defects finding guide /6

FR

Table de matieres

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.
Les illustrations présentées dans cette notice d'utilisation sont schématiques et peuvent ne pas correspondre exactement à votre produit. Si certains fonctions ne sont pas inclus dans le produit que vous avez acheté, ils concerneront d'autres modèles.
① Abbildungen und Angaben in dieser Anleitung sind schematisch und können etwas von Ihrem Gerät abweichen. Falls Teile nicht zum Lieferumfang des erworbenen Gerätes zählen, gelten sie für andere Modelle.
Le illustrazioni contenute in questa guida sono schematiche e potrebbero non corrispondere esattamente all'apparecchio in uso. Se le parti in oggetto non sono incluse nell'apparecchio acquistato, significa che sono da intendersi per altri modelli.
As figuras que aparecem neste manual de instruções são esquemáticas e podem não corresponder exactamente ao seu produto. Se as partes referidas não estiverem incluídas no produto que adquiriu, é porque são válidas para outros modelos.
Иллюстрации в данной инструкции являются схематичными и могут отличаться от вашей модели. Если в приобретенном вами изделии нет каких-либо из показанных компонентов, значит, они используются в других моделях.
Las ilustraciones incluidas en el presente manual de instrucciones son esquemáticas y puede que no se adecúen a su aparato con exactitud. Si alguno de los elementos reflejados no se corresponde con el aparato que usted ha adquirido, entonces será válido para otros modelos.
Bilder som förekommer i den här bruksanvisningen är exempel och kanske inte överensstämmer helt med din produkt. Om delar inte medföljer produkten du har köpt så gäller det för andra modeler
Tallene i denne manual er skematiske og svarer måske ikke helt til dit produkt. Hvis delene ikke er indeholdt i det produkt, du har købt, findes de i andre modeller.
De afbeeldingen in deze gebruiksaanwijzing zijn schematisch en hoeven niet exact met uw product overeen te komen. Wanneer onderdelen niet tot het product behoren dat u hebt gekocht, gelden deze voor andere modellen.

2

3

4

5

1

2

3

4
