EKP 20662-92 X - Cooker GRAM - Free user manual and instructions

Product Type	Freestanding Electric Cooker
Brand	Gram
Model	EKP 20662-92 X
Dimensions (HxWxD)	900 x 600 x 605 mm
Power Rating	Maximum 9.9 kW
Voltage	230/400V~50Hz
Hob Type	Ceramic with 4 heating zones
Oven Type	Electric with fan-assisted convection
Oven Functions	Convection, top/bottom heat, grill, pyrolytic cleaning, defrost, eco fan, rapid preheat
Oven Capacity	Approx. 60 L (standard size)
Cleaning Method	Pyrolytic self-cleaning (2-3 hours)
Control Type	Retractable knobs and electronic programmer with touch sensors
Child Safety	Door lock and overturning prevention bracket
Oven Lighting	Halogen bulb 25W, 230V
Accessories Included	Grill grate, roasting tray, baking tray, meat probe, side racks
Energy Efficiency	ECO fan assisted heating for energy saving
Door Construction	Removable inner glass panel for easy cleaning
Installation	Freestanding, adjustable feet, requires proper ventilation
Electrical Requirement	Separate power circuit, 16A supply
Repairability	Authorized service centre; spare parts available

Frequently Asked Questions - EKP 20662-92 X GRAM

How do I set the time on the electronic programmer?

After connecting to mains, the display flashes. Press sensor 1, then set the time using sensors 3 (+) and 2 (-). The new time is saved after 7 seconds.

How do I use the meat probe?

Plug the meat probe into the socket. The display shows actual and set temperature (default 80°C). Adjust using sensors. The alarm sounds when the set temperature is reached. Recommended for large meat portions (at least 1 kg). Use only the original probe.

How do I engage the child safety lock?

The oven door comes with a child safety lock engaged. To release, pull the lock mechanism as shown in the manual. The lock re-engages when the door is closed.

How do I perform pyrolytic cleaning?

Remove all accessories. Set the function selector to the pyrolytic position (P). Use the MENU sensors to set duration (2, 2.5, or 3 hours). The oven heats to ~480°C, turning residue into ash. The door locks automatically. After cooling, wipe ash with a damp cloth.

How do I replace the oven light bulb?

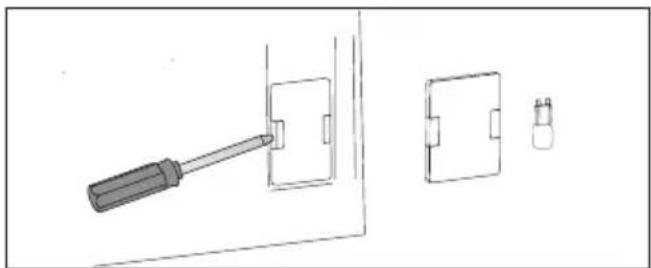

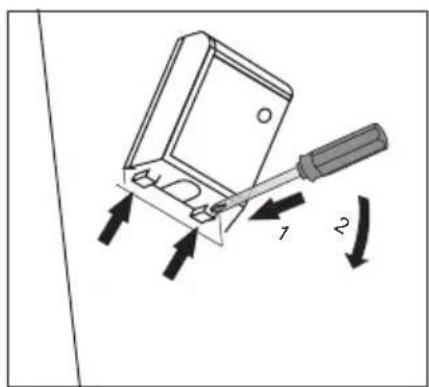

Disconnect power. Remove shelves. Pry off the lamp cover with a flat screwdriver. Pull out the old halogen bulb (230V, 25W) using a cloth. Insert new bulb, replace cover.

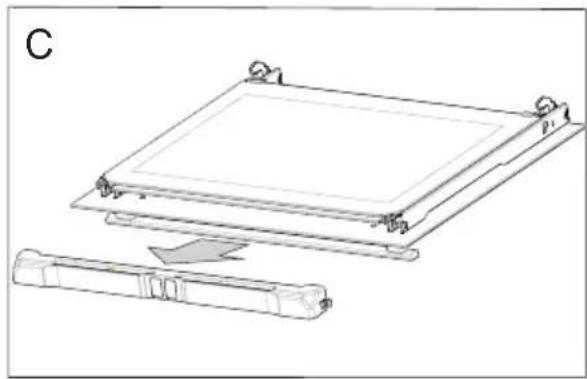

How do I remove the oven door for cleaning?

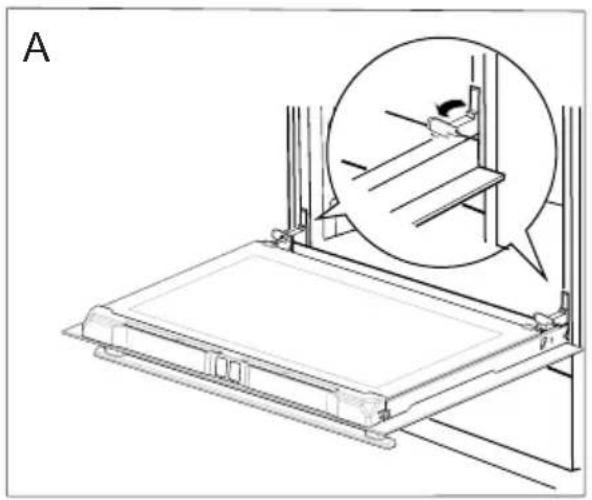

Tilt the safety catches on both hinges upward. Close the door slightly, lift and pull it out. To refit, ensure hinge notches align with hinge holders, then lower the safety catches.

What cookware is suitable for the ceramic hob?

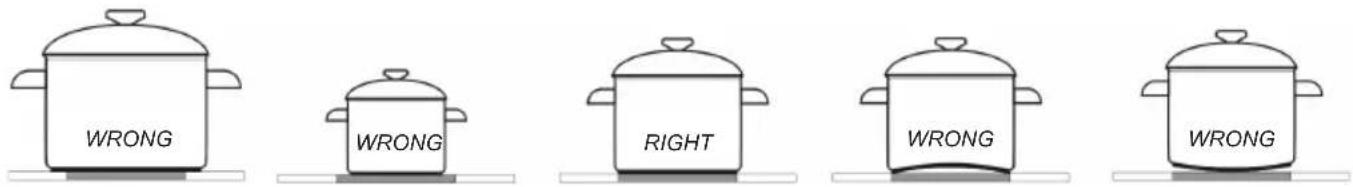

Use pans with thick, flat, and even bases. The pan diameter should be at least as large as the heating zone. Avoid pans with concave or convex bases. Do not use pans weighing over 25 kg on the hob.

How do I use the timer?

Press sensor 1 until the timer symbol appears. Set the desired time (1 min to 23h 59m) using sensors 3 and 2. The alarm sounds when time expires. Press any sensor to stop.

What is the maximum weight I can place on the oven door?

Do not place pans weighing over 15 kg on the opened oven door.

How do I clean the ceramic hob?

Clean after each use while it is still warm (but not hot). Use a special scraper for stubborn residues. Use mild cleaning products like warm water with washing-up liquid. Avoid abrasive cleaners or scouring pads.

USER MANUAL EKP 20662-92 X GRAM

Line drawing of a standard electric stove with four ovens and control knobs (no text or symbols)

(EN) INSTRUCTION MANUAL

The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy.

Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully you will be able to avoid any problems in using the appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible accidents.

Caution!

Do not use the cooker until you have read this instruction manual.

The cooker is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

TABLE OF CONTENTS

Safety instructions 4

Description of the appliance 9

Installation....11

Operation....13

Baking in the oven – practical hints 23

Test dishes....28

Cleaning and maintenance 30

Technical data....35

Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Warning: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Warning: Danger of fire: do not store items on the cooking surfaces.

Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Accessible parts may become hot during use. Young children should be kept away.

Warning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

You should not use steam cleaning devices to clean the appliance.

Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.

Caution: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

Warning: Use only hob guards designed by manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

● Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
- Ensure that small items of household equipment, including connection leads, do not touch the hot oven or the hob as the insulation material of this equipment is usually not resistant to high temperatures.
- Do not leave the cooker unattended when frying. Oils and fats may catch fire due to overheating or boiling over.
- Do not allow the hob to get soiled and prevent liquids from boiling over onto the surface of the hob. This refers in particular to sugar which can react with the ceramic hob and cause irreversible damage. Any spillages should be cleaned up as they happen.
- Do not place pans with a wet bottom on the warmed up heating zones as this can cause irreversible changes to the hob (irremovable stains).
- Use pans that are specified by the manufacturer as designed for use with a ceramic hob.
- If any defects, deep scratches, cracks or chips appear on the ceramic hob, stop using the cooker immediately and contact the service centre.
- Do not switch on the hob until a pan has been placed on it.
- Do not use pans with sharp edges that may cause damage to the ceramic hob.
- Do not look directly at the halogen heating zones (not covered by a pan) when they are warming up.
- Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25 kg on the hob.
- Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking.
- Do not use the cooker in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person.
- In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired.
- The rules and provisions contained in this instruction manual should be strictly observed. Do not allow anybody who is not familiar with the contents of this instruction manual to operate the cooker.
- The appliance has been designed only for cooking. Any other use (for example for heating) does not comply with its operating profile and may cause danger.

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

●Use proper pans for cooking.

Pans with thick, flat bases can save up to 1/3 on electric energy. Remember to cover pans if possible otherwise you will use four times as much energy!

- Match the size of the saucepan to the surface of the heating zone.

A saucepan should never be smaller than a heating zone.

- Ensure heating zones and pan bases are clean.

Soils can prevent heat transfer – and repeatedly burnt-on spillages can often only be removed by products which cause damage to the environment.

- Do not uncover the pan too often (a watched pot never boils!).

Do not open the oven door unnecessarily often.

Switch off the oven in good time and make use of residual heat.

For long cooking times, switch off heating zones 5 to 10 minutes before finishing cooking. This saves up to 20% on energy.

Only use the oven when cooking larger dishes.

Meat of up to 1 kg can be prepared more economically in a pan on the cooker hob.

● Make use of residual heat from the oven.

If the cooking time is greater than 40 minutes switch off the oven 10 minutes before the end time.

Important! When using the timer, set appropriately shorter cooking times according to the dish being prepared.

●Only grill with the ultrafan after closing the oven door.

●Make sure the oven door is properly closed.

Heat can leak through spillages on the door seals. Clean up any spillages immediately.

- Do not install the cooker in the direct vicinity of refrigerators/freezers.

Otherwise energy consumption increases unnecessarily.

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment.

Information on appropriate disposal centres for used devices can be provided by your local authority.

DESCRIPTION OF THE APPLIANCE

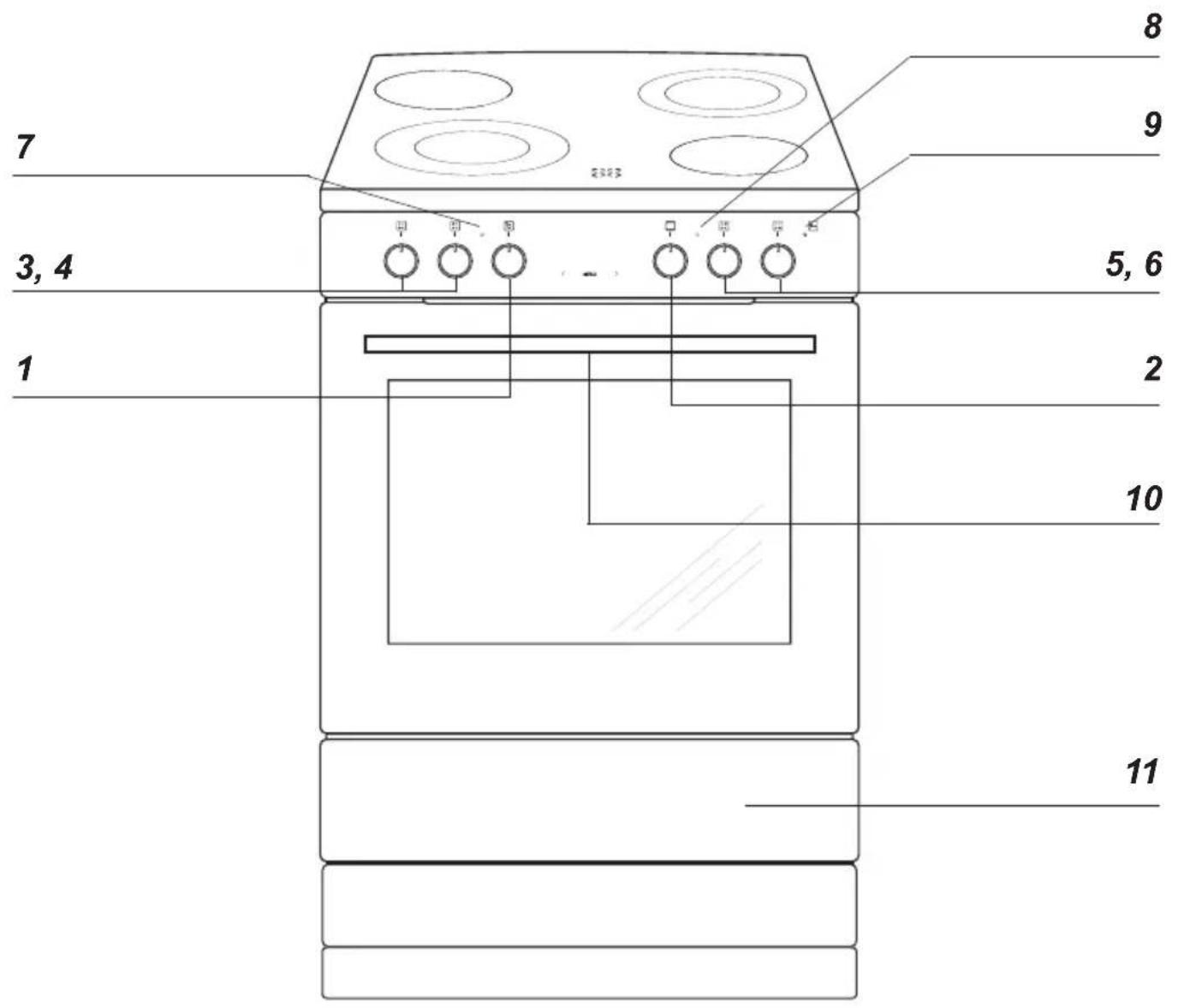

1 Temperature control knob
2 Oven function selection knob

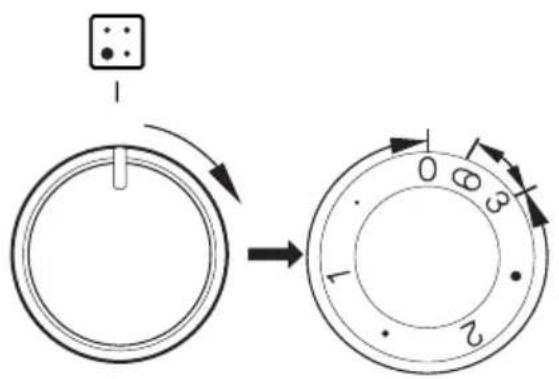

3, 4, 5, 6 Heating zone control knobs
7 Temperatureregulatorsignal light
8 Oven operation signal light
9 Door lock indicator light
10 Oven door handle
11 Drawer

Cooker fittings:

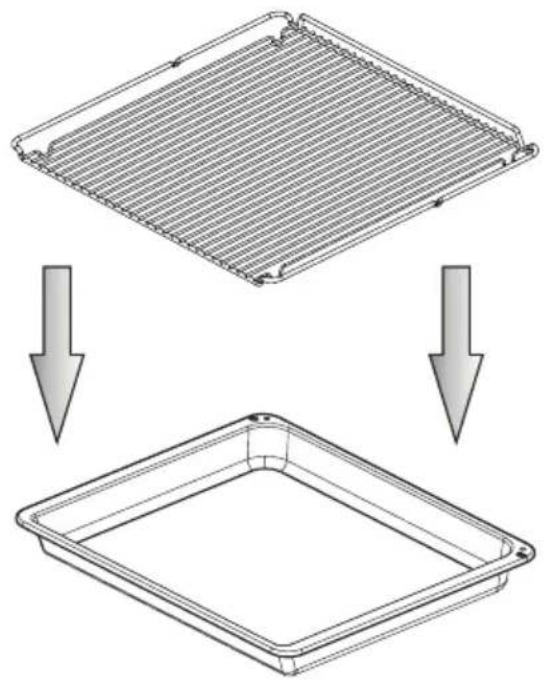

Grill grate (drying rack)

Roasting tray

Line drawing of a square frame with rounded corners and a small hole at the top (no text or symbols)

Baking tray

Simple line drawing of a medical or laboratory probe with two connectors (no text or symbols)

Meat probe

Installing the cooker

• The kitchen should be dry and airy and have effective ventilation according to the existing technical provisions.
• The room should be equipped with a ventilation system that pipes away exhaust fumes created during combustion. This system should consist of a ventilation grid or hood. Hoods should be installed according to the manufacturer's instructions. The cooker should be placed so as to ensure free access to all control elements.
• Coating or veneer used on fitted furniture must be applied with a heat resistant adhesive (100°C). This prevents surface deformation or detachment of the coating. If you are unsure of your furniture's heat resistance, you should leave approximately 2 cm of free space around the cooker. The wall behind the cooker should be resistant to high temperatures. During operation, its back side can warm up to around 50°C above the ambient temperature.
• The cooker should stand on a hard, even floor (do not put it on a base).
• Before you start using the cooker it should be leveled, which is particularly important for fat distribution in a frying pan. To this purpose, adjustable feet are accessible after removal of the drawer. The adjustment range is +/- 5 mm.

Mounting the overturning prevention bracket.

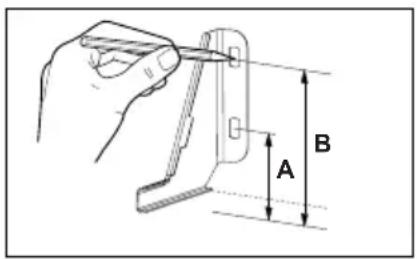

The bracket is mounted to prevent overturning of the cooker. When the overturning prevention bracket is installed, a child who climbs on the oven door will not overturn the appliance.

Technical line drawing of a mechanical clamp or bracket with a handle and lever (no text or symbols)

Technical diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Cooker, height 900 mm

A=104 mm

B=147 mm

Connecting the cooker to the mains

• Installation must only be carried out by an authorised electrician. This will ensure that the applicable regulations in the “Heavy Current Regulation” are complied with.
• The installation must comply with any special requirements issued by the local electricity supply company.
  ● The cooker must be connected to a separate power supply circuit.

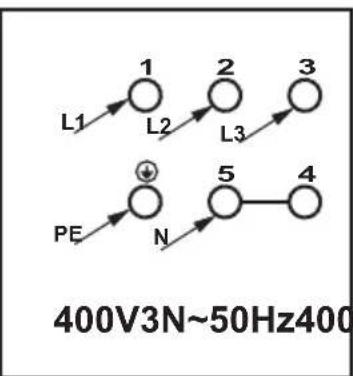

• The connection must only be established in accordance with the circuit diagrams which can be found on the cover to the screw terminals on the rear plate.
  NB: This product uses 16A.
• When connecting or replacing the power cable, at least one HO5 VVF-5G2.5 conduit or equivalent must be used.
• NB: To ensure compliance with the applicable safety requirements, a switch must be fitted which isolates all terminals and has a contact distance of at least 3 mm. (Can be a master switch).

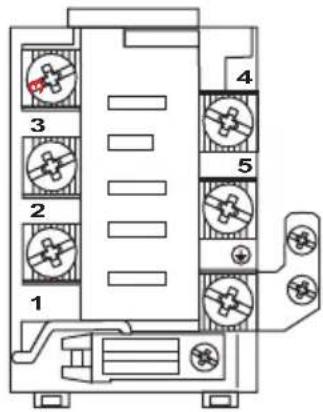


V2N\~50Hz230

Before first use

• Remove packaging, empty the drawer, clean the interior of the oven and the hob.
  ●Take out and wash the oven fittings with warm water and a little washing-up liquid.
• Switch on the ventilation in the room or open a window.
• Heat the oven (to a temperature of 250°C, for approx. 30 min.), remove any stains and wash carefully; the heating zones of the hob should be heated for around 4 min. without a pan.

Important!

The inside of the oven should only be washed with warm water and a small amount of washing-up liquid.

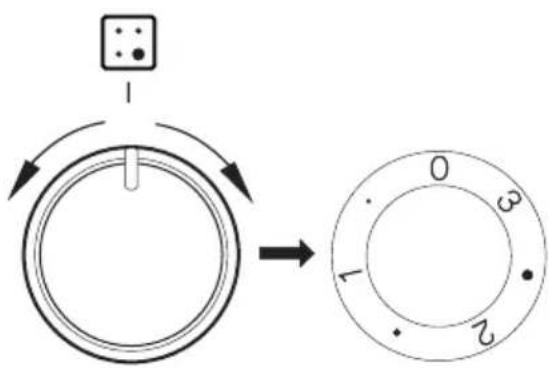

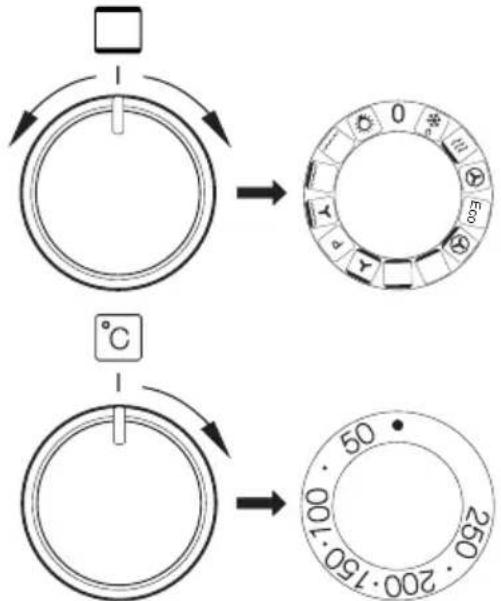

The oven is equipped with a retractable knobs. In order to select a function do the following:

1. Gently press and release a knob which will pop out,
2. Turn the oven functions selection knob to the desired function.

Symbols printed around the knob indicate available oven functions.

Child safety lock

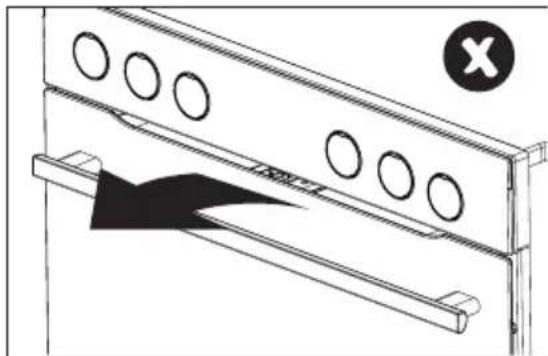

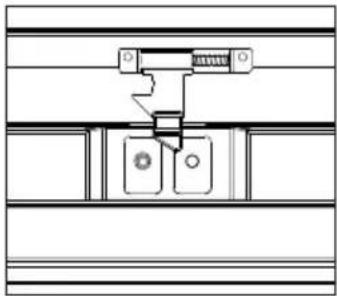

Oven door features a child safety lock device that prevents children from opening of the door. The appliance is supplied by the manufacturer with the door safety lock device engaged.

Technical line drawing of a mechanical assembly with circular holes and a black triangular component, no text or symbols present

Pure mechanical assembly diagram without any text, numbers, or symbols

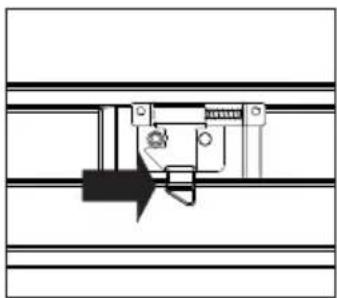

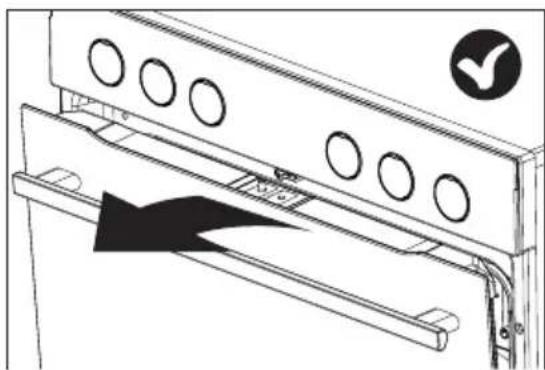

Release the child safety lock.

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

The lock is released and you can open the door.

Technical line drawing of a door with circular vent holes and an arrow indicating direction (no text or symbols)

The child safety lock is re-engaged once you close the door.

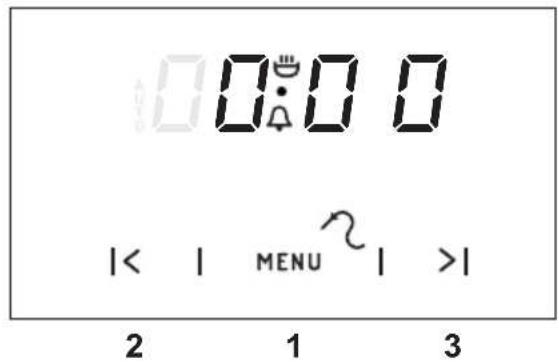

Electronic programmer

Touch sensors

1 - function selection button
2 - “-” sensor
3 - “+” sensor

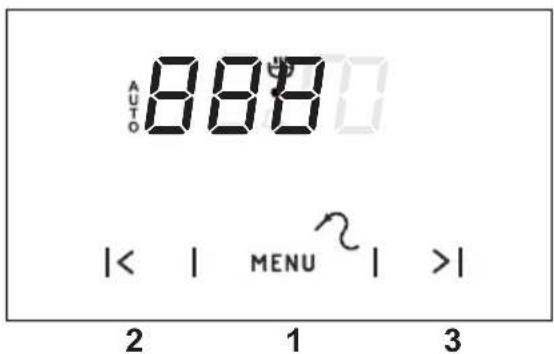

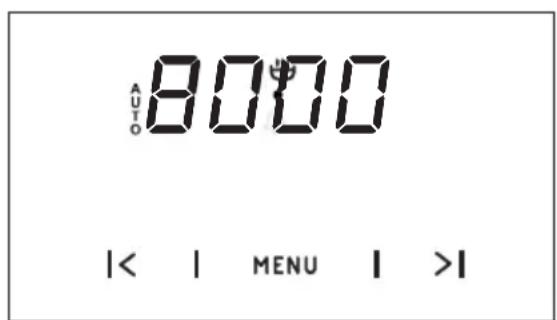

The electronic programmer is equipped with electronic sensors which are switched on by touching or pressing the sensor surface for at least 2 seconds.

Each sensor reaction is confirmed by the beep. Keep the sensor surface clean at all times.

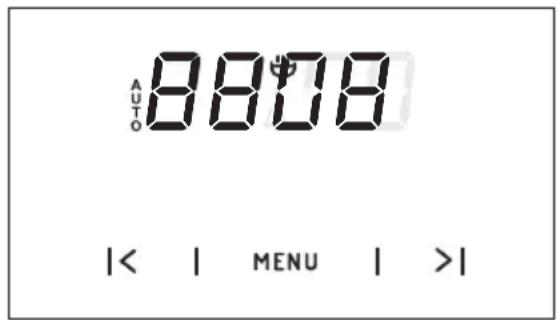

Setting the time

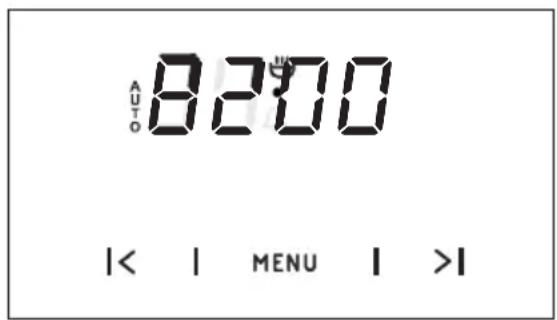

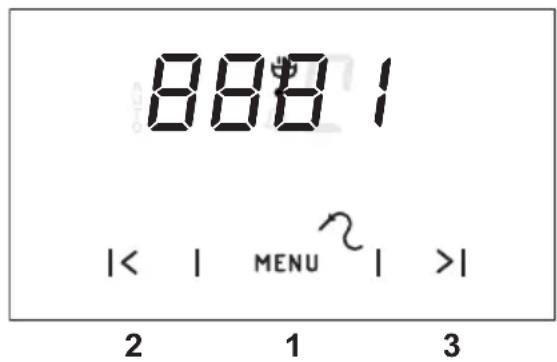

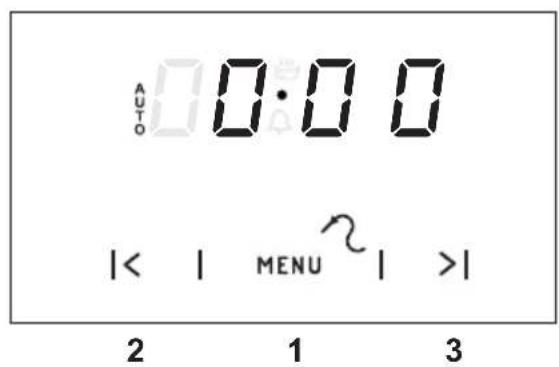

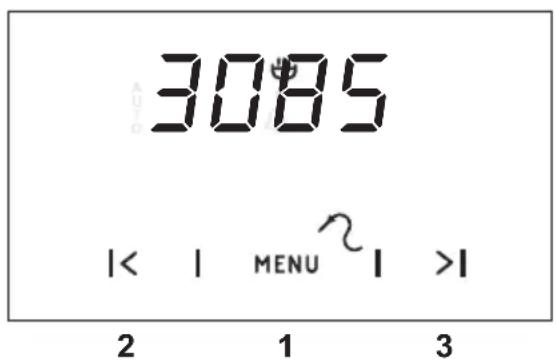

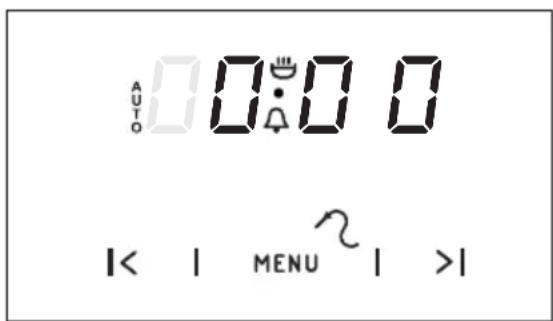

After connection to the mains or reconnection after a power cut the display shows flash

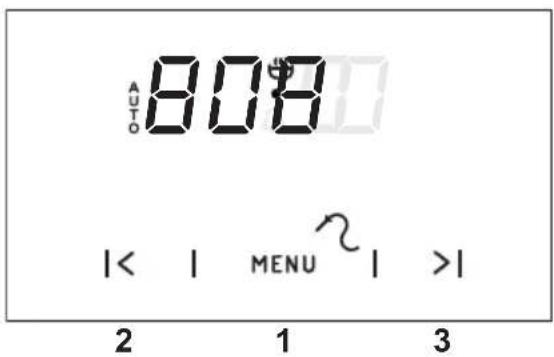

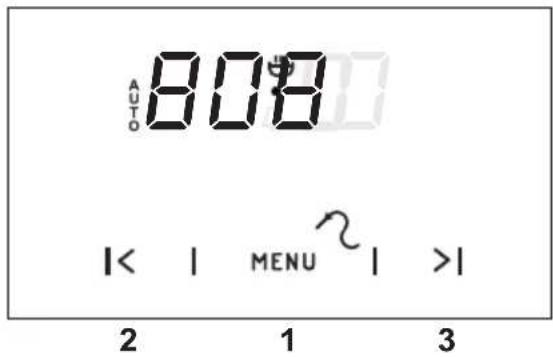

• Press sensor 1, then the display will show 🚗,

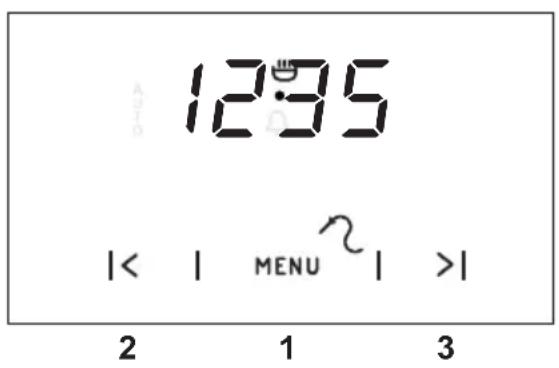

• set the time using sensors 3 and 2.

7 seconds after the time has been set the new data will be saved.

Caution!

If the correct time is not set then proper operation of the oven is not possible.

Timer

The timer can be activated at any time, regardless of the status of other functions. The timer can be set for from 1 minute to up to 23 hours and 59 minutes.

To set the timer you should:

- Press sensor 1, then the display will show flashing 🔊,

- set the timer using sensors 3 and 2.

The time set is shown on the display and the signal function 🙏 is on.

- Press sensor 1, 2 or 3 in order to switch off the signal, the signal function will go out and the display will show the current time.

Caution!

If the alarm signal is not turned off manually, it will be turned off automatically after approx. 7 minutes.

Semi-automatic operation

If the oven is to be switched off at a given time, then you should:

- Set the oven function knob and the temperature regulator knob to the setting at which you want the oven to operate.

●Press sensor 1 until the display will show:

- Set the required time using sensors 3 and 2, within a range from 1 minute to 10 hours.

The set time will be introduced to the memory after approx. 7 seconds and the display will show AUTO function.

When the set time has passed the oven is switched off automatically, the alarm signal is activated and the signal function AUTO flashing again;

- Set the oven function knob and the temperature regulator knob to the switched-off position.

- Press sensor 1, 2 or 3 in order to switch off the signal; the signal function will go out and the display will show the current time.

Caution!

In ovens equipped with one control knob, the oven function knob is integrated with the temperature regulator knob.

Automatic operation

If the oven is to be switched on for a specified period of time and switched off at a fixed hour then you should set the operation time and the operation end time:

- Press sensor1 until the display will show:

- Set the required time using the sensors 3 and 2 within a range from 1 minute to 10 hours.

●Press sensor 1 until the display will show:

- Set the switch-off time (operation end time) using sensors 3 and 2, which is limited to a period of 23 hours and 59 minutes from the current time.

- Set the oven function knob and the temperature regulator knob to the setting at which you want the oven to operate.

The function AUTO is now on; the oven will start operating from the point when the difference between the set operation end time and the operation duration time occurs (e.g. the operation time is set to 1 hour, the operation end time is set to 14.00, so the oven will start working automatically at 13.00).

When the oven reaches the operation end time it will switch off automatically, the alarm will be activated and the function AUTO will start flashing again.

• Set the oven function knob and the temperature regulator knob to the switched-off position.
• Press sensor 1, 2 or 3 in order to switch off the alarm; the function AUTO will go out and the display will show the current time.

Cancel settings

Timer and automatic function settings may be cancelled at any time.

Cancel automatic function settings: - press sensors 2 and 3 simultaneously,

Cancel timer settings: - press sensor 1 to select timer settings, - press sensors 2 and 3 again,

Change the timer beeps

The tone of the timer beeps may be changed as follows:

- press sensors 2 and 3 simultaneously, - select "tone" function with the 1 sensor, the display panel will start to blink:

- with the 2 sensor press the appropriate sensors from 1 to 3 to select the option you wish.

Meat Probe

Adjustment and display range: 30°C till 99°C, Resolution: 1 Grad, Default set value: 80°C.

Meat probe is recognized automatically when temperature at meat probe is above 0^ C.

If meat probe is plugged in, the two digits on the left side show the actual temperature at the meat probe and the two digits at the right side show the set point value.

If the probe temperature is lower than the minimum setting temperature of 30 °C , the display reads "30". If the probe temperature is higher than the maximum setting temperature of 99 °C , the display reads the maximum setting temperature.

With plugging in the connector of the meat probe, the program is started and the nominal temperature is set to 80 °C. The value of the set temperature can be changed as long as the temperatures are displayed, but not when timer is still in start up mode.

The meat probe alarm can be reset by pressing any key.

An active meat probe program or a pending alarm can be reset by disconnecting the meat probe.

The use of temperature probe is recommended when cooking large portions of meat (at least 1 kg).

The use of temperature probe is not recommended when cooking poultry and meat with bones.

When not in use, disconnect the temperature probe from its socket and remove from oven chamber.

Important!

Use only original temperature probe supplied with the appliance.

Recommended probe temperature settings

Type of meat Temperature [°C]
Pork 85 - 90
Beef 80 - 85
Veal 75 - 80
Lamb 80 - 85
Venison 80 - 85

Pyrolytic cleaning

Pyrolytic cleaning duration can be set from 2 to 3 hours.

• set the oven function selector knob in position
• using the < and > MENU sensors, set pyrolytic cleaning duration.

Important! Before starting the pyrolytic cleaning, please see "Cleaning and Maintenance."

Controlling the heating zones of the ceramic hob.

Choice of cookware

Choose a pan with a diameter that is at least as large as the heating zone. For roasting tins there is a special widened heating zone of 140x250. Do not use pans with a concave or convex base. Always remember to put a proper cover on the pan. We recommend the use of pans with thick, even bases.

If the heating zones and pans are solied it is impossible to make full use of the heat.

Heat level selection

The heating zones have different levels of heat. The level of heat can be adjusted gradually by turning the appropriate knob to the right or left.

Examples of knob settings

0 Switch off

- MIN. Warming up

1 Stewing vegetables, slow cooking

• Cooking soups, larger dishes

2 Slow frying

- Grilling meat, fish

3 MAX. Fast heating up, fast cooking, frying

Switching on the wider heating zone

Important!

Only switch on a heating zone by turning the knob clockwise. Turning the knob in the opposite direction can cause damage to the switch.

With the settings 0 ● 1 ● 2 ● 3 the knob operates the internal heating zone and it is possible to smoothly control the amount of heat transferred to a pan. Turning the knob temporarily to the position marked ☑ causes the external heating zone to be switched on. From that point, you can smoothly control the amount of heat trasferred to a pan by both heating zones (internal and external) as the internal switch will switch both zones off only after the knob is set to position 0.

Zone heating indicator

If the temperature of a heating zone exceeds 50^ C this is signalled by an indicator which lights up for that zone.

When the heating indicator lights up it warns the person using the cooker against touching a hot heating zone.

For about 5 to 10 minutes after a heating zone is switched off it will still have residual heat that can be used, for example to warm up or keep dishes warm without switching on another heating zone.

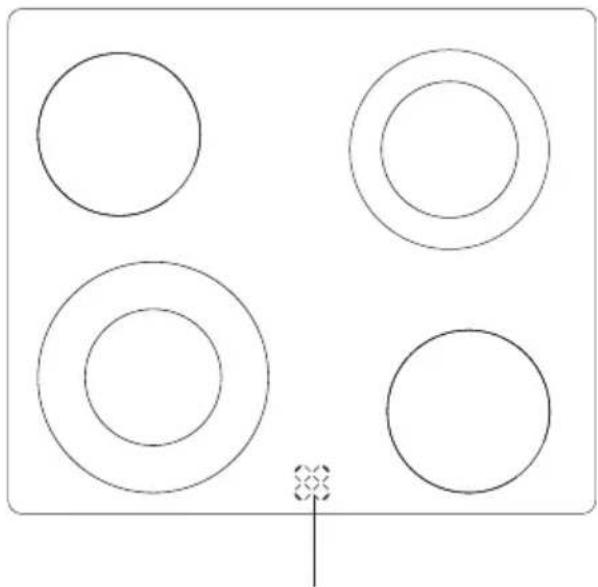

Simple diagram with four concentric circles and a small crosshair symbol at the bottom center (no text or labels)

Zone heating indicator

Oven functions and operation.

Oven with automatic air circulation (including a fan and an ultra-fan heater)

The oven can be heated up using the bottom and top heaters, the grill or the ultra-fan heater. Operation of the oven is controlled by the oven function knob – to set a required function you should turn the knob to the selected position, and the temperature regulator knob – to set a required function you should turn the knob to the selected position.

The oven is equipped with a retractable knobs. In order to select a function do the following:

• Gently press and release a knob which will pop out,
• Turn the oven functions selection knob to the desired function.

Symbols printed around the knob indicate available oven functions.

The oven can be switched off by setting both of these knobs to the position “●”/“0”.

Caution!

When selecting any heating function (switching a heater on etc.) the oven will only be switched on after the temperature has been set by the temperature regulator knob.

Oven is off

Defrosting

Only fan is on and all heaters are off.

Rapid Preheating

Ring heater and roaster on. Use to preheat the oven.

Convection with ring heating element

Setting the knob in this position allows the oven to be heated up by a heating element with air circulation forced by a rotating fan fitted in the central part of the back wall of the of and chamber. Lower baking temperatures than in the conventional oven can be used. Heating the oven up in this manner ensures uniform heat circulation around the dish being cooked in the oven.

Eco fan assisted heating

This is an optimised heating function designed to save energy when preparing food. At this knob position, the oven lighting is off.

Convection with ring heating element and bottom heater on

With this setting the convection fan and bottom heater are on, which increases the temperature at the bottom of the cooked dish. Intense heat from the bottom, moist cakes, pizza.

Bottom heater on

When the knob is set to this position the oven is heated using only the bottom heater. Baking of cakes from the bottom until done (moist cakes with fruit stuffing).

Top and bottom heaters on

Set the knob in this position for conventional baking. This setting is ideal for baking cakes, meat, fish, bread and pizza (it is necessary to preheat the oven and use a baking tray) on one oven level.

Top heater, bottom heater and fan are on.

This knob setting is most suitable for baking cakes. Convection baking (recommended for baking).

When the functions have been selected but the temperature knob is set to zero only the fan will be on. With this function you can cool the dish or the oven chamber.

Pyrolytic cleaning.

Oven pyrolytic self-cleaning. The oven heats up to a temperature of about 480^ C. Grilling or baking residue is burnt into an easy to remove ash that can be wiped off with a damp cloth.

Important!

Before starting the pyrolytic cleaning, please see "Cleaning and Maintenance."

Fan and combined grill on

When the knob is turned to this position, the oven activates the combined grill and fan function. In practice, this function allows the grilling process to be speeded up and an improvement in the taste of the dish. You should only use the grill with the oven door shut.

Enhanced roaster (super roaster)

In this setting both roaster and top heater are on. This increases temperature in the top part of the oven's interior, which makes it suitable for browning and roasting of larger portions of food.

Roaster on.

Roasting is used for cooking of small portions of meat: steaks, schnitzel, fish, toasts, Frankfurter sausages, (thickness of roasted dish should not exceed 2-3 cm and should be turned over during roasting).

Independent oven lighting

Set the knob in this position to light up the oven interior.

Switching on the oven is indicated by two signal lights, 7, 8, turning on. The 8 light turned on means the oven is working. If the 7 light goes out, it means the oven has reached the set temperature. If a recipe recommends placing dishes in a warmed-up oven, this should be not done before the 7 light goes out for the first time. When baking, the 7 light will temporarily come on and go out (to maintain the temperature inside the oven). The 8 signal light may also turn on at the knob position of “oven chamber lighting”.

Use of the grill

The grilling process operates through infrared rays emitted onto the dish by the incandescent grill heater.

In order to switch on the grill you need to:

• Set the oven knob to the position marked grill
• Heat the oven for approx. 5 minutes (with the oven door shut).
• Insert a tray with a dish onto the appropriate cooking level; and if you are grilling on the grate insert a tray for dripping on the level immediately below (under the grate).
• Close the oven door.

For grilling with the function grill and combined grill the temperature must be set to 220^ C, but for the function fan and grill it must be set to a maximum of 190^ C.

Warning!

When using function grill it is recommended that the oven door is closed.

When the grill is in use accessible parts can become hot.

It is best to keep children away from the oven.

Baking

• we recommend using the baking trays which were provided with your cooker;
• it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;
  ● shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters), use of such tins can result in undercooking the base of cakes;
• when using the ultra-fan function it is not necessary to initially heat up the oven chamber, for other types of heating you should warm up the oven chamber before the cake is inserted;
• before the cake is taken out of the oven, check if it is ready using a wooden stick (if the cake is ready the stick should come out dry and clean after being inserted into the cake);
  ● after switching off the oven it is advisable to leave the cake inside for about 5 min.;
• temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees lower than in normal baking (using top and bottom heaters);
• the baking parameters given in Table are approximate and can be corrected based on your own experience and cooking preferences;
• if information given in recipe books is significantly different from the values included in this instruction manual, please apply the instructions from the manual.

Roasting meat

• cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on the gas burners.
• use heatproof ovenware for roasting, with handles that are also resistant to high temperatures;
• when roasting on the drying rack or the grate we recommend that you place a baking tray with a small amount of water on the lowest level of the oven;
• it is advisable to turn the meat over at least once during the roasting time and during roasting you should also baste the meat with its juices or with hot salty water – do not pour cold water over the meat.

ECO fan assisted heating

• ECO fan assisted heating is an optimised heating function designed to save energy when preparing food.
• You cannot reduce the cooking time by setting a higher temperature; preheating the oven is not recommended.
• Do not change the temperature setting and do not open the oven door during cooking.

Recommended setting for ECO fan assisted heating

Type of dish	Oven functions	Temperature (°C)	Level Time	in minutes
Sponge cake	Eco	180 - 200 2 - 3	50 - 70
Yeast cake/ Pound cake	Eco	180 - 200 2 50	- 70
Fish	Eco	190 - 210 2 - 3	45 - 60
Beef	Eco	200 - 220 2 90	- 120
Pork	Eco	200 - 220 2 90	- 160
Chicken	Eco	180 - 200 2 80	- 100

BAKING IN THE OVEN – PRACTICAL HINTS

Oven with automatic air circulation (including a fan and ring heater)

Type of dish	Type of heating	Temperature (°C)	Level Time	(min.)
Sponge cake 160 - 200 2 30 - 50
Yeast cake/ Pound cake		160 - 170 1)	3 25 - 40	2)
Yeast cake/ Pound cake		155 - 170 1)	3 25 - 40	2)
Pizza 200 - 230		1)	2 - 3 15 - 25
Fish 210 - 220 2 45 ·
Fish 160 - 180 2 - 3 · 60
Fish 190 2 - 3 60 - 7
Sausages 200 - 220 4 · 18
Beef 225 - 250 2 12 50
Beef 160 - 180 2 12 60
Pork 160 - 230 2		90 - 120
Pork 160 - 190 2		90 - 120
Chicken		180 - 190 2 70	- 90
Chicken		160 - 180 2 45	- 60
Chicken		175 - 190 2 60	- 70
Vegetables		190 - 210 2 40	- 50
Vegetables		170 - 190 3 40	- 50

The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

^1) Preheat

2) Baking smaller items

Note: The figures given in Tables are approximate and can be adapted based on your own experience and cooking preferences.

Baking

Type of dish Accessory Level Type			of heating	Temperature (°C)	Baking time 2)(min.)
Small cakes	Baking tray 4	160		1)	29 - 32 2)
	Baking tray 4	155		1)	31 - 34 2)
	Baking tray 3	150		1)	34 - 37 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray		150 1)	40 - 43 2)
Shortbread	Baking tray 3	150 - 160		1)	30 - 40 2)
	Baking tray 3	150 - 170		1)	25 - 35 2)
	Baking tray 3	150 - 170	[TTYT]	1)	25 - 35 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray	[3GBK]	160 - 175 1)	25 - 35 2)
Fatless sponge cake	Wire rack + black baking tin diameter 26cm	2 170 - 180		1)	38 - 46 2)
Apple pie	Wire rack + 2 black baking tins diameter 20cm	2 black baking tins placed after the diagonal, back right, front left		180 - 200 1)	50 - 65 2)

^1) Preheat 5 minutes, do not use Rapid preheat function.
^2) The times are apply to dish that is placed into a cold oven.

TEST DISHES. According to standard EN 60350-1.

Grilling

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
White bread toast	Wire rack 4	20	[23T7]	1)	3 - 7
Beef burgers	Wire rack + roasting tray (to gather drops)	4 - wire rack 3 - roasting tray		220 1)	1st side 13 - 18 2nd side 10 - 15

^1) Preheat for 8 minutes, do not use Rapid preheat function.

Roasting

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
Whole chicken	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray		180 - 190 70	- 90
	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray		180 - 190 80	- 100

The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

By ensuring proper cleaning and maintenance of your cooker you can have a significant influence on the continuing fault-free operation of your appliance.

Before you start cleaning, the cooker must be switched off and you should ensure that all knobs are set to the “●”/“0” position. Do not start cleaning until the cooker has completely cooled.

Ceramic hob

• The hob should be cleaned regularly after each use. If possible, it is recommended that the hob is washed while still warm (after the heating zone indicator goes off). Do not allow the hob to get heavily stained; particularly from burnt-on spillages from boiled over liquids.
• When cleaning do not use cleaning agents with a strong abrasive effect, such as e.g. scouring powders containing an abrasive, abrasive compounds, abrasive stones, pumice stones, wire brushes and so on. They may scratch the hob surface, causing irreversible damage.
• Large spillages that are firmly stuck to the hob can be removed by a special scraper; but be careful not to damage the ceramic hob frame when doing this.

Caution! The sharp blade should always be protected by adjusting the cover (just push it with your thumb). Injuries are possible so be careful when using this instrument – keep out of reach of children.

- Appropriate light cleaning or washing products are recommended, such as e.g. any kind of liquids or emulsions for fat removal. If the recommended products are not available, it is advisable to use a solution of warm water with a little washing-up liquid or cleaning products for stainless steel sinks.

Oven

• The oven should be cleaned after every use. When cleaning the oven the lighting should be switched on to enable you to see the surfaces better.
• The oven chamber should only be washed with warm water and a small amount of washing-up liquid.

Caution!

Do not use cleaning products containing abrasive materials for the cleaning and maintenance of the glass front panel.

CLEANING AND MAINTENANCE

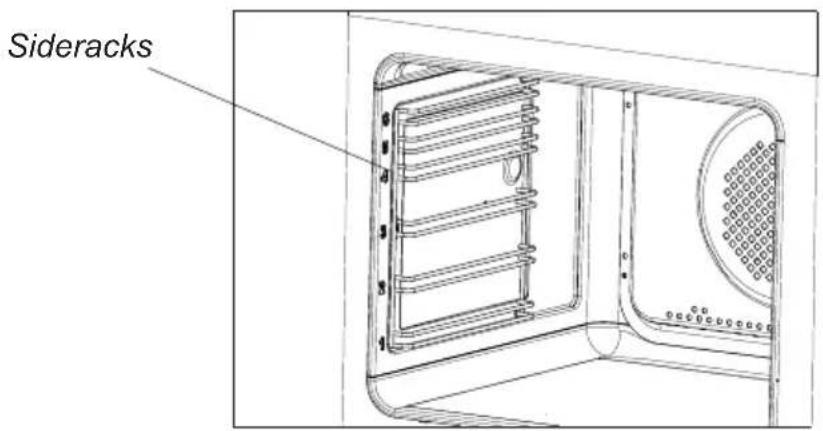

- Ovens marked with the letter D are equipped with easily removable wire shelf supports. To remove them for cleaning use size 3 Allen key to undo the fixing screws from shelf support holders Once cleaned, replace the shelf supports in oven chamber. Before tightening, make sure the shelf support holders are secure in the holes provided in oven chamber wall.

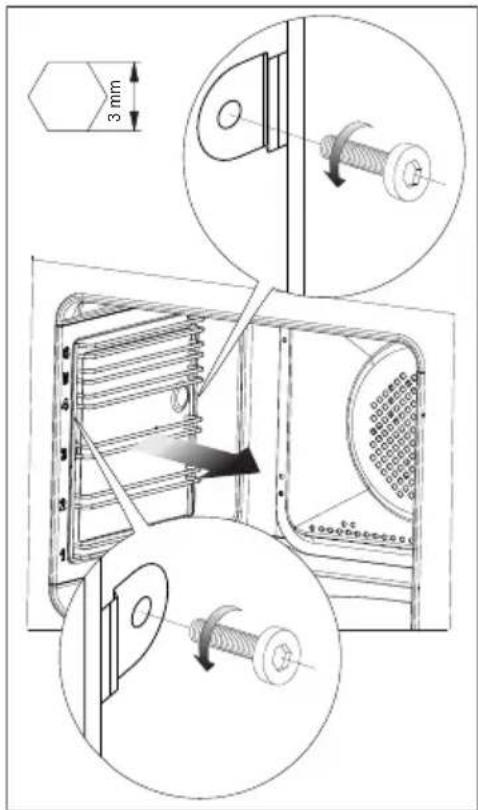

Removing wire shelf supports

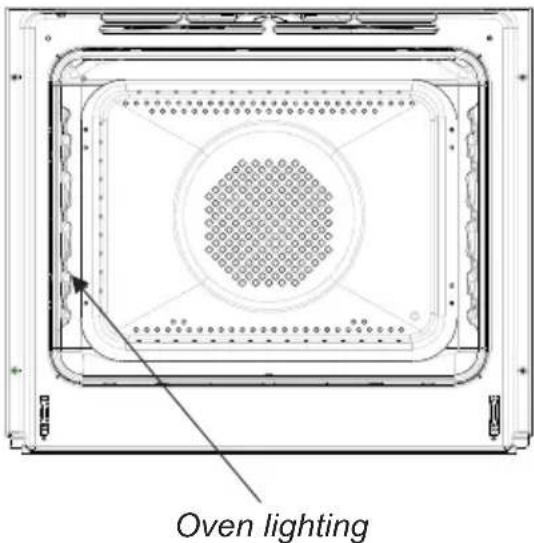

Replacing the halogen bulb in the oven

Before replacing the halogen bulb, make sure the appliance is disconnected from the electric mains to avoid a possible electric shock.

Technical line drawing of a screwdriver inserted into a wall-mounted switch, next to a separate plate with a small connector (no text or symbols)

1. Unplug the appliance
2. Remove shelves and trays from the oven.
3. If the oven has telescopic runners, remove them also.
4. Use a flat screwdriver to pry the lamp cover loose, remove it, wash and carefully wipe it dry.
5. Pull the halogen bulb out by sliding it down using a cloth or paper. If necessary, replace the halogen bulb with a new one.
6. voltage 230V
7. power 25W
8. Replace the halogen bulb in its socket.
9. Replace the lamp cover

Door removal

In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards (fig. A). Close the door lightly, lift and pull it out towards you. In order to fit the door back on to the cooker, do the inverse. When fitting, ensure that the notch of the hinge is correctly placed on the protrusion of the hinge holder. After the door is fitted to the oven, the safety catch should be carefully lowered down again. If the safety catch is not set it may cause damage to the hinge when closing the door.

Technical line drawing of a mechanical assembly with an inset showing a magnified detail of a component (no text or symbols present)

Tilting the hinge safety catches

Removing the inner panel

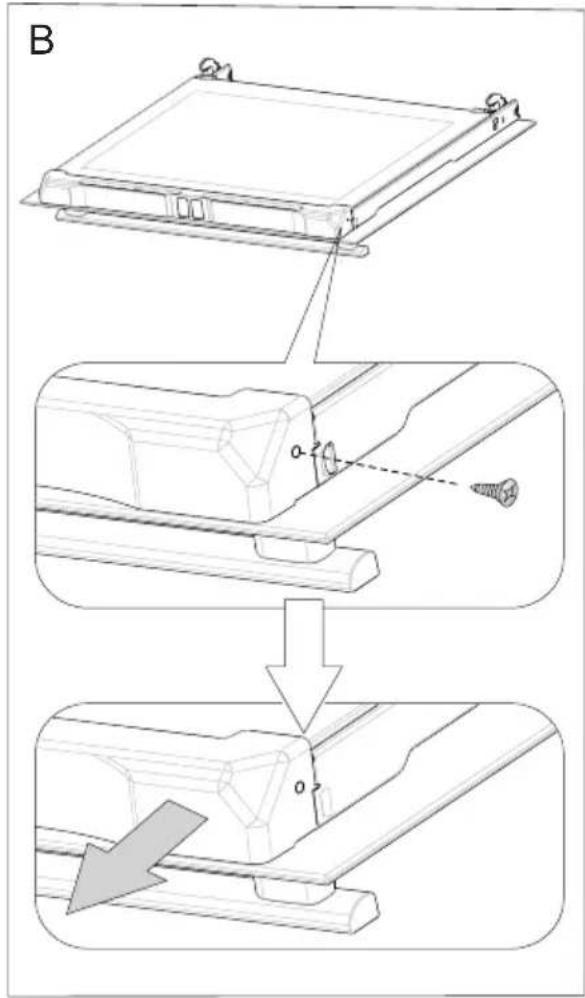

1. Using a cross-head screwdriver undo the screws in the upper door slat (fig. B).

2. Using a flat screwdriver remove the upper door slat, prying it gently on the sides (fig. B, C).

Technical line drawing of a mechanical assembly with a rectangular frame and a separate cylindrical component (no text or symbols)

1. Pull the inner glass panel from its seat (in the lower section of the door).

Important! Risk of damage to glass panel mounting. Do not lift the glass panel up but pull it out.

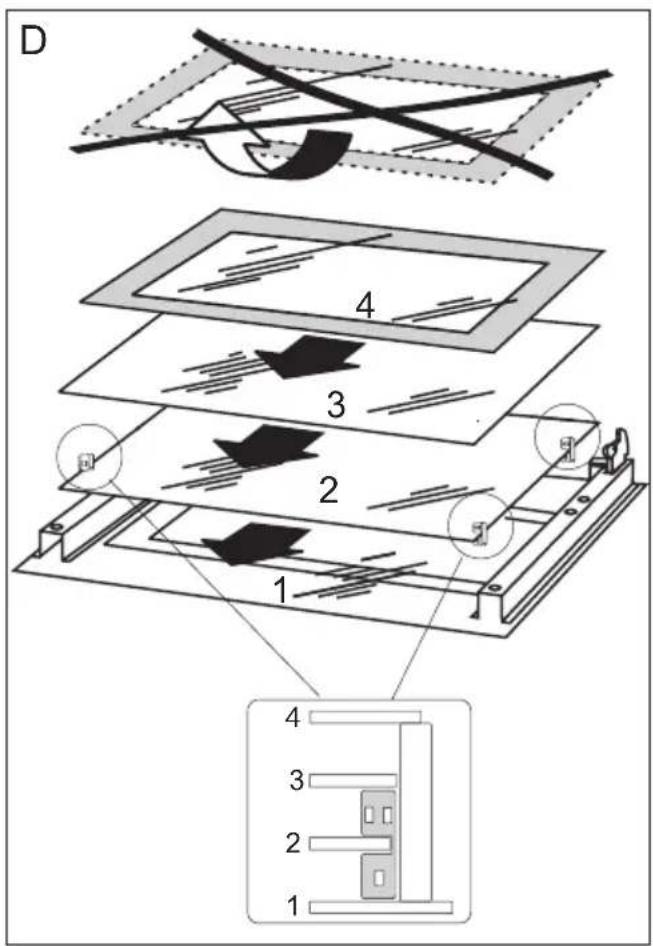

Remove the inner panel (fig. D).

1. Clean the panel with warm water with some cleaning agent added.

Carry out the same in reverse order to reassemble the inner glass panel. Its smooth surface shall be pointed upwards.

Removal of the internal glass panel

Pyrolytic cleaning

Oven pyrolytic self-cleaning. The oven heats up to a temperature of about 480^ C. Grilling or baking residue is burnt into an easy to remove ash that can be wiped off with a damp cloth.

Before pyrolytic cleaning.

Important!

Remove all accessories from the oven (baking trays, drying grates, side racks). Accessories left inside the oven will be irreversibly damaged during the pyrolysis cleaning.

• Remove stubborn stains from the oven chamber.
• Clean the outside of the oven with a damp cloth.
• Follow the instructions.

During the cleaning process.

• Do not use the hob.
• Do not turn on the oven lighting.
• The oven door is equipped with a lock, which prevents it from being opened during the cleaning process. Do not open the door so as not to interrupt the cleaning process.

Important!

During the pyrolytic oven cleaning process the oven chamber can reach a very high temperature. Consequently, the appliance outer surfaces can heat up more than usual, so keep children away at all times.

Some fumes can be emitted during the cleaning, so make sure the kitchen is well ventilated.

The pyrolytic cleaning process:

• Close the oven door.
• Set the function selector knob in position Pyrolytic Cleaning P

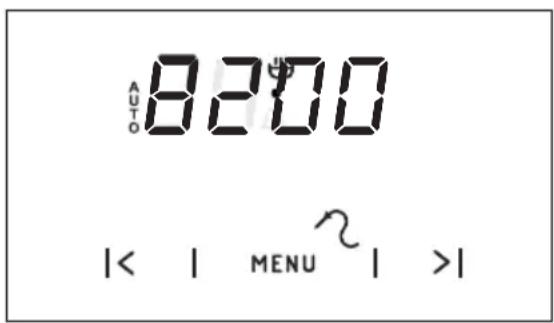

• Pyrolytic Cleaning duration (2:00) as well as „auto“ and „P“ symbols are shown on the display. Door lock indicator light comes on |0|

- Touch MENU for approx. 3-4 seconds until the display shows 0.00.

- Touch MENU again. The display will flash Pdur.

- Touch > or < sensors to select the Duration.

You can select 2.00 (2 hours, 120 minutes), 2.30 (2.5 hours, 150 minutes) or 3.00 (3 hours, 180 minutes). Once you have made your choice wait for the acoustic signal which confirms that Duration has been set.

• Pyrolytic cleaning process will start. Oven door will be locked.
• “P0.00” is shown on the display when the pyrolytic cleaning is complete. The appliance will then enter the cooling phase, while still displaying P0:00.

• The doors will be unlocked automatically when the oven chamber cools down. When the temperature inside the oven chamber cools down to 160°C, the door is unlocked and the door lock indicator |0\~| light goes out. This can take 45 to 75 minutes after the P0:00 alarm is sounded.
• When door lock indicator light is off, set the function selector knob in position 0.

- When the door is unlocked and you turn off the oven, you can open the door and remove ash with a soft, damp cloth. Replace the side rail and other accessories. Your oven is ready for use. The cooling phase continues until the temperature of 50^ is reached inside the oven cavity.

Important!

When you start the pyrolytic cleaning process and inadvertently open the oven door, the process will stop and door lock indicator will be flashing. To restart the pyrolytic cleaning turn the selector knob to 0 and re-enter the desired settings.

Cancel the process

Pyrolytic cleaning is an automatic process that should not be interrupted.

If you need to stop the process, turn the selector knob to position 0.

Depending on the time when you interrupt the process (temperature in the oven chamber) the oven chamber will need to first cool down to 160^ C before the door is unlocked.

Open the door in emergency

If for some reason the door is not unlocked automatically, and the oven chamber has already cooled down, open the door as follows:

• set the function selector knob in position "Lighting",
• wait for 4 minutes;
• set the function selector knob in position 0 – the oven door should unlock within 10 minutes.

Note. The door will not unlock if the temperature inside the oven chamber is above 160^ C.

Regular inspections

Besides keeping the cooker clean, you should:

- carry out periodic inspections of the control elements and cooking units of the cooker. After the guarantee has expired you should have a technical inspection of the cooker carried out at a service centre at least once every two years,

• fix any operational faults,
  ● carry out periodical maintenance of the cooking units of the cooker.

Caution!

All repairs and regulatory activities should be carried out by the appropriate service centre or by an appropriately authorised fitter.

OPERATION IN CASE OF EMERGENCY

In the event of an emergency, you should:

• switch off all working units of the cooker
• disconnect the mains plug
• call the service centre
• some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the GRAM service centre check the following points that are presented in the table..

PROBLEM REASON ACTION
1. The appliance does not work.	Break in power supply. Check the household fuse box; if there is a blown fuse replace it with a new one.
2. The oven lighting does not work.	The bulb is loose or damaged. Tighten up or replace the blown bulb (see ‘Cleaning and Maintenance’).

Voltage rating 230/400V\~50 Hz

Power rating max. 9,9 kW

Cooker dimensions H/W/D 90 / 60 / 60,5 cm

Basic Information:

The product meets the requirements of European standards EN 60335-1; EN60335-2-6.

The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1. These values are defined with a standard workload a with the functions active: bottom and top heaters (conventional heating) and fan assisted heating (forced air heating), if these functions are available.

The energy efficiency class was assigned depending on the function available in the product in accordance with the priority below:

Forced air circulation ECO (ring heater + fan)
Forced air circulation ECO (bottom heater + top + roaster + fan)
Conventional mode ECO (bottom heater + top)

During energy consumption test, remove the telescopic runners (if the product is fitted with any).

Gram A/S

Gejlhavegård 2B

DK-6000 Kolding

[phone]

www.gram.dk
