Product Type	Microwave Oven
Brand	Blaupunkt
Model	5MA26500GB
Capacity	17 L
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1050 W
Rated Output Power (Microwave)	700 W
External Dimensions (H x W x D)	388 x 595 x 320 mm
Net Weight	Approx. 14.9 kg
Turntable Diameter	245 mm
Installation Type	Built-in only
Control Type	Button + Rotary knob
Display	Digital LED
Microwave Power Levels	5 (100%, 80%, 50%, 30%, 10%)
Defrost Methods	By weight (100–2000 g) or by time
Auto Menus	8 (Pizza, Meat, Vegetable, Pasta, Potato, Fish, Beverage, Popcorn)
Clock Function	24-hour format
Kitchen Timer	Up to 95 minutes
Child Lock	Yes
Multi-Section Cooking	Up to 2 stages
Quick Start	+30 sec at 100% power
Safety Interlocks	Yes
Accessories Included	Glass tray, Turntable ring assembly, Instruction manual
Cleaning Instructions	Damp cloth; avoid abrasives; lemon water method
WEEE Compliance	Yes

Frequently Asked Questions - 5MA26500GB BLAUPUNKT

How do I set the clock on my Blaupunkt 5MA26500GB microwave?

Press Kitchen Timer/Clock twice. The hour digits will flash. Turn the dial to adjust the hour (0-23). Press Kitchen Timer/Clock again, minute digits flash. Turn dial to set minutes (0-59). Press Kitchen Timer/Clock to confirm.

What is the maximum cooking time?

The maximum cooking or defrost time you can set is 95 minutes.

Can I use metal utensils in this microwave?

No, metal utensils (including aluminum trays, metal-trimmed dishes, and twist ties) cause arcing and may damage the oven. Only use microwave-safe plastic, glass, or ceramic containers.

How do I defrost food by weight?

Press Weight/Time Defrost once to select dEF1. Turn the dial to enter the food weight (100-2000 g). Press Start/+30Sec./Confirm to begin defrosting.

The microwave does not heat. What should I check?

First, ensure the door is fully closed. Check that the power cord is plugged in securely. If the fuse has blown or the circuit breaker tripped, replace the fuse or reset the breaker. If the outlet is faulty, test with another device. If none work, contact qualified service.

How do I enable the child lock?

In standby mode, press and hold Stop/Clear for 3 seconds. A long beep confirms lock activation. To unlock, press and hold Stop/Clear again for 3 seconds.

Why does the oven light become dim during cooking?

At low microwave power levels, the oven light may dim. This is normal and not a defect.

Can I use this microwave on a countertop?

No, this model is built-in only. It must be installed in a 60 cm wide wall-mounted cupboard with proper ventilation. It is not intended for countertop use.

How do I clean the microwave interior easily?

Place half a lemon in a bowl with 300 ml water, heat on 100% power for 10 minutes. Then wipe the interior with a soft dry cloth. For regular cleaning, use a damp cloth and mild soap.

What does the 'dEF2' option mean?

dEF2 is defrost by time. Press Weight/Time Defrost twice, then turn the dial to set the defrost time (up to 95 minutes). The power is fixed at P30 (30%).

USER MANUAL 5MA26500GB BLAUPUNKT

Instructions for installation and use

Microwave

5MA26500GB

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	5MA26500GB
Rated Voltage:	230V~ 50Hz
Rated Input Power(Microwave):	1050W
Rated Output Power(Microwave):	700 W
Oven Capacity:	17 L
Turntable Diameter:	245mm
External Dimensions:	595x320x388mm
Net Weight:	Approx. 14.9kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised.
3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.( For appliance with type Y attachment)

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave .ovens
10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. The oven should be cleaned regularly and any food deposits removed.
15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could

adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

2. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

3. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

2. Metallic containers for food and beverages are not allowed during microwave cooking.

3. The appliance shall not be cleaned with a steam cleaner.

4. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

5. The microwave oven is intended to be used built-in.
6. Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.)

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacture's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Turntable Installation

Hub (underside)

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard.
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Warning symbol of a steam inside a triangle (no text or numbers)

Installation Instructions

Please Read the Manual Carefully Before Installation

Please note

Electrical connection

Theovenisfittedwithaplugandmustonly socket. Thesocketmustonlybeinstalled replacedbyaqualifiedelectrician, andin Iftheplugisnolongeraccessiblefollowing bepresentontheinstallationsidewitha Thefittedcabinetmustnothaveaback beconnectedtoaproperlyinstalledearthed andtheconnectingcablemustonlybe accordancewiththeappropriateregulations. installation,anall-poleisolatingswitchmust contactgapofatleast3 mm. wallbehindtheappliance.

A gap must be maintained between the wall and the base of the unit above. Specific gap size could be referenced by the diagrams.

Minimuminstallationheight:85 cm.

Donotcoverventilationslotsandsuction holes.

Note:

Donottraporbendthepowercable.

Screw A

Screw B

Mounting Plate

Trim-kit plastic cover

Line drawing of a cabinet or enclosure with front panel and side door (no text or symbols)

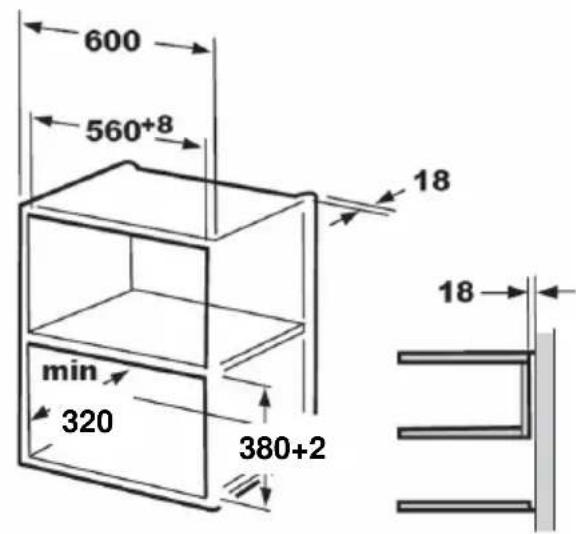

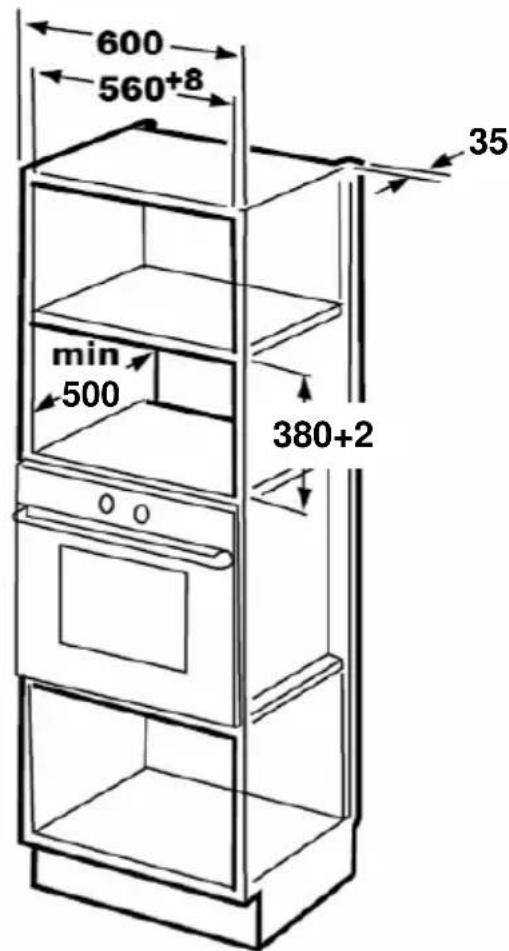

A. Built-in furniture

1.

1.

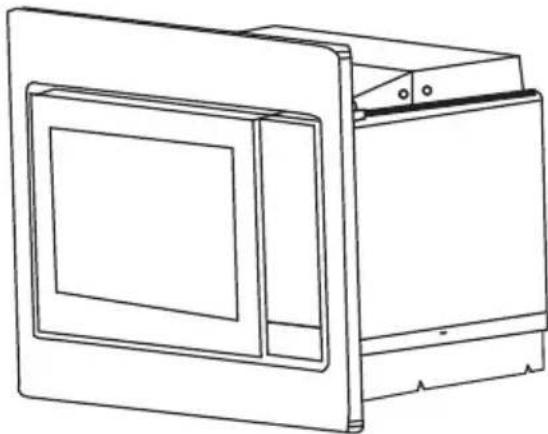

Note:

The mounting plate and bottom cabinet template are needed when installing in installation .both s

B. Pre are the cai inet

Skip this step if the cabinet depth is within the range of 320-340 mm.

1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet.

Simple line drawing of a 3D rectangular prism (no text or symbols)

1. Make the marks on the bottom plane of cabinet according to marks"a" of the template

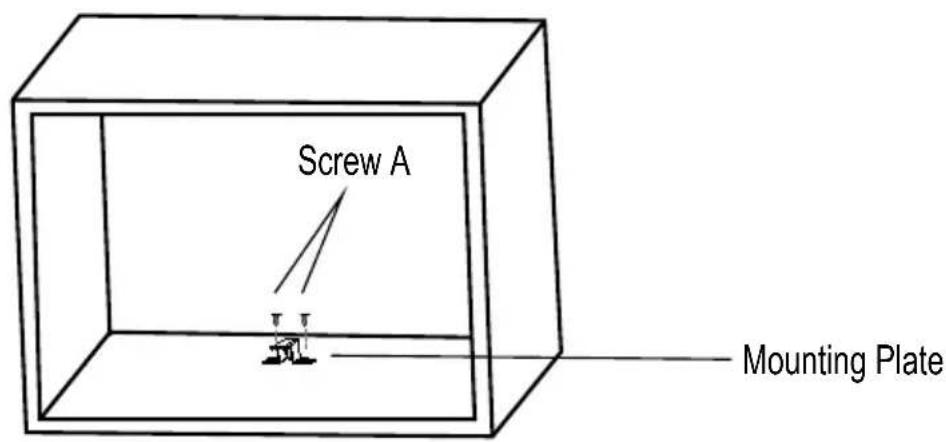

1. Remove the bottom cabinet template and fix the mounting plate with screw A.

.Install the oven

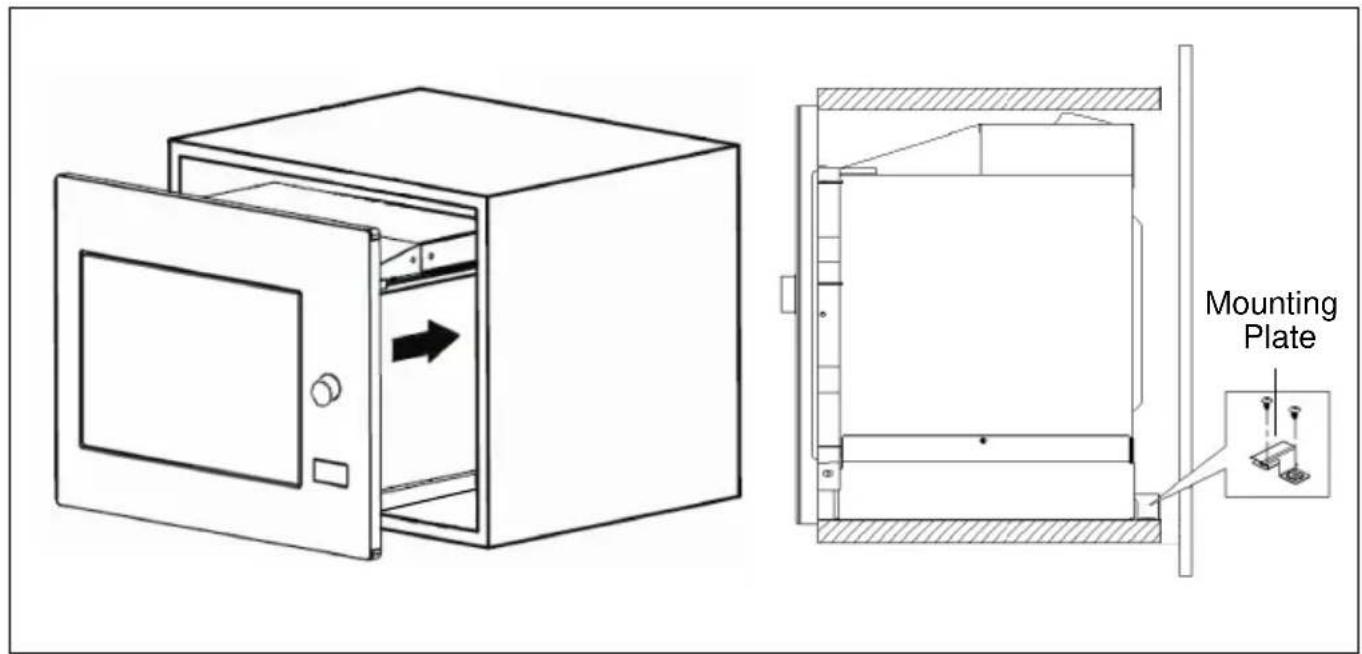

4. Install the oven to the cabinet

• Make sure the back of the oven is locked by mounting plate, if any.
• Do not trap or kink the power cord.

1. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.

Control Panel

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) Press " Kitchen Timer/Clock " twice to select clock function, the hour figures will flash.
3) Press "Kitchen Timer/Clock", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press " Kto finish time check slotting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press " Stop/Clear ", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " Microwave " the screen will display "P100".Press " Microwave "

for times or turn " [icon] "to choose the microwave power you want, and "P100", "P80", "P50", "P30" or "P10" will display for each added press. Then press

" Start/+30Sec./Confirm " to confirm, and turn " "to set cooking time from 0:05

to 95:00. Press " Start/+30Sec./Confirm " again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " Microwave " once, the screen display "P100".
2) Press " Microwave " once again or turn" 🔍 " to choose 80% microwave power.
3) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".
4) Turn " 🔍 " to adjust the cooking time until the oven displays "20:00".
5) Press " Start/+30Sec./Confirm " to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

"Microwave" Pad instructions
Order	Display	Microwave Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%

3. Quick Start

1) In waiting state, Press "Start/+30Sec./Confirm" to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave cooking or time defrost state, each press of "Start/+30Sec./Confirm" can increase 30 seconds of cooking time.
3) In waiting state, turn " " left to set cooking time with 100% microwave power, then press " Start/+30Sec./Confirm " to start cooking.

4. Defrost By Weight

1) Press "Weight/Time Defrost" once, and the oven will display "dEF1".
2) Turn " 🔍" to select the weight of food from 100 to 2000 g.
3) Press " Start/+30Sec./Confirm " to start defrosting.

5. Defrost By Time

1) Press " Weight/Time Defrost " twice, and the oven will display "dEF2".
2) Turn " 🔍" to select the defrost time. The MAX time is 95 minutes.
3) Press " Start/+30Sec./Confirm " to start defrosting. The defrost power is P30, and it will not be changed.

6. Kitchen Timer

(1) Press "Kitchen Timer/Clock once the will display 00:00.screen
(2) Turn " 🔍 " to enter the correct timer.(The maximum cooking time is 95 minutes.)
(3) Press "Start on Reset confirm
(4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times.

If the clock be set (24-hour system), the screen will display the current time.

Note: The kitchen Time is differ from 24KitchensyTireer is a timer.

7. Auto Menu

1) Turn " 🔥 " right to choose the menu, and "A-1" to "A-8" will display.
2) Press " Start/+30Sec./Confirm " to confirm.
3) Turn " 🔍 " to choose the default weight as the menu chart.
4) Press " Start/+30Sec./Confirm " to start cooking. Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn " clockwise till "A-6" display.
2) Press " Start/+30Sec./Confirm " to confirm.
3) Turn " " to select the weight of fish till "350" display.
4) Press " Start/+30Sec./Confirm " to start cooking.

The menu chart:

Menu	Weight	Display
A-1 Pizza	200 g	200
	400 g	400
A-2 Meat	250 g	250
	350 g	350
	450 g	450
A-3 Vegetable	200 g	200
	300 g	300
	400 g	400
A-4 Pasta	50g(with 450 ml cold water)	50
	100g(with 800 ml cold water)	100
A-5 Potato	200 g	200
	400 g	400
	600 g	600
A-6 Fish	250 g	250
	350 g	350
	450 g	450
A-7 Beverage	1 cup(120 ml)	1
	2 cups(240 ml)	2
	3 cups(360ml)	3
A-8 Popcorn	50 g	50
	100 g	100

8. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting will be placed in the first section automatically.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press " Weight/Time Defrost " twice, and the oven will display "dEF2".

2) Turn " 🔍 " to select the defrost time till "5:00" display.

3) Press " Microwave " once, the screen display "P100".

4) Press " Microwave " once again or turn " " to choose 80% microwave power.

5) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".

6) Turn " 🔍 " to adjust the cooking time till the oven displays "7:00".

7) Press "Start/+30Sec./Confirm" to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

9. Inquiring Function

(1) In states of microwave cooking, press "Microwave current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;

(2) In cooking state, press " kitchen Timer/ Clock and the time will display for 3 seconds.

10. Lock-out Function for Children

Lock: In waiting state, press " Stop/Clear " for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the screen will display "【：】". And lock indicator lights.

Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Service
