KMG24GR - Kitchen sink CDA - Free user manual and instructions

Product Type	Kitchen Sink
Brand	CDA
Model	KMG24GR
Material	304 Grade Stainless Steel
Finish	Brushed Satin
Overall Dimensions (L x W x D)	860 x 500 x 200 mm
Cut-Out Dimensions (L x W)	840 x 480 mm
Bowl Configuration	1.5 Bowls (Main: 380 x 380 x 180 mm, Secondary: 150 x 300 x 120 mm)
Installation Type	Undermount
Faucet Holes	1 (Optional 2nd Hole Available)
Drain Outlet	90 mm
Included Accessories	Basket Strainer, Fixing Brackets, Cut-Out Template
Weight	10 kg
Noise Insulation	Undercoated for Sound Reduction
Certifications	CE, UKCA
Guarantee	Lifetime Against Manufacturing Defects
Cleaning Instructions	Use Non-Abrasive Cleaners; Avoid Harsh Chemicals
Color	Silver

Frequently Asked Questions - KMG24GR CDA

What is the material of the CDA KMG24GR sink?

The sink is made from 304 grade stainless steel, known for its durability and corrosion resistance.

Is the sink suitable for undermount installation?

Yes, the KMG24GR is designed for undermount installation, providing a seamless look with your countertop.

What are the overall dimensions of the sink?

The overall dimensions are 860 x 500 x 200 mm (length x width x depth). The cut-out size required is 840 x 480 mm.

Does it come with a drainer?

No, the sink does not include a built-in drainer. It is a 1.5 bowl sink with a main bowl and a secondary bowl, but no draining area.

How many bowls does the KMG24GR have?

It features 1.5 bowls: a main bowl measuring 380 x 380 x 180 mm and a secondary bowl measuring 150 x 300 x 120 mm.

What accessories are included with the sink?

The package includes a basket strainer, fixing brackets, and a cut-out template for installation.

How should I clean this sink to maintain its appearance?

Use mild soap and water with a soft cloth. Avoid abrasive cleaners, scouring pads, or bleach to prevent scratching the brushed finish.

Does the sink come with a lifetime warranty?

Yes, CDA offers a lifetime guarantee against manufacturing defects for the stainless steel sink body. Conditions apply.

Can I install a second faucet hole?

The sink comes with one pre-drilled hole. However, it supports an optional second hole for an additional faucet or soap dispenser.

Is the sink noise insulated?

Yes, the sink has an undercoated soundproofing layer to reduce noise and vibrations during use.

USER MANUAL KMG24GR CDA

Installation, Use and Maintenance

CE Declaration of Conformity:

Having regard to the Council Directive 89/109/EEC of 21st December 1988 on the approximation of the laws of the Member States relating to materials and articles intended to come into contact with foodstuffs, we declare that the materials composing the sink meet the above-mentioned directives, in particular the EU Food Contact Regulation (90/128/EEC and 89/109/EEC along with amendments 92/39/ EEC and 93/9/EEC).

Taking Care of Your Sink

Your CDA sink is manufactured using material developed specifically to withstand the rigours of everyday kitchen use. However, we advise you to follow these precautions to keep the sink in pristine condition:

• Do not use a plastic washing-up bowl in the sink as grit and other particles may become embedded in the bowl and scratch or erode the sink surface. CDA specifically recommend the use of wire sink-baskets and drainer-racks to help protect your sink. Take care to not cut the plastic coating on these accessories with sharp cutlery or the edges of pans, etc.
• Do not use neat bleach or other harsh cleaning agents on the metal sink waste as this may cause tarnishing. This is especially important if the waste is either solid brass or brass plated.
• Avoid dropping heavy or sharp objects into the sink as they may scratch or damage the surface.
• The surface of the sink can be affected by certain chemicals e.g. neat bleach, nail polish remover, paint stripper, solvents, brush cleaner and insecticides. If any of these substances come into contact with the

sink, wipe off immediately with a dry cloth, wash with mild detergent and rinse with water.

• Do not use abrasive liquids, powders or steel pads to clean the sink as they will damage the sink surface and make it more susceptible to staining. The sink may be cleaned with a dilute bleach solution.
• Do not place very hot objects directly on the sink, place them on a special surface (board) made from wood or heat-proof plastic, etc.
• If the sink comes into contact with acidic materials, rinse immediately with plenty of water and wipe with a soft dry cloth.
• In hard-water areas, a limescale deposit may build up on the sink. The limescale may become stained by coloured foods such as coffee or red wine. If this occurs, we recommend use of a mild limescale remover.
• Particularly stubborn organic stains can be removed effectively by soaking the sink in a biological washing-powder solution, dishwasher powder solution or diluted bleach.
• Do not leave rusty objects in contact with the sink. Rust can cause staining, cracking or even permanent damage to the sink surface.
• To avoid staining of the surface do not leave food or other materials with corrosive properties such as juices, salt, vinegar, mustard etc. on the sink for a long time.
• After using the sink, rinse it clean with warm soapy water and rinse with clean water before wiping dry.
• During installation, protect from scratches, scuffs and other damage.
• Do not stand the sink on its edges or corners. This may damage it.
• Do not overtighten or strain plumbing fittings.
• The moulding and edges of the sink must be absolutely level so water flows off the drainer.

Installation

Before Installation

Offer up the sink to the worktop and/or the cabinets to confirm that the external dimensions of the bowl are compatible with the cabinets themselves.

Confirm that with the sink in position:

• There is adequate space to install any taps or other required accessories.
• There is adequate space to install the waste pipework and that any necessary modification to internal shelves to accommodate the waste (and trap) is acceptable.
• Access to any water stop-cock or other services will still be adequate after the installation.

Drain connection

- Follow the instructions supplied with the drain fittings.

Cutting the tap hole

Only cut the tap hole from the underside of the sink.

• Select the tap hole position based on whether left hand or right hand drainer is required.
• Locate the centre of the required tap hole and cut it out using a suitable 35mm diameter hole cutter (available from most plumbers merchants or DIY stores).

- Caution: Ensure that the sink is safely supported around the hole to be cut out.

Installation

• Place the sink upside-down on the worktop where it will be mounted.
• Draw the perimeter of the sink on the worktop with a pencil.
• Remove the sink and draw a dotted line, 1cm inside the perimeter.
• Double check the marking out and positioning before starting to cut the worktop.
  • Make the cutout with suitable tools along the dotted line.
• After cutting out the worktop aperture, we recommend you seal the cut edges with silicone (or similar) sealant to help prevent ingress of water.
• Insert each clip into one of the pre-machined slots on the underside of the sink. It is also often easier to mount the clips, taps, waste-fitting and overflow onto the sink prior to fitting the sink to the worktop (see next page for assembly of overflow waste system).
• Position the sink on the worktop (Fig. 1) ensuring the sink is in the desired position.
• Tighten each clip's screw accordingly.
• The taps, waste-fitting and overflow can now be mounted onto the sink (if not already done) and fully connected to their respective services.
• Assemble the supplied waste and overflow fittings as shown (Fig. 2) and insert into the sink from above (Fig. 3). NOTE: do not use silicone sealant to fit the waste and overflow fittings.

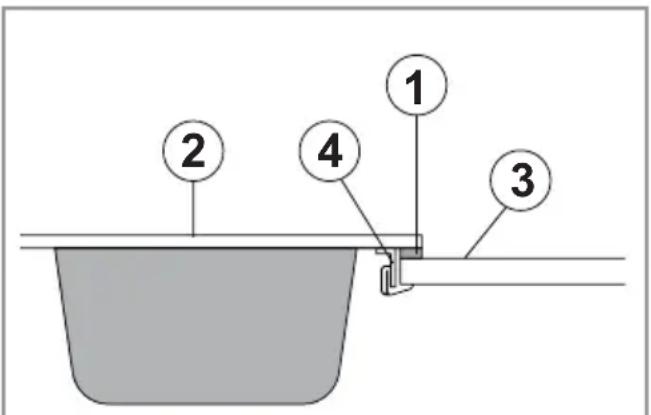

  1: Seal
  2: Sink
  3: Worktop
  4: Fitting bracket supplied (suitable for 30mm or 40mm worktop)

Fig. 1

3D rendering of a square sink with a circular drain and central hole, labeled 'Fig. 3' (no text or symbols on the diagram itself)

• To check the waste for leaks, close the plug/basket of the waste fitting, turn on the tap and fill the sink to the level of the overflow; turn off the tap and wait several minutes to verify that the water doesn’t drain away.
  • Empty the sink.

If a washing machine or dishwasher is going to be installed beneath the sink top:

• Before installing the washing machine or dishwasher, make sure that all of the fastening brackets for the sink top have been fastened securely.
• To prevent overheating, which may result in the deformation and consequent detachment of the sink from the top, adjust the feet on the washing machine/dishwasher so that there is sufficient ventilation between the top of the appliance and the sink. To aid the circulation and cooling of the air, it is recommended that ventilation slots be made in the cabinet base.

The Guarantee is Valid Providing That

• The product has been installed by a suitably qualified person.
• Installation has been carried out in accordance with instructions and current legislation.
  • Proof of purchase can be produced.
• The product has been used for domestic purposes only.
• The product has not been tampered with or repair attempted or modified by any unauthorised person.
• All products have been installed in accordance with WRAS regulations and local water bye-laws

The Guarantee Does Not Cover

• Damage by misuse, neglect or transit.
  • Use of parts not used or recommended by CDA.
• Routine maintenance, general wear & tear and installation faults.
• Products used for commercial or professional purposes.

Your sink is guaranteed against defects in materials and/or workmanship for 5 years. At the discretion of CDA, should a fault arise the sink may be repaired or replaced and agreed refitting may be reimbursed on receipt on a faulty sink/part, once they have been inspected and deemed faulty.

E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.
