INN-703 - Juicer Innoliving - Free user manual and instructions

Product Type	Citrus Juicer
Brand	Innoliving
Model	INN-703
Power Supply	220-240V, 50/60Hz
Power Consumption	150 W
Dimensions (approx.)	20 x 15 x 25 cm
Weight (approx.)	1.2 kg
Juicing Method	Manual lever press
Reamer Material	Stainless steel
Pulp Control	Adjustable pulp strainer
Capacity	0.5 L juice cup
Dishwasher Safe Parts	Removable reamer, strainer, and cup
Safety Features	Non-slip feet, automatic shut-off when lever is released
Spare Parts Available	Reamer, strainer, juice cup
Repairability	User-replaceable parts; professional service for motor
Cable Length	0.8 m
Color	White/Black (depending on variant)

Frequently Asked Questions - INN-703 Innoliving

How do I assemble the citrus juicer?

Place the juice cup on the base, insert the strainer, then attach the reamer. Lower the lever to ensure it clicks into place. Refer to the manual for diagrams.

Can I juice oranges, lemons, limes, and grapefruits?

Yes, the Innoliving INN-703 is designed for all citrus fruits. Cut fruits in half and press onto the reamer.

How do I adjust the pulp level?

The strainer has adjustable slots. Rotate the strainer to select low, medium, or high pulp settings.

Are the parts dishwasher safe?

Yes, the removable reamer, strainer, and juice cup are dishwasher safe. Place them on the top rack for best results.

What should I do if the juicer stops working?

Check the power connection and ensure the lever is fully pressed. If it still doesn't work, contact Innoliving customer service.

How do I clean the juicer?

Unplug the unit, disassemble the parts, and rinse immediately after use. Use a soft brush for the strainer. Wipe the motor base with a damp cloth.

Is the juicer BPA-free?

Yes, all plastic parts that come into contact with food are made from BPA-free materials.

Can I store juice in the cup?

The cup is not airtight; it's best to transfer juice to a sealed container and refrigerate. Drink within 24 hours.

Where can I find replacement parts?

Replacement reamers, strainers, and cups are available on the Innoliving website or through authorized retailers.

What is the warranty period?

The Innoliving INN-703 comes with a 2-year limited warranty. Keep your receipt for service.

USER MANUAL INN-703 Innoliving

innoliving easy tech, easy life

SPREMIAGRUMI

INN-703

MANUALE D'USO

USER MANUAL

BEDIENUNGSANLEITUNG

Solid gray rectangular shape with two vertical lines above it, no text or symbols present.

Simple line drawing of a fork and cup above a square (no text or symbols)

Thanks for purchasing "INN - 703" citrus juicer, an easy-to-use but reliable tool to get delicious citrus juices in few seconds.

Before use, read all the instructions and warnings carefully and keep this user manual safe for future use.

SAFETY NORMS AND WARNINGS

• Please read the instructions of use and safety norms before using the appliance and follow these at all times. Keep this manual with the appliance for future consultation for all the product life. Failure to comply with the use and maintenance instructions provided in this user manual could lead to an accident and will invalidate all and any rights to the manufacturer's warranty.
• This appliance must be used only for the purpose for which it was designed that is as a SQUEEZER for home use. Any other use is improper and potentially dangerous.
• After having removed the appliance from its packaging, verify its integrity based on the drawing and any presence of damage caused by transport. If in doubt, do not use the appliance and contact an authorised service centre.
• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the

appliance. The rating label is on the product.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- Do not use or store the appliance outdoors.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not force the electrical connection wire. Never use the electric wire to lift up, carry or unplug the appliance.

- Ensure that the electric cable does not get trapped or tangled.

- Check the state of the electric cable. Damaged or knotted cables increase the risk of electric shock.

- DO NOT use the appliance with damp or wet hands or feet.

- If the power cable is damaged, it must be replaced by the manufacturer or by an authorised technical service centre or by the manufacturer, so as to prevent all risks.

- In case of fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the device needs to be repaired, contact an authorised technical assistance centre.

- This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety and understand the hazards involved.

- This appliance can be used by children aged from 8 years and above if they have given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and its cord out of reach of children less than 8 years old.

- This product is not a TOY. Children should be supervised to ensure that they do not play with the appliance.

- Do not turn the appliance over while it is in use or connected to the mains.

- Turn off and disconnect the unit from the power outlet, when it is not in use and before proceeding with any maintenance, cleaning or approaching moving parts.

- This appliance is for household use only, not professional or industrial use.

- Store the appliance in a dry place, free from dust and out of direct sunlight, far from heating sources.

- Never immerse the appliance into water or other liquids

and do not place it under tap water.

• When in use, place the product on a flat and stable surface, ensure it cannot fall on the floor, in a sink or a container full of water.
• DO NOT use near the kitchen hob. Be careful that the cable does not touch hot, incandescent surfaces, open flames, pans or other utensils.

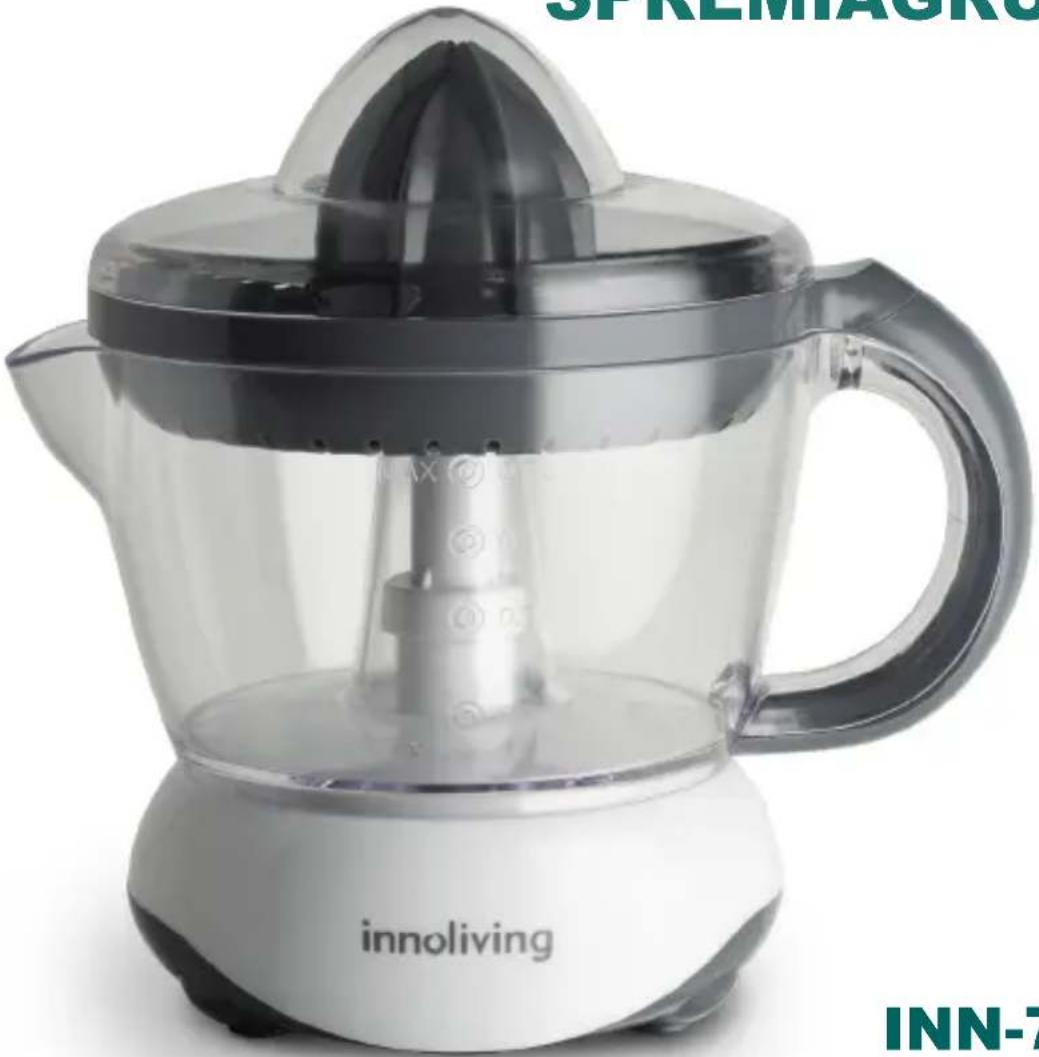

DESCRIPTION

1. Protective cover
2. Cone
3. Filter
4. Transmission axes
5. Jug 6. Motor base

INSTRUCTIONS FOR USE

Before using the appliance, insert the jug into the base, rotating it clockwise to be locked.

1) Unroll the cord completely before plugging in.
2) Connect the appliance to the mains.
3) Cut the citrus fruit/s to be squeezed in half.
4) Place the glass at the appliance's juice exit.
5) Turn on the appliance by pushing down on the piece of citrus fruit, once it has been placed on the juicing cone.
6) To stop the appliance, simply stop applying pressure to the cone.
7) Remove both the cone and the filter to empty the jug.
8) Pour juice out of the jug and into glasses to serve directly.
9) If you process a large quantity of fruit, you must periodically clean the filter and remove the remains of the pulp.

ON and OFF time: 15 sec. ON, 15 sec OFF.

It is recommended to wait at least 10 minutes before using the appliance again, if the sequence ON/OFF is repeated more than 10 times.

CLEANING AND MAINTENANCE

• Unplug the appliance from the mains and let it cool before starting any cleaning.
• Except for the motor base, all the parts can be cleaned with detergent and water or in washing up liquid. Rinse thoroughly to remove all traces of detergent.
• Clean the motor base with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base

pH such as bleach, or abrasive products, for cleaning the appliance.

• Do not immerse the appliance into water or any other liquids, or place it under a running tap water.
• It is advisable to clean the appliance regularly and remove any food remains.
• The following parts can be cleaned in the dishwasher: Protective cover, Cone, Filter, Jug.

RATING LABEL

For food contact.

Class II insulated electrical appliance.

Read carefully the user manual.

The product is made conforming with all the applicable European regulations

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

1. Deckel
   2.Konus
   3.Sieb
   4.Sendeachse
   5.Behälter
   6.Motorblock

Simple gray rectangular shape with two vertical lines above it, no text or symbols present.

innoliving easy tech, easy life

Innoliving Spa

Via Merloni, 2/B

60131 Ancona Italy

Tel [phone]

www.innoliving.it

MADE IN CHINA

CE
