Product Type	Remote control with timer and intervalometer
Brand	Vello
Model	ShutterBoss II
Dimensions	6.1 x 1.6 x 0.7 inches (15.5 x 4.1 x 1.8 cm)
Cord Length	33.5 inches (85 cm)
Weight	Approx. 4.2 oz (120 g) with batteries
Power Source	2 AAA alkaline batteries
Self-Timer Delay	1 second to 99 hours 59 minutes 59 seconds
Exposure Time (Long)	1 second to 99 hours 59 minutes 59 seconds
Interval (INTV)	1 second to 99 hours 59 minutes 59 seconds
Number of Shots	1 to 399, or infinite (--)
Manual Release	Yes, even with power off
Backlight	Yes, 6-second duration
Lock Function	Yes, prevents accidental changes
Hold Switch	Yes, for prolonged shutter opening
Audible Beep	Yes, can be turned off
Operating Temperature	4°F to 122°F (-20°C to 50°C)
Compatible Cameras	Models with remote socket; multiple cable connectors available
Warranty	One-year limited warranty
Package Contents	ShutterBoss II remote, 2 AAA batteries, manual

Frequently Asked Questions - ShutterBoss II Vello

How do I set a self-timer delay?

Press the arrow buttons to move the cursor under SELF. Press SET, then use the arrows to adjust hours, minutes, and seconds. Press SET to confirm and press TIMER START/STOP to begin.

How do I use the ShutterBoss for long exposures?

Set your camera to Bulb mode. Move the cursor under LONG, press SET, adjust exposure time, press SET again, then press TIMER START/STOP.

What batteries does the ShutterBoss II use?

It uses two AAA alkaline batteries. Replace them when the low-battery indicator blinks.

How do I reset the timer settings?

Press and hold the LOCK and TIMER START/STOP buttons simultaneously until all settings return to default.

Can I use the remote without turning it on?

Yes, the manual shutter release button works even when the remote is powered off.

How do I set an infinite number of shots?

Move the cursor under No., press SET, then use the up/down arrows until -- appears, and press SET to confirm.

How do I turn off the beep sound?

Move the cursor under BEEP, press SET, then use the arrows to turn it off, and press SET to confirm.

What is the interval setting used for?

INTV sets the time between shots in a sequence. It must account for exposure time plus desired gap. For example, a 10-second exposure with 10-second gap equals 20 seconds interval.

How do I lock the controls?

Press and hold the LOCK button for about 3 seconds until L-con appears on the display. Repeat to unlock.

What should I do if the remote doesn't trigger the camera?

Ensure the cable is properly connected to the camera's remote socket and that the camera is turned on. Check battery level and try a manual release. Consult your camera's manual for remote compatibility.

USER MANUAL ShutterBoss II Vello

INTRODUCTION

The Vello ShutterBoss II features advanced timer functionality and control for shooting self-timed photos, long exposures, or for use as an intervalometer. This makes it easy to program in specific delayed shutter-release times, lengthy exposure times, or timed intervals between a sequence of shots. Capture group photos with yourself in the picture, start long exposures at night for star trails, or shoot a time lapse series of a blooming flower. The ShutterBoss puts creative camera control in the palm of your hand.

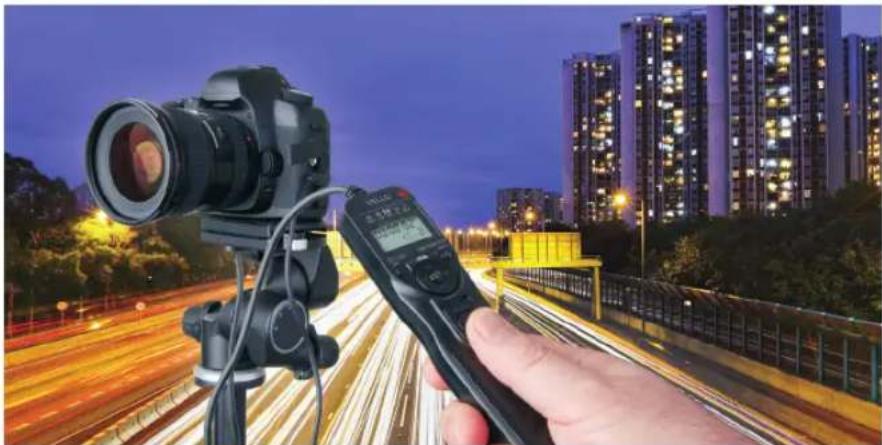

Camera on tripod with handheld recording device, set against a highway and night cityscape with illuminated buildings (no visible text or symbols)

PRECAUTIONS

• Do not disassemble or perform any unauthorized modifications. Use only with compatible devices specified in this manual.
• Keep this device away from water or extreme humidity, and store it in a dry and cool place.
• Do not operate in conditions with extreme heat or cold.
• Do not operate in the presence of flammable gases or vapors.

• Use only the batteries listed in this manual, and make certain to align the batteries with the correct polarity.

• Avoid operating this device in the presence of magnetic fields. A strong static charge or electromagnetic field generated by devices such as a radio transmitter can interfere with this device.

• Batteries are prone to leakage when fully discharged. Remove the batteries when leaving the product unattended for prolonged periods or when no charge remains.

• Turn off the camera's power before inserting or removing the remote cord.

• Keep out of reach of children. This device contains small parts which may pose a choking hazard.

• Dispose of used batteries, packaging, and old devices in accordance with the appropriate local environmental regulations.
• All images are for illustrative purposes only.

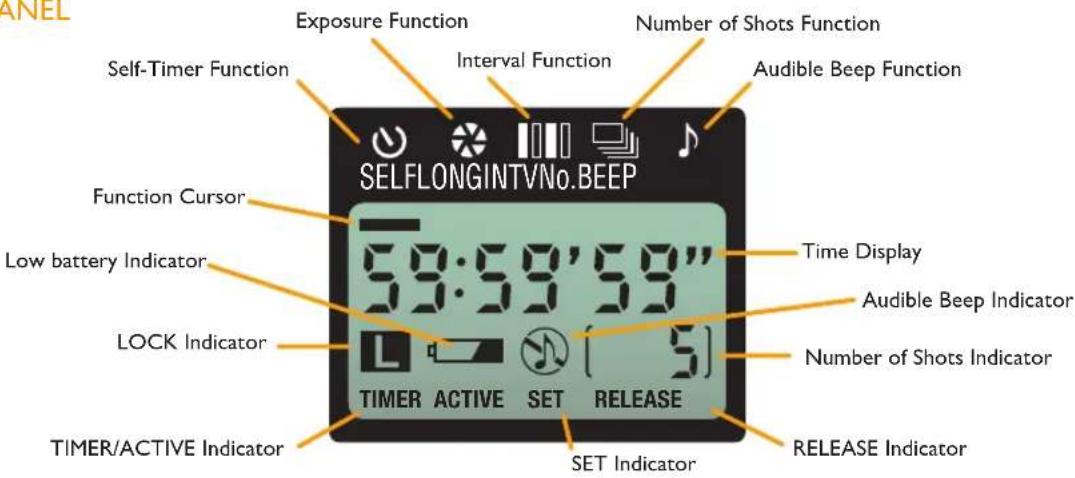

DISPLAY PANEL

INSERTING THE BATTERIES POWERING ON/OFF

1: Slide and remove the battery compartment cover.
2: Insert the two included AAA batteries as shown, following the diagrams inside the battery compartment. The ShutterBoss's LCD will turn on.

The low-battery indicator will blink when the battery power is low. Remove the batteries, and change with similar type AAA batteries.

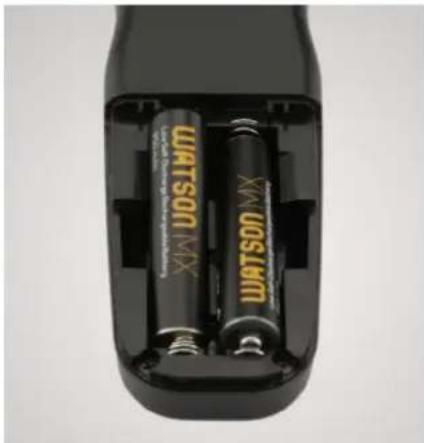

Close-up of a black remote control device showing two batteries with 'WATSON MX' branding (no additional text or symbols visible)

Press and hold the ⏻ button for approximately 3 seconds to power the remote on and off.

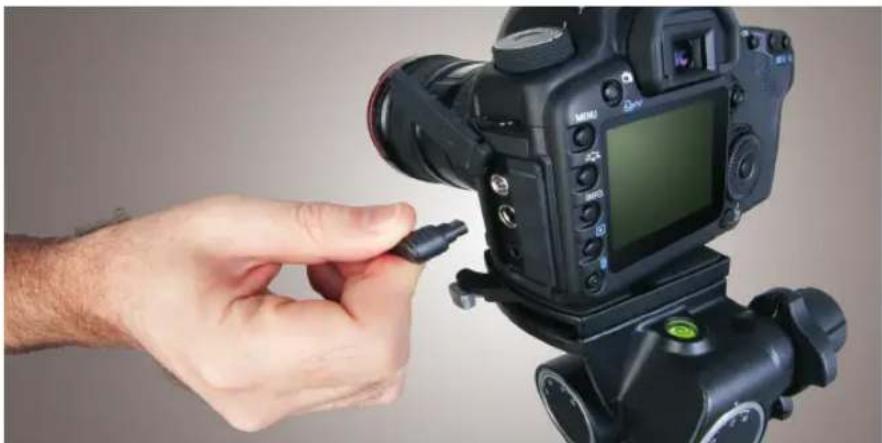

CONNECTING THE REMOTE

The ShutterBoss comes in a variety of models that are compatible with many different cameras. The only difference in the ShutterBoss models is the connector on the end of the cable. Your ShutterBoss and camera may look different from those pictured in this guide.

1: Turn off your camera and the ShutterBoss.
2: Connect the ShutterBoss's cable to your camera's remote socket.

Many camera manufacturers use this symbol to indicate the jack for connecting remote devices.

Hand inserting a small object into a DSLR camera on a tripod (no visible text or symbols)

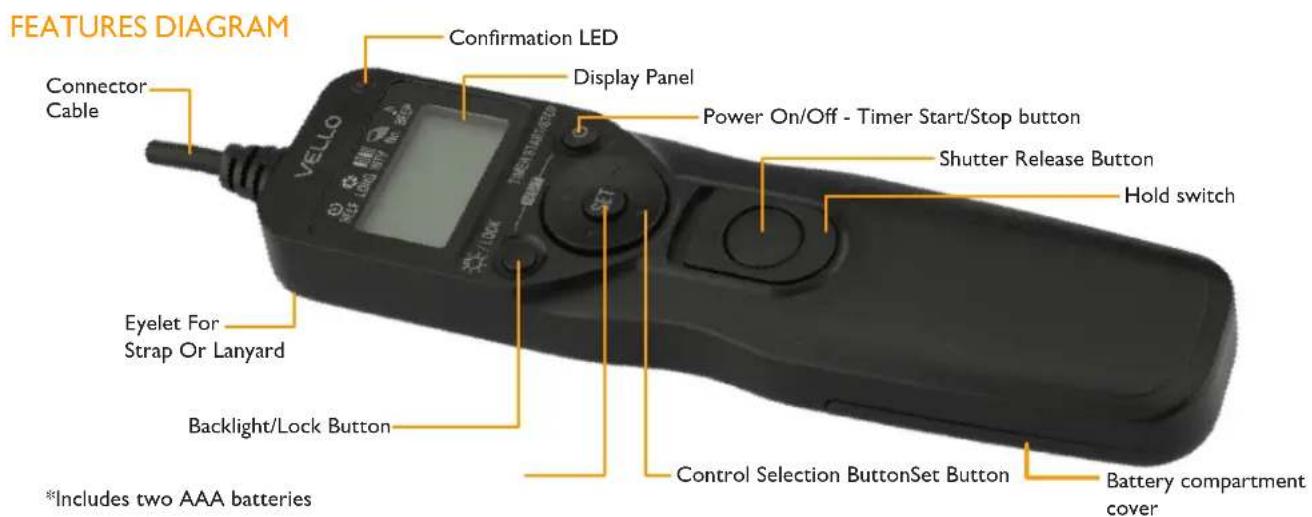

CONTROLS

Backlight Button

Press the 📄 button to activate the LCD's backlight. It will remain lit for about 6 seconds.

Lock Button

The LOCK button locks all controls except the remote's shutter release button. Press and hold the LOCK button for about 3 seconds, until the L-con appears on the LCD. To unlock, press and hold the LOCK button for about 3 seconds, until the L-con disappears.

Important: When you're adjusting settings on the remote, make sure the Lcon is not displayed on the LCD, and that the controls are not locked.

Timer Start/Stop Button

The Timer Start/ Stop button starts and stops any of the timer functions and sequence of shots.

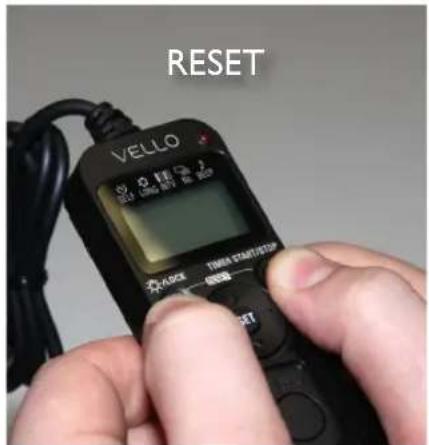

Reset

Reset clears all the timer settings to 00:00'00" and defaults the interval to 1 second, and the shot count to 1.

To reset, press the LOCK and TIMER START/STOP buttons at the same time.

Set Button

The SET button enables you to enter and adjust timer functions and settings.

Press SET once to engage settings. Information displayed on the LCD will begin to blink. Press SET again to confirm settings.

Directional Pad

Use the ◀/▷arrows to select different timer functions and time positions (hours, minutes, and seconds). The cursor will indicate which function is selected.

Use the / arrows to increase or decrease the time increments and number of shots.

Shutter Release Button

This button triggers your camera to take a shot.

Press once for a single shot, or press and hold to keep the shutter open for longer exposures.

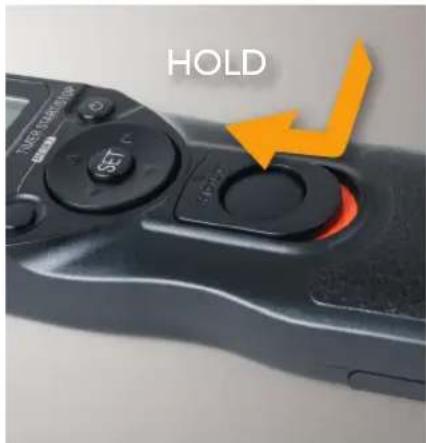

Hold Switch

The HOLD switch keeps the shutter open for an extended period of time.

Slide the HOLD switch forward to engage, and slide it backward to disengage.

MANUAL RELEASE

The simplest way of using the ShutterBoss is as a manual release. You can trigger your camera by pressing the remote's shutter release button. This works even with the remote's power turned off.

1. Adjust your camera settings, such as exposure mode, shutter speed, and focus and shooting modes.
2. Press the remote's shutter release button halfway to focus. Note: Autofocus is not compatible with back-button focusing on some camera models.
3. Press the shutter release button fully to take a photo. If your camera is set to bulb mode you can keep the button pressed for longer exposures.

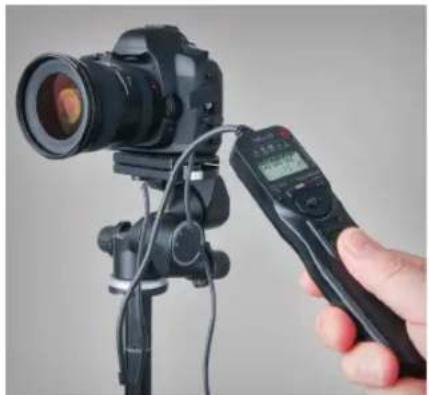

Hand holding a DSLR camera mounted on a tripod with a handheld handheld device (no visible text or symbols)

USING THE TIMER FUNCTIONS

The ShutterBoss's internal timer functions are ideal for taking self-timed photos, long exposures, or for use as an intervalometer.

Note: Every camera handles remote switches differently, so make sure to consult your camera's manual to ensure it is set up properly. Do not attempt to change any timer settings during operation.

With the ShutterBoss's timer controls, you can select any combination of the following:

SELF (Delay): Time before a sequence is started or a shot is triggered.

LONG (Exposure time): Time that the shutter remains open for each shot.

INTV (Interval): The amount of time between shots in a sequence.

No. (Shot count): Number of shots in a sequence.

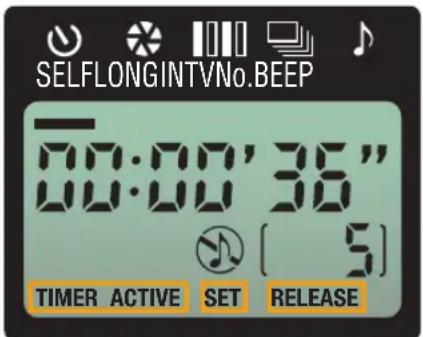

Activity Indicators

Timer Active

When TIMER ACTIVE is blinking on the LCD, it means that a timed function and sequence is running. Do not attempt to change any settings. Press TIMER START/STOP if you want to cancel the timer.

Set

When SET is blinking on the LCD, it means you are engaged in changing a setting. Note the cursor: it will show you which parameter is active. Press SET to confirm your setting.

Release

When RELEASE is blinking on the LCD, it means the remote is triggering the camera's shutter.

Note: Before you adjust any timer settings, make sure the LOCK icon Ls not displayed in the LCD, and that the controls are not locked. If you do see the Lcon, press the LOCK button until the Lcon disappears.

Activity Indicators

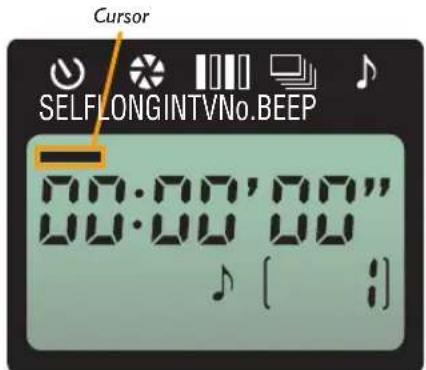

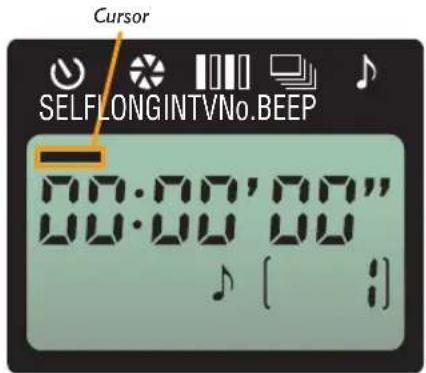

SELF - Timed Delay

SELF allows you to set a timed delay before triggering a single shot or sequence of shots. You can select a self-timed delay from 1 second to 99 hours 59 minutes 59 seconds, in one-second increments.

1. Pressthe ↕/▷ arrows to position the cursor beneath SELF.
2. Press the SET button to change the delayed-timer settings. The time increments will blink.
3. Usethe ↕/▷ arrows to move between hours, minutes, and seconds.
4. Use the / arrows to change the time increments.
5. Press the SET button to confirm.
6. Press TIMER START/STOP to begin the timer.

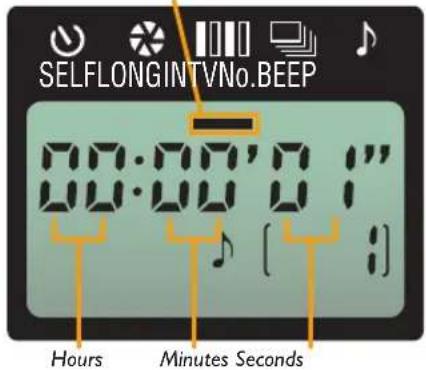

Hours Minutes Seconds

LONG - Exposure Time

LONG sets the exposure time for each shot. This can be much longer than the camera's available shutter speeds. You can select exposure times from 1 second to 99 hours 59 minutes 59 seconds, in one-second increments. The confirmation LED will blink every second during a long exposure.

Note: For long exposures (1 second and longer), set your camera to Bulb mode, and then set the exposure time on the ShutterBoss. Use the camera to control exposure time when shutter speeds are faster than 1 second.

1. Set your camera's exposure mode to Bulb.
2. Pressthe ◀/▷ arrows to position the cursor beneath LONG.
3. Press the SET button to change the exposure time settings. The time increments will blink.
4. Use the ◀/▷ arrows to move between hours, minutes, and seconds.
5. Use the / arrows to change the time increments.
6. Press the SET button to confirm.
7. Press TIMER START/STOP to begin the timer.

Cursor

Hours
Minutes Seconds

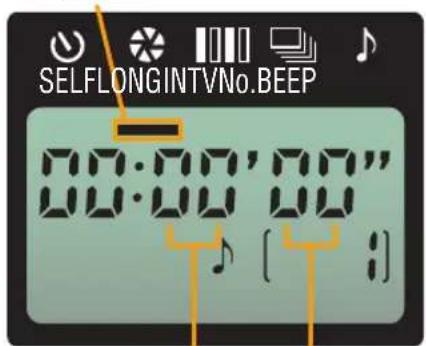

INTV - Timed Interval

INTV is the time between shots in the sequence. You can select intervals from 1 second to 99 hours 59 minutes 59 seconds, in one-second increments. If you are using a flash, be sure to set an interval that is longer than your flash recycle time.

Important: When setting the interval, you must add the exposure plus interval time together. For example, if you want 10 seconds between each shot, then

10 second exposure time (LONG) + 10 seconds between each shot = 20 INTV,

so the interval value would be 20 seconds.

1. Pressthe ↕/▷ arrows to position the cursor beneath INTV.
2. Press the SET button to change the interval time settings. The time increments will blink.
3. Use the ◀/▷ arrows to move between hours, minutes, and seconds.
4. Use the / arrows to change the time increments.
5. Press the SET button to confirm.
6. Press TIMER START/STOP to begin the timer.

Cursor

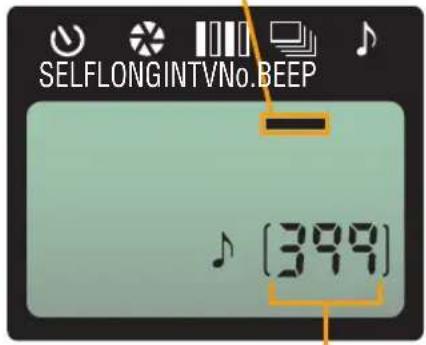

No. - Shot Count

No. is the number of shots selected for the sequence. You can trigger the camera's shutter up to 399 times or infinite. By default, there is a 1-second delay between shots until you set the interval manually.

1. Pressthe ↕/▷ arrows to position the cursor beneath No.
2. Press the SET button to change the shot-count setting. The shot-count increment will blink.
3. Use the / arrows to change the shot-count increments. To set the shot count to infinite, use the / arrows until -- is displayed.
4. Press the SET button to confirm.
5. Press TIMER START/STOP to begin the timer.

Cursor

Number Of Shots

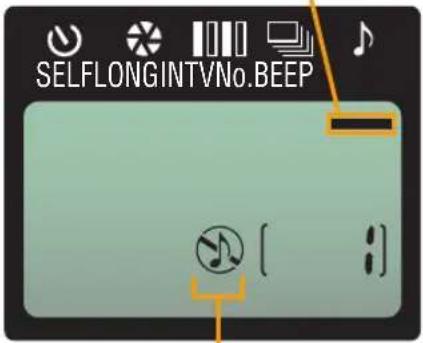

Beep

The ShutterBoss will emit a beep to confirm settings and for the last three seconds of a countdown delay or interval. To turn off the beep, follow these instructions.

1. Use the button to move the cursor under BEEP.
2. Press the SET button. The beep indicator will blink on the LCD.
3. Use the △ or ▽ arrows to turn off the beep.
4. PressSET to confirm.

Cursor

Audible Beep OFF

SPECIFICATIONS

Supported Cameras	www.vellogear.com
Self-Timer Delay	9 hr. 59 min. 59 sec., in 1 sec. increments
Exposure Range	9 hr. 59 min. 59 sec., in 1 sec. increments
Interval	in. 59 sec., in 1 sec. increments
Number of Shots	infinite
Power Source	7 alkaline batteries
Operating Temperature	4°F to 122°F (-20°C to 50°C)
Dimensions	a. (15.5 × 4.1 × 1.8 cm)
Cord Length	(85 cm)
Weight

FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

ONE-YEAR LIMITED WARRANTY

This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.vellogear.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

VELLO is a registered trademark of the Gradus Group. © 2020 Gradus Group LLC. All Rights Reserved.
