enCORE 300 - Microphone Blue - Free user manual and instructions

Product type	Cardioid condenser microphone
Brand	Blue
Model	enCORE 300
Polar pattern	Cardioid
Frequency response	40 Hz – 20 kHz
Sensitivity	11 mV/Pa
Output impedance	25 ohms
Maximum sound pressure level	146 dB SPL
Weight	0.38 kg
Dimensions (length)	200.5 mm
Dimensions (diameter)	23 mm (min.) – 52 mm (max.)
Power	48V phantom (3-pin XLR)
Connectivity	3-pin XLR (male)
Included accessories	Soft-touch microphone clip, soft-lined storage pouch, extra microphone grille
Warranty	2 years (parts and labor)
Manufacturing	Designed in the USA, made in China
Main features	High-end condenser capsule; reinforced chassis for protection and air flow; exclusive phantom power circuit for consistent tone and minimal noise; floating mount for isolation and low handling noise
Care and cleaning	Wipe with a slightly damp cloth; avoid harsh or abrasive cleaners
Safety	Avoid moisture and heavy impacts; use only with 48V phantom power; do not expose to extreme temperatures
Spare parts and repairability	Spare parts available at www.bluemic.com (grilles, clips, etc.); warranty repairs through Blue Microphones
General information	Star microphone for stage, Blue studio sound; hardened galvanized finish; status indicator on body

Frequently Asked Questions - enCORE 300 Blue

What type of power does the Blue enCORE 300 require?

It requires 48V phantom power via a 3-pin XLR cable. Without it, the microphone will not function properly.

How to connect the enCORE 300?

Connect it to a microphone-level input with a standard 3-pin XLR cable. Make sure 48V phantom power is enabled.

What is the polar pattern of this microphone?

It has a cardioid polar pattern, ideal for capturing the front source while attenuating side and rear noise.

How to maintain the Blue enCORE 300?

Wipe it with a slightly damp cloth. Do not use harsh or abrasive cleaners that could damage the finish.

What is the frequency response of the enCORE 300?

The frequency response is 40 Hz to 20 kHz, covering the entire audible spectrum.

What accessories are included with the microphone?

Included: a soft-touch microphone clip, a soft-lined storage pouch, and an extra microphone grille.

What is the sensitivity of the enCORE 300?

The sensitivity is 11 mV/Pa, providing a good output level for vocals.

How to reduce handling noise?

Thanks to the integrated floating mount, handling noise is minimized without needing additional shock mounts or filters.

Where can I find spare parts?

Spare parts (grilles, clips, etc.) are available on the official website www.bluemic.com.

What is the warranty period for the Blue enCORE 300?

The warranty is 2 years for defects in parts and workmanship, provided the purchase was made from an authorized dealer.

USER MANUAL enCORE 300 Blue

4 Congratulations on Your Purchase
5 Key Features
5 Tips for Using Your enCORE 300
6 Care Instructions
6 Specifications
7 Frequency Response & Polar Patterns
8 Related Products
8 Accessories
9 Warranty

TABLE DES MATIÈRES

Close-up of a black Eni-Core 300 microphone with textured head and label (no readable text beyond branding)

CONGRATULATIONS ON YOUR PURCHASE

From Blue Microphones, makers of the world's most innovative and inspiring studio gear, comes enCORE 300—a flagship condenser microphone that brings Blue's legendary studio sound to the stage. enCORE 300's proprietary, hand-tuned condenser capsule delivers open, detailed sound for every performance. And the rugged, tour-tough construction ensures enCORE 300 will withstand anything you encounter on the road.

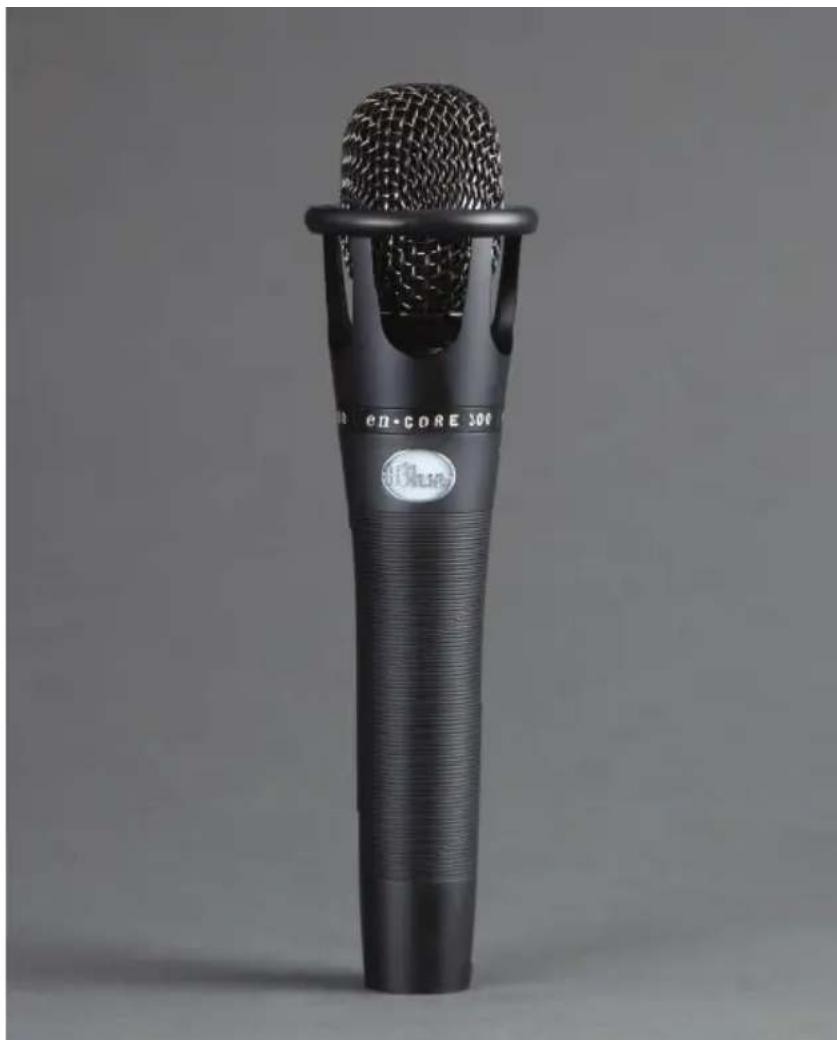

Black handheld electronic device labeled 'on-core 300' with a circular logo, shown against a plain gray background (no text or symbols on the device itself)

KEY FEATURES

• Premium cardioid condenser capsule tuned for stunning detail and powerful vocals
• Innovative reinforced chassis to protect the capsule while allowing maximum airflow for smooth, open sound
• Blue's proprietary phantom power circuit for consistent tone and minimal noise
• Blue's proprietary floating capsule mount for high capsule isolation and minimal handling noise without pads or filters
• Stage-ready, heavy-gauge barrel construction and hardened metal-plated finishes and unique styling

TIPS FOR USING YOUR ENCORE 300

Your enCORE 300 should be plugged into a mic-level input using a standard 3-pin XLR cable. enCORE 300 requires 48-volt phantom power for proper operation, and will not produce reliable, clean sound without phantom power. A status LED is located on the barrel opposite the Blue logo, and will light when proper phantom power is being supplied.

Microphone placement makes a big difference in how your enCORE 300 sounds. Generally, the closer you place enCORE 300 to a sound source, the higher the low frequency output. This is due to the “proximity effect.” For a more natural sound, simply pull the source back from the microphone 2-4 inches.

For more tips on microphones and recording, be sure to visit www.bluemic.com.

CARE INSTRUCTIONS SPECIFICATIONS

The enCORE 300's metal-plated finishes will provide years of service and good looks if properly cared for. To clean your enCORE 300, simply wipe down with a damp cloth. Use of harsh cleaners or abrasives may cause damage to your enCORE's surface finish.

enCORE 300 was designed for the rigors of daily use, and will stand up to demanding live performance or recording environments. We know performances can get pretty intense, but try to avoid excessive physical abuse or moisture exposure to the microphone—failure to do so could impact sound quality or reliability of your enCORE microphone.

Transducer: Condenser capsule

Polar Pattern: Cardioid

Frequency Response: 40Hz – 20kHz

Maximum SPL: 146dB SPL

Output Impedance: 25 ohms

Sensitivity: 11mV/PA

Dimensions-Length: 0.38 kg (0.84 lbs.)

Dimensions–Diameter: 23mm/.9 in. (min); 52mm/2in. (max)

Weight: 0.38 kg (0.84 lbs.)

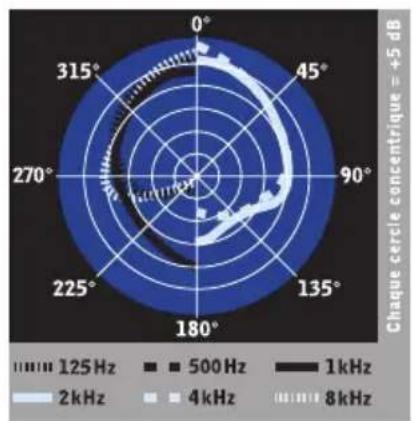

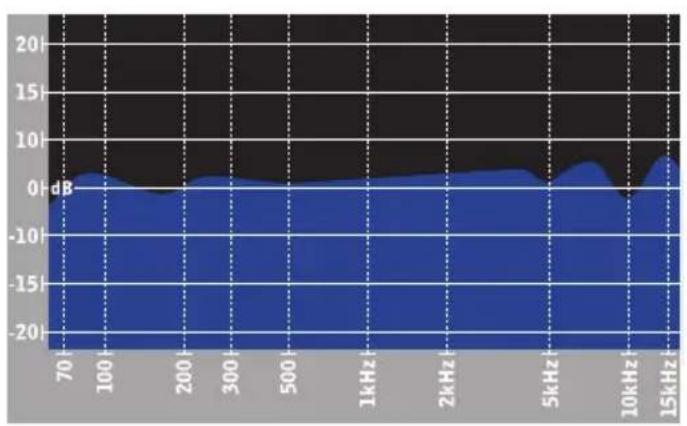

FREQUENCY RESPONSE & POLAR PATTERNS

These charts are only a starting point. How enCORE 300 reacts in a particular application will differ greatly because of many variables, including room acoustics, distance from sound source (proximity), tuning of instruments, mic cabling and other factors. For more tips on miking and recording techniques, check out the Blue website.

RELATED PRODUCTS

enCORE 100

Dynamic Handheld Vocal Microphone

enCORE 100i

Dynamic Instrument Microphone

enCORE 200

Active Dynamic Handheld Vocal Microphone

ACCESSORIES

Included:

• enCORE Soft-Grip Microphone Clip
• enCORE Soft-Lined Storage Pouch

Check out www.bluemic.com for additional accessories and replacement parts for your enCORE Series Microphone.

WARRANTY

Blue Microphones warrants its hardware product against defects in materials and workmanship for a period of TWO (2) YEARS from the date of original retail purchase, provided the purchase was made from an authorized Blue Microphones dealer. This warranty is void if the equipment is altered, misused, mishandled, maladjusted, suffers excessive wear, or is serviced by any parties not authorized by Blue Microphones. The warranty does not include transportation costs incurred because of the need for service unless arranged for in advance. Blue Microphones reserves the right to make changes in design and improve upon its products without obligation to install these improvements in any of its products previously manufactured. For warranty service or for a copy of Blue's Warranty Policy including a complete list of exclusions and limitations, contact Blue at 818-879-5200. In keeping with our policy of continued product improvement, Baltic Latvian Universal Electronics (BLUE) reserves the right to alter specifications without prior notice

Designed in USA. Made in China.

FÉLICITATIONS POUR VOTRE ACHAT

Black handheld electronic device labeled 'on-core 300' with a circular logo, shown against a plain gray background (no text or symbols on the device itself)

CARACTÉRISTIQUES PRINCIPALES
