GLXD6 - Receiver SHURE - Free user manual and instructions

Product Type	Digital Wireless Receiver
Brand	Shure
Model	GLXD6
Frequency Band	2.4 GHz
Number of Channels	Up to 6
Dimensions (H x W x D)	44 x 197 x 132 mm
Weight	0.6 kg
Power Supply	External power adapter (12V DC, 1A)
Audio Output	XLR balanced, 1/4" unbalanced
Antenna Type	Internal, diversity
Frequency Response	20 Hz - 20 kHz
Dynamic Range	> 120 dB (A-weighted)
Latency	< 2.9 ms
Operating Range	Up to 30 m (line of sight)
Compatible Transmitters	GLXD1 bodypack, GLXD2 handheld
Sync Method	Infrared (IR) sync
Display	Backlit LCD with group/channel info
Battery Charging	USB-C for transmitters (via receiver)
Construction	Metal chassis, half-rack mountable
Included Accessories	Power supply, rack mount kit, USB cable
Cleaning Instructions	Wipe with dry cloth, avoid solvents
Safety Certifications	FCC, CE, RoHS

Frequently Asked Questions - GLXD6 SHURE

How do I sync the GLXD6 receiver with a transmitter?

Turn on the receiver and transmitter. Press the SYNC button on the receiver, then point the transmitter's IR window at the receiver's IR port within 1 meter. The devices will automatically pair and lock onto the best frequency.

What is the maximum operating range of the GLXD6?

The typical operating range is up to 30 meters (100 feet) in clear line-of-sight conditions. Obstacles like walls or metal structures may reduce range.

Can I use multiple GLXD6 receivers together?

Yes, the GLX-D system uses intelligent frequency management. Up to 6 receivers can operate simultaneously without interference, as the system automatically selects interference-free channels.

How do I charge the transmitters with the GLXD6?

The GLXD6 has a USB-C charging port on the front panel. Connect the included USB-C cable to the receiver, and the other end to a compatible Shure transmitter (GLXD1 or GLXD2) for charging. The receiver does not charge transmitters while in use; it requires a USB power source or external charger.

What should I do if the receiver shows no audio signal?

First, verify that both the receiver and transmitter are powered on. Ensure they are synced (same group and channel). Check that the transmitter's audio source (microphone) is not muted. Adjust the receiver's volume or headphone output. If still no signal, try resyncing the devices.

Can I mount the GLXD6 in a rack?

Yes, the GLXD6 is designed for half-rack mounting. It comes with a rack mount kit for installation in a standard 19-inch rack. You can also use two units side by side with a dual-mount kit (sold separately).

What frequency band does the GLXD6 use?

The GLXD6 operates in the 2.4 GHz ISM band, which is license-free and worldwide compatible. It uses digital transmission for reliable performance and avoids TV broadcast interference.

How do I clean the GLXD6 receiver?

Disconnect the power before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquids, solvents, or abrasive cleaners, as they may damage the finish.

What is the latency of the GLXD6 system?

The digital transmission has a latency of less than 2.9 milliseconds, making it suitable for live sound applications without noticeable delay.

Does the GLXD6 support rechargeable batteries?

Yes, Shure offers the SB900A rechargeable battery pack for transmitters. When using compatible transmitters, the GLXD6 can indicate battery status and allow charging via the USB-C port (requires external USB power).

USER MANUAL GLXD6 SHURE

Guitar Pedal Receiver

Online user guide for GLXD6+ wireless system.

Version: 0.1 (2022-K)

Table of Contents

GLXD6+ Guitar Pedal Receiver 3

System Overview 3

Guitar Pedal Receiver 3

Display Screen, Indicators, and Controls 4

Receiver Mode 4

Tuner Mode 5

Set Up the Receiver 6

Bodypack Transmitter 6

Transmitter Status LED 8

Wearing the Bodypack 8

Install Transmitter Batteries 8

Batteries and Charging 9

Charging from an AC Power Source 9

Charging Status LEDs 9

Charging Times and Transmitter Runtimes 10

Transmitter Battery Meter 10

Important Tips for Care and Storage of Shure Rechargeable Batteries 11

Tips to Improve Wireless System Performance 11

Additional Tips 11

Receiver Operation 11

Audio Gain Adjustment 11

Locking and Unlocking the Controls 12

Identifying Linked Transmitters and Receivers with Remote ID 12

Receiver Band Modes 12

Tuner Menu 13

Tuner Options 13

Indicator: Needle or Strobe 13

Choosing Live or Mute Audio Output 14

Display Brightness 14

Detune 15

Sharps and Flats 15

Reference Pitch 15

Using the Tuner 16

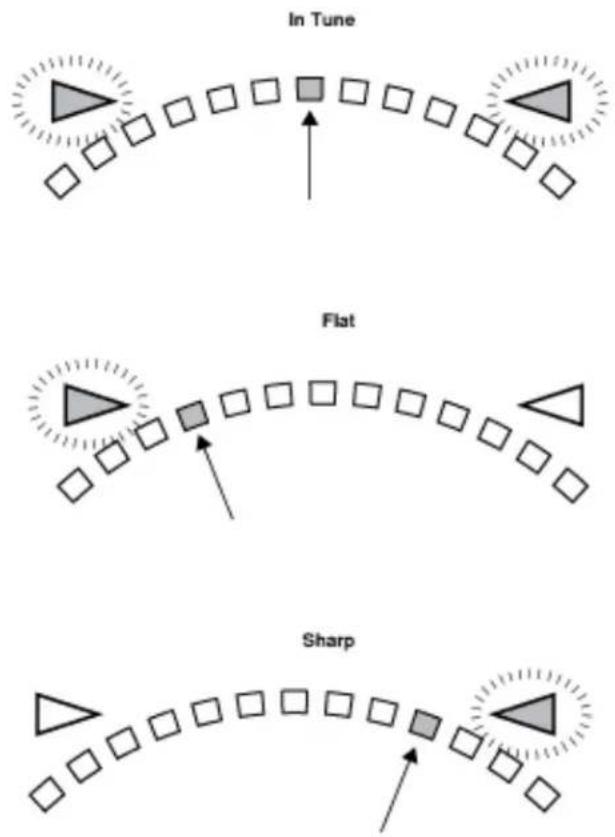

Needle Mode 16

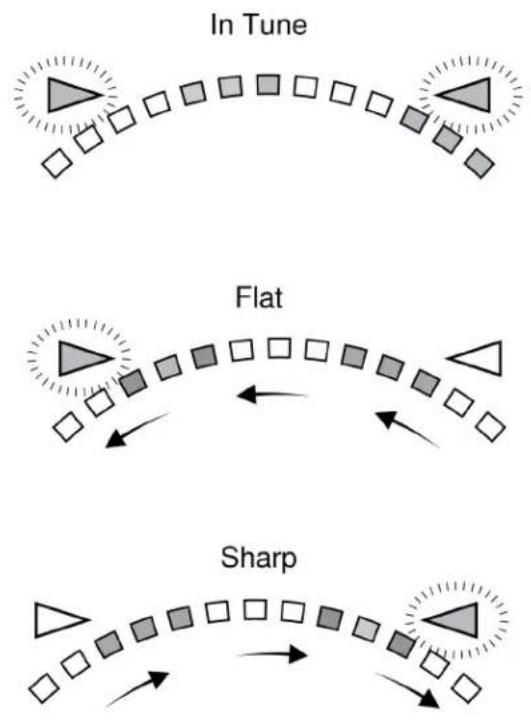

Strobe Mode 16

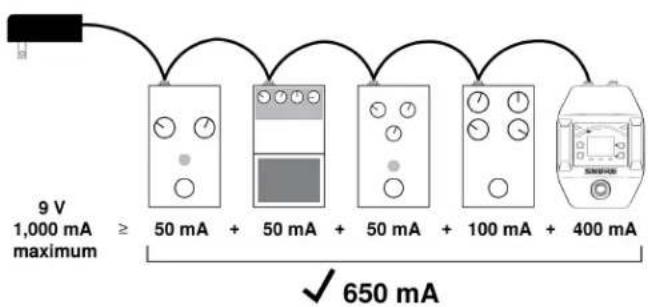

Using a Third-Party Power Supply 17

Firmware 18

Resetting Components 18

Resetting the Receiver 18

Resetting the Transmitter 18

Troubleshooting 18

Accessories 20

Specifications 20

Diagrams 25

Frequency Tables 25

IMPORTANT SAFETY INSTRUCTIONS 32

WARNING 34

Note: 34

Information to the user 34

Certifications 35

GLXD6+

Guitar Pedal Receiver

System Overview

The Shure GLXD6+ wireless system combines the leading edge of automatic frequency management technology with best-in-class intelligent lithium ion battery rechargeability, world-renowned microphones, and unparalleled design and construction.

The compact low-profile design easily fits into pedalboard configurations. Built-in chromatic tuner simplifies setups while offering flexible tuning options. Advanced frequency hopping technology detects interference and automatically switches to a clear backup channel to prevent audio dropouts. Channel scanning finds the best receiver channel for wireless audio and automatically links to the transmitter.

• Exceptional digital audio clarity
• Built-in tuner with customizable functionality and display options
• Operates in 2.4 GHz and 5.8 GHz spectrum
- Compact rugged metal construction
- Adjustable transmitter gain to optimize audio signal
• Automatically detects and avoids interference to preserve audio quality
• RF back-channel for remote control of transmitter functions
• Automatic transmitter power-off to conserve battery life when transmitter is not in use

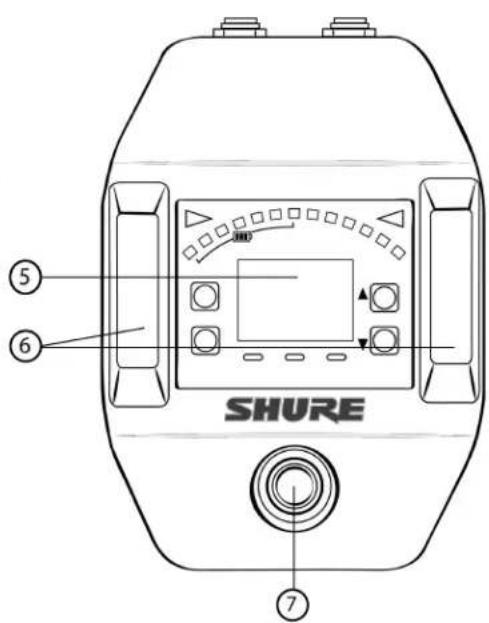

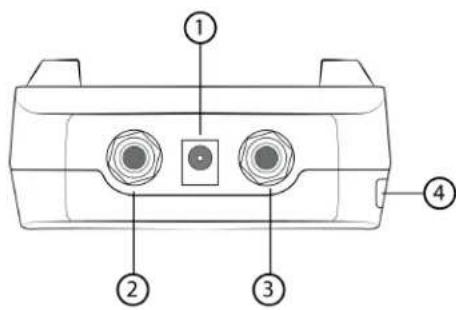

Guitar Pedal Receiver

1 DC power connector	Connect DC power supply (9 to 15 V DC, 400 mA minimum).Note: Compatible with positive tip or negative tip power supplies.
2 INSTR IN	Use receiver as a wired guitar pedal tuner.
3 INSTR OUT	Connect to amplifier or mixer.Note: If using multiple effects pedals, place the receiver pedal first in the signal chain.
4 USB-C port	Connect to computer to download firmware updates.
5 Display	Shows receiver and tuner settings. See below for more information on display controls.
6 Antenna	Two antennas per receiver. Antennas pick up the signal from the transmitter.
7 Footswitch	Press to select receiver or tuner mode.

Display Screen, Indicators, and Controls

The controls and display offer specific functionality depending on which mode is selected:

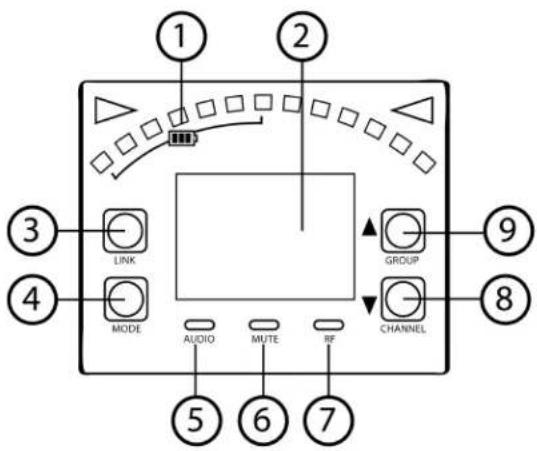

Receiver Mode

1 Transmitter battery meter	Illuminated segments indicate remaining battery life.
2 Display	GroupChannelLK (controls locked)UN (controls unlocked)-- (frequency not available)
3 Link button	Press to manually link receiver to a transmitter or to activate the remote ID function.
4 Mode button	Press to enable audio gain adjustment. Use ▲▼ buttons to adjust gain.
5 Audio LED	Illumination corresponds to audio level. Rapid flashing indicates audio clipping.
6 Mute LED	Illuminates when audio output is muted.
7 RF LED	ON = Linked transmitter is onFlashing = Searching for transmitterOFF = Linked transmitter off or transmitter unlinked
8 Channel button	Press to select and edit channel.
9 Group button	Press to select and edit group.

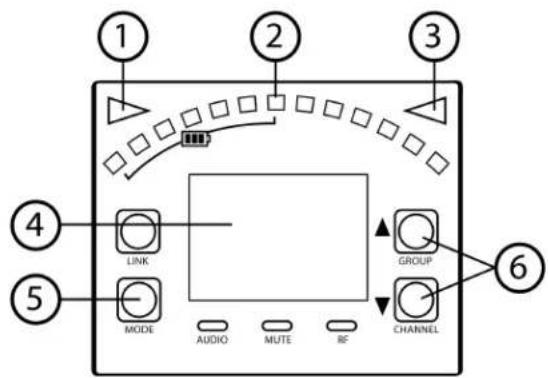

Tuner Mode

1 Flat indicator	Illuminates when note is flat.
2 Tuning bar display	LEDs illuminate to indicate tuning deviation.
3 Sharp indicator	Illuminates when note is sharp.
4 Note display	Displays the name of the note or (--) if the tuner is idle.
5 Mode button	Press to enter tuner menu settings.
6 Arrow buttons	Use ▲▼ buttons to select and edit menu settings.

⑦ Frequency detuned/Reference pitch offset indicator

A dot is displayed when the tuning or pitch has been set to a non-standard value.

Note: Non-standard tuning or pitch settings scroll across the receiver display during power-up.

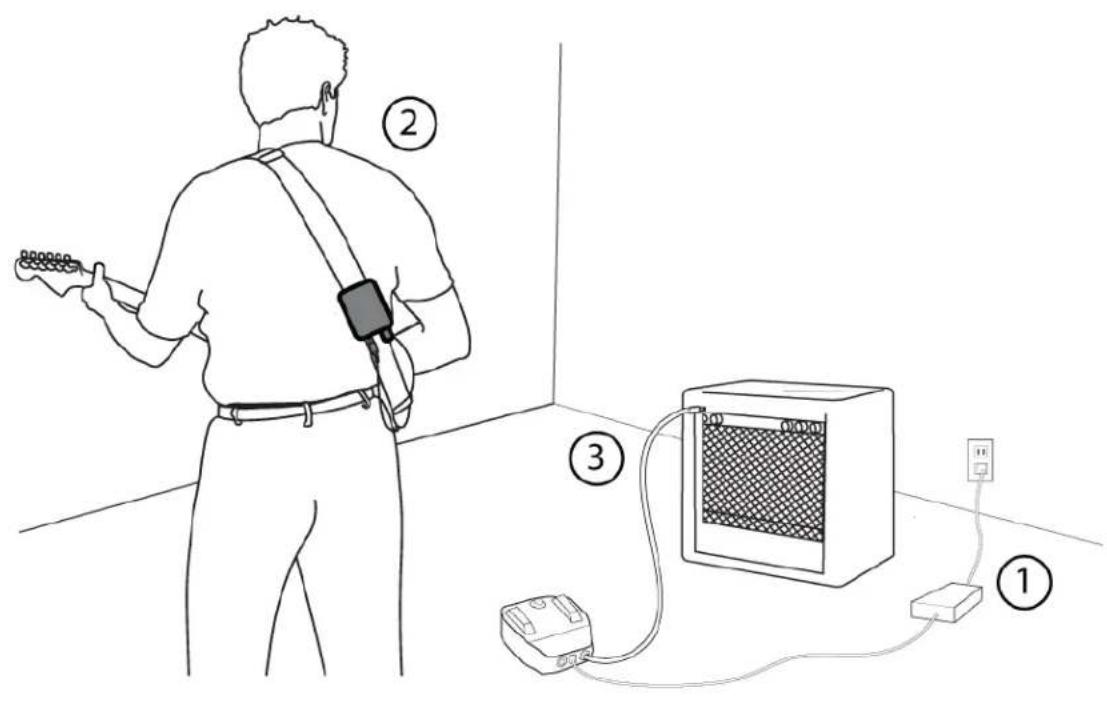

Set Up the Receiver

1. Connect the PS24 power supply to the receiver and plug the cord into an AC power source.
2. Connect the transmitter to the instrument.
3. Connect the audio output to an amplifier or mixer.

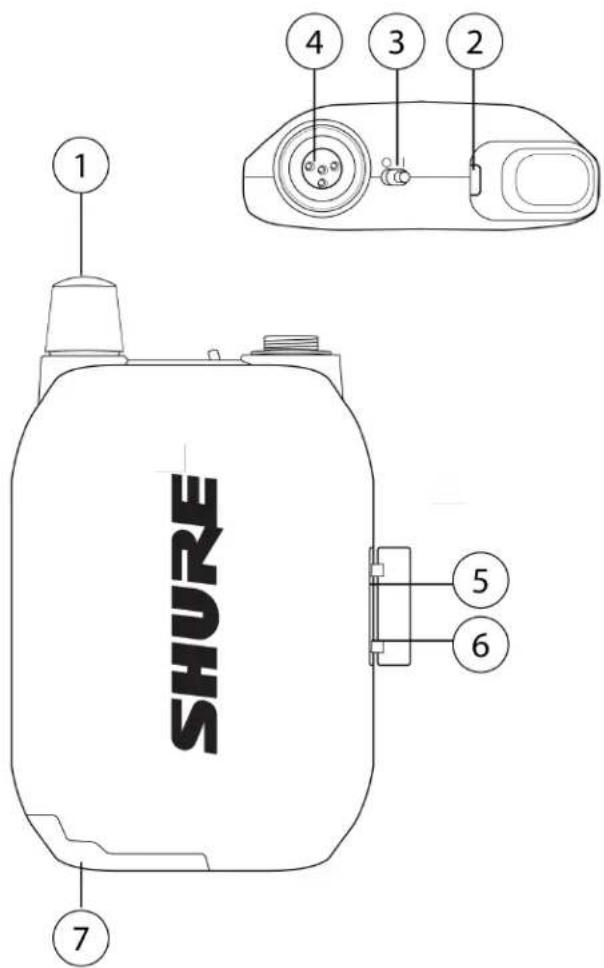

Bodypack Transmitter

① Antenna

Carries wireless signal.

② Status LED

LED color and state indicate transmitter status.

③ Power switch

Turns the transmitter on/off.

④ TA4M input port

Connects to a 4-Pin mini connector (TA4F) microphone or instrument cable.

⑤ USB-C charging port

Connect to USB battery charger.

⑥ Link button

• Press and hold within 5 seconds of power-on to manually link with receiver.
• Press momentarily to activate remote ID function.

⑦ Battery compartment

Holds 1 Shure rechargeable battery.

Transmitter Status LED

LED is green during normal operation.

LED color or flashing indicates a change in transmitter status as shown in the following table:

Color	State	Description
Green	Flashing (slow)	Transmitter attempting relink with receiver
	Flashing (fast)	Unlinked transmitter searching for receiver
	Flashes 3 times	Indicates locked transmitter when power switch is pressed
Red	On	Battery life < 1 hour
	Flashing	Battery life < 30 minutes
Red/Green	Flashing	Remote ID active
Amber	Flashing	Battery error; remove and insert again, or replace battery

Wearing the Bodypack

Clip the bodypack to a belt or slide a guitar strap through the bodypack clip as shown.

For best results, the belt should be pressed against the base of the clip.

Two abstract geometric line drawings with interlocking rectangular shapes (no text or symbols)

Install Transmitter Batteries

Important: Always fully charge a new battery before first use.

1. Move the locking lever to the open position and slide the battery door open.
2. Place the battery into the transmitter.
3. Close the battery door.

Illustration of a hand holding a small object with a tool, no text or symbols present

Batteries and Charging

GLX-D+ transmitters are powered by Shure SB904 lithium-ion rechargeable batteries. Advanced battery chemistry maximizes runtimes with zero memory effects, eliminating the need to discharge batteries prior to charging.

When not in use, recommended battery storage temperature is 10^ C ( 50^ F) to 25^ C ( 77^ F).

Note: The transmitter will not pass RF or audio signals when connected to the charging cable.

The following battery charging options are available:

Charging from an AC Power Source

1. Plug the charging cable into the charging port on the transmitter.
2. Plug the charging cable into an AC power source.

Simple line drawing of a plug connected to a power outlet with cable (no text or symbols)

Charging Status LEDs

LED Color	Description
Green (solid)	Device is fully charged
Red (solid)	Charging
Amber (flashing)	Out of temperature range, or battery error
Off	Power supply is disconnected, or no device is docked in the charging bay

Charging Times and Transmitter Runtimes

Use the following table to determine approximate battery runtime based on the duration of charging time when in 5.8 GHz mode. Times shown are in hours and minutes. Transmitters automatically power-off after approximately 1 hour to conserve battery life if the signal from a linked receiver is not detected.

Receiver Bay or AC Power Source Charging	Transmitter Runtime
0:15	up to 1:30
0:30	up to 3:00
1:00	up to 6:00
3:00	up to 11:30*

*Storage time or excessive heat will reduce maximum runtime.
Note: If receiver is powered off and remains plugged in, battery will continue charging.

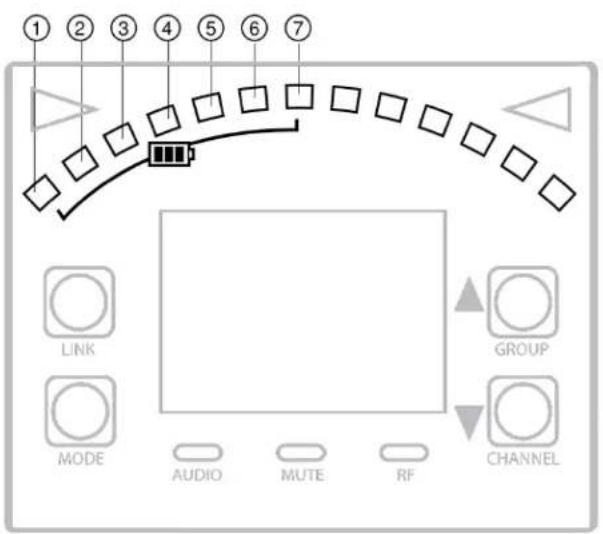

Transmitter Battery Meter

The number of segments illuminated on the meter indicates the remaining battery life for a linked transmitter:

① = > 30 min
② = > 2 hours
③ = > 4 hours
④ = > 6 hours
⑤ = > 8 hours
⑥ = > 10 hours
⑦ = > 11.5 hours

Note: The LEDs will cycle on/off while battery life is being calculated.

Important Tips for Care and Storage of Shure Rechargeable Batteries

Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime.

• Always store batteries and transmitters at room temperature
- Ideally, batteries should be charged to approximately 40% of capacity for long-term storage
- During storage, check batteries every 6 months and recharge to 40% of capacity as needed

Tips to Improve Wireless System Performance

If you encounter interference or dropouts, try the following suggestions:

1. Place receiver at least 3 meters (10 feet) away from Wi-Fi access points, computers, or other active 2.4 GHz and 5.8 GHz sources.
2. Avoid heavy Wi-Fi traffic activities such as downloading large files or viewing a movie.
   • Turn on any Wi-Fi prior to turning on receivers and scanning for the best channel.
3. Reduce transmitter-to-receiver distance by placing receivers on stage or above the audience with a clear line of sight to the transmitter.
4. Move receiver to the top of the equipment rack for a clear line of sight.
5. Mount antennas remotely to place closer to transmitters and improve RF reliability if receivers cannot be moved closer.
   • Make sure people do not block the line of sight between receiver and transmitter.

Additional Tips

• Do not place competitive 2.4 GHz and 5.8 GHz receivers near GLXD4R+ receivers.
• Scan for the best available channel by pressing the channel button.
• Keep transmitters more than 2 meters (6 feet) apart. This is less critical with shorter receiver-to-transmitter distances.

Note: If transmitters are within 6 inches of non-GLX-D+ transmitters or microphone cartridges, audible noise is possible.

• Move transmitter and receiver away from metal or other dense materials.
• During sound check, mark trouble spots and ask performers to avoid those areas.

Receiver Operation

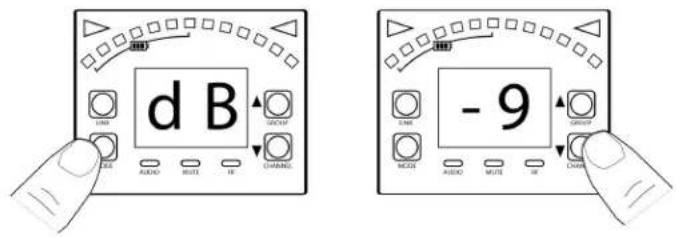

Audio Gain Adjustment

Transmitter gain has an adjustment range from -20 dB to +40 dB in 1 dB increments.

Tip: Try the 0 dB (unity gain) setting as a starting point, and then make gain adjustments if necessary.

1. Press and hold the mode button on the receiver until dB appears on the display.
2. Press the up/down arrows to adjust the gain. For faster adjustments, press and hold the buttons.

Note: The intensity of the green audio LED corresponds to the audio level. Rapid flashing indicates audio clipping. Reduce the gain to remove the overload.

Locking and Unlocking the Controls

The controls of the receiver and transmitter can be locked to prevent unauthorized setting changes or power-off. The lock status is not changed by power cycles.

Locking the Receiver Controls

Simultaneously press and hold the group and channel buttons until LK appears on the screen. Repeat to unlock.

• LK is displayed if a locked control is pressed
• UN is displayed momentarily to confirm the unlock command

Locking the Transmitter Controls

To lock directly from the transmitter:

Start with the transmitter off, then press and hold the link button while turning on the transmitter. Release the link button when the transmitter powers on to prevent an accidental factory reset. The lock icon appears on the receiver screen when locked. Repeat sequence to unlock.

To lock from the receiver front panel:

Simultaneously press and hold the group and link buttons for approximately 2 seconds until the flashing lock icon appears on the receiver screen. Repeat sequence to unlock.

Note: The transmitter status LED will flash if a locked switch is set to the off position.

Identifying Linked Transmitters and Receivers with Remote ID

Use the remote ID feature to identify linked transmitter and receiver pairs in multiple receiver systems.

To activate remote ID:

1. Momentarily press the link button on the transmitter or receiver.
2. The screen of the linked receiver will blink and display ID, while the status LED on the linked transmitter will flash red/green.
3. To exit remote ID mode, momentarily press the link button or allow the function to timeout.

Receiver Band Modes

There are 3 band modes available for GLXD+ receivers. The band mode options are:

• 2.4 GHz-only mode
• 5.8 GHz-only mode
- Best band mode – 2.4 and 5.8 GHz (default)

To change the band mode:

1. Press and hold the channel button while powering on the receiver. Continue to hold the channel button for approximately 5 seconds until the band selection menu opens.
2. Press the up/down gain button to select a band mode. The screen will flash momentarily and scan for the best channel to use.

Note: Linked receivers and transmitters must be able to operate in the same band. Transmitters that don't support the selected band mode will unlink from the receiver.

Tuner Menu

Enter tuner mode by pressing the footswitch.

In tuner mode, the controls will only affect tuner functions. RF and audio settings are not affected.

Note: The audio signal does not pass through the tuner, eliminating the need for bypass switches commonly found on wired tuners.

Tuner Options

• Indicator: Needle or Strobe
• Output: Live, Mute, or Both
- Display Brightness
- Detune
- Sharps and Flats
- Reference Pitch

Selecting and Editing Tuner Menu Settings

Use the following buttons to select and edit the tuner menu settings:

• Use the mode button to access the menu and scroll between menu settings.
• Use the ▲▼ buttons to change a menu parameter.
• Use the footswitch to enter and save parameter changes.

Indicator: Needle or Strobe

The tuner indicator can be set to display a needle style or strobe style.

Needle

A single LED will illuminate on the tuning bar to indicate sharp or flat. The green center LED will illuminate when the note is in tune.

Needle

Strobe

A sequence of three LEDs will travel across the tuning bar in the direction of sharp or flat. The LEDs will remain stationary when the note is in tune.

Note: Indicator and Output settings are displayed in a scroll from left to right.

Strobe

Choosing Live or Mute Audio Output

Set the audio output to the following modes when the footswitch is pressed in tuner mode.

Note: Text for the output settings are displayed in a scroll from left to right.

Mode	Footswitch Function
Live	Receiver Display (audio Live) ↔ Tuner Display (audio Live)
Mute	Receiver Display (audio Live) ↔ Tuner Display (audio Mute)
Both	Tuner Display (audio Mute) ↔ Tuner Display (audio Live)*

*Note: In Both mode, the pedal powers up in Receiver Display. Press the footswitch to enter tuner mode.

Live

Mute

Both

Display Brightness

The receiver has a built-in light sensor to automatically adjust the display brightness.

To manually adjust the brightness choose one of the following settings:

^* A = automatic

*1 = low

*2 = medium

*3 = high

Detune

The tuner can be set to display standard tuning for instruments that have been detuned up sharp or flat in the following increments:

• Up to 5 steps sharp (#1-#2 -#3-#4-#5)
• Up to 6 steps flat (b6-b5-b4-b3-b2-b1)

The notation for standard tuning is b0

b0 = Standard Tuning

Example of note displayed in Detune mode

Note: A dot appears on the display as a reminder that the pedal is detuned.

Sharps and Flats

Adds sharp or flat symbols to the display of non-natural notes.

Sharps and Flats

Flats only

Sharps only

Reference Pitch

The reference pitch can be offset from standard A440 in a range of 432 Hz to 447 Hz in 1 Hz increments.

When adjusting the pitch, the last 2 digits of the value will be displayed. For example, "32" would appear on the display when the pitch has been set to 432 Hz.

A dot appears on the display as a reminder that the reference pitch has been offset.

Using the Tuner

1. Press the footswitch to enter tuner mode.
2. Play each note individually. The display shows the name of the note.
3. Adjust tuning until both indicators illuminate and the needle or strobe indicate that tuning is correct.

Needle Mode

Both tuning indicators and the center green segment will illuminate when the note is in tune.

Strobe Mode

Both tuning indicators will illuminate and the strobe segments will remain stationary when the note is in tune.

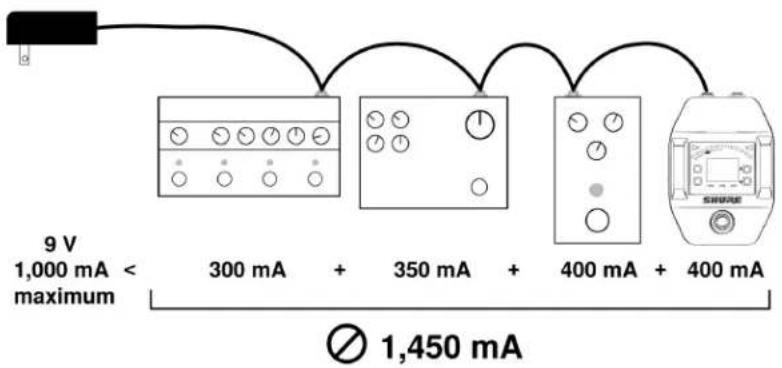

Using a Third-Party Power Supply

To power your wireless receiver pedal, we recommend using the included power supply or a power supply with isolated power outputs.

If using a power supply with isolated power outputs, use a power outlet rated at a minimum of 400 mA.

However, if using other third-party power supplies:

• Check the power consumption for each pedal in a daisy-chain setup. You must know the total power consumption for all of your pedals to avoid overloading the power supply.
• If no power requirement is listed on the pedal, consult the pedal manufacturer.

Firmware

New versions of the firmware can be uploaded and installed using the Shure Update Utility tool.

Download Shure Update Utility from shure.com

To update your firmware, connect the device to your computer using a USB-C cable and open the Shure Update Utility.

Resetting Components

Use the reset function if it is necessary to restore the transmitter or receiver to their factory settings.

Resetting the Receiver

Restores the receiver to the following factory settings:

• Gain level = default
• Controls = unlocked

Press and hold the link button while turning on the receiver power until the display shows RE.

Note: When reset is complete, the receiver will automatically initiate linking to search for a transmitter. Press and hold the transmitter link button within five seconds of powering-on to complete the link.

Resetting the Transmitter

Restores the transmitter to the following factory settings:

- Controls = unlocked

Press and hold the transmitter link button while turning on the transmitter until power LED turns off.

When the link button is released, the transmitter will automatically initiate linking to find an available receiver. Press the link button on an available receiver to relink.

Troubleshooting

Issue	Indicator Status	Solution
No sound or faint sound	Receiver RF LED on	Verify all sound system connections or adjust gain as needed.Verify that the receiver is connected to mixer/amplifier.
	Receiver RF LED off	Turn on transmitter.Make sure the batteries are installed correctly.Link transmitter and receiver.Charge or change transmitter battery.
	Receiver display off	Make sure AC adapter is securely plugged into electrical outlet.Make sure receiver is powered on.
	Transmitter indicator LED flashing red	Charge or change transmitter battery.
	Transmitter plugged into charger.	Disconnect transmitter from charger.
Audio artifacts or dropouts	RF LED flickering or off	Change receiver and transmitter to a different group and/or channel.Identify nearby sources of interference (cell phones, Wi-Fi access points, signal processor, etc.) and shutdown or remove source.Charge or change transmitter battery.Ensure that receiver and transmitter are positioned within system parameters.System must be set up within recommended range and receiver kept away from metallic surfaces.Transmitter must be used in line of sight from receiver for optimal sound.
Distortion	OL indicator appears on receiver display	Reduce transmitter gain.
Transmitter and receiver link unsuccessful	Transmitter and receiver LEDs flash to indicate that linking started, but the link fails	Update both components to the latest firmware version.
Sound level variations when switching to different sources	N/A	Adjust transmitter gain as necessary.
Receiver/transmitter won't turn off	Transmitter LED flashing rapidly	Controls locked.
Receiver gain control cannot be adjusted	N/A	Check transmitter. Transmitter must be on to enable gain changes.
Receiver controls cannot be adjusted	LK shown on receiver display when buttons are pressed	Controls locked.
Transmitter ID function does not respond	Transmitter LED flashes green 3 times	Controls locked.
Transmitter information does not appear on the receiver display	N/A	Linked transmitter is off or the receiver is not linked to a transmitter.
Transmitter powers off after 1 hour	Transmitter status LED off	Transmitters automatically power-off after 1 hour to conserve battery life if the signal from a linked receiver is not detected. Make sure that linked receiver is turned on.

Accessories

Cable, Instrument, 2.5 foot (.75 m), 4 Pin Mini Connector (TA4F) to 1/4-inch Connector.	WA302
Cable, Instrument, 2-foot (0.7m), 4-pin Mini Connector (TA4F) with Right-Angle 1/4-inch Connector, used with Shure Wireless Bodypack Transmitters	WA304
Shure Rechargeable Battery	SB904
USB-C Battery Charger	SBC10-USBC
Premium Guitar Cable TQG Threaded Connector	WA305
Power Supply	PS24

Specifications
Tuning Bandwidth

Z2	2400 - 2483.5 MHz
Z3	2400 - 2483.5 MHz and 5725 - 5850 MHz
Z4	2400 - 2483.5 MHz and 5725 - 5875 MHz
Z5	2400 - 2483.5 MHz and 5725 - 5825 MHz

Dependent on frequency band

Transmit Mode

Shure proprietary digital

RF Output Power

10 mW E.I.R.P. maximum

Operating Temperature Range

0^ C (32°F) to 50^ C (122°F)

Polarity

Positive voltage applied to the tip of the guitar cable phone plug produces positive voltage at the tip of the high impedance 14 -inch output

Audio Frequency Response

20 Hz - 20 kHz

Dynamic Range

120 dB, A-weighted

RF Sensitivity

-88 dBm, typical

Total Harmonic Distortion

0.02%, typical

Battery Life

Up to 11.5 hours

Guitar Tuner

Tuning Accuracy	±1 cent
Tuning Range	F#0 to C8

Channel Count

Up to 4 typical, 8 optimal

2.4 GHz only: Up to 4 typical, 5 optimal

GLXD6+

Power Requirements

9 V – 15 V, 400 mA (efficiency level VI power supply)

Antenna Type

Dual-band PIFA

Dimensions

5.4 × 3.7 × 1.89 in. (138 × 95 × 48 mm)

Weight

19.75 oz (560 g)

Housing

Aluminum alloy

Spurious Rejection

35 dB, typical

Gain Adjustment Range

-20 to 40 dB in 1 dB steps

Audio Input Modes

Tuner or True Bypass

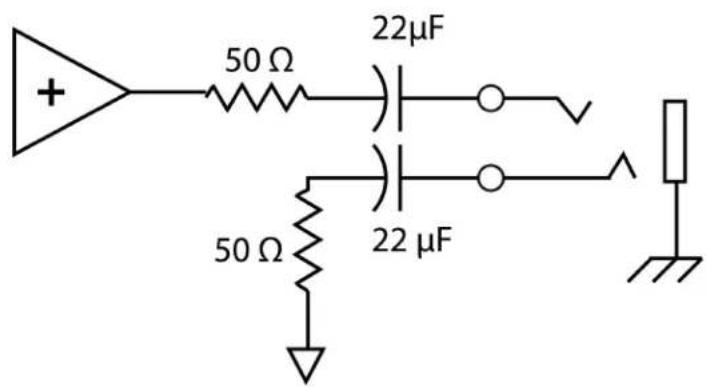

AUDIO OUTPUT:

Configuration

6.35 mm (1/4") output

Impedance balanced

Impedance

6.35 mm (1/4") output

100 Ω (50 Ω, Unbalanced)

Maximum Audio Output Level

6.35 mm (1/4") connector (into 3 kΩ load)

+8.5 dBV

Pin Assignments

6.35 mm (1/4") connector

Tip=audio, Ring=no audio, Sleeve=ground

RECEIVER ANTENNA INPUT:

Impedance

50 Ω

Maximum Input Level

-20 dBm

GLXD1+

Power Requirements

Shure Rechargeable Li-Ion Battery	SB904
USB Power Supply (US/Canada)	SBC10-USB15WSUSTWJ

Antenna Type

Dual-band Internal Monopole

Dimensions

4.5 × 2.6 × 1.1 in. (115 × 66.94 × 28.51 mm), (H × W × D)

Weight

5.4 oz (153.1 g), without battery

Housing

Aluminum alloy, ABS plastic

Input Impedance

900 kΩ

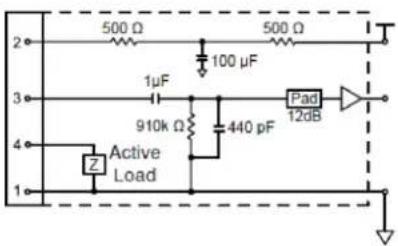

TX INPUT:

Connector

4-pin male mini connector (TA4M)

Maximum Input Level

+8.4 dBV (7.5 Vp-p)

Configuration

Unbalanced

Pin Assignments

1	Ground (cable shield)
2	+ 5 V bias
3	Audio
4	Tied through active load to ground (on instrument adapter cable, pin 4 floats)

SB904

Battery Type

Rechargeable Li-Ion

Nominal Capacity

2420 mAh (8.71 Wh)

Nominal Voltage

3.6 V

Dimensions

2.87 x 0.83 x 0.82 inches (72.8 x 20.96 x 20.80 mm), (H x W x D)

Weight

1.89 oz. (53.7 g)

Housing

PC/ABS

Ambient Temperature Range

Charging:	0°C (32°F) to 40°C (104°F)
Operating:	-18 °C (0 °F) to 45 °C (113 °F)

SBC10-904

DC Input Voltage

5 V

Ambient Temperature Range

Operating:

0^ C (32°F) to 40^ C (104°F)

SBC10-USB15W Power Supply

Input Voltage Range

100 to 240 V AC

Maximum Input Power

600 mA @ 100 V AC (full load)

Output Voltage

5 v DC @ 3 A

Maximum Output Power

15 W

SBC10-USB Power Supply

Input Voltage Range

100 to 240 V AC

Maximum Input Power

200 mA @ 100 V AC (full load)

Output Voltage

5 v DC @ 1 A

Maximum Output Power

5 W

Diagrams

TA4M Connector

5 V DC

Audio Input

Ground

Frequency Tables

Z2 (2.4 GHz only)

Group 1
Gr 1 - Ch 1	2424	2425	2442	2443	2462	2464
Gr 1 - Ch 2	2418	2419	2448	2450	2469	2471
Gr 1 - Ch 3	2411	2413	2430	2431	2476	2477
Gr 1 - Ch 4	2405	2406	2436	2437	2455	2457
Group 2
Gr 2 - Ch 1	2423	2424	2443	2444	2473	2474
Gr 2 - Ch 2	2404	2405	2426	2427	2456	2457
Gr 2 - Ch 3	2410	2411	2431	2432	2448	2449
Gr 2 - Ch 4	2417	2418	2451	2452	2468	2469
Gr 2 - Ch 5	2437	2438	2462	2463	2477	2478
Group 3
Gr 3 - Ch 1		2415		2416	2443
Gr 3 - Ch 2		2422		2423	2439
Gr 3 - Ch 3		2426		2427	2457
Gr 3 - Ch 4		2447		2448	2468
Gr 3 - Ch 5		2409		2451	2452
Gr 3 - Ch 6		2431		2462	2463
Gr 3 - Ch 7		2404		2473	2474
Gr 3 - Ch 8		2435		2477	2478
Group 4
2404	2406	2408	2410	2412	2414
2416	2418	2420	2422	2424	2426
2428	2430	2432	2434	2436	2438
2440	2442	2444	2446	2448	2450
2452	2454	2456	2458	2460	2462
2464	2466	2468	2470	2472	2474

Group 4
2476	2478
Group A
2405	2412	2418	2425	2431	2438
2444	2450	2457	2464	2471	2477
Group B
2404	2409	2414	2419	2425	2431
2436	2441	2446	2452	2458	2463
2468	2473	2478

Z3

Group 1 (2.4 GHz)
Gr 1 - Ch 1		2405	2323	2441	2465
Gr 1 - Ch 2		2411	2429	2447	2471
Gr 1 - Ch 3		2417	2435	2453	2477
Group 2 (2.4 GHz)
Gr 2 - Ch 1		2404	2424	2444	2464
Gr 2 - Ch 2		2409	2429	2449	2469
Gr 2 - Ch 3		2414	2434	2454	2474
Gr 2 - Ch 4		2419	2439	2459	2478
Group 3 (2.4 GHz)
2405	2408	2411	2414	2417	2420
2423	2426	2429	2432	2435	2438
2441	2444	2447	2450	2453	2456
2459	2462	2465	2468	2471	2474
2477
Group A (2.4 GHz)
2405	2411	2417	2423	2429	2435
2441	2447	2453	2459	2465	2471
2477
Group B (2.4 GHz)
2404	2409	2414	2419	2424	2429
2434	2439	2444	2449	2454	2459
2464	2469	2474	2478
Group 1 (5.8 GHz)
Gr 1 - Ch 1		5730	5760	5790	5820
Gr 1 - Ch 2		5736	5766	5796	5826
Gr 1 - Ch 3		5742	5772	5802	5832
Gr 1 - Ch 4		5748	5778	5808	5838
Gr 1 - Ch 5		5754	5784	5814	5845
Group 2 (5.8 GHz)
Gr 2 - Ch 1		5729	5759	5789	5819
Gr 2 - Ch 2		5734	5764	5794	5824
Gr 2 - Ch 3		5739	5769	5799	5829
Gr 2 - Ch 4		5744	5774	5804	5836
Gr 2 - Ch 5		5749	5779	5809	5841
Gr 2 - Ch 6		5754	5784	5814	5846
Group 3 (5.8 GHz)
5730	5733	5736	5739	5742	5745
5748	5751	5754	5757	5760	5763
5766	5769	5772	5775	5778	5781
5784	5787	5790	5793	5796	5799
5802	5805	5808	5811	5814	5817
5820	5823	5826	5829	5832	5835
5838	5841	5845
Group A (5.8 GHz)
5730	5736	5742	5748	5754	5760
5766	5772	5778	5784	5790	5796
5802	5808	5814	5820	5826	5832
5838	5845
Group B (5.8 GHz)
5729	5734	5739	5744	5749	5754
5759	5764	5769	5774	5779	5784
5789	5794	5799	5804	5809	5814
5819	5824	5829	5836	5841	5846

Z4

Group 1 (2.4 GHz)
Gr 1 - Ch 1		2405	2323	2441	2465
Gr 1 - Ch 2		2411	2429	2447	2471
Gr 1 - Ch 3		2417	2435	2453	2477
Group 2 (2.4 GHz)
Gr 2 - Ch 1		2404	2424	2444	2464
Gr 2 - Ch 2		2409	2429	2449	2469
Gr 2 - Ch 3		2414	2434	2454	2474
Gr 2 - Ch 4		2419	2439	2459	2478
Group 3 (2.4 GHz)
2405	2408	2411	2414	2417	2420
2423	2426	2429	2432	2435	2438
2441	2444	2447	2450	2453	2456
2459	2462	2465	2468	2471	2474
2477
Group A (2.4 GHz)
2405	2411	2417	2423	2429	2435
2441	2447	2453	2459	2465	2471
2477
Group B (2.4 GHz)
2404	2409	2414	2419	2424	2429
2434	2439	2444	2449	2454	2459
2464	2469	2474	2478
Group 1 (5.8 GHz)
Gr 1 - Ch 1		5730	5766	5802	5838
Gr 1 - Ch 2		5736	5772	5808	5844
Gr 1 - Ch 3		5742	5778	5814	5851
Gr 1 - Ch 4		5748	5784	5820	5858
Gr 1 - Ch 5		5754	5790	5826	5864
Gr 1 - Ch 6		5760	5796	5832	5870
Group 2 (5.8 GHz)
Gr 2 - Ch 1		5729	5764	5799	5834
Gr 2 - Ch 2		5734	5769	5804	5839
Gr 2 - Ch 3		5739	5774	5809	5850
Gr 2 - Ch 4		5744	5779	5814	5856
Gr 2 - Ch 5		5749	5784	5819	5861
Gr 2 - Ch 6		5754	5789	5824	5866
Gr 2 - Ch 7		5759	5794	5829	5871
Group 3 (5.8 GHz)
5730	5733	5736	5739	5742	5745
5748	5751	5754	5757	5760	5763
5766	5769	5772	5775	5778	5781
5784	5787	5790	5793	5796	5799
5802	5805	5808	5811	5814	5817
5820	5823	5826	5829	5832	5835
5838	5841	5844	5847	5851	5855
5858	5861	5864	5867	5870
Group A (5.8 GHz)
5730	5736	5742	5748	5754	5760
5766	5772	5778	5784	5790	5796
5802	5808	5814	5820	5826	5832
5838	5844	5851	5858	5864	5870
Group B (5.8 GHz)
5729	5734	5739	5744	5749	5754
5759	5764	5769	5774	5779	5784
5789	5794	5799	5804	5809	5814
5819	5824	5829	5834	5839	5844
5850	5856	5861	5866	5871

Z5

Group 1 (2.4 GHz)
Gr 1 - Ch 1		2405	2323	2441	2465
Gr 1 - Ch 2		2411	2429	2447	2471
Gr 1 - Ch 3		2417	2435	2453	2477
Group 2 (2.4 GHz)
Gr 2 - Ch 1		2404	2424	2444	2464
Gr 2 - Ch 2		2409	2429	2449	2469
Gr 2 - Ch 3		2414	2434	2454	2474
Gr 2 - Ch 4		2419	2439	2459	2478
Group 3 (2.4 GHz)
2405	2408	2411	2414	2417	2420
2423	2426	2429	2432	2435	2438
2441	2444	2447	2450	2453	2456
2459	2462	2465	2468	2471	2474
2477
Group A (2.4 GHz)
2405	2411	2417	2423	2429	2435
2441	2447	2453	2459	2465	2471
2477
Group B (2.4 GHz)
2404	2409	2414	2419	2424	2429
2434	2439	2444	2449	2454	2459
2464	2469	2474	2478
Group 1 (5.8 GHz)
Gr 1 - Ch 1		5730	5754	5778	5802
Gr 1 - Ch 2		5736	5760	5784	5808
Gr 1 - Ch 3		5742	5766	5790	5814
Gr 1 - Ch 4		5748	5772	5796	5820
Group 2 (5.8 GHz)
Gr 2 - Ch 1		5729	5753	5778	5803
Gr 2 - Ch 2		5733	5758	5783	5808
Gr 2 - Ch 3		5738	5763	5788	5813
Gr 2 - Ch 4		5743	5768	5793	5817
Gr 2 - Ch 5		5748	5773	5798	5821
Group 3 (5.8 GHz)
5730	5733	5736	5739	5742	5745
5748	5751	5754	5757	5760	5763
5766	5769	5772	5775	5778	5781
5784	5787	5790	5793	5796	5799
5802	5805	5808	5811	5814	5817
5820
Group A (5.8 GHz)
5730	5736	5742	5748	5754	5760
5766	5772	5778	5784	5790	5796
5802	5808	5814	5820
Group B (5.8 GHz)
5729	5734	5739	5744	5749	5754
5759	5764	5769	5774	5779	5784
5789	5794	5799	5804	5809	5814
5820

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer's instructions.
8. DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not place any open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. UNPLUG this apparatus during lightning storms or when unused for long periods of time.
2. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the apparatus.
4. The MAINS plug or an appliance coupler shall remain readily operable.
5. The airborne noise of the Apparatus does not exceed 70dB (A).
6. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.
7. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
8. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
9. Operate this product within its specified operating temperature range.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

In the European Union and the United Kingdom, this label indicates that the batteries in this product should be collected separately and not be disposed of with household waste. Substances in batteries can have a potential negative impact on health

and environment and you have a role in recycling waste batteries thus contributing to the protection, preservation, and improvement of the quality of the environment. You should contact your local authority or retailer for details of the collection and recycling schemes available.

The equipment is intended to be used in professional audio applications.

EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC performance.

Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment.

Please consider the environment, electric products and packaging are part of regional recycling schemes and do not belong to regular household waste.

WARNING

• Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat above 140°F (60°C), or incinerate.
  • Follow instructions from manufacturer
• Only use Shure charger to recharge Shure rechargeable batteries
• WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
• Never put batteries in mouth. If swallowed, contact your physician or local poison control center
• Do not short circuit; may cause burns or catch fire
• Do not charge or use battery packs other than Shure rechargeable batteries
• Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
• Do not immerse the battery in liquid such as water, beverages, or other fluids.
• Do not attach or insert battery with polarity reversed.
• Keep away from small children.
• Do not use abnormal batteries.
• Pack the battery securely for transport.

Note:

• This equipment is intended to be used in professional audio applications.
- EMC conformance is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC performance.
- Use this battery charger only with the Shure charging modules and battery packs for which it is designed. Use with other than the specified modules and battery packs may increase the risk of fire or explosion.
- Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment.

Information to the user

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause interference with radio and television reception.

Notice: The FCC regulations provide that changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be de-

terminated by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Shure has determined that this product is a Class B harmonized product. The following sections provide country-specific EMC/EMI or product safety information.

Certifications

Certified under FCC Part 15.

FCC ID: DD4GLXD4RZ3, DD4GLXD1Z3, DD4GLXD2Z3 IC: 616A-GLXD4RZ3, 616A-GLXD1Z3, 616A-GLXD2Z3

CAN ICES-003 (B)/NMB-003(B)

The antenna(s) must be installed such that a minimum separation distance of 20 cm is maintained between the radiator (antenna) and all persons at all times.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

This product meets the applicable Innovation, Science and Economic Development Canada technical specifications. Certified by ISED in Canada under RSS-247 and RSS-GEN.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Connection and use of this communications equipment is permitted by the Nigerian Communications Commission.

運用に際しての注意

Waste Electrical and Electronic Equipment (WEEE) Directive

In the European Union and the United Kingdom, this label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

Registration, Evaluation, Authorization of Chemicals (REACH) Directive

REACH (Registration, Evaluation, Authorization of Chemicals) is the European Union (EU) and the United Kingdom (UK) chemical substances regulatory framework. Information on substances of very high concern contained in Shure products in a concentration above 0.1% weight over weight (w/w) is available upon request.

CE Notice:

Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with European Union requirements. The full text of the EU declaration of conformity is available at the following site: https://www.shure.com/en-EU/support/declarations-of-conformity.

Authorized European Importer / Representative:

Shure Europe GmbH

Department: Global Compliance

Jakob-Dieffenbacher-Str. 12

75031 Eppingen, Germany

Phone: [phone]

Fax: [phone]

Email: [e-mail]

UKCA Notice:

Hereby, Shure Incorporated declares that this product with UKCA Marking has been determined to be in compliance with UK-CA requirements. The full text of the UK declaration of conformity is available at the following site: https://www.shure.com/en-GB/support/declarations-of-conformity.

Authorized UK Importer / Representative:

Shure UK Limited

Unit 2, The IO Centre, Lea Road,

Waltham Abbey, Essex, EN9 1 AS, UK
