button to set the same group to the flash trigger (Note: please refer to the relevant instruction manual when setting the studio flashes of other models).
4.4 Press the camera shutter to trigger. And the status lamp of the camera flash and the flash trigger both turn red synchronously.
Note: As the studio flash's minimum output value is 1/32, the output value of the flash trigger should be set to or over 1/32. As the studio flash do not have TTL and stroboscopic functions, the flash trigger should be set to M mode in triggering.
Using the Flash Trigger
5. As a Wireless Shutter Release Trigger
Operation method:
5.1 Turn off the camera. Take a camera remote cable and insert one end into the camera's shutter socket and the other end to the shutter release port of X1R-S to connect. Power on the camera and the receiver.
5.2 Short press the
| Transmitter | Receiver | Flash | Note |
| X2T-S | -- | AD600 series/AD400 series/AD360II seriesAD200 series/V860II series/V850IIV350S/TT685 series/TT600/TT350SQuickerII series/QTII/SK II seriesDP II series/GSII | |
| X1R-S | HVL-F32M/HVL-F43M/HVL-F60M/HVL-F45RM/F58AM/F42MV860S | As there are so many camera flashes in the market which are compatible with Sony speedlites, we do not test one by one. |
| XTR-16 | AD360/AR400 | The flashes with Godox wireless USB port |
| Quicker series/SK series/DP series/GT/GS series/Smart flash series | Can only be triggered |
| XTR-16S | V860SV850 | |
Note: The range of support functions: the functions that are both owned by X2T-S and flash.
Compatible Flash Models

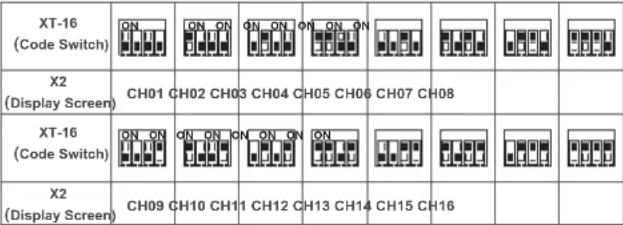

• The relationship of XT wireless system and X2 wireless system:
Compatible Camera Models
This flash trigger can be used on the following Sony series camera models:
| a77 II | a77 | a99 | ILCE-6000L | a9 | A7R | A7RII | A7M3 | A7M2 |
| A7RIII | a350 | DSC-RX10 |
-
This table only lists the tested camera models, not all Sony series cameras. For the compatibility of other camera models, a self-test is recommended.
-
Rights to modify this table are retained.
Technical Data
| Model | X2T-S |
| Compatible cameras | Sony cameras (TTL autoflash)Support for the cameras that have PC sync socket. |
| Compatible smartphone (sync flash in M mode) | iphone, Huawei, Samsung(see the compatible smartphone models for details) |
| Power supply | 2*AA batteries |
| Flash Exposure Control |
| TTL autoflash | Yes |
| Manual flash | Yes |
| Stroboscopic flash | Yes |
| Function |
| High-speed sync | Yes |
| Flash exposure compensation | Yes, ±3 stops in 1/3 stop increments |
| Flash exposure lock | Yes |
| Focus assist | Yes |
| Beeper | Yes |
| Wireless shutter | Control the beeper by the flash trigger The receiver end can control the camera shooting through the 3.5mm sync cord jack |
| ZOOM setting | Adjust the ZOOM value by the transmitter |
| Firmware upgrade | Upgrade through the Type-C USB port |
| Memory function | Settings will be stored 2 seconds after last operation and recover after a restart |
Technical Data
| Model | X2T-S |
| Wireless Flash |
| Transmission range (approx.) | 0-100m |
| Built-in wireless | 2.4G |
| BT Frequency Range | 2402.0-2480.0MHz |
| Max. Transmitting Power | 5dbm |
| Modulation mode | MSK |
| Channel | 32 |
| Wireless ID | 01-99 |
| Group | 5 |
| Other |
| Display | Large LCD panel, backlighting ON or OFF |
| Dimension/Weight | 72x70x58mm/90g |
| 2.4G Wireless Frequency Range | 2413.0MHz-2465.0MHz |
| Max. Transmitting Power of 2.4G Wireless | 5dbm |
- Restore Factory Settings
Hold the MODE button and power the flash trigger on, and all the parameters will restore the factory settings.
- Firmware Upgrade
This flash trigger supports firmware upgrade through the Type-CUSB port. Update information will be released on our official website.
- USB connection line is not included in this product. As the USB port is a Type-C USB socket, please use Type-C USB connection line.
- As the firmware upgrade needs the support of Godox G3 software, please download and install the "Godox G3 firmware upgrade software" before upgrading. Then, choose the related firmware file.
Attentions
- Unable to trigger flash or camera shutter. Make sure batteries are installed correctly and Power Switch is turned on. Check if the transmitter and the receiver are set to the same channel, if the hotshoe mount or connection cable is well connected, or if the flash triggers are set to the correct mode.
- Camera shoots but does not focus. Check if the focus mode of the camera or lens is set to MF. If so, set it to AF.
- Signal disturbance or shooting interference. Change a different channel on the device.
- Operating distance limited or flash missing. Check if batteries are exhausted. If so, change them.
The Reason & Solution of Not Triggering in Godox 2.4G Wireless
- Disturbed by the 2.4G signal in outer environment (e.g. wireless base station, 2.4G wifi router, Bluetooth, etc.)
To adjust the channel CH setting on the flash trigger (add 10+ channels) and use the channel which is not disturbed. Or turn off the other 2.4G equipment in working.
- Please make sure that whether the flash has finished its recycle or caught up with the continuous shooting speed or not (the flash ready indicator is lighten) and the flash is not under the state of over-heat protection or other abnormal situation.
→ Please downgrade the flash power output. If the flash is in TTL mode, please try to change it to M mode(a preflash is needed in TTL mode).
-
Whether the distance between the flash trigger and the flash is too close or not
→ Please turn on the "close distance wireless mode" on the flash trigger (< 0.5m):
→ Please set the C.Fn-DIST to 0-30m.
-
Whether the flash trigger and the receiver end equipment are in the low battery states or not
→ Please replace the battery(the flash trigger is recommended to use 1.5V disposable alkaline battery).
Caring for Flash Trigger
- Avoid sudden drops. The device may fail to work after strong shocks, impacts, or excess stress.
- Keep dry. The product isn't water-proof. Malfunction, rust, and corrosion may occur and go beyond repair if soaked in water or exposed to high humidity.
- Avoid sudden temperature changes. Condensation happens if sudden temperature changes such as the circumstance when taking the transceiver out of a building with higher temperature to outside in winter. Please put the transceiver in a handbag or plastic bag beforehand.
- Keep away from strong magnetic field. The strong static or magnetic field produced by devices such as radio transmitters leads to malfunction.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
产品保修
尊敬的用户，本保修卡是申请保修服务的重要凭证，请您配合销售商填写并妥善保管，谢谢！
| 产品信息 | 型号 | 产品条码 |
| 用户信息 | 姓名 | 联系电话 |
| 通信地址 |
| 销售商信息 | 名称 |
| 联系电话 |
| 通信地址 |
| 销售日期 |
| 备注 |
注：此表应由销售商盖章确认。
适用产品
本文件适用于相关《产品保修信息》(见后面说明)所列产品，其他非属此范围的产品或部件(如促销品、赠品及其他出厂后附加的部件等)不在此保修承诺内。
保修期
产品及部件的相应保修期按相关的《产品保修信息》执行。保修期自产品首次购买日起算，购买日以购买产品时保修卡登记日期为准。
如何获得保修服务
要保修服务，您可直接与产品销售商或授权服务机构联系，也可拨打神牛产品售后服务电话，与我们联系，由我们的服务人员为您安排服务。申请保修时，您应提供有效的保修卡作为保修凭证，方可获得保修。如您不能提供有效的保修卡，则在我们可确认产品或部件属于保修范围的情况下，也可以为您提供保修，但这不作为我们的义务。
不适用保修的情况
如产品存在下列情况，本文件项下的保证和服务将不适用 ①产品或部件超过相应保修期；②错误或不适当使用、维护或保管导致的故障或损坏，如：不当搬运；非按产品合理预期用途使用；不当插拨外接设备；跌落或外力挤压；接触或暴露于不适当温度、溶剂、酸碱、水浸或潮湿环境；③由非神牛授权机构或人员安装、修理、更改、添加或拆卸造成的故障或损坏；④产品或部件原有识别信息被修改变更或除去；⑤无有效保修卡；⑥使用非合法授权、非标准或非公开发行的软件造成的故障或损坏；⑦因不可抗力或意外事件造成的故障或损坏；⑧其他非因产品本身质量问题导致的故障或损坏。遇上述情况，您应向相关责任方寻求解决，神牛对此不承担任何责任。因非在保修期或保修范围内的部件、附件或软件导致产品不能正常使用的，不是保修范围内的故障。产品使用过程中正常的脱色，磨损和消耗，不是保修范围内的故障。
产品保修和服务支持信息：产品的保修期和服务类型按以下《产品保修信息》执行：
| 产品类别 | 选件名称 | 保修期(月) | 保修服务类型 |
| 部件 | 电脑板 | 12 | 客户送修 |
| 电池 | 3 | 客户送修 |
| 充电器、电驱线,同步线等带电性能的部件。 | 12 | 客户送修 |
| 其他 | 如闪光管、造型灯泡、外壳、保护带、碳装装置、包装等。 | 无 | 无保修 |
神牛产品售后服务电话
0755-29609320-8062
Warranty
Dear customers, as this warranty card is an important certificate to apply for our maintenance service, please fill in the following form in coordination with the seller and safekeep it. Thank you!
| Product Information | Model | Product Code Number |
| Customer Information | Name | Contact Number |
| Address |
| Seller Information | Name |
| Contact Number |
| Address |
| Date of Sale |
| Note: |
Note: This form shall be sealed by the seller.
Applicable Products
The document applies to the products listed on the Product Maintenance Information (see below for further information). Other products or accessories (e.g. promotional items, giveaways and additional accessories attached, etc.) are not included in this warranty scope.
Warranty Period
The warranty period of products and accessories is implemented according to the relevant Product MaintenanceInformation. The warranty period is calculated from the day(purchase date) when the product is bought for the first time. And the purchase date is considered as the date registered onthe warranty card when buying the product.
How to Get the Maintenance Service
If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide valid warranty card. If you cannot provide valid warranty card, we may offer you maintenance service once confirmed that the product or accessory is involved in the maintenance scope, but that shall not be considered as our obligation.
Inapplicable Cases
The guarantee and service offered by this document are not applicable in the following cases: ①. The product or accessory has expired its warranty period; ②. Breakage or damage caused by inappropriate usage, maintenance or preservation, such as improper packing, improper usage, improper plugging in/out external equipment, falling off or squeezing by external force, contacting or exposing to the improper temperature, solvent, acid, base, flooding and damp environments, etc; ③. Breakage or damage caused by non-authorized institution or staff in the process of installation, maintenance, alteration, addition and detachment; ④. The original identifying information of product or accessory is modified, alternated, or removed; ⑤. No valid warranty card; ⑥. Breakage or damage caused by using illegally authorized, nonstandard or non-public released software; ⑦. Breakage or damage caused by force majeure or accident; ⑧. Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories and software that beyond the warranty period or scope is not included in our maintenance scope. The normal discoloration, abrasion and consumption are not the breakage within the maintenance scope.
Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the following Product Maintenance Information:
| Product Type | Name | Maintenance Period(month) | Warranty Service Type |
| Parts | Circuit Board | 12 | Customer sends the product to designated site |
| Battery | 3 |
| Electrical parts e.g.battery charger, power cord, sync cable, etc. | 12 |
| Other Items | Flash tube, modeling lamp, lamp body, lamp cover, lookingdevice, package, etc. | No | Without warranty |
Godox After-sale Service Call
0755-29609320-8062
