Type of Product	Turbo HD Dome Camera
Model	DS-2CE57D3T-VPITF
Brand	Hikvision
Image Sensor	High performance CMOS
Minimum Illumination	0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Day/Night Mode	Auto, Color, B/W
White Balance	ATW, MWB
Wide Dynamic Range	Yes (WDR)
Backlight Compensation	Yes (BLC)
Digital Noise Reduction	3D DNR
Privacy Mask	Up to 4 areas
Motion Detection	Up to 4 areas
Mirror Function	Horizontal, Vertical, Both
Focus Control	Motorized via PTZ interface
Power Supply	12 VDC (SELV, Limited Power Source)
Adjustment	3-axis (pan, tilt, rotation)
Installation Methods	Ceiling, wall, in-ceiling, inclined base
Cleaning Instructions	Use clean cloth with a bit of ethanol
Safety Compliance	FCC Class A, CE, ICES-3(A)

Frequently Asked Questions - DS-2CE57D3T-VPITF Hikvision

How do I access the camera menu?

Connect the camera to a TVI DVR and monitor. Then click the PTZ control button on the DVR interface and select the camera menu by clicking the ☐ button or calling preset No. 95.

What is the minimum illumination required for this camera?

The camera requires a minimum illumination of 0.005 Lux @ (F1.8, AGC ON) in color mode, and 0 Lux with IR LED on.

How can I adjust the focus and zoom?

In the camera menu, select FOCUS and use the FOCUS+, FOCUS-, ZOOM+, and ZOOM- options to adjust.

How do I enable Wide Dynamic Range (WDR)?

Go to the MAIN MENU → AE (Auto Exposure) → EXPOSURE MODE and select WDR. The WDR function balances brightness for clear images in backlit conditions.

How do I set up a privacy mask?

In the FUNC submenu, select PRIVACY. Turn MODE to ON, choose an area (0-3), and use the directional buttons to define the position and size of the masked area.

Can this camera be used outdoors?

Yes, the camera is applicable for both indoor and outdoor conditions. However, ensure proper installation and weatherproofing (the manual does not specify an IP rating).

What power supply is required?

The camera requires a 12 VDC power supply that meets SELV (Safety Extra Low Voltage) and Limited Power Source standards. Do not connect multiple devices to one adapter.

How do I clean the camera lens?

Use a clean cloth with a bit of ethanol and wipe gently. Do not touch the sensor module with fingers.

How do I reset the camera to factory defaults?

In the camera menu, select RESET from the main menu. This will reset all settings to default. Then select SAVE & EXIT to confirm.

What are the available installation methods?

The camera supports ceiling mounting, wall mounting (with separate bracket), in-ceiling mounting, and inclined base mounting. Refer to the manual for detailed steps.

USER MANUAL DS-2CE57D3T-VPITF Hikvision

Abstract graphic with geometric shapes and a red square featuring a globe and hand (no text or symbols)

TURBO HD

D8T Series Dome Camera

User Manual

UD05334B

User Manual

Thank you for purchasing our product. If there are any quesons, or requests, do not hesitate to contact the dealer.

This manual applies to the models below:

Type	Model
Type I Camera	DS-2CE56D8T-(A)VPIT3Z(E)
Type II Camera	DS-2CE56D8T-(A)ITZ(E)
Type III Camera	DS-2CE56D8T-VPIT(E)

This manual may contain technical incorrect places or prinng errors, and the content is subject to change without noce. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info. 2006/66/EC (baery direcve): This product contains a

baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for specic baery informaon. The baery is marked with this symbol, which may

include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into "Warnings" and "Cauons".

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cauons: Injury or equipment damage may occur if any of the cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings

• In the use of the device, you must be in strict compliance with the electrical safety regulations of the naon and region.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Refer to technical speciaons for detailed informaon.
• Do not connect mulple devices to one power adapter to avoid over-heang or a re hazard caused by overload.
• Make sure that the plug is rmly connected to the power socket.
  ● Make sure that the device is rmly xed if wall mounng or ceiling mounng is adopted.
• If smoke, odor or noise rise from the device, turn of the power at once and unplug the power cord, and then contact the service center.
• Never aempt to disassemble the camera by unprofessional personal.

Cauons

• Do not drop the camera or subject it to physical shock.
• Do not touch senor modules with ngers.
• If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
• Do not aim the camera at the sun or extra bright places.
• The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
• Do not expose the device to high electromagnec radiaon or extremely hot, cold, dusty or damp environment.
• To avoid heat accumulation, good venlaon is required for the operang environment.
• Keep the camera away from liquid while in use for non-water-proof device.
• While in delivery, the camera shall be packed in its original packing, or packing of the same texture..

1.1 Product Features

The camera is applicable for both indoor and outdoor conditions, and the applicaon scenarios include road, warehouse, underground parking lot, bar, etc.

The main features are as follows:

● High performance CMOS sensor
● Low illuminaon, 0.005 Lux @ (F 1.8, AGC ON), 0 Lux with IR
- IR cut lter with auto switch
- OSD menu with congorable parameters
● Auto white balance
- internal synchronizaon
- SMART IR mode
- PoC (with-E)
- 3-axis adjustment

Note:

Type II camera is applicable to indoor conditions only.

1.2 Overview

Before you start:

The cables of device vary according to dierent models. The cables of each type are shown in the gures below, refer to the actual sample.

You can debug the camera by connecng an auxiliary HD TVI cable to the auxiliary video output.

1.2.1 Overview of Type I Camera

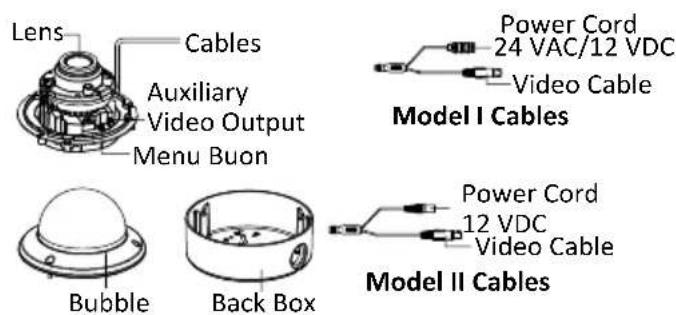

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

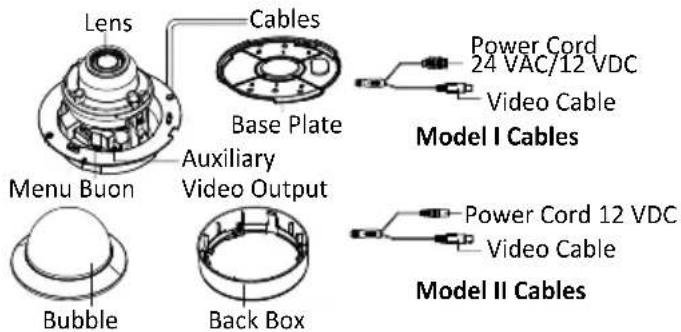

Figure 1-2 Overview of Type II Camera

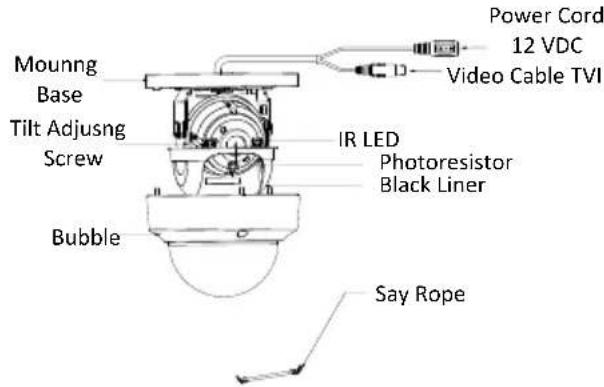

1.2.3 Overview of Type III Camera

Figure 1-3 Overview of Type III Camera

2 Installaon

Before you start:

● Make sure that the device in the package is in good condion and all the assembly parts are included.
- Make sure that all the related equipment is power-o during the installaon.
- Check the specicaon of the products for the installaon environment.
- Check whether the power supply is matched with your power output to avoid the damage.
- Make sure the wall is strong enough to withstand three mes the weight of the camera and the bracket.
- If the wall is cement, insert expansion bolts before installing the camera. If the wall is wooden, use self-tapping screws to secure the camera.
- If the product does not funcon properly, contact your dealer or the nearest service center. Do NOT disassemble the camera for repair or maintenance by yourself.

2.1 Ceiling Mounng of Type I Camera and Type II

Camera

Before you start:

Both wall mounng and ceiling mounng are suitable for the dome camera. Ceiling mounng will be taken as an example in this secon. And you can take steps of ceiling mounng as a reference for wall mounng.

Steps:

1. Paste the drill template to the ceiling.
2. Drill screw holes and the cable hole (oponal) on the ceiling according to the supplied drill template.

Note:

Drill the cable hole when adopng the ceiling outlet to route the cable.

Type I Camera

Type II Camera

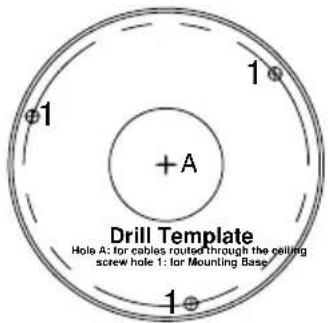

Figure 2-1 The Drill Template

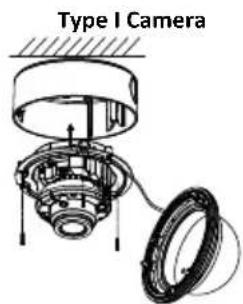

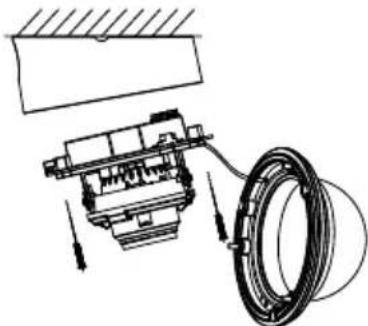

1. Loosen the screws on the bubble of the dome camera to remove the bubble and the black liner.
2. Aach the back box of type I camera/base plate of type II camera to the ceiling and secure them with supplied screws.

Figure 2-2 Aach the Back Box/Base Plate

Note:

• The supplied screw package contains self-tapping screws, and expansion bolts.
• For cement wall, expansion bolts are required to x the camera. For wooden wall, self-tapping screws are required.
• Route the cables through the cable hole, or the side opening.
• Align the camera with the back box/base plate, and tighten the screws to secure the camera with the back box/base plate.

Figure 2-3 Fix the camera to the Ceiling

1. Connect the corresponding cables, such as power cord, and video cable.
2. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle.

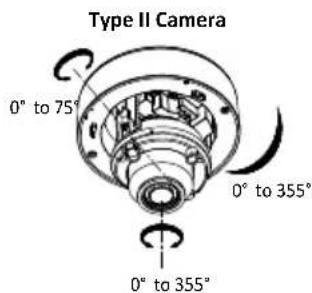

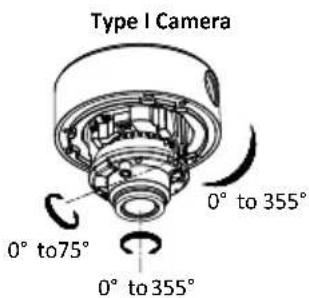

Figure 2-4 3-Axis Adjustment

1. Fit the black liner back to the camera and ghten the screws on the bubble of the dome camera to nish the installaon.

2.2 Ceiling Mounng of Type III Camera

Steps:

1. Paste the dill template to the ceiling.

2. Drill the screw holes and cable hole (oponal) in the ceiling according to the drill template.

Note:

Cable hole is required, when adopting the ceiling outlet to route cables.

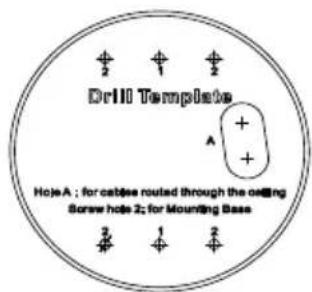

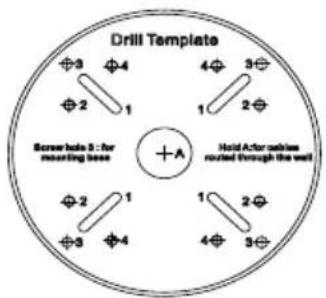

Figure 2-5 Drill Template

1. Loosen the set screws with a hex wrench (supplied) to remove the bubble.

Technical line drawing of a mechanical assembly with top and side views (no text or symbols)

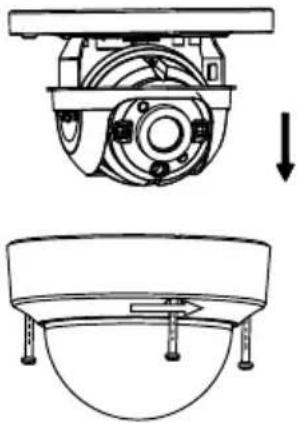

Figure 2-6 Remove the Bubble

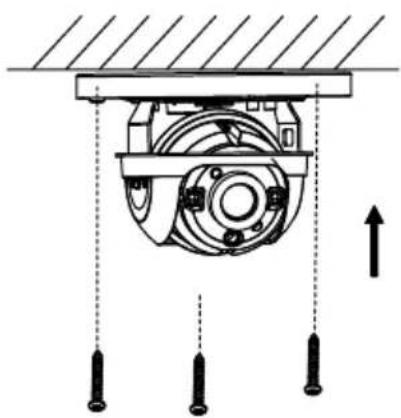

1. Fix the moung base on the ceiling with supplied screws.

Mechanical assembly diagram showing a motor or gear mechanism with three pins and an upward arrow (no text or symbols)

Figure 2-7 Fix the Mounng Base

1. Route the cables through the cable hole, or the side opening.

2. Connect the corresponding cables, such as power cord, and network cable.

3. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle

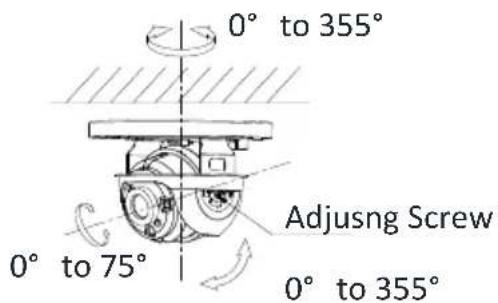

Figure 2-8 Type I Camera 2-Axis Adjustment

1) Loosen the lt adjusng screw to adjust the lt posion [0° to 75°].
2) Hold the black liner to adjust the pan posion [0° to 355°].
3) Hold the camera body to adjust the rotaon posion [0° to 355°]

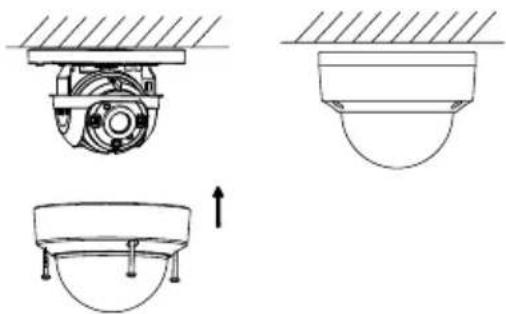

1. Reinstall the bubble, and ghten the screws.

Technical line drawings of a mechanical assembly with three views (top, front, side), no text or symbols present.

Figure 2-9 Bubble Reinstallaon

2.3 Wall Mounng of Type I Camera and Type II

Camera

Before you start:

You need to purchase a wall mounng bracket separately.

Steps:

1. Drill four screw holes in the wall according to the holes of the bracket.
2. Aach the bracket to the wall by aligning the four screw holes of the bracket with expansion screws on the wall.
3. Secure the bracket with four hex nuts and washers.

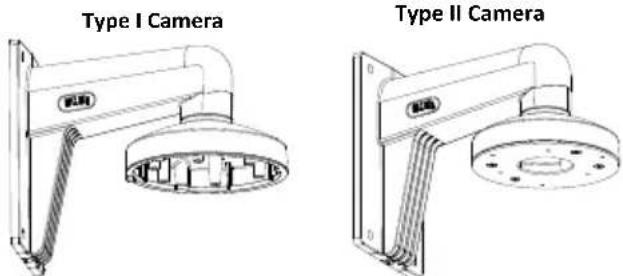

Figure 2-10 Install Wall Mounng Bracket

1. Refer to step 3 of 2.1 Ceiling Mounng of Type I Camera and Type II Camera to remove dome camera's bubble and the black liner.

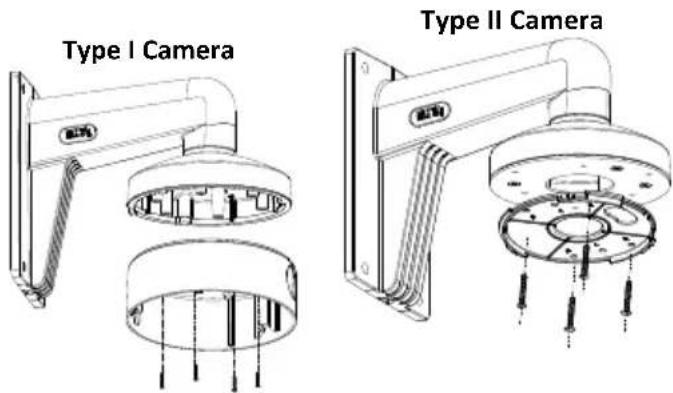

2. Aach the back box/base plate of the dome camera to the wall mounng bracket, and secure them with supplied screws.

Figure 2-11 Aach the Back Box/Base Plate to the Bracket

1. Route the cables through the bracket.
2. Repeat steps 6 to 9 of the 2.1 Ceiling Mounng of Type I Camera and Type II Camera to complete the installaon.

2.4 In-Ceiling Mounng

Befor you start:

You need to purchase an in-ceiling moung bracket separately.

Steps:

1. Aach the in-ceiling moung bracket on the wall and mark the screw holes, and cable holes on the wall.
2. Drill the screw holes and the cable hole.
3. Screw the bolts through the in-ceiling moung bracket by aligning with the two screw holes, and fit the toggles onto the bolts.
4. Push the two bolts in the ceiling, and rotate the bolt. If the toggle holds the ceiling ghtly.

Pure mechanical assembly diagram showing a beam supported at both ends with support legs (no text or symbols)

Figure 2-12 Install the In-Ceiling Mounng Bracket

1. Route the cables through the cable hole.
2. Fix the camera to the in-ceiling moung bracket with the supplied screws.

Figure 2-13 Fix the Camera to the Mount

1. Connect the corresponding cables, such as power cord, and video cable.
2. Repeat steps 8 to 9 of the 2.1 Ceiling Mounng of Type I Camera and Type II Camera to complete the installaon.

2.5 Mounng with Inclined Base of Type I Camera

Steps:

1. Aach inclined base on the wall and mark the screw holes, and cable holes on the wall.

2. Drill the screw holes and the cable hole.

3. Install the inclined base to the ceiling with supplied screws, as shown in Figure 2-9.

Simple line drawing of a rectangular object with vertical arrows pointing downward, no text or symbols present.

Figure 2-14 Fix the Inclined Base

1. Route the cables through the cable hole, or the side opening of the inclined base.

2. Fix the camera to the inclined base with the supplied screws.

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

Figure 2-15 Fix the Camera to the Base

1. Repeat the steps 7 to 9 of the 2.1 Ceiling Mounng of Type I Camera and Type II Camera secon to complete the installaon.

3 Menu Descripon

Purpose:

Call the menu by clicking buon ☐ on the PTZ interface, or call preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the monitor shown as the Figure 3-1.

Figure 3-1 Connecon

1. Power on the analog camera, TVI DVR, and the monitor to view the image on the monitor.
2. Click PTZ Control to enter the PTZ Control interface.
3. Call the camera menu by clicking ☐ buon, or call preset No. 95.

		BRIGHTNESS
	AE	EXPOSURE MODE
		AGC
FORMAT		SENSE UP
	WB	MODE
		RETURN
	DAY NIGHT	MODE
		RETURN
MAIN MENU		CONTRAST
	VIDEO	SHARPNESS
	SETTINGS	COLOR GAIN
		3D DNR
LANGUAGE		MIRROR
		RETURN
		PRIVACY
	FUNC	MOTION
		CAM ID
		RETURN
FOCUS
	RESET
	SAVE & EXIT

Figure 3-2 Main Menu Overview

1. Click the direcon arrow to control the camera.

1) Click up/down direcon buon to select the item.
2) Click Iris + to conrm the selecon.
3) Click le/right direcon buon to adjust the value of the selected item.

3.1 FORMAT

PAL (Phase Alternang Lines)

PAL is a color encoding system for analog television used in broadcast television systems in most countries.

NTSC: (Naonal Television System Commiee)

NTSC is the analog television system that is used in most of North America, parts of South America, Myanmar, South Korea, etc.

3.2 LANGUAGE

Supports English, and Chinese.

3.3 FOCUS

Move the cursor to FOCUS, and press the Iris+ to enter the submenu. Click FOCUS+, FOCUS-, ZOOM+, and ZOOM- to adjust the focus.

3.4 MAIN MENU

3.4.1 AE (AUTO EXPOSURE)

Auto Exposure describes the brightness-related parameters, which can be adjusted by BRIGHTNESS, EXPOSURE MODE, AGC, and SENSE UP.

EXPOSURE

BRIGHTNESS	5
EXPOSURE MODE	GLOBAL
AGC	MIDDLE
SENSE UP	0
RETURN

Figure 3-3 AE

BRIGHTNESS

Brightness refers to the brightness of the image. You can set the brightness value from 1 to 10 to darken or brighten the image. The higher the value, the brighter the image is.

EXPOSURE MODE

You can set the EXPOSURE MODE as GLOBAL, BLC, and WDR.

- GLOBAL

GLOBAL refers to the normal exposure mode which adjusts lightng distribuon, variaons, and non-standard processing.

• BLC (Backlight Compensaon)

BLC (Backlight Compensaon) compensates light to the object in the front to make it clear, but this may cause the over-exposure of the background where the light is strong.

When BLC is selected as the exposure mode, the BLC level can be adjusted from 0 to 8.

● WDR (Wide Dynamic Range)

The wide dynamic range helps the camera provide clear images even under backlight circumstances. WDR balances the brightness level of the whole image and provides clear images with details.

AGC (Auto Gain Control)

It optimizes the clarity of the image in poor light conditions. The GAIN level can be set as HIGH, MIDDLE, or LOW. Select OFF to disable the GAIN funcon.

Note:

The noise will be amplied when the GAIN is on.

SENSE UP

Sense up increases the exposure on a signal frame, which makes a camera more sensitive to light so it can produce images even in low lux condions. You can set the SENS-UP as OFF or AUTO according to dierent light condions.

The SENS-UP funcon will atomically adjust itself to x2, x4, x6, x8, x10, x12, x14, and x16 according to the dierent light conditions.

3.4.2 WB (White Balance)

White balance, the white rendition funcon of the camera, is to adjust the color temperature according to the environment. It can remove unrealisc color casts in the image. You can set WB mode as ATW, or MWB.

ATW (Aoto Tracking White Balance)

Under ATW mode, white balance is being adjusted automatically according to the color temperature of the scene illuminaon.

MWB (Manual White Balance)

You can set the R GAIN/B GAIN value from 1 to 255 to adjust the shades of red/blue color of the image.

WB

MODE

R GAIN

B GAIN

MWB

5

5

RETURN

Figure 3-4 MWB MODE

3.4.3 DAY NIGHT

Color, BW (Black White), and AUTO are selectable for DAY and NIGHT switches.

COLOR

The image is colored in day mode all the me.

B/W

The image is black and white all the me, and the IR LED turns on in the low-light conditions.

AUTO

You can turn on/o the INFRARED and set the value of SMART IR in this menu.

DAY NIGHT

MODE	AUTO
INFRARED	ON
SMART IR	4
RETURN

Figure 3-5 DAY NIGHT

INFRARED

You can turn on/o the IR LED to meet the requirements of dierent circumstances.

- SMART IR

The Smart IR funcon is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. The SMART IR value can be adjusted from 1 to 8. The higher the value the more obvious eects are.

3.4.4 VIDEO SETTING

Move the cursor to VIDEO SETTING and click Iris+ to enter the submenu. CONTRAST, SHARPNESS, COLOR GAIN, 3D DNR, and MIRROR are adjustable.

VIDEO SETTING

CONTRAST	5
SHARPNESS	5
COLOR GAIN	5
3D DNR	5
MIRROR	DEFAULT

RETURN

Figure 3-6 VIDEO SETTING

CONTRAST

This feature enhances the dience in color and light between parts of an image. You can set the CONTRAST value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturaton of the color. The value ranges from 1 to 10.

3D DNR (Digital Noise Reducon)

The 3D DNR funcon can decrease the noise effect, especially when capturing moving images in low light conditions and delivering more accurate and sharp image quality. You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for mirror. DEFAULT: The mirror funcon is disabled.

H: The image ips 180° horizontally.

V: The image ips 180° vercally.

HV: The image ips 180° both horizontally and vercally.

In the FUNC sub-menu, you can set the privacy mask, the moon detecon, and camera ID of the camera.

PRIVACY

The privacy mask allows you to cover certain areas which you don't want to be viewed or recorded. Up to 4 privacy areas are congorable.

PRIVACY
MODE	ON
AREA 0
AREA 1
AREA 2
AREA 3
COLOR	RED
TRANSPARENCY	OFF
RETURN

Figure 3-7 PRIVACY
Select a PRIVACY area. Set the DISPLAY status as ON. Click up/down/le/down buon to denote the posion and size of the area.

MOTION

In the user-dened moon detecon surveillance area, the moving object can be detected and the alarm will be triggered. Up to 4 moon detecon areas can be congured.

MOTION
MODE	OFF
AREA 0
AREA 1
AREA 2
AREA 3
SENSITIVITY	50
COLOR	RED
TRANSPARENCY	OFF
RETURN

Figure 3-8 MOTION

Select a MOTION area. Set the DISPLAY status as ON. Click the up/down/le/right buon to denote the posion and size of the area. Set the SENSITIVITY from 0 to 100.

CAMERA ID

Edit the camera ID on this secon.

CAM ID SETTING

MODE
CAM ID
X POSITION	ON
Y POSITION	75
RETURN	36
	16

Figure 3-9 CAM ID SETTING

Set the MODE as on. Click up/don le/right buon to choose the camera ID and the posion.

3.4.6 RESET

Reset all the sengs to the default.

3.4.7 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save the seng and exit the menu.
