Product Type	Cordless Hand Mixer (without cord)
Brand	KitchenAid
Model	KHMB732WH
Power Source	Rechargeable Li-ion battery, 12 V
Adapter Input Voltage	120 V, 60 Hz
Full Charge Time	2 hours
Quick Charge (10 min)	Allows mixing a cake batter recipe
Battery Life (full charge)	Approximately 200 cookies (per standard test)
Battery Status Indicator	Green (30-100%), Yellow (15-30%), Red (<15%)
Speed Control	Variable, by sliding (forward = faster, backward = slower)
Included Beaters	2 stainless steel Turbo Beaters™ II (one with ring, one without)
Eject Button	Yes, to release beaters

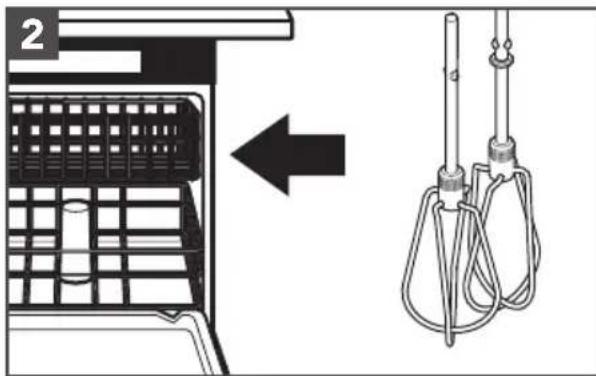

Cleaning Beaters	Dishwasher safe or warm soapy water, rinse and dry
Cleaning Body	Wipe with a damp cloth, do not immerse
Beater Material	Stainless steel
Usage	Household use only, do not use outdoors
Warranty	1 year (hassle-free replacement in 50 US states, DC, Puerto Rico and Canada)
Safety	Do not immerse motor, adapter or plug; keep away from children; use only provided charger
After-Sales Service	Contact KitchenAid Customer eXperience Center (1-800-541-6390 US, 1-800-807-6777 Canada)
Recycling	Dispose of Li-ion battery according to local regulations

Frequently Asked Questions - KHMB732WH KITCHENAID

How do I charge the KitchenAid KHMB732WH cordless hand mixer?

Plug the charger adapter into a 120 V outlet and connect it to the mixer's charging port. The battery status indicator flashes during charging. Full charge takes 2 hours and the indicator becomes solid green. A 10-minute quick charge allows you to make a cake batter recipe.

How do I know if the battery is low?

The battery status indicator shows the level: green (30 to 100%), yellow (15 to 30%, recharge soon), red (less than 15%, recharge immediately). It is recommended to charge when the indicator is yellow.

Can I wash the beaters in the dishwasher?

Yes, the stainless steel Turbo Beaters™ II are dishwasher safe. You can also hand wash them in warm soapy water. Rinse and dry thoroughly. Never put the motor body in the dishwasher.

What should I do if the mixer does not start?

First check that the battery is charged (green indicator). If the indicator is red or off, recharge the appliance. Make sure the speed control is set to 'O' before use. If the problem persists, contact KitchenAid customer service.

How do I attach the beaters to the appliance?

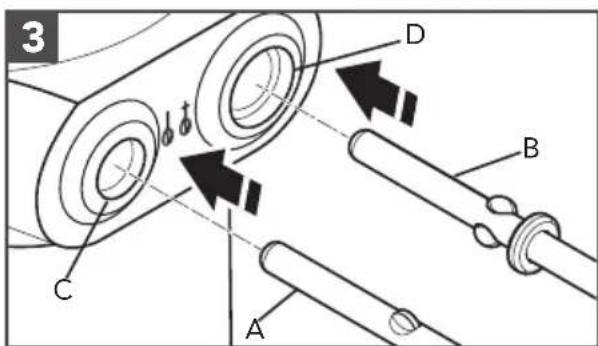

Insert the beater without the ring into the small opening and the beater with the ring into the large opening. Align the two parts and push until you hear a click locking them in place. Ensure the speed control is set to 'O' before attaching or removing beaters.

What is the warranty for the KitchenAid KHMB732WH?

The warranty is one year from the date of purchase. It covers replacement of the appliance or repairs by an authorized center. It does not cover damage due to misuse or non-household use. Keep your proof of purchase.

Can I use non-KitchenAid accessories?

No, using accessories not recommended or sold by KitchenAid may cause fire, electric shock, or injury. Use only the provided accessories or those approved by KitchenAid.

How do I clean the mixer body?

Wipe the mixer with a soft, damp cloth. Dry immediately. Never immerse the body, adapter, or plug in water or any other liquid to avoid risk of electric shock.

What is the battery life?

With a full charge, the mixer can prepare approximately 200 cookies (based on 4 batches of chocolate chip cookies). A 10-minute quick charge is enough for one cake batter recipe.

Where can I get replacement parts or repair?

For replacement parts (beaters, charger) or warranty repair, contact the KitchenAid Customer eXperience Center: 1-800-541-6390 (USA and Puerto Rico) or 1-800-807-6777 (Canada). Out of warranty, consult an authorized repair center.

USER MANUAL KHMB732WH KITCHENAID

7 Speed Cordless Hand Mixer

KHMB732

Exterior view of a modern kitchen mixer with a whisk and power cord (no text or symbols visible)

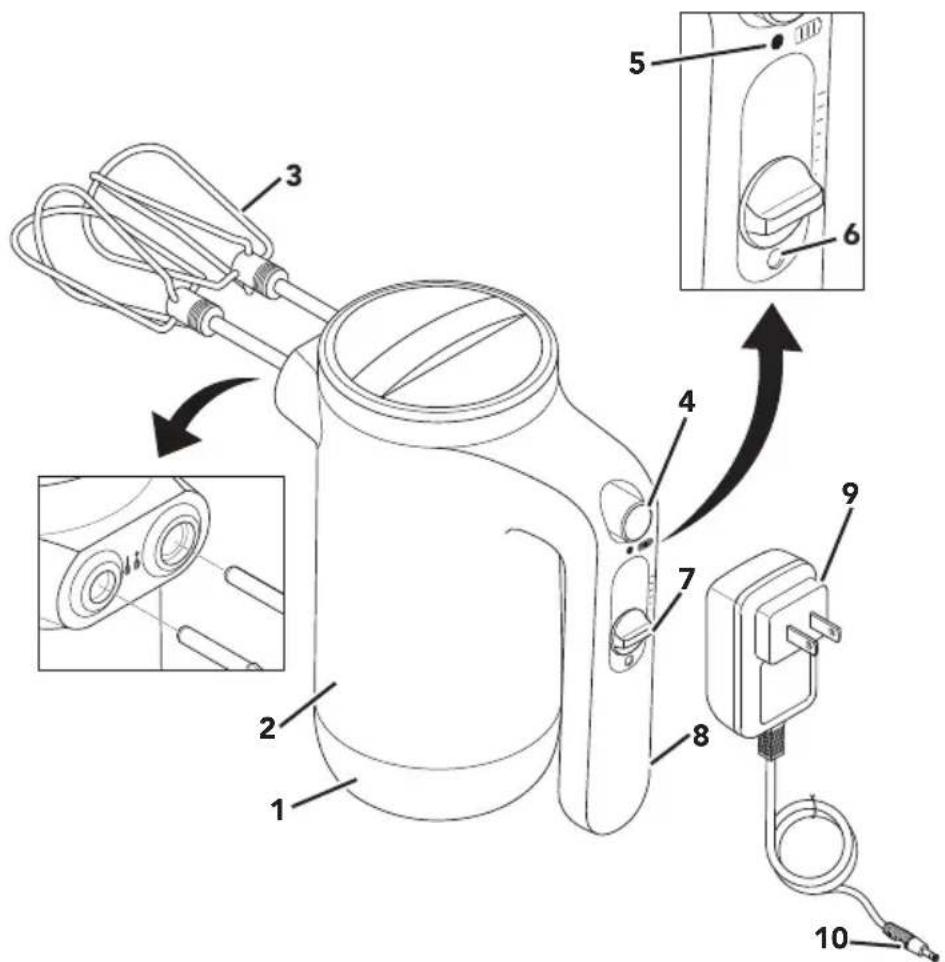

PARTS AND FEATURES

1 Upright stance
2 Motor body
3 Stainless steel turbo beaters ^TM II
4 Eject button
5 Battery status indicator

6 Charging port
7 Speed controller
8 Handle
9 Charger adapter
10 Charger adapter pin

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put the Motor body of Cordless Hand Mixer, Charger adapter, cord, or electrical plug in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Turn the appliance OFF before assembling or disassembling parts and before cleaning. To unplug the charger, grasp the plug and pull from the outlet. Never pull from the power cord.
5. Do not use an extension cord. Plug charger directly into an electric outlet.
6. Use only with the charger provided with the appliance. Do not attempt to use this charger with any other product. Likewise, do not attempt to charge this appliance with any other charger.
7. Do not incinerate this appliance even if it is severely damaged. The batteries can explode in a fire.
8. Avoid contacting moving parts. Keep hands, hair clothing, as well as spatulas and other utensils away from beaters and accessories during operation to reduce the risk of injury to persons or damage to the Cordless Hand Mixer.

PRODUCT SAFETY

1. Do not operate any appliance or Charger adapter with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.
2. The use of attachments not recommended or sold by KitchenAid may cause fire, electric shock, or injury.
3. Do not use the appliance outdoors.
4. Do not let cord hang over edge of table or counter.
5. Never leave the appliance unattended while it is in operation.
6. Do not let cord contact hot surface, including the stove.
7. Remove beaters or accessories from the Cordless Hand Mixer before washing.
8. Refer to the “Care and Cleaning” section for instructions on cleaning the surfaces in contact with food.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

Charger adapter:

Input: 120 Volts 60 Hz

Cordless Hand Mixer:

Voltage: 12 Volts

NOTE: If the plug does not fit fully in the outlet, contact a qualified electrician. Do not modify the plug in any way.

LITHIUM-ION BATTERY OPERATED PRODUCT DISPOSAL

Always dispose the battery operated products according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations.

GETTING STARTED

BEFORE FIRST USE

1. Charge the battery until the Battery status indicator turns solid green.
2. Clean all the parts. (see "Care and Cleaning" section).
3. Remove all packaging materials, if present.

BATTERY STATUS

Battery Status	% Battery Status Full Charge* Quick Charge**
Green	30 % to 100 %	200 cookies 1 cake batter
Yellow	15 % - 30 % (Consider Charging)
Red	Lower than 15 % (Need to charge soon)

*Full Charge:

The Cordless Hand Mixer will be fully charged in 2 hours. The Battery status indicator pulses when it charges and turns to solid green with a full charge.

The Cordless Hand Mixer will prepare approximately 200 cookies, based on 4 batches of chocolate chip cookies when following the recommended battery maintenance.

**Quick Charge:

In 10 minutes the Cordless Hand Mixer will quick charge. The Cordless Hand Mixer will stir up a cake batter recipe with one quick charge when following the recommended battery maintenance.

NOTE: Make sure to charge the battery, when the Battery status indicator is yellow.

NOTE: It is best to store the Cordless Hand Mixer at room temperature.

BATTERY CHARGING

Technical line drawing of a mechanical component with no visible text or symbols

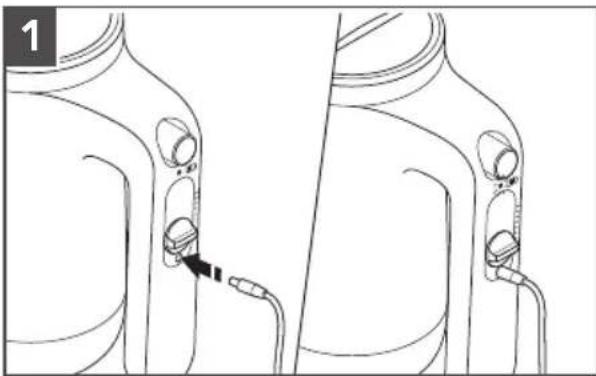

First, slide the Speed controller to "O" position and insert the Charger adapter pin into the Charging port.

Illustration of a power outlet with two socket switches, no text or symbols present

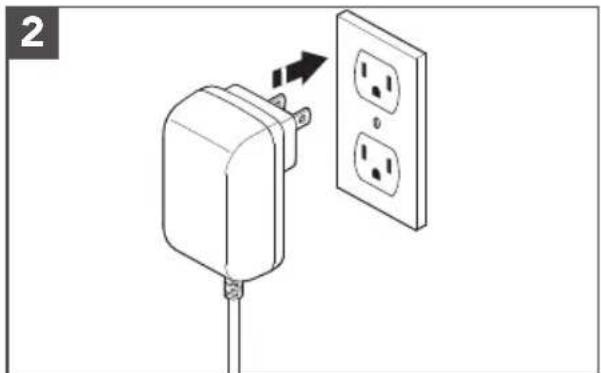

Plug the Charger adapter into a grounded electrical outlet.

BATTERY CHARGING

Technical line drawing of two mechanical components with mounting holes and connecting rods (no text or symbols)

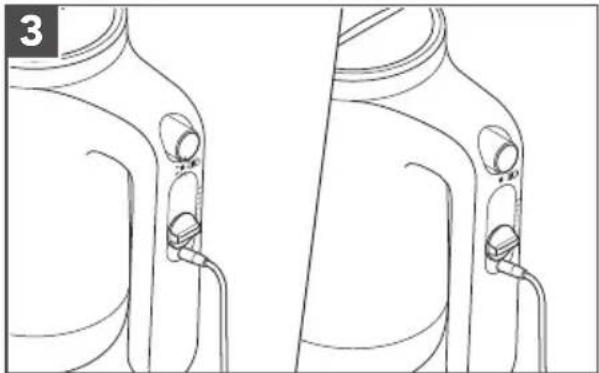

The Battery status indicator pulses when it charges. It will be fully charged in 2 hours and the Battery status indicator turns solid green.

PRODUCT ASSEMBLY

PRODUCT USAGE

NOTE: Make sure the Cordless Hand Mixer is charged before use.

1

Pure diagram of a capsule-shaped device with internal components and an upward arrow, no text or symbols present.

Always start mixing at the lowest speed, and by sliding the Speed controller, increase the speed according to the recipes.

2

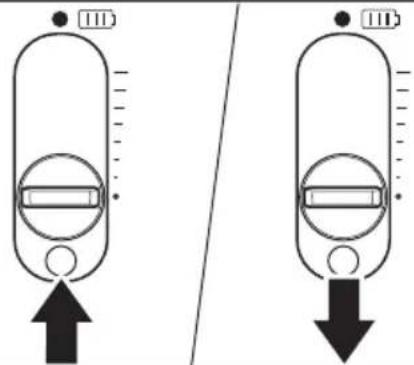

To increase the speed, slide the Speed controller forward (↑). To decrease the speed, slide the Speed controller backward (↓).

3

Simple line drawing of a thermometer with a circular dial and downward arrow (no text or symbols)

When finished, slide the Speed controller to "O" position.

CARE AND CLEANING

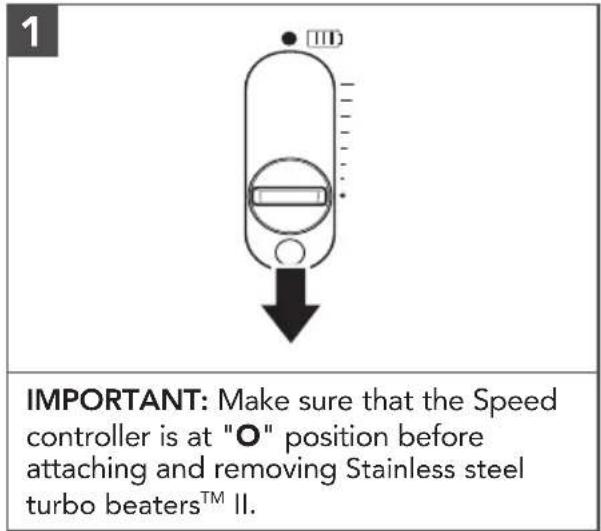

IMPORTANT: Make sure the Speed controller is at "O" before attaching or removing Stainless steel turbo beaters™ II.

1

Line drawing of a hand holding a kitchen mixer with a black arrow indicating motion (no text or symbols)

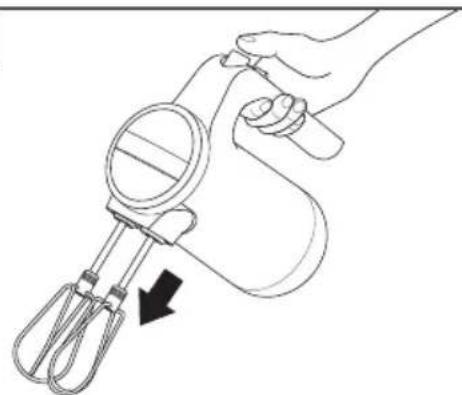

Press the Eject button to release the Stainless steel turbo beaters™ II from the Cordless Hand Mixer.

Always remove the Stainless steel turbo beaters™ II from the Cordless Hand Mixer before cleaning. Wash in dishwasher, or by hand in warm, soapy water. Rinse and wipe dry.

CARE AND CLEANING

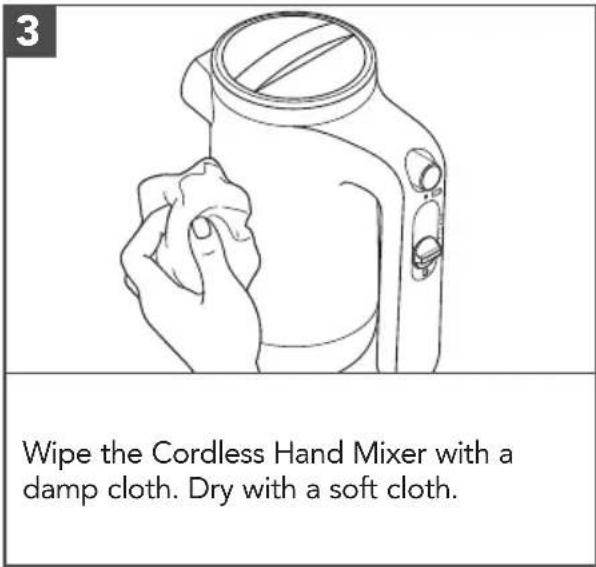

NOTE: To avoid damage to the Cordless Hand Mixer, do not immerse in water.

For detailed information about the Cordless Hand Mixer:

Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes, and tips on how to use and clean your Cordless Hand Mixer.

TROUBLESHOOTING GUIDE

Problem Solution
If the Cordless Hand Mixer fails to start:	Check if the product is charged.Charge the battery when the Battery status indicator is red or when the Battery is completely drained.
If the Cordless Hand Mixer is not getting charged:	If you have a circuit breaker box, make sure that the circuit is closed.
If the problem cannot be corrected:	See the “Warranty and Service” sections.Do not return the Cordless Hand Mixer to the retailer.Retailers do not provide service.

WARRANTY AND SERVICE

KITCHENAID® CORDLESS HAND MIXER WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for the Cordless Hand Mixer operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Cordless Hand Mixer See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1.800.541.6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship.Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Cordless Hand Mixer is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Cordless Hand Mixer to an Authorized Service Center.D. Replacement parts or repair labor costs for the Cordless Hand Mixers operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Cordless Hand Mixer should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Cordless Hand Mixer returned to us. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service. If your Cordless Hand Mixer should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at

1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Cordless Hand Mixer, use the carton and packing materials to pack up your original Cordless Hand Mixer.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Cordless Hand Mixer should fail within the first year of ownership, KitchenAid Canada will replace your Cordless Hand Mixer with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service. If your Cordless Hand Mixer should fail within the first year of ownership, take the Cordless Hand Mixer or ship collect to an Authorized KitchenAid Service Center.

In the carton include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement Cordless Hand Mixer will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner call our toll-free Customer eXperience Center at 1-800-807-6777.

Or write to us at: Customer eXperience Center KitchenAid Canada 200 - 6750 Century Ave. Mississauga, ON L5N 0B7

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico: For service information, or to order accessories or replacement parts, call tollfree at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Cordless Hand Mixer for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

Or write to: Customer eXperience Center KitchenAid Canada 200 - 6750 Century Ave. Mississauga, ON L5N 0B7

PIÈCES ET CARACTÉRISTIQUES

Technical line drawing of two mechanical components with mounting holes and connecting rods (no text or symbols)

ASSEMBLAGE DU PRODUIT

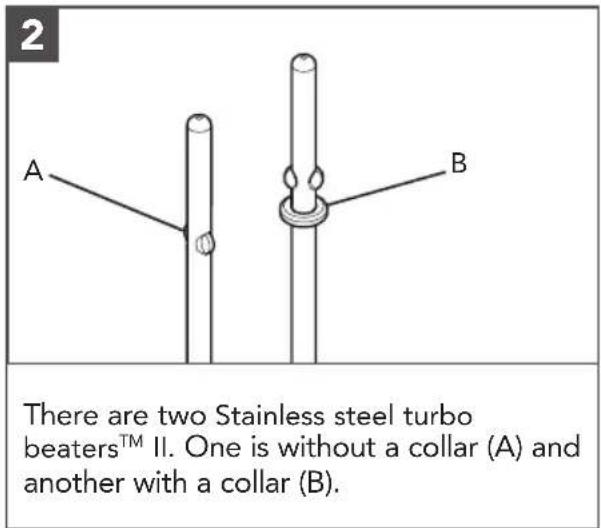

There are two Stainless steel turbo beaters ^™ II. One is without a collar (A) and another with a collar (B).

Pure diagram of a vertical cylindrical device with an arrow pointing upward, no text or symbols present.

Pure diagram of a vertical cylindrical device with internal components and a downward arrow, no text or symbols present.

Line drawing of a hand holding a kitchen mixer with a black arrow indicating motion (no text or symbols)

Line drawing of a hand holding a camera lens (no text or symbols)

Technical line drawing of two mechanical components with mounting holes and connecting rods (no text or symbols)

Pure diagram of a vertical cylindrical device with an arrow pointing upward, no text or symbols present.

Diagram showing two identical cylindrical devices with arrows indicating upward and downward motion, no text or symbols present.

Pure diagram of a vertical cylindrical device with internal components and a downward arrow, no text or symbols present.

Line drawing of a hand holding a kitchen mixer with a black arrow indicating motion (no text or symbols)

White silhouette of a telephone handset on black background (no text or symbols)
