Type	Motorcycle Bluetooth Communication System
Brand	Sena
Model	20S EVO
Bluetooth Version	4.1
Bluetooth Profiles	Headset, Hands-Free (HFP), A2DP, AVRCP
Operating Frequency	2.4 GHz – 2.48 GHz
Max Output Power	0.057 W
Intercom Range	Up to 2.0 km (1.2 miles) in open terrain
Intercom Participants	Up to 8 (multi-way) or 4 (default)
Audio Features	HD Intercom, Audio Multitasking, Advanced Noise Control, Smart Volume Control, Audio Equalizer
Voice Control	Voice commands (e.g., "Hello Sena") and motion sensor activation
FM Radio	Built-in with seek, scan, and 10 presets
Music Sharing	Share music with intercom friend via Bluetooth
Pairing	Up to 2 mobile phones, GPS, SR10, and up to 9 intercom headsets
Battery	Rechargeable lithium-ion; charge time ~2.5 hours
Charging Port	Micro-USB (DC power and firmware upgrade)
Weight	Approx. 57 g (main unit only)
Package Contents	Headset main unit, universal helmet clamp, speakers, boom microphone, wired microphone, USB cable, audio cable, mounting adapter, rubber pads, Allen wrench
Software Support	Sena Device Manager (PC/Mac) and Sena Smartphone App (iOS/Android)
Firmware Upgrade	Yes, via Device Manager
Maintenance	Clean with a soft damp cloth; avoid solvents; keep ports dry
Safety	Use only approved charger; avoid high volume for extended periods; turn off while charging
Reparability	Fault reset via pinhole button; factory reset available; replaceable speakers and microphones

Frequently Asked Questions - 20S EVO Sena

How do I pair my 20S EVO with my mobile phone?

Turn on the headset and press the Phone Button for 5 seconds until the LED flashes red and blue. On your phone, search for Bluetooth devices and select '20S EVO'. Enter PIN 0000 if prompted. You will hear 'Your headset is paired'.

Can I use the 20S EVO with two phones simultaneously?

Yes, the 20S EVO supports second mobile phone pairing. Press the Jog Dial for 6 seconds until red LED flashes, then tap the Phone Button within 2 seconds. Pair the second phone as usual.

How do I start an intercom conversation with another 20S EVO?

First, pair the headsets: press and hold the Jog Dial on both units for 6 seconds until red LEDs flash, then tap the Jog Dial on one unit. After pairing, single tap the Jog Dial to start intercom with the first friend.

What is the battery life and how do I check it?

Battery life varies by usage; typical talk time is up to 13 hours (HD intercom) or 17 hours (normal). To check, power on the headset: the red LED flashes 4 times (high), 3 times (medium), or 2 times (low). You can also hold both buttons for 3 seconds to hear a voice prompt.

How do I share music with an intercom friend?

While in a two-way intercom, press and hold the Jog Dial for 1 second to start music playback, then press and hold until triple beeps to enable Music Sharing. Your friend will hear the same music. Disable by pressing and holding until triple beeps again.

Can I listen to FM radio while riding?

Yes. Press and hold the Phone Button for 2 seconds to turn on the FM radio. Tap the Phone Button to cycle through presets. Rotate the Jog Dial while pressing to seek stations. You can save up to 10 presets.

How do I use voice commands?

Tap the Ambient Mode Button once or say 'Hello Sena' during standby. Then speak a command like 'Intercom one', 'Music', 'FM radio', 'Check battery', or 'Speed dial one'. Voice command works only with English.

What is Audio Multitasking and how do I enable it?

Audio Multitasking allows you to listen to music, FM radio, or GPS instructions while having an intercom conversation. To enable, enter the configuration menu (hold Jog Dial for 12 seconds), rotate to 'Audio multitasking', and tap the Phone Button to enable.

How do I reset the 20S EVO to factory defaults?

Press and hold the Phone Button for 12 seconds until the LED shows solid red and you hear double beeps. Then tap the Jog Dial within 5 seconds to confirm. The headset will reset and turn off.

Can I use the 20S EVO with non-Sena headsets?

Yes, via Universal Intercom. Enter the configuration menu, select 'Universal intercom pairing', then put the non-Sena headset into pairing mode. Only one non-Sena headset can be paired at a time.

USER MANUAL 20S EVO Sena

Motorcycle Bluetooth® Communication System

3D rendered mechanical component with circular and radial features (no text or symbols)

Bluetooth

4.1

2.8m

Multi-way

Group

Audio & Minions

Universal

Music Funding

Kyle Fennard

Males Present

HD Sockers

Rayback Central

Advanced Main Control

Vesetika iya Di

Spect®

Audio Transc

EM Radio

Use While

Informed

Firmware Uncoverable

SENA

www.sena.com

User's Guide

WARNING

To minimize the risk of serious injury, death or product damage, read this User's Guide and the Quick Start Guide before using the product for the first time. Go to sena.com to access these documents if they are missing or unreadable. Keep both Guides for future reference.

© 1998-2021 Sena Technologies, Inc. All rights reserved.

Sena Technologies, Inc reserves the right to make any changes and improvements to its product without providing prior notice.

Sena™ is a trademark of Sena Technologies, Inc. or its subsidiaries in the USA and other countries. SF1™, SF2™, SF4™, SFR™, SRL™, Momentum™, Momentum INC™, Momentum Lite™, Momentum Pro™, Momentum INC Pro™, Momentum EVO™, Cavalry™, Latitude SR™, Latitude SX™, Latitude S1™, 30K™, 33i™, 50S™, 50R™, 50C™, 5S™, 20S EVO™, 20S™, 10S™, 10C PRO™, ProRide EVO™, 10C EVO™, 10U™, 10Upad™, 10R™, ACS10™, 3S™, 3S PLUS™, SMH5™, SMH5-FM™, SMH5 MultiCom™, SMH10™, SMH10R™, SPH10™, SPH10H-FM™, Savage™, Prism Tube WiFi™, Prism™, Bluetooth Audio Pack for GoPro®, Impulse™, R1™, R1 EVO™, R1 EVO CS™, R2™, R2 EVO™, R2X™, M1™, M1 EVO™, RUMBA™, RC1™, RC3™, RC4™, Handlebar Remote™, Wristband Remote™, PowerPro Mount™, Powerbank™, FreeWire™, WiFi Docking Station™, WiFi Sync Cable™, WiFi Adapter™, +mesh™, +Mesh Universal™, MeshPort Blue™, MeshPort Red™, MeshPort Black™, Econo™, OUTRUSH™, OUTRUSH R™, OUTSTAR™, OUTSTAR S™, EcoCom™, Parani A10™, Parani A20™, Parani M10™, pi™, Snowtalk™, Snowtalk2™, SR10™, SR10i™, SM10™, SPIDER RT1™, SPIDER ST1™, X1™, X1 Pro™, X1S™, Expand™, Expand Boom™, Bluetooth Mic & Intercom™, Tufftalk Lite™, Tufftalk M™ are trademarks of Sena Technologies, Inc. or its subsidiaries. These trademarks may not be used without the express permission of Sena.

GoPro® is a registered trademark of Woodman Labs of San Mateo, California. Sena Technologies, Inc. ("Sena") is not affiliated with Woodman Labs. The Sena Bluetooth Pack for GoPro® is an after-market accessory specially designed and manufactured by Sena Technologies, Inc. for the GoPro® Hero3 allowing for Bluetooth capabilities.

The Bluetooth ^® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are registered trademarks of Apple Inc. Zumo ^™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom ^™ is the trademark or registered trademark owned by TomTom International B.V. Other trademarks and tradenames are those of their respective owners.

CONTENTS

1 INTRODUCTION....5
2 PACKAGE CONTENTS....6

2.1 Headset Main Unit 6

2.2 Universal Helmet Clamp 7

3 INSTALLING THE 20S EVO ON YOUR HELMET....8

3.1 Helmet Installation 8
3.2 Glued Surface Mounting Adapter....10
3.3 Switching the Microphone 10
3.4 Earbuds....12

4 GETTING STARTED....12

4.1 Charging 12
4.2 Low Battery Warning....13
4.3 Checking the Battery Level 13
4.4 Powering On and Off....13
4.5 Volume Adjustment 14
4.6 Software....14

5 PAIRING THE 20S EVO WITH BLUETOOTH DEVICES .... 15

5.1 Mobile Phone Pairing....15
5.2 Second Mobile Phone Pairing 16
5.3 Bluetooth Stereo Device Pairing 17

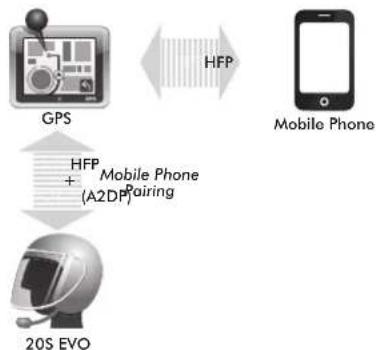

5.4 Bluetooth GPS Navigation Pairing 17
5.5 Pairing with the Sena SR10, Bluetooth Two-way Radio Adapter 19

6 PAIRING WITH SELECTIVE PROFILE: A2DP STEREO OR HANDSFREE......20

6.1 A2DP Stereo Music Only 20
6.2 HFP for Phone Call Only 21

7 MOBILE PHONE CALL MAKING AND ANSWERING 21

7.1 Mobile Phone Call Making and Answering....21
7.2 Speed Dialing....22
7.3 Intercom and Mobile Phone Call 23

8 STEREO MUSIC 24

8.1 By Stereo Audio Cable....24
8.2 By Bluetooth Wireless Stereo 24
8.3 Music Sharing 25

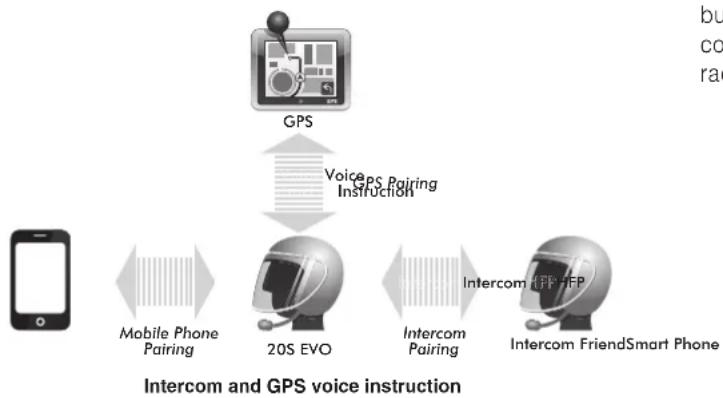

9 GPS NAVIGATION 26

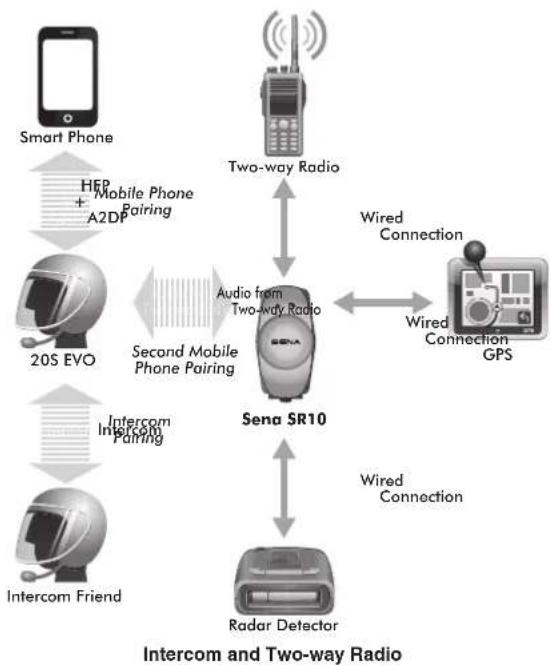

10 SENA SR10, TWO-WAY RADIO ADAPTER....26
11 FM RADIO 27

11.1 FM Radio On / Off 27
11.2 Preset Stations....27
11.3 Seek and Save 27
11.4 Scan and Save....28
11.5 Temporary Preset 28
11.6 Region Selection 29

12 AMBIENT MODE....29
13 VOICE COMMAND 30
14 INTERCOM PAIRING 31

14.1 Pairing with Other 20S EVO Headsets for Intercom Conversation ....31
14.2 Pairing with Other Sena Headset Models for Intercom Conversation ....33

15 TWO-WAY & MULTI-WAY INTERCOM 33

15.1 Two-way Intercom 33
15.2 Multi-way Intercom 34
15.3 Intercom Failure....37
15.4 Intercom Reconnection....37

16 THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM PARTICIPANT 37

17 GROUP INTERCOM....38

18 UNIVERSAL INTERCOM....38

18.1 Universal Intercom Pairing....38

18.2 Two-way Universal Intercom....39

18.3 Three-way Universal Intercom 40

18.4 Four-way Universal Intercom 41

19 REMOTE CONTROL 43

20 FUNCTION PRIORITY 43

21 20S EVO CONFIGURATION SETTING 44

21.1 Assigning Speed Dial 45

21.2 Enabling/Disabling Audio Multitasking 46

21.3 Setting Intercom-audio Overlay Sensitivity 46

21.4 Enabling/Disabling Navigation App Support 47

21.5 Enabling/Disabling Audio Equalizer 47

21.6 Setting Smart Volume Control 47

21.7 Setting Motion Sensor Sensitivity 48

21.8 Enabling/Disabling Voice Activated Phone Answering....48

21.9 Enabling/Disabling HD Intercom 49

21.10 Enabling/Disabling Eight-way Intercom....49

21.11 Enabling/Disabling Voice Prompts....50

21.12 Enabling/Disabling FM Station Guide 50

21.13 Enabling/Disabling Sidetone....50

21.14 Enabling/Disabling Advanced Noise Control™ 51

21.15 Delete All Bluetooth Pairing Information 51

21.16 Remote Control Pairing 51

21.17 Universal Intercom Pairing 52

21.18 Exit Voice Configuration Menu 52

22 RESET TO FACTORY DEFAULT SETTINGS 53

23 FAULT RESET 53

24 FIRMWARE UPGRADE 54

Thank you for choosing the 20S EVO, Motorcycle Bluetooth Communication System. With the 20S EVO, you can call handsfree on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigations by Bluetooth wirelessly, and have intercom conversations in full duplex with a passenger or other motorcycle riders.

The 20S EVO is compliant with Bluetooth 4.1 supporting the following profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP) and Audio Video Remote Control Profile (AVRCP). Please check with the manufacturers of other devices to determine their compatibility with this headset.

Please read this user's guide carefully before using the headset. Also check www.sena.com for the latest version of the User's Guide and additional information related to Sena Bluetooth products.

The 20S EVO features:

• Bluetooth 4.1
  • Dual Bluetooth module communication system
• HD Speakers
• Audio Multitasking™
• Multi-way intercom up to 8 connections

• Group Intercom™

• Bluetooth intercom up to 2.0 kilometers (1.2 miles)*
  • Smartphone App for iPhone and Android
  • Universal Intercom™

• Advanced Noise Control™
• Intuitive voice prompts and voice commands
  • HD quality crystal clear and natural sound
• Versatile functions using motion sensor technology
• All-in-one helmet clamp kit
  • Built-in FM radio tuner with a station scan and save function
• Bluetooth pairing for dual mobile phones
• Bluetooth handsfree for Bluetooth mobile phones
• Bluetooth stereo headset for Bluetooth audio devices such as MP3 players
• Bluetooth stereo headset for Bluetooth GPS navigations
• Firmware upgradeable

Key Specifications:

• Bluetooth 4.1
• Bluetooth 2.4 GHz \~ 2.48 GHz / max output power 0.057W
• Supporting profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), and Audio Video Remote Control Profile (AVRCP)

2 PACKAGE CONTENTS

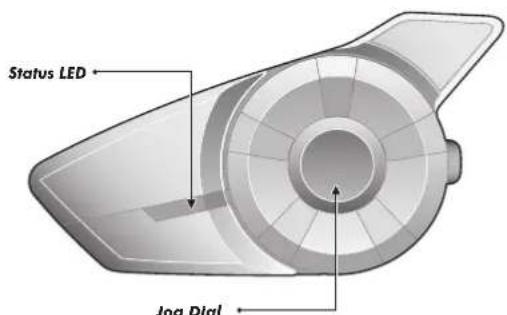

2.1 Headset Main Unit

Jog Dial

• Answer and end a mobile phone call
- Reject an incoming mobile phone call
- Start and end intercom conversation
• Volume adjustment by rotating
- Play and pause Bluetooth stereo device
- Track-forward and track-back by pressing down and rotating
- Enter into intercom pairing mode
- Enter into voice configuration setting
- Navigate through configuration menu
- Seek FM radio station

Firmware Upgrade Port

Phone Button

• Answer and end a mobile phone call
- Speed dial
- Call transfer between mobile phone and headset
- Enter into mobile phone pairing mode
- Enter into Bluetooth stereo device pairing mode
- Enter into factory reset mode
• Turn on/off FM tuner

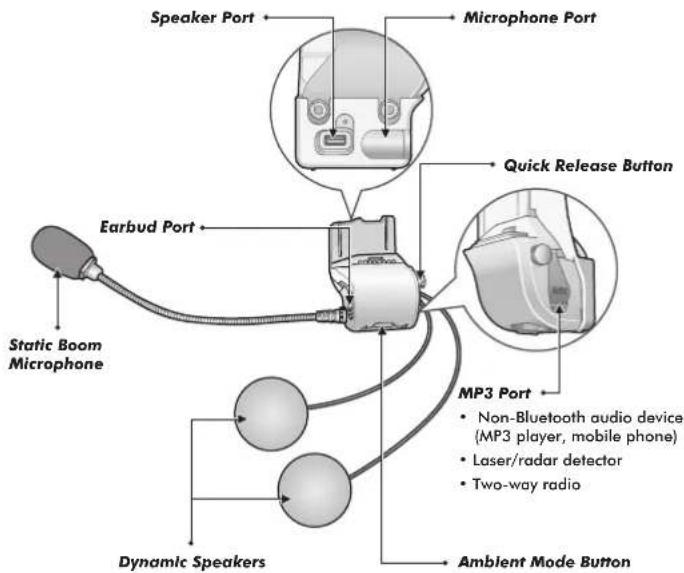

2.2 Universal Helmet Clamp

• Wired Boom Microphone
- Wired Microphone
• USB Power & Data Cable
• 2.5 to 3.5mm Stereo Audio Cable
• Glued Surface Mounting Adapter
- Speaker Port Cover

- Rubber Pads

- Hook and Loop Fasteners for Speakers

- Hook and Loop Fastener for Boom Microphone

- Hook and Loop Fastener for Wired Microphone

- Speaker Pads

• Allen Wrench

3 INSTALLING THE 20S EVO ON YOUR HELMET

3.1 Helmet Installation

To securely install the 20S EVO on the helmet, please follow this procedure.

1. Loosen the two screws on the back plate of the clamp unit using the enclosed allen wrench. Insert the back plate of the clamp unit between the internal padding and external shell of the helmet, and tighten the two screws. Please make sure that the microphone is located properly close to your mouth when you wear the helmet.

Diagram showing a medical device connected to a device with tubing, illustrating a procedure (no text or symbols present)

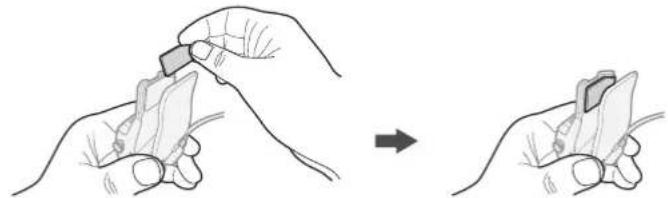

1. Depending on the size and shape of your helmet, you may need to change the thickness of the rubber pad between the clamp plates. You can find two extra rubber pads in the box. To increase the overall thickness, attach the thinner one to the original rubber pad or replace the original rubber pad with the thicker one.

Illustration of two hands holding a small object, one being adjusted to the other (no text or symbols present)

1. Please adjust the direction of the microphone so that the fin side of the microphone is facing outward; away from your lips. You can easily recognize it by touching the fin with your fingers.

1. Place the helmet speakers along with the hook and loop fasteners, centered to your ear, in the ear pockets of the helmet.

Diagram of a biological structure with an inset magnified view showing internal layers (no text or labels)

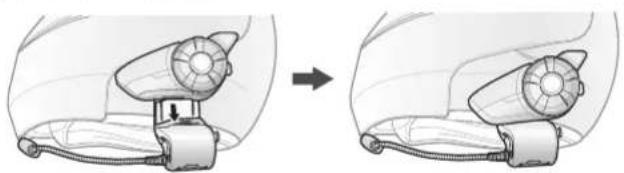

1. Attach the headset main unit to the clamp unit. Slide the main unit down onto the clamp unit until it clicks firmly into the bottom portion of the clamp unit.

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

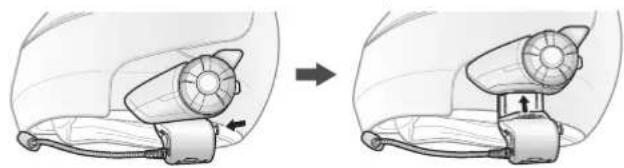

1. To remove the main unit from the clamp unit, press the Quick Release Button to slide it off the clamp unit.

Diagram showing a car interior with a device before and after change, no text or symbols present

3.2 Glued Surface Mounting Adapter

If you have any problem equipping the clamp unit on the helmet for any reason, you may use the glued surface mounting adapter to attach the clamp unit on the external surface of the helmet.

1. Remove the speaker unit from the speaker port.
2. Remove the back plate of the clamp unit completely.
3. Remove the rubber pad and replace it with the thicker rubber pad included in the package.
4. Put the speaker cable through the glued external adapter and reconnect it to the speaker port.
5. Hook on the adapter to the clamp unit then screw in the glued external adapter to the clamp unit.

6. Locate a proper surface on the helmet to attach the unit then clean the helmet surface location with a moistened towel and allow to dry thoroughly.

7. Peel off the cover of the adhesive tape of the adapter and attach the unit on the proper surface of your helmet.

Diagram showing a car charger connected to a cable, before and after assembly (no text or symbols)

Note:

Sena recommends the clamp unit over the glued surface mounting adapter. Even though the glued surface mounting adapter is provided for convenience, Sena does not assume any responsibility for use of it. Users may have to use the glued adapter at their own risk and responsibility.

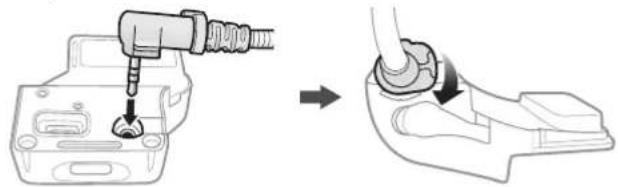

3.3 Switching the Microphone

If you want to use a different microphone instead of the static boom microphone, please refer to the following steps.

1. Remove the back plate of the clamp unit by loosening the two screws with the enclosed allen wrench.

2. If you look into the back side of the clamp, the left port is for speakers and the right port is for microphone.

3. Two extra microphones are provided, a wired boom microphone and a wired microphone. Connect the one you need according to your helmet type.

4. Lock the microphone to the clamp by turning the lock clockwise.
5. Reattach the back plate to cover the microphone and the speaker port.
6. Follow steps in section 3.1, "Helmet Installation" to complete the clamp installation.

Mechanical assembly diagram showing a tool inserted into a housing component, before and after disassembly (no text or symbols present)

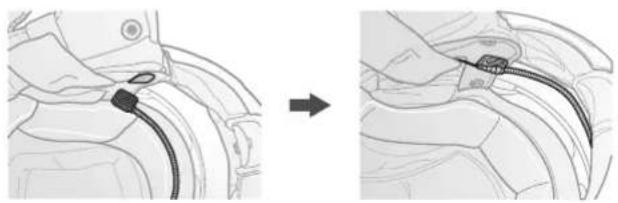

3.3.1 Wired Boom Microphone

When installing the included wired boom microphone, place the hook and loop fastener end of the boom microphone between the internal helmet cheek pad and the internal wall of the helmet shell. The boom microphone should be mounted so it is facing close to your mouth when you wear the helmet.

Diagram showing a mechanical component being inserted into a housing, with no visible text or symbols

3.3.2 Wired Microphone

In case of the wired microphone, attach the enclosed hook and loop fastener for the wired microphone to the inside of the chin guard for full-face helmets. Place the wired microphone on the hook and loop fastener and connect it to the connector of the clamp unit.

Illustration of a medical procedure showing a hand holding a circular object with a pointer (no text or symbols present)

3.4 Earbuds

If you want to wear your own earbuds, connect the earbuds to the earbud port on the left side of the clamp. You can connect your earbuds to the clamp while having the speakers connected to the clamp. The sound of the earbuds will be active while the sound of the outer speakers becomes inactive.

Illustration of a medical procedure with a coiled tube inserted into a patient's arm (no text or symbols visible)

Note:
If you remove the outer speakers from the clamp, make sure to reassemble the speaker port cover and tighten the screw.

Diagram of a mechanical device with a hose and connector (no text or symbols)

4 GETTING STARTED

4.1 Charging

WARNING

When charging the battery, use only the approved charger provided by the manufacturer. Use of a non-approved charger may cause fire, explosion, leakage, and other hazards which may also reduce the life time or performance of the battery.

You can charge the 20S EVO by connecting the supplied USB power & data cable into a computer USB port or USB wall charger. You can use any standard micro-USB cable to charge the 20S EVO. The LED turns red while the headset is charging and turns blue when it is fully charged. It takes about 2.5 hours to be completely charged.

Note:

Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC or other locally approved agencies that Sena accepts.

CAUTION

Please make sure to take off your 20S EVO-installed helmet while charging. The headset automatically turns off during charging.

4.2 Low Battery Warning

When the battery is low, the blinking blue LED in stand-by mode turns to red and you will hear three, mid-toned beeps and a voice prompt saying "Low Battery".

4.3 Checking the Battery Level

You can check the battery level in two different ways when the headset is powering on.

4.3.1 LED Indicator

When the headset is powering on, the red LED flashes rapidly indicating the battery level.

4 flashes = High, 70\~100%

3 flashes = Medium, 30\~70%

2 flashes = Low, 0\~30%

Note:

1. The battery performance may be reduced over time with usage.
2. Battery life may vary depending on conditions, environmental factors, functions of the product in use, and devices used with it.

4.3.2 Voice Prompt Indicator

When you power on the headset, keep pressing the Jog Dial and the Phone Button simultaneously for about 3 seconds until you hear three, high toned beeps. Then you will hear voice prompt indicating the battery level. However, if you release the buttons as soon as the headset turns on, you will not hear the voice prompt for the battery level indication.

4.4 Powering On and Off

Press the Jog Dial and the Phone Button at the same time to power the headset either on or off. When powering on the headset, press the Jog Dial and the Phone button at the same time until the blue LED appears while hearing the ascending beeps. When powering off the headset, press the Jog Dial and the Phone Button at the same time until the red LED appears briefly and the headset turns off completely while hearing descending beeps.

4.5 Volume Adjustment

You can easily adjust the volume by rotating the Jog Dial. You will hear a beep when the volume reaches maximum or minimum level. The volume is set and maintained independently at different levels for each audio source even when you turn off and on the headset. For example, once you set the volume for mobile phone handsfree, it will not change even if you adjust the volume for your Bluetooth MP3 music. So you can always maintain the preferred optimum volume level for each audio source.

WARNING

Use of the product at a high volume for a long period of time may damage your eardrums or hearing ability. Keep the volume at a modest level to prevent damage.

4.6 Software

4.6.1 Sena Device Manager

The Device Manager allows you to upgrade the firmware and configure the device settings directly from your PC. Using this software, you can assign speed dial presets, FM radio frequency presets and more. It is available to download for both Windows and Mac. For more information on downloading the Device Manager, please visit www.sena.com.

4.6.2 Sena Smartphone App

The Sena Smartphone App allows you to configure the device settings, create groups of intercom friends, and view the quick start guide. Simply pair your phone with your 20S EVO headset, run the Sena Smartphone App and you can configure its settings directly from your smartphone. You can download the Sena Smartphone App for Android or iPhone from www.sena.com.

5 PAIRING THE 20S EVO WITH BLUETOOTH DEVICES

Before using the 20S EVO Bluetooth headset with any Bluetooth devices for the first time, you will need to pair them together. It can be paired with Bluetooth mobile phones, Bluetooth stereo devices such as MP3 players, or motorcycle specific Bluetooth GPS navigation, and with other Sena Bluetooth headsets. This pairing operation is only required once for each Bluetooth device. The headset remains paired with the devices and automatically reconnects to them when they are within range. You will hear a high tone single beep and a voice prompt when the headset connects to the paired device automatically:

“Phone connected” to a mobile phone, “Media connected” to a Bluetooth stereo device.

5.1 Mobile Phone Pairing

5.1.1 General Mobile Phone Pairing

1. Turn on the 20S EVO and press the Phone Button for 5 seconds until the LED flashes red and blue alternately and you hear multiple beeps. You will hear a voice prompt saying "Phone pairing".
2. Search for Bluetooth devices on your mobile phone. Select the 20S EVO in the list of the devices detected on the mobile phone.
3. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN.
4. The mobile phone confirms that pairing has completed and the 20S EVO is ready to use. You will hear a voice prompt from the 20S EVO saying "Your headset is paired".
5. If the pairing process is not completed within three minutes, the 20S EVO will return to stand-by mode.

5.1.2 NFC Mobile Phone Pairing

You can quickly pair your mobile phone using NFC (Near Field Communication) technology with your NFC-enabled mobile phone.

1. Make sure that your mobile phone has the NFC function turned on and that the phone screen is active.
2. Turn on the 20S EVO and remove the main unit from the clamp unit.
3. Place your mobile phone over the back side of the 20S EVO so that the NFC detection area of each device touches each other.
4. Follow the pairing instructions that appear on your phone. If a passcode is required, enter "0000".
5. The mobile phone confirms that pairing has completed and the 20S EVO is ready to use.
6. Reattach the 20S EVO to the clamp unit.

5.2 Second Mobile Phone Pairing

Typical Bluetooth headsets can connect with only one Bluetooth device, but a second mobile phone pairing allows the headset to connect with another Bluetooth device such as a second mobile phone, an MP3 Player, or the Sena SR10, the Bluetooth adapter.

1. To pair the second mobile phone, press the Jog Dial for 6 seconds until the red LED is rapidly flashing and you hear multiple beeps.

2. Within 2 seconds, tap the Phone Button again, then the LED turns to blue flashing and the beeps turn to high toned double beeps. You will hear a voice prompt saying "Second mobile phone pairing".

3. Search for Bluetooth devices on your mobile phone. Select the 20S EVO in the list of the devices detected on the mobile phone.
4. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN.
5. The mobile phone confirms that pairing has completed and the 20S EVO is ready to use. You will hear a voice prompt from the 20S EVO saying "Your headset is paired".
6. If you want to pair the Sena SR10, Bluetooth adapter, please refer to the section 5.5, "Pairing with the Sena SR10, Bluetooth Two-way Radio Adapter".

Note:

If you have two audio (A2DP) devices connected to your headset then the audio from one device will interrupt the audio from the other device. For example, if you are playing music from the primary mobile phone, then it can be interrupted by playing music from the secondary mobile phone and vice versa.

5.3 Bluetooth Stereo Device Pairing

1. If the Bluetooth stereo device is integrated with the mobile phone such as smartphones, you don't need to pair the 20S EVO with it separately. When the 20S EVO is paired with the mobile phone, it is also paired as a stereo music device.
2. If you have a stand alone Bluetooth stereo device, follow the pairing procedure separately. The procedure is the same as the procedure in section 5.1, "Mobile Phone Pairing".

Note:

1. If Bluetooth connection between the headset and a mobile phone is disconnected, tap the Phone Button to recover the Bluetooth connection immediately.
2. If Bluetooth connection between the headset and a media player is disconnected, press the Jog Dial for 1 second to recover the Bluetooth connection and play.

5.4 Bluetooth GPS Navigation Pairing

5.4.1 GPS Pairing

1. Turn on the headset and press the Jog Dial for 6 seconds until the red LED is rapidly flashing and you hear multiple beeps.
2. Within 2 seconds, tap the Phone Button and hear the voice prompt, "Second mobile phone pairing". Again within 2 seconds, tap the Phone Button and the LED turns to green flashing and the beeps turn to multiple mid-toned beeps. You will hear the voice prompt, "GPS pairing".
3. Search for Bluetooth devices on the GPS navigation screen. Select the 20S EVO in the list of the devices detected on the GPS.
4. Enter 0000 for the PIN.
5. The GPS confirms that pairing has completed and the 20S EVO is ready to use. You will hear a voice prompt from the 20S EVO saying "Your headset is paired".
6. If the pairing process is not completed within three minutes, the 20S EVO will return to stand-by mode.

Note:

If you pair your GPS device via GPS Pairing, its instructions will not interrupt your intercom conversations, but overlay with them.

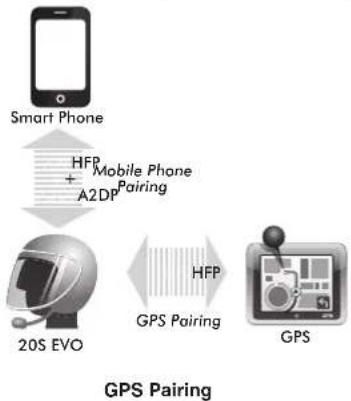

The pairing diagram for GPS pairing is shown in the figure below.

5.4.2 GPS Pairing as Mobile Phone

If a GPS is not only used for turn-by-turn voice instructions but also is your preferred Bluetooth stereo music source, you can pair the GPS to the 20S EVO by following the simple procedures in "5.1 Mobile Phone Pairing". However, since some GPS systems support mobile phone bridging over Bluetooth, you can pair the mobile phone to the GPS to use your mobile phone. When you do this, the 20S EVO thinks the GPS is a mobile phone so you can no longer pair your mobile phone to the 20S EVO directly. Please refer to the user's guide of your GPS for details.

GPS Pairing as Mobile Phone

Note:

You have to use a motorcycle specific GPS which transmits turn-by-turn voice instruction to the headset by Bluetooth. Most automotive GPS systems don't have this feature.

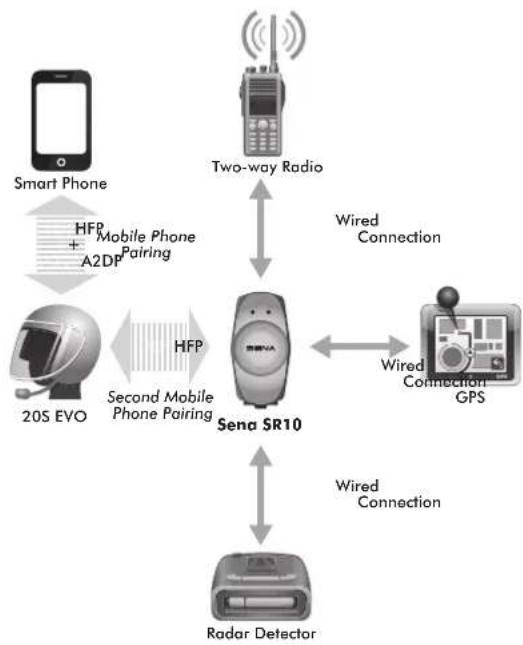

5.5 Pairing with the Sena SR10, Bluetooth Two-way Radio Adapter

The Sena SR10 is a Bluetooth two-way radio adapter for group communication, and uses HFP as do most motorcycle specific GPS navigation systems. If you pair the 20S EVO with a SR10 by second mobile phone pairing, the 20S EVO is able to have two HFP devices at the same time: a mobile phone and the Sena SR10.

1. Turn on the headset and press the Jog Dial for 6 seconds until the red LED is rapidly flashing and you hear multiple beeps.
2. Within 2 seconds, tap the Phone Button again, then the LED turns to blue flashing and the beeps turn to high tone double beeps. You will hear a voice prompt saying "Second mobile phone pairing".

3. Turn on the SR10 and follow the SR10's "Bluetooth Headset Pairing" procedure to complete the process. Please refer to the SR10 user's guide for details.

4. When the pairing is completed, you will hear a voice prompt saying "Your headset is paired".

5. If the pairing process is not completed within three minutes, the 20S EVO will return to stand-by mode.

The incoming audio from the two-way radio via SR10 is heard in the background while having an intercom conversation or a mobile phone call. You can listen to music, answer a mobile call, have an intercom conversation and use a two-way radio via the SR10 for group communication as shown in the figure below. A GPS system or a radar detector which has a headphone jack or audio line-out could be connected to the SR10 by a wire. The GPS voice instruction or the radar detector alarm is also heard in the background via the SR10 while having an intercom conversation or a phone call. Please refer to the SR10 User's Guide for details.

Parallel Connection of SR10 and Mobile Phone by Bluetooth Second Mobile Phone Pairing

6 PAIRING WITH SELECTIVE PROFILE: A2DP STEREO OR HANDSFREE

If you have a MP3 stereo music phone such as a smartphone, sometimes you may need to selectively use the 20S EVO for A2DP stereo music only or for mobile phone handsfree only. These instructions are for advanced users who want to pair the 20S EVO to their smartphones only with one selective profile: A2DP stereo for music or HFP for phone calls.

If you have previously paired a mobile phone to the 20S EVO, you must clear the previous pairing list on both devices; the mobile phone and 20S EVO. To clear the pairing list on 20S EVO, please do a factory reset or follow the pairing list clearing procedure described in this manual. To clear the pairing list on the mobile phone, please refer to the mobile phone manual. For most smartphones, delete the 20S EVO from the list of Bluetooth devices in the settings menu.

6.1 A2DP Stereo Music Only

1. Turn on the headset and press the Phone Button for 5 seconds until the LED flashes red and blue alternately and you hear multiple beeps.

2. Within 2 seconds, tap the Jog Dial again, then the LED turns to red flashing and the beeps turn to double mid-tone beeps. You will hear a voice prompt saying "Media selective pairing".

3. Search for Bluetooth devices on your smartphone. Select the 20S EVO in the list of devices detected on your phone.
4. Enter 0000 for the PIN. Some smartphones may not ask for the PIN.

6.2 HFP for Phone Call Only

1. Turn on the headset and press the Phone Button for 5 seconds until the LED flashes red and blue alternately and you hear multiple beeps.
2. Within 2 seconds, tap the Phone Button again, then the LED turns to blue flashing and the beeps turn to multiple mid-tone beeps. You will hear a voice prompt saying "Phone selective pairing".
3. Search for Bluetooth devices on your smartphone. Select the 20S EVO in the list of devices detected on your phone.
4. Enter 0000 for the PIN. Some smart phones may not ask for the PIN.

7 MOBILE PHONE CALL MAKING AND ANSWERING

7.1 Mobile Phone Call Making and Answering

1. When you have an incoming call, simply tap the Phone Button or the Jog Dial to answer the call.
2. You can also answer the incoming call by loudly speaking any word of your choice if Voice Activated Phone Answering (VOX Phone) is enabled, unless you are connected to intercom.
3. To end a call, tap the Phone Button or press the Jog Dial for 2 seconds until you hear a beep, or wait for the called person to end the call.
4. To reject a call, press the Jog Dial for 2 seconds until you hear a beep while the phone is ringing.
5. To transfer a call between the mobile phone and the headset during the phone conversation, press the Phone Button for 2 seconds until you hear a beep.
6. There are several ways to make a phone call:

7. Enter numbers on your mobile phone's keypad and make a call. Then the call is automatically transferred to the headset.

8. For some older mobile phones which do not automatically transfer calls to the headset, press the Phone Button after entering phone numbers on the mobile phone keypad.

9. Tap the Phone Button in stand-by mode to activate the voice dialer of your mobile phone. For this, the voice dialing feature must be available on the mobile phone. Refer to your mobile phone manual for further instruction.

Note:

1. If you are using second mobile phone connection and you have an incoming call from the second phone during a call involving the first phone, then you may still receive the call from second phone. In this case, the call from the first phone is on waiting mode. If you end a call, then it will automatically transfer you to the first phone call.
2. If you are using second mobile phone connection of mobile phone and GPS, you may not be able to listen to the GPS voice instruction during the phone call.

7.2 Speed Dialing

You can quickly make a phone call by using the voice speed dial menu.

1. To enter into the voice speed dial menu, double tap the Phone Button and you will hear a mid-tone single beep and a voice prompt saying "Speed dial".
2. Rotate the Jog Dial clockwise or counter-clockwise to navigate between the menus. You will hear voice prompts for each menu item.
3. Tap the Phone Button to select a voice menu among the followings:

(1) Last number redial (4) Speed dial 3
(2) Speed dial 1 (5) Cancel
(3) Speed dial 2

1. After selecting the last number redial menu, you will hear a voice prompt saying "Last number redial". Then, to redial the last phone call number, tap the Phone Button.

2. To call one of the speed dials, rotate the Jog Dial clockwise or counter-clockwise to navigate between the menus until you hear a voice prompt saying "Speed dial (#)". Then, tap the Phone Button.

3. If you want to exit the speed dial immediately, rotate the Jog Dial until you hear a voice prompt saying "Cancel", and tap the Phone Button or the Jog Dial. If any button is not pressed within 15 seconds, the 20S EVO will exit the voice speed dial menu and go back to stand-by mode.

Note:

1. Make sure that you connect the mobile phone and the headset in order to use the speed dial function.
2. Speed dial needs to be setup through the headset (refer to section 21.1, "Assigning Speed Dial"), Sena Smartphone App, or Device Manager first.

Answer	Tap Phone Button or Tap Jog Dial or Say “Hello”
End Tap Phone Button or Press Jog Dial for 2"
Reject Press Jog Dial for 2"
Transfer Press Phone Button for 2"
Call Use phone keypad
Speed Dial Double tap Phone Button
Voice Dial Tap Phone Button

Mobile Phone Call Button Operations

7.3 Intercom and Mobile Phone Call

1. When you have an incoming mobile phone call during an intercom conversation, you will hear a ring tone. You can choose whether to 1) answer the mobile phone call and stop the intercom conversation, or 2) reject the phone call and stay on the intercom conversation.

a. To answer the phone call and stop the intercom conversation, tap the Jog Dial or the Phone Button. The VOX Phone feature does not work if you are connected to intercom. When you hang up the phone call, the intercom will automatically be recovered.
b. To reject the phone call and stay on the intercom conversation, press the Jog Dial for 2 seconds until you hear a beep.

Unlike other motorcycle Bluetooth headsets, this prevents a user from being dropped out of an intercom conversation by an incoming mobile call.

1. When you have an incoming intercom call during a mobile phone call, you will hear 4 high tone beeps, alerting you that there is an incoming intercom call. You will also hear a voice prompt saying "Intercom requested". In this case, the intercom call does not override the mobile phone call because intercom has lower priority than mobile call. You have to hang up the mobile phone call to make or receive an intercom call.

8 STEREO MUSIC

You can listen to stereo music in two ways: with the enclosed stereo audio cable or by Bluetooth wireless stereo.

8.1 By Stereo Audio Cable

Plug your stereo MP3 player directly to the 20S EVO by using the enclosed 2.5mm to 3.5mm stereo audio cable. To adjust the volume, rotate the Jog Dial on the headset. You may adjust the volume on the MP3 player also.

8.2 By Bluetooth Wireless Stereo

The Bluetooth audio device must be paired with the 20S EVO by following the "Bluetooth Stereo Device Pairing" procedures described in the section 5.3. The 20S EVO supports the Audio/Video Remote Control Profile (AVRCP), so if your Bluetooth audio device also supports the AVRCP, you can use the 20S EVO to remotely control music playback. Not only can you adjust the volume but you can also use the functions such as play, pause, next track and previous track. If the Audio Multitasking feature is enabled, you can listen to the music while having an intercom conversation.

1. To adjust the volume, rotate the Jog Dial.

Illustration of hands holding a circular device with a rotating knob (no text or symbols)

1. To play or pause music, press and hold the Jog Dial for 1 second until you hear a double beep.

Hand holding a cylindrical object with a knob, no visible text or symbols

1. To track forward or track back, rotate while pressing the Jog Dial clockwise or counter clockwise.

Illustration of a hand holding a circular mechanical component with arrows indicating rotation (no text or symbols)

Note:

Bluetooth music is available only when the MP3 port remains open. Please make sure the audio cable is unplugged from the clamp unit to play music by Bluetooth.

8.3 Music Sharing

You can start sharing music with an intercom friend using Bluetooth stereo music during a two-way intercom conversation.

1. Enter into a two-way intercom and press and hold the Jog Dial for one second to play music.
2. Press and hold the Jog Dial until you hear triple beeps and you will hear a voice prompt saying "Music sharing on".
3. To track forward or track back, rotate while pressing down the Jog Dial clockwise or counter clockwise.
4. To terminate music sharing, press and hold the Jog Dial until you hear triple beeps and you will hear a voice prompt saying "Music sharing off".

Please refer to chapter 15 for more information on intercom connections.

Note:

1. Audio Multitasking must be enabled to use music sharing. Please refer to section 21.2 for more details on the Audio Multitasking feature.
2. Both you and your intercom friend can remotely control music playback during music sharing such as track forward and track back.
3. When you have an incoming call, make a phone call, or hear the turn-by-turn voice instruction of GPS during music sharing, the function will be paused.

9 GPS NAVIGATION

If you pair a Bluetooth GPS to the 20S EVO as described in section 5.4, "Bluetooth GPS Navigation Pairing", you can hear the voice instruction of the GPS while having an intercom conversation. The GPS voice instruction does not interrupt intercom conversations.

10 SENA SR10, TWO-WAY RADIO ADAPTER

As described in section 5.5, you can use a two-way radio and the 20S EVO Bluetooth intercom simultaneously by using the Sena SR10, a Bluetooth Two-way Radio Adapter, along with the 20S EVO. Incoming audio from the two-way radio will not interrupt an intercom conversation but is heard in background. This is useful when you have an intercom conversation with a passenger on the back seat and use a two-way radio for group communication with other motorcycle riders.

11 FM RADIO

11.1 FM Radio On / Off

To turn on the FM radio, press and hold the Phone Button for 2 seconds until you hear a mid-tone double beep sound. You will then hear a voice prompt saying "FM on". In order to turn off the FM radio, press and hold the Phone Button for 2 seconds until you hear a voice prompt saying "FM off". When you power off, the 20S EVO will remember the last station frequency. When you power it on, the last station frequency will be playing.

11.2 Preset Stations

You can listen to preset stations while listening to the FM radio. Tap the Phone Button once to go upward to your next saved preset station.

11.3 Seek and Save

"Seek" is the function that searches from station to station frequencies. To use the "Seek" function, please follow the procedure below:

1. Rotate while pressing the Jog Dial clockwise to search up the station dial or counter clockwise to search down the station dial.

2. If the tuner finds a station while searching frequencies, it stops the seek function.

3. To save the current station, press and hold the Jog Dial for 2 seconds until you hear a voice prompt saying "Preset (#)".

4. Rotate the Jog Dial clockwise or counter clockwise, in order to select which preset number you want for that specific station. You can save up to 10 preset stations. (You may cancel the preset operation by waiting approximately 10 seconds. You will then hear "Save preset cancelled". You can also rotate the Jog Dial clockwise or counter clockwise until you hear "Cancel". Tap the Jog Dial to confirm cancellation. You will then hear "Save preset cancelled").
5. To save the current station, tap the Jog Dial again. You will then hear a voice prompt saying "Save preset (#)".
6. To delete the saved station in the preset number, tap the Phone Button. You will then hear a voice prompt saying "Delete preset (#)".

Note:

1. You can save FM stations to presets before using FM radio. Connect the 20S EVO to your PC and open the Device Manager. It allows you to save up to 10 FM station frequency presets on the 20S EVO settings menu. You may do the same operation by using the Sena Smartphone App.

2. You can still answer an incoming phone call and intercom while listening to the FM radio.

11.4 Scan and Save

"Scan" is the function that automatically searches station frequencies, starting from the current frequency and up. To use the scan function, please follow the procedures below:

1. Double tap the Phone Button. Then the current station frequency moves upward to find other station frequencies.
2. If the tuner finds a station, it stays at the station frequency for 8 seconds, then scanning to the next station frequency.
3. Scan function stops when you double tap the Phone Button again.
4. To save a station while scanning frequencies, tap the Phone Button when at that station. You will hear a voice prompt from the 20S EVO saying "Save preset (#)". The station will be saved as the next preset number.
5. All stations preset during "Scan", will overwrite previously set stations.

11.5 Temporary Preset

With the temporary preset function, you may temporarily preset stations automatically without changing the existing preset stations. Tap the Phone Button three times to automatically scan for 10 temporary preset stations. The temporary preset stations will be cleared when the system is powered off.

11.6 Region Selection

You can select proper FM frequency region from the Device Manager. With the region setting, you may optimize seek function to avoid unnecessary frequency range (Factory default: Americas).

Region Frequency range Step
Worldwide 76.0 ~ 108.0 MHz ± 100 kHz
Americas 87.5 ~ 107.9 MHz ± 200 kHz
Asia 87.5 ~ 108.0 MHz ± 100 kHz
Australia 87.5 ~ 107.9 MHz ± 200 kHz
Europe 87.5 ~ 108.0 MHz ± 100 kHz
Japan 76.0 ~ 95.0 MHz ± 100 kHz

12 AMBIENT MODE

You can hear the ambient sound outside of your helmet by activating the Ambient Mode. To activate the Ambient Mode, press twice the Ambient Mode Button which is placed on the bottom of the clamp unit. To deactivate the Ambient Mode, press twice the Ambient Mode Button again.

Note:

The ambient mode has higher priority than mobile phone, so you cannot make or answer phone call, listen to music, or have an intercom conversation if the Ambient Mode is activated.

13 VOICE COMMAND

The voice command of the 20S EVO allows you to operate certain operations by simply using your voice. You can control the 20S EVO completely handsfree using the voice recognition. The voice command function works only with English commands.

Voice Command Procedure:

1. There are three ways to enter the voice command mode. The simplest way is to tap once on the Ambient Mode Button. Another way is to double tap the surface of the 20S EVO or the helmet surrounding the 20S EVO. Be careful not to press the Jog Dial during this process. Lastly, you can say, "Hello Sena" during standby mode.
2. Speak a voice command from the table below:

Mode Status Function Voice Command
Standby / Music / FM Radio /	Start/End each Intercom	“Intercom [one, two, ... , nine]”
	End all intercoms	“End intercom”
	Call last intercom	“Last intercom”
	Group Intercom	“Group intercom”
	Intercom pairing	“Pairing intercom”
	Cancelling operations	“Cancel”
Standby	Play/Pause music	“Music” or “Stereo”
	Turn on/off FM radio	“FM radio”
	Check battery	“Check battery”
	Speed dialing	“Speed dial [one, two, three]”
	Redial the last call	“Redial”
	Voice command help	“What can I say?”
	Check connected devices	“Connected devices”
	Configuration menus	“Configuration”
Mode Status Function	Voice Command
Music / FM Radio	Next track (music) / next preset (FM radio)	“Next”
	Previous track (music) / previous preset (FM radio)	“Previous”
	Stop music / FM Radio	“Stop”

Note:

1. Voice command performance may vary based on the environmental conditions including riding speed, helmet type and ambient noise. To improve the performance, minimize wind noise on the microphone by using the large microphone sponge and closing the visor.
2. To activate the voice command during non-stand-by functions, tap the Ambient Mode Button or double tap the surface of the main unit.
3. If the 20S EVO is in stand-by mode for longer than one minute then the microphone will automatically be disabled and the Voice Command feature cannot be activated by saying 'Hello Sena'. The Voice Command feature will need to be activated by tapping the Ambient Mode Button once or double tapping the surface on the 20S EVO.

14 INTERCOM PAIRING

14.1 Pairing with Other 20S EVO Headsets for Intercom Conversation

The 20S EVO can be paired with up to nine other headsets for Bluetooth intercom conversation.

1. Turn on the two 20S EVO headsets (A and B) that you would like to pair with each other.

2. There are two ways you can enter the two headsets into pairing mode.

3. Press and hold the Jog Dial of the headset A and B for 6 seconds until red LEDs of both units start to flash rapidly. You will hear a voice prompt saying "Intercom pairing".

4. Remove the two headsets from the clamps. Grab them with each hand and shake them simultaneously until the green LEDs of the both units start to flash rapidly.

SENA | 20S EVO

1. Simply tap the Jog Dial of any one of the two headsets A or B (It doesn't matter that you choose A or B.) and wait until the LEDs of both headsets turn to blue and intercom connection is automatically established. The two 20S EVO headsets A and B are paired with each other for intercom conversation. If the pairing process is not completed within one minute, the 20S EVO will return to stand-by mode.

Pairing A & B

1. You can pair with up to nine other headsets. To pair with more headsets such as A and C, A and D, and more, simply follow the same procedure as above.

Pairing A & C

Pairing A & D

1. The intercom pairing queue is 'Last-Come, First-Served'. If a headset has multiple paired headsets for intercom conversations, the last paired headset is set as first intercom friend. The previous intercom friend becomes second intercom friend, and third intercom friend.

Note:
1. For example, after the pairing procedures listed above, headset D is the first intercom friend of headset A. Headset C is the second intercom friend of headset A, and headset B is the third intercom friend of headset A.
2. Pairing by shaking works only between 20S EVO devices.
3. If you want to cancel pairing, double tap the Jog Dial during pairing mode.

14.2 Pairing with Other Sena Headset Models for Intercom Conversation

The 20S EVO can be paired with other Sena headset models such as the SPH10 and the SMH5 for intercom conversation. Please follow the same procedure as above to pair with these headset models.

Note:

The SMH5 cannot participate in multi-way intercom with the 20S EVO or the SMH10. The SMH5 has a limited capability of having two-way intercom with each other or with other Sena headsets such as the SMH10 and the SMH5.

15 TWO-WAY & MULTI-WAY INTERCOM

15.1 Two-way Intercom

1. You can start an intercom conversation with one of any intercom friends by using either the Jog Dial or the voice command. Single tap to start intercom with the first intercom friend and double tap to start intercom with the second intercom friend. To start intercom with the third intercom friend and above, triple tap to enter into friend selection mode. Rotate the Jog Dial to select a friend and tap once more to initiate the intercom with that friend.
2. You can end an intercom conversation by using either the Jog Dial or the voice commands. Press and hold for 2 seconds to end any intercom, or use the voice command, "End Intercom". Or, you can single tap to end intercom with the first intercom friend and double tap to end intercom with the second intercom friend. To end intercom with the third intercom friend and above, triple tap to enter into friend selection mode. Rotate the Jog Dial to select a friend and tap once more to end intercom with that friend. Also, use the voice command, "Intercom [one\~nine]" to end each intercom.

	1st intercom friend 2nd intercom friend 3rd		~ 9th intercom friend
Start intercom	Single tap Double tap		Triple tap → Rotate to select friend → Single tap
End intercom	Single tap Double tap		Triple tap → Rotate to select friend → Single tap
End any intercom	press and hold for 2 second

Start & End Two-way Intercom

15.2 Multi-way Intercom

15.2.1 Start Three-way Intercom

You (A) can have a three-way intercom with two other 20S EVO friends (B & C) by establishing two intercom connections at the same time.

1. You (A) need to be paired with two other friends (B & C) for three-way intercom.

1. Start an intercom conversation with one of the two friends in your intercom group. For example, you (A) may start an intercom conversation with the intercom friend (B). Or intercom friend (B) may start an intercom call with you (A).

1. The second intercom friend (C) may join the intercom by making an intercom call to you (A). You (A) may also connect the second intercom friend (C).

1. Now you (A) and two 20S EVO intercom friends (B & C) are having a three-way intercom.

15.2.2 End Three-way Intercom

When you are a member of an active three-way intercom, you can completely terminate the intercom or just disconnect an intercom connection with one of your active intercom friends.

1. Press the Jog Dial for 2 seconds until you hear double beeps to terminate a three-way intercom completely. It terminates both intercom connections with (B) and (C).
2. Tap or double tap the Jog Dial to disconnect intercom connection with one of the two intercom friends accordingly. For example, by single tapping the Jog Dial, you can just terminate the intercom connection with the first intercom friend (B). However, you still have the intercom connection with your second intercom friend (C).

Jog Dial Operation Result
Press for 2" Disconnect (B) & (C)
Single tap Disconnect (B)
Double tap Disconnect (C)

15.2.3 Start Multi-way Intercom

You can have multi-way intercom with up to seven other 20S EVO users by creating an intercom chain. Both the head and the tail of the chain can add new participants.

For example, if you have a three-way intercom set up, the new participant (D) can be added to either (B)-the head, or (C)-the tail. If (D) were added to (C), then (D) becomes the new tail of the chain. If (D) were added to (B), then (D) becomes the new head. In this way, an intercom chain can hold up to eight people.

Please note that each participant's intercom friends are the ones adjacent to each other.

Note:

To have multi-way intercom with more than four participants, you must enable Eight-way Intercom. Please refer to section 21.10 "Enabling/Disabling Eight-way Intercom" for more details.

15.2.4 End Multi-way Intercom

You can completely get out of the multi-way intercom or just disconnect a part of the chain.

1. Press the Jog Dial for 2 seconds until you hear double beeps to terminate multi-way intercom. It terminates the intercom connections between you (A), and all participants in the chain.
2. Single tap or double tap the Jog Dial to disconnect intercom connection between one of the two intercom friends. A single tap will disconnect the intercom connection between you (A) and (B).

Rest of the connection of the chain will be preserved. Likewise, double tap will disconnect the intercom connection between you (A) and (C), while preserving rest of the connections.

Single Tap

Double Tap

Jog Dial Operation Result

Press and hold for 1" Disconnect all participants

Single tap Disconnect participants chained to (B)

Double tap Disconnect participants chained to (C)

Note:
Multiple headsets are connected during multi-way intercom. With various signals interfering each other, the intercom distance of multi-way intercom is somewhat shorter than that of two-way intercom.

15.3 Intercom Failure

When you try to start an intercom conversation with an intercom friend who is already having a multi-way intercom with other riders or a mobile phone call, you will hear a low tone double beep signifying an intercom busy signal. In this case, you have to try again later.

15.4 Intercom Reconnection

If your intercom friend goes out of range while having an intercom conversation, you may hear static noise and eventually the intercom will be disconnected. In this case, the 20S EVO automatically tries to reconnect the intercom every 8 seconds and you will hear high tone double beeps until the intercom is reestablished. If you don't want to make a reconnection, tap the Jog Dial to stop the attempt.

16 THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM PARTICIPANT

You can have a three-way conference phone call by adding an intercom friend to the mobile phone conversation. While having a mobile phone call, make an intercom call to one of the intercom friends by tapping the Jog Dial to form a three-way conference call with the person on the mobile phone line. To disconnect the intercom first and go back to your private mobile phone call, terminate the intercom by tapping the Jog Dial. To end the mobile phone call first and maintain the intercom conversation, press the Jog Dial for 2 seconds, or tap the phone button, or wait for the person on the mobile phone line to end the call.

Start Tap Jog Dial while having a mobile phone call
End intercom first Tap	Jog Dial
End phone call first	Press Jog Dial for 2"orTap Phone ButtonorWait for the called person to end the call

Start & End Three-way Conference Phone Call

17 GROUP INTERCOM

Group Intercom allows you to instantly create a multi-way conference intercom of up to eight participants. You can create and start Group Intercom through your Smartphone App.

1. Start your Smartphone App and go to 'Group Setting' under 'Group Intercom'.
2. Browse your friends, and select up to seven other people you want to group with.
3. Check your friends and press 'Save to My 20S EVO' on the screen.
4. Press 'Connect' on the screen or the Ambient Mode Button for 1 second to begin Group Intercom.

Note:

To use Group Intercom with more than four participants, you must enable Eight-way Intercom. Please refer to section 21.10, "Enabling/Disabling Eight-way Intercom" for more details.

18 UNIVERSAL INTERCOM

You can have an intercom conversation with non-Sena Bluetooth headsets using the Universal Intercom function. Non-Sena Bluetooth headsets can be connected to the Sena Bluetooth headset if they support the Bluetooth Hands-Free Profile (HFP). The working distance may differ depending on the performance of Bluetooth headset that it is connected to. In general, it is shorter than normal intercom distance since it uses the Bluetooth handsfree profile.

18.1 Universal Intercom Pairing

The 20S EVO can be paired with non-Sena Bluetooth headsets for Bluetooth intercom conversation. You can pair the 20S EVO with only one non-Sena Bluetooth headset so if you pair with a different non-Sena Bluetooth headset, the previous pairing list will be removed.

1. Turn on the 20S EVO and a non-Sena Bluetooth headset that you want to pair with.

2. Press the Jog Dial for 12 seconds to enter the configuration menu. Rotate the Jog Dial until you hear a voice prompt saying "Universal intercom pairing". Press the Phone Button to enter into Universal Intercom Pairing mode and the blue LED will flash rapidly and you will hear multiple beeps. Please refer to section 21.17, "Universal Intercom Pairing" for more details.

3. Perform the operation required for handsfree pairing on the non-Sena Bluetooth headset (refer to the user's manual of the headsets you want to use). The 20S EVO will automatically perform pairing with non-Sena Bluetooth headsets in pairing mode.

18.2 Two-way Universal Intercom

You can initiate the Universal Intercom connection with non-Sena Bluetooth headsets using the same intercom connection method as you would between other Sena headsets. You may single tap the Jog Dial to begin an intercom conversation with the first intercom friend, double tap with the second intercom friend, and triple tap with the third intercom friend.

Non-Sena Bluetooth headsets may initiate the Universal Intercom connection by activating the voice dialing or using the redialing operation. You may also disconnect the existing connection by ending a call operation function (refer to the user's manual of the headsets for voice dialing, redialing, and ending a call).

18.3 Three-way Universal Intercom

You may make a three-way Universal Intercom connection with two 20S EVOs and one non-Sena Bluetooth headset.

1. You (A) need to be paired with a non-Sena Bluetooth headset (B) and another 20S EVO headset (C) for the three-way intercom.

1. Start an intercom conversation with non-Sena Bluetooth headset (B) in your intercom group. For example, you (A) may start an intercom conversation with non-Sena Bluetooth headset (B). The non-Sena Bluetooth headset (B) may also start an intercom call with you (A).

1. The other 20S EVO (C) may join the intercom by making an intercom call to you (A).

1. Now you (A), non-Sena Bluetooth headset (B), and the other 20S EVO (C) are having a three-way intercom.

1. You may disconnect three-way Universal Intercom using the same way as you do in normal three-way intercom. Please refer to section 15.2.2, "End Three-way Intercom".

18.4 Four-way Universal Intercom

You may make a four-way Universal Intercom connection with a couple of different configurations, 1) three 20S EVOs and one non-Sena Bluetooth headset or 2) two 20S EVOs and two non-Sena Bluetooth headsets.

You may have a couple of other four-way Universal Intercom configurations, 1) your headset (A), a non-Sena Bluetooth headset (B), another 20S EVO (C), and a non-Sena Bluetooth headset (D), 2) your headset (A), a non-Sena Bluetooth headset (B), and two other 20S EVO headsets (C and D). You may make the four-way Universal Intercom call the same way as a normal four-way intercom call.

18.4.1 Four-way Universal Intercom Case 1

Two 20S EVO headsets (A and C) and two non-Sena Bluetooth headsets (B and D).

1. You (A) may start an intercom conversation with the non-Sena Bluetooth headset (B).

1. The other 20S EVO (C) may join the intercom by making an intercom call to you (A).

1. The non-Sena Bluetooth headset (D) may join the three-way intercom by making an intercom call to the 20S EVO (C).

1. Now two 20S EVO headsets (A & C) and two non-Sena Bluetooth headsets (B & D) are connected with the four-way Universal Intercom.

You may disconnect a four-way Universal Intercom using the same way as you do in a normal four-way intercom. Please refer to section 15.2.4, "End Multi-way Intercom".

18.4.2 Four-way Universal Intercom Case 2

Three 20S EVO headsets (A, C and D) and one non-Sena Bluetooth headset (B).

The procedure is the same as case 1 described in section 18.4.1.

19 REMOTE CONTROL

You can remotely control the 20S EVO via Bluetooth using the Remote Control (sold separately). This eliminates the need to take off your hand for button operations. Your 20S EVO and the Remote Control must be paired together before use.

1. Turn on the 20S EVO and the Remote Control.

2. Press the Jog Dial for 12 seconds to enter the configuration menu. Rotate the Jog Dial until you hear a voice prompt saying, "Remote control pairing". Press the Phone Button to enter into Remote Control Pairing mode and the red LED will flash rapidly and you will hear multiple beeps. Please refer to section 21.16, "Remote Control Pairing" for more details.

3. Enter Bluetooth pairing mode on your Remote Control. The 20S EVO will automatically perform pairing with the Remote Control in pairing mode. You will hear a voice prompt, "Remote control connected", when they are successfully connected.

20 FUNCTION PRIORITY

The 20S EVO operates in the following order of priority:

(highest) Ambient mode

Mobile phone

Voice command mode

Intercom

Stereo music by audio cable

Music sharing by Bluetooth stereo music

FM Radio

(lowest) Bluetooth stereo music

A lower priority function is always interrupted by a higher priority function. For example, stereo music is interrupted by intercom call, and intercom conversation is interrupted by incoming mobile phone call.

21 20S EVO CONFIGURATION SETTING

You can set the configuration of the 20S EVO by the voice menu instruction as below.

1. To enter into voice configuration menu, press and hold the Jog Dial for 12 seconds until the LED shows solid blue and you hear high tone double beeps. You will also hear a voice prompt saying "Configuration menu".
2. Rotate the Jog Dial clockwise or counter-clockwise to navigate between the menus. You will hear voice prompts for each menu item as below.
3. You can enable the feature or execute the command by tapping the Phone Button, or disable the feature by tapping the Jog Dial.
4. If any button is not pressed within 10 seconds, the 20S EVO will exit the configuration and go back to stand-by.
5. If you want to exit the configuration immediately, rotate the Jog Dial until you hear a voice prompt saying "Exit configuration", and tap the Phone Button.

The voice prompt for each menu item is as below:

(1) Speed dial (10) Eight-way intercom
(2) Audio multitasking (11) Voice prompt
(3) Intercom-audio overlay sensitivity (12) FM station guide (13) Sidetone
(4) Navigation app support (14) Noise con
(5) Audio boost (15) Delete all pairings
(6) Smart volume control (16) Remote control pairing
(7) Motion sensor sensitivity (17) Universal intercom pairing
(8) VOX phone (18) Exit configuration
(9) HD intercom

21.1 Assigning Speed Dial

Voice Prompt	“Speed dial”
ercom pairing Factory Default N/A
Execute Tap the Phone Button

^51 . To assign a phone number as a speed dial, rotate the Jog Dial until you hear a voice prompt saying “Speed dial”.
2. Tap the Phone Button, and you will hear voice prompts saying "Speed dial one" and "Phone connected".

- Rotate the Jog Dial to select one of three speed dial numbers and you hear a voice prompt saying "Speed dial (#)".

1. Call a phone number you want to assign and you will hear a voice prompt saying "Save speed dial (#)". The phone number is automatically assigned to the selected speed dial number. Then the phone call will hang up before being connected.
2. To exit the menu, rotate the Jog Dial clockwise or counter clockwise until you hear a voice prompt saying "Exit", and tap the Phone Button to confirm. You will then hear a voice prompt saying "Exit". If any button is not pressed within 1 minute, the 20S EVO will exit the configuration menu and go back to stand-by mode.

Note:

1. After assigning a phone number to one of three speed dials, you can continually assign another phone number to the rest of two speed dials.
2. You can also assign phone numbers for speed dialing by using the Device Manager software or the Sena Smartphone App. Please visit the Sena Bluetooth website at www.sena.com for more information.

21.2 Enabling/Disabling Audio Multitasking

Voice Prompt	“Audio multitasking”
Factory Default Enable
Enable Tap the Phone Button
Disable Tap the Jog Dial

Audio Multitasking allows you to have an intercom conversation while simultaneously listening to music, FM radio, or GPS instructions. The overlaid audio is played in the background with reduced volume whenever there is an intercom conversation and will return to normal volume once the conversation is finished. If this feature is disabled, any incoming or outgoing intercom will interrupt your audio channel.

21.3 Setting Intercom-audio Overlay Sensitivity

Voice Prompt	“Intercom-audio overlay sensitivity”
Factory Default 6
Level Adjustment Rotate the	Jog Dial (1~10)
Apply Tap the Phone Button

When the Audio Multitasking setting is enabled, if you talk over the intercom while music is playing, then the music volume will be lowered to play in the background. You can adjust the intercom sensitivity to activate this background music mode. To adjust this intercom sensitivity, tap the Phone Button when you hear the voice prompt, "Intercom-audio overlay sensitivity". Rotate the Jog Dial to adjust the sensitivity level. Level 1 has the lowest sensitivity and level 10 has the highest sensitivity. Tap the Phone Button to save the level of sensitivity and you will hear the voice prompt "Save (#)".

Before you confirm the selected level, you can test its sensitivity by saying a word out loud or blowing into the mic. If your voice is larger than the sensitivity of the selected level, you will hear double beeps. If your voice is smaller than the sensitivity of the selected level, you will not hear anything.

21.4 Enabling/Disabling Navigation App Support

Voice Prompt	“Navigation app support”
Factory Default Disable
Enable Tap the Phone Button
Disable Tap the Jog Dial

When Audio Multitasking is enabled, your smartphone's GPS application reduces in volume whenever there is an ongoing intercom conversation. To listen to your smartphone's GPS navigation clearly without this volume reduction, enable Navigation App Support.

Note:

The volume level of the music will not be reduced during an intercom conversation when the Navigation App Support setting is enabled.

21.5 Enabling/Disabling Audio Equalizer

Voice Prompt	“Audio equalizer”
Factory Default Disable
Enable Tap the Phone Button
Disable Tap the Jog Dial

You can use the Audio Equalizer to increase/decrease the decibel level of different frequency ranges of audio.

Balance will adjust all of the frequency ranges to be the same volume level (0 dB). Bass Boost will increase the bass range of audio (20 Hz - 250 Hz). Mid Boost will increase the mid range of audio (250 Hz - 4 kHz).

Treble Boost will increase the high range of audio (4 kHz - 20 kHz).

21.6 Setting Smart Volume Control

Voice Prompt	“Smart volume control”
Factory Default Disable
Level Adjustment	Rotate the Jog Dial(Low/Medium/High/Disable)
Apply Tap the Jog Dial

Smart Volume Control automatically changes the level of the speaker volume based on the level of the environmental noise. When it is disabled, volume is controlled manually. Rotate the Jog Dial until you hear the voice prompt, "Smart volume control". By tapping the Phone Button, it will lead you to the level adjustment mode. You can enable it by setting the sensitivity to low, medium, or high. Smart Volume Control responds to smaller environmental noises as the sensitivity level becomes higher.

21.7 Setting Motion Sensor Sensitivity

Voice Prompt	“Motion sensor sensitivity”
Factory Default Low
Level Adjustment	Rotate the Jog Dial(High/Low/Disable)
Apply Tap the Phone Button

Motion Sensor Sensitivity determines the sensitivity when you double tap on the surface of the 20S EVO to enter voice command mode. Rotate the Jog Dial until you hear the voice prompt, "Motion sensor sensitivity". By tapping the Phone Button, it will lead you to level adjustment mode. Default is at low, but you may change it to high, or disable the feature by rotating the Jog Dial. After you have completed the setting, tap the Phone Button to apply the changes. If this feature does not work properly, disable this feature, and press on the Ambient Mode Button to enter voice command mode.

21.8 Enabling/Disabling Voice Activated Phone Answering

Voice Prompt	“VOX phone”
Factory Default Enable
Enable Tap the Phone Button
Disable Tap the Jog Dial

If this feature is enabled, you can answer incoming calls by simply saying a word loudly enough, unless you are connected to intercom. For example, when you hear a series of beeps for an incoming call, you can answer the phone by saying "Hello" or any other word loudly. However, the VOX Phone feature does not work if you are connected to the intercom. This feature is enabled from the factory but can be disabled through the configuration menu, Device Manager, or the Sena Smartphone App. If this mode is disabled, you have to tap the Jog Dial or the Phone Button to answer an incoming call.

21.9 Enabling/Disabling HD Intercom

Voice Prompt	“HD intercom”
Factory Default Enable
Enable Tap the Phone Button
Disable Tap the Jog Dial

HD Intercom enhances the two-way intercom audio from normal quality to HD quality. HD Intercom will become temporarily disabled when you enter into a multi-way intercom. If this feature is disabled, the two-way intercom audio will change to normal quality.

Note:

The intercom distance of HD Intercom is relatively shorter than that of normal intercom.

21.10 Enabling/Disabling Eight-way Intercom

Voice Prompt	“Eight-way intercom”
Factory Default Disable
Enable Tap the Phone Button
Disable Tap the Jog Dial

Disabling the Eight-way Intercom optimizes the intercom performance for a small group up to four participants. Enabling the Eight-way Intercom optimizes the intercom performance for a larger group up to eight participants.

21.11 Enabling/Disabling Voice Prompts

Voice Prompt	“Voice prompt”
Factory Default Enable
Enable Tap the Phone Button
Disable Tap the Jog Dial

You can disable voice prompts, but the following voice prompts are always on.

• Voice prompts for configuration setting menu
• Voice prompts for battery level Indicator
• Voice prompts for factory reset
• Voice prompts for speed dial
• Voice prompts for FM radio functions

21.12 Enabling/Disabling FM Station Guide

Voice Prompt	“FM station guide”
Factory Default Enable
Enable Tap the Phone Button
Disable Tap the Jog Dial

When FM Station Guide is enabled, FM station frequencies are given by voice prompts as you select preset stations. When FM Station Guide is disabled, the voice prompts on FM station frequencies will not be given as you select preset stations.

21.13 Enabling/Disabling Sidetone

Voice Prompt	“Sidetone”
Factory Default Disable
Enable Tap the Phone Button
Disable Tap the Jog Dial

Sidetone is the sound of your own voice as picked up by your headset's microphone and reproduced in your own ear, by your own speaker. It helps you to naturally speak at the correct level according to varying helmet noise conditions. If this feature is enabled, you can hear what you are speaking during an intercom conversation or a phone call.

21.14 Enabling/Disabling Advanced Noise Control™

Voice Prompt	“Noise control”
Factory Default Enable
Enable Tap the Phone Button
Disable Tap the Jog Dial

When Advanced Noise Control is enabled, the background noise is reduced during an intercom conversation. When it is disabled, the background noise is mixed with your voice during intercom.

Note:

If you use your 20S EVO with the Bluetooth Audio Pack for GoPro, you can enable or disable this feature only during Normal Voice Recording. This feature is automatically disabled while in Ultra HD (UHD) Voice Recording mode.

21.15 Delete All Bluetooth Pairing Information

Voice Prompt	“Delete all pairings”
Factory Default N/A
Execute Tap the Phone Button

To delete all Bluetooth pairing information of the 20S EVO, rotate the Jog Dial until you hear a voice prompt saying "Delete all pairings", and tap the Phone Button to confirm. Tapping the Jog Dial is not available for this setting.

21.16 Remote Control Pairing

Voice Prompt	“Remote control pairing”
Factory Default N/A
Execute Tap the Phone Button

To enter into Remote Control Pairing mode, rotate the Jog Dial until you hear a voice prompt, "Remote control pairing". Then press the Phone Button to enter into Remote Control Pairing mode. The headset will automatically exit from the configuration menu. Please refer to section 19 for details on remote control.

21.17 Universal Intercom Pairing

Voice Prompt	“Universal intercom pairing”
Factory Default N/A
Execute Tap the Phone Button

To enter into Universal Intercom Pairing mode, rotate the Jog Dial until you hear a voice prompt, "Universal intercom pairing". Then press the Phone Button to enter into Universal Intercom Pairing mode. The headset will automatically exit from the configuration menu. Please refer to section 18.1 for details on Universal Intercom.

21.18 Exit Voice Configuration Menu

Voice Prompt	“Exit configuration”
Factory Default N/A
Execute Tap the Phone Button

To exit voice configuration menu and get back to stand-by mode, rotate the Jog Dial until you hear a voice prompt saying "Exit configuration", and tap the Phone Button to confirm. Tapping the Jog Dial is not available for this setting.

Rotate Jog Dial Tap	Phone Button Tap Jog Dial
Speed Dial Execute	N/A
Audio Multitasking Enable	Disable
Intercom-audio Overlay Sensitivity	Execute N/A
Navigation App Support Enable	Disable
Audio Boost Enable	Disable
Motion Sensor Sensitivity	Execute N/A
VOX Phone	Enable Disable
HD Intercom	Enable Disable
Eight-way Intercom	Enable Disable
Voice Prompt	Enable Disable
FM Station Guide	Enable Disable
Sidetone	Enable Disable
Advanced Noise Control	Enable Disable
Delete All Pairings	Execute N/A
Remote Control Pairing	Execute N/A
Universal Intercom Pairing	Execute N/A
Exit Configuration	Execute N/A

Voice Configuration Menu & Button Operations

22 RESET TO FACTORY DEFAULT SETTINGS

1. To restore the 20S EVO to factory default settings, press and hold the Phone Button for 12 seconds until the LED shows solid red and you hear double beeps. You will hear a voice prompt saying "Factory reset".
2. Within 5 seconds, press the Jog Dial to confirm reset. The headset will be restored to factory setting and switched off automatically. You will hear a voice prompt saying "Headset reset, good-bye".
3. If you press the Phone Button or don't press the Jog Dial within 5 seconds, the reset attempt is canceled and the headset returns to stand-by mode. You will hear a voice prompt saying "Canceled"

23 FAULT RESET

When the 20S EVO is not working properly or is in faulty status for any reason, you may reset by pushing the pin-hole reset button at the back of the headset main unit. Insert a paper clip into the reset pin-hole and press the reset button for a second with light pressure. The 20S EVO will be switched off, and you have to turn the system back on and try again. However, this will not restore the headset to factory default settings.

Illustration of a hand holding a small electronic device with a pointer (no text or symbols visible)

24 FIRMWARE UPGRADE

The 20S EVO supports firmware upgrade function. Please visit Sena Bluetooth web site at www.sena.com to check the latest software downloads.

Type Function	Button Command	Voice Command	LED Beep
Basic Function	Power-on	Press the Phone Button and the Jog Dial for 1 second	- Solid blue
	Power-off	Press the Phone Button and the Jog Dial	- Solid red
	Volume adjustment	Rotate the Jog Dial -	-
	Configuration	Press the Jog Dial for 12 seconds	“Configuration”	Solid blue
	Voice command	Double tap the surface of the main unit	“Hello Sena!”	Green flashing -
	Ambient Mode	Double tap the Ambient Mode Button	- Green flashing -

Type Function Button Command			Voice Command	LED Beep
Mobile Phone	Mobile phone pairing	Press the Phone Button for 5 seconds	-	Blue & red alternatively flashing	High tone multiple beeps
	Second mobile phone pairing	Press the Jog Dial for 6 seconds	- Red flashing Multiple beeps
		Tap the Phone Button within 2 seconds
	GPS pairing	Press the Jog Dial for 6 seconds	- Red flashing Multiple beeps
		Tap the Phone Button within 2 seconds
		Tap the Phone Button again within 2 seconds
	Call transfer	Press the Phone Button for 2 seconds	-	-	High tone single beep
	Answer & end phone call	Tap the Phone Button	---
	Voice dial	Tap the Phone Button	---
	Speed dial	Double Tap the Phone Button	"Speed dial [one, two, three]"	-	Mid-tone single beep
	Reject incoming call	Press the Jog Dial for 2 seconds	---

Type Function Button Command			Voice Command	LED Beep
Intercom	Intercom pairing	Press the Jog Dial for 6 seconds	“Pairing intercom”	Red flashing	Mid-tone single beep
		Tap the Jog Dial of any one of the two headsets
	Start/End each intercom	Tap the Jog Dial	“Intercom [one, two ... nine]”	-	-
	End all intercoms	Press the Jog Dial for 2 seconds	“End Intercom”	Blue flashing	Mid-tone double beeps
	Start Group Intercom	Press the Ambient Mode Button for 1 second	“Group intercom”	Green flashing -
Music	Play/Pause Bluetooth music	Press the Jog Dial for 1 second	“Music”	-	Mid-tone double beeps
	Track forward/back	Rotate the Jog Dial while pressing	“Next”/“Previous”	-	-

Type Function Button Command			Voice Command	LED Beep
FM radio	FM radio on	Press the Phone Button for 2 seconds	“FM radio”	-	Mid-tone double beeps
	FM radio off	Press the Phone Button for 2 seconds	“FM radio”/ “Stop”	-	Mid-tone double beeps
	Select preset	Tap the Phone Button	“Next”/ “Previous”	-	Mid-tone single beep
	Seek stations	Rotate the Jog Dial while pressing	-	-	High tone triple beeps
	Scan up FM band	Double tap the Phone Button	---
	Stop scanning	Double tap the Phone Button	-	-	High tone double beeps
	Save preset while scanning	Tap the Phone Button	-	-	High tone double beeps
Reset	Factory reset	Press the Phone Button for 12 seconds	- Solid red		High tone double beeps
		Tap the Jog Dial within 5 seconds
	Fault reset	Press the Reset Button	---
