Navigator Lift-Away Professional NV356E - Vacuum Cleaner SHARK - Free user manual and instructions

Product Type	Upright Vacuum Cleaner with Lift-Away Canister
Model Number	NV355, NV356E, NV356K, NV357
Brand	Shark
Voltage	120V, 60Hz
Wattage	1200W
Amperage	10A
Warranty	5 years limited
Filter Type	Pre-motor foam & felt filters, Post-motor HEPA filter
Cleaning Modes	Upright Vacuum, Portable Lift-Away
Motorized Floor Brush	Yes, with brush roll on/off (switch positions I and II)
Brush Roll Indicator Light	Green (on), Red (blockage/jam)
Suction Control	Adjustable suction release collar on handle
Dust Cup Capacity	Not specified
Attachments Included	Crevice Tool, 24" Crevice Tool (NV356E & NV356K only), Dusting Brush, Pet Power Brush, Dust-Away Hard Floor Attachment, Dusting Pad, Pet/Upholstery Tool (NV356K only)
Accessory Holder	Yes, on extension wand
General Maintenance	Empty dust cup after each use; rinse pre-motor filters every 3 months; wash HEPA filter every 2 years; clean brush roll and check blockages regularly
Safety Features	Polarized plug, automatic shut-off on overheating, thermal protector
Spare Parts Availability	Pre-Motor Filter Set (XFF350), HEPA Filter (XHF350), various accessories at www.sharkclean.com
Customer Service	1-800-798-7398 (USA/Canada)

Frequently Asked Questions - Navigator Lift-Away Professional NV356E SHARK

How do I assemble the Shark Navigator Lift-Away Professional NV356E?

Place the floor nozzle on a level surface. Align the tube of the floor nozzle with the tube on the Lift-Away canister and lower until it clicks. Attach the extension wand to the back of the canister. Slide the accessory holder onto the wand. Push the handle onto the top of the wand until it clicks. Insert the stretch hose into the connector on the back of the canister. Store the dusting brush and crevice tool on the accessory holder.

How do I switch between upright vacuum and portable Lift-Away mode?

To switch to portable Lift-Away mode, press the red release button on the side of the canister and lift the canister off the floor nozzle. The canister can be carried by the handle on top. To revert to upright mode, align the canister back onto the floor nozzle and push down until it clicks.

How do I clean the pre-motor filters?

Remove the dust cup. Pull out the two pre-motor filters (foam and felt). Rinse them thoroughly in lukewarm water until the water runs clear. Squeeze out excess water and let them air-dry for at least 24 hours. Do not use a hair dryer or other heating methods. Replace the felt filter first, then the foam filter, then the dust cup.

How do I clean the post-motor HEPA filter?

Remove the filter cover from the front of the vacuum by pulling up on the tab. Take out the HEPA filter. Tap it clean against a garbage can, then wash under lukewarm water with the dirty side down until water runs clear. Air-dry for 24 hours. Replace the filter and snap the cover back into place.

What should I do if the vacuum loses suction?

First, empty the dust cup if it is full. Check the pre-motor and post-motor filters for cleaning. Remove any blockages from the hose, attachments, or the floor brush. Ensure the suction release on the handle is closed for maximum suction. If the problem persists, check for blockages in the hose connections and nozzle as described in the manual.

How do I use the Dust-Away hard floor attachment?

Attach the Dust-Away pad by slipping the tabs between the suction nozzle and the base, securing them on the front and back fasteners. Use only in portable Lift-Away mode. Attach the extension wand to the Dust-Away attachment. Turn the vacuum to position 'I' for suction only. Do not use on wet floors. Wash pads in warm water without bleach or fabric softener.

Why is the brush roll indicator light red?

A red light indicates a blockage or jam in the motorized floor brush. Immediately turn off and unplug the vacuum. Inspect the brush roll for tangled hair, string, or debris. Cut away any obstructions with scissors. Clear any blockages in the nozzle. The light will reset once the blockage is cleared and the vacuum is turned back on.

What is the correct way to store the vacuum?

Convert the vacuum back to upright mode. Rotate the upper quick cord release upright, coil the power cord loosely around the two cord clips, and secure the plug. Store the dusting brush and crevice tool on the accessory holder. Empty the dust cup before storing. Keep the vacuum in a cool, dry place.

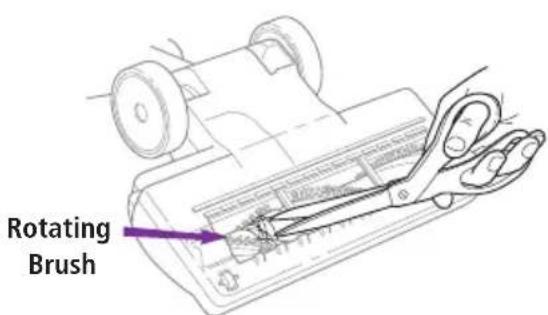

How do I clean the motorized floor brush?

Detach the motorized floor brush from the canister. Inspect the opening underneath and the rotating brush. Remove any debris and cut away hair or string wrapped around the brush with scissors, being careful not to damage the bristles. Check for blockages in the three holes of the floor brush hose connections.

What does the warranty cover?

EURO-PRO Operating LLC warrants the product against material defects and workmanship for 5 years from the date of purchase for normal household use. It covers repair or replacement at their option. Normal wear parts, commercial use, misuse, and unauthorized repairs are excluded. Return the appliance with proof of purchase and $19.95 for return shipping and handling.

USER MANUAL Navigator Lift-Away Professional NV356E SHARK

IMPORTANT SAFETY INSTRUCTIONS For Household Use Only

WHEN USING AN ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING YOUR SHARK® NAVIGATOR™ LIFT-AWAY® PRO.

POLARIZED PLUG:

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

DO NOT force into outlet or try to modify to fit.

Hand holding a tool near a wall-mounted panel, with a purple arrow indicating direction (no text or symbols)

WARNING: To reduce the risk of electric shock or injury, do not use outdoors or on wet surfaces.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

GENERAL ELECTRICAL SAFETY:

1. Unplug from electrical outlet when not in use and before servicing.
2. DO NOT use vacuum with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to EURO-PRO Operating LLC for examination, repair, or adjustment.
3. DO NOT pull or carry vacuum by the cord.
4. DO NOT unplug by pulling on cord; to unplug, grasp the plug, not the cord.
5. DO NOT handle plug or appliance with wet hands.
6. DO NOT run the vacuum over the power cord.
7. DO NOT use the cord as a handle.
8. DO NOT close a door on the cord.
9. DO NOT pull cord around sharp corners. The use of an extension cord is not recommended.
10. DO NOT leave appliance when plugged in.
11. Keep cord away from heated surfaces.
12. Turn off all controls before plugging or unplugging vacuum cleaner.
13. Always turn off this appliance before connecting or disconnecting motorized nozzle.
14. Store your appliance with the power cord secured around the two cord holders-as shown in the storage instructions.

HOSE ATTACHMENTS:

1. DO NOT use if air flow is restricted; if the air paths, the hose, or the accessories become blocked, turn the vacuum cleaner off. Remove all obstructions before you turn on the unit again.
2. Keep the end of the hose and accessory openings away from face and body.
3. Keep cleaning tools and hose suction openings away from hair, face, fingers, uncovered feet, or loose clothing.
4. Only use manufacturer's recommended attachments.

GENERAL USE:

1. Use only as described in this manual.
2. DO NOT put any objects into openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
3. Keep your work area well lit.
4. Keep the vacuum moving over the carpet surface at all times to avoid damaging the carpet fibers.
5. DO NOT place vacuum on unstable surfaces such as chairs or tables.
6. DO NOT allow young children to operate the vacuum or use as a toy. Close attention is necessary when used by or near children.
7. DO NOT use vacuum cleaner if it has been dropped, damaged, left outdoors, or submerged in water. Return to EURO-PRO Operating LLC for examination, repair, or adjustment.
8. DO NOT use without dust cup and/or filters in place.

DUST CUP/FILTERS/ACCESSORIES:

Before turning on the vacuum:

1. Make sure that all filters are thoroughly dry after routine cleaning.
2. Make sure that dust cup and all filters are in place after routine maintenance.
3. Make sure accessories are free of blockages.
4. Only use filters and accessories provided by EURO-PRO Operating LLC. [Failure to do so will void the warranty.]

GENERAL CLEANING:

1. DO NOT pick up large-sized objects.
2. DO NOT pick up hard or sharp objects such as glass, nails, screws or coins that could damage the vacuum cleaner.
3. DO NOT pick up smoking or burning objects such as hot coals, cigarette butts, or matches.
4. DO NOT pick up flammable or combustible materials such as lighter fluid, gasoline, or kerosene or use vacuum in areas where they may be present.
5. DO NOT pick up toxic solutions such as chlorine bleach, ammonia, or drain cleaner.
6. DO NOT use in an enclosed space where vapors are present from paint, paint thinner, moth-proofing substances, flammable dust or other explosive or toxic materials.
7. DO NOT vacuum up any liquids.
8. DO NOT immerse vacuum cleaner in water or other liquids.
9. DO NOT use outdoors or on wet surfaces; use only on dry surfaces.
10. Use extra care when cleaning on stairs.

SAVE THESE INSTRUCTIONS

This manual covers model numbers:

NV355

NV356E

NV356K

NV357

TECHNICAL SPECIFICATIONS

Voltage: 120V., 60Hz

Watts: 1200W

Amps: 10A

4 TOLL F 1-800-798-7398

Contents

English

Thank you for purchasing the Shark® Navigator™ Lift-Away® Pro

Getting Started 6
Mode 1: Upright Vac 8
Mode 2: Portable Lift-Away ^® 10
Above-Floor Cleaning 11
Dust-Away™ Hard Floor Attachment Use & Care 12
Storage and Maintenance 13
Maintenance 14
Emptying the Dust Cup 14

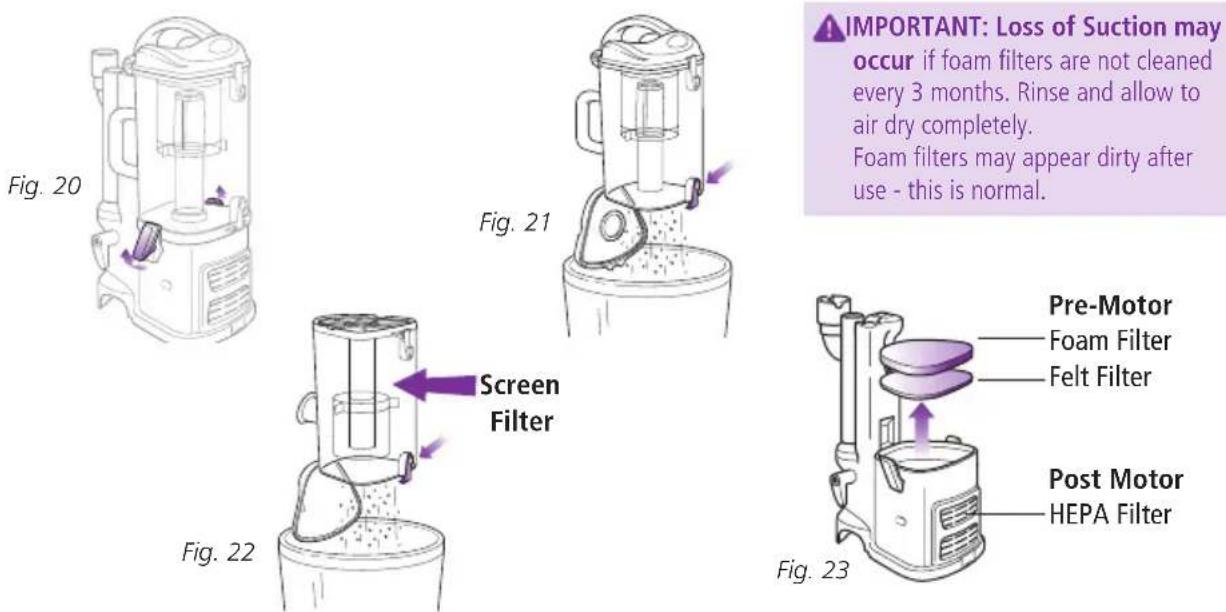

Cleaning the Pre-Motor Filters 14
Cleaning the Post-Motor HEPA Filter 15
Cleaning the Power Brush 15

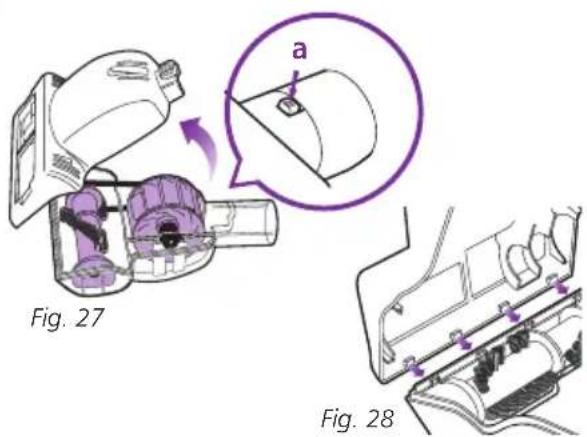

Cleaning the Motorized Floor Brush 16
Checking for Blockages 16

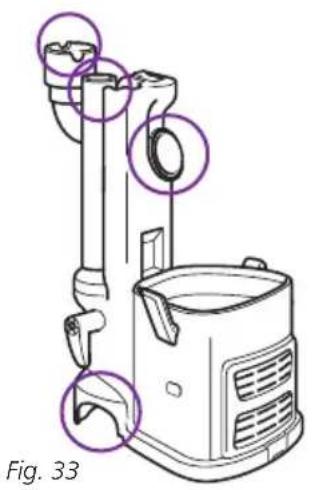

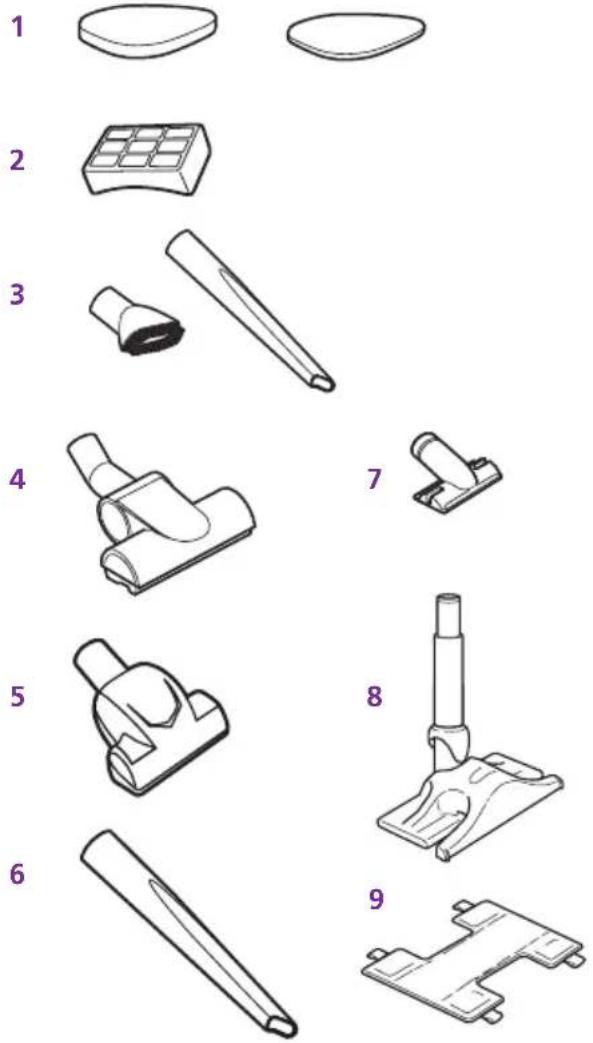

Ordering Parts 17
Troubleshooting Guide 18
Warranty 19

5ww

Getting Started

g

Three technical line drawings of mechanical components, including a cylindrical rod, a flanged cylindrical part, and a clamped cylindrical component (no text or symbols)

h

i

d

Line drawing of a portable air purifier with handle and ventilation slots (no text or symbols)

j

Technical line drawing of a mechanical clamp or bracket with a cylindrical shaft and base (no text or symbols)

e

k

f

|

FIRST THING'S FIRST, YOU NEED TO KNOW WHAT'S IN THE BOX YOU JUST OPENED:

a Handle with Stretch Hose

b Accessory Holder

c Extension Wand

d Portable Lift-Away®

e Motorized Floor Brush

f Crevice Tool

g 24" Crevice Tool (NV356E & NV356K only)

h Dusting Brush

i Pet Power Brush

j Dust-Away™ Hard Floor Attachment

k Dusting Pad

I Pet/Upholstery Tool (NV356K only)

Technical line drawing of a mechanical clamp or bracket with a cylindrical shaft and base (no text or symbols)

Fig. 1

Two simple line drawings of pens or writing sheets (no text or symbols)

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

ACCESSORIES:

DUST-AWAY ^TM HARD FLOOR ATTACHMENT

Specialized hard floor attachment vacuums up large particles, then re-usable micro-fiber pad traps extra fine dirt and dust for a superior bare floor clean.

(Fig. 1) Use only in Portable Lift-Away ^® mode.

CREVICE TOOL

Reach deep into narrow spaces and clean between cushions, under radiators and baseboards and in hard to reach crevices and corners. (Fig. 2)

DUSTING BRUSH

Dust shelves, lamp shades, window blinds, books, furniture and other upholstered household items. (Fig. 3)

ACCESSORY HOLDER

Designed to hold the crevice tool and dusting brush. For quick access to tools when vacuuming and cleaning around the house. (Fig. 4)

PET/UPHOLSTERY TOOL

Removes pet hair and dust from curtains and delicate fabrics. (Fig. 5) (NV356K only)

PET POWER BRUSH

This unique tool was engineered for fast and easy removal of pet hair and ground in dirt from carpeted stairs and upholstery. (Fig. 6)

Your new Shark Navigator™ Lift-Away® Pro vacuum cleaner can easily be configured into different cleaning modes to meet all your cleaning needs: upright vacuum and portable Lift-Away® - both with constant suction power.

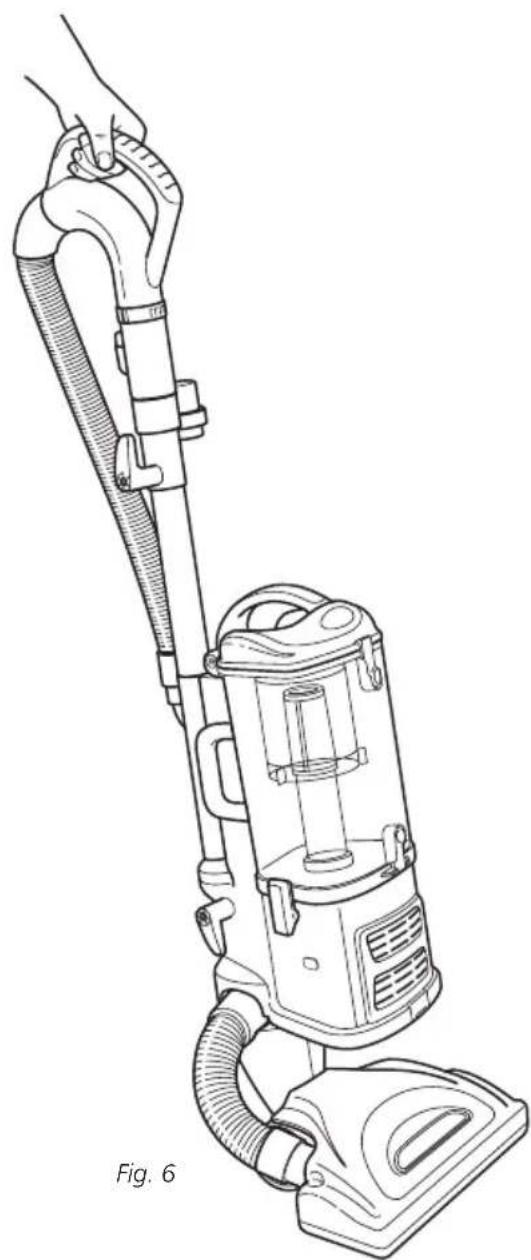

Line drawing of a vacuum cleaner with handle and base, labeled Fig. 6 (no text or symbols on the device itself)

MODES:

1 UPRIGHT VAC

Upright vacuuming - floors and carpets. (Fig. 6)

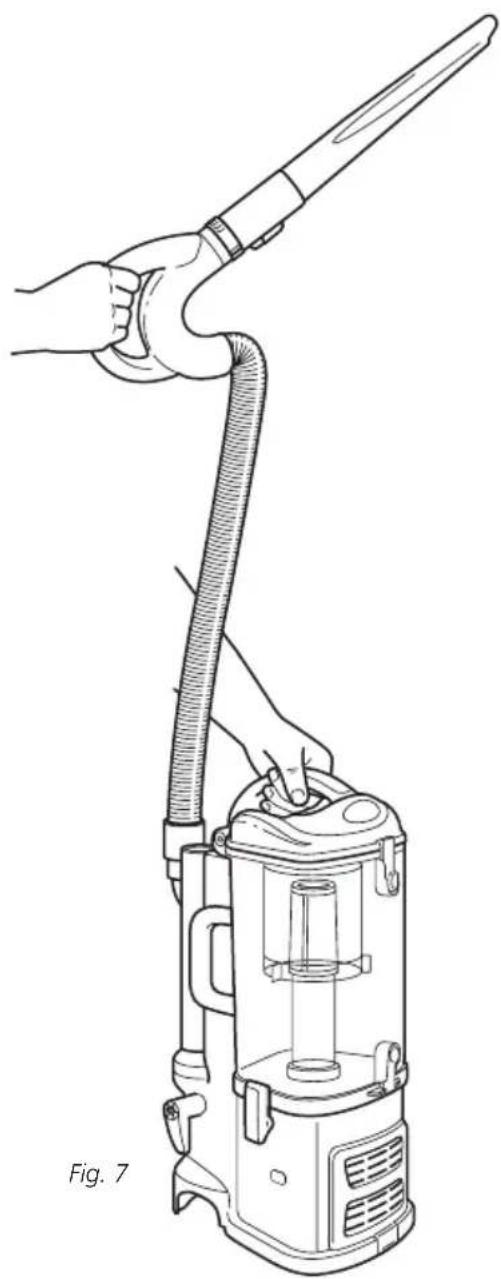

Line drawing of a hand operating a vacuum cleaner with a hose, labeled Fig. 7 (no text or symbols on the diagram itself)

2 PORTABLE LIFT-AWAY®

Take the Lift-Away ^® with you around the house to clean hard to reach places. (Fig. 7)

Mode 1: Upright Vac

To reduce the risk of electric shock, unplug the unit before assembling, adding or removing attachments or converting modes.

WARNING: The On/Off switch is on the top of the Lift-Away® canister. Always ensure the power is OFF ("O" position) before plugging and unplugging.

Illustration of two different vacuum cleaner designs with labeled parts (no text or symbols present)

Fig. 8 Fig. 9

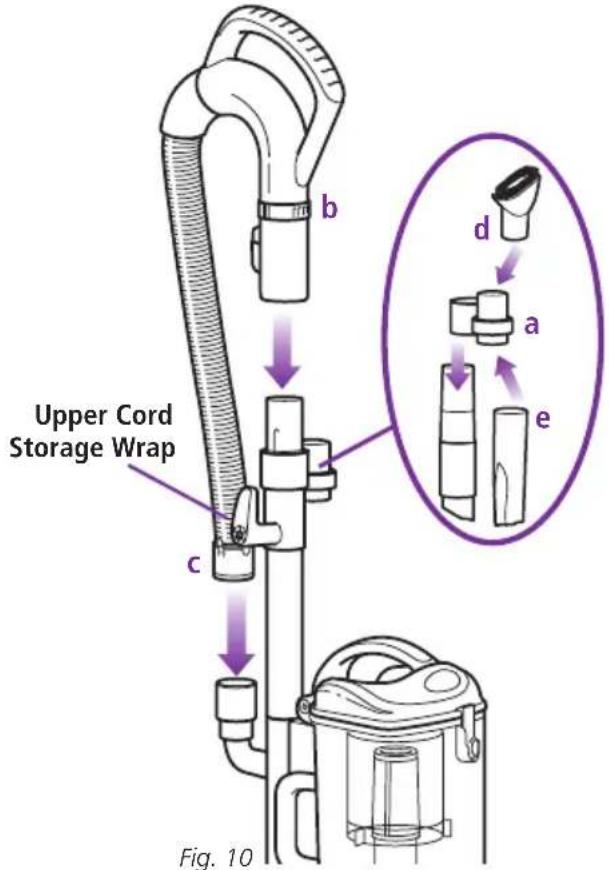

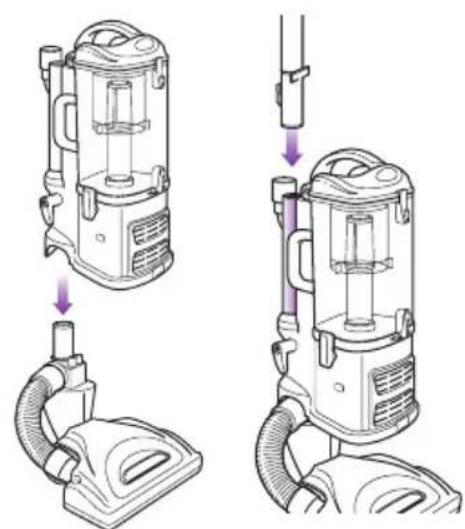

TO ASSEMBLE:

1 Place the floor nozzle on a level surface.
2 Align the tube of the floor nozzle with the tube on the Lift-Away® canister and lower until you hear the two pieces click into place. (Fig. 8)

When attaching the motorized floor brush, ensure that the latching mechanism is fully locked in place to ensure electrical connection has been made.

3 Attach the end of the extension wand to the tube on the back of the Lift-Away® canister until it clicks into place. (Fig. 9)
4 Slide the accessory holder (a) positioned opposite the upper cord wrap, over the extension wand. Align the tab with the groove and push down. (Fig. 10)

5 Push the handle (b) onto the top of the extension wand until you hear it click into place. (Fig. 10)
6 Insert the end of the stretch hose (c) into the connector on the back of the Lift-Away ^® canister. (Fig. 10)
7 Store the dusting brush (d) and the crevice tool (e) on the mounts of the accessory holder. (Fig. 10)

8 TOLL P 1-800-798-7398

Line drawing of a person using a vacuum cleaner to lift a foot, with purple arrows indicating motion (no text or symbols)

Fig. 12

TO USE:

1 Rotate the cord release to quickly release the power cord.
2 Secure the power cord in the cord hook.

$$ | = \text { Brush Roll ON } $$

$$ \text { Bare Floor } $$

3 Press the On/Off switch (a) to the "I" position to vacuum bare floors (straight suction only) or to the "II" position to engage the motorized floor brush (for vacuuming carpets and rugs). (Fig. 11)

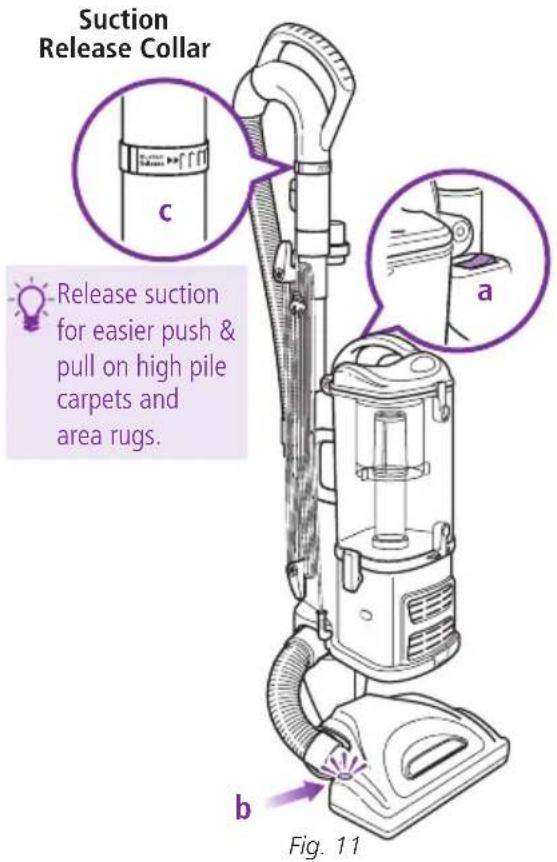

IMPORTANT: The motorized brush indicator light (b) will illuminate green when motorized floor brush is on, or red if there is a blockage or jam.

(Fig. 11) This feature is designed to protect your Lifetime Belt that powers your motorized floor brush. See Checking for Blockages on page 15.

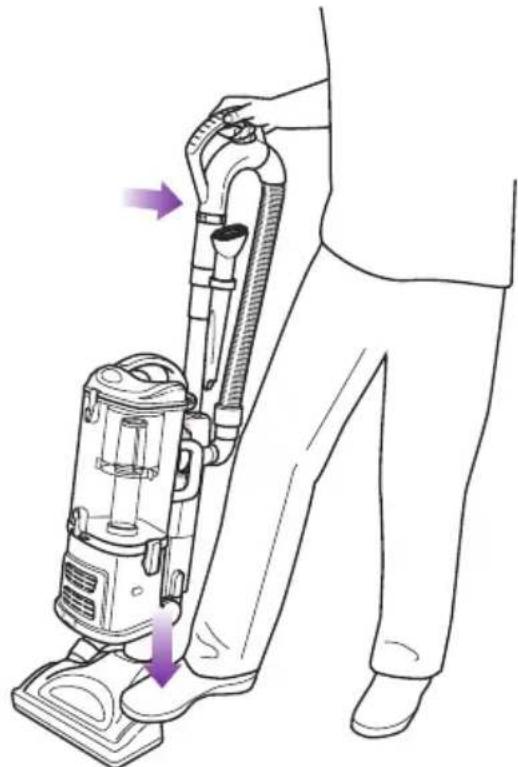

4 Gently press the floor nozzle down with your foot while you grasp the handle and tilt it back towards you. (Fig. 12)
NOTE: The rotating brush on the motorized floor brush will not spin unless the nozzle is flat against the floor and the handle is tilted back.
5 Due to the huge suction power of this vacuum, it may become necessary at times to adjust the suction release (c) on the handle. (Fig. 11) If the vacuum seems difficult to push or pull or if it is lifting up area rugs, adjust the suction release by rotating the collar 90^ counterclockwise to open the valve. Rotate the collar clockwise to close the valve when you need high suction and for vacuuming floors.
6 Empty dust cup after vacuuming and periodically during use when it appears full. (See "Maintenance" section for instructions.)
7 When you are finished vacuuming, turn the vacuum off.

Mode 2: Portable Lift-Away®

You can carry your vacuum cleaner in both modes by the carry handle located on top of the dust cup.

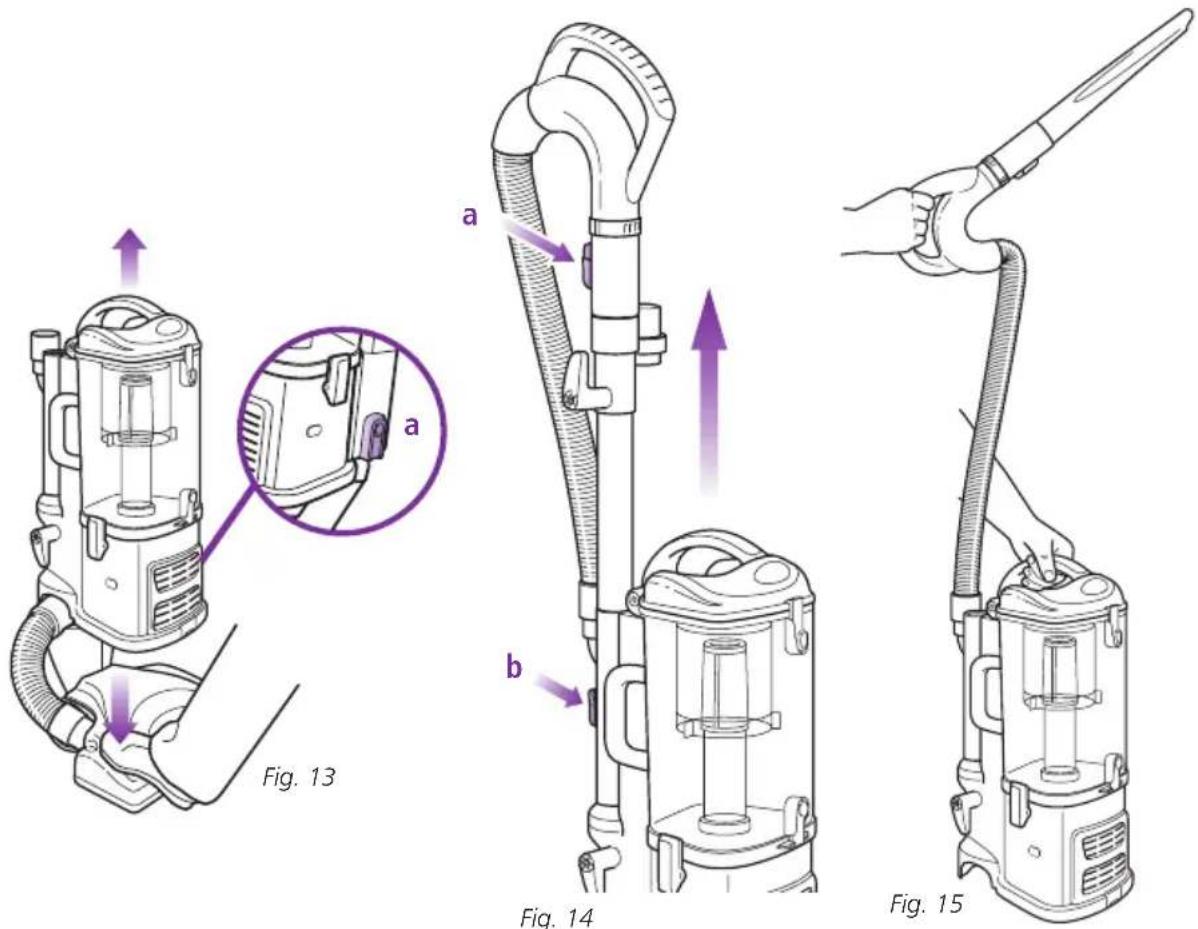

PORTABLE LIFT-AWAY®

1 Separate the portable Lift-Away ^® canister from the floor nozzle by pressing the red release button (a) on the side of the canister. Gently hold the nozzle to the floor with your foot and pull the canister up.(Fig. 13)
2 Press the handle release button (a) and pull the handle up or press the extension wand release button (b) and pull the extension wand up. (Fig. 14)

3 Attach desired accessory onto the end of either the extension wand or the handle.
4 Press the On/Off switch to the "I" position to turn the vacuum on for above-floor cleaning and hold the handle in one hand while you carry the portable Lift-Away® around the house with the other hand. (Fig. 15)

10 TOLL 電: 7-800-798-7398

Fig. 16
Suction Release Collar

CLEAN ABOVE THE FLOOR IN UPRIGHT VAC OR PORTABLE LIFT-AWAY® MODE

1 Press the handle release button and pull the handle up or press the extension wand release button and pull the extension wand up.

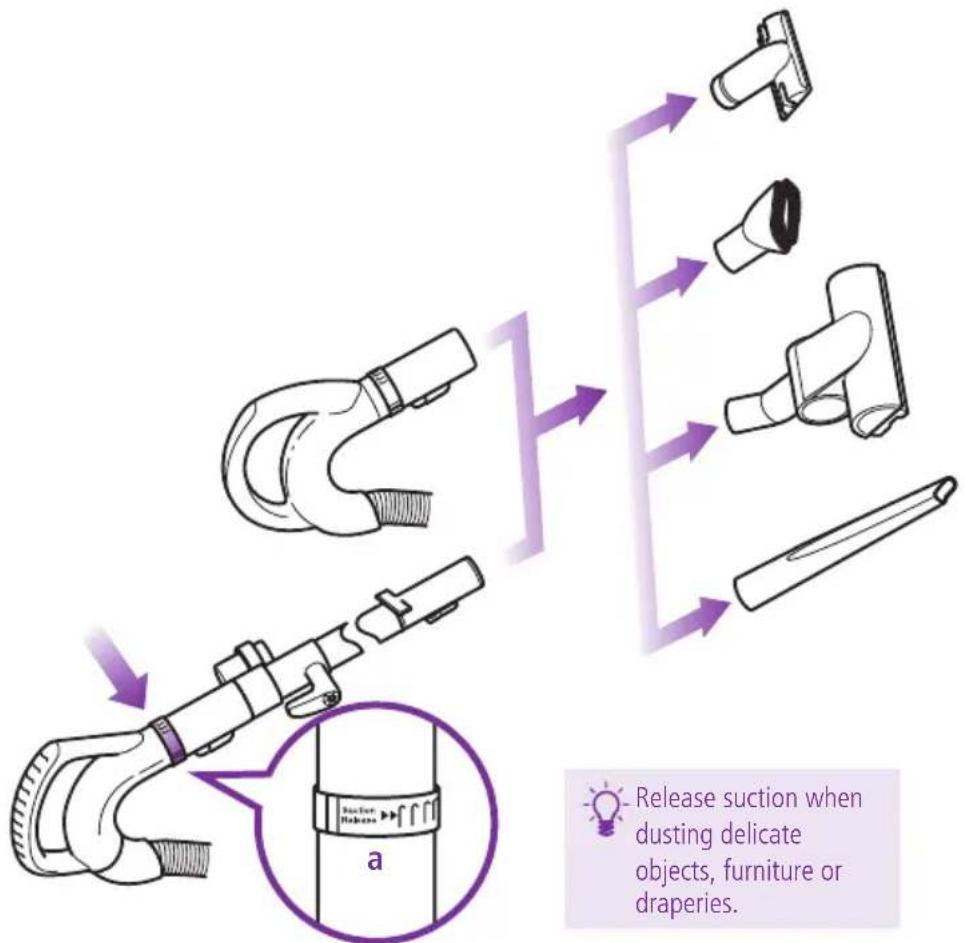

2 Attach desired accessory onto the end of either the extension wand or the handle. (Fig. 16)
3 Your vacuum has tremendous suction power. Adjust the amount of suction with the suction release on the handle. Open the valve (a) by rotating the collar 90° counterclockwise for low suction when doing light jobs such as drapes or fine surfaces. Close the valve (a) by rotating the collar clockwise 90° for high suction and when using the hand held power brush. (Fig. 16-a)

4 Press the On/Off switch to the "I" position to turn the vacuum on for above-floor cleaning.
IMPORTANT: Ensure vacuum is in upright position. Do not use position "II" when cleaning above the floor in the upright vac mode as this will engage the motorized floor brush. The rotating brush may damage your floor if run for a prolonged period of time in one area.

Dust-Away™ Hard Floor Attachment - Use and Care

IMPORTANT: Use only in Portable Lift-Away® mode.

Fig. 17

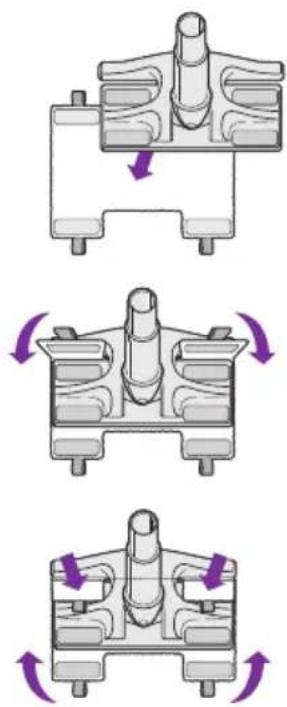

ATTACH PAD

Slip two of the tabs between the suction nozzle and the Dust-Away™ base and attach them to the front fasteners on the base. Then pull the other two tabs tightly around to the back fasteners on the base. For best results, ensure that the pad is flat against the bottom surface and secured tightly. (Fig. 17)

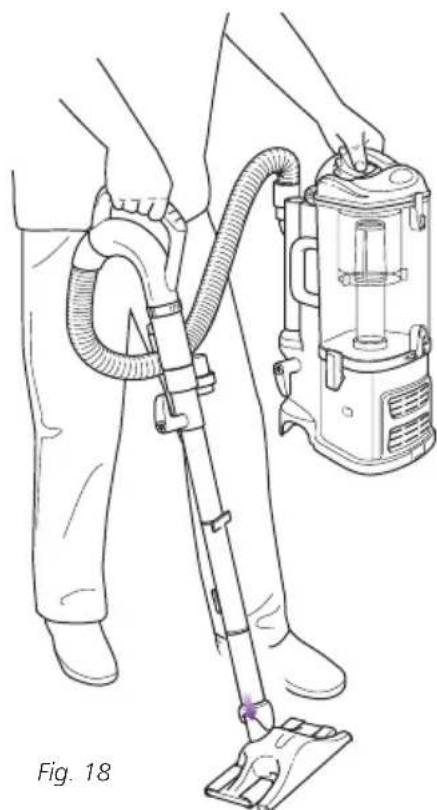

CLEAN THE FLOOR

1 Press the extension wand release button and pull the extension wand up. (Refer to page 10, Fig. 14-b)
2 Attach Dust-Away™ hard floor attachment onto the end of the extension wand. (Fig. 18)
3 Press the On/Off switch to the "1" position to turn the suction motor on and begin cleaning all hard surfaces.

IMPORTANT: Do not use to clean damp floors or wet/sticky messes.

CARE FOR PADS

1 Wash the pads separately with warm water either in the washing machine or by hand using liquid detergent.

Line drawing of a person using a vacuum cleaner device, no text or symbols present

2 Do not use bleach or fabric softeners as they may damage or leave a coating that will reduce the cleaning performance of the pads.
3 Tumble dry low or line dry to extend the life of the micro-fiber fabric.

REPLACE PADS

1 For best floor cleaning results, we recommend replacing your micro-fiber pads every 3-4 months following normal use.
2 You can find and purchase replacement micro-fiber dusting pads and accessories at www.sharkclean.com

TO REPLACE THE MOTORIZED FLOOR BRUSH FOR UPRIGHT CLEANING

1 Press the red release at the bottom of the extension wand and remove the hard floor attachment.
2 Replace the canister back onto the motorized floor brush and re-insert the handle with extension wand back into the top of the vacuum body until you hear these click into place.

When attaching the motorized floor brush, ensure that the locking mechanism is fully locked in place to ensure electrical connection has been made.

Storage and Maintenance

STORE YOUR VACUUM SAFELY

1 Convert your vacuum back to upright vac mode.

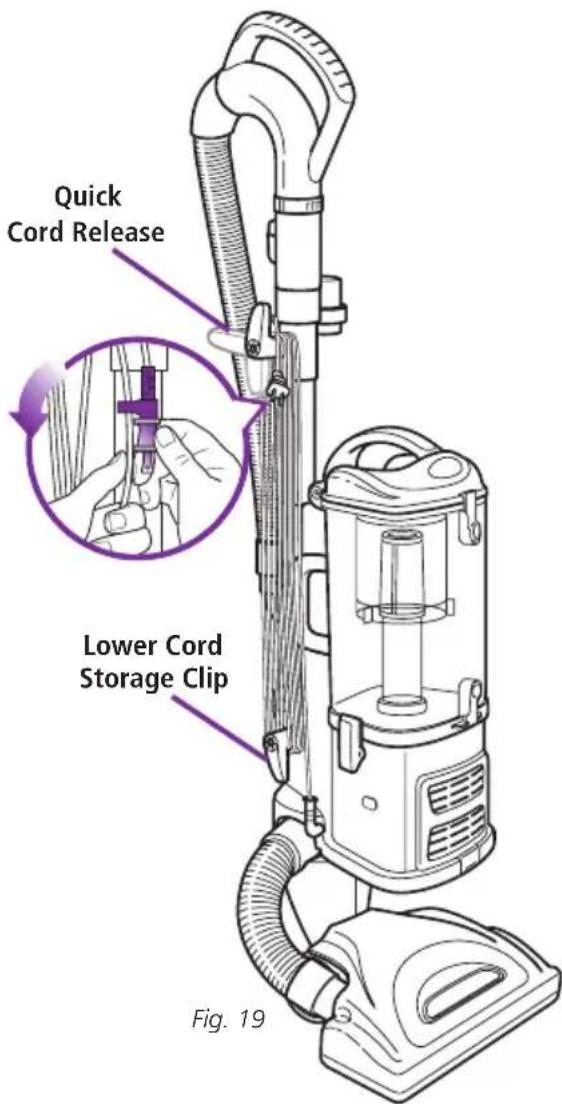

2 Rotate the upper quick cord release to its upright position and coil the power cord loosely around the two clips. Clip the plug onto the cord to secure. (Fig. 19)
3 Store the dusting brush and the crevice tool on the mounts on the accessory holder.
4 Store your vacuum cleaner safely in a cool dry area where it will not be a hazard, will not get damaged and will not cause damage to anyone or anything.

NOTE: Empty dust cup after cleaning and prior to storing. (See "Maintenance" section for instructions.)

To reduce the risk of electric shock, unplug the unit before performing any cleaning, maintenance, or troubleshooting checks.
⚠️ Reassemble all parts securely before operating vacuum.
DO NOT operate the vacuum without the pre-motor filters and dust cup in place.
DO NOT operate the vacuum with WET filters.
IMPORTANT: Make sure all filters are completely dry before inserting back into vacuum.
WARNING: Never insert sharp objects into any opening to clear an obstruction.
IMPORTANT: Damages caused while clearing or attempting to clear blockages are not covered under your product's limited warranty.

Maintenance

COMPONENT	MAINTENANCE SCHEDULE
1 Dust Cup	Empty each time you vacuum.
2 Pre-Motor Foam Filter	Rinse and air dry every 3 months under normal use.
3 Pre-Motor Felt Filter	Rinse and air dry every 3 months under normal use.
4 Post-Motor HEPA Filter	Clean once every 2 years or as needed.

The dust cup needs to be emptied each time you vacuum and periodically during cleaning, when the dust cup appears full.

1 Undo the latches on the sides of the dust cup by lifting them up and outwards to remove the dust cup from the motor base. (Fig. 20)
2 Hold the dust cup over a trash receptacle and press the bottom door release button. (Fig. 21) Tap gently to empty contents. Press the door shut again until it clicks.
3 If needed, turn the dust cup upside down over the trash receptacle and press the top door release button. (Fig. 22) Tap gently to remove contents.

Use a dry cloth or paper towel to remove debris stuck to the screen filter inside the dust cup. Press the door shut again until it clicks.

4 Replace the dust cup on top of the motor base. Hook the two latches onto the tabs on the sides of the dust cup and push down to lock.

CLEANING THE PRE-MOTOR FILTERS

1 Remove the dust cup.
2 Pull the 2 filters out from the top of the motor base. (Fig. 23)
3 Rinse the filters thoroughly in lukewarm water until the water runs clear.

DO NOT put the filter in the washing machine or dishwasher.

NOTE: The material in the filter will discolor over time. This is NORMAL and will not affect the performance of the filter.

4 Squeeze out excess water and let air-dry for at least 24 hours before replacing. Do not use a hair dryer or other heating methods to dry.
5 Place the felt filter in first, then the foam filter.
6 Replace the dust cup.

14 TOLL 雷: 7-800-798-7398

Maintenance - cont'd

Line drawing of a portable air conditioner unit with ventilation grilles (no text or symbols)

Fig. 24

Line drawing of a hand pouring granular material into a container (no text or symbols)

Fig. 25

Simple line drawing of a faucet pouring liquid into a container (no text or symbols)

Fig. 26

CLEANING THE POST-MOTOR HEPA FILTER

1 Remove the filter cover from the front of the vacuum by pulling up on the tab and pulling the cover away from the vacuum. (Fig. 24)
2 STake out the HEPA filter by pulling it straight out.
3 Turn the filter over so that the dirty side is on the bottom and vigorously tap it clean against a garbage can to remove any dust. (Fig. 25)
4 Wash the filter under the tap using lukewarm water with the dirty side face down until the water runs clear. (Fig. 26)

DO NOT put the filter in the washing machine or dishwasher.

NOTE: The material in the filter will discolor over time. This is NORMAL and will not affect the performance of the filter.

5 Allow the filter to air dry for 24 hours. Do not use a hair dryer or other heating methods to dry.
6 Once the HEPA filter is dry, replace it back into the vacuum.
7 Replace the cover by inserting the two tabs into the holes at the top and then swinging the cover down until it clicks into place.

CLEANING THE POWER BRUSH (model NV355 only)

1 Slide the locking latch (a) forward and tilt the bottom cover upward to remove. (Fig. 27)
2 Carefully remove any blockage or debris and cut away any build-up of hair or string wrapped around the rotating bristle brush with scissors.
3 To reassemble, insert the tabs on the front edge of the bottom cover into the matching holes in the top half and tilt it back down until it clicks into place. (Fig. 28)

Technical line drawing of a mechanical component with labeled part 'a', no readable text or symbols present

Line drawing of a mechanical component with no visible text or symbols

Fig. 30

CLEANING THE POWER BRUSH (model NV356E, NV356K, NV357 only)

1 Slide the locking latch (a) forward and gently tilt brush housing upward to open. (Fig. 29)
IMPORTANT: DO NOT force; it will not open all the way.
2 Carefully remove any blockage or debris.
3 Turn the power brush over to inspect the rotating brush and cut away any build-up of hair or string wrapped around the rotating bristle brush with scissors. (Fig. 30)
4 Push the housing back down and slide the locking latch backward to lock.

Fig. 31

CLEANING THE MOTORIZED FLOOR BRUSH

When your motorized floor brush needs cleaning or locks onto an object, it automatically shuts down to prevent damage to your lifetime belt. The indicator light will illuminate red warning you to turn off the vacuum and clear blockage immediately. The light will reset itself once blockage has been cleared and power has been cycled on/off or vacuum has been locked in the upright position.

1 Detach the motorized floor brush from the portable Lift-Away® canister.
2 Inspect the opening underneath and the rotating brush. If a build-up of debris is present, remove it. Carefully cut anything wound around the rotating brush with scissors. Avoid damaging or cutting the bristles. (Fig. 31)

CHECKING FOR BLOCKAGES

Blockages may cause your vacuum to overheat and shut down. To prevent this from happening, check potential blockage areas after heavy use or if you detect a loss of suction or poor cleaning performance.

1 Dust Cup

Dust cup may be full. Empty dust cup.

2 Pre-Motor & Post-Motor Filters

• Pre-motor filters require washing every 3 months for optimum performance. The post-motor HEPA filter needs to be washed every 2 years..
• Ensure that all the filters are clean.

3 Accessories

• Check intake openings:
• Extension Wand
• Dusting Brush
• Crevice Tool
• Turbo Brush

Maintenance - cont'd Ordering Parts

Line drawing of a mechanical device with three purple circles highlighting features, labeled as Fig. 33 (no text or symbols on the device itself)

Diagram of a medical device with tubing and connector, labeled Fig. 34 (no text or symbols on diagram itself)

4 Hose and Connections to Vacuum

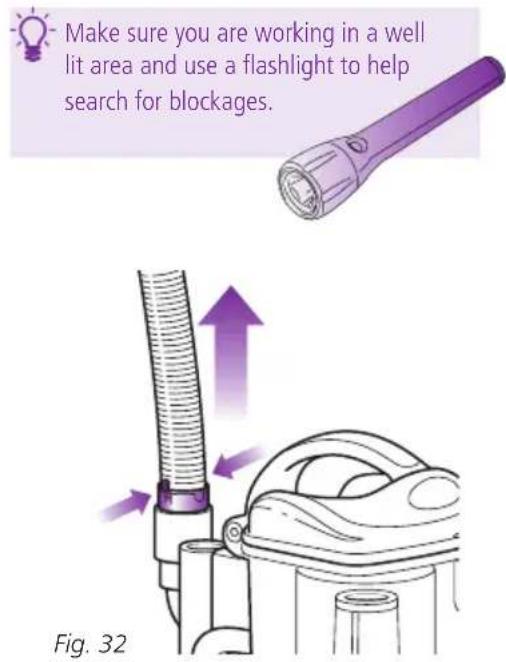

• Detach the stretch hose from the back of the portable Lift-Away® canister by squeezing the tabs together and pulling up. (Fig. 32) Straighten out the hose and look inside for blockages.
• Remove the dust cup and extension wand and separate the portable Lift-Away ^® canister from the motorized floor brush. Look in all 4 openings for any blockages. (Fig. 33)

5 Motorized Floor Brush

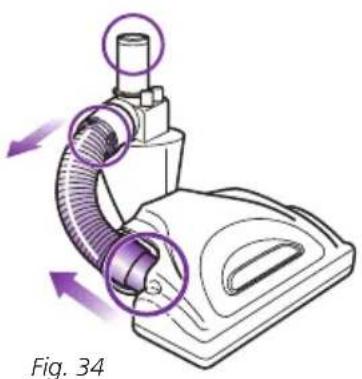

- Detach the hose on the motorized floor brush at the top by squeezing the tabs together and pulling out, and at the bottom by pulling out the connector. Inspect inside the 3 holes. (Fig. 34)

PART PART NO.

1	Pre-Motor Filter Set XFF350
2	HEPA Filter	XHF350
3	Dusting Brush & Crevice Tool	112FFJ
4	Turbo Brush (NV356E, NV356K, NV357)	119FFJC
5	Turbo Brush (NV355)	137FFJ
6	24" Crevice Tool (NV356E, NV356K)	1124-FC
7	Pet/Upholstery Tool (NV356K)	128FF
8	Dust-AwayTM Hard Floor Attachment	142FFJ
9	Dust-AwayTM Micro-fiber Pad (1)	P200W
	Dust-AwayTM Micro-fiber Pads (2)	XPD356
	Dust-AwayTM Micro-fiber Pads (3)	XTW356

To order additional parts or accessories go to www.sharkclean.com or call 1-800-798-7398.

PROBLEM POSSIBLE REASONS & SOLUTIONS
Vacuum is not picking up dirt.	Check filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting back into the vacuum. (See "Maintenance" sections for instructions.)Dust cup may be full; empty dust cup.Check hose and hose connections for blockages; clear blockages if required.If dust cup is empty, and attachment inlets are clear, check for other blockages. (See "Checking for Blockages" for instructions.)
Vacuum lifts scatter rugs (lightweight, movable rugs).	Suction is powerful. Take care when vacuuming scatter-type rugs or rugs with delicately sewn edges. Open the suction release on the handle to decrease suction power.Move the On/Off switch to "I - Suction Only" position to disengage the brush roll
Airflow is restricted. No suction or light suction.	Check filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting back into the vacuum.Dust cup may be full; empty dust cup.Check hose, hose connections, nozzles and accessories for blockages; clear blockages if required.Close the suction release on the handle to increase suction power.If dust cup is empty, and attachment inlets are clear, check for other blockages.
Brush roll does not spin	Immediately turn off and unplug vacuum, disconnect the nozzle and remove blockage before reconnecting and turning vacuum back on.Pull the handle toward you and release the floor nozzle to disengage the auto-off feature.Move the On/Off switch to the "II - Brush Roll On" position.
Vacuum turns off on its own.	This vacuum cleaner is equipped with a motor protective thermostat. If for some reason your vacuum overheats, the thermostat will automatically turn the unit off. Should this occur, perform the following steps to restart the motor thermostat:Move the On/Off switch to the "O" (Off) position.Unplug the vacuum.Empty the dust cup and clean filters.Check for blockages in hose, accessories and inlet openings.Allow the unit to cool for a minimum of 45 minutes.Plug in the vacuum.Turn the On/Off switch to the "I" (On) position to restart the vacuum.Note:If vacuum still does not start, contact Customer Service at:1-800-798-7398.

To purchase replacement parts, please visit our website: www.sharkclean.com or contact customer service: 1-800-798-7398.

18 TOLL 雷: 7-800-798-7398

EURO-PRO FIVE-YEAR (5) LIMITED WARRANTY

EURO-PRO Operating LLC warrants this product to be free from material defects and workmanship for a period of five (5) years from the date of purchase when utilized for normal household use, subject to the following conditions, exclusions and exceptions.

The liability of EURO-PRO Operating LLC is limited solely to the cost of the repair or replacement of the unit at our option. This Limited Warranty does not cover normal wear of parts and does not apply to any unit that has been tampered with or used for commercial purposes. This Limited Warranty does not cover damage caused by misuse, abuse, negligent handling or damage due to faulty packaging or mishandling in transit. This Limited Warranty does not cover damage or defects caused by or resulting from damages from shipping or repairs, service or alteration to the product or any of its parts, which have been performed by a repair person not authorized by EURO-PRO Operating LLC.

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, you may return the complete appliance and accessories with proof of purchase and date, freight prepaid. For customer service support, call 1-800-798-7398 or visit our website at www.sharkclean.com.

If the appliance is found by EURO-PRO Operating LLC to be defective, in EURO-PRO Operating LLC's sole discretion, we will repair or replace it free of charge. Proof of purchase date and a check made payable to EURO-PRO Operating LLC in the amount of \$19.95 to cover the cost of return shipping and handling must be included.*

Non-durable parts including, without limitation, filters, brushes and electrical parts which normally require replacement are specifically excluded from warranty.

This Limited Warranty is extended to the original purchaser of the unit and excludes all other legal, implied and/or conventional warranties. The responsibility of EURO-PRO Operating LLC if any, is limited to the specific obligations expressly assumed by it under the terms of this Limited Warranty. In no event is EURO-PRO Operating LLC liable for incidental or consequential damages to anyone of any nature whatsoever. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

*IMPORTANT: Carefully pack item to avoid damage in shipping. Be sure to include proof of purchase date and to attach a tag to item before packing including your name, complete address and phone number with a note giving purchase information, model number and what you believe is the problem with the item. We recommend you insure the package (as damage in shipping is not covered by your warranty). Mark the outside of your package “ATTENTION CUSTOMER SERVICE”. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.

Product Registration

Please visit www.sharkclean.com or call 1-800-798-7398 to register your new Shark® product within ten (10) days of purchase. You will be asked to provide the store name, date of purchase and model number along with your name and address.

The registration will enable us to contact you in the unlikely event of a product safety notification. By registering you acknowledge to have read and understood the instructions for use, and warnings set forth in the accompanying instructions.

EURO-PRO Operating LLC

U.S.: Newton, MA 02459

Canada: Ville St. Laurent, Québec H4S 1A7

1-800-798-7398

www.sharkclean.com

Copyright © Euro-Pro Operating LLC 2011

Printed in China

Illustrations may differ from actual product.

NV355.NV356E.NV356K.NV357.110714.3
