USER MANUAL ADR224 DCS

PROFESSIONAL GRILLS SERIES 9 OUTDOOR KITCHEN

PLANNING GUIDE

BEI-48RCI | BEI-36RCI | BEI-48RC | BEI-36RC | BEI-48C | BEI-36C | BGA54-IJS | BGA48-IJS | BGA42-IJS | BGA36-IJS | ASE6-48 | ASE6-36

DCS

This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with DCS appliances. In this guide, you will find a range of conceptual, detailed, and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.

CONTENTS

CONCEPT DESIGN	PAGE	DEVELOPED AND DETAILED DESIGN	PAGE	DEVELOPED AND DETAILED DESIGN	PAGE

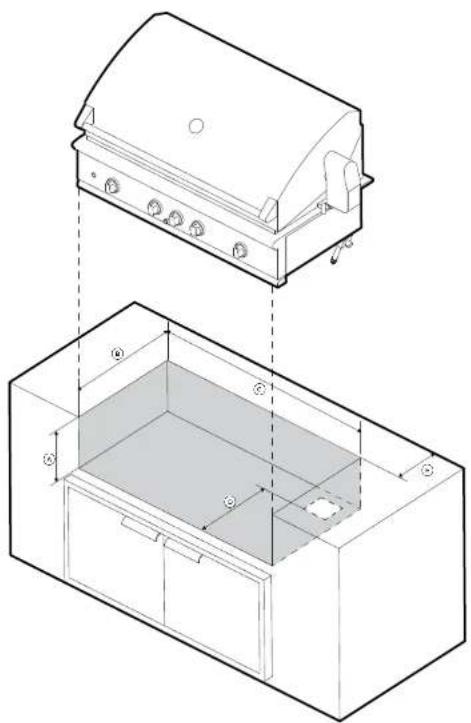

Design Choices		Data Sheets		Grill Cabinet Specifications
Grills 4		Grills 48" with Rotisserie	15	Non-combustible cabinet	31
Specialty cooking 5		Grills 48"	16	Combustible cabinet	32
Cooling 6		Grills 36" with Rotisserie	17

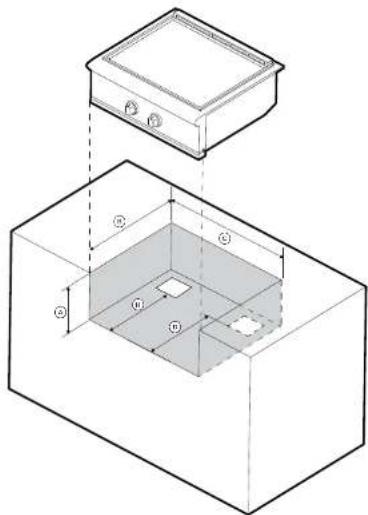

Drawers 7		Grills 36"	18	Specialty Cooking Cabinet Specifications
Access doors 8		Side burner	19	30 & 24" Specialty cooking installation	34
Carts	9	Power burner	20	24" Specialty cooking in recessed cavity	35
Compact kitchen	10	Griddle	21
Medium kitchen	11	Griddle/side burner	22	Services
Large kitchen	12	All grill	23	Electrical	37
Large kitchen	13
		Planning Considerations
		Grills - clearances	25
		Specialty cooking - clearances	26

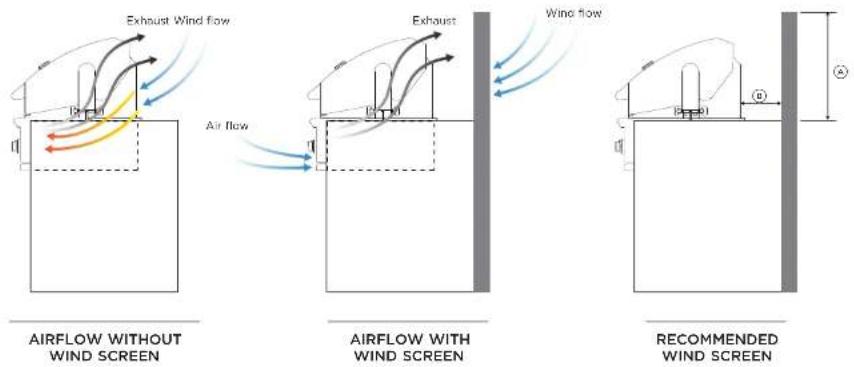

		Wind screen protection	27

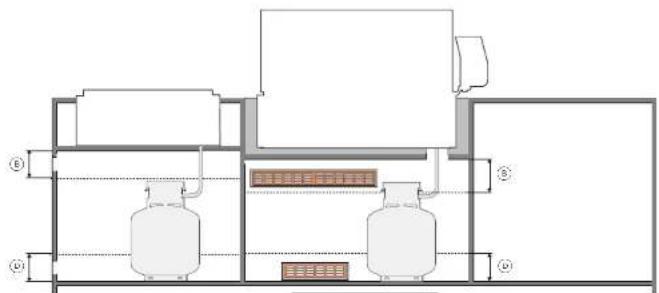

		Ventilation requirements for LP cylinder enclosures	28
		Notched counter-top and bull-nose edging details	29

The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website www.deappliances.com

DESIGN CHOICES

DCS

90003357D

PLANNING GUIDE OUTDOOR KITCHEN - VERSION D - FEBRUARY 2025 ✉ DCS BY FISHER & PAYKEL APPLIANCES LTD 2025

PAGE 3

①

②

③

①

⑥⑤ ⑪

12

GRILLS

BE1-48RCI Grill

48" Grilling surface, infrared sear burner, left or right hand rotisserie placement, charcoal smoker tray, full surface searing, secondary cooking. Gas options: LP or NG

② BE1-36RCI Grill

36" Grilling surface, infrared sear burner, left or right hand rotisserie placement, charcoal smoker tray, full surface searing, secondary cooking. Gas options: LP or NG

BE1-48RC Grill

48" Grilling surface, left or right hand rotisserie placement, charcoal smoker tray, full surface soaring, secondary cooking. Gas options: LP or NG

BE1-36RC Grill

36" Grilling surface, left or right hand rotisserie placement, charcoal smoker tray, full surface searing, secondary cooking. Gas options: LP or NG

BE1-48C Grill

48" Grilling surface, charcoal smoker tray, full surface searing, secondary cooking. Gas options: LP or NG

BE1-36C Grill

36" Grilling surface, charcoal smoker tray, full surface searing, secondary cooking. Gas options: LP or NG

⑦ BGA54-IJS INSULATION JACKET

54" Jacket for combustible cabinet installation (ASE6-48 6" storage in combination with S9 48" grill)

⑧ BGA48-IJS INSULATION JACKET

© BGA42-IJS INSULATION JACKET

⑬ BGA36-IJS INSULATION JACKET

⑪ ASE6-48 SIDE STORAGE

The models shown in this Planning Guide may not be available in all markets and are subject to change if any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly recall the products featured here. Specific installation guidance will be available on our website www.dceappliances.com

SPECIALTY COOKING

① SBE1-142 Double Side Burner

14" Double side burner with cover. Gas Options: LP or NG

② PBE1-24 Power Burner

24" Power burner with cover. Gas Options: LP or NG

③ GDSBE1-302 Griddle/Side Burner

30" Griddle/side burner with cover. CAD1-30E Free-standing cart install option available. Gas Options: LP or NG

④ BE1-30AG All Grill

30" Grilling Surface with cover. CAD1-30E Free-standing cart install option available. Gas Options: LP or NG

⑤ GDE1-30 Griddle

30" Large griddle with separate temperature zones. CAD1-30E Free-standing cart install option available. Gas Options: LP or NG

⑥ BGB30-IJS 30" Insulation Jacket

30" Jacket for combustible cabinet installation with GDSBE1-302 Griddle/Side Burner, BE1-30AG All Grill and GDE1-30 Griddle

⑦ BGA24-IJS 24" Insulation Jacket

24" Jacket for combustible cabinet installation with PBEI-24 Power Burner

7

The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website dceappliances.com

②

Simple line drawing of a rectangular container with two side ports and a top outlet (no text or symbols)

③

Simple line drawing of a container with a side port and two bottom ports (no text or symbols)

④

5

5

⑦

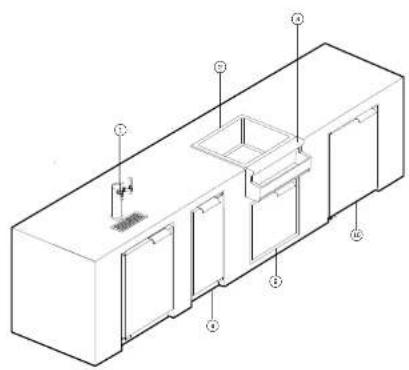

CHILLERS IN COUNTER

BC25 Sink

25" Bottle and ice sink with four condiment storage containers.

BC1-25AC Bottle Holder Sink Accessory

25" 1 litre bottle holder with towel rack.

RF24BTR2, RF24BTL2 Outdoor Beer Dispenser

24" Dual tap, CO ^2 tank and regulator, refrigerated keg storage, door open alarm, digital temperature control with in counter drainage system. Left or right door opening.

RF24BTR2, RF24BTL2 Outdoor Beer Dispenser

24" Single tap, CO ^2 tank and regulator, refrigerated keg storage, door open alarm, digital temperature control with in counter drainage system. Left or right door opening

CHILLERS UNDER COUNTER

RF24DE4 Outdoor refrigerator drawers

24" Refrigerated drawers, 5 cu foot capacity, rapid cool down, and open door alarm.

RF24RE4, RF24LE4 Outdoor refrigerator

24" Single door refrigerator, 5.3 cu foot capacity and open door alarm. Left or right door opening.

RF15IL3, RF15R3 Outdoor Ice Machine

15" Ice Machine, 39lb per day, sound buffered, eco and delay mode.

The models shown in this Planning Guide may not be available in all markets and are subject to change if any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly recall the products featured here. Specific installation guidance will be available on our website www.dceappliances.com

①

②

③

④

5

⑥

7

8

⑨

DRAWERS

① WD1-30-SSOD Warming drawer

30" Outdoor warming drawer, removable stainless steel shelf, space for 6 standard dinner plates.

② TDT1-20 Tower drawer triple

20 5/16" Wide outdoor weather resistant triple drawers.

③ TDD1-20 Tower drawer double

20 5/16" Wide outdoor weather resistant double drawers.

④ TDS1-20 Tower drawer single

20 5/16" Wide outdoor weather resistant single drawer.

⑤ TB1-20 Trash bin

20 5/16" Wide waste solution with two full sized removable bins.

⑤ ADR2-48 Access drawers

48" Wide access four drawer or convert to trash drawer and flexible storage.

⑦ ADR2-36 Access drawers

36" Wide access three drawer or convert to trash drawer and flexible storage.

ADR2-30 Access drawers

30" Wide access two drawer or convert to trash drawer and flexible storage.

⑤ ADR2-24 Access drawers

24" Wide access single drawer or convert to trash drawer.

The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website dceappliances.com

ACCESS DOORS

① DP1-42 Dry pantry

42" Wide dry pantry, adjustable storage, removable storage bins and wire shelves.

② ADN1-20X48 Access doors

48" Wide access doors, for built in cabinet storage.

③ ADN1-20X36 Access doors

36" Wide access doors, for built in cabinet storage.

④ ADN1-20X30 Access doors

30" Wide access doors, for built in cabinet storage.

⑤ ADN1-20X24 Access doors

24" Wide access doors, for built in cabinet storage.

Simple line drawing of two adjacent empty rectangular compartments with no text or symbols

①

②

③

④

⑤

The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website dceappliances.com

MODELS

48" Grill with Rotisserie, Sear Burner and Charcoal Smoker Tray

Models: BE1-4BRCH-L (LPG), BE1-4BRCH-N (NG)

② 48" Cad Grill Cart

CAD1-45E

④ Shelf Accessories - Optional

Side Shelf - CAD1-SK

Bamboo Cutting Board AP-CBB

④ 36" Grill with Rotisserie and Charcoal Smoker Tray

Models: BE1-36RC-L (LPG), BE1-36RC-N (NG)

② 36" Cad Grill Cart

CADI-36E CADI-30E

Shelf Accessories - Optional

Side Shelf - CADI SK Side Shelf - CADI SK

Barrhoe Cutting Board AP-CBS

30° All Grill

Models: BE1-30AG-L (LPG), BE1-30AG-N (NG)

② 30" Cad Grill Cart

④ Shelf Accessories - Optional

Back Bar - CAD3C-BB

Bamboo Cutting Board AP-CRR

Note: Any grill or 30° specialty cooking product with corresponding width to car, dimension can be installed. Contact your UCS supplier for guidance

The models shown in this Planning Guide may not be available in all markets and are subject to change if any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly recall the products featured here. Specific installation guidance will be available on our website www.dceappliances.com

Isometric line drawing of a mechanical or electrical enclosure with labeled components (no text or symbols)

Isometric line drawing of a mechanical device with multiple ports and a central control panel (no text or symbols)

MODELS

36" Grill with Rotisserie, Scar Burner and Charcoal Smoker Tray
Models: BEI-36RCI-L (LPG), BEI-36RCI-N (NG)
② 6" Side Storage Unit

ASE6-36

④ 36" Access Drawers Built-In

ADR2-36

36" Grill with Rotisserie and Charcoal Smoker Tray
Models: BEI-38RC-L (LPG), BEI-36R-N (NG)
② 14" Double Side Burner
Models: SBC1-142-L (LPG), SBC1-142 (NC)
36" Access Doors Built-in
ADNI-20×36
④ 24" Outdoor Refrigerator Drawers
RF24DE4

① 48" Grill with Rotisserie, Scar Burner and Charcoal Smoker Tray
Models: BE1-48RCI-L (LPG), BE1-48RCI-N (NG)
② 30" Griddle
Models: GDEI-80-L (LPG), GDEI-80-N (NG)
30" Insulation Jacket
RGR3D-LJS
④ 48" Insulation Jacket
30" Access Drawers Built-in
ADN 20X30
① 48" Access Doors Built-in
ADN120X48

Note: Multiple grill and storage configurations are available.

The models shown in this Planning Guide may not be available in all markets and are subject to change if any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly recall the products featured here. Specific installation guidance will be available on our website www.dceappliances.com

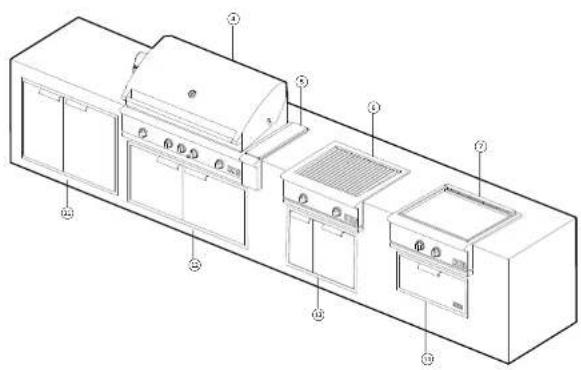

MODELS

24" Outdoor Dual Tap Beer Dispenser

RF240TR2 ASC6-48 ADN1-20X24

⑦ 25" Beverage Chiller/Sink

BC25 Models: BE1-30AG-L, (LPG), BE1-30AG-N (NS) ADNT-20X4B

① Bottle Holder Accessory

BCI-25AC Models: RF15IL3 (left hand opening), RF15IR3 (right hand opening) WD1-30-SSO

④ 30" Griddle

Model: GDF-30-L, (LPG). GDF-30-N (NG)

⑤ 48" Grill with Rotisserie, Sear Burner and Charcoal Smoker Tray

Models: RE1-ABRCH (LPG), RE1-ABRCH-N (NG)

Note: Multiple grill, container and storage configurations are available.

6" Side Storage Unit

30" All Grill

⑧ 15" Outdoor Ice Machine

⑨ 24" Access Door

ADNT-20X24

24" Outdoor Refrigerator Drawers

RF24DE4

24" Access Door

48" Access Doors

30° Outdoor Warming Drawer

The models shown in this Planning Guide may not be available in all markets and are subject to change if any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly recall the products featured here. Specific installation guidance will be available on our website www.dceappliances.com

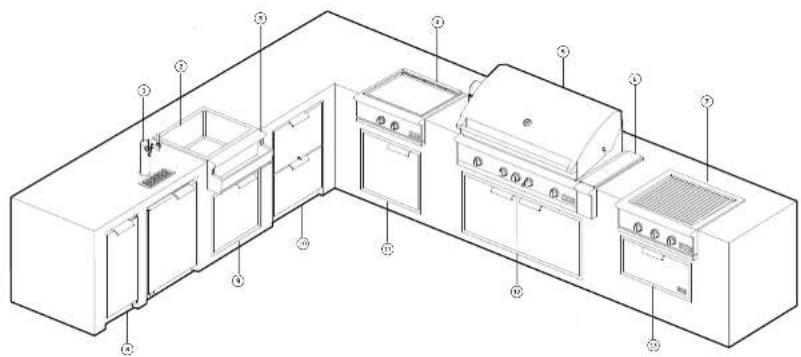

MODELS

① 24" Outdoor Dual Tap Beer Dispenser

RF24BTR2 Models: BEI-30AG-L (LPG). BEI-30AG-N (NG) DPI-42

25" Beverage Chiller/Sink

BC25 Models: GDE1-30-L (LPG), GDE1-30-N (NG) AON1-20X48

Bottle Holder Accessory

BCI-25AC Models: RF15IL3 (left hand opening), RF15IR3 (right hand opening); ADR2-30

① 48" Grill with Rotisserie, Sear Burner and Charcoal Smoker Tray

Models: BEI-48RCI-H (LPG) BEI-48RCI-N (NG)

6" Side Storage Unit

ASE6-45

NOTE: Multiple grid, cooler and storage configurations are available

30° All Grill

② 30° Griddle

15" Outdoor Ice Machine

④ 24" Access Door

ADNI 20X24

24" Outdoor Refrigerator

Models RF24LE4 (left hand opening), RF24RE4 (right hand)

42" Dry Pantry

⑫ 48" Access Doors

30' Access Drawers Built-in

30° Outdoor Warming Drawer WD1-30-SSOD

The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly recall the products featured here. Specific installation guidance will be available on our website www.dceappliances.com

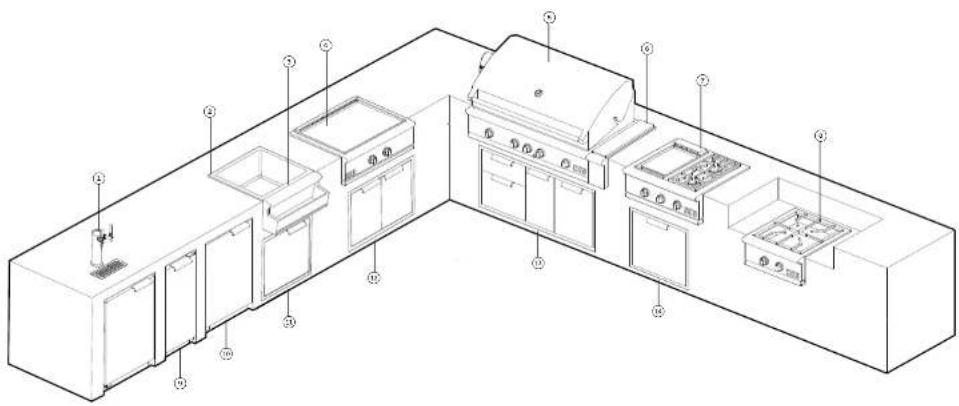

MODELS

① 24" Outdoor Dual Tap Beer Dispenser

RF24BTR2 ASE6-48 ADN1-20X24

② 25" Beverage Chiller/Sink

BC25 Models: COSBEI-302-L, (LPC), GDSBEI-302-N (NG) ADN-20X30

② Bottle Holder Accessory

BC1-25AC

④ 30" Griddle

Models: GDE1-20-L, (LPG), GDE1-20-N (NS)

48" Grill with Rotisserie, Sear Burner and Charcoal Smoker Tray

Models: BDI-48RCI-L (LPC) BDI-48RCI-N (NG)

NOTE: Multiple gr conor and storage configurations are available

④ 6" Side Storage Unit

30" Griddle/Side Burner

24" Power Burner

Models: PBE1-24-L (LPG), PBE1-24-N (NG)

① 15" Outdoor Ice Machine

Models: RFISIL3 (left hand opening), RFISIR3 (right hand opening)

24" Outdoor Refrigerator

Models: RF24LE4 (left hand opening), RF24RE4 (right hand)

⑪ 24" Access Door Built-in

⑫ 30" Access Doors

48" Access Drawers Built-in

ADR2-48

⑭ 24" Access Door Built-in

ADM-20X24

The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly recall the products featured here. Specific installation guidance will be available on our website www.dceappliances.com

DATA SHEETS

DCS

90003357D

PLANNING GUIDE OUTDOOR KITCHEN - VERSION D - FEBRUARY 2025 ✉ DCS BY FISHER & PAYKEL APPLIANCES LTD 2025

PAGE 14

Model no:

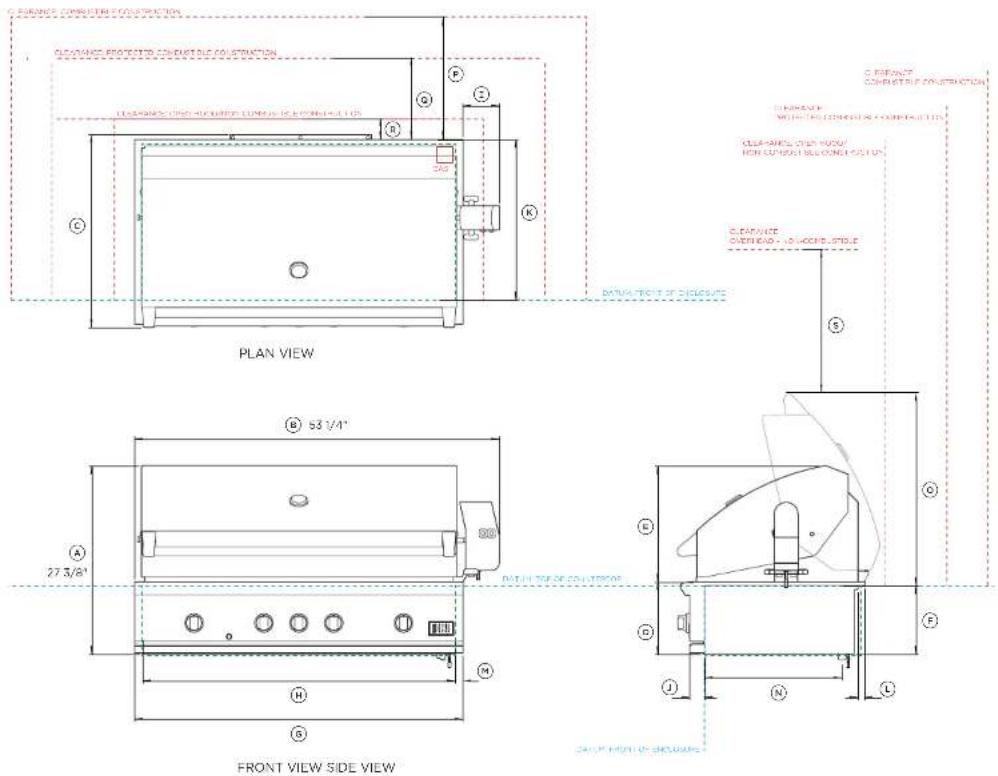

48" Grills with rotisserie - RE1-48RC, RE1-48RC

Product Dimensions	inch	mm
Overall height	27 3/8	696
Overall width including rotisserie motor	53 1/4	1353
Overall depth	27 15/16	709
Height of chassis Including flange	10 1/2	267
Height of chassis from top of hood to flange	16 15/16	430
Height of chassis below flange	9 15/16	253
Width of control panel	47 15/16	1217
Width of chassis inside enclosure	45 9/16	1158
Rotisserie motor depth	5 5/16	135
Control panel depth	22 3/16	55
Front of cabinet (proud) to rear flange	23 5/16	592
Depth of rear flange	1	25
Width of side flanges	1 3/16	29.5
Front of chassis to gas outlet	20 1/16	509
Height of open hood to top of counter-loop	27 3/8	69

Minimum Clearances		inch	mm
	Clearance to combustible construction	18	457
	Clearance to protected combustible construction	12	305
	Clearance to non-combustible construction	3	76
	Minimum clearance top of open hood to non-combustible surface	24	76

Note. Do not install under unprotected combustible or protected combustible construction without using a fire safe ventilation system As per DL 507 and CSA C22.2 No 60335-2-31.

If the grill is to be placed into a combustible enclosure, an approved insulated jacket is necessary. Use only the DCS insulated jacket which has specifically been designed and tested for this purpose.

48" Insulated jacket model number: BGA48-195

INDICATES CABINETRY / PRODUCT DATUM INDICATES CABINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcsappliances.com

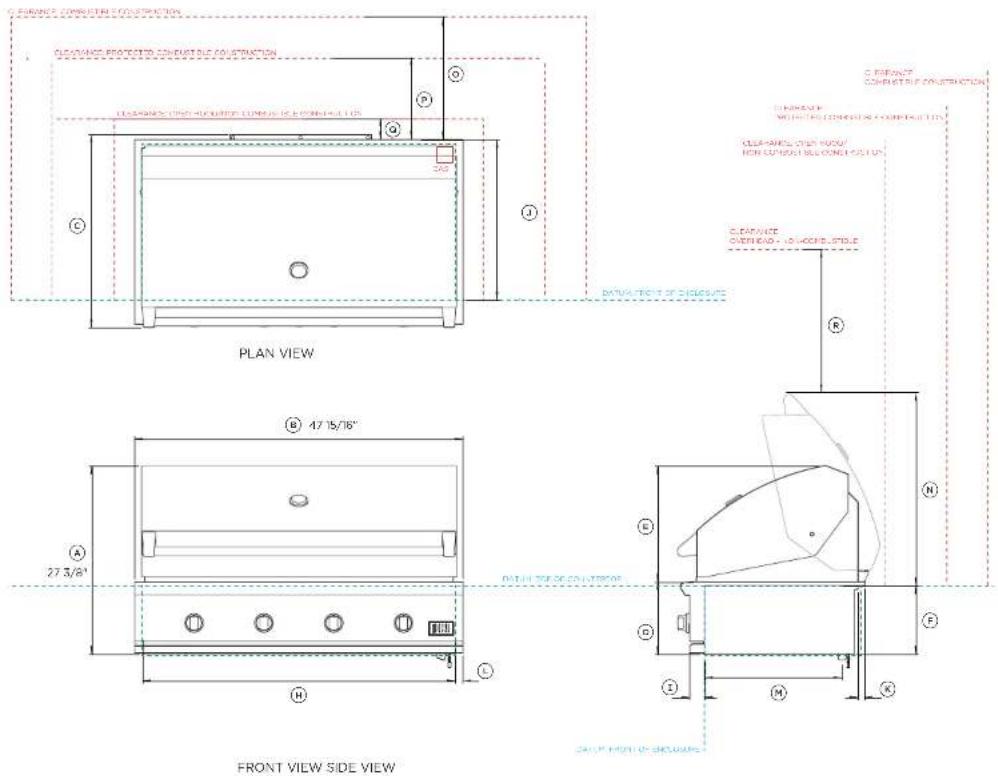

Model no:
48° Grills - BE1-4BC

Product Dimensions	inch	mm
Overall height	27 3/8	696
Overall width	47 15/16	1217
Overall depth	27 15/16	700
Height of chassis including range	10 1/2	267
Height of chassis from top of hood to range	16 15/16	430
Height of chassis below range	9 15/16	253
Width of chassis inside enclosure	45 3/16	1158
Control panel depth	22 3/16	55
Front of cabinet (proud) to rear range	23 5/16	592
Depth of rear range	1	25
Width of side flanges	13/16	29.5
Front of chassis to gas outlet	20 3/16	506
Height of open hood to top of counter-top	27 3/8	691

Minimum Clearances		Inch	mm
	Clearance to combustible construction	18	457
	Clearance to protected combustible construction	12	305
	Clearance to non-combustible construction	3	76
	Minimum clearance top of open hood to non-combustible surfaces	24	76

Note. Do not install under unprotected combustible or protected combustible construction without using a fire safe ventilation system. As per UL 507 and CSA C22.2 No 60335-2-31.
If the grill is to be placed into a combustible enclosure, an approved insulated jacket is necessary. Use only the DCS insulated jacket which has specifically been designed and tested for this purpose.
48" Insulated jacket model number: B6445-1JS
INDICATES CABINETRY / PRODUCT DATUM INDICATES CABINCTRY CLEARANCES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcsappliances.com

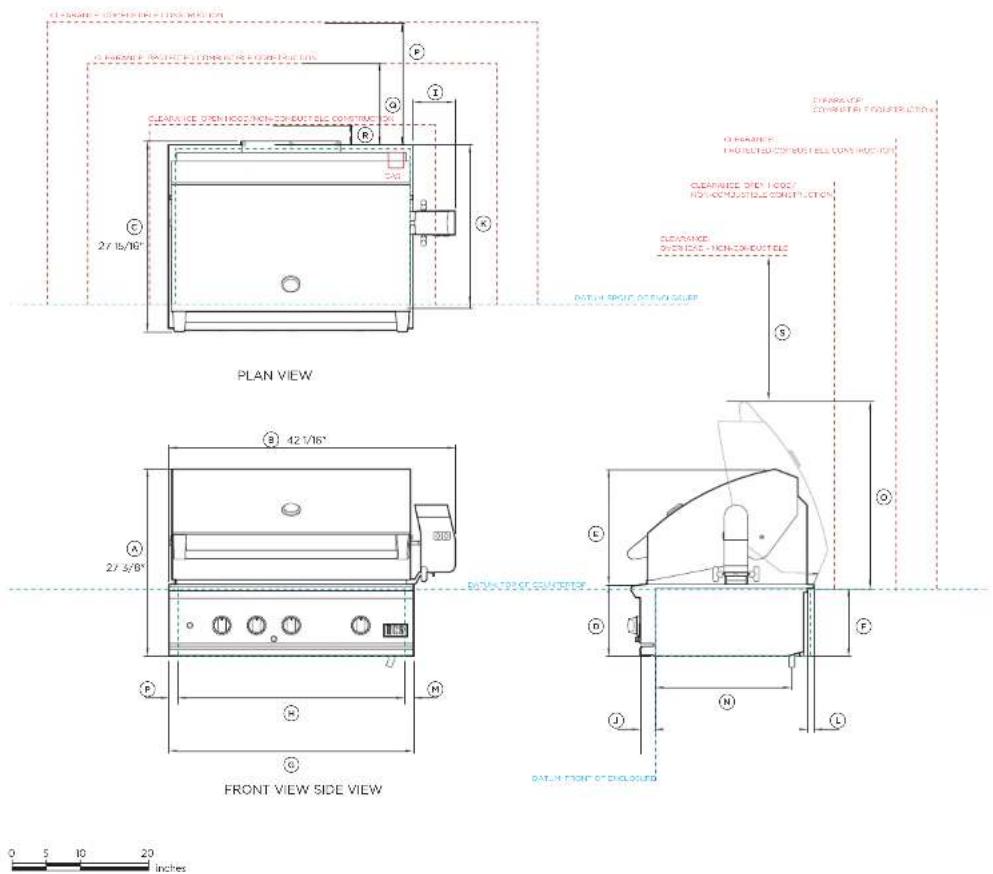

Model no:
36 ^1 Grills with rotissene - BEI-36RCI, BEI-36RC

Product Dimensions	Inch	mm
Overall height (excluding lid)	27 3/18	696
Overall width including roissene motor	42 1/16	1069
Overall depth	27 15/16	701
Height of chassis including flange	10 1/2	267
Height of chassis from top of hood to flange	16 15/16	430
Height of chassis below flange	9 15/16	753
Width of control panel	35 15/16	912
Width of Chassis inside enclosure	33 11/16	655
Rotissene motor depth	5 1/16	156
Control panel depth	2 3/16	55
Front of colonet (proud) to rear flange	23 5/16	592
Depth of rear flange	1	25
Width of side flanges	13/16	29.5
Front of chassis to gas outlet	20 1/16	506
Height of open hood to top of counter-top	27 3/16	691

Minimum Clearances		inch	mm
5	Clearance to combustive construction	18	457
6	Clearance to protected combustible construction	12	305
7	Clearance to non-computable construction	3	75
8	Minimum clearance top of open hood to non-computable surface	24	610

Note: Do not install under unprotected combustible or protected combustible construction without using a fire safe ventilation system As per UL 507 and CSA C22.2 No 60335-2-31.
If the grill is to be placed into a combustible enclosure, an approved insulated jacket is necessary. Use only the DCS insulated jacket which has specifically been designed and tested for this purpose.
36° Insulated jacket model number: BGA36-US

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcsappliances.com

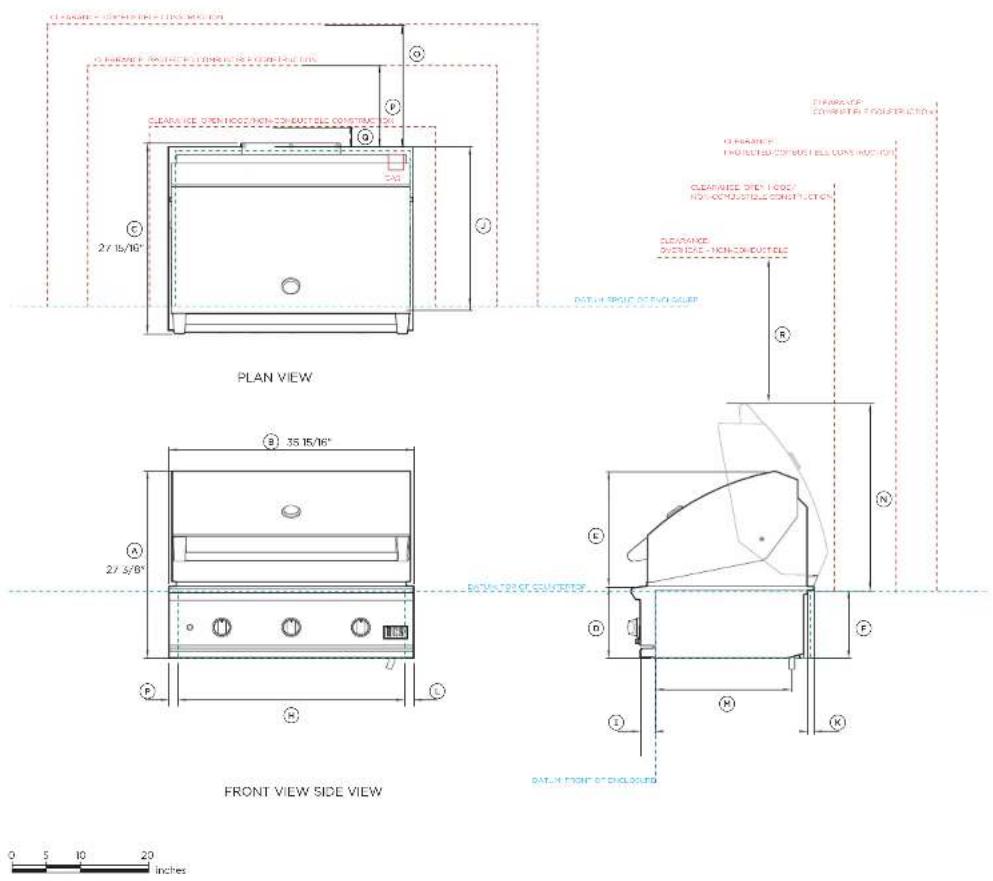

Model no:
36 ^a Grills - BE1-36C

Product Dimensions	oz	mm
Overall height (excluding lid)	27 3/8	690
Overall width	25 15/16	912
Overall depth	27 15/16	703
Height of chassis including flange	10 1/2	267
Height of chassis from top of hood to flange	16 15/16	430
Height of chassis below flange	9 15/16	753
Width of Chassis inside enclosure	33 11/16	855
Control panel depth	2 3/16	55
Front of calomet (proud) to rear flange	23 1/16	592
Depth of rear flange	1	25
Width of side flanges	12/16	251
Front of chassis to gas outlet	20 1/16	508
Height of open hood to top of counter-top	27 3/16	691

Minimum Capacities		m3	mm
◎	Clearance to combustible construction	18	457
◎	Clearance to protected combustible construction	12	305
◎	Clearance to non-combustible construction	3	76
◎	Minimum clearance top of open hood to non-combustible surface	24	610

Note: Do not install under unprotected combustible or protected combustible construction without using a fire safe ventilation system As per UL 507 and CSA C22.2 No 60335-2-31.
If the grill is to be placed into a combustible enclosure, an approved insulated jacket is necessary. Use only the DCS insulated jacket which has specifically been designed and tested for this purpose.
36° Insulated jacket mode number: BGA36-US

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcsappliances.com

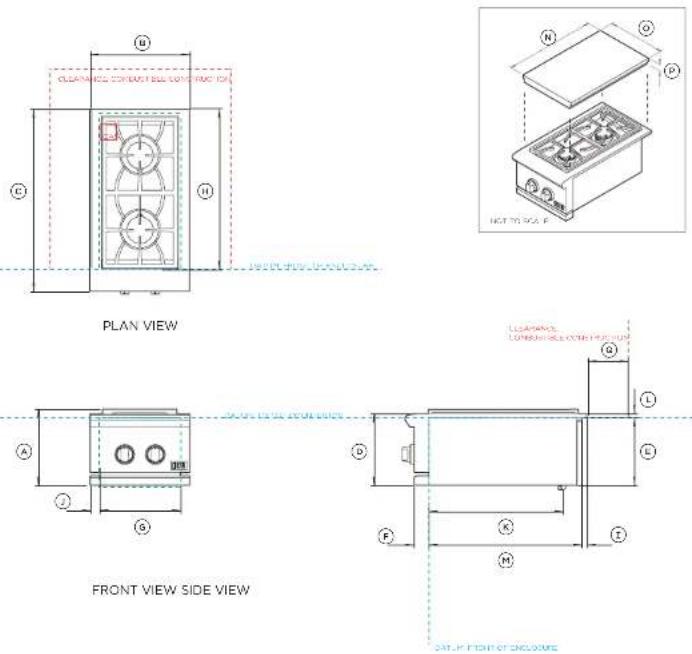

Model no:
Side burner - SBH1-142

Product Dimensions	inch	mm
Overall height	11 3/4	285
Overall width	14 1/16	373
Overall depth (excluding diaas)	26 7/8	683
Height of chassis including range	10 5/8	268
Height of chassis below range	9 15/16	253
Control panel depth	2 3/16	55
Width of Chassis inside enclosure	11 7/8	301
Front of calomet (proud) to rear range	11 1/4	286
Depth of rear range	3/4	19
Width of side flanges	1 7/6	36
Front of chassis to gas outlet	20 1/16	505
Height of flange	19/32	15
Depth of chassis	22 9/16	573
Depth of lid	23	585
Width of lid	14 3/8	365
Height of lid	11 1/16	43

Minimum Clearances	Inch	mm
6 Clearance to surfaces above counter-top at rear and sides	6	157

INDICATES CABINETRY / PRODUCT DATUM INDICATES CABINISTRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit desappliances.com

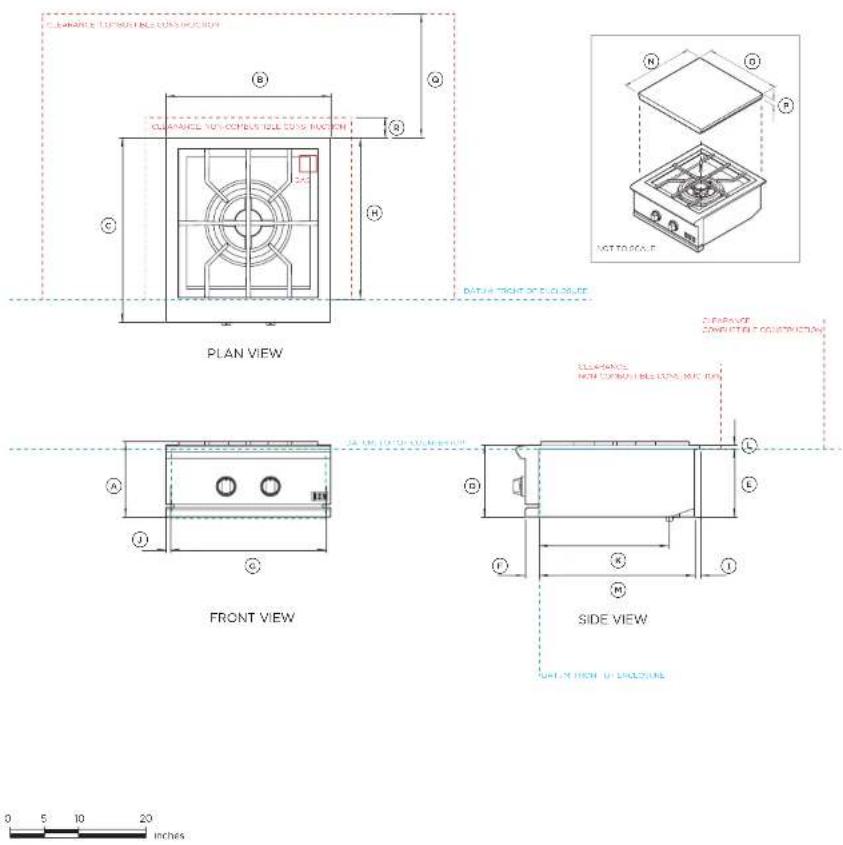

Model no:
Power burner - PBE1-24

Product Dimensions	inch	mm
Overall height	1	279
Overall width	24	610
Overall depth (excluding diaz)	26 7/8	683
Height of chassis including range	10 1/2	266
Height of chassis below range	9 15/16	262
Control panel depth	2	51
Width of chassis inside enclosure	20 3/16	552
Front of colonet (proud) to rear range	23 1/2	597
Depth of rear range	1	25
Width of side flanges	1 1/8	28
Front of chassis to gas outlet	20 1/16	505
Height of flange	9/16	14
Depth of chassis	22 9/16	573
Depth of lid	22 12/16	583
Width of lid	23 5/8	600
Height of lid	11/16	42

Minimum Clearances		Inch	mm
1	Clearance to combustible construction	18	457
2	Clearance to non-combustible construction	3	76

Note: The power burner should be mounted 6 - 12" below the counter-top
height to assist with lifting heavy pans and wind protection.
If the power burner is to be placed into a combustible enclosure, an approved insulated jacket is necessary. Use only the DOS insulated jacket which has specifically been designed and tested for this purpose
24" Insulated jacket: model number: BBA24-L15

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcsappliances.com

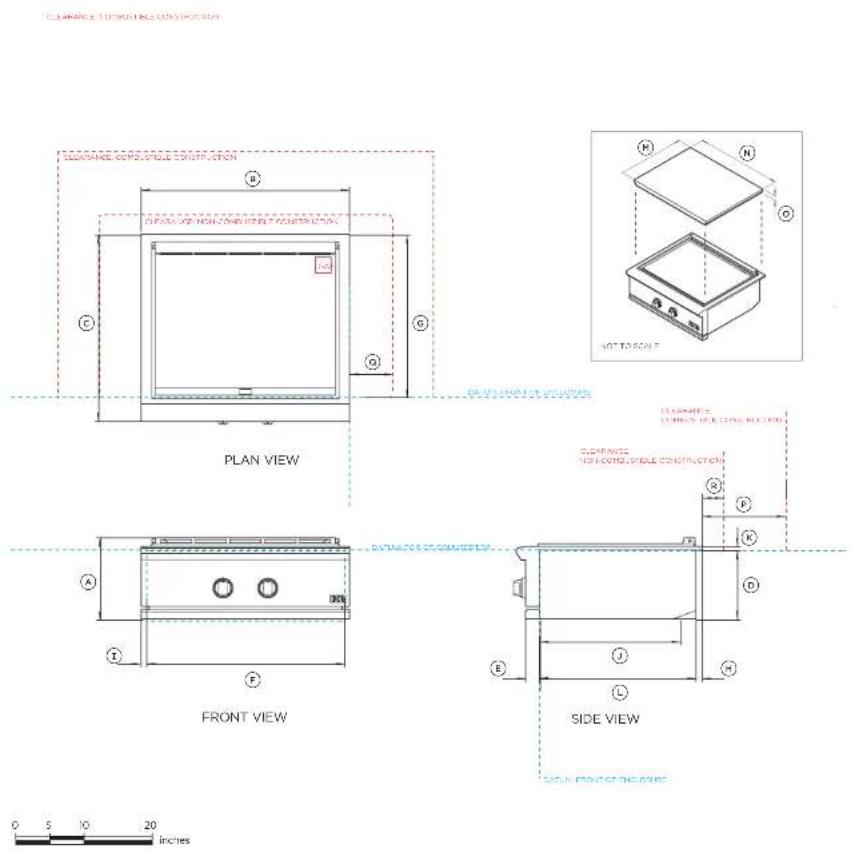

Model no:
Gridle - GDF1-30

Product Dimensions	inch	mm
Overall height	11 3/4	296
Overall width	30	767
Overall depth (excluding clava)	26 7/8	683
Height of chassis below flange	9 15/16	252
Control panel depth	2	51
Width of chassis inside enclosure	27 13/16	707
Front of cabinet (proud) to rear flange	23 1/2	597
Depth of rear flange	1	25
Width of side flanges	11/16	27.5
Front of chassis to gas outlet	20 1/16	509
Height of flange	9/16	14
Depth of chassis	22 9/16	573
Depth of lid	23	585
Width of lid	29 1/3	750
Height of lid	11 1/16	42

Minimum Clearances		inch	mm
5	Clearance to combustive construction above counter top at rear and sides	12	30.5
6	Clearance to non-combustible construction above counter top at sides	6	15.2
7	Clearance to non-combustible construction above counter top at rear	3	7.8

Note: If the griddle is to be placed into a combustible enclosure, an approved insulated jacket is necessary. Use only the DCS insulated jacket which has specifically been designed and tested for this purpose. 30" insulated jacket model number: HBR30-US

INDICATES CABINETRY / PRODUCT DATUM INDICATES CABINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcsappliances.com

Model no:
Gridle/side burner - GDSEH-302

Product Dimensions	inch	mm
Overall height	12	305
Overall width	30	767
Overall depth (excluding class)	26 7/8	683
Height of chassis below flange	9 15/16	252
Control panel depth	2	81
Width of chassis inside enclosure	27 13/16	707
Front of cabinet (proud) to rear flange	23 1/2	597
Depth of rear flange	7/8	22
Width of side flanges	11/16	27.5
Front of chassis to gas outlet	20 1/32	509
Height of flange	9/16	14
Depth of chassis	22 9/16	573
Depth of lids (left and right)	23	584
Width of lids (left and right)	14 3/16	365
Height of lids (left and right)	11 1/16	43

Minimum Clearances		inch	mm
	Clearance to combustible construction above counter top at rear and sides	12	305
	Clearance to non-combustible construction above counter top at sides	6	157
	Clearance to non-combustible construction above counter top at rear	3	76

Note: If the griddle is to be placed into a combustible enclosure, an approved insulated jacket is necessary. Use only the DCS insulated jacket which has specifically been designed and tested for this purpose.
30" insulated jacket model number: BGB30-US

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcsappliances.com

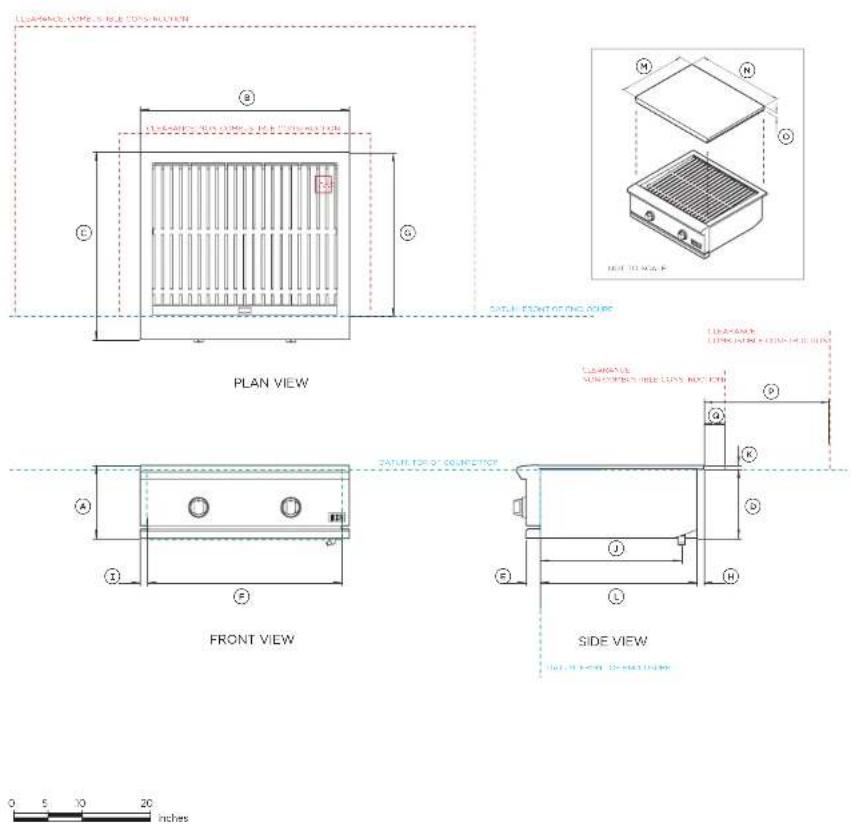

Model no:
All grill - BF1-30AG

Product Dimensions	inch	mm
Overall height	10 1/2	266
Overall width	30	767
Overall depth (excluding diaz)	26 7/8	685
Height of chassis below flange	9 15/16	252
Control panel depth	2 1/16	57
Width of chassis inside enclosure	27 13/16	707
Front of cabinet (proud to rear flange	23 1/2	596
Depth of rear flange	1	25
Width of side flanges	11/16	27.5
Front of chasses to gas outlet	20 1/16	509
Height of flange	9/16	14
Depth of chassis	22 9/16	573
Depth of lid	23	585
Width of lid	29 1/2	750
Height of lid	11/16	43

Minimum Clearances		inch	mm
S	Clearance to combustible construction above counter top at rear and sides	18	457
R	Clearance to non combustible construction above counter top at rear	3	76

Note: If the griddle is to be placed into a combustible enclosure, an approved insulated jacket is necessary. Use only the OCS insulated jacket which has specifically been designed and tested for this purpose.
30" insulated jacket model number: BGD30-IJS

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcsappliances.com

PLANNING CONSIDERATIONS

DCS

90003357D

PLANNING GUIDE OUTDOOR KITCHEN - VERSION D - FEBRUARY 2025 ✉ DCS BY FISHER & PAYKEL APPLIANCES LTD 2025

PAGE 24

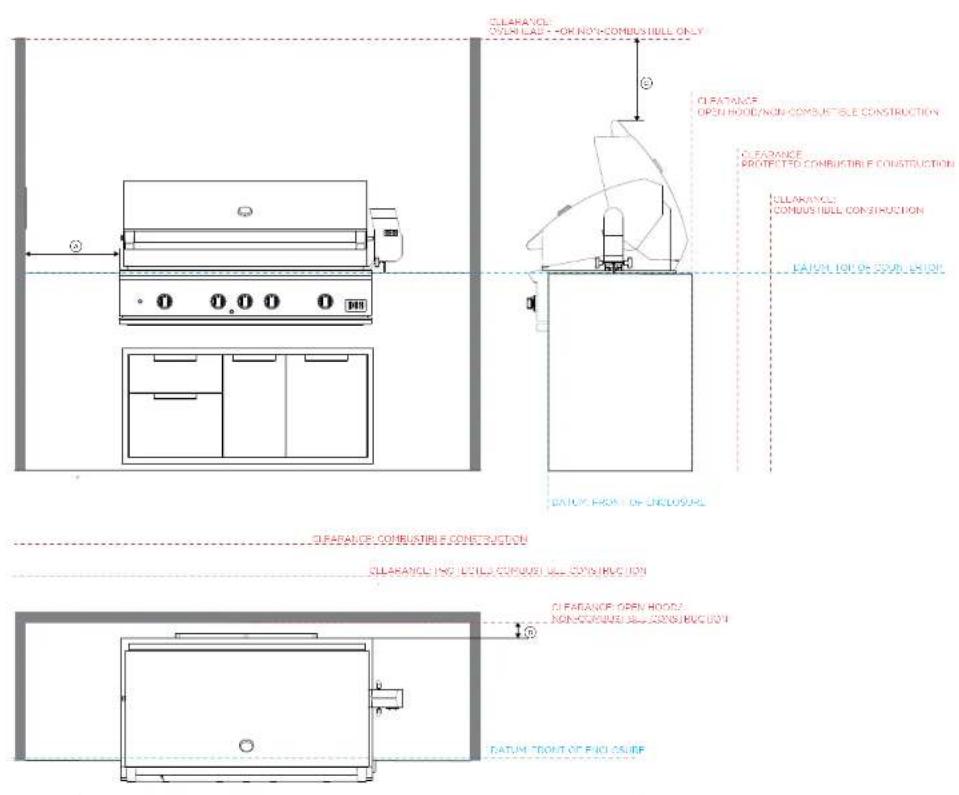

CLEARANCE: COMBUSTIBLE CONSTRUCTION
CLLARANCLING LILUS CORPUSI DLL CONSTRUCTION

Model no:
Grills - DEI-48RCI, DEI-48RC, DEI-48C DEI-36RCI, DEI-36RC, DEI-36C

Product Dimensions
Clearance to non-combustible surfaces	inch	mm
Minimum clearance to sides	6 153
Minimum clearance to back	3.76
Minimum clearance top of open hood to surface	24	BIO

Clearance to combustible surfaces inch mm

Minimum clearance to sides	18	457
Minimum clearance to back	18 457

Clearance to protected*** combustible surfaces in mm

Minimum clearance to sides	12	305
Minimum clearance to back	12	305

*Non-combustible materials are materials that are not capable of being ignited and burned consisting entirely of steel, iron, brick tile, concrete, slate and plaster.

**Combustible materials include any decorative or structural material made of wood, compressed plaster, plant fibres, vinyl plastic or other materials that are capable of transferring heat or being ignited or burned. Such materials are considered combustible even if flame probed, fire retardant treated, surface painted or plastered. Clearances from combustible materials of minimum 18" (457nm) apply to the internal carcass of the cabinet if an insulation packet is not used.

***Protected combustible surfaces have a non-combustible material (minimum 4" or 102mm) in front of or covering combustible material.

Note: Do not install unclear unprotected combustible or protected combustible construction without using a fire safe ventilation system As per Lt. 507 and CSA C22.2 No 60335-2-31.

If the grill is to be placed into a combustible enclosure, an approved insulated jacket is necessary. Use only the DCS insulated jacket which has specifically been designed and tested for this purpose.

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANGES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit desappliances.com

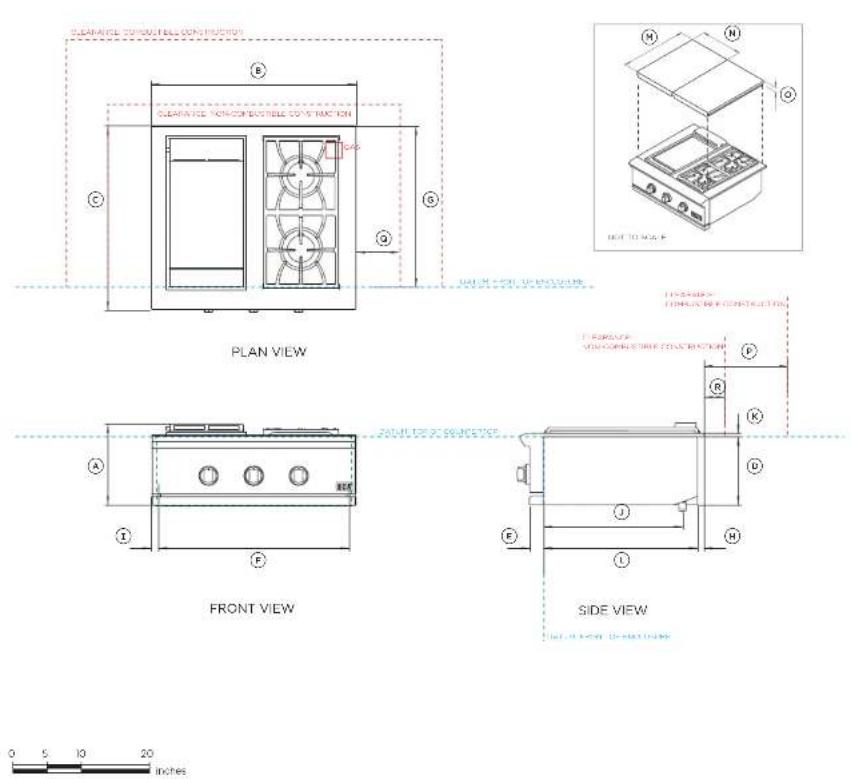

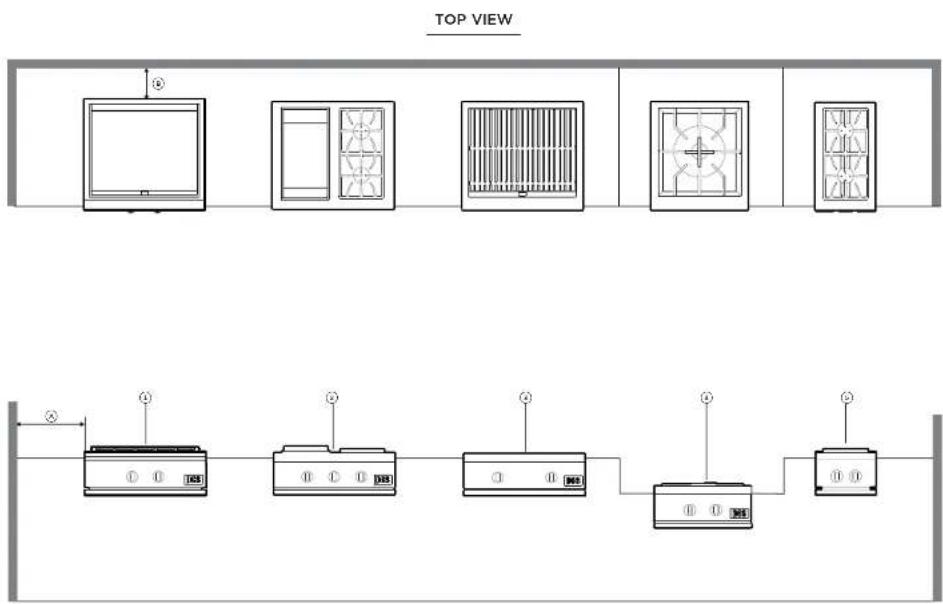

FRONT VIEW

Model no:

30" Griddles - 1 GDCI-50, 2 GDSDCI-30
Clearance to non-combustible" surfaces above counter too	inch	mm
Minimum clearance to sides	6 152
Minimum clearance to back	3 76
Clearance to combustible" surfaces above counter too	inch mm
Minimum clearance to sides	12	305
Minimum clearance to back	12 305

Model no:

Specialty Cooking - SE-30AG. 24" PGE124
Clearance to non-combustible' surfaces above counter too	inch	mm
Minimum clearance to sides	376
Minimum clearance to back	376
Clearance to combustible" surfaces above counter too	inch mm
Minimum clearance to sides	18	4m ^2
Minimum clearance to back	18 457

Model no:

14" Specialty Cooking - 1 SBP1-142
Clearance to combustible** surfaces above counter top.	Inch mm
Minimum clearance to sides	6	15,7
Minimum clearance to back	6.152

Non-combustible materials are materials that are not capable of being ignited and burned consisting entirely of steel, iron, brick tile, concrete, slate and plaster.

**Combustible materials include any decorative or structural material made of wood, compressed paper, plant fibres, vinyl, plastic or other materials that are capable of transferring heat or being ignited or burned. Such materials are considered combustible even if flame proofed, fire retardant, treated, surface painted or plastered. Clearances from combustible materials of minimum 18" (45/mm) apply to the internal carcass of the cabinet if an insulation jacket is not used.

*** Protected combustible surfaces have a non-combustible material (minimum 4" or 102mm in front of or covering combustible material.

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CADINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcappliances.com

SPECIFICATIONS | WIND SCREEN PROTECTION

Wind hitting the grill while in use, (especially wind blowing into or across the hood gap) can cause poor performance. In some cases wind can cause the control panel to get hot. If wind is an issue, a windscreen should be added.

Wind protection Dimensions

	Inch	mm
Minimum windscreen height	18 3/4 476
Clearance to combustible surfaces
Minimum clearance to back	16 457
Clearance to non-combustible surfaces
Minimum clearance to back	8 76

Note: Wind hitting the grill while in use, (especially wind blowing into or across the hood gap) can cause poor performance and in some cases can cause the control panel to get dangerously hot. If wind is an issue, a windscreen should be added.

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the Installation Guide for detailed information on installing the product. For full installation instructions visit desappliances.com

SECTION VIEW MULTIPLE TANKS

SIDE VIEW

Pure technical diagram of a mechanical or fluidic system with no text, numbers, or symbols

SECTION SINGLE TANK

LP cylinder storage \*ventilation requirements:

Ventilation Dimensions

Upper ventilation min free area ^** (1 ^st /per lb)	30 ^nd (20lb cylinder)	129cm ^2
Upper ventilation openings must be installed within 5" (127mm) of the top of the enclosure and unobstructed.	5 ^st	127mm
Lower ventilation min free area ^** (1/2 ^th /per lb)	10 ^nd (20lb cylinder)	64.5cm ^2
Lower ventilation openings must be installed within 5" (127mm) of the bottom of the enclosure and unobstructed.	5 ^st	127mm

*Refer to ANSI Z21.58 Standard for Outdoor Cooking Gas Appliances, Section 4.6.2 Enclosures For Self-Contained LP-Gas Supply Systems, Both upper and lower ventilation openings are required.

"Free area is the area within an opening unobstructed by grills or dampers when in operation. Every opening must be wide enough to fit an 3/16" (4.8mm) rod.

Note: At least one ventilation opening shall be provided on the exposed extensor side of the enclosure located within 5" (127mm) of the top of the enclosure end unobstructed. The opening(s) shall have a total free area of not less than 1 ^st /t (14.2cm ^2 /kg) of stored fuel capacity.

At least one ventilation opening shall be provided on the exposed exterior side of the enclosure I' (25.4mm) or less from the floor level and shall have a total free area of not less than 1/2 ^2 /lb (7.1cm ^3 /kg) of stored fuel capacity. The upper edge shall be no more than 5' (12/mm) above the floor level.

Every opening shall have a minimum dimension so as to permit the entrance of a 3/16" (4.8mm) rod.

Do not install under unprotected combustible or protected combustible construction without using a fire safe ventilation system As par UL 507 and CSA C22.2 No 60335-2-31.

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcappliances.com

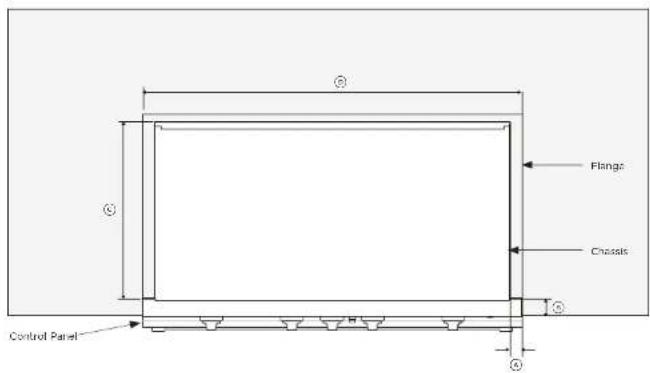

SPECIFICATIONS | BULL-NOSE EDGING DETAILS

Counter-lops with bull-nose edging or overhang require notching around the control panel of your grill or specialty cooking product. Ensure proper customization for a seamless fit.

DETAIL VIEW - GRILL BULL-NOSEPLAN VIEW

Bull-nose Dimensions

Non-combustable counter-top notch dimensions		inch	mm
	Counter-top control panel notch
	Grills RE1-487C, RE1-358C, RE1-488C, RE1-368C, BE1-48C, BE1-36C	112	38.6
	Griddle GDE1-30, Griddle/Side burner GDSRE1-302	1116	27.5
	All Grill RE1-3DAG	1116	17.9
	Power transformer PRF1-24	314	19.3
	Double Side Rumor SRE1-24	113/37	36
8 Counter-top overhang dimensions vary according to counter-top design
1 See Cabinet; Specifications pages for your product dimensions
2 See Cabinet; Specifications pages for your product dimensions

Grill & specially cooking bull-nose and control panel dimensions

Bull-nose height	13/16	40
Bull-nose to control panel	17/16	36
Control panel to cabinet front
Grills RF1-48°C, RF1-35°C, RF1-48R, RF1-36Z,RF1-48C,RF1-36C	2 3/16	55.6
Griddle GDF1-30	2	51
Griddle/Side burner GDSRn1-302	2	51
All GFI RF1-30AG	2	51
Power Durner PSC-24	2	51
Double Side Sumer SP81-24	21/8	53
Bull-nose diameter	1	28.4
Flange height	9/16	14

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANGES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcappliances.com

GRILL CABINET SPECIFICATIONS

DCS

90003357D

PLANNING GUIDE OUTDOOR KITCHEN - VERSION D - FEBRUARY 2025 ✉ DCS BY FISHER & PAYKEL APPLIANCES LTD 2025

PAGE 30

Cross-sectional diagram of a ceiling structure with orange and white components (no text or symbols)

NON-COMBUSTIBLE CABINET

Technical line drawing of a two-view architectural or mechanical assembly (no text or symbols present)

ISO VIEW

Model no:

48" Grills - BEI-46RCI, BEI-45RD, BEI-48C

Product Dimensions

Non-combustable cabinetry	inch	min
Cavity height	10 1/8	257
Cavity depth	22 3/4	578
Cavity width	45 3/4	1162
Depth to gas supply opening	15 1/2	470
Minimum hood swing clearance	min 3 3/4	min 95

Model no:

36° Grills - BE1 36RCI, BE1 36RC, BE1 36C

Non-controllable cabinetry	inch	mm
Cavity height	10 1/8	257
Cavity depth	22 3/4	575
Cavity width	34 1/2	876
Depth to gas supply opening	16 1/2	470
Minimum hood swing clearance	min 3 3/4	min 95

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CADINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcappliances.com

Cross-sectional diagram of a structural joint or panel assembly (no text or symbols)

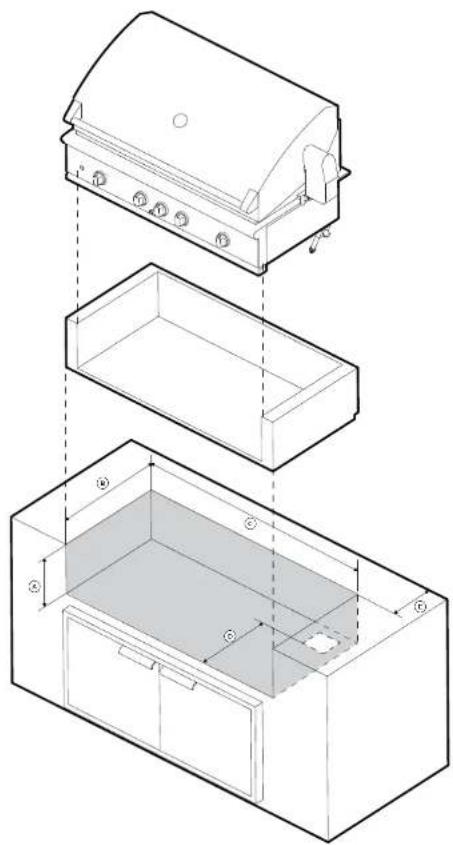

COMBUSTIBLE CABINET WITH INSULATION JACKET

Technical line drawing of a three-step kitchen appliance assembly (no text or symbols)

ISO VIEW

Model no:

48" Grills - BEI-46RCI, BEI-45RC, BEI-48C

Product Dimensions

Combustible cabinetry with insulation jacket	inch	min
Cavity height	11 18	203
Cavity depth	23 34	503
Cavity width	51 78	1318
Depth to gas supply opening	18 12	470
Minimum hood swing clearance	min 3	min 76

Model no:

36° Grills - RF1-36RCI, RF1-36RC, RF1-36C

Combustible cabinetry with insulation jacket	inch	mm
Cavity height	11 1/8	258
Cavity depth	23 3/4	603
Cavity width	40 1/2	1029
Depth to gas supply opening	18 1/2	470
Minimum hood swing clearance	min 2 27/32	min .72

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANGES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcappliances.com

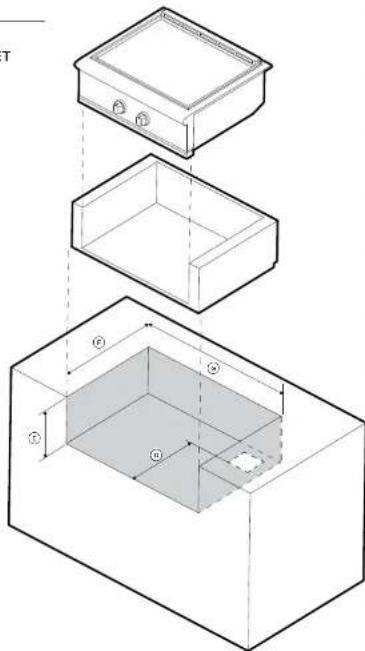

SPECIALTY COOKING CABINET SPECIFICATIONS

DCS

90003357D

PLANNING GUIDE OUTDOOR KITCHEN - VERSION D - FEBRUARY 2025 × DCS BY FISHER & PAYKEL APPLIANCES LTD 2025

PAGE 33

Cross-sectional diagram of a corner wall with orange and white panels, no text or symbols present

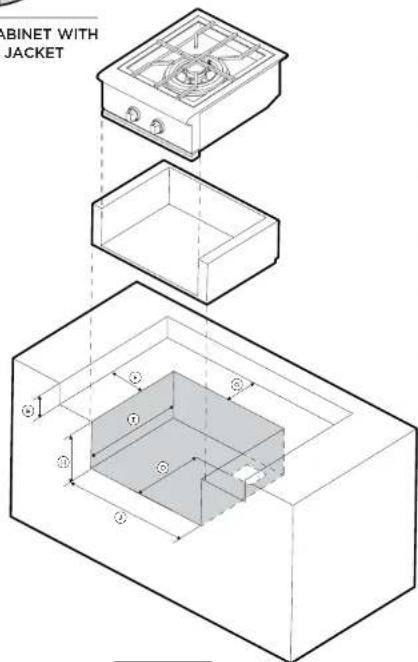

NON-COMBUSTIBLE CABINET COMBUSTIBLE CABINET WITH

Cross-sectional diagram of a ceiling structure with orange and gray components (no text or symbols)

INSULATION JACKET

Technical diagram of a 3D box with internal compartments and mounting points (no text or symbols)

ISO VIEW

Isometric line drawing of a three-step container assembly with labeled parts (no text or symbols)

ISO VIEW

Model no:

30° Specialty Cooking - GDE1-30, GDSDE1-302, DEI-30AC

Product Dimensions

Non-combustible cabinetry	inch	mm
Cavity height	10 1/8 257
Cavity depth	22 3/4 5/8
Cavity width	26 1/2 724
Depth to gas supply opening (right)	18 1/2	4/3

Combustible cabinet with insulation jacket inch mm

Cavity height	11 1/8 283
Cavity depth	23 3/4 603
Cavity width	34 7/8 886

Model no:

24 ^th Specialty Cooking - PBEI-24

Non-combustible cabinetry	inch	mm
2 Cavity height	10 1/8	257
3 Cavity depth	22 3/4	578
4 Cavity width	22 1/2	572
5 Depth to gas supply opening (right)	16 1/2	470
Combustible cabinet with insulation packet	inch	mm
7 Cavity height	11 1/8	283
1 Cavity depth	23 3/4	603
4 Cavity width	26 7/8	784

Model no:

14° Specialty Cooking - SBCI-142

Non-combustible cabinetry inch mm

Cavity height	10 18	257
Cavity depth	22 34	578
Cavity width	12 18	306
Depth to gas supply opening (left)	18 12	470

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CABINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcsappliances.com

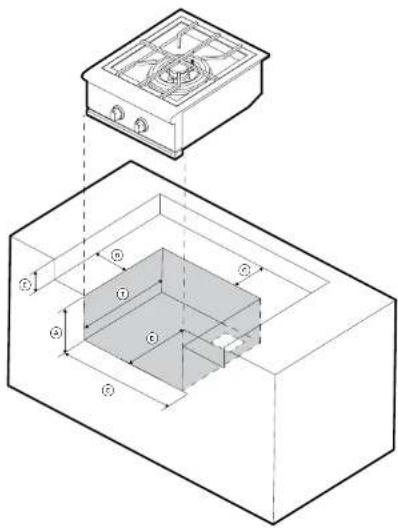

SPECIFICATIONS | 24" POWER BURNER - RECESSED CAVITY INSTALLATION

Cross-sectional diagram of a corner wall with orange and white panels, no text or symbols present

NON-COMBUSTIBLE CABINET

Cross-sectional diagram of a corner joint or wall structure (no text or symbols)

COMBUSTIBLE CABINET WITH INSULATION JACKET

ISO VIEW

ISO VIEW

Model no:
24° Specialty Cooking - PDCI-24

Product Dimensions
Non-combustible cabinetry	inch	mm
Cavity height	10 1/8 257
Cavity depth	22 3/4 576
Cavity width	22 1/2	3/2
Depth to gas supply opening	18 1/2	4/0
Height of counter-top recess	6-12 152-305
Minimum distance to recess sides	6 182
Minimum distance to recess back	5 76

Combustible cabinet with insulation jacket inch mm

1	Decoh to gas supply opening	10 1/2	4.70
2	Height of counter-top recess	6-12 152-305
3	Minimum distance to recess sides	6 152
4	Minimum distance to recess back	3 76
5	Cavity height	1 1/8 283
6	Cavity depth	23 3/4 603
7	Cavity width	20 7/8 734

INDICATES CABINETRY / PRODUCT DATUM

INDICATES CADINETRY CLEARANCES

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit desappliances.com

SERVICES

DCS

90003357D

PLANNING GUIDE OUTDOOR KITCHEN - VERSION D - FEBRUARY 2025 × DCS BY FISHER & PAYKEL APPLIANCES LTD 2025

PAGE 36


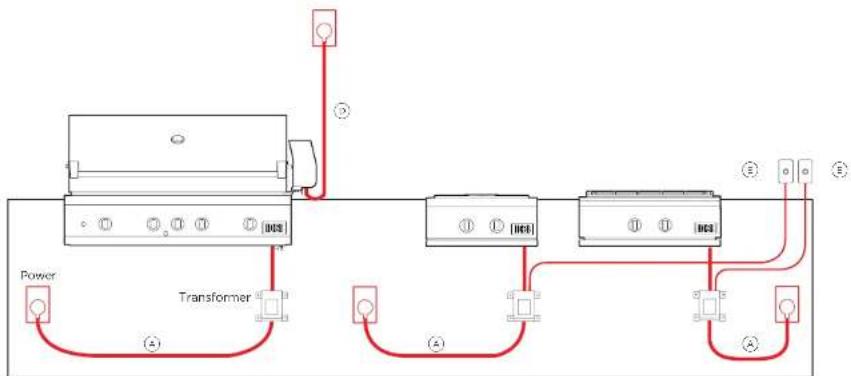

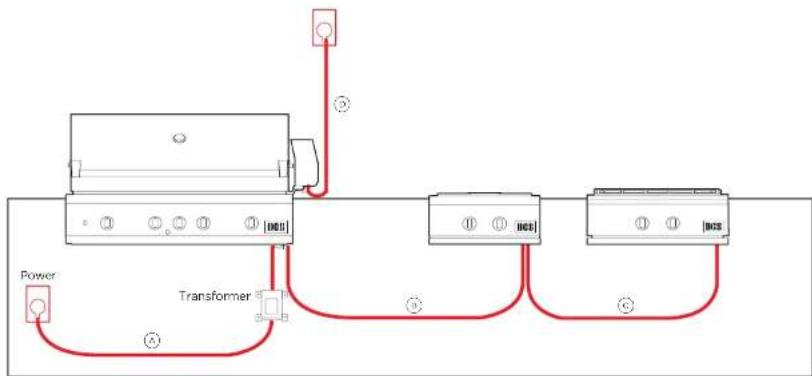

Maximum Distance of Cords

Model Numbers:

Grills - BEI-48RCI, BEI-36RCI, BEI-45RC, BEI-36RC

Specialty cooking - GDF1-30, GDSBF-302, BF1-30AG, PBF1-24, SBF1-142

Interconnectivity connector cables - BGA-IPC, BGA-EPC

External lighting power button - BSA-1B DCS

Product Dimensions		Inch	mm
	Maximum power cord length from transformer	68	1600
	4ft Extension cable (BGA-1PC) length	48	1200
	6ft Extension cable (BGA-6PC) length	72	1800
	Maximum rotisserie power cord length transformer	31 1/2	800
	External lighting power button can be used with 4ft & 5ft extension cables

Specifications

Electrical
Supply	120V 6GHz
Service	13-15A

Note: Use only a Ground Fault Interruptor (GFI) protected circuit with these products. An outdoor 120VAC ISA GFI electrical outlet must be installed by a qualified electrician.

IMPORTANT NOTE: Throughout this guide, dimensions may vary by 12mm (1/16"). Please read the installation Guide for detailed information on installing the product. For full installation instructions visit dcsappliances.com
