Product Type	Bluetooth GPS Receiver
Brand	Garmin
Model	GLO 2
Dimensions (L x W x H)	5.7 x 5.0 x 2.2 cm
Weight	66 g
Power Source	Rechargeable Lithium-Ion Battery
Battery Life	Up to 16 hours (GPS mode)
Connectivity	Bluetooth 4.0
Supported Satellite Systems	GPS and GLONASS
Positioning Accuracy	< 2.5 m (under optimal conditions)
Update Rate	10 Hz (10 times per second)
Compatibility	iOS, Android, and Windows devices
Bluetooth Range	Up to 10 m
Operating Temperature	-20 °C to 60 °C
Protection Rating	IPX7 (resists immersion up to 1 m for 30 min)
Maintenance and Cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to extreme temperatures. Use only the provided charger.
Spare Parts and Repairability	The battery is replaceable. Contact customer service for any repairs.
General Information	Use the Garmin Explore app to configure and track your data.

Frequently Asked Questions - GLO 2 GARMIN

How do I pair the Garmin GLO 2 with my smartphone?

Enable Bluetooth on your smartphone, then turn on the GLO 2. Search for Bluetooth devices and select 'Garmin GLO 2'. Follow the on-screen instructions to complete pairing.

What is the battery life of the GLO 2?

Battery life can reach up to 16 hours of continuous use with GPS enabled. It varies depending on usage conditions and temperature.

Is the Garmin GLO 2 compatible with navigation apps?

Yes, it is compatible with most navigation apps that use GPS, such as Google Maps, Waze, or the Garmin Explore app.

How do I charge the Garmin GLO 2?

Use the provided micro-USB cable and plug it into a power adapter (5V, 1A) or a computer USB port. The red light indicates charging, green when fully charged.

What is the accuracy of the Garmin GLO 2?

The GLO 2 offers accuracy of less than 2.5 meters under optimal conditions, thanks to simultaneous reception of GPS and GLONASS satellites.

Can I use the GLO 2 with multiple devices?

The GLO 2 can be paired with multiple devices, but it only works with one at a time. You must disconnect it from one device before connecting to another.

Is the Garmin GLO 2 water resistant?

Yes, it is certified IPX7, meaning it can resist immersion up to 1 meter of water for 30 minutes.

How do I update the firmware of the GLO 2?

Download the Garmin Express app on your computer, connect the GLO 2 via USB, and follow the instructions to update the firmware if a new version is available.

What should I do if the GLO 2 does not turn on?

Check that the battery is charged. Plug it into the charger for at least 30 minutes. If the problem persists, perform a reset by holding the power button for 10 seconds.

Where can I find spare parts for the Garmin GLO 2?

You can order parts such as the battery or USB cable from the official Garmin website or from authorized dealers. For repairs, contact Garmin customer service.

USER MANUAL GLO 2 GARMIN

GLO™ 2 GLONASS and GPS Sensor Instructions ....2

Installing the Battery

WARNING

This product contains a lithium-ion battery. See page 5 for important battery safety information.

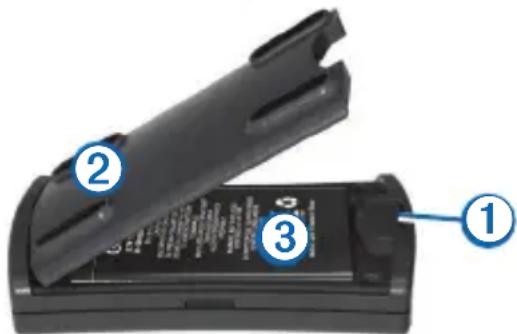

1 With your thumbnail, slide the battery cover release tab ①.

2 Remove the battery cover ②.
3 Locate the metal contacts on the end of the lithium-ion battery.
4 Insert the battery ③ so the metal contacts on the battery align with the metal contacts inside the battery compartment.
5 Press the battery down into place.

6 Insert the battery cover into the notches and press down.

The release tab locks the cover in place.

Replacement Battery

You can purchase a replacement battery (010-10840-00) at http://buy.garmin.com.

Charging the Battery

You can use the sensor while you are charging it.

1 Plug the small end of the power cable into the mini-USB connector on the end of the sensor.
2 Plug the other end of the power cable into an appropriate source of power for the cable type.

It takes about three hours to charge the battery. A fully charged battery lasts about 13 hours.

NOTE: If the battery has not been charged for a long period of time, remove the battery, connect the cable to the device and a power source, and then replace the battery. The battery will charge as usual.

Pairing the Sensor

1 Hold to turn on the sensor.

2 Turn on the other device and enable the Bluetooth component.

You can refer to the device's documentation for specific instructions about enabling Bluetooth wireless technology.

3 Bring the sensor within 30 feet (10 meters) of the mobile device.

4 Using the mobile device, pair the sensor with the mobile device.

The blue LED is solid blue when the sensor is connected to the other device.

If the sensor has not established a Bluetooth connection for several minutes, it turns off automatically.

Bluetooth LED

LED Description
Slow flashing blue	Searching for mobile devices
Rapid flashing blue	Pairing
Solid blue Connected to mobile device

Status LED

LED Description
Slow flashing orange Charging
Solid orange Battery charged, power connected.
Orange off Battery charged, power disconnected.
Rapid flashing orange Low battery
Alternating orange and green	Faulty battery or system error
Flashing green Searching for GPS satellites
Solid green GPS satellite fix

Acquiring Satellite Signals

1 Verify that the blue LED on the sensor is solid blue, indicating a wireless connection.
2 Place the sensor where it has a clear view of the sky.

Acquiring satellite signals may take a few minutes. The Status LED flashes green while searching for satellites and establishing your location. The Status LED is solid green when it has established a fix on your location.

Using the Portable Friction Mount

The portable friction mount comes in some GLO packages and is available as an optional accessory.

1 Wipe the mounting surface and the back of the mount with a wet cloth to remove dust and debris.
2 Insert the sensor in the mount so the LEDs face up and the mini-USB port is accessible.
3 Place on a flat surface.

Periodically, you should wipe the surface and the mount with a wet cloth to remove dust and debris to help prevent the mount from sliding.

Registering the Device

• Go to garmin.com/express.
• Keep the original sales receipt, or a photocopy, in a safe place.

Specifications

Case: Rugged, but not water-resistant Power Supply: Rechargeable lithium-ion battery, 13 hours (typical use)

Update Rate: 10 Hz, but not all mobile devices support a 10 Hz update rate.

Vehicle Power Cable* Input Voltage: 12–28 Vdc (*available in some packages)

Operating Temperature: -4°F to 140°F (-20°C to 60°C)

Charging Temperature: 32°F to 113°F (0°C to 45°C)

Short-Term (1 month) Storage Temperature: -4°F to 122°F (-20°C to 50°C)

Long-Term (1 year) Storage Temperature: -4°F to 68°F (-20°C to 20°C)

Important Safety and Product Information

WARNING

Installation Warnings

When installing the device in a vehicle, place the device securely so it does not obstruct the driver's view of the road ① or interfere with vehicle operating controls, such as the steering wheel, foot pedals, or transmission levers. Do not place unsecured on the vehicle dashboard

②. Do not place the device in front of or above any airbag ③.

Battery Warnings

If these guidelines are not followed, the battery may experience a shortened life span or may present a risk of damage to the sensor, fire, chemical burn, electrolyte leak, and/or injury.

• Do not leave the sensor exposed to a heat source or in a high temperature location, such as in the sun in an unattended vehicle. To prevent the possibility of damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box.
• Do not use a sharp object to remove the battery.
• Do not disassemble, puncture, incinerate, or damage the battery.

• Keep the battery away from children.

• If using an external battery charger, only use the Garmin accessory approved for your product.

• Only replace the battery with the correct replacement battery. Using another battery presents a risk of fire or explosion. To purchase a replacement battery, see your Garmin dealer or the Garmin website.
• When storing the device for an extended time, store within the following temperature range: from -4^ to 68^ (-20°C to 20°C).
• Do not operate the device outside of the following temperature range: from -4^ to 140^ (-20°C to 60°C).
• Contact your local waste disposal department to dispose of the device/battery in accordance with applicable local laws and regulations.

Navigation Warnings

Use this sensor only as a navigational aid. Do not attempt to use the sensor for any purpose requiring precise measurement of direction, distance, location, or topography. This product should not be

used to determine ground proximity for aircraft navigation.

Product Environmental Programs

Information about Garmin's product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com/aboutGarmin/environment.

Declaration of Conformity

Hereby, Garmin declares that this product is in compliance with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.garmin.com/compliance.

FCC Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet that is on a different circuit from the GPS unit.
• Consult the dealer or an experienced radio/TV technician for help.

This product does not contain any user-serviceable parts. Repairs should only be made by an authorized service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations.

Industry Canada Compliance

Category I radiocommunication devices comply with Industry Canada Standard RSS-210. Category II radiocommunication devices comply with Industry Canada Standard RSS-310. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Limited Warranty

Garmin's standard limited warranty applies to this accessory. For more information, go to www.garmin.com/support/warranty.html.

Akkuwarnungen

Avisos relativos à bateria

Batteriadvarsler

Akkuvaroitukset

Batteriadvarsler

Batterivarningar

Garmin International, Inc

1200 East 151st Street,

Olathe, Kansas 66062, USA

Garmin (Europe) Ltd.

Liberty House, Houndown Business Park

Southampton, Hampshire, SO40 9LR UK

Garmin Corporation

No. 68, Zangshu 2nd Road, Xizhi Dist.

New Taipei City, 221, Taiwan (R.O.C.)

Garmin ^® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries.

GLO ^™ is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

The Bluetooth ^® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

2.4 GHz @ 1.84 dBm nominal

CE

EAC

© 2018 Garmin Ltd. or its subsidiaries
