Product type	Front-loading washing machine
Brand	Bosch
Model	WAV28L90BY
Dimensions (H x W x D)	85 x 60 x 65 cm
Net weight	75 kg
Wash capacity	9 kg
Maximum spin speed	1400 rpm
Energy class	A+++
Annual energy consumption	Approximately 180 kWh/year
Water consumption per cycle	Approximately 50 L
Noise level (wash/spin)	48 dB / 72 dB
Power supply	230 V, 50 Hz, 10 A
Maximum power	2200 W
Wash programs	Cotton, Synthetics, Delicates, Wool, Quick, Eco, Sport, etc.
Options	Delayed start, Pre-wash, Extra rinse, Child lock
Special functions	VarioPerfect, SpeedPerfect, i-Dos (optional)
Safety system	Overflow protection, Door lock, Foam detection
Maintenance	Regular cleaning of filter, detergent drawer, and door seal
Repairability index	8.2 / 10
Spare parts available	Yes, via Bosch customer service

Frequently Asked Questions - WAV28L90BY BOSCH

How to use the delayed start on my Bosch WAV28L90BY washing machine?

Press the Delayed start button until the desired time is displayed (from 1 to 24 hours). Confirm with Start/Pause. The machine will start automatically at the programmed time.

What to do if the washing machine does not turn on?

Check that the plug is properly connected and the circuit breaker has not tripped. Make sure the door is properly closed. If the problem persists, contact customer service.

How to clean the pump filter?

Unplug the machine. Open the lower flap (using a screwdriver if necessary). Place a container to collect water, unscrew the filter, and clean it. Screw it back and close the flap.

Why is my laundry still damp after spinning?

This may be due to a low spin speed or overload. Select a higher speed (1400 rpm) or reduce the load. Also check that the filter is not clogged.

How to activate child lock?

Press the Child lock button (often indicated by a padlock) for 3 seconds until the symbol appears. To deactivate, repeat the operation.

Which program to use for delicate laundry?

Use the Delicates or Wool program with a low temperature (30°C or less) and reduced spin speed to protect fibers.

How to resolve error code E16 on my Bosch?

Code E16 indicates a drainage problem. Clean the pump filter and check that the drain hose is not kinked or blocked. Restart the machine.

What is the maximum wash capacity?

The maximum capacity is 9 kg for Cotton and Synthetics programs. For delicate programs, do not exceed 2.5 kg.

How to use the Eco program?

The Eco program (or EcoPerfect) reduces energy and water consumption. Select it by turning the knob to the Eco 40-60 program for efficient washing at low temperature.

Where to find spare parts for this model?

Spare parts are available from Bosch customer service (website, store, or phone) or from authorized dealers. Use the model number (WAV28L90BY) to order.

USER MANUAL WAV28L90BY BOSCH

Ремонт

1.

ВНИМАНИЕ!

1. 1. Свалете винтовете (1).

2. Освободете крепежните елементи (2, 3).

3.1.2 Postavljanje radne ploče

▶ Postavite obratnim redoslijedom.

Popravak

3.2 Zamjena ploče

Oštri rubovi kućišta!

Porezotine

▶ Nosite zaštitne rukavice.

Isklizavanje nagnutih uređaja!

1. Otpustite priključni kontakt upravljačke jedinice.
2. Uklonite ploču.

3.2.2 Postavljanje ploče

▶ Postavite obratnim redoslijedom.

Popravak

3.3.2 Postavljanje ladice za deterdžent

▶ Postavite obratnim redoslijedom.

Popravak

1. Uklonite ručicu ladice za deterdžent.

3.4.2 Postavljanje ručice ladice za deterdžent

▶ Postavite obratnim redoslijedom.

Popravak

3.5 Zamjena vrata

OPREZ

1. Uklonite vrata prema gore.

3.5.2 Postavljanje vrata

▶ Postavite obratnim redoslijedom.

Popravak

1. Spustite uređaj.

Popravak

1. Uklonite vijke u području pumpe (2). 5. 1. Otpustite vijke na stražnjoj strani uređaja (1).

1. Uklonite radnu ploču (2, 3).

Popravak

1. 1. Uklonite vijke (1).

2. Otpustite zahvatne elemente ploče (2, 3).

3. Otpustite vijke kućišta dozatora.

9.

POZORI

Opasnost od oštećene površine!

1. Uklonite brtvu vrata.

1. Uklonite bravu vrata.

Popravak

3.8.2 Postavljanje brave vrata

1. Uklonite poklopac pumpe.

3.10.2 Postavljanje poklopca pumpe

▶ Postavite obratnim redoslijedom.

Popravak

1. Spustite uređaj.

Popravak

1. 1. Uklonite vijke (1).

2. Gurnite radnu ploče do stražnje strane uređaja (2).

3. Pomaknite radnu ploču prema gore (3) da biste je uklonili.

1. 1. Uklonite vijke (1).

2. Otpustite zahvatne elemente (2, 3).

1. Uklonite ploču.

7.

OPREZ

1. Uklonite prednju ploču.

1. Položte spotřebič.

Oprava

Oprava

1.

POZORI

1. Položte spotřebič.

Oprava

1. Fjern døren opad.

1. Sænk apparatet ned.

Reparation

1. Fjern skruerne i pumpeområdet (2). 5. 1. Løsn skruerne bag på apparatet (1).

Reparation

1. 1. Fjern skruerne (1).

2. Frigør betjeningspanelets låseelementer (2, 3).

3. Løsn dispenserhusets skruer.

1. Fjern betjeningspanelet.

2. Fjern tromlelysholderen foroven.

1.

BEMAERKI

Fare for beskadiget overflade!

1. Fjern dørpakningen.

1. Fjern dørlåsen.

Reparation

▶ Sørg for at sikre apparater mod at glide.

1. Abn pumpens afdækning.

1. Fjern pumpens afdækning.

▶ Sørg for at sikre apparater mod at glide.

Løft apparatet op i fronten.

1. Fjern skruerne forneden (1).

1. Sænk apparatet ned.

Reparation

1. Fjern betjeningspanelet.

7.

PAS PÄ!

1. Fjern frontpanelet.

3.11.2 Montering af frontpanel

3.1.2 Werkblad monteren

3.3.2 Wasmiddellade monteren

3.6.2 Deurcomponenten monteren

Reparatie

1.

LET OPI

3.10.2 Pompdeksel monteren

Repair hints - Washing machine

i Concerning this document.... 108

1.1 Important information.... 108

1.1.1 Purpose.... 108

1.2 Explanation of symbols 108

1.2.1 Danger levels.... 108

1.2.2 Hazard symbols 108

1.2.3 Structure of the warnings.... 109

1.2.4 General symbols.... 109

Tools and aids.... 110

Repair 111

3.1 Replacing worktop.... 111

3.1.1 Removing worktop 111

3.1.2 Installing worktop 111

3.2 Replacing fascia panel.... 112

3.2.1 Removing fascia panel 112

3.2.2 Installing fascia panel 112

3.3 Replacing detergent drawer 113

3.3.1 Removing detergent drawer.... 113

3.3.2 Installing detergent drawer.... 113

3.4 Replacing detergent drawer handle 114

3.4.1 Removing detergent drawer handle.... 114

3.4.2 Installing detergent drawer handle.... 114

3.5 Replacing door 115

3.10.1 Removing pump cover 124

3.10.2 Installing pump cover 124

3.11 Replacing front panel 125

3.11.1 Removing front panel.... 125

3.11.2 Installing front panel.... 127

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Tools and aids

Designation Details Images
Auxiliary tool[15000155]	Tool for loosening out of plastic parts
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Torque spanner [15000441]	Torque spanner 20 - 100 Nm
Slot screwdriver [00340854]	Blade 3.5 mm x 0.6 mm x 100 mm, Protective Insulation 1000 V AC
Slot screwdriver [00340855]	Blade 5.5 mm x 1.0 mm x 125 mm, Protective Insulation 1000 V AC
Needle-nose pliers, angled pattern [00341269]	Length 200 mm
Side-cutting pliers [00342182]	Length: 200 mm

Designation Details Images
Combination wrench[00340811]	Wrench size 10°mm, M6
Combination wrench[00340814]	Wrench size 13°mm, M8
Combination wrench[00340817]	Wrench size 17 mm, M10
Combination wrench[15000459]	Wrench size 16°mm, M10

Repair

3.1 Replacing worktop

Required tools:

Torx Bit TX20 with hole, long 6.3°mm (1/4") 152°mm, for screws [00341272] with safety pin

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

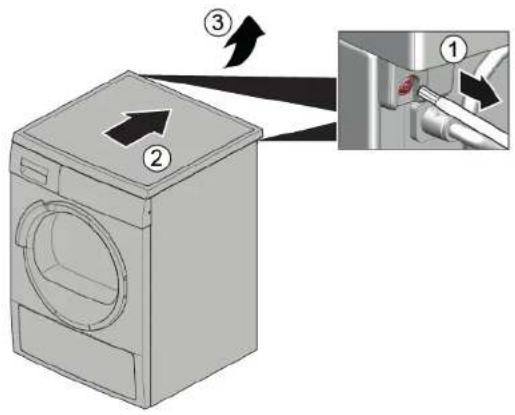

3.1.1 Removing worktop

1. Remove screws (1).
2. Push worktop to the back of the appliance (2).
3. Move worktop upwards (3) to remove it.

3.1.2 Installing worktop

▶ Install in reverse order.

Repair

3.2 Replacing fascia panel

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Worktop has been removed.→ Page 111
√ Detergent drawer has been removed.→ Page 113

3.2.1 Removing fascia panel

1. 1. Remove screws (1).
2. Release catch elements (2, 3).

1. Release plug contact of control unit.

2. Remove fascia panel.

3.2.2 Installing fascia panel

▶ Install in reverse order.

Repair

3.3 Replacing detergent drawer

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

3.3.1 Removing detergent drawer

1. Pull out detergent drawer.
   2.1. Press down on insert (1).

2. Remove detergent drawer (2).

3.3.2 Installing detergent drawer

▶ Install in reverse order.

Repair

3.4 Replacing detergent drawer handle

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Detergent drawer has been removed.→ Page 113

3.4.1 Removing detergent drawer handle

1. Release catch elements.

1. Remove detergent drawer handle.

3.4.2 Installing detergent drawer handle

▶ Install in reverse order.

Repair

3.5 Replacing door

Open hinge areal

Finger crushing / entrapment

▶ Do not reach into the hinge area.

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Door is opened.

3.5.1 Removing door

1.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down

Remove screws (1).

1. Remove door upwards.

▶ Install in reverse order.

Repair

3.6 Replacing door components

Open hinge areal

Finger crushing / entrapment

▶ Do not reach into the hinge area.

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Door has been removed.→ Page 115

3.6.1 Removing door components

- Disassemble door from outside to inside.

3.6.2 Installing door components

▶ Install in reverse order.

Repair

3.7 Replacing door seal

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Detergent drawer has been removed.→ Page 113
√ Door has been removed.→ Page 115
√ Pump cover has been removed.→ Page 124

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Lift up appliance at front.

1. Release screws at bottom of front panel (1).

1. Lower appliance down.

Repair

1. Remove screws in pump area (2). 5. 1. Release screws at back of appliance (1).

1. Remove worktop (2, 3).

Repair

1. 1. Remove screws (1).

2. Release cat elements of fascia panel (2, 3).

3. Release screws of dispenser housing.

1. Remove fascia panel.

2. Remove drum light holder at top.

9.

Notice

Risk of damaged surface!

Surface of appliance can be scratched by using wrong tools.

▶ Only use plastic tools to replace the tension ring.

Remove tension ring from gasket with a plastic tool.

1. Release door seal from front panel.
2. Release cable connector from door lock.

Repair

1. Release screws on top of front panel (3).

1. Remove front panel.

2. Release all hose connections.

1. Remove door seal.

Warning Risk of falling parts due to inco Injury or damage to the appliance ▶ Tighten tension ring of boo

▶ Install in reverse order.

Repair

3.8 Replacing door lock

As a manufacturer, we are obliged to provide consumers with the spare part door lock including repair instructions in accordance with Regulation (EU) 2019/2023. However, we would like to point out that after replacing a door lock, an electrotechnical safety test by a qualified electrician is required before the device is put into operation. This person must be verifiably qualified according to the country-specific laws, regulations and standards.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

▶ Secure appliances against slipping.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

√ Appliances is freely accessible.
√ Worktop has been removed.→ Page 111
√ Fascia panel has been removed.
√ Door has been removed.→ Page 115
√ Tension ring has been removed.
√ Front panel has been removed.
√ Door seal has been removed.

1. Disconnect door lock plug.
2. Release door lock.

1. Remove door lock.

Repair

▶ Install in reverse order.

Repair

3.9 Replacing drum light

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Worktop has been removed.→ Page 111
√ Detergent drawer has been removed.→ Page 113
√ Fascia panel has been removed.

3.9.1 Removing drum light

1. Pull drum light holder out of appliance.
2. Disconnect electrical connections.
3. Remove drum light from drum light holder.

3.9.2 Installing drum light

▶ Install in reverse order.

Repair

3.10 Replacing pump cover

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

3.10.1 Removing pump cover

1. Open pump cover.

1. Remove pump cover.

3.10.2 Installing pump cover

▶ Install in reverse order.

Repair

3.11 Replacing front panel

Caution

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

Appliance is disconnected from power supply.

Appliance is disconnected from water supply.

Detergent drawer has been removed.→ Page 113

Door has been removed.→ Page 115

Door seal has been removed.

Pump cover has been removed.→ Page 124

3.11.1 Removing front panel

1.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

▶ Secure appliances against slipping.

Lift up appliance at front.

1. Remove screws at bottom (1).

2. Lower appliance down.

Repair

1. 1. Remove screws (1).

2. Push worktop to the back of the appliance (2).

3. Move worktop upwards (3) to remove it.

1. 1. Remove screws (1).

2. Release catch elements (2, 3).

1. Remove fascia panel.

7.

Caution

Risk of falling parts due to released screws! Injury because of falling parts.

▶ Secure component from falling down.

Repair

Notice

Risk of falling parts due to released screws! Damage to other parts of the appliance or at customers home e.g. bottom.

▶ Secure component from falling down.

Remove screws at front beginning from bottom to top (2, 3).

1. Remove front panel.

3.11.2 Installing front panel

▶ Install in reverse order.

Remonditeave - Pesumasin

i Selle dokumendiga seoses 129

1.1 Tähtis teave 129

1.1.1 Eesmärk 129

1.2 Sümbolite selgitus 129

1.2.1 Ohutasemed.... 129

3.1.2 Tööpinna paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

3.3.2 Pesuaine sahtli paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

3.6.2 Ukse osade paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

1. Langetage seadet allapoole.

Remont

Remont

1.

TÄHELEPANUI

1. Eemaldage ukselukk.

Remont

1. Eemaldage pumba kate.

3.10.2 Pumba katte paigaldamine

1. Langetage seadet allapoole.

Remont

1. 1. Eemaldage kruvid (1).

2. Vabastage kinnituselemendid (2, 3).

1. Eemaldage esipaneel.

3.11.2 Esipaneeli paigaldamine

▶ Paigaldage vastupidises järjekorras.

3.3.2 Pesuainelokeron asentaminen

1. Laske kone alas.

Korjaus

Korjaus

9.

HUOMIO!

1. Poista luukun tiiviste.

1. Poista pumpun suojus.

1. Laske kone alas.

Korjaus

1. 1. Poista ruuvit (1).

2. Vapauta lukitusosat (2, 3).

1. Poista etupaneeli.

3.11.2 Etupaneelin asentaminen

Réparation

1.

ATTENTION!

Risque de dommage superficiel !

1. Retirer le joint de porte.

1. Retirer la fermeture de porte.

Réparation

Instandsetzen

1.

ACHTUNG

Επισκευή

1.

ΠΡΟΣΟΧΗ!

Javítás

1.

FIGYELEM!

Riparazione

1.

ATTENZIONE!

1. Pazeminiet ieriči.

Remonts

1. Nonemiet darbvirsmu (2, 3).

Remonts

1.

UZMANIBUI

1. Nonemiet durtinu slēgu.

Remonts

1. Nonemiet sukna vaku.

1. Pazeminiet ieriči.

Remonts

1. Nuimkite stalviršj (2, 3).

Remontas

1.

DÉMESIO!

1. Nuimkite siurblio dangtelj.

3.10.2 Siurblio dangtelio uždéjimas

1. Nuimkite antjuostę.

7.

⚠️ PERSPÉJIMAS

Pavojus, kad atpalaidavus varžtus dalys nukris! Krentančios dalys gali sužeisti.

1. Løsne kontrollenhetens pluggkontakt.
2. Demonter instrumentpanelet.

1. Senk apparatet ned.

Reparasjon

1. Fjern skruene i pumpeområdet (2). 5. 1. Løsne skruene på baksiden av apparatet (1).

Reparasjon

1. 1. Fjern skruene (1).

2. Løsne instrumentpanelets låselementer (2, 3).

3. Løsne skruene i dispenserhuset.

1. Demonter instrumentpanelet.

2. Demonter trommellampeholderen på toppen.

9.

OBS!

Fare for skader på overflaten!

1. Demonter frontpanelet.

2. Løsne alle slangekoblingene.

1. Demonter dørlåsen.

Reparasjon

1. Ta av pumpedekslet.

1. Senk apparatet ned.

Reparasjon

1. 1. Fjern skruene (1).

2. Skyv arbeidsplaten til baksiden av apparatet (2).

3. Beveg arbeidsplaten opp (3) for á fjerne den.

1. 1. Fjern skruene (1).

2. Løsne läselementene (2, 3).

1. Demonter instrumentpanelet.

7.

FORSIKTIG

1. Demonter frontpanelet.

1. Opuścić urządzenie.

Naprawy

Naprawy

1.

UWAGAI

1. Zdjąć osłone pompy.

1. Opuścić urządzenie.

Naprawy

3.1.2 Instalar o tampo

3.3.2 Instalar a gaveta para detergente

1. Baixe o aparelho.

Reparação

Reparação

1. 1. Remova os parafusos (1).
2. Solte os elementos de encaixe do painel da fachada (2, 3).
3. Solte os parafusos do involucro do dispensador.

1.

ATENÇÃO!

1. Remova a tampa da bomba.

3.10.2 Instalar a tampa da bomba

1. Baixe o aparelho.

Reparação

1. 1. Remova os parafusos (1).

2. Solte os elementos de encaixe (2, 3).

1. Remova o painel da fachada.

7.

CUIDADO

1. Remova o painel frontal.

3.11.2 Instalar o painel frontal

3.6.2 Montarea componentelor uşii

1. Coborâți aparatul.

Repararea

Repararea

1.

1. Coborâți aparatul.

Repararea

1. Uvořnite kontakt zástrčky riadiacej jednotky.
2. Odoberte panel oblożenia.

3.2.2 Montáž panelu obloženia

1. Odoberte dvere smerom nahor.

3.5.2 Montáž dverí

Oprava

1. Odoberte panel oblożenia.

2. Odstráňte držiak osvetlenia bubna v homej časti.

1.

POZORI

Riziko poškodenia povrchu!

1. Odoberte poistku dvierok.

Oprava

1. Vytiahnite držiak osvetlenia bubna spotrebiča.
2. Odpojte elektrické pripojenia.
3. Odoberte osvetlenie bubna z držiaka osvetlenia bubna.

1. 1. Odstráňte skrutky (1).

2. Uvol'nite zachytávacie prvky (2, 3).

1. Odoberte panel obloženia

7.

UPOZORNENIE

1. Odstranite ročaj predalčka za detergent.

1. Odstranite vrata v smeri navzgor.

1. Spustite aparat.

Popravilo

1. Odstranite delovno površino (2, 3).

Popravilo

1. Odstranite ploščo za vence.

2. Odstranite držalo lučke bobna na vrhu.

1.

POZORI

1. Odstranite tesnilo vrat.

1. Odstranite varovalo vrat.

Popravilo

1. Izvlecite držalo luči bobna iz aparata.
2. Odklopite električne priključke.
3. Odstranite luč bobna z držala luči bobna.

1. Spustite aparat.

Popravilo

1. 1. Odstranite vijake (1).

2. Potisnite delovno površino proti zadnjemu delu aparata (2).

3. Premaknite delovno površino navzgor (3), da jo odstranite.

1. 1. Odstranite vijake (1).

2. Sprostite držalne elemente (2, 3).

3.1.2 Montar la tapa superior

▶ Montar en orden inverso.

Reparación

3.2 Sustituir el panel de control

Requisito:

1. Bajar el aparato.

Reparación

Reparación

1.

ATENCION

3.10.2 Montar la tapa de la bomba

▶ Montar en orden inverso.

Reparación

3.11 Sustituir el panel frontal

Requisito:

1. Bajar el aparato.

Reparación

1. Lossa stickkontakten till styrenheten.
2. Ta bort kontrollpanelen.

3.2.2 Montera kontrollpanel

3.6.2 Montera luckans komponenter

1. Sänk ner maskinen.

Reparation

Reparation

1.

OBS!

1. Ta bort frontpanelen.

2. Ta bort alla slangkopplingar.

1. Ta bort luckans lás.

Reparation

1. Ta bort pumphöljet.

3.10.2 Montera pumphölje

1. Sänk ner maskinen.

Reparation

1. Ta bort kontrollpanelen.

7.

FÖRSIKTIGT!

1. Ta bort frontpanelen.

3.11.2 Montera frontpanel

1. Cihazı indirin.

Onarim

Onarim

1.

DİKKATI

1. Cihazı indirin.

Onarim

1. Ön paneli sökünüz.
