Jupiter - Scooter TVS - Free user manual and instructions

Product Type	Scooter
Brand	TVS
Model	Jupiter 125
Engine Type	Single cylinder, 4 stroke, fuel injection, air cooled, spark ignition
Displacement	124.76 cc
Maximum Power	6.0 kW @ 6500 rpm (without iGO assist) / 6.3 kW @ 6500 rpm (with iGO assist)
Maximum Torque	10.5 Nm @ 4500 rpm (without iGO assist) / 11.1 Nm @ 4500 rpm (with iGO assist)
Maximum Speed	84 km/h
Fuel System	Fuel injection
Fuel Tank Capacity	5.1 L
Fuel Type	BS VI petrol with minimum RON 98 (up to 20% ethanol)
Overall Length	1852 mm
Overall Width	691 mm
Overall Height	1168 mm
Wheelbase	1275 mm
Ground Clearance	160 mm (unladen)
Kerb Weight	108 kg (with tool kit and 90% fuel)
Maximum Laden Weight	258 kg
Seat Length	756 mm (usable)

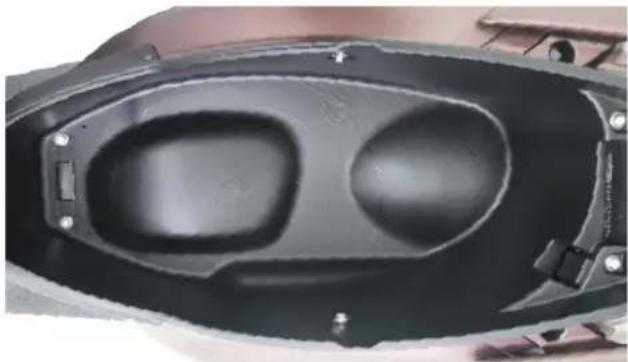

Underseat Storage	33 L (can hold two helmets)
Brakes Front	220 mm disc (hand operated)
Brakes Rear	130 mm drum (hand operated)
Synchronised Brake Technology (SBT)	Yes
Tyres	90/90 - 12 54J (tubeless front and rear)

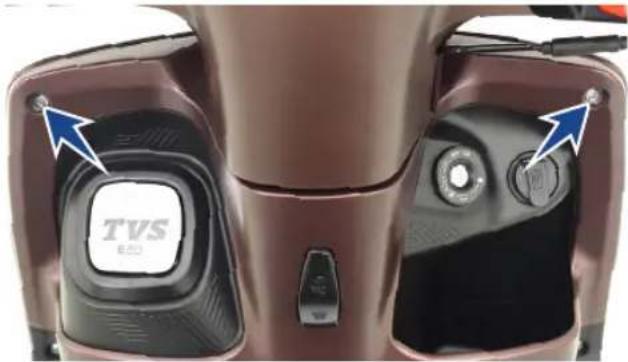

Battery	12V, 5Ah MF
Headlamp	LED (always on when engine runs)
Instrument Cluster	Fully digital connected instrument cluster with hybrid TFT and LCD
Bluetooth Connectivity	Yes (SmartXonnect)
Voice Assist	Yes
intelliGO (Start/Stop)	Yes
iGO Assist	Yes (acceleration boost)
Side Stand Cut-off	Yes
Hazard Switch	Yes
Front Fuel Fill	Yes
Phone Charger Socket	Yes (below right handlebar)

Frequently Asked Questions - Jupiter TVS

What is the engine displacement of the TVS Jupiter 125?

The TVS Jupiter 125 has a 124.76 cc single-cylinder, 4-stroke, fuel-injected, air-cooled engine.

What fuel should I use in my TVS Jupiter 125?

Use BS VI petrol with minimum RON 98 (can contain up to 20% ethanol by volume).

What is the fuel tank capacity and mileage?

The fuel tank capacity is 5.1 litres. Mileage depends on riding conditions; the instrument cluster displays average fuel efficiency.

How do I connect my phone to the scooter?

Download the TVS Connect app from Google Play or App Store. Pair your phone via Bluetooth by putting the instrument cluster into pairing mode (press MODE for 5 seconds) and select 'TVSHD...' in the app.

What is the intelliGO system?

TVS intelliGO is an intelligent start/stop system that automatically shuts off the engine when idling (e.g., at traffic lights) and restarts by applying the brake and throttle, improving fuel efficiency.

Does the TVS Jupiter 125 have a side stand cut-off?

Yes, the engine will not start if the side stand is deployed. If the engine is running and the side stand is put down, the engine shuts off automatically for safety.

What is the service interval for the TVS Jupiter 125?

There are 9 scheduled services up to 48,000 km or 48 months. The first service is at 500-750 km (free), then every 5,500-6,000 km or 6 months. Refer to your service handbook for details.

What type of oil does the TVS Jupiter 125 use?

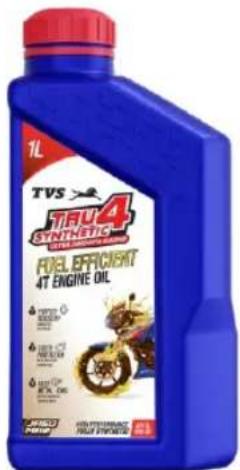

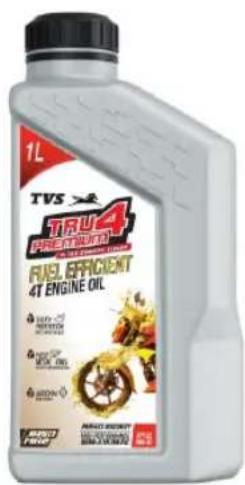

Use TVS TRU4 SKUUTA (SAE 10W30 API-SL, JASO MB) engine oil. The engine oil capacity is 700 ml and transmission oil capacity is 120 ml.

Does the TVS Jupiter 125 have under-seat storage?

Yes, it has a 33-litre underseat storage compartment that can hold two helmets or other luggage.

What is the tire pressure for the TVS Jupiter 125?

Front tire: 24 PSI (1.68 kg/cm²). Rear tire solo: 32 PSI (2.25 kg/cm²). Rear tire dual: 36 PSI (2.53 kg/cm²). Always check when cold.

USER MANUAL Jupiter TVS

SCAN FOR 24X7
ROADSIDE ASSISTANCE NOW

WE GO THE DISTANCE WHEN IT COMES TO YOUR ASSISTANCE.

MAKE YOUR RIDES HASSLE-FREE AND STRESS-FREE WITH SERVICE BEYOND JUST ASSISTANCE.

Sign up for our 24X7 Roadside Assistance and enjoy quick and efficient service anytime, anywhere.

EXPRESS SERVICE

TVS

Drive In.

Drive Out.

Say bye-bye to waiting time for servicing your bike.

Get your vehicle serviced in 1 hour at no additional cost. Contact your nearest Dealership for details. ^†

^ Facility available at selected Dealerships only. Terms and conditions apply

BusyLife? EasyServicing!

Now, service your bike anywhere, anytime.

★ Service the vehicle at your door step.
★ Available for regular maintenance or breakdown service only.
★ Offered at nominal convenience charges.

Contact your nearest Dealership for details. ^†

† Facility available at selected Dealerships only. Terms and conditions apply

BusyLife? EasyServicing!

Now, service your bike anywhere, anytime.

★ Service the vehicle at your door step.
★ Available for regular maintenance or breakdown service only.
★ Offered at nominal convenience charges.

Contact your nearest Dealership for details. ^†

^ Facility available at selected Dealerships only. Terms and conditions apply

CONTENTS

CONTACT(S) FOR SUPPORT 1

FOREWORD 5

UNIQUE FEATURES OF TVS JUPITER 125 6

ACCESSORIES 11

SAFETY INFORMATION 12

NOTICE 13

RUNNING-IN INFORMATION 14

SAFE RIDING TIPS 15

KNOW YOUR TVS JUPITER 125 19

RIDING YOUR TVS JUPITER 125 82

MAINTENANCE 86

WARRANTY AND SERVICES 108

PRIVACY POLICY 114

TECHNICAL SPECIFICATIONS 120

GENERAL INFORMATION 125

Incase you need any Clarification please contact

TVS Motor Company Authorised Main Dealer / Authorised Dealer

Or

TVS Motor Company's Area Offices (flip over for addresses)

Or

Toll Free Number : 1800-258-7111

Email : [e-mail]

Disclaimer : TVS Motor Company or any of its officials / Authorized Main dealer / Authorized Dealer do not ask customers for bank / card / wallet details / authentication. In case you face any such claim, please report to the relevant local authorities immediately.

CONTACT AT OUR AREA OFFICES

TAMILNADU - 1 & 3

1. TVS Motor Company Limited

V Floor, Gee Gee Universal,

No. 2, MC Nichols Road,

Chetpet, Chennai - 600 031.

Phone: [phone]

Email: [e-mail]

[e-mail]

TAMILNADU - 2

2. TVS Motor Company Limited

No. 10, 2nd floor,

Shree Shanmugapriya Towers,

Kannuswamy Street,

Behind Hotel Annapoorna,

R S Puram, Coimbatore - 641 002.

Phone : 0422 - 4350060/2541035

Email: [e-mail]

KERALA

3. TVS Motor Company Limited

Ambady Towers, Second Floor,

Door No. 27/631, A6,

Edappally-Pookkattupady Road,

Edappally PO., Cochin - 682 024.

Phone : 0484 - 2544578/2556938

Email: [e-mail]

KARNATAKA - 1 & 2

4. TVS Motor Company Limited

No. 600, Anand Surya, 2nd Floor,

15th Cross, 6th Phase, J P Nagar,

Opp. BMTC Bus Stop,

Bangalore - 560 078.

5. TVS Motor Company Limited

Rukumani Towers, First Floor,

No. 3-11-30, Plot No. 11,

Paigha Colony, Behind Anand Theater,

Secunderabad - 500 003.

Phone : 040 - 27840590/27844419

Email : [e-mail]

MAHARASHTRA - 1 & 2

6. TVS Motor Company Limited

No. 401, 4th Floor, The Chambers,

Plot No. 4/12/3, Near Ganapati Chowk,

Viman Nagar, Pune - 411 014.

Phone : 020 - 26632112/26632110

Email : [e-mail]

MAHARASHTRA - 3

7. TVS Motor Company Limited

No. 502B, 6th Floor, B Wing,

Shriram Shyam Towers,

Near LIC Square, Sardar,

Nagpur - 440 001.

Phone : 0712 - 2569932

Email : [e-mail]

CHATTISGARH

8. TVS Motor Company Limited

Office No. 526, 527 & 528,

Magneto Offizo,

5th Floor, Magneto The Mall,

Labhandi, NH-6, Raipur - 492 001.

Phone: [phone]

Email : [e-mail]

GUJARAT

9. TVS Motor Company Limited

1208-1213, Shivalik Satyamev,

Below Bopal Over Bridge,

Ambli-SP Ring Road Junction, Bopal,

Ahmedabad- 380 058.

Phone : 079 - 65443748

Email: [e-mail]

MADHYA PRADESH - 1 & 2

10. TVS Motor Company Limited

No. 211-212, 2nd Floor,

Chinar Incube Business Centre,

Chinar Fortune City,

Near Brindhavan Dhaba,

Hosangabad Road,

Bhopal - 462 026.

Phone: [phone]

Email: [e-mail]

[e-mail]

RAJASTHAN - 1 & 2

11. TVS Motor Company Limited

Plot No. 17-18,

2nd Floor of National Motors Building,

Jhotwara Industrial Area,

Jaipur - 302 012.

Phone:[phone]

Email: [e-mail]

[e-mail]

DELHI & HARYANA

12. TVS Motor Company Limited

D-3 & D-4, 2nd Floor,

Sector - 10, Noida,

Uttar Pradesh - 201 301.

Phone:[phone]

Email: [e-mail]

PUNJAB & CHANDIGARH

13. TVS Motor Company Limited

4th Floor, Royal Business Park,

Chandigarh Ambala Highway,

Zirkapur - 140 603.

Phone : 01762 - 464777/465777

Email: [e-mail]

UTTAR PRADESH WEST

14. TVS Motor Company Limited

D-3 & D-4, 2nd Floor,

Sector - 10, Noida,

Uttar Pradesh - 201 301.

Phone : 011 - 29834640/29834773

Email: [e-mail]

UTTAR PRADESH CENTRAL & EAST

15. TVS Motor Company Limited

1st Floor, Cyber Tower, TC-34/V-2,

Vibhuti Khand, Gomti Nagar,

Lucknow - 226 010.

Phone : 0522 - 4918300/4918301

Email: [e-mail]

WEST BENGAL

16. TVS Motor Company Limited

Ground Floor & First Floor,

133 A. S. P. Mukherjee Road,

Opp. Tollygunge Police Station,

Kolkata - 700 026.

Phone : 033 - 24617096/24617092

Email : [e-mail]

BIHAR

17. TVS Motor Company Limited

N-Plaza, Jamal Road,

P.S. Kotwali,

Patna - 800 001

Phone: [phone]

Email: [e-mail]

ORISSA

18. TVS Motor Company Limited

No. 303, 3rd Floor,

Creative Plaza, Rasulgarh,

Bhubaneshwar - 751 010.

Phone:[phone]

Email: [e-mail]

JHARKHAND

19. TVS Motor Company Limited

Second Floor, Lucas Service Building,

Argora Byepass Road,

Ranchi - 834 002.

Phone: [phone]

Email: [e-mail]

NORTH EAST STATES

20. TVS Motor Company Limited

147, Udayan, Ganesh Guri,

Near Hotel D Courtyard,

R G B. Road, Guwahati - 781 005.

Phone : 0361 - 2202030/2202031

Email: [e-mail]

FOREWORD

Dear Jupiter 125 Owner,

Thank you for choosing TVS Jupiter 125. Taking the legacy of TVS Jupiter forward, the all new TVS Jupiter 125 is truly bigger, better and powerful. With its Next Gen 125cc engine and many class-leading features it is the perfect new age scooter. As a proud owner of TVS Jupiter 125, you are now part of the TVS family with millions of satisfied customers.

The TVS Jupiter 125 comes with new unique features which have been developed keeping your needs in mind – Best in class underseat storage with twin helmet space, latest TVS SmartXonnect technology comes loaded with 60+ features, best in class mileage, longest seat in the segment, front fuel fill, metal body, signature style elements and much more. Overall, the TVS Jupiter 125 is a perfect blend of style, performance, technology, and utility.

All the features of your new vehicle, along with information on how it operates is available in this manual. Kindly read it carefully and follow the instructions to enjoy years of comfortable and safe riding. To ensure reliable performance, we urge you to get your TVS Jupiter 125 serviced only at TVS Motor Company Authorised Main Dealer / Authorised Dealer at specified intervals.

Experience the next level of commuting with the all new TVS Jupiter 125!

TVS MOTOR COMPANY LIMITED

UNIQUE FEATURES OF TVS JUPITER 125

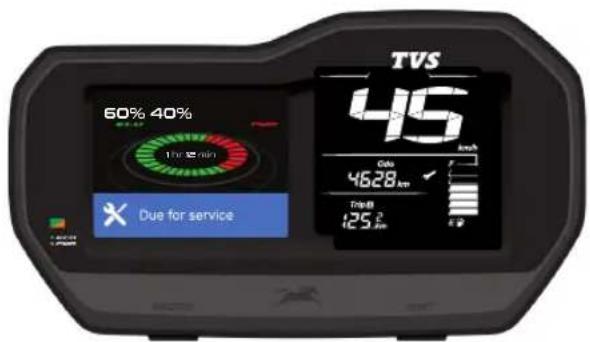

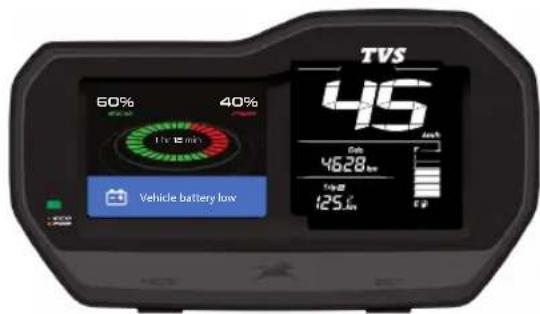

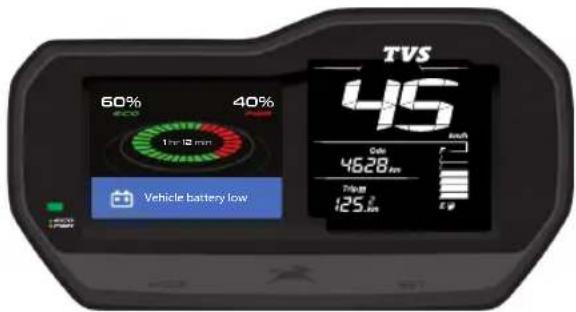

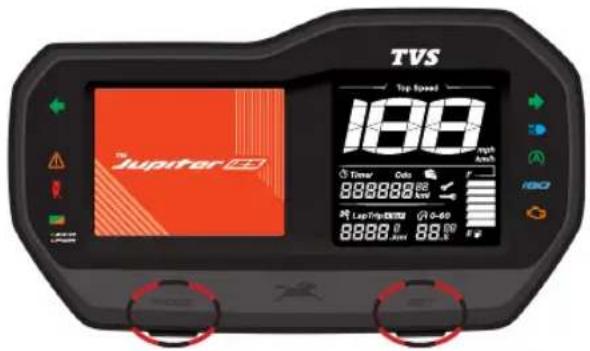

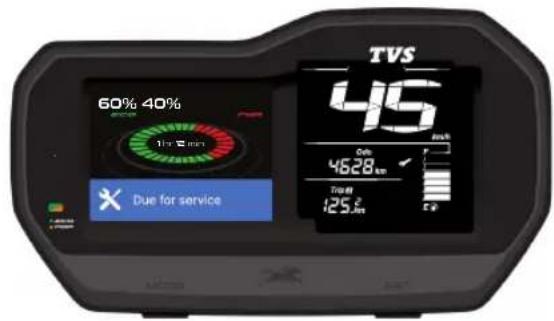

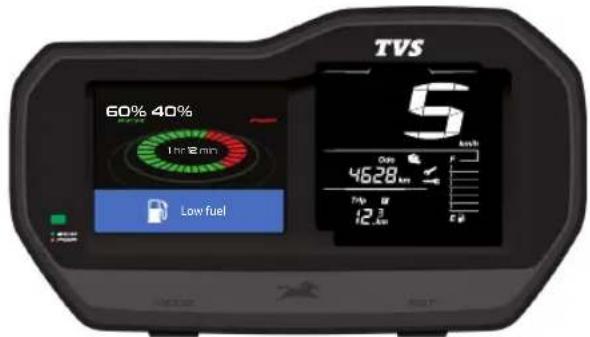

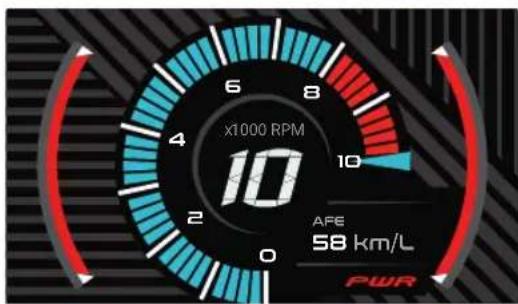

FULLY DIGITAL CONNECTED INSTRUMENT CLUSTER WITH ON-BOARD DIAGNOSTIC

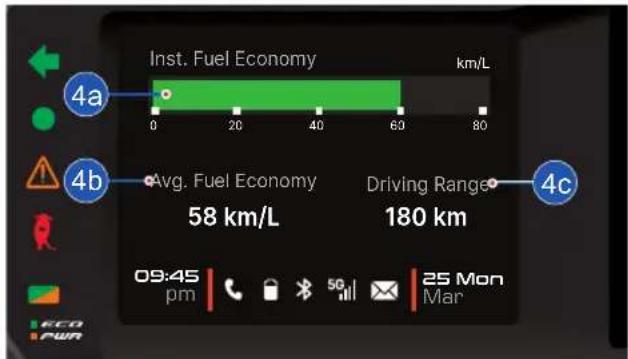

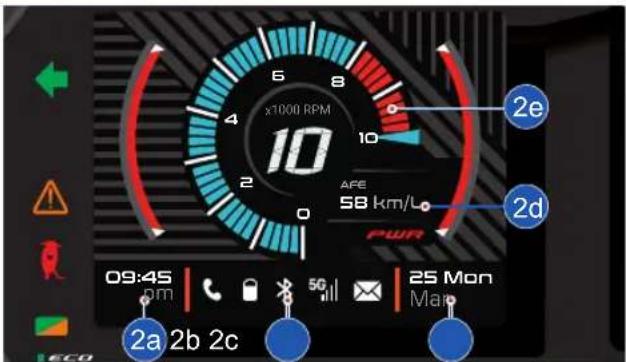

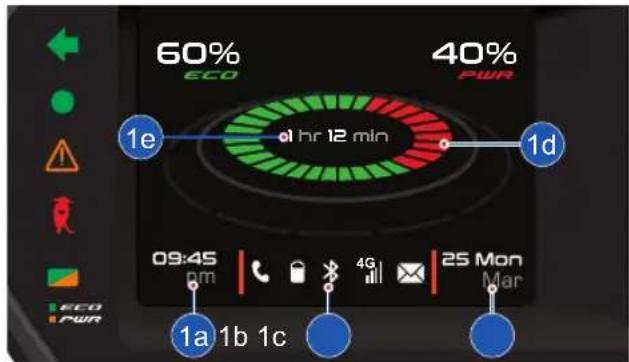

Your scooter is fitted with 'Fully Digital Connected Instrument Cluster' with hybrid TFT and LCD display screen. This first-in class cluster housed perfectly in the head lamp housing of your scooter is equipped with innovative features like Time & date indication, Fuel indication, Odometer, Distance to empty, Average fuel efficiency, Instantaneous fuel efficiency, Trip mileage, Trip meter A, B & F, Service reminder, Helmet indication and more.

TRIP F: Trip F is a unique feature in your vehicle which would indicate the number of kilometers driven in reserve condition. This would be a critical information to prevent fuel shortage during ride.

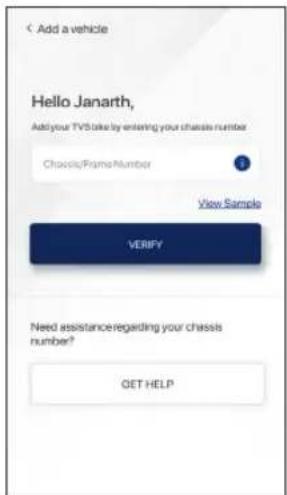

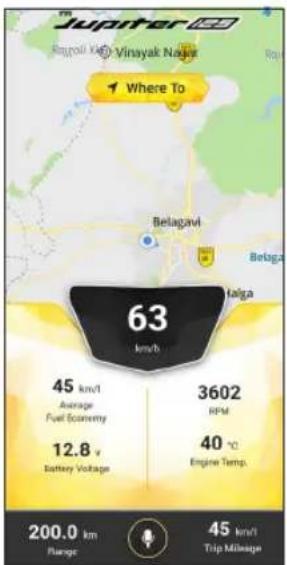

SMARTXONNECT-BLUETOOTH CONNECTIVITY

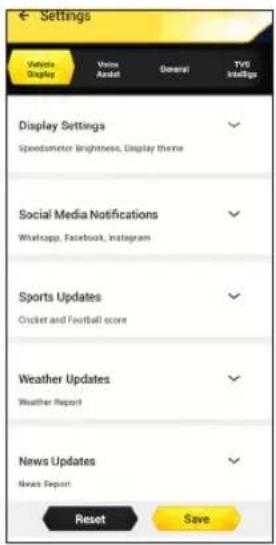

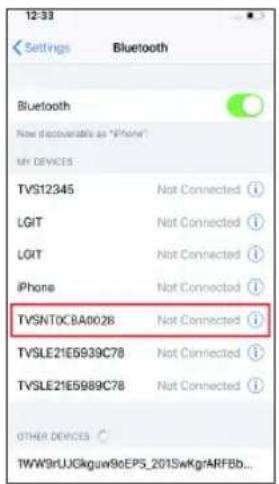

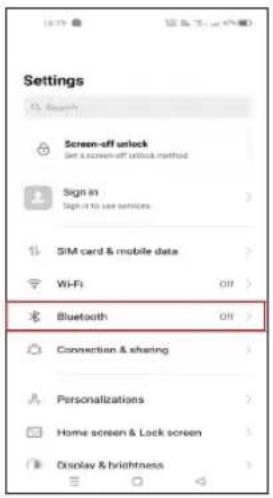

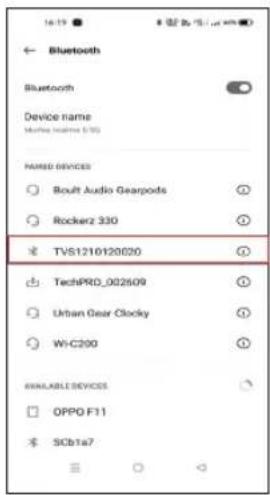

The connected instrument cluster of your scooter has a inbuilt Bluetooth® connectivity through which you can connect your Android™ smart phone / iPhone® to access the features like caller ID, SMS, missed call notification, voice assist, navigation in the cluster access and voice assist, ride stats share and the last parked location of the vehicle from TVS Connect app. Login to TVS Connect app to explore more SmartXconnect features.

iGO ASSIST

iGO assist technology that draws power from Battery for improved Acceleration & Better mileage.

iGO assist improves acceleration and makes it easier to overtake at traffic signals, while enhancing fuel efficiency by an additional 10%. Refer page no. 29 details.

TVS

VOICE ASSIST

Another 1st in market feature - TVS JUPITER 125 is now provided with voice assist. You can use your voice to control various functions like speedometer brightness, navigation assist etc. You can use your voice through a connected audio device like a Bluetooth® headphone and control vehicle functions like starting navigation instructions to a particular location, ask for news / weather updates, etc. You can also set location for navigation, current location etc. over voice.

ECONOMETER®

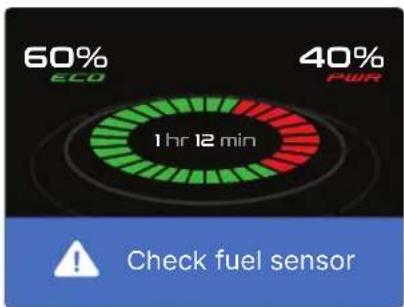

Your scooter's speedometer has ECONOMETER® which indicates whether you are riding in 'Economy' mode or 'Power' mode. This is an unique feature of your scooter which guides you to ride your scooter fuel efficiently. Refer page no. 26 for details.

TVS

INTEGRATED GENERATOR (ISG)

'Integrated Starter Generator (ISG)' system delivers a noiseless start of your scooter. An ISG Malfunction Indication lamp is added to glow whenever any ISG related fault is present in vehicle.

'TVS intelliGO'

An intelligent start / stop system that further enhances fuel efficiency. Easy on your pocket and kinder to the environment. Refer page no. 27 for details.

LOW FUEL INDICATOR

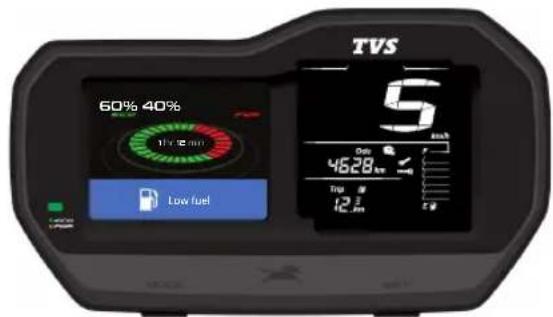

'Low Fuel Indicator' is yet another unique feature of your scooter which indicates you to refill the fuel, when the fuel in the tank goes below minimum safe level. Refer page no. 29 for details.

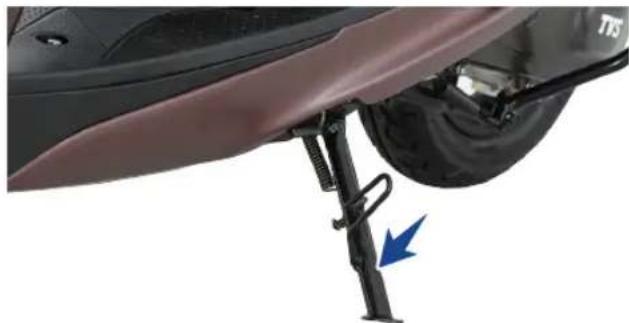

SIDE STAND CUT-OFF

You scooter has been provided with auto engine cut-off and start control system when the side stand is engaged.

ALL IN ONE LOCK

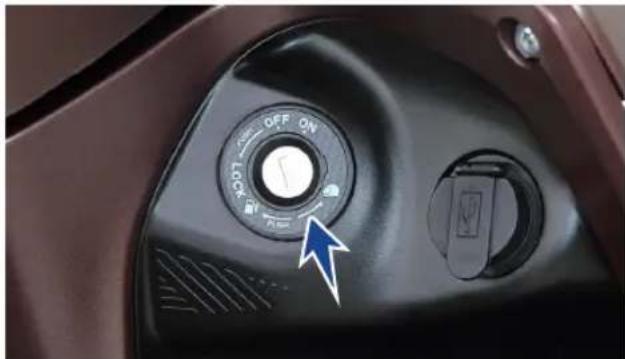

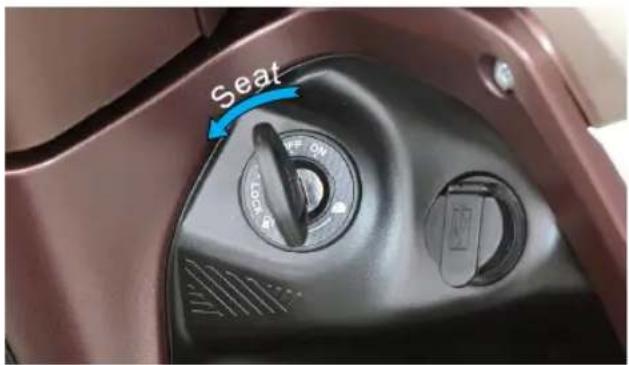

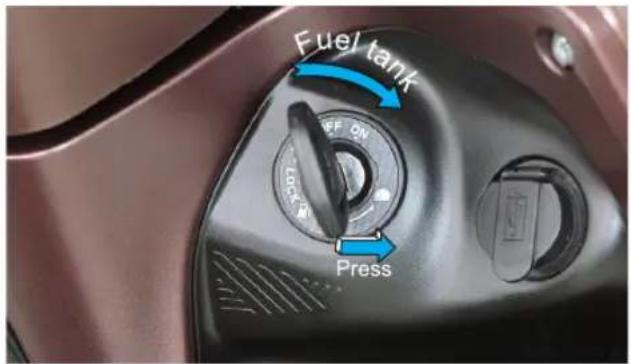

Your scooter has all in one lock that unlocks the seat and fuel tank cap at the ignition lock itself. Refer page no. 24 for details.

PASS-BY SWITCH

Pass-by switch is a feature that allows you to easily switch between high & low beam of the head lamp with easy press and auto release. It is helpful especially while overtaking. Refer page no. 73 for details.

'TVS intelliGO' SWITCH

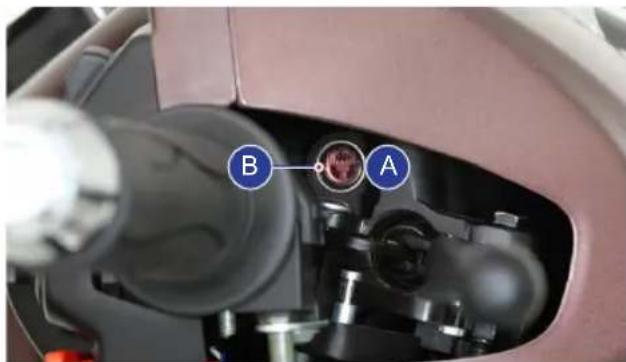

An exclusive intelliGO switch is provided to switch 'OFF' and 'ON' the intelliGo system as and when required. Refer page no. 74 for details.

Close-up of a camera control knob with a blue arrow pointing to the dial (no text or symbols visible)

Close-up of a car's steering wheel with control buttons and a yellow scroll (no visible text or symbols)

Close-up of a camera grip with a blue arrow pointing to the button (no text or symbols visible)

HAZARD SWITCH

Your scooter comes in with a first in segment feature- Hazard switch. Turn on your hazard switch to either warn other drivers that your vehicle is in the way of traffic due to an emergency stop, or to notify them that you are having some problem. Once the switch is pressed, it will flash all the turn signal lamps until it is pressed again.

FRONT FUEL FILL

Front fuel filling system enables you to hassle free fuel filling without even getting off from the vehicle.

SEAT ASSEMBLY

Longest seat in its category with 790 mm length for comfortable travels of your family members.

TVS

PILLION HANDLE WITH CUSHION

The cushioned pillion handle lets the pillion rider relax and enjoy the ride. The sturdy grabrail provides additional support and complements the premium-ness of the scooter.

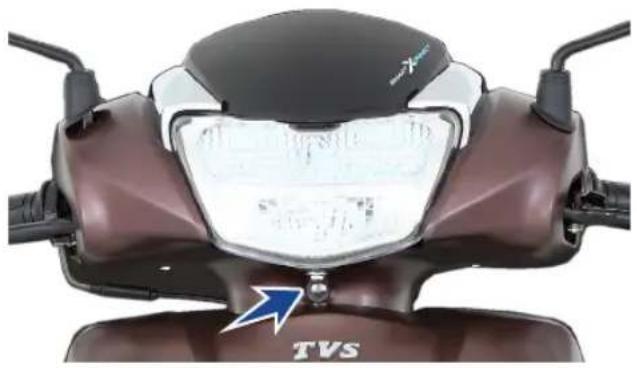

LED HEAD LAMP

Your scooter comes in with a premium LED head lamp. Efficient and bright, this gives your scooter a totally upgraded Look and Style with better visibility for night rides.

Close-up of a white plastic object with a black border and metallic rim (no visible text or symbols)

FOLLOW ME HOME HEADLAMP

Your scooter now comes with follow me home headlamp feature. Your headlamp remains ON for 20 seconds after you switch off your vehicle, to guide you reach home safely in darkness.

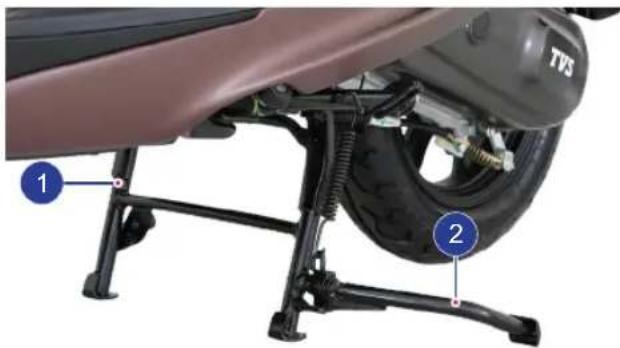

PATENTED E-Z CENTRE STAND

E-Z Center Stand of your scooter reduces the effort required to place the scooter on stand. Refer page no. 76 for operating procedure.

'Parking Brake' is another unique safety feature which protects your scooter from falling due to wheel rotation when it is parked with the side stand on a slope. Refer page no. 73 for details.

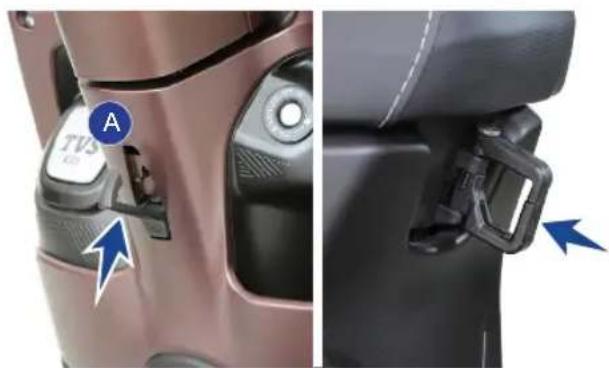

RETRACTABLE BAG HOOKS

Your scooter has two retractable 'Bag Hooks' to carry light luggage like carry bags weighing upto 3 kg. One hook is located below the handle bar on the rear panel and the other one is located on the cover front below the front end of seat.

TELESCOPIC FRONT FORK

Your scooter has Motorcycle-like 'Telescopic Front Suspension' for extreme riding comfort even while riding on bad roads.

TVS

Close-up of a car charging plug with a blue arrow pointing to the plug (no text or symbols visible)

Close-up of a bicycle wheel assembly with brake calipers and a yellow sensor (no visible text or symbols)

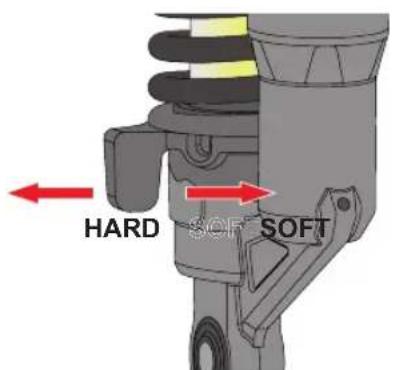

GAS ADJUSTABLE REAR SHOCK ABSORBER

Your scooter comes with gas filled 'Adjustable Rear Shock Absorber' with canister - first time in scooters. This allows you to adjust the required level of hardness / softness as per the usage requirement at just the push of a lever.

Close-up of automotive suspension system components with no visible text or symbols

SYNCHRONISED BRAKE TECHNOLOGY (SBT)

Taking technological innovation to next level, your scooter comes with 'Synchronised Brake Technolog (SBT)'. This feature enhances the safety by avoiding skidding during sudden braking.

Close-up of a car brake disc and wheel assembly (no visible text or symbols)

UNDER-SEAT STORAGE (UTILITY BOX)

Your scooter has a 33 litre under-seat storage space to carry your luggage belongings, two helmet etc., refer page no. 78 for details.

Close-up of a black plastic mechanical component with two recessed cavities (no text or symbols visible)

TVS

BLACK LARGER ALLOY WHEELS

All 'Larger Black Alloy Wheels' with high mechanical advantage gives progressive braking of your scooter, results in best-in-class 'shortest distance' braking. It also provide superior comfort in bad road conditions.

Close-up of a car tire with visible mechanical components and a yellow tool inserted (no text or symbols)

TUBELESS TYRES

Another important unique feature in your scooter is 'Tubeless Tyres'. Tubeless tyres reduce the chances of getting punctured. Even if there is a puncture, sudden leakage of air is avoided, thereby provide better safety and convenience. It is also very easy to repair the punctured tyres.

ACCESSORIES

FRONT GLOVE BOX

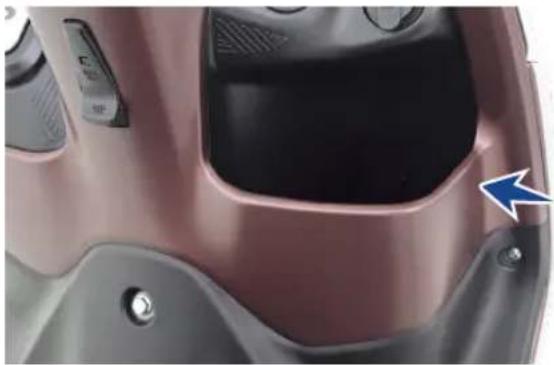

Your scooter is provided with glove box front. Which has 2 liter storage capacity and used to hold your mobiles while charging or hold a small bottle.

Close-up of a pink car front bumper with a blue arrow pointing to the side (no text or symbols visible)

ACCESSORIES FOR YOUR SCOOTER

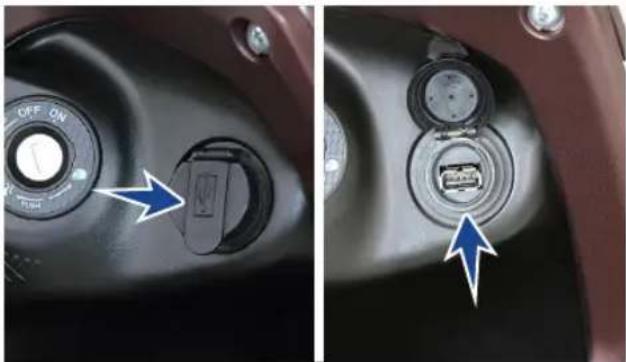

SMART PHONE CHARGER\*

Your scooter is provided with a socket for charging your smart phone even while you are traveling and it is located below the right side of the handle bar. Refer page no. 80 for usage details.

Close-up of a black mechanical control knob with circular dial and square head (no visible text or symbols)

UTILITY BOX LIGHT\*

Your scooter has a provision to fix 'Utility Box Light' which lights up the utility box automatically whenever the seat is open.

Close-up of a dark liquid surface with a small electronic device and a blue arrow pointing to it (no visible text or symbols)

INDICATOR BEEPER\*

Your scooter has an electronic beeper which alerts you that the turn signal indicators and side stand is 'ON'. This beeper comes as a mandatory accessory.

LADY PILLION HANDLE\*

Provision for mounting 'Lady pillion handle' is provided in your scooter. Lady pillion can be purchased as optional accessory.

LADY PILLION FOOT REST\*

Your scooter has a provision fit 'Lady pillion foot rest' for easy resting of legs for the ladies travels as a pillion and it is a mandatory accessory.

SAFETY INFORMATION

TVS

Operating this vehicle safely is an important responsibility of the rider. To help you make decisions on safety, we have provided necessary operating procedure and other information in this manual. This information alerts you on potential hazards that could hurt you or others. Since it is not possible to warn you about all the hazards associated with operating or maintaining the vehicle, you must use your own judgment.

You will find important safety information in following form in this manual. These words carry the following connotations:

Warning

Disregarding this message might result in injury to the rider or deadly accidents.

Caution

This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.

Note

This message provides further clarification for clear understanding of any particular information.

NOTICE

TVS

Take time to familiarize yourself with your TVS Jupiter 125 and its performance characteristics.

This owner's manual contains a host of useful information. Please take the time to read this manual before you ride your new TVS Jupiter 125. Get familiarised with the operation of your scooter for maximum safety and pleasure. The better you know your vehicle, the more pleasure you will experience riding your new vehicle. Ensure that anyone else riding your TVS Jupiter 125 does the same.

All information, illustrations, photographs and specifications contained in this owner's manual are based on the latest product information available at the time of this publication. TVS Motor Company Limited may, however, incorporate modifications or improvements on its vehicles at any time without notice, and therefore, in such events it is possible that the relevant part of the owner's manual does not apply to your vehicle.

Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this owner's manual.

Note

Accessories shown in the picture may not be part of the standard equipment.

Pictures shown in this manual are of TVS Jupiter 125 alloy wheel with front disc brake model unless specified.

Your scooter is provided with always glowing head lamp (AHO). The head lamp glows automatically once the engine is started.

TVS Jupiter 125 fitted with 'TVS intelliGO' which is an intelligent start/stop system that switches 'OFF & ON' the scooter automatically (refer page no. 27 for further details).

Since your vehicle is fitted with side stand cut-off system ensure to retract the side stand before starting the vehicle.

Revision 0, As on 30 March 2025

RUNNING-IN INFORMATION

The first 1000 km is a crucial part of your scooter. Proper running-in operation during this period helps in ensuring a maximum life and smooth performance of your scooter.

The reliability and performance of your scooter depends on the special care and restrain exercised during the running-in period. It is especially important that you avoid operating the engine in high speed (RPM), which could expose the engine parts to excessive stress. Recommended speed during the running-in is:

Maximum 50 km/h speed upto 1000 km (vary the engine speed for better mating of parts).

The first free service at 500 \~ 750 km is most important. During running-in period all the engine components and other parts will have set in. All adjustments to be restored, all fasteners to be tightened. Engine and Transmission oil to be replaced. Timely performance of the first free service will ensure optimum service life and performance from the engine.

Caution

Replacing the engine and transmission oil during first service is most important for better life of engine. Always use TVS TRU4 SKUUTA (SAE 10W30 API-SL, JASO MB) oil for better performance and life.

SAFE RIDING TIPS

SAFE RIDING RECOMMENDATIONS

Any two wheeler riding requires some precautions to be taken to ensure the safety of the rider, pillion rider and other road users. These precautions are:

Familiarise yourself with new TVS Jupiter 125

Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to practice riding TVS Jupiter 125 in a low-traffic condition until you are thoroughly familiar with your vehicle and its controls. Remember practice makes you perfect.

Riding apparel

Loose, fancy clothing can be uncomfortable and unsafe when riding a two-wheeler. Choose good quality two wheeler riding apparel.

Know your limits

Ride within the boundaries of your own skill at all times. Knowing these limits and staying within them will help you avoid accidents.

Warning

Two wheeler safety starts with wearing a good quality helmet. One of the most serious injuries that can happen is a head injury. Always wear an ISI approved helmet that should fit your head comfortably and securely. You should also have good quality goggles to protect your eyes and help your vision.

To prevent or minimize accident, never consume alcohol or drugs before or during the operation of your vehicle. Even minimal consumption of these will affect the rider's ability to control the vehicle.

TVS

Posture

Proper vehicle riding starts with proper posture.

1. Keep your elbows relaxed and flexible.
2. Sit and adjust yourself on seat so that arms and shoulders are relaxed.
3. Look widely instead of gazing at one point.

Warning

One-hand riding is dangerous. Keep both hands firmly on the handle bar and both feet securely on the floor board. Under no circumstances should both the hands be removed from the handle bar, as it is very dangerous.

Avoid use of mobile phones while riding as it could lead to fatal accident.

Slow down to a safe speed before negotiating a corner. If this is the first time that you are riding a vehicle of this type, we suggest that you practice on a safe, open area to become thoroughly familiar with the operation of the vehicle.

Cornering

When cornering, centrifugal force works in a direction perpendicular to the direction in which the vehicle is moving. Centrifugal force increases in proportion with speed and the radius of the corner.

During cornering, reduce speed so as to lessen the effects of centrifugal force. By all means, avoid abrupt application of brake or sudden steering.

Braking

For safe riding, it is very important to master the braking techniques.

1. Close / release the throttle.
2. Hold the vehicle upright as you apply the brake.
3. Progressive application of brake is safer.
4. Apply both the brakes. 'SBT' provides additional braking even when 'only rear brake' is applied, But applying 'both the brakes' helps you to use the full potential of the brakes.
5. Riding down hills, while cornering and wet roads, close throttle and come to a slower speed to avoid the loss of control over the vehicle due to skidding.

Causes for poor braking

1. If the brake shoes / pads or drum / disc are worn out or if there is water or oil on them, sufficient friction does not develop and brakes do not work well.
2. Even when the brake works normally, if the road surface is wet or the tyre surface is worn-out, tyres do not take a firm hold on the surface, increasing the stopping distance.
3. Approximately 60% braking effect is from front brake. Non-usage of front brake causes poor braking.

Warning

As the vehicle speed increases, the stopping distance also increases progressively. Be sure that, you have sufficient distance between you and the vehicle or obstruction ahead of you.

Using only the front or rear brake is dangerous and can cause skidding and loss of control. Apply both the brakes together and with great care on a wet road or other slippery surfaces. Any abrupt braking on slippery or irregular roads can cause loss of rider control.

ACCESSORY INSTALLATION AND SAFETY TIPS

Use extreme caution while selecting and installing the accessories for your scooter.

The addition of unsuitable accessories can lead to unsafe operating conditions. Your friendly Dealer will assist you in selecting quality accessories and installing them correctly.

While selecting the accessories, make sure that the accessories should not obstruct lighting, steering, suspension level and ground clearance.

Additional electrical equipments is not acceptable as it will void the warranty terms of the vehicle.

EMISSION CONTROL

All the TVS vehicles are tested in the factory for optimum fuel efficiency and CO levels. If the vehicle needs any adjustments, please consult nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer.

While adequate care is exercised at the factory to ensure that the emissions are within the limits, it is essential for the owner to always maintain the TVS Jupiter 125 in good condition by getting it periodically checked and serviced by TVS Motor Company Authorised Main Dealer / Authorised Dealer so that the emission and fuel consumption levels are maintained as per norms.

Crankcase emission control system

The engine of your TVS Jupiter 125 is equipped with a closed crankcase ventilation system to prevent discharging crankcase emissions into the atmosphere. Blow-by gas is returned to the combustion chamber through the air cleaner and the fuel system.

Evaporative emission control system

TVS Jupiter 125 is equipped with an evaporative emission control system which consists of a canister and associated piping. This system prevents the escape of fuel vapors from the fuel tank.

Warning

If there is any abnormal jerk, startability issue are felt in the vehicle or noise due to sudden escape of gas during opening of fuel tank cap, immediately report to the TVS Motor Company Authorised Main Dealer / Authorised Dealer.

Note

Your vehicle is tested and certified for emission which meets BS VI emission norms and is valid for initial 12 months from the date of purchase. Get your vehicle certified by the Government authorised emission testing station after initial 12 months of usage. And ensure to get vehicle certified on expiry of the certificate obtained.

KNOW YOUR TVS JUPITER 125

VEHICLE IDENTIFICATION NUMBER

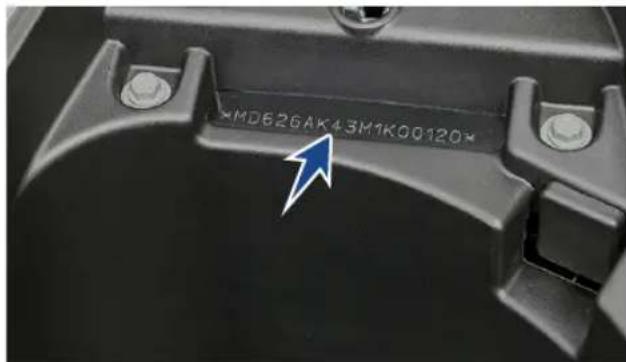

The frame and engine serial numbers are the only means of identifying your vehicle from others of the same model and type. They are also required to assist your Dealer for ordering parts or referring to special information.

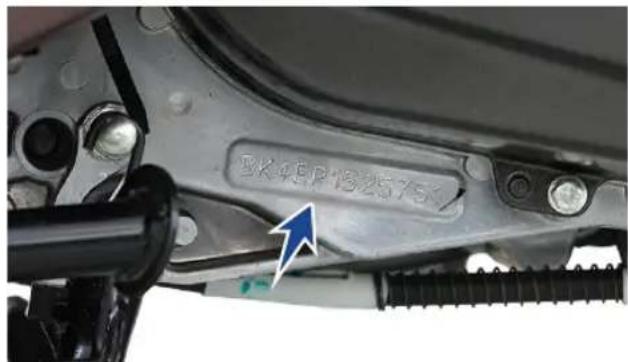

The frame serial number is stamped on the frame, at the rear end below the seat assembly. Open the seat assembly to read the frame number.

The engine serial number is stamped on the left side of the engine, at the bottom, near center stand mounting. See bottom to read serial number.

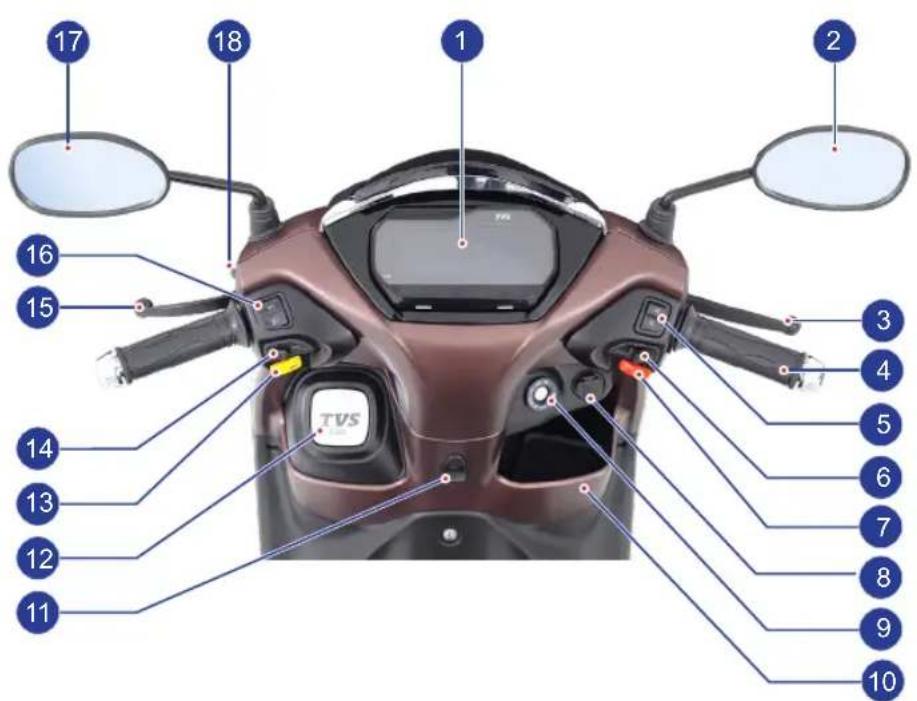

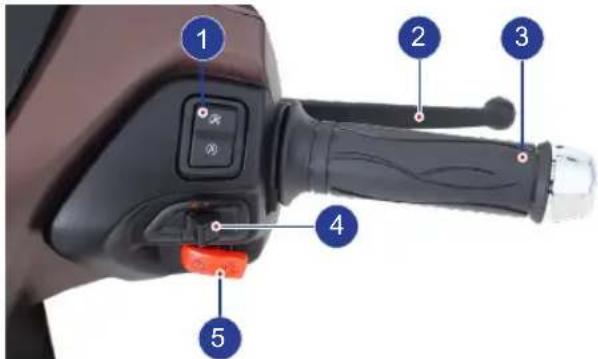

LOCATION OF PARTS - HANDLE BAR

TVS

1. Connected instrument cluster

2. Rear view mirror R*

3. Right hand brake lever

4. Throttle grip

5. 'TVS intelliGO' switch

6. Hazard switch

7. Electric start / voice assist switch

8. Smart phone charger*

9. All in one lock

10. Glove box

11. Bag hook (front)

12. Fuel tank cap

13. Horn switch

14. Turn signal lamp switch

15. Left hand brake lever

16. High / low beam cum pass-by switches

17. Rear view mirror L*

18. Parking brake

* Mandatory and optional accessory will be charged extra

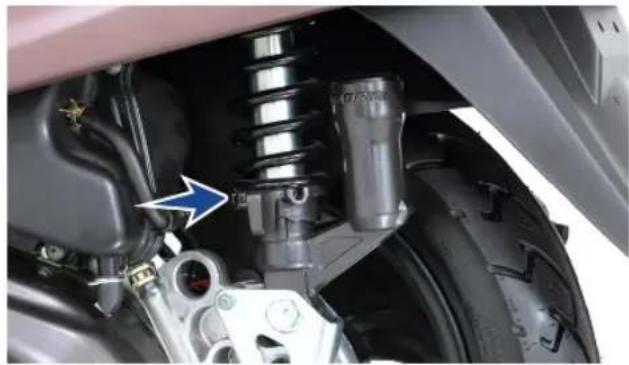

1. Gas filled adjustable rear shockabsorber

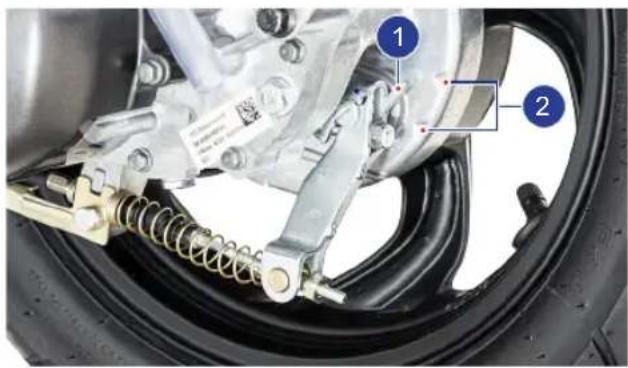

2. Rear brake adjusting nut
3. Side stand
4. Pillion foot rest L

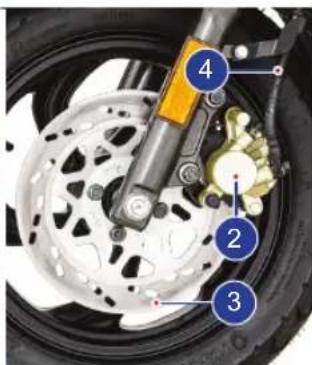

5. Caliper assembly front
6. Disc plate front
7. Pillion handle

1. Front wheel axle nut
2. Bag hook (rear)
3. Cover front
4. Pillion foot rest R
5. Gauge oil level
6. Muffler assembly
7. Rear fender
8. Seat assembly

LOCATION OF PARTS - VEHICLE FRONT & REAR

TVS

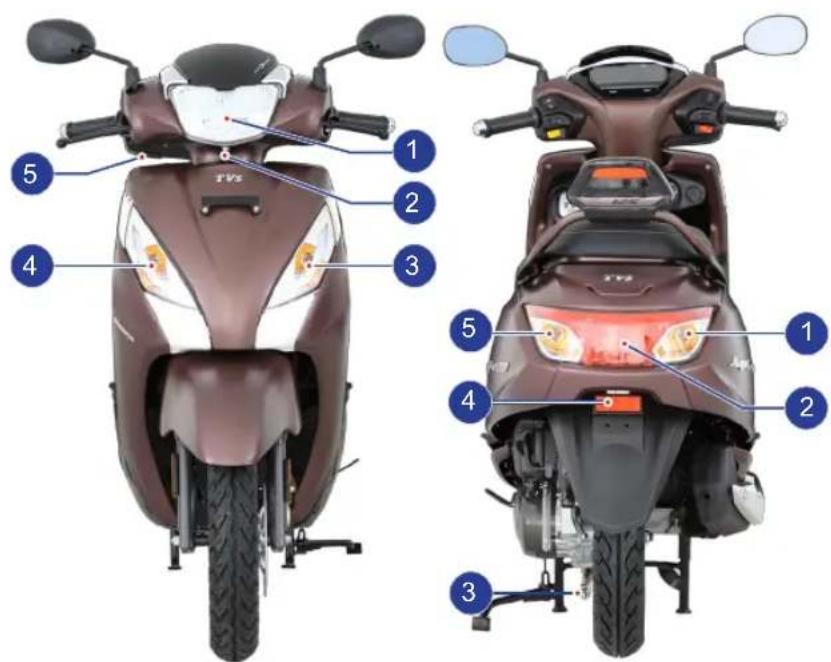

FRONT

1. LED Head lamp
2. Head lamp focus adjuster
3. Turn signal lamp front LH
4. Turn signal lamp front RH
5. Throttle cable adjuster

REAR

1. Turn signal lamp rear RH
2. Tail / brake lamp

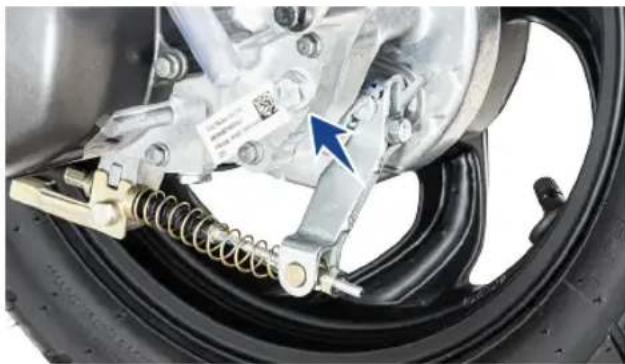

3. Transmission oil level screw
4. Reflex reflector
5. Turn signal lamp rear LH

TVS

ALL IN ONE LOCK

TVS Jupiter 125 comes with an 'All in one lock'. It has five positions and they are:

1. 'OFF' position

All the electrical circuits are turned 'OFF' in this position. Engine will not start. Key can be taken out.

2. 'ON' position

In this position, all the electrical circuits are turned 'ON' and the engine can be started now. Key cannot be removed in this position.

3. Steering 'LOCK' position

TVS Jupiter 125's steering can be locked in both 'left' and 'right' directions.

Close-up of a car's dashboard key dial with 'OFF ON' and 'LOCK STOP' labels, showing a blue arrow pointing to the left side (no readable text beyond basic symbols)

To lock the steering, turn the handle bar all the way to the 'left' or 'right'. Push the key 'IN', turn it to the 'LOCK' position and take out. All the electrical circuits are turned 'OFF' in this position. Insert the key into the lock and turn it to 'OFF' or 'ON' position to unlock the steering.

Note

When you switch on ignition key, the pump priming noise may be heard, which is normal. Avoid frequent 'SWITCH-OFF & ON' of ignition key, to avoid unnecessary run of fuel pump.

The speedometer back illumination, tail lamp and license plate lamp glow automatically once the ignition key is turned 'ON' without activating any other switches.

Caution

Leaving the ignition cum steering lock in 'ON' position will drain the battery when the vehicle is not in use. Switch 'OFF' and take the key out when the vehicle is not in use. For safety always lock the steering.

Warning

Never attempt to move the vehicle when the steering is locked, you may lose balance.

TVS

4. Seat 'Unlock' position

Seat lock operation is inbuilt in 'All in one lock' of TVS Jupiter 125. To open the seat, keep the key in 'OFF' position and turn it to anticlockwise direction without pushing the key 'IN'.

To lock the seat again, press the seat at the rear end to its position till a 'Click' sound is heard.

5. Fuel tank cap 'Unlock' position

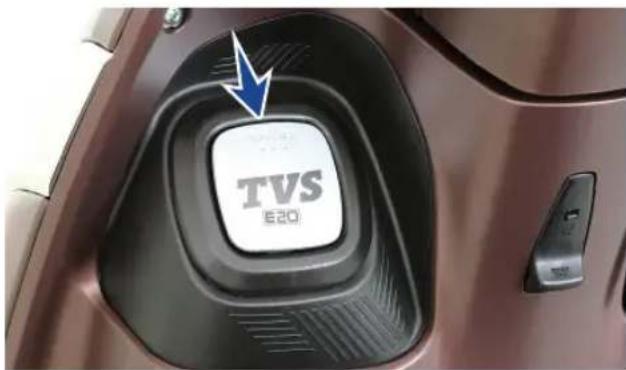

Fuel tank cap lock operation is inbuilt in 'All in one lock' of TVS Jupiter 125. To open the fuel tank cap, keep the key in 'OFF' position, push the key 'IN' and turn it to clockwise direction. The tank cap opens automatically.

To close the fuel tank cap, press the cap at the front end to its position until a 'Click' sound is heard.

Note

While closing the fuel tank cap press at the dotted mark area of the cap for easy closing.

TVS

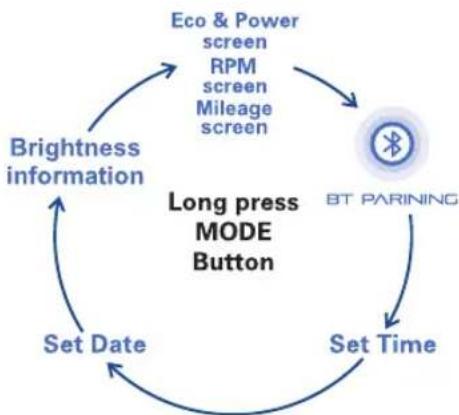

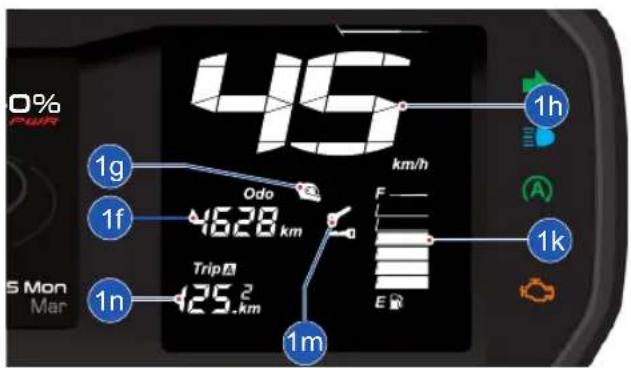

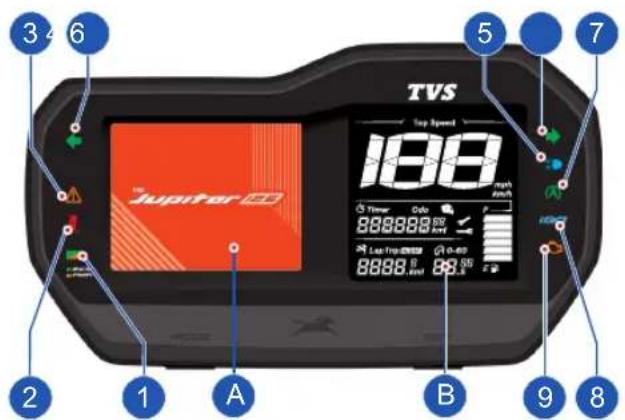

CONNECTED INSTRUMENT CLUSTER

Your TVS Jupiter 125 is provided with a fully digital connected instrument cluster with lots of features and various screens like 'Eco power screen', 'RPM screen', 'Mileage screen', Mobile app for Android™ / iOS devices, Caller profile image display, Voice assistant and Navigation assist etc.

Once the ignition is turned 'ON', there will be an intro animation for 5 seconds.

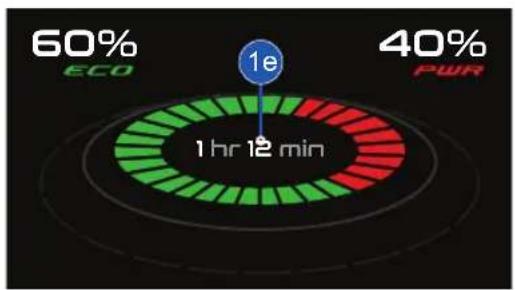

1. Economy and power indicator

Eco indicator (green lamp) indicates that the vehicle is running in economy mode which gives better fuel economy.

Power indicator (amber lamp) indicates that the vehicle is running in power mode.

Note

Always ride the vehicle in 'Economy Mode' for better fuel efficiency.

Whenever the engine is kept running in idle mode for more than 20 seconds approximately, the power mode indicator blinks and informs you that the fuel is getting wasted, please turn on intelligo feature or the engine needs to be switched 'OFF' to save the fuel. The power mode indicator blinking (power mode) changes to green light glowing (economy mode) when the throttle position is changed / increased from idling.

2. Side stand indicator (♀)

The side stand warning indicator turns 'ON' to alert you whenever the vehicle's side stand is deployed (vehicle parked condition).

Note

If the side stand is deployed, the vehicle will not start. Retract the side stand to start the vehicle.

If there is an error in the side stand sensor, the indication will not blink and the vehicle will not start. In such a condition, please visit the nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer.

3. ISG malfunction indicator (△)

ISG malfunction indicator will be turned 'ON' when the ISG detects a fault in the system. If the ISG malfunction indicator is glowing continually after the self check of the connected instrument cluster, immediately contact the nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer.

4. Turn signal indicator left (←)

Flashes when the 'left' side turn signal indication is activated.

5. High beam indicator lamp (☐)

Glows when the head lamp is activated in high beam or pass-by condition.

6. Turn signal indicator right (→)

Flashes when the 'right' side turn signal indication is activated.

7. 'TVS intelliGO' indicator

Fuel is consumed unnecessarily when the engine is in idling (eg. In traffic signals) as there is no useful output to the wheel. It contributes to emission and decreases mileage of the vehicle considerably.

To overcome this issue 'TVS intelliGO' system is introduced in TVS Jupiter 125 to automatically shut down the engine when it is kept idling for long and restart from stop condition by simply pressing the Brake and giving Throttle. The vehicle also can be restarted using 'Electric start' if required.

We recommend to use of this 'TVS intelliGO' system to improve the fuel economy and reduces emission.

Activation of 'TVS intelliGO' system:

'TVS intelliGO' system gets activated when the following requirements are satisfied,

1. 'TVS intelliGO' switch is in ' (A)' position
2. Engine is warmed up and
3. When the vehicle speed is more than 5 kmph.

TVS

When the vehicle has met the above conditions, the 'TVS intelliGO' system gets enabled and the intelliGO indicator 'A' in the speedometer glows and informs you that the vehicle has entered 'intelliGO' loop and the engine will stop automatically at upcoming vehicle idling condition.

Once the vehicle enters the idling condition, the intelliGO indicator starts blinking instead of glowing and engine stops after predetermined time. The connected instrument cluster's TFT display will show time remaining to enter fuel saver mode (IntelliGO stop mode).

The intelliGO indicator starts glowing during the engine stop to indicate you that the vehicle has stopped due to 'intelliGO' system.

When the vehicle is stopped by the 'TVS intelliGO' System the connected instrument cluster's TFT display the traffic screens. Refer page No. 48 for details.

The vehicle stopped by 'TVS intelliGO' system can be restarted at any time within 5 mins from the stop of the vehicle by intelliGO feature in a simple way of applying Brake and Throttle blip.

Deactivation of 'intelliGO' system:

'Idle start stop' system will be deactivated if the intelliGO switch is positioned at 'A' position.

If the ISG malfunction indicator or MIL indicator is 'ON' then the intelliGO system will not work not get activated.

If there is 5 unsuccessful start of the vehicle either by electric start or by intelliGO restart method in one ignition key 'ON' cycle then the intelliGO will not get activated.

If vehicle is not restarted within 5 mins from idle stop, then intelliGO will be deactivated.

Prolonged idling:

When vehicle is in idling with the engine temperature high enough to maintain stable engine idling rpm and the intelliGO switch is in ' (A)' position, then the intelliGO will be activated.

When 'TVS intelliGO' is enabled, the intelliGO lamp glows for 5 seconds and then blinks for predetermined time and then the engine stops.

IntelliGO lamp will glow after vehicle has stopped due to this feature. By applying Brake and Throttle blip the engine can be restarted again.

Note

Ensure that the brake free play is adjusted and it is within the limit for the proper working of 'TVS intelliGO'.

Vehicle can be started at any point of time using 'electric start' when the engine is stall condition and the ignition key is in 'ON' condition. The 'TVS intelliGO' switch can be activated / deactivated at any point of time.

If vehicle is stopped by 'TVS intelliGO' system, and the 'TVS intelliGO' switch is toggled from 'ON' to 'OFF' and back to 'ON', the intelliGO system will be deactivated and the vehicle can be restarted only by the 'electric start'.

8. IGO Assist indicator

TVS Jupiter is equipped with lightweight engine with iGO Assist. This feature delivers a boost in acceleration from a standstill and during overtaking scenario.

This system will be automatically activated when the following conditions are fulfilled:

1. The vehicles battery voltage is more than 12.5 Volts.
2. The engine temperature exceeds approximately 55 deg C.
3. There is no error in the vehicle.

Once these conditions are met, the speedometer displays “iGO” and with sudden throttle acceleration, assist will be activated and the speedometer shows “iGO”.

Assist can be used approximately for a time period of 8 seconds. After assist activation, the vehicle enters into charging state for few minutes. Once battery is charged, once again "i60" indication will be displayed in the speedometer.

9. Malfunction indicator lamp - MIL (☐)

MIL will 'Blink' when the ECU detects misfire and will be 'ON' when the ECU detects any fault in the system.

If the malfunction indicator lamp ' 🔍' is glowing continuously or blinking continuously when the engine is started, immediately contact the nearest TVS Motor Company Authorised Main Dealer or Authorised Dealer.

Note

The malfunction indicator will continue to remain switched 'ON' after self checking of cluster until the engine is started. But soon after starting the engine this indicates gets 'OFF' if there is no malfunction is detected in the system.

If any malfunction is displayed in the speedometer, please visit nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer.

'Mode' and 'Set' buttons

'MODE' button is used to change the connected instrument cluster's display to various modes like 'Eco power screen', 'RPM screen', 'Mileage screen', and to View battery voltage, Clock, Date, Brightness adjustment setting and Bluetooth pairing etc.

'SET' button is used to 'Set' or 'Erase' the stored value in various screens.

TVS

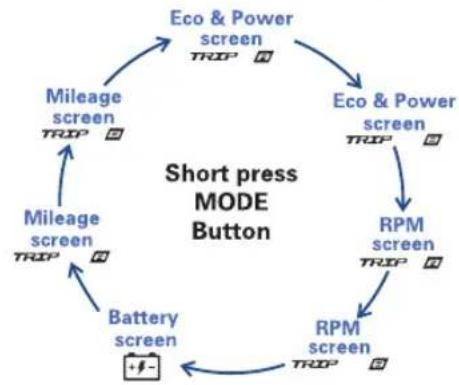

When the 'MODE' button in the instrument cluster is pressed, the screen change will happen ie. when the display is in 'ECO Power screen', if the 'MODE' button is pressed, it will change to 'RPM' screen.

The screen change of instrument cluster using 'MODE' button is possible even when the engine is in 'OFF' condition.

If the vehicle speed crosses 2 kmph, then mode change will not be possible using 'MODE' button. The different screens of display can be changed through mobile app even when the vehicle is running if the instrument cluster is connected via Bluetooth. TVS Jupiter 125's connected instrument cluster offers you different modes of display to choose.

1. ECO Power screen 2. RPM screen
2. Battery voltage 4. Mileage screen
3. BT pair mode 6. Set clock mode
4. Set date mode 8. Adjust Brightness
5. Information

The sequence of modes, their selection and their working is explained in the following pages.

Note

Only ECO Power screen, RPM screen and Mileage screen will be displayed in the instrument cluster during vehicle run. All other screens can be accessed only when the vehicle is in static condition.

On ignition 'OFF' and 'ON', the previously displayed screens will be retained in display of the connected instrument cluster.

The connected instrument cluster of your scooter enters into BT pair mode automatically, when the following conditions are met:

1. Battery is disconnected and reconnected again.
2. When the vehicle fuse is blown and replaced.
3. When the electric start is done with the low SOC (state of charge) battery (will be indicated during the self-check of connected instrument cluster).

1. ECO Power screen

In ECO Power screen, the following features will be displayed on the connected instrument cluster's TFT display:

1a. Digital clock 1b. Smart phone info
1c. Date 1d. ECO - PWR %
1e. Riding since

1a. Digital clock

Indicates the time in 12 hour format (AM or PM).

09:45

am

1b. Smart phone info

'Smart phone info' displays your smart phone's Bluetooth, Battery level, Network providers signal strength, Missed call and Message alerts when the instrument cluster is connected via Bluetooth.

1c. Date

Indicates the date in day & month format.

25 Mon

Mar

1d. ECO - PWR %

This function shows the percentage of distance that the vehicle has been driven in 'economy' and 'power' mode with respective to ride pattern and duration of travel.

1e. Riding since

'Riding since' displays the duration of travel in 'ECO Power screen' mode.

1 hr 12 min

The LCD display of the connected instrument cluster displays the following features:

1f. Odometer 1g. Helmet icon

1h. Speedometer 1k. Fuel gauge

1m. Service reminder 1n. Trip A, B and F

1f. Odometer

Odometer registers the total distance covered by the vehicle in kilometer.

1g. Helmet icon

With every ignition 'ON', helmet icon ' [icon] ' blinks for 10 seconds to remind the rider to wear a helmet.

Note

Helmet icon indicator works in all modes of connected instrument cluster.

1h. Speedometer

Indicates the vehicle speed in kilometer per hour by default when the ignition is turned 'ON'.

1k. Low battery indicator

An icon with battery symbol ‘-’ glows when the battery charge of the vehicle is too low and the message ‘vehicle battery low’ will be displayed in TFT display of the instrument cluster. Get the battery checked at TVS Motor Company Authorised Main Dealer / Authorised Dealer.

Note

Low battery indicator works in all the modes the connected instrument cluster.

1m. Fuel gauge

Digital bars indicates the approximate quantity of fuel available in the fuel tank. There are six bars to indicate the quantity of fuel available in the tank.

All the six bars will be displayed when the fuel in the tank reaches above 5 litres approximately (full tank). When the fuel reaches half tank (3.2 litres approx.) the fuel gauge displays only three bars as shown.

When the fuel reaches minimum safe level (1.2 litres approx.), the last bar of the fuel gauge starts blinking and low fuel indicator starts glowing.

TVS

The message 'Low fuel' will be displayed in TFT display and TripF meter startscounting from 0.0 km as explained in page no. 37.

Caution

When the low fuel warning indicator lamp glows, fill the fuel immediately to avoid engine switch 'OFF' / damage to fuel pump which leads to replacement of pump without warranty.

Note

Fuel level shown is only for reference purpose and users are not encouraged to calculate mileage of the vehicle using the same. If all the fuel level bars of the connected instrument cluster starts blinking and an error message 'Check fuel sensor' displayed in the TFT display, contact nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer.

1n. Service reminder

TVS

If the service is due, whenever the ignition is turned 'ON', a icon with spanner symbol ' √' blinks for 10 seconds after the self-check cycle of connected instrument cluster and continue to glow till the vehicle is serviced and the reminder is reset. Get the vehicle serviced at TVS Motor Company Authorised Main Dealer / Authorised Dealer.

The message 'Due for service' will be displayed in TFT display.

Note

Service reminder works on all the modes of connected instrument cluster. Service reminder indicator lamp glows before a day of service due date.

1p. Trip A and B

Trip meter indicates the trip distance traveled in kilometer. The digit after the dot mark denotes one tenth of a kilometer.

Provision is provided for the users to measure two different distances as per their convenience. In 'Eco Power screen' mode, 'TRIP A' will be displayed by default.

TVS

Press mode button once to enter 'TRIP B'. To reset any of the trips (A or B), press the 'SET' button more than 3 seconds while display is in the respective trip when the vehicle is in static condition.

Trip F

This function shows the distance traveled after the 'Low fuel' message displayed in the TFT display. The display switches automatically to 'TRIP F' once the low fuel indication is 'ON' and starts counting from 0.0 km.

If the fuel level remains in minimum safe (reserve) level, the reading will be saved even after the ignition 'OFF'.

The 'Trip F' meter stops counting and gets cleared automatically once the fuel is filled above minimum safe(reserve)levelwhichisindicatedbyat-least

2 bars in the fuel gauge. Once 'Trip F' is cleared, 'Trip A / B' display switches 'ON' automatically.

Please remember that the 'Trip F' meter cannot be activated or deactivated manually and can't be reset.

On every ignition 'ON', 'Trip F' meter will get enabled automatically until fuel level raises above minimum safe level. 'Trip A' and 'Trip B' will still be accessed by short pressing the 'MODE' switch but the display will automatically enter 'Trip F' after 5 seconds.

2. RPM screen

To enter into 'RPM screen', short press the 'MODE' button in 'ECO Power screen' while the display in 'Trip B' mode.

The following features will be displayed on the connected instrument cluster's TFT display when the display is in 'Street mode':

2a. Digital clock
2b. Smart phone info
2c. Date
2d. Average Fuel Efficiency (AFE) / Driving range
2e. RPM

2a. Digital clock

Indicates the time in 12 hour format (AM or PM).

09:45

am

2b. Smart phone info

'Smart phone info' displays your smart phone's Bluetooth, Battery level, Network providers signal strength, Missed call and Message alerts when the instrument cluster is connected via Bluetooth.

2c. Date

Indicates the date in day and month format.

25 Mon

Mar

2d. Average Fuel Efficiency (AFE) / Driving range

AFE displays the approximate average fuel economy since AFE is reset.

AFE

58 km/L

Driving range indicates the approximate distance that can be covered by the vehicle with the available fuel in the tank.

Note

AFE and Driving range will toggle for every 5 seconds in the display.

2e. RPM

RPM indicates the engine speed in multiples of 1000 RPM (Revolutions Per Minute).

3. Battery voltage

The connected instrument cluster displays the actual battery voltage of the vehicle.

To view battery voltage, short press the 'MODE' button in 'Sport' mode when the vehicle is static.

Note

If the battery voltage is low, take your vehicle to nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer.

4. Mileage screen

In mileage screen, short press the 'MODE' button in battery voltage mode when the vehicle is static.

The following features will be displayed on the connected instrument cluster's TFT display:

4a. Instantaneous Fuel Efficiency (IFE)
4b. Average Fuel Efficiency (AFE) / Trip mileage
4c. Driving Range

4a. Instantaneous Fuel Efficiency (IFE)

Display the current fuel economy of the vehicle if the speed is above 10 kmph.

4b. Average Fuel Efficiency (AFE) / Trip mileage

Average Fuel Efficiency displays approximate average fuel economy since AFE is reset.

Trip mileage displays the fuel economy in that particular trip. Trip mileage gets displayed in the clusterwhenthevehicleisdrivenformorethan 1 km trip.

Note

AFE and Trip mileage will toggle for every 5 seconds in the display.

4c. Driving Range

Indicates the approximate distance that can be covered by the vehicle with the available fuel in the tank.

5. BT pairing mode

This mode can be entered by pressing 'MODE' button for 5 seconds from any mode.

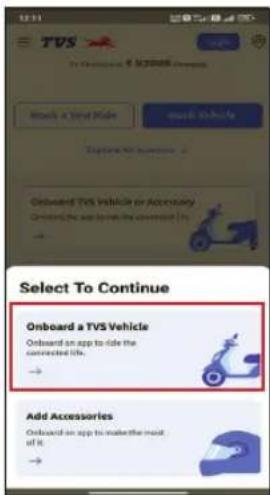

The connected instrument cluster of your TVS Jupiter 125 can be connected to your Android™ smart phone and iPhone® via Bluetooth® through a TVS CONNECT app which can be downloaded from Google Play store and the App Store®.

TVS CONNECT

Note

In this mode, if the vehicle speed crosses above 2 km/h, the connected instrument cluster will enter to 'Eco power screen' automatically.

First time Bluetooth paring:

TopairyourAndroidsmartphoneoriPhonewithyour TVS Jupiter 125's connected instrument cluster, via Bluetooth, for the first time, follow the procedure as described below:

1. Switch 'ON' the vehicle.
2. Speedometer can be in any mode for first time pairing.

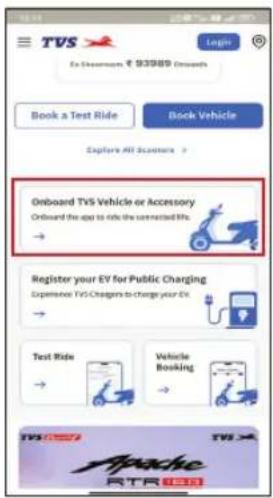

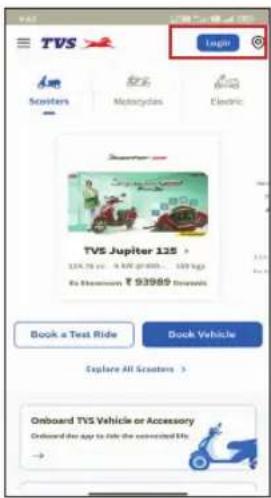

3. Open the app and press the 'CONNECT' tab, ensure the smart phone is near to the vehicle.

TVS

1. The app searches for all Bluetooth devices near by and displays the list of devices available.
2. The connected instrument cluster's Bluetooth name is prefixed by TVSHD and followed by alpha-numeric digits. Ex : 'TVSHD0CBA0028'. This Bluetooth name can be found by changing the cluster mode into BT pair mode.
3. Now, select the 'TVSHD0CBA0028' in app to initiate the pairing process.

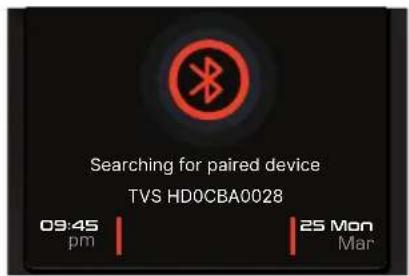

4. On pairing, the TFT display of connected instrument cluster displays 'Jupiter is now connected' message for 3 seconds. A Bluetooth icon '*' will be displayed. In Addition to this icon, phone's battery icon and signal strength icon will be also displayed on connected instrument cluster TFT display.

1. For initiating first time pairing, logout from the app, login again using your login credentials and then press 'CONNECT'.

Note

During the course of pairing process, if there is any occurrence of error, the connected instrument cluster should be turned 'OFF' and 'ON', and the application also need to be restarted.

Please remember that all the smart phones are not compatible for pairing with the TVS Jupiter 125's connected instrument cluster.

During the search of Bluetooth devices in app, if the vehicle connected instrument cluster's Bluetooth device ID is not visible, try for one or two more iterations.

Note

In this mode, if the vehicle speed crosses above 2 km/h, the connected instrument cluster will enter to 'Street mode' automatically.

Any number of Android phones can be auto-paired with the instrument cluster, but only one at any point of time will be in actively connected with the speedometer.

Only one iPhone can be auto-paired with a single instrument cluster at a time. If the user need to connect multiple iPhones with the single instrument cluster, the previous connected iPhone has to be forgotten by clicking, 'Forget This Device' from Bluetooth settings in the iPhone.

If the vehicle battery is reset or fuse is blown, then 'Forget This Device' from Bluetooth settings.

TVS

Steps to "Forget This Device" in iPhone:

If the user needs to connect multiple iPhones with the single instrument cluster, the previous iPhone has to be forgotten using "Forget This Device" from Bluetooth settings in the following manner:

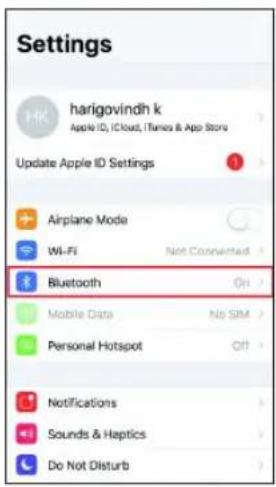

1. In the previous connected iPhone, open the SETTINGS -> BLUETOOTH.
2. Select the instrument cluster, which was connected previously.
3. Click on the "Forget this device".

TVS

Steps to 'unpair' in Android phones:

Similarly, if the user has any issue in auto pairing the existing paired Android smart phone or to connect multiple Android smart phones with the single instrument cluster, the previous paired Android smart phone has to be unpaired. To unpair an already paired smart phone:

1. In the previous connected Android smart phone, open the SETTINGS -> BLUETOOTH tab.

1. Select the speedometer which was connected previously and click on the 'Unpair' tab.

Auto pairing

Once the first time pairing is done between vehicle's instrument cluster and your smart phone, the phone will automatically connect with the vehicle when the following conditions are met:

1. Vehicle is switched 'ON' and vehicle is near to the smart phone.
2. Smart phone's Bluetooth is turned 'ON'
3. First time pairing is ensured.
4. In case of iPhone, the 'TVS CONNECT' app should be open or be open in background for auto-pairing to happen.

Every time auto-pairing happens, app will open automatically and connect with the Instrument cluster. The connected instrument cluster's TFT display shows 'Jupiter is now connected' message.

If your smart phone is disconnected from the vehicle's instrument cluster then, 'Bluetooth disconnected Connect again' message will be displayed on the connected instrument cluster's TFT display.

If your smart phone is connection is unsuccessful from the vehicle's instrument cluster then, 'Try again Connection unsuccessful' message will be displayed on the connected instrument cluster's TFT display.

TVS

Note

If the phone enters battery saver mode, auto-pairing might not happen. It takes maximum of five minutes for auto-pairing and it can happen in vehicle running or engine at idling or engine off condition.

Auto-pairing happens only if the application is locked in the RAM in multitasking screen of the phone which has customized OS (Ex : MI, Vivo etc.)

In case of Android phones with Android OS version above 8.0, for App to work seamlessly, any battery optimization setting to be removed in the TVS Connect App and GPS shall be allowed to run in background in high accuracy mode.

Even if your phone's Bluetooth is already paired to other gadgets like smart watch, health band or helmet, the auto-paring works with your TVS Jupiter 125's connected instrument cluster.

If the application unfortunately stops due to unforeseen circumstances, close and reopen the application and do the manual pairing for the first time, then auto pairing will happen subsequently.

For first time pairing, logout from the app, login again with your login credential and press 'CONNECT' tab.

Once the connected instrument cluster of your TVS Jupiter 125 is connected with your smart phone, the connected instrument cluster displays Bluetooth ' ✕' icon, your mobiles battery level ' 🔊' icon and network providers signal strength ' 5G ||' icon.

Note

Incase multiple SIM cards are used in smart phone, by default, SIM 1's network provider's signal strength is shown in the display of connected instrument cluster.

Signal strength displayed in the connected instrument cluster might vary from the display in smart phone as the former is referred from telephonic standards.

TVS

Incoming call alert display 'c'

The connected instrument cluster's TFT will display the incoming calls alerts from the smart phone via Bluetooth. Ex. 'Aarav incoming call', will be displayed if the contact is stored in the smart phone otherwise number will be displayed. Ex. '9999999999 incoming call'.

Social media alert

The connected instrument cluster's TFT displays the total number of notification from social media apps like WhatsApp™, Facebook™, Instagram™ in the smart phone via Bluetooth.

Missed call alert display 'c'

The connected instrument cluster's TFT displays the total number of missed calls from the smart phone via Bluetooth for 10 seconds approx., Ex. '3 Missed calls' with the names / numbers of the callers.

SMS alert display '

The connected instrument cluster's TFT displays the incoming SMS from the smart phone via Bluetooth, Ex. 'Aarav Message received', name of the sender will be displayed. If the contact is not stored in the smart phone then the number will be displayed as shown Ex. '9999999999 Message received'.

Traffic stop

When the vehicle is stopped at traffic signal or any stop, the connected instrument cluster's TFT display switch between traffic screens as shown bellow.

1. ISS countdown 2. Overview screen
2. ISS feature screen 4. Carbon saving screen
3. Social media screen 6. Cricket score
4. Football score 8. Three news

9.Weather10.Twonews

ISS countdown

Over view screen

ISS feature screen

Carbon saving screen

Social media screen

Cricket, football score

News

Weather/ AQI

Note

Weather / AQI, cricket, football, news will only be available when the cluster is connected to your mobile with Internet connection, standard data charges will apply. If no Internet connection or poor connection the following message is displayed.

Note

Any of these features can be disabled and enabled by using TVS Connect app's setting options tab.

Warning

TVS Motor Company Limited does not recommend usage of any type of Mobile Hand Held Devices, and applications / features whether installed or associated with the vehicle which deprives the rider's attention and focus while riding the Two Wheeler. The customers and riders are strictly advised to understand the applicable laws, road safety Rules and the local laws on usage of electronic devices while operating the vehicle. Usage of any Mobile or hand held devices, and / or applications / features while riding the vehicle is on move is totally at customer's / rider's risk. The product and features have technical limitations and are for general overview only.

6. Set Time

To enter the set clock mode, press 'MODE' button for more then 5 secs in Set date.

• Press the 'MODE' button the hours gets highlighted.
• Press the 'SET' button to increase the hours.
• On Pressing the 'MODE' button again the hours gets set and the minute digits gets highlighted.
• Now, press the 'SET' button to increase the minutes.
• Once again press the 'MODE' button so that the minutes of the clock is set and the hours format 'AM' or 'PM' gets highlighted.
• Press the 'Set' button to change the hour format either to set 'AM' or 'PM'.

Long press the 'MODE' button once again to set the time and to come out of set time mode.

6. Set Date

To enter the set clock mode, press the 'MODE' button for more than 5 secs in BT paring mode.

• Press the 'MODE' button the year gets highlighted.
• Press the 'SET' button to change the years (the year starts from 2020 to 2099).
• On Pressing the 'MODE' button again, the year gets set and the month gets highlighted.
• Now press the 'SET' button to change the month.
• Once again press the 'Mode' button so that month is 'SET' and date gets highlighted.
• Press the 'SET' button the change the date.
• Long press the 'MODE' button once again to the set the date and to come out of set date mode.

Note

In this mode, if the vehicle speed crosses above 2 km/h, connected instrument cluster will enter to 'Eco power screen' automatically.

If no input is given for more than 5 secs while the set clock mode is in operation, the connected instrument cluster comes out of this mode automatically.

The date and time gets sync automatically on paring your smart phone with the connected instrument cluster provided if auto sync clock setting is enabled in app.

8. Setting

You can personalize the display settings which includes Brightness and information.

Setting can be entered by pressing 'MODE' button for 5 seconds from Bluetooth paring mode.

8a. Brightness

The brightness of the connected instrument cluster can be adjusted.

• In setting, press the 'SET' button to enter day brightness option.
• Press the 'MODE' button to increase or decrease the day theme brightness.
• Again press the 'SET' button to set the brightness.

8b. Information

The software version of the connected instrument cluster can be viewed.

• In setting, Navigate to information option by pressing the 'MODE' button.
• Press the 'SET' button to enter information option.
• Long press mode to exit.

NOTIFICATIONS

E-Commerce alert notifications

E-commerce notification will be sent as voice feedback to the user in TVS Jupiter 125.

E- Commerce alert notification is applicable only for Android smart phones.

Service reminder notification

Refer page no. 36 for details.

Battery voltage low notification

Refer page no. 34 for details.

Low fuel notification

Refer page no. 34 for details.

Check fuel sensor notification

Refer page no. 36 for details.

High speed alert & phone battery low

National celebration images

National days like republic day and independence day will be displayed in the TFT screen.

Birthday notification

The connected instrument cluster will wish you on your birthday in TFT screen.

Note

Date of birth has to be updated in TVS Connect app for the cluster to display the birthday notification

Bike anniversary

The connected instrument cluster will wish you on your bike anniversary in TFT screen.

TVS CONNECT APP

Dedicated smart phone app is available in the Google Play and the Apple store for your 'TVS Jupiter 125' and it can be installed in your Android and Apple smart phones. To access the features of your TVS Jupiter 125's connected instrument cluster like:

• Incoming call alerts in connected instrument cluster.
• Incoming SMS alerts in connected instrument cluster.
  • Image transfer feature.
  • Number of missed call alerts in connected instrument cluster.
  • Voice assist & smart talk.
• Battery status of your smart phone in connected instrument cluster.
• To send auto reply SMS to the callers via smart phone (applicable only for Android smart phones).
• 'Do Not Disturb' mode during the ride (applicable only for Android smart phones).

TVS

• To send navigational assist instructions inputs to the connected instrument cluster from your smart phone.
• Traffic screens
• To save the last traveled route.
• To locate the last parked location of your TVS Jupiter 125.
• To know the signal strength of your mobile network in connected instrument cluster.
  • To generate, store and share Ride reports.
• To sync the connected instrument cluster clock with smart phone clock.
• To control the background illumination of the Instrument cluster.

This dedicated mobile app of your TVS Jupiter 125 can be downloaded from the Google Play store and the App Store® by searching the key word 'TVS CONNECT' else by scanning the below QR code.

Android

iOS

Note

This smart phone app is compatible only for the smart phones with Android OS version Kitkat (4.4) and above, iOS version 9 and above and the BLUETOOTH version 4.0 and above. Android and Google Play are trademarks of Google LLC. App Store® and iOS are trademark of Apple.

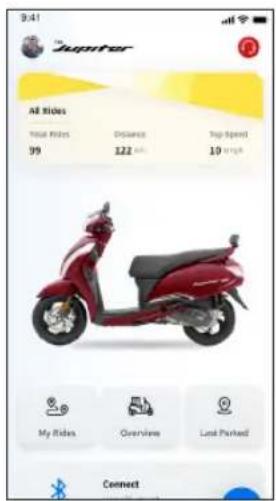

How to login

On opening the TVS CONNECT app the following introductory screens will be displayed.

Click on the 'Login' tab provided at the top of the screen to begin a login process.

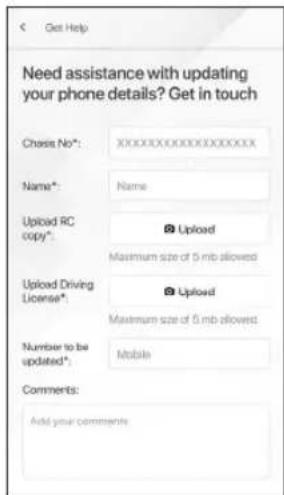

On entering the login screen you will be prompted for your registered mobile number entry. Enter the mobile number and press 'Continue' tab to proceed further.

Now, an OTP verification screen will get open. Key-in or copy & paste the OTP received from TVSM to login.

Note

During login process, will be prompted for various permissions by the App. Provide necessary permission to the app to work seamlessly.

TVS

An logging in successfully the default vehicle screen opens as shown below with various informations.

Note

Refer App help for complete details.

TVS

Onboarding TVS Vehicle

You can onboard your TVS vehicle into the App by following the procedure given below:

- Scroll down the initial screen and click on the 'Onboard TVS Vehicle or Accessory' tab and select the 'Onboard a TVS Vehicle' option.

- On selecting this option, a screen with options of adding your vehicle or accessories will get open. Select the 'Add Vehicle by VIN' tab of the screen.

- Now, Another screen gets open with the VIN number and Invoice date or Engine/Motor number entering options.

Note

You can have the sample of 'Chassis / Frame Number' or else you can have the help to get your 'Chassis / Frame Number' incase if you need any clarity on it. You can also get the number by chatting with us or by E-mailing to us or by calling us.

TVS

Voice assist

We have upgraded our electric start switch with an additional function to invoke voice assistant. Once, the mobile app is connected to the speedometer.

There are two ways to invoke voice assist in your scooter:

1. By pressing the Electric start / Voice assist switch for >2s.
2. By pressing the voice assist icon in the app live dashboard as shown on the image. This will work irrespective of engine is 'ON/OFF'.

Note

Voice assist will work with screen lock condition / app background condition.

Use wired / wireless headphone for listening and talking. Voice feedback will work only if a wired / wireless headphone is connected. Option to enable / disable voice assistant and voice feedback is available in App settings.

After invoking voice assist through either of the two ways, 'Hello, How can i help you?' will appear on the screen and a speak now will be heard on the headset. This is when we have to start speaking / providing the command.

TVS

The following are the list of intents recognized by voice assist. You can refer page no. 62 for sample commands of each intent:

• Greeting command
• Navigation command
• Nearest POI command
• Brightness increase / decrease command
• Current location / save location command
• Weather update command
  • Volume increase / decrease
• Enable / Disable Auto SMS
• Enable / Disable Do Not Disturb
• Enable / Disable High Speed Alert
• News / sport news update command
  • Estimated time of arrival

Voice assist commands and key words

S. No.	Intent Voice Feedback Acceptable command variations
1 GREETING Hello ‘rider name’			Hello buddy
			Hello friend
			How are you doing
2 NAVIGATION Taking you to ‘____’			Directions to
			Go to
			Guide me to
			Let's go to
			Navigate me to
			Navigate to
			Show me
			Show me directions to
			Take me to
3 NAVIGATION Taking you to ‘____’ Take to
4 POI Taking you to nearest ‘____’			Near by
			Near to
			Nearest
5 PCI HOSPITAL Taking you to nearest hospital			Near hospital
			Nearby hospital
			Nearest hospital
			Take me to nearest hospital
6 PCI PETROL PUMP Taking you to nearest petrol pump			Petrol pump
			Gas station
			Near petrol pump
			Near petrol station
			Nearby petrol pump
			Nearby petrol station
			Take me to nearest fuel station
			Take me to nearest petrol pump
			Take me to nearest petrol station
7 PCI RESTAURANTS Taking you to nearest restaurant			Near restaurant
			Near to restaurant
			Nearby restaurant
			Nearest restaurant
			Take me to nearest restaurant
8 BRIGHTNESS INCREASE Brightness increased / Maximum brightness		Brightness high
		Brightness Increase
		Brightness up
		Increase brightness
		Increase speedo brightness
		Increase the brightness
		Turn up the brightness
9 BRIGHTNESS DECREASE Brightness decreased / Minimum brightness		Brightness low
		Brightness decreased
		Brightness UP
		Decrease brightness
		Decrease speedo brightness
		Turn down the brightness
10 CURRENT LOCATION You are around '____'		My location
		Show my current location
		Show my location
		What is my current location
		Where am i now
		What is my location

S. No.	Intent Voice Feedback Acceptable command variations
11	SETTING AUTO SMS DISABLE (only in Andriod smartphones only)	Auto SMS reply disabled	Auto reply SMS OFF
			Auto SMS OFF
			Disable auto SMS
12	SETTING AUTO SMS ENABLE (only in Andriod smartphones only)	Auto SMS reply enabled	Auto reply SMS ON
			Auto SMS ON
			Enable auto SMS
13	SETTING DND DISABLE (only in Andriod smart-phones only)	Do not disturb setting disabled	Disable calls while riding
			Disable DND
			Disable do not disturb
			DND mode disable
			Do Not disturb OFF
			Do not disturb setting disable
			Do not disturb setting disable
14	SETTING DND ENABLE (only in Andriod smart-phones only)	Do not disturb setting enabled	DND mode enabled
			Do Not disturb ON
			Do Not disturb enable
			Enable DND
			Enable do not disturb
15	SETTING HIGH SPEED ALERT DISABLE	High speed alert setting disabled	Disable high speed alert
			Disable high speed alert
16	SETTING HIGH SPEED ALERT ENABLE	High speed alert setting enabled	Activate high speed alert
			Activate high-speed alert
			Enable high speed alert
			Enable high-speed alert
17 VOLUME DECREASE Volume Decreased			Decrease sound
			Decrease volume
			Reduce volume
			Volume down
18 VOLUME INCREASE Volume Increased			Increase sound
			Increase volume
			Volume up
19 RAIN TODAY Take Rain coat (probability > 75%)			Rain today
			What about rain
			Here rain status
			Rain update
			Will it Rain today
20 WEATHER UPDATE Weather update			Current weather
			Weather today
			Weather update
			What is the weather
			What is the weather today
			What is the weather update
21 NEWS HEADLINES NA			Current news
			News headlines
			Headlines today
			Top news
			Todays news
			News update

S. No.	Intent Voice Feedback Acceptable command variations
22 SPORTS NEWS NA		Sports news
		Sports update
23 CRICKET SCORE NA		Cricket match
		Cricket news
		Cricket score
		Cricket updates
24 FOOTBALL SCORE NA		Football match
		Football news
		Football score
		Football updates
25 PAUSE NAVIGATION Navigation Paused		Stop navigation
		Pause navigation
26 RESUME NAVIGATION Navigation Resumed		Play navigation
		Start navigation
		Resume navigation

Note

The list of commands and intent will be updated periodically. Please refer to the command list mentioned in the mobile app to stay updated.

Things to do while using voice assistant:

1. We recommend to use ANC (Active Noise Canceling) Bluetooth devices for better performance.
2. Ensure Microphone is kept near to your mouth while giving out commands.
3. Please ensure that it is not exposed to outside environmental noise such as wind noise, other vehicles' noise etc.
4. We recommend you to go through the sample command list before trying your intent.
5. Kindly refer to the voice feedback of the detected place name when you provide voice command for navigation.
6. Make sure you have the engine running when voice assist is invoked through vehicle switch.

Things not to do while using voice assistant:

1. We recommend you not to use the method of invoking voice assist through mobile App while riding.
2. Please do not use voice assist functionality during heavy traffic condition.

Customization of follow me headlamp timer using TVS Connect app

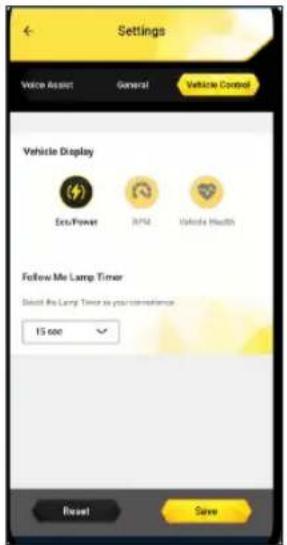

Follow me home headlamp timer can be customized using the mobile app through the settings screen.

The default timer of 20 seconds can be varied to 10, 15, 20, 25 or 30 seconds as per user preference.

Smart talk

TVS Jupiter 125 is equipped with yet another first-in-class feature – Smart talk.

Smart talk feature communicates from vehicle to customer of either critical parameters like fuel level or achievements done like top speed achieved as shown below:

Sl. No. $mart talk feature
1 Info	through audio feedback when App connect / disconnects
2 Fuel	wastage
3 Fuel	warning
4 Phone	low battery warning
5 Voice	over on automatic Traffic sequence
6 Rain	warning

LED HEAD LAMP

TVS Jupiter 125 comes with a LED head lamp which glows automatically once the engine is started. The head lamp beam (high / low) can be controlled by changing the beam control switch position to 'Low' or 'High' beam.

TVS Jupiter 125 comes with follow me home headlamp feature. Your headlamp remains ON for 20 seconds after you switch off your vehicle, to guide you reach home safely in darkness.

Top-down view of a brown and black off-road motorcycle's head (TVS) with visible headlights and side brackets, no text or symbols on the body itself.

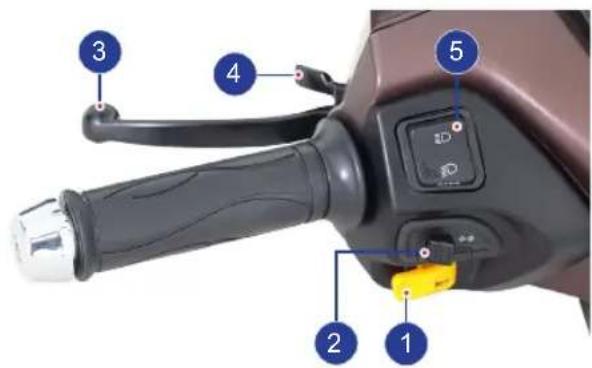

HANDLE BAR LEFT SIDE

1. Horn switch

Press the switch '→' to operate the horn.

2. Turn signal lamp switch

Slide the turn signal lamp switch to the left '→' or right side '←' to operate respective turn signal lamps (LH / RH). Press the switch to turn 'OFF'.

Warning

Always use the appropriate turn signal lamps when you intend to change lanes or take turns. Be sure to switch 'OFF' it after negotiating the lanes or turns.

3. Left hand brake lever (SBT brake lever)

Synchronised Braking Technology (SBT) can be operated by pressing the left hand brake lever gently towards the handle grip.

SBT technology helps to operate both front and rear brakes by distributing the force optimally between the two braking system.

4. Parking brake (rear brake lock lever)

Brake lock protects your scooter from rolling-off, when parked on side stand (or) helps you relax while waiting in a long traffic signal (or) a slope.

To activate brake lock, press the brake lever almost half towards the grip and hold, then press the parking brake lever to the maximum and release the brake lever slowly. Ensure the brake is locked properly. Pressing the brake lever further releases the brake lock automatically.

Warning

Since your vehicle is fitted with SBT brake system it is essential to maintain the brake system in good condition. Adjust the brakes system at regular intervals for the proper working of SBT.

Ensure to release the brake lock before riding the vehicle.

5. High/low beam cum pass-by switch

The head lamp glows automatically once the engine is started. Only the head lamp beam (high / low) can be controlled by pressing the 'high / low beam' switch.

Press the switch towards '☐' to operate head lamp high beam or press it towards '☐' to operate head lamp low beam.

TVS Jupiter 125 has a combined switch for head lamp 'high / low beam' and 'pass-by' operation. To operate the pass-by, keep the switch in low beam position and gently press & release the switch. This makes the head lamp high beam to flash and signal the approaching vehicle. The pass-by signal can be used while overtaking during day time.

Warning

Use appropriate head lamp beam 'high / low' as per the traffic and road conditions for your safety and to avoid inconvenience to other riders. It is strongly recommended to ride the vehicle in 'low beam' during day.

HANDLE BAR RIGHT SIDE 2. Right hand brake lever

1. 'TVS intelliGO' switch

To activate the 'TVS intelliGO' system, set the intelliGo switch to (A) position. The intelliGo indicator (A) of the speedometer glows for 2 seconds on activation of intelliGo system.

To deactivate 'TVS intelliGO' system, set the intelliGo switch to 'A' position.

Note

Refer page no. 27 for intelliGo feature details.

TVS

Front brake system can be operated by pressing the right hand brake lever gently towards the throttle grip. The brake lamp glows on application of either right hand or left hand brake lever.

3. Throttle grip

Engine speed is controlled by the rotation of the throttle grip. Twist it towards you to increase the engine speed and twist it away from you or release it to decrease the engine speed.

3. Hazard switch

Whenever it is necessary to park the scooter in a hazardous location due to emergency situation, press the hazard switch to '△' position with the ignition 'ON' condition. This makes all the turn signal lamps to flash simultaneously to make other road users aware of presence of the vehicle.

Warning

Usage of hazard switch in engine 'OFF' condition can lead to battery drain and can affect the electric startability of the vehicle.

TVS

4. Electric starter switch

Press the starter switch ' 🔍' to start the engine electrically along with the application of either of the brake and side stand in retracted condition.

Caution

It is not recommended to add any additional throttle grip (cover).

FUELTANK\*\* CAP

Fuel tank is located at the front end of the vehicle below the handle bar.

** The fuel tank is not a measuring instrument and the capacity of the fuel tank may slightly vary from the indicated capacity.

To open the fuel tank cap, follow the procedure given in the page no. 25. To close the cap, gently press the cap in its position and ensure locking by hearing 'Click' sound.

Caution

Ensure that the fuel gun is inserted fully into the tank neck while refueling.

Whenever refueling the scooter, fill only the recommended quantity of fuel.

While refueling, avoid spillage of petrol on the tyre. If fuel spills on tyre, the tyre will lose its grip on the road. Ensure to close fuel tank cap without fail to avoid fuel spillage.

Warning

Never refill fuel near open flame. Do not smoke while refueling. Do not use cell phones while refueling.

Note

While closing the fuel tank cap press at the dotted mark area of the cap for easy closing.

EFFORTLESS E-Z CENTRE STAND

TVS Jupiter 125 is equipped with a effortless centre stand. The centre stand (1) has a pivoted flexible spring loaded lever arm (stand extension) (2) to increase the lever ratio, which enables parking on centre stand effortlessly and very conveniently.

To place the vehicle on centre stand, hold the handle bar left grip with left hand. Place your foot firmly on the centre stand extension (2) and press.

Caution

Never sit on vehicle when it is supported by stands. Always park the vehicle on a flat, firm surface.

SIDE STAND

Side stand can be operated by sitting on vehicle with your left foot by pushing it away from the vehicle till it stops.

Close-up of a scooter's side panel showing the wheel, suspension bracket, and blue arrow indicating motion (no text or symbols)

Note

If the side stand is deployed before starting the vehicle, the vehicle will not get started. And if the side stand is deployed with the engine running condition, the engine gets of automatically to ensure the safety.

If there is a error in the side stand sensor the indication will blink and the vehicle will not start. In such condition, please visit the nearest TVS Motor Company Limited Authorised Main Dealer / Authorised Dealer.

TVS

TOOL KIT AND FIRST AID KIT

To assist you in performing certain aspects of periodic maintenance and emergency repairs, a tool kit is supplied along with the vehicle and it is located below the seat base. To access the tool kit, seat need to be opened. Follow the procedure given in the page no. 25 for the seat opening procedure.

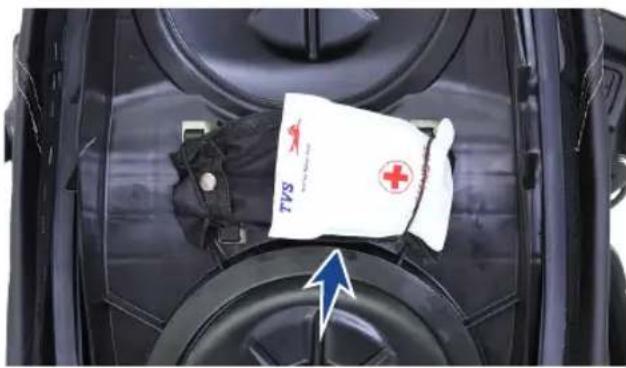

Close-up of a medical device with a white bandage labeled 'TVS' and a red cross symbol, placed on a black circular base (no readable text or symbols beyond the label)

Caution

It is recommended to use the tool kit in case of any emergency only. It is always advisable to take your vehicle to TVS Motor Company Authorised Main Dealer / Authorised Dealer.

The tool kit consists one number each of the following. Ensure the contents of the tool kit.

• 10x12 mm spanner
  • Combination screw driver bit
• Screw driver handle
• Tool bag

Warning

Do not remove the tool kit and first aid kit from the vehicle. Always ensure to keep them along with the vehicle. Ensure the first aid equipments are changed periodically based on the date of expiry.

UTILITY BOX

Utility box is located below the seat. Lift the seat by unlocking the seat lock as explained in the page no. 25 to access the utility box.

Close-up of a black plastic mechanical component with internal cavities and mounting brackets (no text or symbols visible)

Warning

Operating the TVS Jupiter 125 overloaded will hamper the riding stability and may lead to loss of control. Hence, it is advisable to carry the recommended amount of load only.

Caution

Utility box has the storage space of 33 liters.

Do not carry perishable items inside the utility box. It is not fully sealed. Do not allow / spray water to get inside the utility box. Take care not to spill petrol or oil into the utility box.

Do not keep heat-sensitive items inside as it may get hot on long rides. Do not keep valuable items inside the utility box when leaving the vehicle unattended.

GLOVE BOX FRONT

TVS Jupiter 125 is provided with glove box front. Which has 2 liter storage capacity and used to hold your mobiles while charging or hold a small bottle.

Close-up of a pink and gray scooter front panel showing dashboard, seat, and buttons (no text or symbols visible)

Warning

Ensure that your mobile or any material stored is safely held with in the glove box front while riding your TVS Jupiter 125.

Also recommended not to keep your belongings when the vehicle is parked unattended.

TVS

BAG HOOKS

There are two bag hooks provided with your scooter to carry light luggage like carry bags weighing upto 3 kg. One hook is located below handle bar on the rear panel.

Just pull out the hook from the top (A) to hang your luggage. Push back the hook once it is free.

Similarly, the other one is located on the cover front below front end of the seat assembly. Pull out the hook from its position. Open the top lid and hang your cargos. Lid will get close automatically. Push back the hook to its original position once it is free.

Side-by-side comparison of a car interior showing the TVS logo and seatbelt mechanism (no text or symbols visible)

TVS

Caution

Care should be taken not to attach the luggage which hangs out of your scooter. Please note that the luggage attached to your scooter should not interfere your feet movement.

SMART PHONE CHARGER\*

This smart phone charging socket enables you to charge your smart phone when you are traveling.

This socket is located below the handle at right side of the vehicle. Please go through the operating manual of the mobile phone and use a suitable USB cable recommended by the mobile phone manufacturer for that particular model. Please follow the guidelines provided for the proper usage of the socket:

DO's

1. Ensure that no water enters into the socket by closing the USB flap properly.
2. Use only mobile phone company's authorized USB cable for mobile charging.
3. Do make sure the flap is not damaged while opening / inserting the USB cable.

* Mandatory and optional accessory will be charged extra

DON'Ts

1. Do not leave the USB charging flap open / partially closed.
2. Do not attempt to use / charge any other device, other than one mobile phone at a given time.
3. Do not try to force the USB connector in, check if it is inserted in the appropriate direction, to prevent damage.
4. Do not charge your mobile when the engine is in 'OFF' condition.
5. Do not use other device, this port is for charging mobile phones only.

©

RIDING YOUR TVS JUPITER 125

PRE RIDE INSPECTION

Check the following items before riding

ITEM WHAT TO CHECK FOR
Engine oil Availability of oil upto the level (page no. 95)
Transmission oil Availability of oil upto the level (page no. 96)
Fuel Enough fuel for the planned distance of running
Tyres Correct pressure (page no. 101)Adequate tread depth / No cracks or cuts.
Battery Proper working of electric starter, horn, fuel gauge, pass-by, brake lamp, tail lamp,speedo back illumination, license plate lamp and turn signal lamps.
Lighting Proper working of head lamp high / low beam and high beam indicator
Steering Smooth movement / No play or looseness
Throttle Correct free play of cable / Smooth operation
Brakes Availability of brake fluid upto the level (page no. 97)Correct rear brake lever play (page no. 98)
Wheels Free rotation
Malfunction indicator	Turned OFF after the engine is started (page no. 30)
ISG malfunction indicator	Turned OFF after the Ignition 'ON' and engine is started (page no. 27)

Caution

Do not switch 'ON' the ignition without minimum level fuel in tank. It will cause damage to the fuel pump.

STARTING THE ENGINE

Ensure the availability of fuel in the fuel tank. Insert the control key into the ignition cum steering lock and turn it to the 'ON' position. In side stand retracted condition, apply any one of the brake and press the electric starter switch to start the vehicle.

Press the start button (one touch noiseless start) without applying the throttle. As soon as the engine starts, release the start button. The engine will not start if the throttle is opened.

Setting the vehicle in motion

1. Twist the throttle grip slowly towards you and simultaneously release the brake lever gently and smoothly. The vehicle will start moving forward.
2. As the vehicle picks up speed, increase the throttle slowly.

Stopping and parking

1. Close the throttle completely and apply both the brakes simultaneously.
2. Turn the ignition 'OFF'.
3. Park the vehicle on a firm, flat surface.
4. Lock the steering and take out the control key.

Warning

Do not raise the throttle rapidly so the vehicle will move forward suddenly and lead to loss of control.

Reduce speed to a safe limit before turning / cornering. Do not apply brake while turning / cornering.

Caution

Do not open excessive throttle when the vehicle is parked. It leads to overheating of engine and damage to the internal components.

FUEL RECOMMENDATION

Use only BS VI petrol with minimum RON 98.

BS VI petrol containing upto 20% of ethanol by volume can be used.

Higher ethanol content in petrol can lead to

• degrade plastic and rubber components of fuel system and vehicle parts
• cause corrosion damage to metal parts like fuel tank, etc
  • result in startability & drivability issues
  • decrease fuel economy

Ethanol absorbs water very easily, resulting fuel separation. Extra care shall be taken to prevent moisture entry into fuel tank while filling ethanol blended petrol and water washing of vehicle.

Painted parts (viz. panels, covers) shall not come in contact with ethanol blended fuels.

Manufacturer is not responsible for any warranty issues that results from using ethanol blend in excess of 20% by volume in petrol.

In case of any abnormalities observed due to use of ethanol blended fuels, customers are advised to use a different fuel station / brand for standard E20 fuel or contact authorised service centres.

Caution

Never mix oil in petrol in the fuel tank. Always fill fuel from the reputed and reliable fuel stations.

CHECKS AND TIPS FOR IMPROVING FUEL ECONOMY

Regular checks

Carry out the periodic maintenance checks as specified in this manual (page no. 87).

Regular maintenance checks will save fuel and ensure trouble-free, enjoyable and safe riding besides keeping environment clean.

Spark plug

A dirty or defective spark plug leads to wastage of fuel due to incomplete combustion. Inspect and clean the spark plug only if necessary. Replace the spark plug every 12000 kms (1 year). Always use recommended spark plug only.

Air cleaner element

A dirty air cleaner element restricts airflow and increases fuel consumption. Replace the element every 12000 kms.

Since paper filter is used in your scooter it is not recommended to clean the filter. Replace the filter incase of any abnormalities.

TVS

Engine oil and Transmission oil

Dirty or less engine oil increases friction between various parts of the engine and reduces the engine life, thereby increases the fuel consumption.

Running with low transmission oil will cause damage to the gears and bearings. Regularly inspect the engine oil and the transmission oil for correct level and top-up if necessary. Get it replaced at regular intervals as per the maintenance schedule.

Fuel leak

Inspect and arrest fuel leaks if any from tank and fuel lines. Loss of fuel due to leak may drain the fuel tank completely.

Evaporation

Vehicle parked in the hot sun leads to wastage of fuel through evaporation. Also, lower fuel levels in the tank will have increased evaporation and condensation of moisture inside. Ensure to close fuel tank cap after every filling. If the fuel tank cap kept open for long time, it leads to safety issues and fuel loss.

Tyres

Low tyre pressure has adverse effect on the vehicle. The drag on the vehicle increases resulting in decreased fuel economy. Further more, handling may be adversely affected.

Inspect the tyre pressure regularly (weekly) and inflate it to the recommended pressure (refer page no. 101). Never use tyres which are worn beyond the permissible limit.

Wheel freeness

Inspect and ensure the wheel freeness by rotating the wheel at least once in a week to avoid wastage of fuel.

Avoid frequent braking

Anticipate corners and slopes as well as the traffic conditions. Unnecessary and frequent braking will reduce the fuel economy. Never accelerate and apply brake simultaneously. It leads clutch shoes wear and wastage of fuel.

Note

The on-road mileage of TVS Jupiter 125 is dependent on several factors like road condition, quality of fuel, riding speed, operation of brake, tyre inflation, maintenance / timely servicing of vehicle, load etc. and hence will differ from the mileage given under standard test conditions such as made in recognised institutes.

MAINTENANCE

MAINTENANCE SCHEDULE

The maintenance schedule indicates the intervals between periodic services. At the end of each interval, be sure to inspect, check, replace, adjust, lubricate and service as instructed. If the maintenance is not done periodically, it will result in rapid wear and severe damage to the vehicle. If the vehicle is used under high stress conditions such as continuous full throttle operation or if used / operated in dusty climate, certain jobs should be performed more often to ensure reliability of the vehicle. Cylinder head, steering components, suspension and wheel components etc., are key items and require very special and careful servicing. TVS Motor Company Limited strongly recommends that the jobs as per the maintenance schedule be performed by your TVS Motor Company Authorised Main Dealer / Authorised Dealer.

Periodic inspections may reveal one or more parts that may need replacement. Whenever replacing parts on TVS Jupiter 125, it is recommended that you use only the TVS Motor Company Genuine parts.

Caution

Proper running-in and maintenance are mandatory for making certain that your vehicle is reliable and gives optimum performance at all times. Make sure that the periodic maintenance is performed thoroughly in accordance with the instructions given in this owner's manual.

In more dusty areas, the air filter element requires early replacement than the mentioned kilometers to avoid costly damages to the engine.

PERIODIC MAINTENANCE SCHEDULE (months or km whichever occurs earlier)

SERVICEkmPERIOD FROM DATE OF SALE		PRERIDECHECK	FREE SERVICE			AFTERFREESERVICE	REMARKS
			1st500 ~ 75030 ~ 60 days	2nd5500 ~ 60006 months	3rd11500 ~ 1200012 months	Every6000 km /6 months
ITEMS ACTIVITY
Engine oil / Oil filter (strainer) Replace and top-up - R / C R / C R / C Clean Strainer
Transmission oil Replace or Inspect and top-up - - - - Replace every 24000 km
Spark plug	Inspect and clean or Replace	-	I	-	R	-	Inspect and clean if required. Replace every 12000 km
Air cleaner element	Replace	-	-	-	R	-	Replace every 12000 km
Tappet clearance	Inspect and adjust	-	I	I & A	I & A	I & A	Inspect for any abnormal noise, starting trouble and adjust if required
Drive belt, CVT rollers and clutch shoe	Replace	- - - - -					Replace every 24000 km
Cover variator	Inspect, clean and lubricate	-	-	I, C & L	I, C & L	I, C & L
Front and rear suspension	Inspect for proper functioning	-	-	I	I	I
Evaporative emission control system	Inspect	- - - - -	Every 18000 km
Throttle cable / grip	Inspect, clean, lubricate and adjust	-	-	I, C, L & A	I, C, L & A	I, C, L & A
All fasteners	Inspect and tighten	-	I	I	I	I	Tighten if required
Steering smooth operation / play	Inspect, adjust and lubricate	- - -	I & A	-			Inspect and adjust Lubricate if required

Contd...

SERVICEkmPERIOD FROM DATE OF SALE		PRERIDECHECK	FREE SERVICE			AFTERFREESERVICE	REMARKS
			1st500~75030~60 days	2nd5500~60006 months	3rd11500~1200012 months	Every6000 km/6 months
ITEMS ACTIVITY
All bulbs, horn and switches working	Inspect for proper functioning	--| | |
Head lamp beam (focus) Inspect and adjust I - | | | Adjust if required
Battery Voltage (recharge if required)	Inspect -- | | |						Through dignostic tool or at battery terminal
Brake effectiveness / play	Inspect, adjust & lubricate at cable ends	II, L	& AI, L & AI, L	& AI, L & A
Brake cam	Clean and lubricate	-	-	C & L	-	-	At 6000 km and every 18000 km thereafter if necessary
Wheels /Tires	Inspect	I	-	I	I	I	Set tyre pressure if required
Brake fluid*	Replace or Inspect and top-up	I - | | |					Replace at 21000 km or 2 years whichever occurs earlier
Brake hose*	Replace or inspect		- | | |
Master cylinder cups*	Replace		-	-	-	-	Replace at 18000 km
Disc brake SBT cable play*	Inspect and adjust	I	I & A	I & A	I & A	I & A
MIL codes	Inspect	I - | | |					Connect ride scan tool if MIL glows in speedometer Check and clear DTCs

R - Replace; I - Inspect; T - Top up; C - Clean; A - Adjust; L - Lubricate; TI - Tighten

Applicable only for Disc Brake version

RECOMMENDED LUBRICANTS

APPLICATION	QTY	MANUFACTURER	BRAND
Engine oil 700 ml TVS Motor Company TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB)
Transmission oil 120 ml -do- -do-
Front fork oil	92 ± 1 ml / leg	IOC	Gabriel Premium front fork oil
Disc brake fluid#	-	TVS Girling	DOT 3 / DOT 4
Grease	-	Bharat petroleum	MP Grease No. 3
IOC	Servo Gem No. 3
Bechem	Bechem Premium grade 3
Kluber Lubrication	Kluber Centoplex 2

" Applicable only for Disc Brake version

TVS

SELF - MAINTENANCE PROCEDURES MAINTENANCE FREE (MF) Battery

Battery is located at the front of vehicle inside the front panel. This panel must be removed to access the battery. Follow the procedure for front panel removal:

1. Remove the front panel mounting screws shown in the figure (2 nos.).
2. Gently pull out the front panel by dislocating its lugs while taking care not to damage the mounting lugs.
3. During reassembly reverse the removal procedure.

Close-up of a brown electric scooter front panel showing the TVS E20 brand logo and two buttons (no text or symbols on main body)

Since the maintenance free battery is fitted in your vehicle it is not necessary to top-up with the distilled water. But to ensure the battery performance and long life, follow the steps given below:

Check the battery voltage as per the schedule. If the voltage is less than 12.4 volts, charge the battery using recommended MF battery charger at TVS Motor Company Authorised Main Dealer / Authorised Dealer.

1. Adding any additional electrical accessories other than TVS Motor Company Limited recommended ones, may lead to disqualification of warranty coverage.

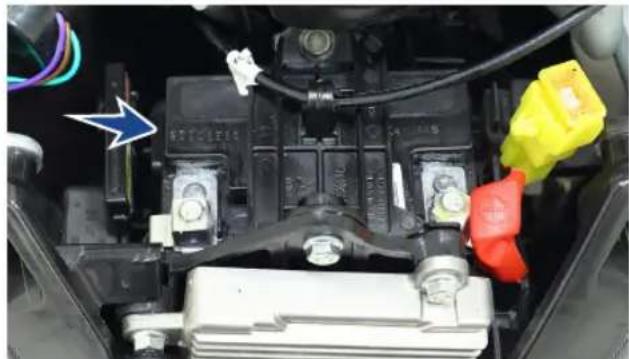

Close-up of a car's internal battery compartment with colored connectors and wiring (no visible text or symbols)

1. While connecting the terminals, observe the correct polarity. Connect the red wire to the '+' terminal and black wire to the '-' terminal of the battery.
2. Petroleum jelly must be applied at terminals to prevent it from corrosion.
3. In case of any abnormality or for removal of battery from the vehicle, contact TVS Motor Company Authorised Main Dealer / Authorised Dealer.

Caution

Never check the battery charge by shorting the terminals.

Always connect the positive terminal first (red wire) and then negative (black wire) to avoid sparking.

The inversion of the battery wires can damage the battery and the electrical system.

"To be done by skilled personnel"

Recommendations to maintain battery health during prolonged parking conditions

While your vehicle is parked for prolonged duration, battery continues to discharge and if left unattended can get completely discharged. It is recommended to ride the vehicle for minimum 60 km every week to keep the battery in healthy condition. This could be at a stretch in one ride or several rides during the week. The vehicle speed will vary during the ride but an average speed of minimum 30 km/h will be helpful to ensure proper battery charging. Use kick-starting, if available, to conserve battery charge during such period. This is only a recommendation to maintain battery charge and regular service schedules must be followed to maintain your vehicle in good running condition.

The following is recommendations to users regarding battery maintenance before, during and after long storage of battery:

1. Before storage

a. Store the battery only after fully charging it.
b. Battery fuse to be disconnected and stored safely. This will reduce the sleep mode current and hence enhance storage life of battery. ^#

c. Alternatively, battery connecting wires (positive and negative wires) can be disconnected and fasteners can be secured with battery terminals.#

2. During storage

a. Store it at room temperature or lower.
b. Store the vehicle in the shade and protected from rain and cover the vehicle to prevent rodents from entering and damaging the wires.

3. After storage

a. Connect the wires and fuse, if disconnected earlier, with ignition switch in OFF position*
b. Start the vehicle by kick starting (if available).

(Above recommendations do not consider storage effects on other systems such as induction and fuel systems and wheels).

Periodic maintenance of Batteries:

• Keep top of battery clean.
• Check cables, clamps, and case for obvious damage or loose connections.
• Clean terminals and connectors as necessary. Rechargebatteryifvoltageisbelow 12.4 Volts.

TVS

- Valve Regulate Lead Acid (VRLA) / Lead Acid batteries are prone to water damage. Any water entry, through vents or otherwise; will result in irreparable damage to the battery or the vehicle.

Warning

Battery develop explosive gases. Keep it away from heat sources. If charging is required the battery must be charged in well ventilated area.

Unusable battery must be disposed in environment friendly manner. Do not discard it with household thrash. Handover the battery to the battery dealers or to a recycle center that accept used battery.

Caution

Never operate the vehicle with discharged battery as it may damage electrical components.

Do not push start the vehicle, use a good battery to start the vehicle.

* To be done by skilled personnel

TVS

FUSE

Non-working of electrical systems may be due to safety fuse failure. Short circuit or overload in the electrical system are the main causes for fuse failure. There are two fuse cases containing two blade type fuse (15A) and one blade fuses (10A) and a cartridge fuse (50A) located near the battery. Follow the procedure given below for inspecting and replacing the fuse.

1. Turn 'OFF' the ignition.
2. Remove the front panel as explained earlier.
3. Take out the fuse cases located near from the battery one by one.

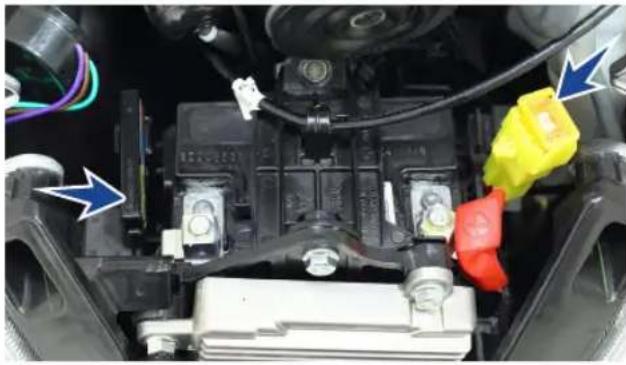

Close-up of a car engine bay with visible components and wiring (no text or symbols)

1. Open the fuse cases and take out the fuse.
2. Inspect the fuse for failure. If found blown, replace it with a new (additional fuses are provided in the wiring harness itself in a pouch or provided inside the fuse case itself).
3. Close the fuse case and re-fix it into the battery box.
4. Turn 'ON' the ignition switch and check for proper functioning of electrical systems. Incase the fuse fails again, consult the nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer.

Good Fuse Blown Fuse

Caution

Do not use the vehicle by shorting the wires without fuse. This may result in overheating of electrical items / wiring and may result in fire. Do not use fuse of higher amperage than specified for the safety of electrical system.

TVS

SPARK PLUG

To access the spark plug, the cover front has to be removed. Follow the procedure to remove the cover front.

1. Open the seat and remove the top mounting screws (A) from both the sides of cover front.
2. Remove the bottom mounting screws (B) of cover front.
3. Gently pull out the cover front by dislocating its lugs.

4. Clean the dust and mud around the spark plug mounting to avoid falling inside the cylinder.

5. Pull out the suppressor cap from spark plug. Using the spark plug spanner, remove the spark plug.

A spark plug with heavy carbon deposits will not produce strong sparks. Hence, only if necessary, clean the carbon deposits from the spark plug with a small wire brush or spark plug cleaning tool.

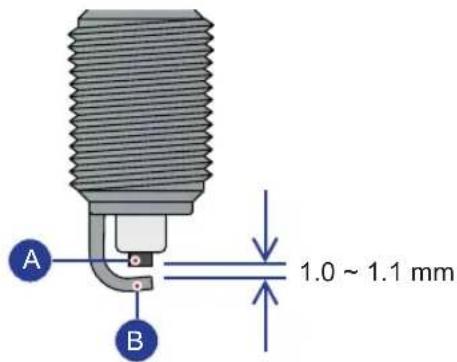

Inspect the spark plug electrodes (A) and (B) for any corrosion. If found any, replace the spark plug with anew.Inspect the spark pluggap visually

(1.0 \~ 1.1 mm). If found more, replace the spark plug with a new one.

Close-up of a car's side profile with a blue arrow pointing to the letter 'A' (no text or symbols beyond the label)

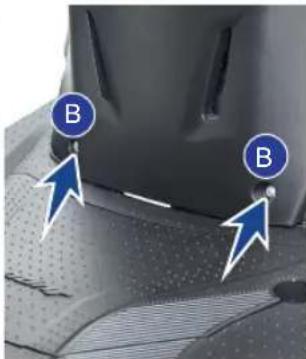

Close-up of a car's front bumper with blue arrows pointing to the side (no text or symbols visible)

TVS

After cleaning and checking the gap, reinstall the spark plug and tighten by hand to avoid cross threading. Finally tighten using spark plug spanner.

Do not over tight or cross thread the spark plug. After reassembling the plug fix back the suppressor cap and ensure its proper fitment.

Caution

Always use only recommended make and type of spark plug. Replace spark plug every 12000 km.

Don't remove the spark plug when the engine is hot. Cover the spark plug hole with a clean cloth when the plug is removed, to prevent dust / water entry.

It is advisable to tight the new spark plug by hand till the end and then loose. Again re-tight the spark plug by 1/8 of rotation after sealing by using only the hand tool.

Since the hook type spark plug is used, it is not advised to adjust the plug electrodes as it may damage the electrodes.

ENGINE OIL LEVEL

Check the engine oil level periodically.

1. Place the vehicle on centre stand on a flat surface. Wipe-off the surroundings of gauge oil level.
2. Remove the gauge and wipe it clean.
3. Fix the gauge back to its mounting hole. Do not thread in.
4. Take out the gauge and check the oil level. The level should be between minimum and maximum level marks of the gauge (shown in the figure).
5. If the oil is less than the minimum level, add 'TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB)' upto the maximum level mark.

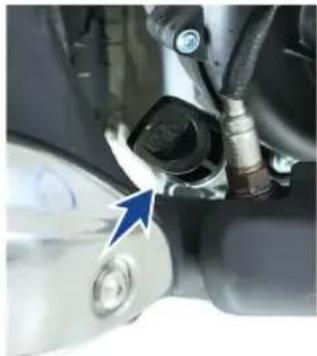

Close-up of a car's dashboard and steering wheel assembly (no visible text or symbols)

TVS

1. Wipe out the oil traces with a clean cloth to prevent dust accumulation.
2. Assemble back the gauge oil level.

TRANSMISSION OIL - LEVEL

Check the transmission oil level periodically. To check the transmission oil level follow the procedure given below:

1. Place the vehicle on centre stand on a flat surface.
2. Wipe-off the surroundings of oil level screw.
3. Remove the transmission oil level screw along with a gasket from the rear end of crankcase L.

Close-up of a car brake system with suspension components and a blue arrow indicating a specific component (no text or symbols visible)

1. Check for the flow of oil from oil level hole. If the level is less (if there is no oil flow), top-up with 'TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB)' till the oil just starts to flow out from the oil level hole.
2. Wipe out the oil traces with a clean cloth to prevent dust accumulation.
3. Inspect the condition washer while reassembling the oil level screw. Replace if required.

Caution

If the vehicle is driven with less engine oil and transmission oil, the engine components will be severely damaged.

Check the oil level between the services to avoid costly damage. Do not fill excess oil it may cause oil leak. Always use TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB) only.

TVS

BRAKES

Front brake - Disc brake type

1. You can observe a master cylinder (1) at the right side of the handle bar under the head lamp housing.
2. A caliper assembly (2) fitted to the fork leg L, a disc (3) on the front wheel and a high pressure hose (4) connecting the master cylinder and the caliper assembly.

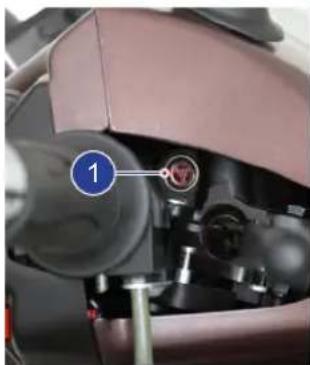

Close-up of a mechanical component with a numbered label pointing to a red circular feature (no readable text or symbols)

1. Check the master cylinder brake fluid level through the view piece glass (A).
2. The brake fluid level always should be above the 'MIN' mark (B) provided on the view piece glass of the master cylinder when the cylinder is parallel to ground.

Warning

Since the vehicle is fitted disc brake SBS system, if there is any abnormality in brake performance, contact TVS Motor Company Authorised Main Dealer / Authorised Dealer.

TVS

1. If the brake fluid level is below the 'MIN' mark or while applying brake if you feel the brake is more spongy or ineffective due to air entry and if any rattling play is observed in both the brake levers, contact TVS Motor Company Authorised Main Dealer / Authorised Dealer for topping-up the brake fluid, air bleeding and other brake related inspections.

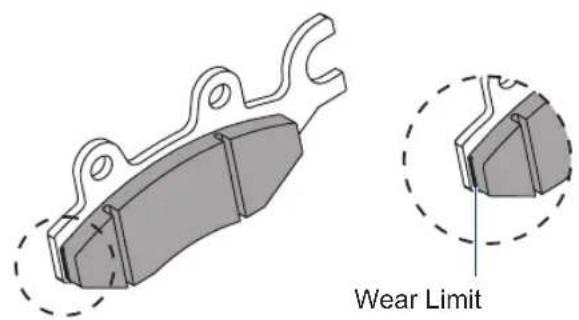

Brake pad wear indicator

Check for the wear of brake pads visually. If the brake pads wear is found beyond the wear indicator groove as shown in the figure, replace the brake pads as a set with a new one.

Rear brake

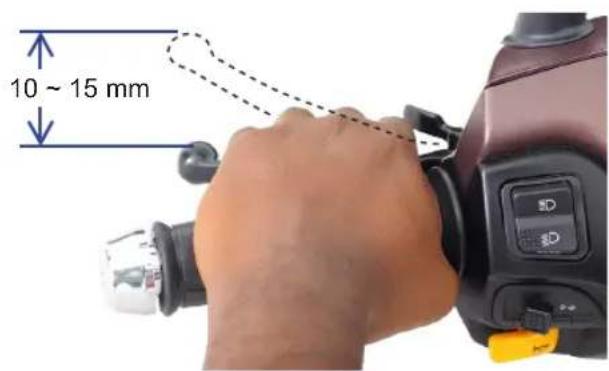

1. Measure the free play of the rear brake lever at the lever end as shown in the figure.
2. Free play of the brake lever before the engagement of brake should be between 10 \~ 15 mm.

Note

Please remember that the rear brake lever free play adjustment to be done only after adjusting the front brake lever play (in drum brake model).

TVS

1. If the measured distance is more than the limit, adjust the nut provided at the rear wheel end to obtain the correct play.
2. Turn the adjuster nut in clockwise direction for reducing free play or in anti-clockwise direction for increasing the free play.

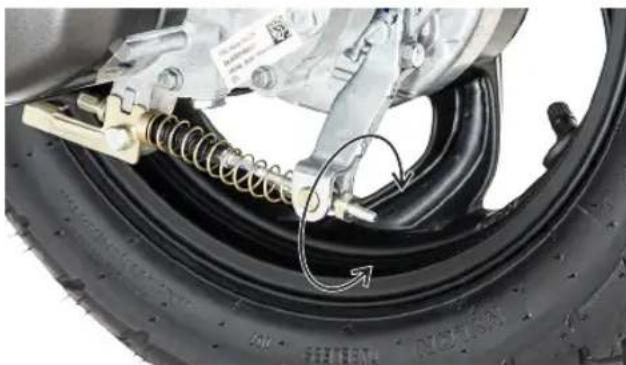

Close-up of a car tire assembly with mechanical components and a curved arrow indicating motion (no text or symbols visible)

Warning

Check the front brake and the rear brake play periodically band adjust if required. However the brake play needs to be adjusted more frequently depending upon the usage.

Brake shoe wear indicator

When the brake is applied, the wear limit indication pointer (1) on the rear brake cam lever should be within the wear limit indicator (2) on the crankcase LH.

In case the wear limit indication pointer (1) is going beyond wear limit indicator (2), index the lever to next slot with the help of Dealers to extend shoe life.

Caution

Replace the brake shoes as a set, if the wear limit indicator shows beyond the wear limit even after indexing the lever.

REAR SHOCK ABSORBERS

TVS Jupiter 125 is provided with 3 step adjustable rear shock absorbers to meet different road and load. There are 3 notches for adjusting spring load.

If the spring is adjusted to the minimum notch, then the shock absorber will be softer which is good for light loads. If the spring is adjusted to maximum notch, then it will be stiffer which is good for heavy loads.

Adjust the spring pre-load by shifting the adjuster to the required notch according to the different load conditions. The more you compress the spring, the suspension becomes more stiff.

TVS

Close-up of a car's lower body showing suspension system and tire assembly (no visible text or symbols)

TYRES

Tyre pressure

Check the tyre pressure atleast once in a week if not more frequently. Insufficient air pressure in the tyres not only hasten the tyre wear, but also seriously affects the stability of the vehicle.

Under inflated tyres make smooth cornering difficult and over inflated tyres decreases the tyre contact with the ground which can lead to skidding and loss of control.

Be sure that the tyre pressure is within the specified limit at all times.

Tyre pressure in cold condition:

Solo	Dual
Front	1.68 kg/cm2 (24 PSI)	1.68 kg/cm2 (24 PSI)
Rear	2.25 kg/cm2 (32 PSI)	2.53 kg/cm2 (36 PSI)

Tyre tread condition

Operating the vehicle with excessively worn tyres will decrease riding stability and can lead to loss of control. It is recommended to replace the tyre when the tyre wears off to the tyre wear indicator level (indicated by TWI (A) on the tyre).

TVS

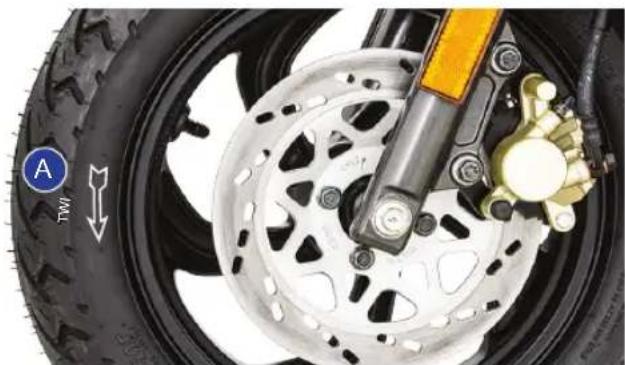

Close-up of a motorcycle tire and disc assembly with visible mechanical components (no text or symbols)

Tyre rotation direction

While reassembling the tyres, after removing from the wheel rim, ensure that the arrow mark is facing the direction of wheel rotation while fixing the tyre on the wheel rim.

Tyre puncture

Your scooter is fitted with a tubeless tyre on both front and rear wheel. Incase of any puncture / tyre damage, it is advised to visit the nearest tyre manufacturer Dealer or the tyre repair shops who knows the repairing method of tubeless tyre.

It is not necessary to remove the tyre from wheel rim always to attend a puncture.

Even though, if there is need of tyre removal, it is strongly recommended to use a tyre removal / fitment machine.

If at all, tyre levers needs to be used, the levers should be free from sharp edges. Care should be taken not to damage the tyres and rims.

Warning

The tyre inflation pressure in cold condition and the tyre tread condition are extremely important for the performance and safety of the rider. Check the tyres frequently for inflation pressure as well as the wear pattern on it.

Use of a tyre other than the standard may cause instability.

Caution

The side walls of the tubeless tyre which in contact with the wheel rim are only seals the air inside the wheel assembly. Hence care should be taken not to damage the side walls of the tyres during removal / reassembly.

Tyre maintenance tips

Inflation pressure check - Condition

Note

If vehicle is in hold condition for long time

• Need movement of vehicle to avoid particular spot of tyre not to touch the ground for more than week time.
• Inflation pressure should check on cold condition maximum travel time should not exceed more than 1 km.
  • Weekly basis inflation pressure check helps to improve 10% of tread life & fuel efficiency.

TVS

FRONT WHEEL REMOVAL AND REASSEMBLY

1. Remove the axle nut (1) along with a washer.
2. Pull out the axle (2) and take out the spacers from both sides of the wheel (incase of disc bake) or take out a spacer from the right side of the wheel (incase of drum brake).
3. Place a support below the foot board to prevent the vehicle from falling and lift the vehicle up.
4. Dislocate the wheel disc from caliper assembly and take out the wheel.
5. Reverse the procedure for reassembling. Ensure the proper seating of wheel disc in the caliper assembly during reassembly. Also ensure to fix the right spacer at right location.

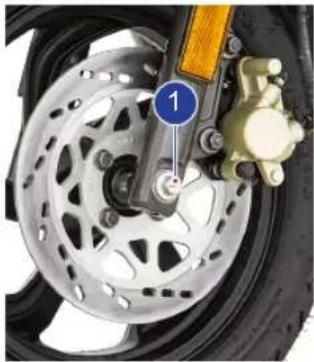

Close-up of a motorcycle wheel and brake caliper assembly (no visible text or symbols)

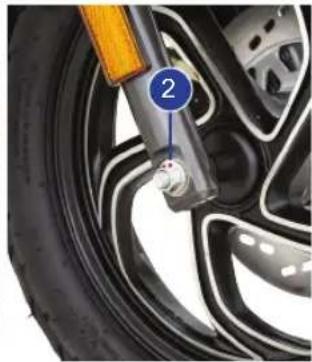

Close-up of a car tire with a blue circular marker labeled '2' pointing to a mechanical component (no text or symbols beyond the number)

REAR WHEEL REMOVAL AND REASSEMBLY

1. Place the vehicle on the centre stand.
2. Hold the rear brake firmly and remove the wheel mounting nut (A) along with a washer.
3. Slightly tilt the vehicle and take out the wheel from the rear axle.
4. Reassemble the wheel in the reverse order of removal.

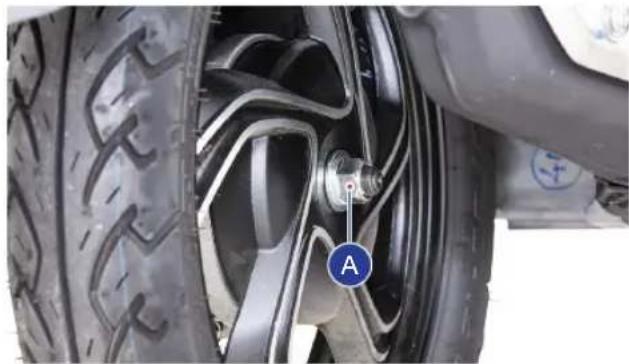

Close-up of a car wheel assembly with visible tire and valve, no text or symbols present

Warning

Always make sure, whenever the wheel is removed, the axle nuts are tightened properly to the specified torque.

TVS

STORAGE PROCEDURES

For storage of your scooter for longer period of over a month and above, we recommend to carry out the following steps:

1. Clean the vehicle thoroughly. Park the vehicle on centre stand.
2. Warm up the engine and drain engine oil and transmission oil. Store the oil, if new, in a dust free container.
3. Empty the fuel tank.
4. Remove the spark plug and feed in several drops of engine oil through spark plug hole. Crank the engine few times and reinstall the spark plug.
5. Remove the battery, store it away from direct sunlight and freezing temperatures.

Caution

Do not park the vehicle on a slope or soft ground or else it may fall down. The exhaust system becomes hot after a run. Park the vehicle in a place where pedestrians or children are not likely to touch the vehicle.

During storage, the battery must be recharged at recommended charger if stored more than a month.

1. Place a suitable support at the bottom of the foot board so that both the tyres are off the ground. This will ensure better tyre life.
2. Cover up the vehicle completely with a clean tarpaulin or any other suitable cover.
3. Store the vehicle inside a garage or similar area to avoid damage due to dust and rain. Make sure that the storage area is well ventilated and free from any source of flame or spark.

TVS

TAKING THE VEHICLE OUT OF STORAGE FOR REGULAR USE

1. Take the vehicle out of garage and clean it thoroughly.
2. Remount the battery after bench charging if required.
3. Fill the engine oil (TVS TRU4 SKUUTA - SAE 10W30 API-SL, JASO MB oil) and check the oil level using gauge oil level.
4. Fill the transmission oil (TVS TRU4 SKUUTA - SAE 10W30 API-SL, JASO MB oil) and check the oil level at the oil level screw.
5. Lubricate the parts as instructed in the periodic maintenance schedule.
6. Fill up fresh petrol in the fuel tank.

7. Check and inflate the tyres to the specified tyre pressure.

8. Check and correct the points mentioned in page no. 82.

9. Turn the ignition switch to 'ON' position. Retract the side stand and start the engine. Wait for few seconds and ride out.

Caution

Avoid using alkaline solution like detergent soaps for washing. This may damage head lamp and other lamp assemblies.

TVS

RECOMMENDED TIPS WHEN TAKING A LONG TRIP OF MORE THAN 500 KM:

A) Please keep the following items for use in case of emergency:

1. Tool kit complete.
2. Recommended spark plug one number.
3. Turn signal lamp bulb one number.
4. Throttle, front # and rear brake cable each one.
5. First aid kit.

B) Precautions to be taken for the journey:

1. Ensure that the engine oil and transmission oil are up to the level.
2. Adequate fuel in the fuel tank.

C) Check your scooter for the following:

1. Tightness of all bolts and nuts with correct torque value.
2. Fitness of tyres / tyre pressure / tread depth.
3. All bulbs, indicators and horn functioning.
4. Smooth functioning of all cables and their free play.
5. Smoothness of steering operation.

6. Front / rear brake function and rear brake lamp working.

7. Front fork for any abnormality.

8. Spark plug gap and condition of spark plug.
9. Air filter element cleanliness.
10. MIL & ISG lamps are not glowing.
11. Lubrication of all items mentioned in the periodic maintenance schedule.
12. Any other job as necessary.
13. Have your vehicle checked at any TVS Motor Company Authorised Main Dealer or Authorised Dealer.

Caution

Long journey are to be taken only after the running-in period of 1000 km.

# Applicable only for Drum Brake version

TVS Motor Company Limited ('the Company') give this warranty with respect to the TVS Jupiter 125 manufactured by the Company.

While the Company has taken every care to maintain quality in the manufacture of the TVS Jupiter 125, the above said warranty is subject to other terms of warranty:

During 5 Years from the date of purchase or during the first 50,000 km of run for the vehicle in the hands of original retail purchaser, whichever is earlier, the parts of the vehicle covered under warranty which prove to the satisfaction of the Company to have a manufacturing defect will be repaired or replaced free of cost.

The Company's obligation under this warranty is limited to repairing or replacing, free of cost, those parts of the vehicle which upon examination by the Company may prove to the Company's satisfaction to have a manufacturing defect, and in such cases the Company's decision either to repair or replace the affected parts will be final. In the event of replacement of parts, the Company also reserves the right to use parts of the same brand as the affected parts or any other brand which is used by the Company in the course of manufacture. All parts replaced under this warranty will become the property of the Company and must be returned to the company.

Limitations of Warranty:

This warranty shall not apply to following condition:

1. Any natural wear and tear, including without limitation, aging.

2. Warranty claims on proprietary items such as tyres, tubes and batteries etc., should be preferred by the user directly on the respective manufacturer, as per their warranty terms and the Company shall not be liable in any manner in respect to the same.

3. Battery warranty for "MF type (Maintenance Free)" is applicable for a period of 21 months from the date of charging or 18 months from the date of sale or 20,000 kms, whichever is earlier.

4. Battery warranty for "Lead Acid type" is applicable for a period of 15 months from date of charging or 12 months from date of sale or 10000 kms whichever is earlier.

5. Parts repaired or replaced under this warranty are warranted only throughout the remainder of the original warranty period.

TVS

1. The Company is not liable for any delay in servicing due to reasons beyond the control of the Company or any of its Authorised Main Dealers / Authorised Dealers.
2. In any event, the Company is not liable for indirect, remote, incidental or consequential damages.
3. The Company may make any modification or improvement to vehicles in future production at any time without prior notice and without any obligation to install the same on vehicles previously dispatched for sale.
4. Any claim under this warranty will lie only when the customer:

- takes his vehicle to an Authorised Main Dealer / Authorised Dealer of the Company and reports the problem he / she felt in the vehicle to enable the Authorised Main Dealer / Authorised Dealer to inspect the same and assess the cause for the reported problems.

- produces to such Authorised Main Dealer / Authorised Dealer the owner's manual for the concerned vehicle for verification of relevant details.

1. This is the only warranty given by the Company for the TVS Jupiter 125. No employee, Dealer or other person is authorised to extend or enlarge this warranty.

Warning

Modifications to this vehicle not approved by the TVS Motor Company may cause loss of performance and render it unsafe for use and disqualifies for warranty coverage also.

Following Toll Free numbers can be contacted for battery related queries if any.

Incase of EXIDE battery, call : - 1800 103 5454 Incase of AMCO battery, call : - 1800 425 0096

Incase of TATA GREEN battery, call :- 1800 419 8888 Incase of AMARON battery, call :- 1800 425 5858

Following Toll Free numbers can be contacted for Tyre related queries if any.

Incase of TVS Srichakra, call :- 04522443300 Incase of JK tyre, call :- 18002581100

Incase of Maxxis tyre, call :- 1800 532 2888 Incase of Ceat tyre, call :- 1800 22 1213

List of parts not covered under warranty

ITEM WHAT TO CHECK FOR
Normal Maintenance Operations Engine tune-up, decarbonizing, fuel system cleaning, oil changes, head light focusing, fastener retightening, ignition timing, clutch and brakes as well as other normal adjustments.
Wear and Tear Items Chain, sprockets, clutch and brake linings, fasteners, shims, washers, oil seals, gaskets, 'O' rings and spokes etc.
Electrical Bulbs, fuse, AHO, DRL etc.
Service Maintenance Parts Oil filters, spark plug, air filter, oil and brake fluid
Rubber, Rexine and Plastic Items All hoses, pipes and plastic aesthetics
Proprietary Items Battery, tyres and tubes (the warranty terms are subject to our agreement with proprietary OEM)(Battery warranty for "MF type (Maintenance Free)" is applicable for a period of 21 months from the date of charging or 18 months from the date of sale or 20,000 kms, whichever is earlier).(Battery warranty for "Lead Acid type" is applicable for a period of 15 months from date of charging or 12 months from date of sale or 10000 kms whichever is earlier).
Parts of the vehicle getting affected due to atmospheric effect / environmental factors (rusting, paint peel off etc.). However, depending on the vehicle usage condition, warranty would be accepted up to 2 years from the date of purchase.
Others Factors	Parts of the vehicle which have been tampered with, altered, repaired or replaced by persons not authorised by the Company and which in the sole judgement of the Company affect the performance of the vehicle.

List of parts not covered under warranty

ITEM WHAT TO CHECK FOR
Parts which are used in conjunction with parts not made or recommended by the Company.
Parts suffering damage or resultant damage by accident, misuse, negligent treatment, use of bad quality lubricants or impure fuel or by omission to follow the guidance and instructions contained in this owner's manual.
Vehicles on which engine number or chassis number is deleted, defaced or altered.
Vehicles on which any warranty service including scheduled paid service is not availed when it falls due (at TVS Motor Company Authorised Main Dealer / Authorised Dealer).
Vehicles sold or transferred by original retail purchaser.
Others Factors Vehicles used for racing or any competition or used otherwise than for ordinary personal transportation.
Vehicles attached with side cars etc.
Vehicles which have been taken out of India.
If the vehicle has been used for commercial purpose like taxi or used for rental or hiring or any other purpose other than regular personal transportation.

SERVICE INFORMATION

There are nine services for TVS Jupiter 125 during warranty period. Of these, first three services are free services for which labour charges are free. In addition to these three free services, we have a scheme of six pay services. For keeping the maintenance track of your vehicle, free and pay service record sheets are attached in the Service Handbook given to you during the time of your vehicle purchase. Please have the relevant record sheet filled by the Dealer who is carrying out the maintenance service.

For availing any of the nine warranty services, please take your vehicle and your Service Handbook to any of our Authorised Main Dealers or any of our Authorised Dealer. After effecting the service the Authorised Main Dealer or the Authorised Dealer will affix their stamp on the last column of free or pay service record sheet of Service Handbook for your record and reference. An OTP would be sent to customer's registered mobile number. The same to be shared with the servicing Dealer on or before vehicle delivery.

Periodic maintenance always helps good performance of an automobile and our services are planned to keep your TVS Jupiter 125 performing good. Please note that carrying out the service for your vehicle at scheduled intervals at any of the TVS Motor Company Authorised Main Dealer / Authorised Dealer is necessary for availing of warranty. And please also remember that, after the services are over, periodic servicing of your vehicle at appropriate intervals, depending upon its extent of use, will keep your vehicle at its best level of performance.

In case you need any clarification or assistance, please feel free to write to us mentioning the frame number, engine number and date of purchase of your vehicle also the name and place of the Authorised Main Dealer / Authorised Dealer from whom you bought the vehicle and getting it serviced.

Service Department

TVS MOTOR COMPANY LIMITED

P.O. Box No. 4, Harita, Hosur - 635 109,

TAMILNADU, INDIA.

Toll free no:- 1800-258-7111

Planned Service Schedule (kms or month whichever of the two occurs early)*

Sl.No. Service Type Kms Months
1 1st Service Free 500 ~ 750 30 ~ 60 days
2 2nd Service Free 5500 ~ 6000 6
3 3rd Service Free 11500 ~ 12000 12
4	4th Service	Pay	17500 ~ 18000	18
5 5th Service Pay	23500 ~ 24000		24
6	6th Service	Pay	29500 ~ 30000	30
7	7th Service	Pay	35500 ~ 36000	36
8	8th Service	Pay	41500 ~ 42000	42
9	9th Service	Pay	47500 ~ 48000	48

Note

Free service enables the customer to avail the service at free of labour charges. Charges for the pay service should be borne by the customer. Cost of engine oil, periodic maintenance parts, filter, brake fluids, all types of greases, petroleum jelly, distilled water, chain cleaner, lubricants, coolants, cleaning cloths for both free and paid services are chargeable to the customer.

* Please remember that, after the above schedule, periodic servicing of your vehicle at appropriate intervals, depending upon its extent of use, will keep your vehicle at its best level of performance.

PRIVACY POLICY

Your Privacy is of paramount importance to us. We are committed to safeguarding your privacy and protecting your Personal Data that is with us. This Privacy Notice outlines the details of the Personal Data we collect and process, how we handle it and the purposes for which we use it. Please read the following carefully to understand our practices regarding your Personal Data.

Throughout this document, the terms "we", "us", "our" & "ours" refer to TVS Motor Company Limited. And the terms "you", "your" & "yours" refer to YOU (the individual whose Personal Data we are referring to).

What Personal Data Do We Collect, Store and Process? Categories of Personal Data that we collect, store and process are as follows:

I. Demographic, Identity & Contact Data (for e.g., name, last name, date of birth, gender, email address, address proof, contact number, language, occupation, physical address with pin code, preferences and interests.)
II. Personal Identification Number (for e.g., PAN Card No, Voter ID, GST no, Passport and Aadhaar Number)
III. Financial Account Details (for e.g., Bank Details, PF Details, Past Salary,)
IV. Educational & Professional Data (for e.g., Education, Profession, Employment Type, work experience, Income, Tax category, Performance History.)

TVS

V. Online Identifiers and other Technical Data (for e.g., IP address, browser type, device identifiers)
VI. Personal Data collected via permissions on our mobile applications (for e.g., camera, contacts, location data, storage, photos, fingerprint/biometric and SMS)
VII. Vehicle Data (for e.g., registration number, Registration type, registration data, VIN Number and Model type.
VIII. Ride Data (for e.g., Mileage, travel location, travel date, time, top speed, average speed, driver behaviour data such as speed and braking habits.)
IX. Subscriptions and Add on Data (for e.g., Subscription Plan, Plan Start Date, Plan End Date, Premium Paid.)
X. Charging Details (for e.g., Charger Name, Charger Model, Start time, End time, Distance Available, Payable Amount)
XI. Telematics Data (for e.g., data about speed, bike fall and crash)
XII. Communications details (for e.g., communication done through emails)Generated Data (for e.g., logs, transaction records)
XIII. Information relevant to surveys that we undertake.
XIV. Testimonials and feedback that may contain some Personal Data.

TVS

Where Do We Collect Your Personal Data From?

We collect your Personal Data in the following ways:

I. When you visit our website or social media pages and fill in the registration form and use the Contact Us facility.
II. When you use our mobile applications.
III. When you interact with us via our websites or use services on our websites including customer support.
IV. When you use the connected features on our vehicle
V. When you interact with our dealers.
VI. When you apply for a job at TVSM
VII. When we onboard you as an employee and during your subsequent interactions with us as an employee

How Do We Use Your Personal Data?

We use your Personal Data for the following purposes:

A. If you express an interest in our services, we collect and share your Personal Data with our dealer, who in turn would contact you to schedule a store visit.
B. If you are an existing customer, we collect your Personal Data for the following purposes:

1. to authenticate your account or information on our applications that you use.
   II. to provide you with our products and services
   III. to cross sell vehicles on our App/website

IV. to communicate with you regarding existing products and services availed by you, including notifications of any alerts or updates.
V. to evaluate, develop and improve our services.
VI. to manage sales and refunds
VII. to manage your subscriptions and add on
VIII. for market and product analysis and market research.
IX. to send you information about our other products or services which may be of interest to you.
X. to obtain feedback and handle enquiries and complaints.
XI. to comply with legal or regulatory requirements.
XII. to reach out to you for service reminders.

C. If you are a dealer, we collect your Personal Data for onboarding and invoicing purposes.
D. If you are a website visitor, we process your Personal Data to optimize your website experience and customize content.

On What Legal Grounds Do We Process Your Personal Data?

We process your Personal Data by relying on one or more of the following legal grounds:

I. You have consented to us processing your Personal Data for specified reasons.
II. You have voluntarily provided your Personal Data to us for specified reasons.
III. To evaluate, develop and improve our products and services.
IV. The processing is necessary for compliance with a legal obligation we may have towards other stakeholders like law enforcement agencies, government agencies, regulators, etc.

Where the processing is based on your consent, you have the right to withdraw your consent at any point in time. Upon receipt of your request to withdraw your consent, the consequences of withdrawal will be communicated to you. In many cases, upon such a withdrawal, we may not be able to continue offering our products and services to you. You may withdraw consent by contacting us using the details specified in the 'Contact Us' section.

Who Do We Share Your Personal Data With?

We may disclose your Personal Data to:

I. Our Parent Company for business and operational purposes;
II. Our affiliates or group companies;
III. Our Dealer; and/or
IV. Third Party Service Providers who work for us or provide services or products to us.

We may also share your Personal Data under the following circumstances:

I. To respond to court orders, or legal process, or to establish our legal rights or defend against legal claims.
II. if we are acquired by or merged with another company.

International Data Transfer

The data collected from you is stored in India We may transfer your Personal Data to other countries outside your country of residence for any of the purposes defined in this Privacy Notice to the entities mentioned above. Any Personal Data that we transfer will be protected in accordance with this Privacy Notice.

TVS

How Do We Secure Your Personal Data?

We are committed to protecting your Personal Data in our custody. We take reasonable steps to ensure that appropriate physical, technical and managerial safeguards are in place to protect your Personal Data from unauthorized access, alteration, transmission, and deletion. We train our employees about the importance of maintaining the privacy and security of your Personal Data. We ensure that the third parties with whom we share your Personal Data under appropriate contracts; take appropriate security measures to protect your Personal Data in line with our policies.

How Long Do We Keep Your Personal Data?

We retain your Personal Data for as long as it is required to fulfil the purposes outlined in this Privacy Notice and for legal or regulatory reasons.

How Do We Use Cookies and other Tracking Mechanisms?

We use cookies and other tracking mechanisms on our website to collect data about you. We use the data collected from cookies and trackers to analyze trends and statistics. This will help us optimize and customize your website experience and to provide better website functionalities.

We collect Personal Data about you via Mobile Applications using permissions such as camera contacts/telephone, location, photo, SMS, etc. Your iOS and Android devices will notify you of the permissions that our app seeks and will provide you an option to consent to or refuse the permission. We use the data obtained through permissions to provide the functionalities through the Mobile Applications.

What Are Your Privacy Rights?

You have certain rights regarding your Personal Data that is with us, and we commit to provide you with them.

Right to Confirmation and Access: You have the right to get confirmation and access to your Personal Data that is with us along with other supporting information.

Right to Correction: You have the right to ask us to correct your Personal Data that is with us that you think is inaccurate. You also have the right to ask us to complete your Personal Data that you think is incomplete.

Right to Erasure: You have the right to ask us to erase your Personal Data that is with us under certain circumstances.

Right to Nominate: You have the right to nominate a person who can manage your personal data on behalf of you.

Right to Lodge a Complaint with the Authority: You have the right to lodge a complaint with the Regulator. If you wish to make a request to exercise any of your rights, you can contact us using the details in the 'Contact Us' section of this Privacy Notice.

Links to Other Websites

Our website may contain links to websites of other organisations. This Privacy Notice does not cover how that organisation processes Personal Data. We encourage you to read the Privacy Notices of the other websites you visit.

How Do We Keep This Notice Up to Date?

We regularly review and update our Privacy Notice to ensure it is up-to-date and accurate. Any changes we may make to this Privacy Notice in the future will be posted on this page. When we post changes to this Privacy Notice, we will revise the "last updated" date.

Limitation of Liability

To the extent permissible under the law, we shall not be liable for any indirect, incidental, special, consequential or exemplary damages, including but not limited to, damages for loss of profits, goodwill, data, information, or other intangible losses (even if we have been advised of the possibility of such damages), arising out of this Privacy Policy.

Governing Law, Jurisdiction and Dispute Resolution

This Privacy Policy shall be construed and governed by the laws of India without regard to principles of conflict of laws. All disputes, differences, claims, controversies and the like, which may arise between the parties to this Privacy Policy, including construction, meaning or operation or effect of the same shall be referred to sole arbitration of an arbitrator to be nominated by the MCCI Arbitration, Mediation and Conciliation Centre (MAMC), The Madras Chamber of Commerce and Industry, 'Karumuttu Centre', First Floor, No. 634, Anna Salai, Nandanam, Chennai – 600 035, at the request of the authorised signatory of either TVS Motor or yourself, as the case may be, and such arbitration shall be conducted in accordance with the provisions of the Arbitration and Conciliation (Amendment) Act, 2021, or its statutory amendments, and in accordance with the MAMC's Rules of Arbitration and Conciliation or its amendments, in English language, and the seat of arbitration shall be at Chennai; the venue of arbitration shall be as per the choice of the MAMC-appointed arbitrator. The Award passed by the Arbitrator shall be final and binding on both the Parties.

How Do You Contact Us?

For any further queries and complaints related to privacy or exercising your rights, you could reach our Data Protection Officer at the following address:

Chief Information Security Officer At [e-mail]

Business Address:

Prathik Tech Park,

93/4, Veerasandra Village,

Attibele Hobli, Electronic City,

Bengaluru, Karnataka 560100

TECHNICAL SPECIFICATIONS

DESCRIPTION TVS Jupiter 125 (SXC)
MANUFACTURER	TVS Motor Company LimitedP. B. No. 4, Harita,Hosur - 635 109, IndiaTVS Motor Company LimitedVillage Bhatian, Bharatgarh Road, Teh Nalagarh, Dist. Solan.Himachal pradesh - 174 101, India
ENGINE
Type	Single cylinder, 4 stroke, fuel injection, air cooled, spark ignition engine
Cylinder bore	53.5 mm
Stroke	55.5 mm
Piston displacement	124.76 cc
Compression ratio	10.3 ± 0.3 : 1
Air filter	Dry paper filter element
Oil filter	Wire mesh
Lubrication system	Forced wet sump
Maximum power in kW	6.0 kW @ 6500 rpm (without iGO assist)6.3 kW @ 6500 rpm (with iGO assist)
Maximum torque in Nm	10.5 Nm @ 4500 rpm (without iGO assist)11.1 Nm @ 4500 rpm (with iGO assist)
Maximum speed	84 km/h
Engine idling rpm	1400 ± 200 rpm (under warm condition)
Starting system	Electric starter
Emission norms	BS VI
TRANSMISSION
Clutch Dry - Centrifugal clutch
Primary transmission CVT (Continuously Variable Transmission)
Primary reduction 2.65 to 0.8
Secondary reduction 9.08
CHASSIS
Overall length 1852 mm
Overall width 691 mm
Overall height 1168 mm
Seat length 756 mm (usable)
Ground clearance (unladen) 160 mm
Wheel base 1275 mm
Kerb weight (with toolkit and 90% of fuel) 108 kg
Pay load	150 kg
Maximum laden weight	258 kg
Steering angle	90°
Caster angle	25°
Frame	High rigidity underbone type
Front suspension	Telescopic hydraulic
Rear suspension	Toggle link, gas filled hydraulic damper
Trail length	93 mm

DESCRIPTION TVS Jupiter 125 (SXC)
BRAKES
Front (Disc) 220 mm dia (hand operated)
Rear (Drum) 130 mm dia (hand operated)
TYRE
Front tyre 90/90 - 12 54J (tubeless)
Rear tyre 90/90 - 12 54J (tubeless)
Front tyre pressure** 1.68 kg/cm2 (24 PSI)
Rear tyre pressure - Solo** 2.25 kg/cm2 (32 PSI)
Rear tyre pressure - Dual** 2.53 kg/cm2 (36 PSI)
ELECTRICAL
Ignition system ECU controlled ignition
Spark plug BOSCH UR5KCU / CHAMPION RG8MC5
Spark plug gap 1.0 ~ 1.1 mm
Battery type 12V, 5Ah MF battery
Generator (flywheel magneto) 12V, 130W
Head lamp 9V, 9.5W High beam LED / 6V, 5W Low beam LED
Tail / brake lamp	12V, LED / 10W

** In cold condition

DESCRIPTION TVS Jupiter 125 (SXC)
ELECTRICAL
Turn signal lamps bulb 12V, 10W x 4
Number plate lamp bulb 12V, 3W x 1
Turn signal indicator lamp bulb 12V, LED
Instrument cluster Fully digital connected instrument cluster
High beam indicator lamp 12V, LED
Low fuel warning lamp 12V, LED
Economy and power mode indicator lamp 12V, LED
Malfunction indicator lamp 12V, LED
ISG malfunction indicator lamp 12V, LED
Horn 12V, DC
Fuse	Mini fuse 12V, 15A x 2, 12V, 10A x 1 & J case type - 32V, 50A x 1

Caution

Using the bulb other than the specified rating can result in overloading of the electrical system or premature failure of the bulb.

DESCRIPTION TVS Jupiter 125 (SXC)
CAPACITIES
Fuel tank capacity++	5.1 l
Fuel	BS VI petrol with minimum RON 98 (containing upto 20% of ethanol by volume)
Engine / transmission oil grade TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB)
Engine oil capacity 700 ml
Transmission oil capacity 120 ml
Front fork oil grade Gabriel Premium front fork oil
Front fork oil capacity 92 ± 1 ml per leg
Disc brake fluid TVS Girling DOT 3 / DOT 4

Note

Specifications are subject to change without notice.

^** The fuel tank is not a measuring instrument and the capacity of the fuel tank may vary from the indicated capacity

GENERAL INFORMATION

Dear Customer,

It is mandatory under the Motor Vehicles Act to insure all motor vehicles. No motor vehicle can be used in a public place without a valid policy of insurance issued by an authorised insurer. Driving a motor vehicle without any such insurance is an offense under Motor Vehicles Act.

To assist our Customers on their insurance requirements such as the prompt issue and renewal of policies as well as expeditious settlement of claims if any, our preferred insurers are:

Oriental

insurance

HDFC ERGO

Take it easy!

Liberty

General Insurance

Liberty General Insurance Limited IRDA Registration No. 150

bharti

AXA

suraksha ka / naya nazariya

IFFCO-TOKIO

Muskurate Raho

TATA AIG

INSURANCE

WITH YOU ALWAYS

RELIANCE

GENERAL INSURANCE

ICICI Lombard Nibhaye Vaade

ALWAYS USE TVS-M GENUINE PARTS

TVS MOTOR COMPANY LIMITED. P.B. No.4, Harita, Hosur, 635109, Tamil Nadu, India.

Telephone:[phone].Fax:[phone]/277311www.tvsmotor.com
