Product Type	Combi microwave oven with grill and hot air
Brand	Bertazzoni
Model	MAST30SOEX
Overall dimensions (W x H x D)	75.6 x 47.3 x 53.7 cm
Cavity dimensions (W x H x D)	41.9 x 21.0 x 39.4 cm
Capacity	38 L (1.34 ft³)
Net weight	35.4 kg (78 lb)
Electrical supply	240 V, 2 phases, 60 Hz
Total power required	3850 W
Microwave power	1000 W (IEC 705)
Grill power	1500 W
Hot air power	1600 W
Microwave frequency	2450 MHz
Main functions	Microwave, Grill, Microwave + Grill, Hot air, Microwave + Hot air, Grill + Fan, Automatic defrost (weight) and manual (time), Special functions (Potatoes, Popcorn, Pizza)
Allowed dishware types	Glass, porcelain, metal-free ceramic, heat-resistant plastic, microwave-safe paper/cardboard. Prohibited: metal, aluminum (except exceptions), lead crystal
Cleaning and maintenance	Regular cleaning with damp cloth and mild detergent. Lowerable grill for ceiling cleaning. Mica cover do not remove. Replaceable lamp
Safety	Child safety lock (press Stop for 3 s), automatic stop when door opens, protection lock, mandatory grounding
Spare parts and repairability	Halogen lamp 12 V / 10 W user-replaceable. Other repairs by qualified technician only
General information	User manual in French available. Warranty and support via Bertazzoni network. Complies with FCC regulation section 18

Frequently Asked Questions - MAST30SOEX BERTAZZONI

How to set the oven clock?

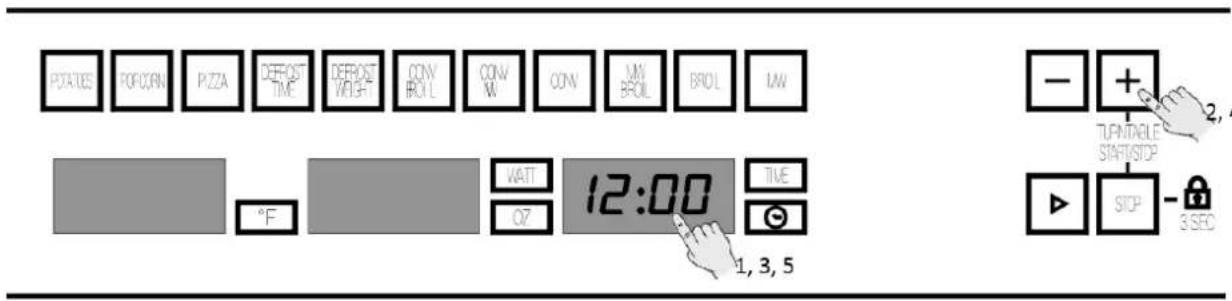

Press the Clock key for 6 seconds. The hours flash, set them with the + and - keys. Press Clock again for minutes, then confirm. To display the time, briefly press Clock.

What to do if the oven does not heat?

Check that the plug is connected, the door is properly closed (click), the safety lock is not active (screen shows 'SAFE'), and the power and time are correctly set. If nothing works, contact a technician.

Can I use metal or aluminum containers?

No, except exceptional cases: shallow aluminum containers (height < 3 cm) without lid, placed directly on the turntable and without contact with the walls. Aluminum foil can be used to protect food tips, but without touching the walls. When in doubt, use suitable glass or porcelain.

How to clean the inside of the oven?

After each use, wipe the walls with a damp cloth. For stubborn dirt, place a glass of water and heat for 2-3 minutes at maximum power to soften residues. Do not use abrasive products or metal scrapers. The grill can be lowered to clean the ceiling (rotate the support 180°, lower gently). Never remove the mica cover.

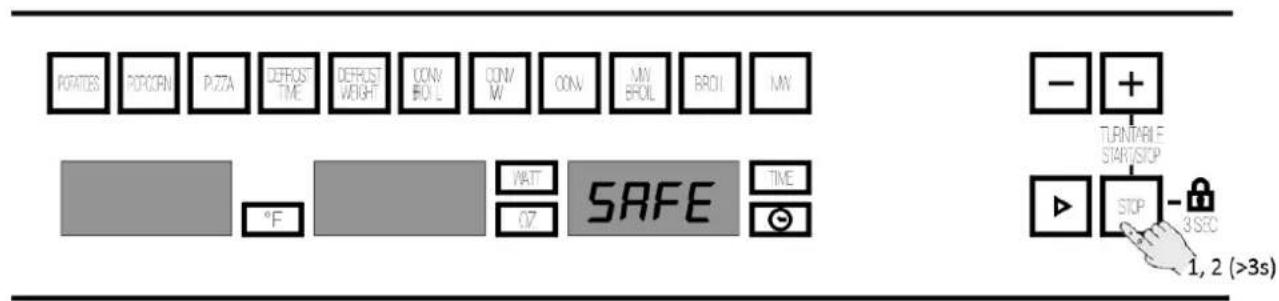

How to unlock the child safety lock?

Press the Stop key for 3 seconds. The screen no longer shows 'SAFE' and the oven is unlocked. An audible signal confirms the operation.

What types of dishware are suitable for the microwave?

Use glass, porcelain, ceramic without metal decorations, heat-resistant plastic (up to 250 °C), and microwave-safe paper/cardboard. Avoid metal, aluminum (except exceptions), lead crystal, and ordinary paper plates. Test the dishware: if it gets too hot after 20 s at maximum power, do not use it.

How long to defrost 500 g of meat?

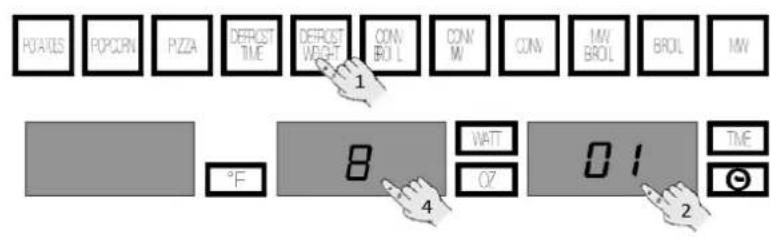

Use the Automatic defrost function (weight): select program 01 (meat) and set the weight. The time will be calculated automatically. For manual defrosting, allow about 10-12 minutes at 200 W, turning halfway through. Let rest for 20-30 minutes afterwards.

What to do in case of electric arc (sparks) in the oven?

Immediately stop the oven and open the door. Remove any metal object (container, aluminum, staple) that could cause the arc. Check that the dishware is suitable and does not touch the walls. If the problem persists, contact technical service.

Do I need to preheat the oven for combined cooking?

For the Microwave + Hot air functions, first preheat in Hot air mode alone at the desired temperature, then switch to combined mode after placing the food. For other functions (Microwave, Grill, etc.), preheating is generally not necessary unless otherwise indicated.

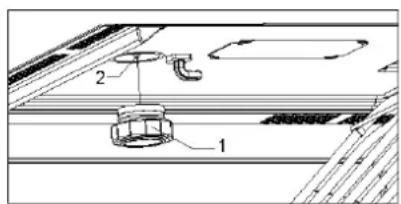

How to replace the oven interior lamp?

Unplug the oven. Unscrew the glass lamp cover (1). Remove the old halogen lamp 12 V / 10 W (caution: it may be hot). Install the new one without touching the surface with your fingers (use a cloth or gloves). Screw the cover back on and reconnect.

USER MANUAL MAST30SOEX BERTAZZONI

EN Instruction Manual

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.

Grounding Instructions....4

Important safety instructions ....5

Precautions to avoid possible exposure to excessive Microwave energy 7

Precautions to be observed before and during servicing to avoid possible exposure to excessive

Microwave energy....8

The advantages of microwaves....11

Description of your oven....12

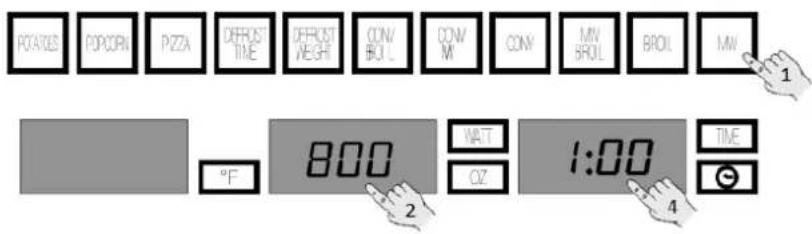

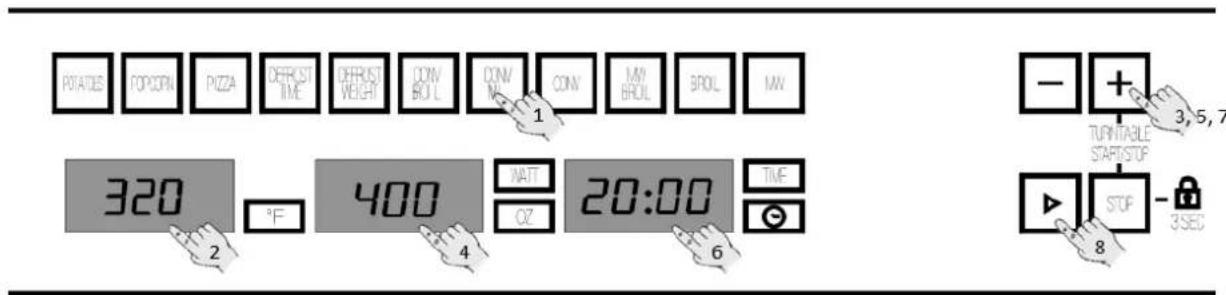

Basic controls....14

Basic Functions....16

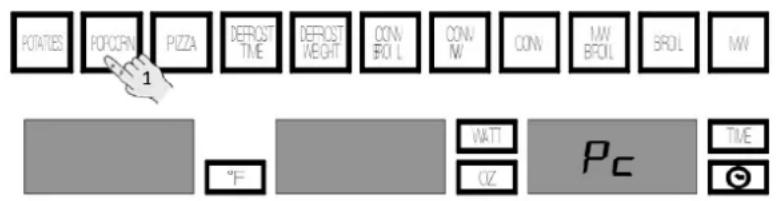

Special functions....21

When the oven is working....23

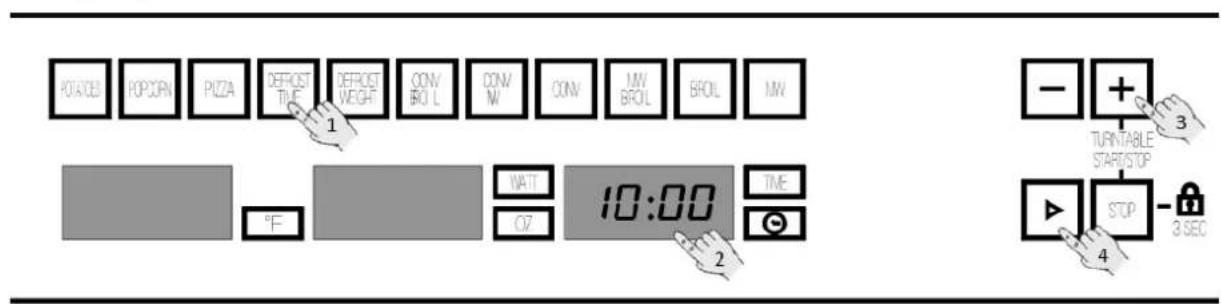

Defrosting....24

Cooking with a microwave oven 26

Cooking with the grill 28

Roasting and baking....31

What kind of ovenware can be used? 34

Oven Cleaning and Maintenance....36

What should I do if the oven doesn't work? 38

Technical characteristics....39

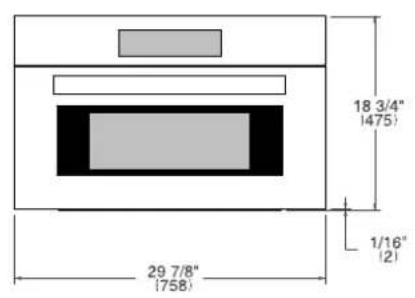

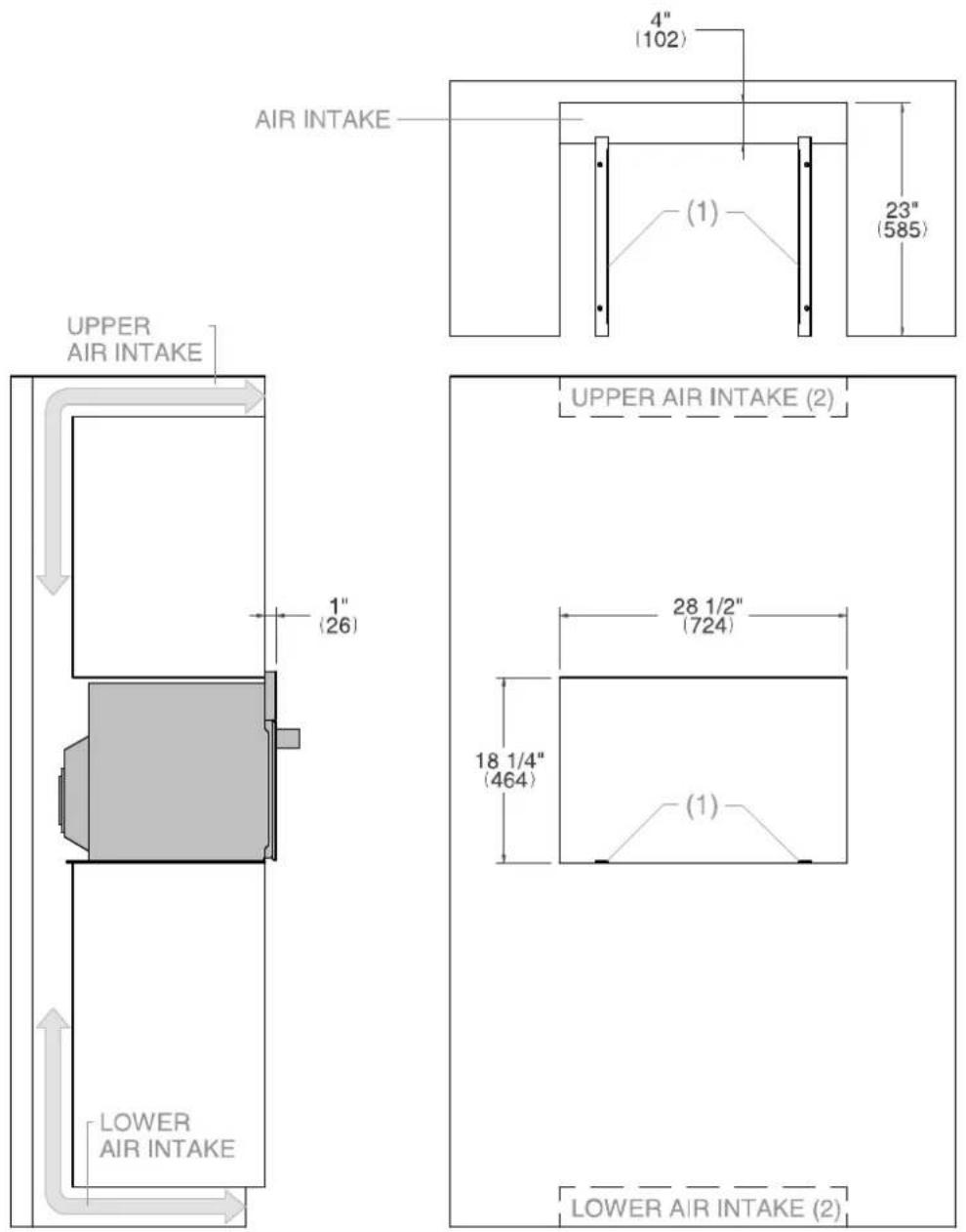

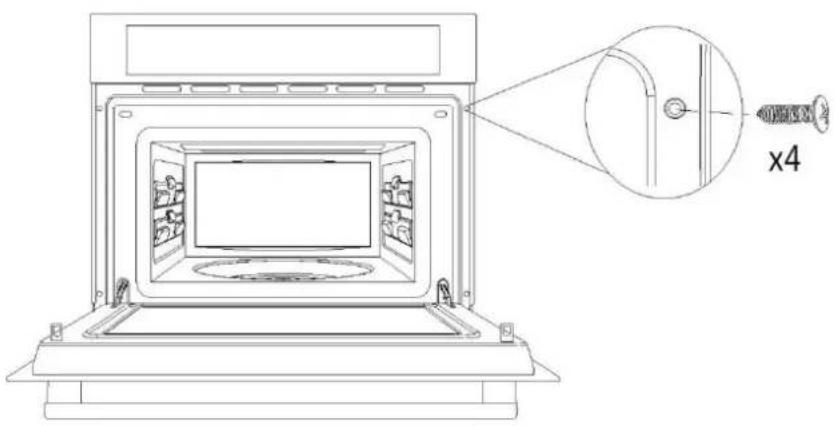

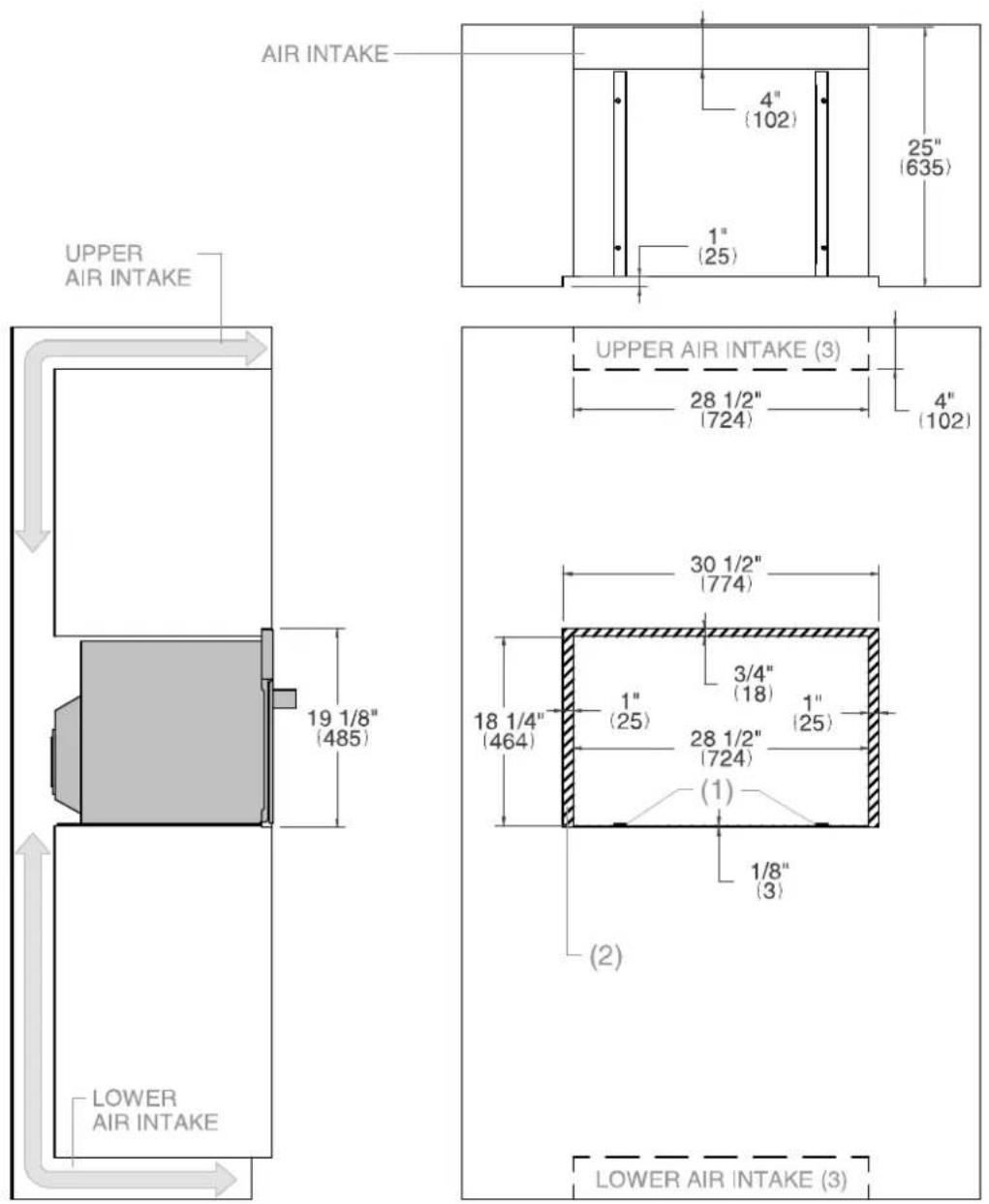

Installation instructions ....40

Installation dimensions......Error! Bookmark not defined.

Dear Customer,

Before going any further, we want to thank you for preferring our BERTAZZONI product. We are sure that this modern, functional and practical microwave oven, manufactured with top quality materials, will fully meet your expectations.

We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from using your microwave oven.

KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.

Always keep the instruction manual handy. If you lend the microwave oven to someone else give them the manual as well!

The Speed Oven PROF30SOEX and MAST30SOEXO complies with Part 18 of the FCC rules.

The user manual is also available for download at www.bertazzoni.com

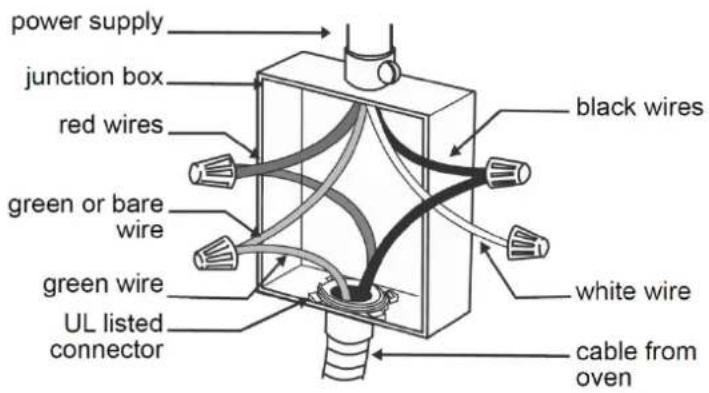

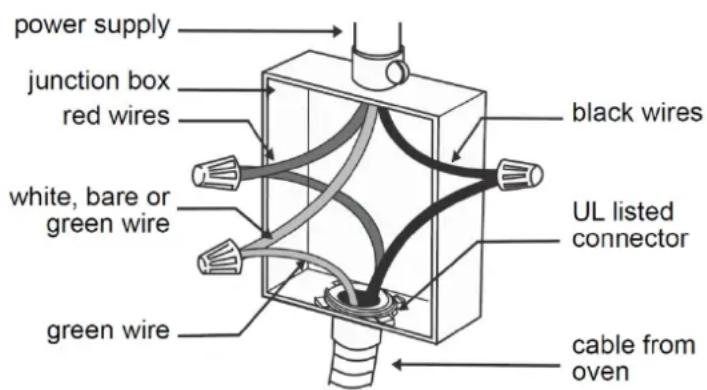

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Warning! IMPROPER USE OF THE GROUNDING CAN RESULT IN A RISK OF ELECTRICAL SHOCK.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded, and do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

Warning! To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

• Read all instructions before using the appliance.
• Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on this manual.
• This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on this manual.
• Install or locate this appliance only in accordance with the provided installation instructions.
• Some products such as whole eggs and sealed containers – for example, closed glass jars are able to explode and should not be heated in this oven.
• Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
• As with any appliance, close supervision is necessary when used by children.
• Do not operate this appliance if it is has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
• This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.
• Do not cover or block any openings on the appliances.
• Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not let cord hang over edge of table or counter.
• When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

USA

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire in the oven cavity:

• Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
• Remove wire twist-ties from paper or plastic bags before placing bag in oven.
• If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
• Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
• Liquids such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL INTO THE LIQUID.

Two glass bowls: one with a spoon inside, the other with a black 'X' symbol (no text or labels)

To avoid that type of situation when heating liquids, put a teaspoon or glass rod inside the container.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open – door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
(e) A microwave leakage check to verify compliance with the Federal Performance Standard should be performed on each oven prior to release to the owner.

Pacemakers:

Most pacemakers are shielded from interference from electronic products, including microwaves. However, patients with pacemakers may wish to consult their physicians if they have concerns.

USA

PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not operate or allow the oven to be operated with the door open.
(b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary: interlock operation, proper door closing, seal and sealing surfaces (arcing, wear, and other damage), damage to or loosening of hinges and latches, evidence of dropping or abuse).
(c) Before turning on microwave power for any service test or inspection within the microwave generating compartment, check the magnetron, wave guide or transmission line, and cavity for proper alignment, integrity and connection.
(d) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation and transmission systems, shall be repaired, replaced, or adjusted by procedures described in this manual before the oven is released to the owner.
(e) A microwave leakage check, to verify compliance with the Federal Performance Standard, should be performed on each oven prior to release to the owner.

Microwave safety

• Warning! Never leave the oven unwatched, especially when using paper, plastic or other combustible materials. These materials can char and may fire. FIRE RISK!
• Warning! Do not heat pure alcohol or alcoholic drinks in the microwave. FIRE RISK!
• Warning! Do not heat liquids or other foods in closed containers since these may explode readily.
• Warning! This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Warning! If the oven has a combined function mode (microwave with other means of heating), children should not be allowed to use the oven without adult supervision on account of the high temperatures generated.

• Warning! The oven cannot be used if:

• The door is not closed correctly;

• The door hinges are damaged;
• The surfaces of the contact between the door and the oven front are damaged;
• The door window glass is damaged;
• There is frequent electrical arcing inside the oven even though there is no metal object inside.

The oven can only be used again after it has been repaired by a Technical Assistance Service technician.

Beware!

• Never heat baby foods or drinks in bottles or jars with the teats or lids on them. After heating the food mix or shake well so that the heat is spread evenly. Check the food temperature before feeding this to the child. DANGER OF BURNING!
• To avoid food overheating or burning it is very important not to select long time periods or power levels that are too high when heating small quantities of food. For example, a bread roll can burn after 3 minutes if the power selected is too high.
• For toasting, use just the grilling function and watch the oven all the time. It you use a combined function to toast bread it will catch fire in a very short time.
• Make sure you never catch the power cables of other electrical appliances in the hot door or the oven. The cable insulation may melt. Danger of short-circuiting!

Microwave safety

This oven is exclusively for domestic use!

Use the oven only for preparing meals.

Avoid damaging the oven or other dangerous situations by following these instructions:

• Do not switch on the oven without the turntable support, the turntable ring and the respective plate being in place.
• Never switch on the microwave when it is empty. If there is no food inside there may be an electrical overcharge and the oven could be damaged. RISK OF DAMAGE!
• For carrying out oven programming tests put a glass of water inside the oven. The water will absorb the microwaves and the oven will not be damaged.
• Use only dishes suitable for microwaves. Before using dishes and containers in the microwave, check that these are suitable (see the section on types of dishes).
• Never remove the mica cover on the ceiling of the oven interior! This cover stops fat and pieces of food damaging the microwave generator.
• Do not keep any inflammable object inside the oven as it may burn if the oven is switched on.
• Do not use the oven as a pantry.
• Eggs with their shells and whole boiled eggs must not be heated in microwave ovens because they may explode.
• Do not use the oven for frying as it is impossible to control the temperature of oil heated by microwaves.
• To avoid being burnt, always use oven gloves for handling dishes and containers and touching the oven.
• Do not lean or sit on the open oven door. This may damage the oven, especially in the hinge zone. The door can bear a maximum weight of 8 kg.

- The turntable and the grills can bear a maximum load of 8 kg. To avoid damaging the oven, do not exceed this load.

Cleaning:

• Warning! Your microwave oven must be cleaned regularly. All food remains must be removed (see section on Oven Cleaning). If the microwave oven is not kept clean its surface may deteriorate and this may shorten the oven's working life and could even result in a dangerous situation.
• The door contact surfaces (the front of the cavity and the inside part of the doors) must be kept very clean in order to ensure the oven functions correctly.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• Do not use high pressure or stream jet cleaning appliances.
• Please follow the instructions regarding cleaning in the section "Oven Cleaning and Maintenance".

Repairs:

• Warning – Microwaves! The outer protection of the oven must not be removed. It is dangerous for anyone not authorized by the manufacturer to carry out any kind of repair or maintenance work.
• If the power cable is damaged it should be substituted by the manufacturer, authorized agents or technicians qualified for this task in order to avoid dangerous situations. Furthermore, special tools are required for this task.
• Repair and maintenance work, especially of current carrying parts, can only be carried out by technicians authorized by the manufacturer.

The advantages of microwaves

In conventional ovens, heat radiated by electrical elements or gas burners slowly penetrates the food from outside to inside. On account of this there is a major amount of energy is wasted heating the air, the oven components and the food containers.

In a microwave oven, heat is generated by the food itself and the heat travels from inside to outside. No heat is lost to the air, the walls of the oven cavity or the dishes and containers (if these are suitable for use in microwave oven), in other words, only the food is heated.

Microwave ovens have the following advantages:

1. Shorter cooking times; in general these are up to 3/4 less than the time required for conventional cooking.
2. Ultra-fast food defrosting, thus reducing the danger of bacterial development.
3. Energy savings.
4. Conservation of the nutritional value of foods due to the shorter cooking times.
5. Easy to clean.

How a microwave oven works

In a microwave oven there is a high tension valve called a magnetron which converts electrical energy into microwave energy. These electromagnetic waves are channeled to the interior of the oven through a wave guide and distributed by a metallic spreader or through a turntable.

Inside the oven the microwaves propagate in all directions and are reflected by the metal walls, uniformly penetrating the food.

Why food heats up

Most foods contain water and water molecules vibrate when subjected to microwaves.

The friction between molecules produces heat which raises the temperature of the food, defreezing it, cooking it or keeping it hot.

Since the heat arises inside the food:

• This can be cooked with little or no liquid or fats/oils;
• De-freezing, heating or cooking in a microwave oven is quicker than in a conventional oven;
• The vitamins, minerals and nutritional substances in the food are conserved;
• The natural color and aroma of the food are unchanged.

Microwaves pass through china, glass, cardboard or plastic but do not go through metal. For this reason, metal containers or ones with metal parts must not be used in a microwave oven.

Microwaves are reflected by metal...

... but go through glass and china...

... and are absorbed by foods.

USA

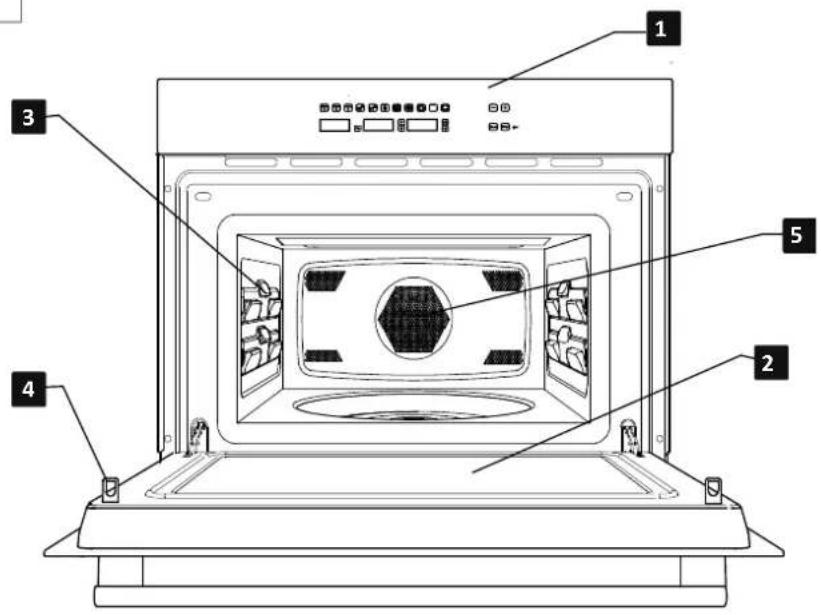

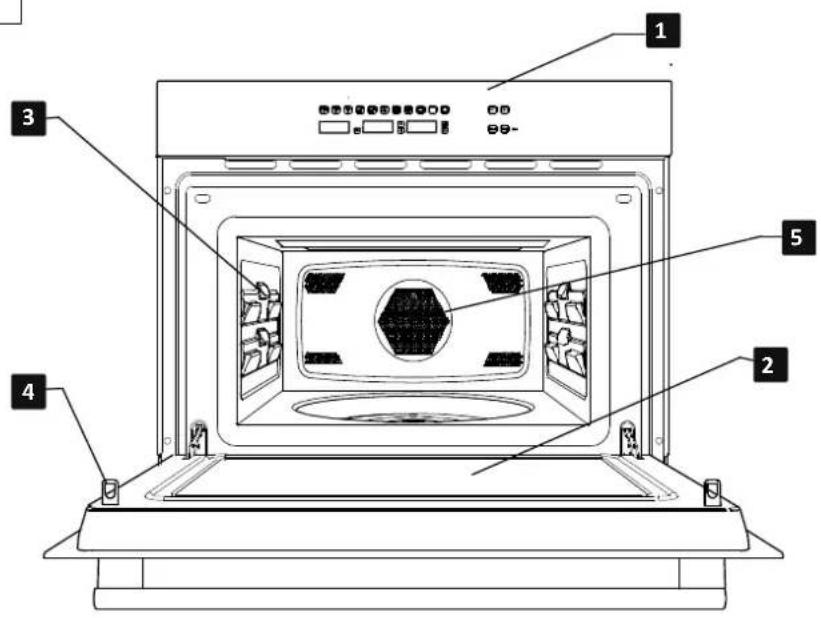

Description of your oven

1. • Control panel
2. • Door window glass
3. – Lateral supports
4. • Catches

5. – Hot Air Output

6. – Turntable support

7. • Turntable ring
8. – Turntable plate

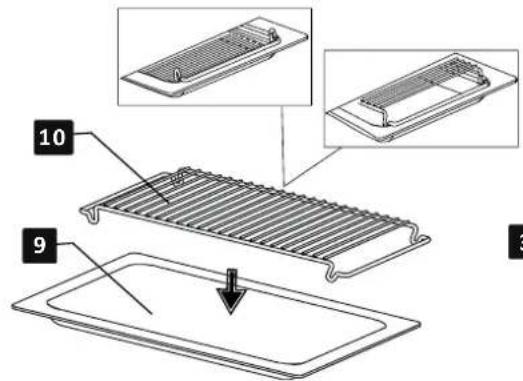

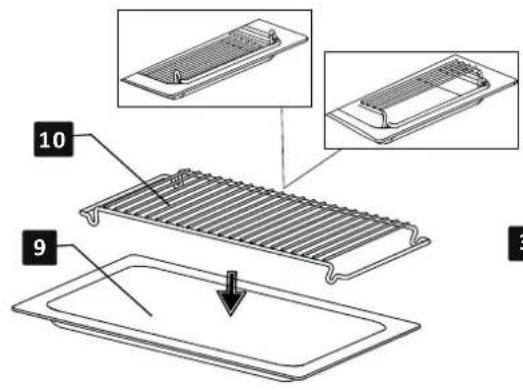

9. • Glass tray
10. • Rectangular Rack

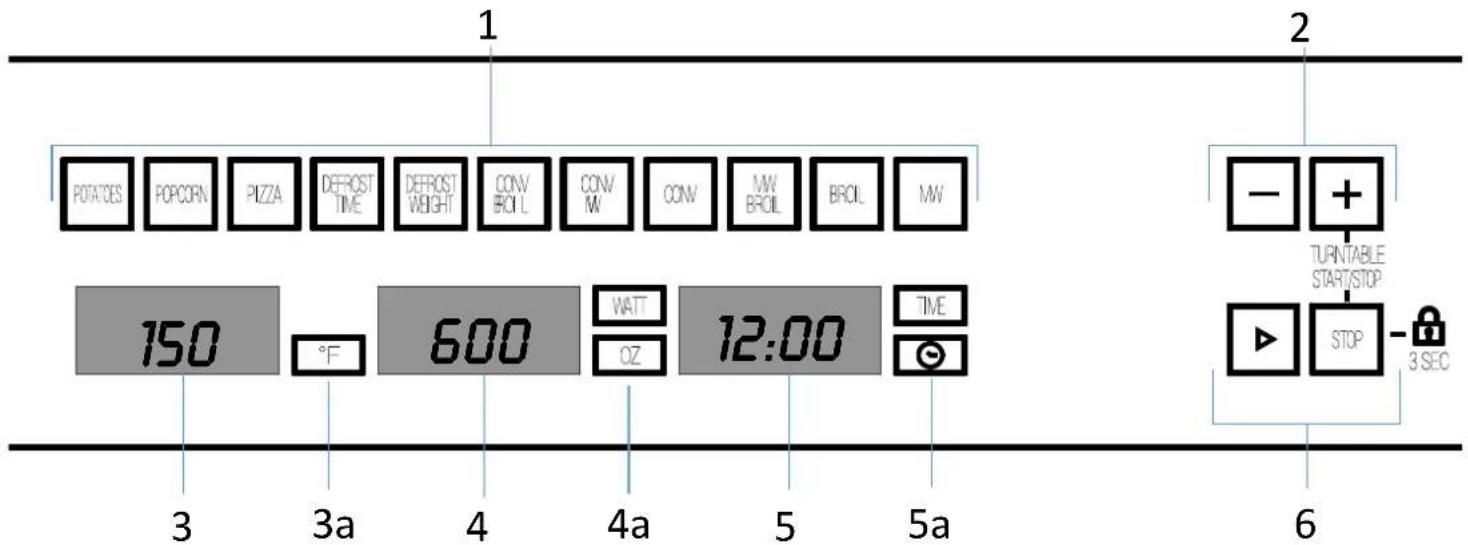

1. – Function selection keys
2. • “+” and “-” keys
3. – Oven Temperature selection key
   3a.- Oven Temperature indication light
4. – Power/Weight selection key

4a.-Power/Weight indication lights
5. – Clock/ Time selection key
5a.-Clock/ Time indication lights
6. – Start and Stop/ Safety blocking keys

Description of your oven

Description of Functions

Symbol	Function	Microwave Power Output	Foods
	Microwave	200 W	Slow defrosting for delicate foods; keeping food hot.
		400 W	Cooking with little heat; boiling rice.Rapid defrosting, heating baby food.
		600 W	Heating and cooking food.
		800 W	Cooking vegetables and food.Cooking and heating carefully.Heating and cooking small portions of food.
		1000 W	Rapidly heating liquids.
	Broil		Grilling food.
	Microwave + Broil	200 W	Toasting food.
		400 W	Grilling poultry and meat.
		600 W	Cooking pies and cheese-topped dishes.
	Convection	---	Roasting and baking.
	Convection + Microwave	---	Grilling meat and fish.
			Grilling poultry.
			Potatoes – deep-frozen, defrosting and roasting.
	Convection + Broil	200-600 W	Quick meat, fish and poultry roasting.Baking cakes.
	Defrosting	---	Defrosting by weight (automatic)
	Defrosting	---	Defrosting by time (manual)
	Pizza	---	Baking pizza.
	Popcorn	---	Cook popcorn.
	Potatoes	---	Cook potatoes.

USA Basic controls

Setting the clock

After your microwave oven is first plugged in or after a power failure, the clock display will flash to indicate that the time shown is not correct. To set the clock, proceed as follows:

1. Press the Clock key for 6 seconds (not necessary on first plug-in or after a power failure). The hour numbers will start to flash.

2. Press key “-” and “+” to set the hours.

3. Press again the Clock key to set the minutes. The minute numbers will start to flash.
4. Press key “-” and “+” to set the minutes.
5. To finish, press the Clock key again.

Displaying the Clock

To save energy, the clock is normally hidden.

If you want to see the clock, press the Clock key briefly and the clock will be visible.

Safety blocking

The oven functioning can be blocked (for example, to stop it being used by children).

1. To block the oven, press the Stop key for 3 seconds. You will hear a sound signal and the display will show the word "SAFE". The

oven is blocked in this state and cannot be used.

1. To unblock the oven, press the Stop key again for 3 seconds. You will hear a sound signal and the display will show the time again.

Basic controls

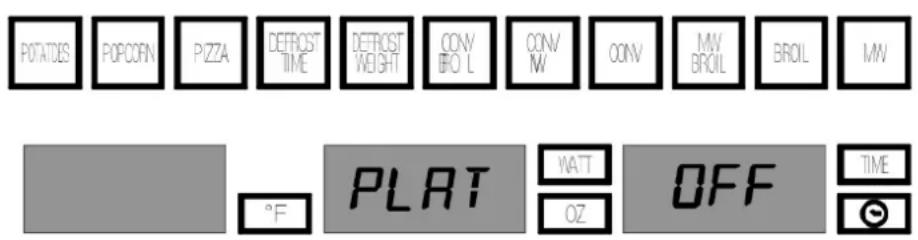

Stopping the rotating plate

1. To stop the rotating plate, press the “+” key and the “Stop” key at the same time

2. To start plate rotation again, press the “+” Key and the “Stop” key at the same again.

USA Basic Functions

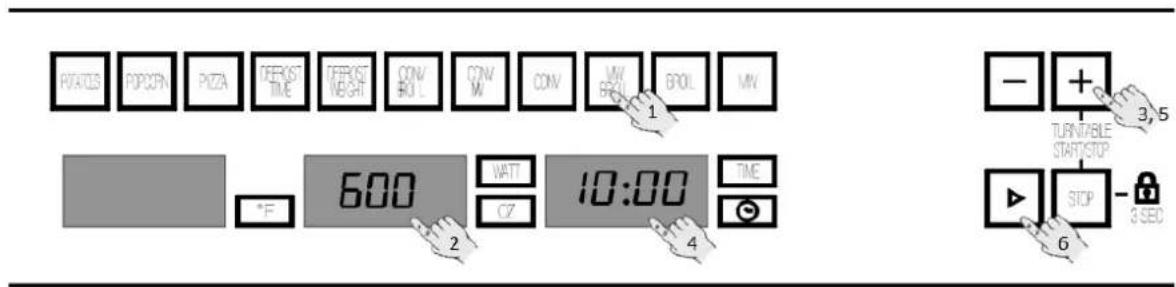

Microwave

1. Press the Microwave function key. The function key lights up.
2. Press the Power Selection key to change the microwave power. The respective light will start to flash. If you do not press this key, the oven operates at 800 W.

3. To change the microwave power press key “-” and “+”.

4. Press the Time Selection key to change the operating time. The correspondent light will start to flash.

5. Press key “-” and “+”, to change the function time (e.g. 1 minute).
6. Press the START key. The oven will start to operate

NOTE: When 1000 W power is selected, the operating time is limited to a maximum of 15 minutes.

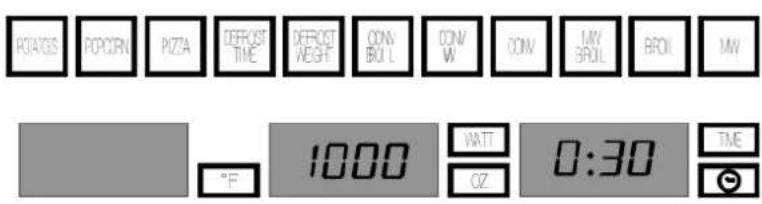

Microwave – Quick Start

1. Press the Start key. The oven starts to operate in the Microwave function at maximum power for 30 seconds.
2. If you want to increase the operating time press the Start key again. Each time you press this key

the operating time will be increased by 30 seconds.

NOTE: When 1000 W power is selected, the operating time is limited to a maximum of 15 minutes.

WARNING! Never switch on the microwave when it is empty. If there is no food inside there may be an electrical overcharge and the oven could be damaged. RISK OF DAMAGE!

WARNING! When using small loads, such as popcorn bags, place a glass of water on one of the cavity corners to avoid damages.

Basic Functions

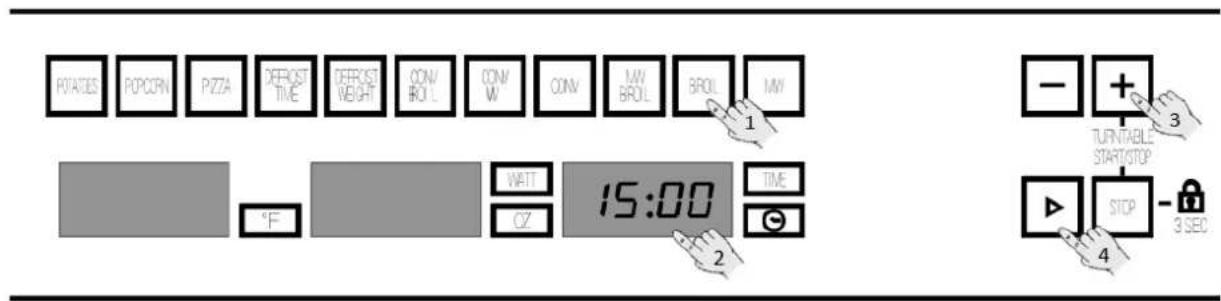

Broil

1. Press the function key Broil. The function key lights up.

2. Press the Time Selection key to change the operating time. The correspondent light will start to flash.

3. Press key “-” and “+”, to change the function time (e.g. 15 minutes).

4. Press the Start key. The oven will start to operate.

Microwave + Broil

1. Press the function key Microwave + Broil. The function key lights up.
2. Press the Power Selection key to change the microwave power. The respective light will flash. If you do not press this key, the oven operates at 600 W.
3. To change the microwave power press key “-” and “+”.

4. Press the Time Selection key to change the operating time. The respective light will start to flash.

5. Press key “-” and “+”, to change the function time (e.g. 10 minutes).

6. Press the Start key. The oven will start to operate.
7. In combined mode, the microwave oven power is limited to 600 W.

WARNING! Never switch on the microwave when it is empty. If there is no food inside there may be an electrical overcharge and the oven could be damaged. RISK OF DAMAGE!

USA Basic Functions

Convection

1. Press the function key Convection. The function key lights up.
2. Press the temperature key to change the temperature. The respective light will flash. If you do not press this key, the oven operates at 320°F.

3. To change the temperature press key “-” and “+”.

4. Press the Time Selection key to change the operating time. The respective light will start to flash.

5. Press key “-” and “+”, to change the function time (e.g. 20 minutes).
6. Press the Start key. The oven will start to operate.

Convection + Microwave

1. Press the function key Convection + Microwave. The function key lights up.
2. Press the Temperature Selection key to change the temperature. The respective light will start to flash. If you do not press this key, the oven operates at 320^ F.
3. Press key “-” and “+”, to change the temperature.
4. Press the Power Selection key to change the microwave power. The respective light will flash. If you do not press this key, the oven operates at 400W.
5. To change the microwave power press key “-” and “+”.

6. Press the Time Selection key to change the operating time. The respective light will start to flash.

7. Press key “-” and “+”, to change the function time (e.g. 20 minutes).

8. Press the Start key. The oven will start to operate,
9. In combined mode, the microwave oven power is limited to 600W.

WARNING! Never switch on the microwave when it is empty. If there is no food inside there may be an electrical overcharge and the oven could be damaged. RISK OF DAMAGE!

WARNING! For pre-heating the cavity, please select the Convection function with the desired temperature, and then switch to the Microwave + Convection after placing the food in the cavity.

Basic Functions

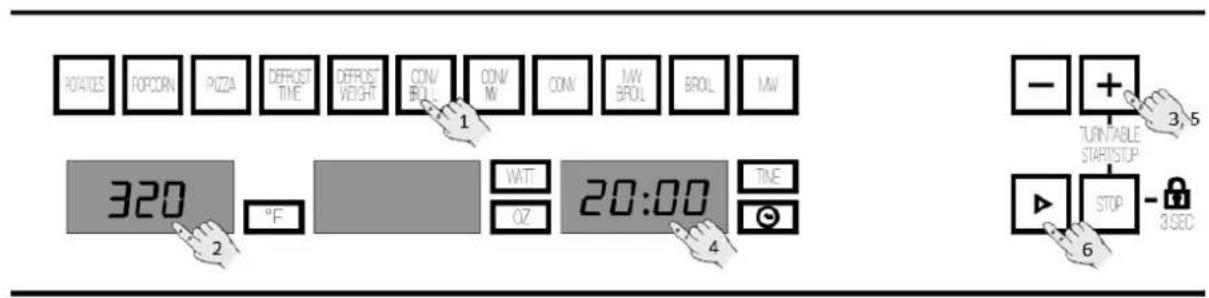

Convection + Broil

1. Press the function key Convection + Broil. The function key lights up.
2. Press the Temperature key to change the temperature. The respective light will flash. If you do not press this key, the oven operates at 320 °F.

3. To change the temperature press key “-” and “+”.

4. Press the Time Selection key to change the operating time. The respective light will start to flash

5. Press key “-” and “+”, to change the function time (e.g. 20 minutes).
6. Press the Start key. The oven will start to operate.

Defrosting by time (manual)

1. Press the function key Defrosting by time. The function key lights up.
2. Press the Time Selection key to change the function time. The respective light will flash.

3. Press key “-” and “+”, to change the function time (e.g. 10 minutes).

4. Press the Start key. The oven will start to operate.

Note: Stir or mix the foods several times during heating, especially when the oven emits a beep and the display is flashing turn

USA Basic Functions

Defrosting by weight (automatic)

1. Press the function key Defrosting by weight. The function key lights up.
2. Press the Food Type selection key to change the food type. The respective lights will flash.
3. Press key “-” and “+”, to change the program, e.g. “Pr 01” (see following table).

4. Press the Weight Selection key to define the food weight. The respective light will flash.

5. Press key “-” and “+”, to change the weight.

6. Press the Start key. The oven will start to operate.
7. Turn the food whenever the oven lets out a beep, and the display flashes de word turn. Press the Start key to resume.

The following table shows the defrosting by weight function programs, indicating weight intervals, and defrosting and standing times (in order to ensure the food is of a uniform temperature).

Program	Food	Weight (OZ)	Time (min)	Standing time (min)
01	Meat	4 – 80	2,30 – 50	20 – 30
02	Poultry	4 – 100	2,40 – 67	20 – 30
03	Fish	4 – 80	2 – 45,30	20 – 30
04	Fruit	4 – 40	3 – 30	10 – 20
05	Bread	4 – 60	3 – 42	10 – 20

Important Note: see "General instructions for defrosting".

Special functions

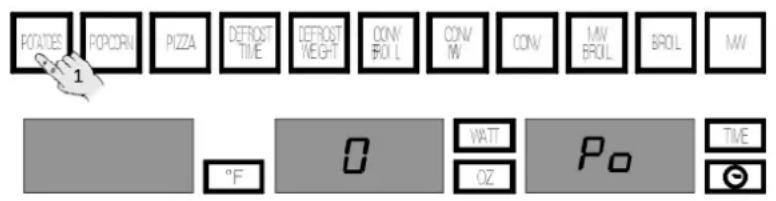

Special Function: POTATOES

1. Press the function key Potatoes. The function key lights up.
2. Press key “-” and “+”, to change the weight.

Important Notes:

• Always use dishes for use in the microwave oven and a lid or cover to avoid loss of liquids.

• The time required to heat the food will depend on its initial temperature. Food taken straight from the fridge will take longer to heat up than food that is at room temperature.

• Press the Start key. The oven will start to operate.

• If the food temperature is not what is wanted, select a greater or lesser weight next time you heat up the food.

• After heating, stir the food or shake the container and then leave the food to stand for some time to allow the temperature to become uniform throughout the food.

Warning! After heating the container may be very hot. Although microwaves do not heat up most containers, these may heat up through heat transmission from food.

Special Function: POPCORN

1. Press the function key Popcorn. The function key lights up.

Important Notes:

- Always use dishes for use in the microwave oven and a lid or cover to avoid loss of liquids.

1. Press the Start key. The oven will start to operate.

Warning! After heating, the container may be very hot. Although microwaves do not heat up most containers, these may heat up through heat transmission from food.

USA

Special functions

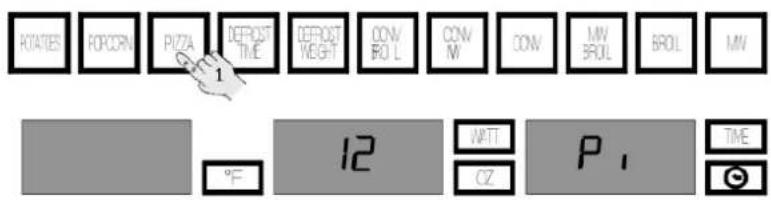

Special Function: PIZZA

1. Press the function key Pizza. The function key lights up.

2. Press key “-” and “+”, to change the weight.

3. Press the Start key. The oven will start to operate.

Important Notes:

- Always use dishes that are suitable for microwaving and heat resistant (e.g. baking dishes). The oven produces very high temperatures.

Warning! After heating, the container may be very hot. Although microwaves do not heat most containers, they can get very hot due to heat transfer.

When the oven is working...

Interrupting a cooking cycle

You can stop the cooking process at any time by pressing the Stop key once or by opening the oven door.

In both cases:

• Microwave emission is stopped immediately.
• The grill is de-activated but is still very hot. Danger of burning!
• The timer stops and the display show the remaining amount of operating time.

If you wish, at this time you can:

1. Turn or stir the food to ensure it will be evenly cooked.
2. Change the process parameters.
3. Cancel the process by pressing the Stop key.

To restart the process, close the door and press the Start key

Altering parameters

The operating parameters (time and temperature) can only be altered when the cooking process has been interrupted by proceeding as follows:

1. To alter the time, press key “-” and “+”. The new time defined is immediately valid.
2. To alter the power, press the Power Selection key. The display and respective light start to flash. Alter the parameter by pressing the “-” and “+” keys and confirm by pressing the Power Selection key again.

Cancelling a cooking cycle

If you wish to cancel the cooking process, press the Stop key twice.

You will then hear a beep and the blinking dots ":" will appear on the display.

End of a cooking cycle

At the end of the process you will hear three beeps and the display will show the word "End".

The beeps are repeated every 30 seconds until the door is opened or the Stop key is pressed.

USA Defrosting

The table below shows different defrosting and standing times (in order to ensure the food temperature is evenly distributed) for

different types and weights of food, plus recommendations.

Food	Weight (oz.)	Defrosting time (min)	Standing time (min)	Recommendation
Portions of meat, veal, beef, pork	4	2-3	5-10	Turn once
	7	4-5	5-10	Turn once
	17-18	10-12	10-15	Turn twice
	35-36	21-23	20-30	Turn twice
	51-53	32-34	20-30	Turn twice
	70-71	43-45	25-35	Turn twice
Goulash	17-18	8-10	10-15	Turn twice
	35-36	17-19	20-30	Turn twice
Minced meat	4	2-4	10-15	Turn once
	17-18	10-14	20-30	Turn twice
Sausages	7	4-6	10-15	Turn once
	17-18	9-12	15-20	Turn twice
Poultry (portions)	8-9	5-6	5-10	Turn once
Chicken	35-36	20-24	20-30	Turn twice
	90	38-42	25-35	Turn twice
Fish fillet	7	4-5	5-10	Turn once
Trout	8-9	5-6	5-10	Turn once
Prawns	4	2-3	5-10	Turn once
	17-18	8-11	10-20	Turn twice
Fruit	7	4-5	5-10	Turn once
	10-11	8-9	5-10	Turn once
	17-18	11-14	10-20	Turn twice
Bread	17-18	4-5	5-10	Turn once
	17-18	10-12	10-15	Turn once
	28-29	15-17	10-20	Turn twice
Butter	8-9	8-10	10-15
Cream cheese	8-9	6-8	10-15
Creams	8-9	7-8	10-15

Defrosting

General instructions for defrosting

1. When defrosting, use only dishes that are appropriate for microwaves (china, glass, suitable plastic).
2. The defrost function by weight and the tables refer to the defrosting of raw food.
3. The defrosting time depends on the quantity and thickness of the food. When freezing food keep the defrosting process in mind. Distribute the food evenly in the container.
4. Distribute the food as best as possible inside the oven. The thickest parts of fish or chicken drumsticks should be turned towards the outside. You can protect the most delicate parts of food with pieces of aluminum foil. Important: The aluminum foil must not come into contact with the oven cavity interior as this can cause electrical arcing.
5. Thick portions of food should be turned several times.
6. Distribute the frozen food as evenly as possible since narrow and thin portions defrost more quickly than the thicker and broader parts.

7. Fat-rich foods such as butter, cream cheese and cream should not be completely defrosted. If they are kept at room temperature they will be ready to be served in a few minutes. With ultra-frozen cream, if you find small pieces of ice in it, you should mix these in before serving.

8. Place poultry on an upturned plate so that the meat juices can run off more easily.

9. Bread should be wrapped in a napkin so that it does not become too dry.
10. Turn the food at regular intervals.
11. Remove frozen food from its wrapping and do not forget to take off any metal twist-tags. For containers that are used to keep frozen food in the freezer and which can also be used for heating and cooking, all you need to do is take off the lid. For all other cases you should put the food into containers that are suitable for microwave use.
12. The liquid resulting from defrosting, principally that from poultry should be discarded. In no event should such liquids be allowed to come into contact with other foods.
13. Do not forget that by using the defrosting function you need to allow for standing time until the food is completely defrosted.

Warning! Read the section "Microwave Safety" before cooking with your microwave.

Follow these recommendations when cooking with your microwave:

• Before heating or cooking foods with peel or skin (e.g. apples, tomatoes, potatoes, sausages) prick them so that they do not burst. Cut the food up before starting to prepare it.
• Before using a container or dish make sure that it is suitable for microwave use (see the section on types of ovenware).
• When cooking food with very little moisture (e.g. defrosting bread, making popcorn, etc.) evaporation is very quick. The oven then works as if it was empty and the food may burn. The oven and the container may be damaged in such a situation. You should therefore set just the cooking time necessary and you must keep a close eye on the cooking process.
• It is not possible to heat large quantities of oil (frying) in the microwave.
• Remove pre-cooked food from the containers they come in since these are not always heat resistant. Follow the food manufacturer's instructions.
• If you have several containers, such as cups, for example, set them out uniformly on the turntable plate.
• Do not close plastic bags with metal clips. Use plastic clips instead. Prick the bags several times so that the steam can escape easily.
• When heating or cooking foods, check that they reach at least a temperature of 158^ F.
• During cooking, steam may form on the oven door window and may start to drip. This situation is normal and may be more noticeable if the room temperature is low. The oven's safe working is not affected by this. After you have finished cooking,

clean up the water coming from the condensation

- When heating liquids, use containers with a wide opening, so that the steam can evaporate easily.

Prepare the foods as per the instructions and keep in mind the cooking times and power levels indicated in the tables.

Keep in mind that the figures given are only indicative and can vary depending on the initial state, temperature, moisture and type of food. It is advisable to adjust the times and power levels to each situation. Depending on the exact characteristics of the food you may need to increase or shorten the cooking times or increase or decrease the power levels.

Cooking with microwaves rules

1. The greater the amount of food, the longer the cooking time. Keep in mind that:

2. Double the quantity » double the time

3. Half the quantity » half the time

4. The lower the temperature, the longer the cooking time.

5. Foods containing a lot of liquid heat up more quickly.
6. Cooking will be more uniform if the food is evenly distributed on the turntable. If you put dense foods on the outside part of the plate and less dense ones on the center of the plate, you can heat up different types of food simultaneously.
7. You can open the oven door at any time. When you do this the oven switches off automatically. The microwave will only start working again when you close the door and press the start key.
8. Foods that are covered require less cooking time and retain their characteristics better. The lids used must let microwaves pass through and have small holes that allow steam to escape.

Cooking with a microwave oven

Tables and suggestions – Cooking vegetables

Food	Quantity (oz.)	Addition of liquids (fl oz)	Power (Watt)	Time (min.)	Standing Time (min.)	Instructions
Cauliflower	17-18	3,5	800	9-11	2-3	Cut into slices.
Broccoli	10-11	2	800	6-8	2-3	Keep covered
Mushrooms	8-9	1	800	6-8	2-3	Turn once
Peas & carrots	10-11	3,5	800	7-9	2-3	Cut into chunks or slices. Keep covered
Frozen carrots	8-9	1	800	8-10	2-3	Turn once
Potatoes	8-9	1	800	5-7	2-3	Peel and cut into equal sized pieces. Keep covered Turn once
Paprika	8-9	1	800	5-7	2-3	Cut into chunks or slices Keep covered
Leek	8-9	2	800	5-7	2-3	Turn once
Frozen Brussels sprouts	10-11	2	800	6-8	2-3	Keep covered Turn once
Sauerkraut	8-9	1	800	8-10	2-3	Keep covered Turn once

Tables and suggestions – Cooking fish

Food	Quantity (oz.)	Power (Watt)	Time (min.)	Standing Time (min.)	Instructions
Fish fillets	17-18	600	10-12	3	Cook covered over. Turn after half of cooking time.
Whole fish	28-29	800400	2-37-9	2-3	Cook covered over. Turn after half of cooking time.You may wish to cover up the small edges of the fish.

USA

Cooking with the grill

For good results with the grill, use the rectangular rack supplied with the oven.

Fit the rectangular rack in such a way that it doesn't come into contact with the metal surfaces of the oven cavity since if it does there is a danger of electric arcing which may damage the oven.

IMPORTANT POINTS:

1. When the microwave grill is used for the first time there will be some smoke and a smell coming from the oils used during oven manufacture.
2. The oven door window becomes very hot when the grill is working. Keep children away.

3. When the grill is operating, the cavity walls and the rectangular rack become very hot. You should use oven gloves.

4. If the grill is used for extended period of time it is normal to find that the elements will switch themselves off temporarily due to the safety thermostat.

5. Important! When food is to be grilled or cooked in containers you must check that the container in question is suitable for microwave use. See the section on types of ovenware!
6. When the grill is used it is possible that some splashes of fat may go onto the elements and be burnt. This is a normal situation and does not mean there is any kind of operating fault.
7. After you have finished cooking, clean the interior and the accessories so that cooking remains do not become encrusted.

Cooking with the grill

Tables and suggestions – Grill without microwave

Fish	Quantity (oz.)	Time (min.)	Instructions
Fish
Bass	28-29	18-24	Spread lightly with butter. After half of cooking time turn and spread with seasoning.
Sardines/gurnard	6-8 fish.	15-20
Meat
Sausages	6-8 units	22-26	Prick after half cooking time and turn.
Frozen hamburgers	3 units	18-20	Prick after half cooking time.
Spare rib (approx. 3 cm thick)	14-15	25-30	Brush with oil. After half of cooking time, baste and turn.
Others
Toast	4 units	112 -3	Watch toasting. Turn
Toasted sandwiches	2 units	5-10	Watch toasting.

Heat up the grill beforehand for 2 minutes. Unless indicated otherwise, use the grid iron. Place the grid on a bowl so that the water and the fat can drop. The times shown are merely indicative and can vary as a function of the composition and quantity of the food, as well as the final condition wished for. Fish and meat taste great if, before grilling, you brush them with vegetable oil, spices and herbs and leave to marinate for a few hours. Only add salt after grilling.

Sausages will not burst if you prick them with a fork before grilling.

After half the grilling time has passed, check on how the cooking is going and, if necessary, turn the food over or brush it with some oil.

The grill is especially suitable for cooking thin portions of meat and fish. Thin portions of meat only need to be turned once, but thicker portions should be turned several times. In the case of fish, you should join the two ends, putting the tail in its mouth, and then put the fish on the grid iron.

USA Cooking with the Grill

Tables and suggestions – Microwave + Grill

The microwave + grill function is ideal for cooking quickly and, at the same time, browning foods. Furthermore, you can also grill and cook cheese covered food.

The microwave and the grill work simultaneously. The microwave cooks and the grill toasts.

Food	Quantity (oz.)	Dish	Power (Watt)	Time (min.)	Standing time (min.)
Cheese topped pasta	17	Low dish	400	12-17	3-5
Cheese topped potatoes	28	Low dish	600	20-22	3-5
Lasagna	approx. 28	Low dish	600	15-20	3-5
Grilled cream cheese	approx. 17	Low dish	400	18-20	3-5
2 fresh chicken legs (grilled)	7 each	Low dish	400	10-15	3-5
Chicken	approx. 35	Low and wide dish	400	35-40	3-5
Cheese topped onion soup	2 x 7 oz. cups	Soup bowls	400	2-4	3-5

Before using a dish in the microwave oven make sure that it is suitable for microwave use. Only use dishes or containers that are suitable for microwave use.

The dish to be used in the combined function must be suitable for microwave and grill use. See the section on types of ovenware!

Keep in mind that the figures given are merely indicative and can vary as a function of the initial state, temperature, moisture and type of food.

If the time is not enough to brown the food well, put it under the grill for another 5 or 10 minutes.

Please follow the standing times and don't forget to turn the meat pieces.

Unless indicated to the contrary, use the turntable plate for cooking.

The values given in the tables are valid when the oven cavity is cold (it is not necessary to pre-heat the oven).

WARNING! Never switch on the microwave when it is empty. If there is no food inside there may be an electrical overcharge and the oven could be damaged. RISK OF DAMAGE!

Roasting and baking

Table and advices – Preparing meat and cake
Microwave / Hot air

Food	Quantity (oz.)	Power (W)	Temperature (°F)	Time (Min.)	Standing time (min.)	Instructions
Roast beef	35-53	400	390	30-40	20	Do not put lid on container Turn once
Pork loin / Cutlet or bones Pork roast	28-36	200	350-370	50-60	20	Do not put lid on container Turn once
Whole chicken	35-43	400	390	30-40	10	Do not put lid on container. Turn the chicken chest down. Turn once.
Half chicken	17-35	400	390	25-35	10	Do not put lid on container. Turn the pieces with skin down. Turn once.
Roast loin of veal	53-71	200	350	60-65	20	Do not put lid on container. Turn once or twice. After turning keep it without lid
Beef topside	53-64	200	390	80-90	20	Do not put lid on container. Turn once or twice

Microwave / Baking

Pastry	Power (W)	Temperature (°F)	Time (Min.)	Standing time (min.)	Instructions
Chocolate– cherry pie	200	390	30	5-10	Turntable, Springform, ∅ 28 cm
Cheesecake with fruit	400	350	40-45	5-10	Turntable, Springform, ∅ 28 cm
Apple pie	200	360	40-45	5-10	Turntable, Springform, ∅ 28 cm
Cheese cake with streusel	400	350	40-50	5-10	Turntable, Springform, ∅ 26 cm
Nuts cake	200	340	30-35	5-10	Turntable, Cake tin

USA

Roasting and baking

Advice to roast - bake

Turn the pieces of meat halfway through the cooking time. When the roasted meat is ready you should let it stand for 20 minutes in the oven with this switched off and closed. This will ensure the juices in the meat are well distributed.

The roasting temperature and time required depends on the type and amount of meat being cooked.

If the weight of the meat to be roasted does not appear on the table choose the settings for the weight immediately below and extend the cooking times.

Advice on ovenware

Check that the ovenware fits inside the oven.

Hot glass containers should be put on a dry kitchen cloth. If such containers are put on a cold or wet surface the glass may crack and break. Use oven gloves to take the ovenware out of the oven.

WARNING! Never switch on the microwave when it is empty. If there is no food inside there may be an electrical overcharge and the oven could be damaged. RISK OF DAMAGE!

Baking

Table and advices – baking/hot air

Type	Container	Level	Temperature (°F)	Time (min.)
Walnut cake	Spring-form type tin	Turntable	320	30/35
Fruit tart	Spring-form type tin ∅ 28 cm	Turntable	320	35/45
Ring cake	Spring-form type tin	Turntable	320	30/45
Piquant cakes e.g. Pizza made with potatoes	Spring-form type tin	Turntable	370–390	50/70
Sponge cake	Spring-form type tin ∅ 26 cm	Turntable	320	40/45
Jelly roll	Glass griddle	1	390	35/45
Cherry pie	Glass griddle	1	350-370	35/45

Advice on cake baking ware

The most commonly used type of baking ware is black metal tins. If you are also going to use the microwave, use glass, ceramic or plastic baking ware. These must be able to withstand temperatures up to 482°F. If you use these types of baking ware the cakes are not browned as much.

Advice on how to bake cakes

Different amounts and types of pastry require different temperatures and baking times. Try low settings first of all and then, if necessary, use higher temperatures next time. A lower temperature will result in more uniform baking. Always put the cake tray in the center of the turntable.

Baking suggestions

How to check if the cake is properly cooked

Start sticking a tooth pick in the highest part of the cake 10 minutes before the end of the baking time. When no dough sticks to the tooth pick the cake is ready.

If the cake is very dark on the outside:

Next time choose a lower temperature and let the cake bake for a longer time.

If the cake is very dry

Make small holes in the cake with a tooth pick after baking has finished. Then sprinkle the cake with some fruit juice or alcoholic drink. Next time increase the temperature by about 212^ F and reduce the baking time.

If the cake does not come free when turned

Let the cake cool down for 5 to 10 minutes after baking and it will come out of the tin more easily. If the cake still does not come free run a knife carefully around the edges. Next time grease the cake tin well.

Advice on saving energy

When you are making more than one cake, it is advisable to bake them in the oven one after the other when the oven is still hot. This lets you reduce the baking time for the second and later cakes.

It is preferable to use dark colored baking ware - painted or enameled black - since such baking tins absorb heat better.

When dealing with long baking times, you can switch the oven off 10 minutes before the end of the time and make use of the residual heat to complete the baking.

USA

What kind of ovenware can be used?

Microwave function

For the microwave function, keep in mind that microwaves are reflected by metal surfaces. Glass, china, clay, plastic, and paper let microwaves pass.

For this reason, metal pans and dishes or containers with metal parts or decorations cannot be used in the microwave. Glass ware and clay with metallic decoration or content (e.g. lead crystal) cannot be used in microwave ovens.

The ideal materials for use in microwave ovens are glass, refractory china or clay, or heat resistant plastic. Very thin, fragile glass or china should only be used for short period of times (e.g. heating).

Hot food transmits heat to the dishes which can become very hot. You should, therefore, always use an oven glove!

How to test ovenware you want to use

Put the item you want to use in the oven for 20 seconds at maximum microwave power. After that time, if it is cold and just slightly warm, it is suitable to use. However, if it heats up a lot or causes electric arcing it is not suitable for microwave use.

Grill and Hot air function

In the case of the grill function, the ovenware must be resistant to temperature of at least 572^ F.

Plastic dishes are not suitable for use in the grill.

Combined functions

In the combined function, the ovenware must be suitable for use in conventional heating functions.

Aluminum containers and foil

Pre-cooked food in aluminum containers or in aluminum foil can be put in the microwave if the following aspects are respected:

• Keep in mind the manufacturer's recommendations written on the packaging.
• The aluminum containers cannot be more than 3 cm high or come in contact with the cavity walls (minimum distance 3 cm). Any aluminum lid or top must be removed.
• Put the aluminum container directly on top of the turntable plate. If you use the grid iron, put the container on a china plate. Never put the container directly on the grid iron!
• The cooking time is longer because the microwaves only enter the food from the top. If you have any doubts, it is best to use only dishes suitable for microwave use.
• Aluminum foil can be used to reflect microwaves during the defrosting process. Delicate food, such as poultry or minced meat, can be protected from excessive heat by covering the respective extremities/edges.
• Important: aluminum foil cannot come into contact with the cavity walls since this may cause electrical arcing.

Lids

We recommend you use glass or plastic lids or clinging film since:

1. This will stop excessive evaporation (mainly during very long cooking times);
2. The cooking times are shorter;
3. The food does not become dry;
4. The aroma is preserved.

The lid should have holes or openings so that no pressure develops. Plastic bags must also be opened. Baby feeding bottles or jars with baby food and similar containers can only be heated without their tops / lids otherwise they can burst.

What kind of ovenware can be used?

Table of Ovenware

The table below gives you a general idea of what type of ovenware is suitable for each situation.

Operating modeType of ovenware	Microwave		Grill and Hot - Air function	Combined functions (with microwaves)
	Defrosting / heating	Cooking
Glass and china 1)Home use, not flame resistant, can be used in dish washer	yes	yes	no	no
Glazed chinaFlame resistant glass and china	yes	yes	yes	yes
China, stone ware 2)Unglazed or glazed without metallic decorations	yes	yes	no	no
Clay dishes 2)GlazedUnglazed	yes	yes	no	no
	no	no	no	no
Plastic dishes 2)Heat resistant to 212°FHeat resistant to 482°F	yes	no	no	no
	yes	yes	no	no
Plastic films 3)Plastic film for foodCellophane	no	no	no	no
	yes	yes	no	no
Paper, cardboard, parchment 4)	yes	no	no	no
MetalAluminum foilAluminum wrappings 5)Accessories	yes	no	yes	no
	no	yes	yes	yes
	yes	yes	yes	yes

1. Without any gold or silver leaf edging; no lead crystal.
2. Keep the manufacturer's instructions in mind!

3. Do not use metal clips for closing bags. Make holes in the bags. Use the films only to cover the food.

4. Do not use paper plates.

5. Only shallow aluminum containers without lids/tops. The aluminum cannot come into contact with the cavity walls.

Cleaning is the only maintenance normally required.

Warning! Your microwave oven should be cleaned regularly, with all food remains being removed. If the microwave is not kept clean its surfaces may deteriorate, reducing the oven's working life and possibly resulting in a dangerous situation.

Warning! Cleaning should be done with the oven power switched off. Take the plug out of the socket or switch off the oven's power circuit.

Do not use aggressive or abrasive cleaning products, scourers that scratch surfaces or sharp objects, since stains may appear.

Do not use high pressure or stream jet cleaning appliances.

The door contact surfaces (the front of the cavity and the inside part of the doors) must be kept very clean in order to ensure the oven functions correctly.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Front surface

Normally you just need to clean the oven with a damp cloth. If it is very dirty, add a few drops of dishwashing liquid to the cleaning water. Afterwards, wipe the oven with a dry cloth.

Immediately remove lime, fat, starch or egg white stains. Corrosion can occur under these stains.

Do not let any water get inside the oven.

Oven interior

After each time the oven is used, clean the inside walls with a damp cloth since this is the easiest way to remove splashes or spots of food that may have stuck to the inside.

To remove dirt that is harder to shift, use a non-aggressive cleaning product. Do not use oven sprays or other aggressive or abrasive cleaning products.

Always keep the door and the oven front very clean to ensure that the door opens and closes properly.

Make sure water does not enter the microwave ventilation holes.

Regularly take out the turntable plate and the respective support and clean the cavity base, especially after any liquid spillage.

Do not switch on the oven without the turntable and the respective support being in place.

If the oven cavity is very dirty, put a glass of water on the turntable and switch on the microwave oven for 2 or 3 minutes at maximum power. The steam released will soften the dirt which can then be cleaned easily using a soft cloth.

Unpleasant odors (e.g. after cooking fish) can be eliminated easily. Put a few drops of lemon juice in a cup with water. Put a spoonful of coffee in the cup to avoid the water boiling over. Heat the water for 2 to 3 minutes at maximum microwave power.

Oven ceiling

If the oven ceiling is dirty, the grill can be lowered to make cleaning easier.

To avoid the danger of burning, wait until the grill is cold before lowering it. Proceed as follows:

1. Turn the grill support by 180^ (1).
2. Lower the grill gently (2). Do not use excessive force as this may cause damage.
3. After cleaning the ceiling, put the grill (2) back in its place, carrying out the previous operation.

IMPORTANT WARNING: The grill heating element support (1) may fall when it is rotated. If this happens, insert the grill heating element support (1) into the slot in the ceiling of the cavity and rotate it 90° to the grill heating element support (2) position.

The mica cover (3) located in the ceiling must always be kept clean. Any food remains that collect on the mica cover can cause damage or provoke sparks.

Do not use abrasive cleaning products or sharp objects.

To avoid any risk, do not remove the mica cover.

The glass lamp cover (4) is located on the oven ceiling and can be removed easily for cleaning. For this you just need to unscrew it and clean it with water and dishwashing liquid.

Accessories

Clean the accessories after each use. If they are very dirty, soak them first of all and then use a brush and sponge. The accessories can be washed in a dish washing machine.

Make sure that the turntable plate and the respective support are always clean. Do not switch on the oven unless the turntable and the respective support are in place.

USA

What should I do if the oven doesn't work?

WARNING! Any type of repair must only be done by a specialized technician. Any repair done by a person not authorized by the manufacturer is dangerous.

You do not need to contact Technical Assistance to resolve the following questions:

• The display is not showing! Check if:
• The time indication has been switched off (see section on Basic Settings).
• Nothing happens when I press the keys! Check if:

- The Safety Block is active (see section on Basic Settings).

- The oven does not work! Check if:

- The plug is correctly fitted in the socket.

- The oven's power is switched on.

- The door is completely closed. The door should close with an audible click.

- There are any foreign bodies between the door and the cavity front.

- When the oven is operating I can hear some strange noises! Check if:

- There is any electrical arcing inside the oven caused by foreign metallic objects (see section on type of ovenware).

- The ovenware is touching the oven walls.

- There are any loose items of cutlery or cooking tools inside the oven.

- The food doesn't heat up or heats very slowly! Check if:

- You have inadvertently used metal ovenware.

- You have selected the correct operating times and power level.

- The food you have put inside the oven is a larger amount or colder than you usually put in.

• The food is too hot, dried out or burnt!

Check if you selected the correct operating time and power level.

- I hear some noises after the cooking process is finished! This is not a problem. The cooling fan keeps on working for some time. When the temperature has dropped sufficiently, the fan will switch itself off.

- TV/radio interference might be noticed while using the microwave, similar to the interference caused by other small appliances. This is not a problem with the Microwave. Move the radio or TV as far away from the microwave as possible, or check the position of the TV/radio antenna.

- The oven switches on but the interior light does not go on! If all the functions work properly it is probable that the lamp has blown. You can keep on using the oven

Substitution of light bulb

To substitute the light bulb, proceed as follows:

- Disconnect the oven from the power supply. Take the plug out of the socket or switch off the oven's power circuit.

- Unscrew and remove the glass light cover (1).

- Remove the halogen light bulb (2). Warning! The bulb may be very hot.

- Fit a new G4/12V/10-20W halogen bulb. Warning! Do not touch the light bulb surface directly with your fingers because you may damage the bulb. Follow the lamp manufacturer's instructions.

- Screw the glass light cover into place (1).

- Connect the oven again to the power supply.

Technical characteristics

Specifications

• AC Voltage.... 240V, 2ph, 60Hz
  • Power required 3850 W
• Broiler power.... 1500 W
• Hot air power 1600 W
• Microwave output power.... 1000 W
• Microwave frequency.... 2450 MHz
• Exterior dimensions (W×H×D). 29 34 x 18 58 x 21 12
• Interior dimensions (W×H×D). 16 ½ x 8 ¼ x 15 ½
• Oven capacity.... 1.34 ft ^3
  • Weight.... 78 lbs

USA

Installation instructions

Before installation

Check that the input voltage indicated on the rating plate is the same as the voltage of the power outlet you are going to use. The rating plate is located on the front part of the cavity and it is only visible after opening the door.

If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit.

Installer – show the owner the location of the circuit breaker or fuse. Mark it for easy reference.

Before installing, turn power OFF at the service panel. Lock service panel to prevent power from being turned ON accidentally.

Be sure your appliance is properly installed and grounded by a qualified technician. Installation, electrical connections and grounding must comply with all applicable codes.

Open the oven door and take out all the accessories and remove the packing material.

Do not remove the mica cover on the ceiling of the interior! This cover stops fat and pieces of food damaging the microwave generator.

Warning! The front surface of the oven may be wrapped with a protective film. Before using the oven for the first time, carefully remove this film, starting on the inside.

Make sure that the oven is not damaged in any way. Check that the oven door closes correctly and that the interior of the door and the front of the oven opening are not damaged. If you find any damage contact the Technical Assistance Service.

DO NOT USE THE OVEN if the metal conduit is damaged, if the oven does not function correctly or if it has been damaged or dropped. Contact the Technical Assistance Service.

Place the oven on a flat and stable surface. The oven must not be put close to any sources of heat, radios or televisions.

Electrical supply

Before installing the oven have a qualified electrician verify that your home is provided with adequate electrical service and that the addition of the oven will not overload the branch circuit on which it is to be installed.

A separate three-wire or four-wire single phase, 240 Volt, 60 Hz, branch circuit is required.

For hook-up of the oven you will need to have an approved junction box installed where it will be easily reached through the front of the cabinet where the oven will be located. The oven has 3 feet of conduit.

Allow two to three feet of slack in the line so that the oven can be moved if servicing is ever necessary.

DO NOT shorten the flexible conduit.

Wiring requirements

When making the wire connections, use the entire length of the conduit provided (3 feet). The conduit must not be cut.

Before making connections make sure the power is off and read and observe the following:

1. A separate three-wire or four-wire, single phase, 240 Volt, 60 Hz branch circuit is required for the oven.
2. The oven must be connected with Copper or Aluminum wire.
3. In the United States:

Wiring must conform to the National Electrical Code, ANSI/NFPA No. 7 latest edition. You can obtain a copy of the National Electrical Code by writing to: National Fire Protection Association Batterymarch Park Quincy, MA 02269

In Canada:

Wiring must conform to Cana dian Electrical Code C22.1- latest edition. You can obtain a copy of the Canadian Electrical Code by writing to: Canadian Standards Association 178 Rexdale Boulevard Rexdale (Toronto), Ontario, Canada M9W 1R3

1. Wire size (Copper or Aluminum wire) and connections must be suitable for the rating of the appliance as per the National Electrical Code requirements. The flexible armoured cable extending from the oven should be connected directly to the junction box.
2. The junction box should be located so as to allow as much slack as possible between the junction box and the oven so it can be moved if servicing is ever required.
3. A U.L. listed conduit connector must be provided at each end of the power supply cable.

Electrical connections

Be sure your appliance is properly installed and grounded by a qualified technician. Ask your dealer to recommend a qualified technician or an authorized repair service.

This appliance is manufactured with a green GROUND wire connected to the oven chassis. After making sure that the power has been turned off, connect the flexible conduit from the oven to the junction box using a U.L. listed conduit connector. The figures and the instructions provided below present the most common way of connecting the ovens.

Your local codes and ordinances, of course, take precedence over these instructions.

WARNING" Risk of Electric Shock, frame grounded to neutral of appliance through a link.

Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996) NEC); mobile homes; and recreational vehicles, or in an area where local codes prohibit grounding through the neutral conductor. For installations where grounding through the neutral conductor is prohibited:

• Disconnect the ground from the neutral at free end of conduit;
• Use grounding terminal or lead to ground unit; and
• Connect neutral terminal or lead to branch circuit neutral in usual manner.

3-Wire branch circuit (for US only)

Refer to the following Figure, where local codes allow the connection of GROUND wire from the oven to the branch circuit NEUTRAL wire (gray or white colored wire):

• If local codes permit, connect the green GROUND wire from the oven and the white wire from the oven to the branch circuit NEUTRAL wire (gray or white colored wire).
• Connect the red and black leads from the oven to the corresponding leads in the junction box.

Grounded Neutral

USA Installation instructions

4-Wire branch circuit (for US and CANADA)

Refer to the following Figure:

• Disconnect ground from neutral at free end of conduit.
• Connect the green GROUND wire from the oven to the GROUND wire in the junction box (bare or green colored wire).
• Connect the red and black leads from the oven to the corresponding leads in the junction box.

Ungrounded Neutral

After installation

The oven only functions when the door is closed correctly.

After the first use, clean the inside of the oven and the accessories, following the cleaning instructions given in the section "Oven cleaning and maintenance".

Fit the Turntable support in the center of the oven cavity and put the Turntable ring and the Turntable plate on top, making sure they slot in. Whenever you use the microwave, the turntable plate and the respective accessories must be inside and correctly fitted. The turntable plate can rotate in both directions.

Sommaire

Two glassware illustrations: one with a spoon inside, the other with a black 'X' symbol (no text or symbols present)

Simple line drawing of a cooking pot with arrows indicating direction (no text or symbols)

Simple line drawing of a circular container with internal lines and arrows indicating flow or movement (no text or symbols)

Illustration of a duck eating on a tray with directional arrows indicating flow or movement (no text or symbols)

FR Description du four


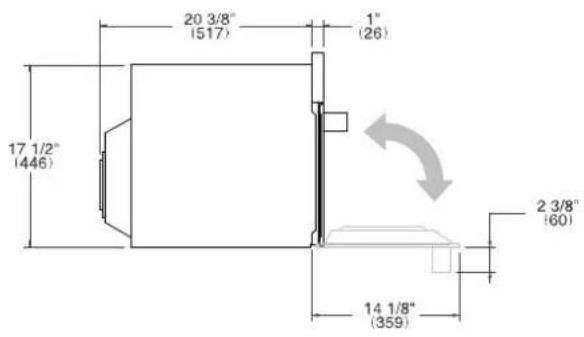

Installation dimensions / Dimensions d'Installation

(1) Spacers - Parts of standard equipment

(2) Finished surfaces - Will be visible

(3) Ensure there is an opening in the top or bottom of the cabinet as shown in the figure

Installation dimensions/ Dimensions d'Installation

(1) Spacers - Parts of standard equipment

(2) Ensure there is an opening in the top or bottom of the cabinet as shown in the figure

Technical line drawing of a furnace or oven with a magnified inset showing a screw and a cross-section view (no text or symbols)

EN

• Push oven completely into the cabinet and centre it.
• Open microwave door and fasten the appliance to the cabinet using the four screws provided. Insert the screws through the front holes.

FR
