Product type	Tumble dryer
Brand	Candy
Model	EVOC 981AT-01
Maximum load capacity	8 kg (cotton), 4 kg (synthetics)
Drum volume	115 liters
Dimensions (H x W x D)	85 x 60 x 60 cm
Power supply	230 V, 50 Hz, 10 A minimum
Grounding	Yes
Main programmes	Extra Dry, Dry, Ready to Store, Ready to Iron, Relax, Wool, Mix & Dry, Shirts, Quick 40', Time, Memory
Delayed start function	Yes, from 1 to 24 hours
Anti-crease function	Yes
Delicate drying option	Yes (low temperature)
Control type	Electronic with display and selector
Filter maintenance indicator	Yes, indicator light
Water tank emptying indicator	Yes, indicator light
Water tank	Removable, approximately 4 kg when full
Permanent drainage kit	Available (optional)
Condenser cleaning	Yes, accessible through protective cover
Lint filter	Removable, to be cleaned after each cycle
Energy class	A-40%
Operating ambient temperature	+2°C to +35°C
Adjustable feet	Yes, for leveling
After-sales service	GIAS Approved Service

Frequently Asked Questions - EVOC 981AT-01 CANDY

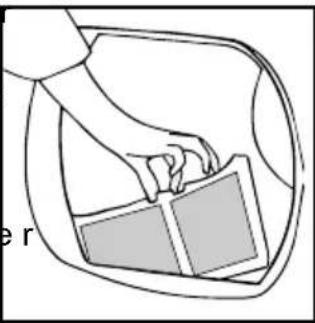

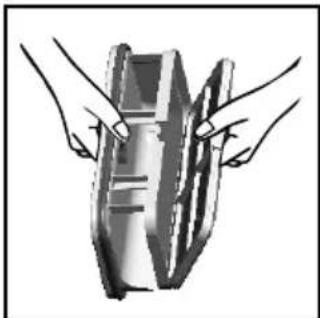

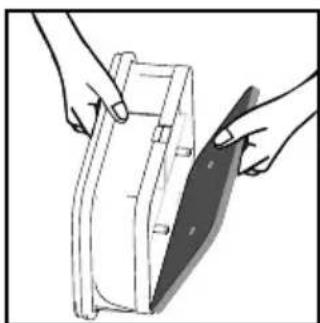

How to clean the lint filter?

Pull the filter upwards, open it and remove lint with a soft brush or your fingers. Close and replace the filter. Clean it after each cycle.

What to do if the water tank emptying indicator lights up?

Empty the water tank located at the bottom of the tumble dryer. Pull it out gently, tilt it to drain water through the rear opening, then replace it by pushing firmly.

How to clean the condenser?

Remove the lower protective cover, turn the two locking levers counterclockwise, then remove the condenser. Clean the dust with a dry cloth. Wash the sponge with water if present. Reinstall following the arrow and lock the levers.

What programmes are available?

Programmes include: Extra Dry (towels), Dry, Ready to Store, Ready to Iron, Relax (anti-crease), Wool, Mix & Dry (cotton and synthetics), Shirts, Quick 40', Time (timed) and Memory (memorized programme).

How to use the delayed start function?

Press the delayed start button several times to set a delay from 1 to 24 hours. Then press the On/Off button (▷) to start the countdown.

What to do in case of a power cut or if the tumble dryer does not start?

Check that the appliance is plugged in and the door is properly closed. Check the fuse and power supply. If the water tank is full, empty it. Press the On/Off button after closing the door.

Can I dry woollen or synthetic laundry?

Yes, use the Wool programme for woollens (12 min delicate hot air cycle) and the Mix & Dry programme or the delicate drying option (button 20) for synthetics.

How to install the permanent water drainage kit?

The kit includes a hose, a connector and fasteners. Follow the steps: unplug the appliance, remove the rear cover, disconnect the grey hose from the tank, attach the new hose with the connector, break the cover tab, pass the hose through the opening, then reconnect and reinstall the cover.

Why are clothes not dry enough at the end of the cycle?

Check that the filter and condenser are clean. Ensure the load does not exceed 8 kg and that the laundry has been properly spun. Check that the air inlets are not obstructed. Select a suitable programme (e.g., Extra Dry).

How to cancel a running programme?

Press the On/Off button (▷) for 3 seconds. The display blinks 0:00 to confirm reset.

USER MANUAL EVOC 981AT-01 CANDY

Heat Pump Tumble Dryer

Grand

Evo

8kg

A ENERGY -40%

English 2

Italiano 14

Deutsch 26

Français 38

Dutch 50

Porteguese 62

Suomi 74

Dansk 86

Norsk 98

Svenska 110

Ελληικα 122

Introduction 3

Delivery Information 3

Unpacking the Product 3

Safety Reminders 3

Use 3

Installation 4

The Laundry 4

Environmental Issues 4

Gias Service 4

Installation 5

Electrical Requirements 5

Adjusting the Feet 5

Drain Hose Kit: Fitting Instructions 5

Preparing the Load 6

Clothes Preparation 7

Do Not Tumble Dry 7

Energy Saving 7

Sorting the Load 7

Controls and Indicators 7

Selecting the Programme 8

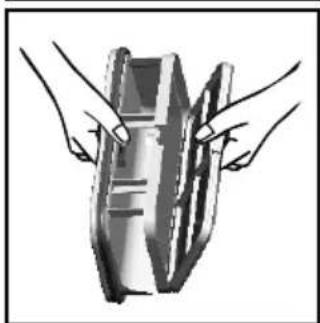

Door and Filter 9

Opening the Door 10

Filter 10

Filter Care Indicator 10

To Clean the Condenser Filter 10

Water Container 10

To Remove the Container 11

Operation 11

Delay Start Function 11

Cancelling and Resetting the Programme 12

Cleaning and Routine Maintenance 12

Cleaning the Dryer 12

Technical Specifications 12

Troubleshooting 12

Customer Service 13

Spares 13

Gias Service 13

INTRODUCTION

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Delivery Information

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS.

⚠️ Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

UNPACKING THE PRODUCT

Line drawing of a hand holding a bracket with diagonal line indicating alignment (no text or symbols)

Remove the machine from its packaging close to the final location of the machine.

1- Cut carefully around the base of the packaging and up one corner.
2- Remove the polythene sleeve and lift the dryer off the polystyrene base.

⚠ Dispose of the packaging safely. Make sure it is out of the reach of children, it is a potential source of danger.

SAFETY REMINDERS

Use

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• WARNING Misuse of a tumble dryer may create a fire hazard.
• This machine is solely for domestic use, i.e. to dry household textiles and garments.
• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.
• Do not allow children to play with the machine or its controls.
• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.
• WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
• The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.

Installation

• Check that the product has no visible signs of damage before use. If damaged do not use and please call GIAS Service.
• Do not use adapters, multiple connectors and/or extensions.
• Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

The Laundry

• Do not dry unwashed items in the tumble dryer.
• WARNING Do not tumble dry fabrics treated with dry cleaning fluids.

• WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.

• Always refer to the laundry care labels for directions on suitability for drying.

• Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.

- Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.

- Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable.
  Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
• To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European Directive 2002/96/EC

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

GIAS Service

- To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

⚠️ If the appliance is not running properly or breaks down, switch it off and disconnect the plug from the socket. Consult GIAS Service for possible repair.

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 230V, 50 Hz single phase. Check that the supply circuit is rated to at least 6A.

Electricity can be extremely dangerous.

This appliance must be earthed. The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extension leads. The plug should be accessible for disconnection after the appliance has been installed.

CE Appliance complies with European Directive 2004/108/EC, 2006/95/EC and subsequent amendments.

You may be charged for a service call if a problem with your machine is caused by incorrect installation.

If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.

Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.

Adjusting the Feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Illustration of a person using a tool to lift a head, with arrows indicating motion direction (no text or symbols)

VENTILATION

Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• Check regularly that the air flowing through the dryer is not restricted.
• Check the fluff filter after use, and clean, if necessary.
• The inlet and outlets should be kept free from obstructions. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed. There should be a gap of at least 12mm between the machine and any obstructions.
• Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet.
• NEVER install the dryer up against curtains.

Important: During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown;

Simple line drawing of a computer monitor with a cross mark on screen (no text or symbols)

Simple line drawing of a washing machine with a checkmark overlay (no text or symbols)

Caution: If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

DRAIN HOSE KIT: FITTING INSTRUCTIONS

To avoid having to empty the water container after each drying cycle, the water normally collected during the drying cycle can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe system should be located adjacent to the tumble dryer.

•The kit is composed: 1 hose, 1 straight hose connector, 1 pipe clip and 1 plastic tie.

WARNING!

Switch off and remove the

tumble dryer plug from the before carrying out any work.

Fit the Kit as Follows:

1. Unscrew and remove the 3 screws, at the rear of the machine, retaining the worktop trim.

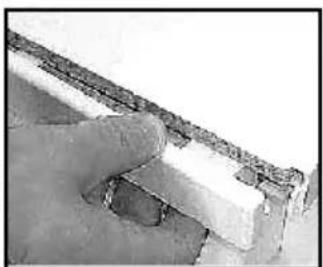

2. Remove the rear worktop trim and the worktop surface by carefully sliding it towards the rear of the machine.

3. The waste water container is situated at the right-hand side of the machine (viewed from the rear). A grey hose connects to the bridge above the water container. Using pliers, remove the pip retaining clip from the bridge.

4. Pull the hose off the bridge connection.

5. Attach the hose from the kit, using the connector and pipe clips supplied, to the hose removed from the bridge connection.

Close-up of a hand using a tool to adjust or install a white plastic clip (no text or symbols visible)

Close-up of a hand holding a thin, curved object against a plain background (no text or symbols visible)

Close-up of a hand holding a white sheet of paper, partially obscured by a small object (no visible text or symbols)

Close-up of hands using pliers to connect wires (no visible text or symbols)

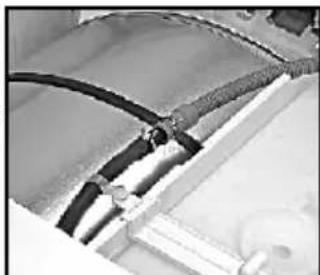

1. Take off the water container cover from the rear of the machine by removing the two screws and unclipping the cover.

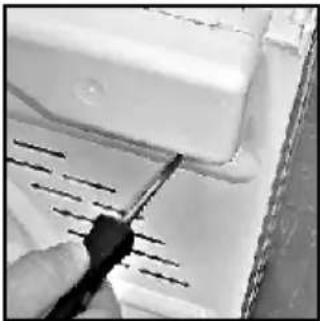

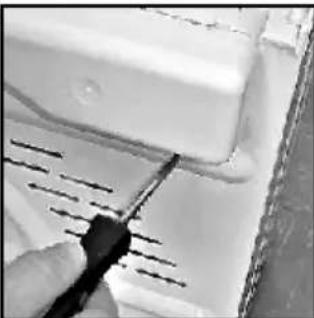

2. Break off the tab on the side of the cover and replace the cover on the machine, refit the screws. You should now have revealed a hole in the back of the cabinet next to the Cover.

3. Feed the drain hose through the hole in the cabinet.

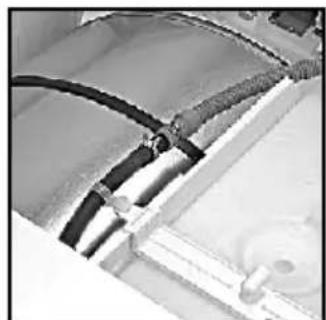

4. Locate the grey pipe in the cutout of the tray and secure the pipe assembly to the bridge with the plastic tie.

5. Carefully slide the worktop back into position ensuring that the hose is not trapped and replace the worktop rear trim with the 3 screws.

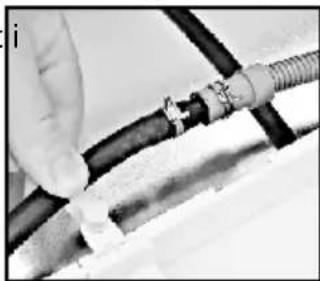

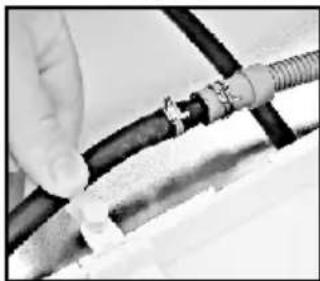

6. Connect the new drain hose to the waste water pipe. Make sure that the new hose does not kink when pushing the tumble dryer into position. Ensure that the guidelines, as shown, are followed when routing the new external hose.

7. Connect to the mains electricity supply.

8. After emptying the waste water container switch the machine ON (and press the 'START' button on electronic models) to commence with the drying program.

Close-up of a hand holding a coiled cable or wire component, partially enclosed in a white plastic housing (no visible text or symbols)

Close-up of a hand using a screwdriver to cut or mark a white surface with diagonal lines (no text or symbols visible)

Close-up of a hand holding a small white plastic object with a protruding clip (no visible text or symbols)

Close-up of hands connecting a black cable to a white plastic pipe fitting (no text or symbols visible)

Close-up of a mechanical component with coiled black cables and a circular component (no visible text or symbols)

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or other clothes (danger of fire or explosion).

During the last 15 minutes (roughly) the load is always tumbled in cool air

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

• Try to dry the maximum weight of laundry, this will save time and electricity.
• Check that the filter is clean before every drying cycle.

NEVER

• Exceed the maximum weight, this will waste time and electricity.
• Put dripping wet items into the tumble dryer, this may damage the appliance.

Maximum Drying Weight

• Cottons
• Synthetics

Max. 8 kg

Max. 4 kg

Do not overload the drum, large items when can exceed the maximum admissible clothes (for example: sleeping bags, duvets).

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

- By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles press the 📋 button to select low drying temperature.

Do not install the product in a room where there is a risk of frost occurring. At temperature, and freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the raulic circuit (valves, hoses, pumps).

For a better product performance the ambient room temperature must be between +2°C and +35°C.

CONTROLS AND INDICATORS

Control Panel and Indicator Lights

Programme Selector – Select the required programme.

Time Selection Button ☺ – Allows the user to change duration of the programme selected by Programme Selector. It can be used only with the selection of: Mix&Dry, Shirts and Time Programmes.

Delay Start Button ⏻ – Allows the user to delay the start of the drying cycle (see details of Operation).

Acrylic and Synthetic Button – When pressed the default indicator will fade and will be illuminated

Anti-Crease Button 📋 – Allows the user to select a post drying anti-crease cycle.

Start/Pause Button ▷ III – Press to commence/ to pause the selected drying programme.

Memo Button – Allows user to record the programme by pressing simultaneously the Anti-Crease and the Acrylic Synthetic buttons for 3 seconds, after 2 minutes duration of the chosen programme/option.

Filter Care indicator Ⓞ – Lights when the filter needs cleaning.

Empty Water indicator ^n – Lights when the water container is full.

Program Display – Related indicator lights when a auto programme has been selected.

€ - Indicator will come on when the eco programme has been selected.

Refresh 🌐 – The indicator lights up when the programme starts the cool down stage.

SELECTING THE PROGRAMME

The Hoover Sensor Dry machine gives many options for drying the laundry to suit all circumstances. The table on the next page lists the programmes and the function of each programme.

Note:

The sensor may not detect a small load of small articles. For small loads and separate items or pre-dried fabrics with low moisture content, use the timed programmes.

If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown.

If the load is too large or too wet to tumble dry the dryer will automatically go into cooldown after approximately 3 hours.

In these cases we advise to use a time cycles between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type.

SELECTING THE PROGRAMME

PROGRAMME	DESCRIPTION
Bone Dry ⚙	Select the degree of dryness that you require. This range from ⚙ for bath towels and bathrobes, through ⚠ for items that will be put away without ironing, to the programme that leaves the laundry suitable for ironing.Ⓧ
Store Dry ⏻
Hang Dry ⏱
Iron Dry ⚠
Relax	The programme provides a conditioning and anticrease function. The dryer will heat the load for 9 minutes followed by a 3 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators.This programme relaxes the creases in the fabric making ironing quicker and easier.
Wool Finish	A gentle programme specially created to get woollens softer after air-drying. This delicate warm air cycle, lasting 12 minutes, can also be used to get woollens 'refreshed' after being stored in the wardrobe.
Mix & Dry	This is a special automatic program for a maximum load of 4kg. With this program you can dry together cotton and synthetic fabrics.
Shirts	This is a special program for shirts of max load of 3kg. For synthetic shirts you have to press the Acrylic Synthetic button.
Rapid 40' [ZA45]	The Rapid 40' programme allows a drying cycle to be completed quickly. This is an ideal programme for having dry, refreshed and ready-to-wear clothes in less than 40'. This special programme constantly monitors the temperature in the drum. The maximum load is 2 kg and the programme is suitable for all types of fabrics where tumble drying is appropriate.
Time ⭕	Time selection includes all the manual time programs: from 30 minutes to 180 minutes. The 20 minutes selection time in only cool air ventilation (Refresh).
Memo	Memo Program allows to re-perform a program that the user has saved before, without selecting the correct sequence of program selector positions and option buttons for that particular program.

Opening the Door

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Pull on handle to open the door.

To restart the dryer, close the door and press ▷III.

WARNING! When the tumble dryer is in use the drum and door may be VERY HOT. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

Do not operate the dryer without the filters. Clogged filters can increase the drying time and cause damage which may result in expensive repair costs.

1. Pull the filte upwards.

2. Open filter as shown.

3. Gently remove lint using a soft brush or your fingertips.

4. Snap the filt together and push back into place.

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Filter Care Indicator

● Lights when the filter needs cleaning.

Check and clean the main filter in the door and the condenser filters allocated in the bottom of the dryer, If the laundry is not drying check that the filter is not clogged.

Illustration of two hands holding a folded or layered object, no text or symbols present

To Clean the Condenser Filter

1. Remove the kickplate.

2. Turn the two locking levers anti-clockwise and pull out the front cover.

3. Gently remove the filter frame and clean any dust or fluff with a cloth from the filter. Do not use water to clean the filter.

4. Remove the sponge gently from its place and then wash the sponge by holding it under a running tap turning it so to remove any dust or fluff.

5. Refit the front cover ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise.

6. Refit the kickplate.

Illustration of hands installing or removing a mechanical component into a cabinet (no text or symbols visible)

Simple diagram of a rectangular container with three small fish icons on its sides (no text or symbols)

Illustration of two hands holding a cylindrical object with internal lines (no text or symbols)

Illustration of hands holding a mechanical component with a blade (no text or symbols)

Hand inserting a component into a device housing (no text or symbols visible)

DO NOT USE WATER TO CLEAN THE FILTER.

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the 📋 indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To Remove the Container

1. Gently pull out the tray until it is completely removed. Support the tray with both hands. When it is full the water container will weigh about 4kg.

2. Tilt the water container to empty the water out through the rear hole.

When emptyslide the water container back into position. PUSH FIRMLY INTO PLACE.

1. Press ▷III to restart the cycle.

NOTE: If you have the option of drainage near the dryer it is possible to use the discharge kit to provide a permanent drain for the water collected by the dryer. This will remove the need to empty the water tray. All the information for assembly of the kit is contained in the kit envelope.

Hand cleaning a car window with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface (no text or symbols)

Line drawing of a hand holding a small object near the lower part of a curved surface (no text or symbols)

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

2. Gently close the door pushing it slowly until you hear the door 'click' shut.

3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).

4. If drying synthetics, acrylics or delicate items, press the 📋 button to reduce the heat level. The indicator will light up when the machine is in low heat setting. To deselect in the first few minutes of the programme, press the 📋 button, after this time reset the machine to change the setting.

5. Press the ▷■ button. The dryer will start automatically and the indicator above the button will be continuously lit.

6. If the door is opened during the programme to check the laundry, it is necessary to press to recommence drying after the door has been closed.

7. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

8. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programs in order to obtain a proper drying.

Delay Start Function

The Delay Start Function ⏻ allows the user to delay the start of the drying cycle by 1 to 24 hours.

When the function is first selected the display will show a delay of 1 hour, subsequent presses of the button will increase the delay with 1 hour steps.

To commence the programme press ▷III and the appliance will complete the drying cycle at the end of this time. The indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the ▷■ button for 3 seconds. In the TIME CONTROL display 0:00 Light will flash to indicate that it has been reset.

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
  • Regularly clean the filters.
• After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
• Wipe the outside of the machine and the door with a soft cloth.
• DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may very hot.

Technical Specifications

Drum capacity	115 litres
Maximum load	8 kg
Height	85 cm
Width	60 cm
Depth	60 cm
Energy Label Band	A -40%

Information for Test Laboratory

EN 61121 Programme

-DRY COTTON	-HANG DRY
-IRON DRY COTTON	-IRON DRY
-EASY-CARE TEXTILE	-HANG DRY + SYNTHETIC

Note: Install and use the drain hose to discharge the condensing water.

IMPORTANT Always switch off and move the plug from the electricity supply are cleaning this appliance.

For electrical data refer to the rating label the front of the dryer cabinet (with the door open).

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

• Have you selected the correct drying time/programme?
• Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
• Is the dryer overloaded?
• Has the option been selected from a previous cycle?

The dryer does not operate...

• Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
• Is the plug properly connected to the mains supply?
• Is there a power failure?
• Has the fuse blown?
• Is the door fully closed?
• Is the dryer switched on, both at the mains supply and at the machine?
• Has the drying time or the programme been selected?
• Has the machine been switched on again after opening the door?

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

- Does the filter need cleaning?

The 📋 Indicator is on...

- Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.

- Has not been installed in accordance with the installation instructions.

- Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS Service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

INDICE

Introduzione 15

Line drawing of a hand holding a mechanical component, showing internal structure and alignment (no text or symbols)

Illustration of a hand holding a small object with directional arrows indicating rotation (no text or symbols)

VENTILAZIONE

Technical line drawing of a mechanical component with hatched fill and mounting bracket (no text or symbols)

Simple line drawing of a washing machine with a black checkmark on its side (no text or symbols)

Close-up of a hand using a tool to adjust or install a white plastic component (no visible text or symbols)

Close-up of a curved metallic structure with textured surfaces (no visible text or symbols)

Close-up of a hand holding a white panel with a small object near the edge (no visible text or symbols)

Close-up of hands using pliers to tighten a cable or wire (no text or symbols visible)

Close-up of hands connecting a cable to a plastic component (no visible text or symbols)

Close-up of a hand using a screwdriver to cut a white surface with parallel lines (no text or symbols visible)

Close-up of a hand holding a small white plastic object with a pointed tip, against a plain gray background (no text or symbols visible)

Close-up of hands connecting a black cable to a white plastic housing (no text or symbols visible)

Close-up of a mechanical component with coiled black cables and a pipe (no visible text or symbols)

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand opening a car door with a closed door (no text or symbols)

Illustration of two hands holding a folded or folded object, no text or symbols present

NON USARE ACQUA PER PULIRE IL FILTRO

Pulizia Filtro

Illustration of hands installing or adjusting a rectangular panel with a circular component above (no text or symbols)

Simple diagram of a rectangular container with three small fish icons inside, no text or symbols present.

Illustration of two hands holding a cylindrical object with a curved handle (no text or symbols visible)

Illustration of hands cutting a mechanical part with a knife (no text or symbols)

Hand inserting a component into a device housing (no text or symbols visible)

VASCHETTA DELL'ACQUA

Hand cleaning a car window with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface (no text or symbols)

Line drawing of a hand pressing down on a surface with circular and ring elements (no text or symbols)

FUNZIONAMENTO

Line drawing of a hand holding a door panel with a triangular handle (no text or symbols)

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

ENTLÜFTUNG

Black rubber hose with two plastic clips and a small metallic bracket (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a component, no visible text or symbols

Close-up of a hand holding a concrete block against a wall (no text or symbols visible)

Close-up of a hand holding a white sheet of paper, partially visible against a plain background (no text or symbols)

Close-up of hands using pliers to tighten a bolt (no text or symbols visible)

Close-up of hands using a tool to adjust or install a component, no visible text or symbols

Close-up of a hand using a screwdriver to cut a white surface with visible cracks (no text or symbols)

Close-up of a hand holding a small white object with a protruding clip (no visible text or symbols)

Close-up of hands connecting a cable to a connector (no visible text or symbols)

Close-up of electrical wiring with black insulation and connectors (no visible text or symbols)

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Flusensieb-Anzeige

Illustration of hands holding a folded or folded object with visible internal structure (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with a circular inset (no text or symbols)

Simple diagram of a rectangular container with three small icons inside, no text or symbols present.

Illustration of two hands holding a rectangular object with internal lines (no text or symbols)

Illustration of hands holding a mechanical part with a blade, no text or symbols present

Illustration of a hand inserting or removing a component into a rectangular housing (no text or symbols visible)

KONDENSWASSER-BEHÄLTER

Hand cleaning a car window with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand holding a small object near the lower part of a curved surface (no text or symbols)

BETRIEB

Line drawing of a hand holding a mechanical component, showing internal structure without any text or symbols

Illustration of a hand holding a small object with arrows indicating direction (no text or symbols)

VENTILATION

Technical line drawing of a mechanical component or housing with hatched fill and internal structure (no text or symbols)

Black rubber hose with two plastic clips and a separate screw (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a component, no visible text or symbols

Close-up of a hand holding a textured, layered object against a plain background (no visible text or symbols)

Close-up of a hand holding a white sheet of paper, partially visible against a plain background (no text or symbols)

Close-up of hands using pliers to handle a coiled cable or wire (no visible text or symbols)

Close-up of hands using a tool to adjust or install a component, no visible text or symbols

Close-up of a hand using a tool to clean or store items (no visible text or symbols)

Close-up of a hand holding a small white plastic object with a protruding clip (no visible text or symbols)

Close-up of hands connecting a black cable to a white plastic housing (no text or symbols visible)

Close-up of mechanical components with black cables and connectors (no visible text or symbols)

PRÉPARATION DE LA CHARGE

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands holding a folded or layered object, no text or symbols present

Illustration of hands installing or adjusting a mechanical component with a circular component above (no text or symbols)

Simple diagram of a rectangular container with three small icons inside, no text or symbols present.

Illustration of two hands holding a rectangular object with internal markings (no text or symbols)

Illustration of hands holding a rectangular object with a diagonal stripe, no text or symbols present

Hand inserting a component into a housing (no text or symbols visible)

CONDENSEUR

RÉSERVOIR D'EAU

Hand cleaning a car window with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand holding a small object near the lower part of a body (no text or symbols)

FONCTIONNEMENT

Line drawing of a hand holding a door handle, showing structural details (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or direction (no text or symbols)

VENTILATIE

Diagram of a mechanical device with a checkered pattern and connecting rods (no text or symbols)

Air Outlets in the Base

Simple line drawing of a floppy disk with a central 'X' mark (no text or symbols)

Simple line drawing of a washing machine with a checkmark overlay (no text or symbols)

Close-up of a hand using a tool to adjust or install a white plastic component (no visible text or symbols)

Close-up of a hand holding a small object against a plain background (no visible text or symbols)

Close-up of a hand holding a white sheet of paper against a wall (no text or symbols visible)

Close-up of hands using pliers to handle a coiled cable or wire (no text or symbols visible)

Close-up of hands holding a coiled cable or wire connector inside a white electronic device housing (no visible text or symbols)

Close-up of a hand using a screwdriver to cut or mark a white panel edge (no text or symbols visible)

Close-up of a hand holding a white plastic bottle with a small tip, no visible text or symbols

Close-up of hands connecting a flexible cable to a mechanical component (no visible text or symbols)

Close-up of a mechanical component with coiled black cables and a pipe fitting (no visible text or symbols)

HET WASGOED VOORBEREIDEN

Water Reservoir legen Brandt wanneer de watercontainer vol is

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of hands holding a folded or folded object with visible internal components (no text or symbols)

Illustration of hands installing or removing a mechanical component into a cabinet (no text or symbols visible)

Illustration of two hands holding a cylindrical object with a curved handle (no text or symbols visible)

Illustration of hands holding a rectangular object with a blade, no text or symbols present

Hand holding a mechanical component with arrows indicating force or movement (no text or symbols visible)

Hand holding a cloth over a surface, no text or symbols visible

Line drawing of two hands shaking over a tool, no text or symbols present

Line drawing of a hand holding a skin with circular and ring elements (no text or symbols)

BEDIENING

Line drawing of a hand holding a door handle, showing structural details (no text or symbols)

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

VENTILAÇÃO

Technical line drawing of a mechanical component with hatched fill and internal structure (no text or symbols)

Aberturas de saída do ar na base

Black rubber hose with two plastic clips and a small metal bracket (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a component, no visible text or symbols

Close-up of a hand holding a white object against a textured wall (no visible text or symbols)

Close-up of a hand holding a white sheet of paper, partially obscured by a small object (no text or symbols visible)

Close-up of hands using pliers to handle a coiled cable or wire (no visible text or symbols)

Close-up of hands holding a tool with threaded metal component (no visible text or symbols)

Close-up of a hand using a tool to trim or trim a white surface, no visible text or symbols

Close-up of a hand holding a small white object with a protruding edge (no visible text or symbols)

Close-up of hands connecting a cable to a wall-mounted connector (no visible text or symbols)

Close-up of electrical wiring and components (no visible text or symbols)

PREPARAÇÃO DA CARGA

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Line drawing of a person opening a car door with a closed door (no text or symbols)

Indicador de Controlo do Estado do Filtro

Illustration of hands holding a folded or layered object with no visible text or symbols

Illustration of hands installing or removing a mechanical component into a cabinet (no text or symbols visible)

Simple diagram of a rectangular container with three small fish icons inside, no text or symbols present.

Illustration of two hands holding a cylindrical object (no text or symbols visible)

Illustration of hands holding a mechanical part with a blade and clamped parts (no text or symbols)

Hand inserting a component into a device housing (no text or symbols visible)

Line drawing of a hand holding a sheet of paper, partially covered by a curved surface (no text or symbols)

Line drawing of two hands shaking over a surface (no text or symbols)

Line drawing of a hand holding a small object near the lower part of a curved surface (no text or symbols)

UTILIZAÇÃO

Line drawing of a hand holding a mechanical component, showing internal structure and alignment lines (no text or symbols)

Illustration of a hand holding a small object with arrows indicating direction (no text or symbols)

POISTOTUULETUS

Simple line drawing of a hard disk with a cross mark on its surface (no text or symbols)

Black rubber hose with two plastic clips and a small metal bracket (no text or symbols visible)

Close-up of a hand holding a tool with a knife, no visible text or symbols

Close-up of a hand holding a small object against a wall, with no visible text or symbols.

Close-up of a hand holding a white sheet of paper, partially visible against a wall (no text or symbols)

Close-up of hands using pliers to handle a cable or wire (no visible text or symbols)

Close-up of hands holding a coiled metal component next to a white plastic housing (no visible text or symbols)

Close-up of a hand using a screwdriver to cut a white surface with visible cracks (no text or symbols)

Close-up of a hand holding a small white object, possibly a container or tool, with no visible text or symbols.

Close-up of hands connecting a flexible hose to a mechanical component (no visible text or symbols)

Close-up of a mechanical component with black cables and a curved surface (no visible text or symbols)

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands holding a folded or layered object, no text or symbols present

Illustration of hands installing or adjusting a mechanical component with a circular component (no text or symbols visible)

Simple diagram of a rectangular container with three small icons inside, no text or symbols present.

Illustration of two hands holding a cylindrical object (no text or symbols visible)

Illustration of hands holding a mechanical part with a blade, no text or symbols present

Illustration of a hand inserting a component into a plastic housing (no text or symbols visible)

ÄLÄ PUHDISTA SUODATINTA VEDELLÄ.

VESISÄILIÖ

Hand cleaning a surface with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand holding a small object near the lower part of a curved surface (no text or symbols)

KÄYTTÖ

Line drawing of a hand holding a bracket with diagonal line indicating alignment (no text or symbols)

Illustration of a hand holding a small object with directional arrows indicating rotation (no text or symbols)

VENTILATION

Simple line drawing of a floppy disk with a black X mark on its surface (no text or symbols)

Black rubber hose with two plastic clips and a small metallic connector (no text or symbols visible)

Close-up of a hand holding a tool interacting with a white electronic device (no visible text or symbols)

Close-up of a hand holding a small object against a textured wall (no visible text or symbols)

Close-up of a hand holding a white surface next to a corner detail (no text or symbols visible)

Close-up of hands using pliers to handle a coiled cable or wire (no text or symbols visible)

Close-up of hands assembling a white plastic housing with a coiled spring and black tool (no visible text or symbols)

Close-up of a hand using a screwdriver to cut or mark a white surface with visible lines (no text or symbols)

Close-up of a hand holding a small white plastic object with a protruding clip (no visible text or symbols)

Close-up of hands connecting a cable to a connector (no visible text or symbols)

Close-up of electrical wiring with black wires and connectors (no visible text or symbols)

FORBEREDELSE AF ILÆGNING AF T∅J

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Illustration of hands assembling or folding a mechanical component (no text or symbols visible)

⚠️ BRUG IKKE VAND TIL RENG∅RING AF FILTERET

Illustration of hands installing or adjusting a mechanical component with a circular component (no text or symbols visible)

Top-down view of a rectangular container with three small fish icons on its surface (no text or symbols)

Illustration of two hands holding a cylindrical object with a textured surface (no text or symbols visible)

Illustration of hands holding a rectangular object with a shaded blade, no text or symbols present

Illustration of a hand inserting into a device housing (no text or symbols visible)

IKKE BRUK VANN FOR Å RENGJ∅RE FILTERET.

VANDBEHOLDER

Line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand pressing down on a surface with two circular objects above (no text or symbols)

1. Hvis du tørrer akryl, syntetiske eller sarte stoffer, skal du trykke på knappen for at skrue ned for varmen.

Line drawing of a hand holding a bracket with diagonal line indicating alignment (no text or symbols)

SIKKERHETSPÅMINNELSER

Bruk

VENTILASJON

Two identical diagrams showing a washing machine with a black X mark and a checkmark inside, no text or symbols present.

Black rubber hose with two plastic clips and a separate metal bracket (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand holding a wooden beam joint (no visible text or symbols)

Close-up of a hand holding a white sheet of paper, partially visible against a plain background (no text or symbols)

Close-up of hands using pliers to handle a coiled cable or wire (no visible text or symbols)

Close-up of hands using a tool to adjust or install a component, no visible text or symbols

Close-up of a hand using a tool to clean or store floor tiles (no visible text or symbols)

Close-up of a hand holding a small white object with a protruding clip (no visible text or symbols)

Close-up of hands connecting a black cable to a white plastic component (no visible text or symbols)

Close-up of electrical wiring with black wires and connectors (no visible text or symbols)

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Indikator For Filtervedlikehold

Illustration of hands holding a folded or layered object with visible internal structure (no text or symbols)

Illustration of hands installing or adjusting a mechanical component (no text or symbols visible)

Simple diagram of a rectangular container with three small fish icons on its sides (no text or symbols)

Illustration of two hands holding a cylindrical object (no text or symbols visible)

Illustration of hands holding a medical device with a blade, no text or symbols present

3D rendering of a mechanical housing component with internal components and directional arrows indicating movement (no text or symbols)

IKKE BRUK VANN FOR Å RENGJ∅RE FILTERET.

VANNBEHOLDER

Hand cleaning a car window with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a horizontal bar (no text or symbols)

Line drawing of a hand holding a small object near the bottom of a curved surface (no text or symbols)

BRUK AV MASKINEN

UPPACKNING AV PRODUKTEN

Line drawing of a hand holding a mechanical component, showing internal structure and alignment (no text or symbols)

Illustration of a hand holding a small object with arrows indicating direction (no text or symbols)

VENTILATION

Black rubber hose with two plastic clips and a small metallic connector (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a component, no visible text or symbols

Close-up of a hand holding a wooden beam joint (no visible text or symbols)

Close-up of a hand holding a white sheet of paper, partially visible against a dark background (no text or symbols)

Close-up of hands using pliers to handle a coiled cable or wire (no visible text or symbols)

Close-up of hands using a tool to adjust or install a component, no visible text or symbols

Close-up of a hand using a tool to mark a surface with visible lines (no text or symbols)

Close-up of a hand holding a small white plastic object with a protruding clip (no visible text or symbols)

Close-up of hands connecting a black cable to a white plastic housing (no text or symbols visible)

Close-up of electrical wiring with black wires and connectors (no visible text or symbols)

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand opening a car door with a rectangular panel on the side (no text or symbols)

Filterindikator

Illustration of two hands holding a folded or layered object, no text or symbols present

Illustration of hands installing or removing a rectangular object into a cabinet (no text or symbols visible)

Simple diagram of a rectangular container with three small fish icons on its sides (no text or symbols)

Illustration of two hands holding a rectangular object (no text or symbols visible)

Illustration of hands holding a mechanical component with a blade, no text or symbols present

Hand inserting a component into a plastic housing (no text or symbols visible)

⚠️ RENGÖR INTE FILTRET MED VATTEN.

VATTENBEHÅLLARE

Hand cleaning a car window with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand holding a small object near the lower face, with no text or symbols present.

ANVÄNDNING

Line drawing of a hand holding a mechanical component, showing internal structure and alignment (no text or symbols)

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

ΕΞΑΕΡΙΣΜΟΣ

Technical line drawing of a mechanical component with hatched fill and internal structure (no text or symbols)

Close-up of a hand using a screwdriver to adjust a white plastic component (no text or symbols visible)

Close-up of a hand holding a small object against a plain background (no visible text or symbols)

Close-up of hands using pliers to handle a cable or wire (no visible text or symbols)

Close-up of a hand holding a coiled cable or wire component in a white plastic housing (no visible text or symbols)

Close-up of a hand using a tool to cut or mark a white object with black lines, no visible text or symbols

Close-up of a hand holding a small white plastic object with a small protrusion, against a plain background (no text or symbols visible)

Close-up of hands connecting a cable with a connector, no visible text or symbols

Close-up of electrical wiring and components (no visible text or symbols)

Line drawing of a hand holding a circular mechanical component (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands holding a folded or folded object with internal components (no text or symbols)

Illustration of hands installing or adjusting a rectangular panel inside a cabinet (no text or symbols visible)

Illustration of two hands holding a cylindrical object with a textured surface (no text or symbols)

Illustration of hands holding a device with a knife inserted (no text or symbols visible)

Illustration of a hand inserting into a device housing (no text or symbols visible)

Hand holding a cloth over a surface, no text or symbols visible

Line drawing of two hands shaking over a surface (no text or symbols)

Line drawing of a hand holding a small object near the bottom of a curved surface (no text or symbols)

ΛΕΙΤΟΥΡΓΙΑ
