Product Type	Combined Refrigerator-Freezer
Height	1850 mm
Width	600 mm
Depth	650 mm
Weight	75 kg
Power Supply	220-240V ~ 50Hz
Energy Efficiency Class	A++
Annual Energy Consumption	250 kWh
Refrigerant Gas	R600a
Climate Class	N-ST
Total Gross Capacity	350 L
Freezer Net Capacity	90 L
Refrigerator Net Capacity	260 L
Freezing Capacity	12 kg/24h
Temperature Control	Electronic, adjustable thermostat
Defrost Function	Automatic defrost in refrigerator; manual in freezer
Reversible Door	Yes, can be reversed
Interior Light	LED
Shelves Material	Glass
Noise Level	42 dB
Cleaning	Clean interior with mild detergent; condenser coils every 6 months
Spare Parts Availability	Available via authorized service centers

Frequently Asked Questions - CPC4501S Elvita

How do I set the temperature on my Elvita CPC4501S?

Use the electronic control panel. Press the 'Temp' button repeatedly to cycle through settings. The recommended temperatures are +4°C for the refrigerator and -18°C for the freezer. Refer to the manual for specific button functions.

Why is my refrigerator not cooling properly?

Check if the door is closed properly and the seals are clean. Ensure the condenser coils at the back are dust-free. Also verify that the temperature setting is appropriate. If the issue continues, contact customer service.

How often should I clean the condenser coils?

Clean the condenser coils every 6 months using a vacuum cleaner or soft brush. This ensures efficient cooling and prolongs the lifespan of your appliance. Always unplug the device before cleaning.

Can I reverse the door swing on my CPC4501S?

Yes, the door is reversible. Refer to the installation section of the manual for step-by-step instructions. You will need a screwdriver and some time. Make sure to keep all parts.

What type of light bulb does the refrigerator use?

The interior light is an LED type, which is integrated and not user-replaceable. If it fails, please contact the service center for assistance.

Why is there water pooling inside the refrigerator?

This is often due to a blocked defrost drain. Clean the drain hole at the back of the refrigerator using a pipe cleaner or warm water. Also check that the door seals are not allowing humid air inside. Regular cleaning prevents this.

How do I defrost the freezer section?

The freezer defrost is manual. When ice buildup exceeds 5mm, turn off the appliance, remove food, and leave the door open. Place towels to absorb melting water. Do not use sharp objects to remove ice. Restart after cleaning.

What is the noise level of the CPC4501S?

The noise level is approximately 42 dB, which is normal for this type of appliance. You may hear occasional sounds from the compressor, fan, or refrigerant flow. If the noise becomes loud, check for proper leveling.

Where can I find spare parts for my Elvita fridge?

Spare parts are available through authorized Elvita service centers. Use the model number CPC4501S to identify the correct parts. Visit the Elvita website or contact support.

How do I clean the door seals?

Use a mild soap solution and a soft cloth to wipe the seals. Avoid abrasive cleaners. Dry thoroughly to prevent mold. Check for cracks regularly.

USER MANUAL CPC4501S Elvita

Before using this product, please read the user manual carefully. Save the user manual for future reference.

Black industrial stove burner with metal frame and control panel (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Thank you for purchasing a CPC4501S partycooler from us! This appliance is very user-friendly. It is quiet and stylish, and will give you a lot of satisfaction for many years to come.

Read these instructions carefully before using the appliance.

Always put safety first when using the appliance.

This easy-to-use user manual contains information to help you get the best from your partycooler.

CONTENTS

Important safety precautions 19

Contents of the delivery 22

Components and features 22

Before use 23

Connecting the partycooler 23

Using the partycooler 23

Instructions 24

Cleaning and care 24

Technical specifications 25

IMPORTANT SAFETY PRECAUTIONS

Read this user manual carefully before using the partycooler.

This appliance is intended for DOMESTIC USE ONLY.

It is not intended for commercial use or for hire.

Before using it, make sure that the appliance is correctly installed as specified in the installation instructions.

Position the appliance so that you can get easy access to its plug.

Never pull on the power cord when unplugging the party-cooler from the mains supply. Take a firm grip on the plug and pull it straight out of the wall socket.

1) This appliance can be used by children from the age of 8 and by individuals with reduced physical, sensory or mental capacities, or who lack experience, provided they are supervised by a responsible person or instructed in the safe use of the appliance and understand the risks involved in its use. Do not let children play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.
2) A power cord that is worn or otherwise damaged should be repaired or replaced immediately. Do not use a power cord or plug that is cracked or shows signs of wear.
3) Unplug the partycooler from the mains before cleaning or repairing it. Note: We recommend you always contact an authorised service technician if, for whatever reason, this product needs servicing.

4) Do not use the partycooler in the presence of explosive vapours.

5) Make sure that the power supply is correctly earthed. The conductors in the power cord are colour-coded as follows:

Green/yellow:

Earth

Blue: Neutral

Brown:

Phase(s)

6) We recommend that you do not use an extension cable (this may overheat and become a fire hazard).

7) Do not use the appliance near a bath, shower or pool.

8) Remove the lid before disposing of or storing the appliance. This will reduce the risk of injury to children.

9) Do not expose the appliance to direct sunlight or rain. Do not use the appliance outdoors for longer periods. Store the appliance indoors when not in use.

10) This appliance is intended for domestic and similar use, such as:

– by staff in the catering department of businesses, offices and other workplaces

– in holiday home kitchens and guestrooms in hotels, motels and other settings similar to a domestic environment

– at B&Bs, youth hostels and similar

– in catering and similar non-retail environments

11) Do not place heavy objects near the centre of the serving tray (to avoid any imbalance).
12) WARNING – Make sure that ventilation openings in the exterior or interior of the appliance are not obstructed.
13) WARNING – Do not use any tools or other means to speed up the defrosting process except those recommended by the manufacturer.
14) WARNING – Do not damage the refrigerant circuit.
15) WARNING – Do not use any electrical devices inside the appliance except those recommended by the manufacturer.

IMPORTANT! If the power cord is damaged it must be replaced by the manufacturer, the manufacturer's representative or an authorised person, to avoid danger.

Waste disposal of the appliance must be in accordance with local regulations (it contains flammable gas). Remove all lids and covers before disposing of the appliance (children can get trapped in them).

CONTENTS OF THE DELIVERY:

1 mobile partycooler

1 lid (transparent)

2 internal containers

2 external baskets

2 serving trays

1 user manual

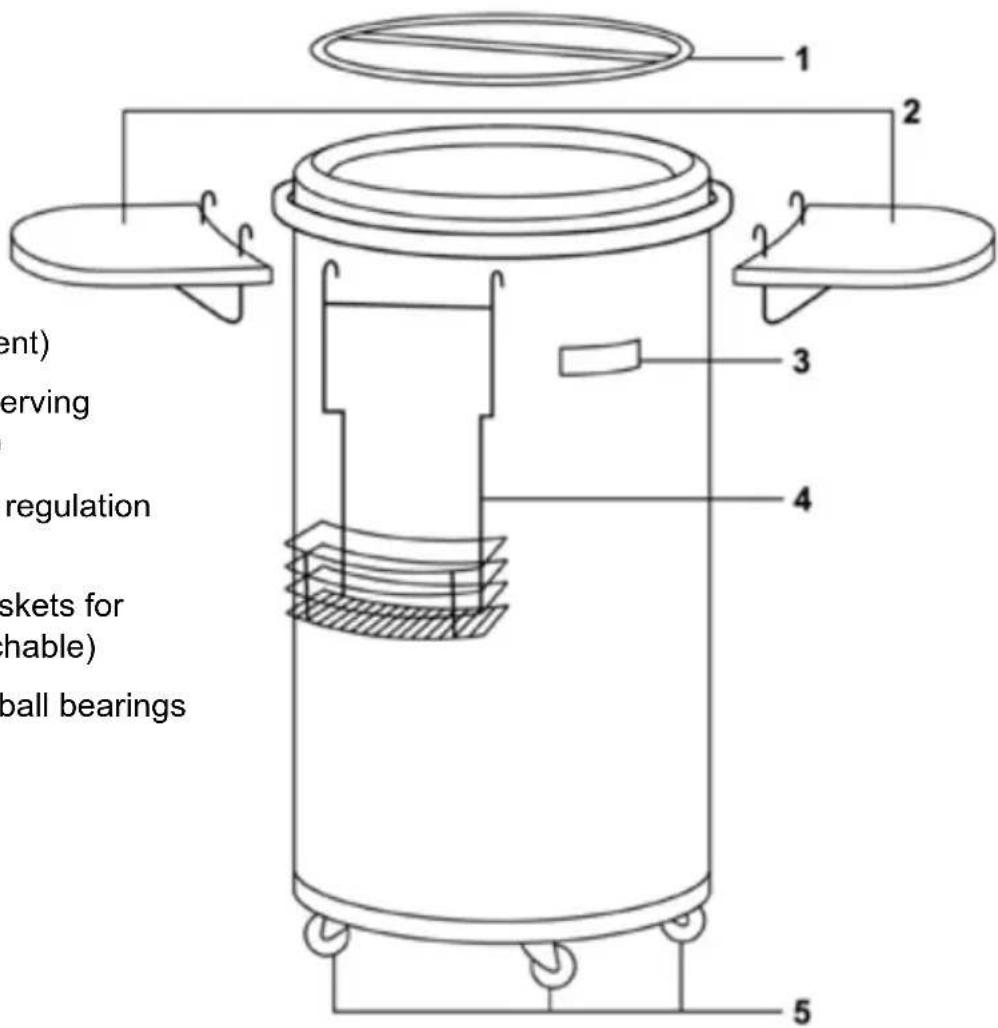

COMPONENTS AND FEATURES

1. Lid (transparent)

2. Detachable serving trays (plastic)

3. Temperature regulation (digital)

4. 2 external baskets for bottles (detachable)

5. Castors with ball bearings

BEFORE USE

We recommend that you clean the party cooler inside with lukewarm water and a mild detergent (allow it to dry before using it again).

The temperature in the partycooler varies depending on:

• Ambient temperature
  • How often and how long the lid is opened
• Its contents

This means the length of time it takes for the partycooler to reach the set temperature may vary.

The refrigeration system is designed for use when the cooler is on a level surface. Do not stand the partycooler at an angle.

If the partycooler must be tilted (e.g. when handling or moving it), let it stand for 20 to 30 minutes in an upright position before plugging it in and restarting the refrigeration unit.

When the appliance is not being moved, apply the brake on one of the appliance's three castors (if you do not, it may move in an uncontrolled manner and get damaged).

CONNECTING THE PARTYCOOLER

* Incorrect use of the earthed plug can result in electric shock. Contact your dealer immediately if you discover that the power cord is damaged.

1. Makes sure that the appliance is correctly earthed. The power cord has an earthed plug designed for a standard wall socket (this minimises the risk of electric shock).

2. Only use a correctly installed and earthed wall socket to connect the appliance. Make sure the power cord is always correctly earthed (under no circumstances should you tamper with the earthing of the plug). Contact an authorised electrician if you have any questions about the appliance's power supply and/or earthing.

3. This appliance is intended for a standard wall socket (220–240 V, 50 Hz) with the correct earthing.

USING THE PARTYCOOLER

1. Plug into the wall socket.
2. Press the On/Off button (to the right of the indication window) to start the partycooler.
3. Press the thermostat button (to the left of the indication window) to adjust the

desired temperature. The numbers in the indication window will flash during the setting process. The thermostat can be adjusted through 0–15 °C. During use, the indication window shows the average temperature of the cooler.

FOLLOW THE INSTRUCTIONS BELOW TO ACHIEVE THE BEST POSSIBLE COOLING OUTPUT:

1) When using the partycooler for the first time: Start up the partycooler and let it run continuously for 12–18 hours.
2) Change the position of the baskets inside the cooler after 6 hours to enhance cooling output.
3) Position the bottles inside the cooler so that there are gaps between them (do not put too many bottles in).

CLEANING AND CARE

Warning: Unplug the partycooler from the mains before cleaning (to avoid the risk of electric shock). There is a risk of serious injury if you do not comply with this instruction.

Generally: Do not use strong chemicals, abrasive products, ammonium chloride, chlorine bleach, concentrated detergents, solvents or scouring pads. Some of these chemicals can damage and/or discolour the surfaces of the partycooler.

1) Remove all loose parts from the appliance.
2) Wipe down the internal and external surfaces with a damp cloth. It is a good idea to add a little vinegar to the water (this will protect the appliance against mould or fungal attack).
3) Remove the lid and clean it.
4) Clean the detachable bottom section and all parts of the lid with lukewarm water and detergent.
5) Carefully wipe down all components once you have finished cleaning.
6) When fitting the lid, make sure its sealing ring and the rubber strap of the hinge have the groove facing downwards.

IMPORTANT! Make sure the partycooler is completely dry on the inside when not using it (this will prevent mould formation). For best results, we recommend you store it with the lid open.

TECHNICAL SPECIFICATIONS

Model CPC4501S
Climate class SN, N, ST
Protection class I
Volume 50 litres
Mains voltage 220–240 V/50 Hz
Rated current 0.30 A
Refrigerant R600a
Insulation C5H10
Filling quantity 27 g
Net weight 24.5 kg

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This mark indicates that the product must not be disposed of with other household waste in the EU. Hand the product in for recycling. By doing this, you will be helping protect both the environment and human health, and the recyclable parts of the appliance will be reused. Dispose of the product using your local recycling and collection scheme or return it to the dealer where you purchased it. Your dealer can recycle this product in a way that avoids pollution of the environment.

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with a blank rectangular base below (no text or numbers present)

INNIHALD SENDINGARINNAR:

1 hreyfanlegur partí-kælir
1 lok (gegnsætt)
2 innri ílát
2 utanáliggjandi körfur
2 bjónustubakkar
1 notkunarleiðbeiningar

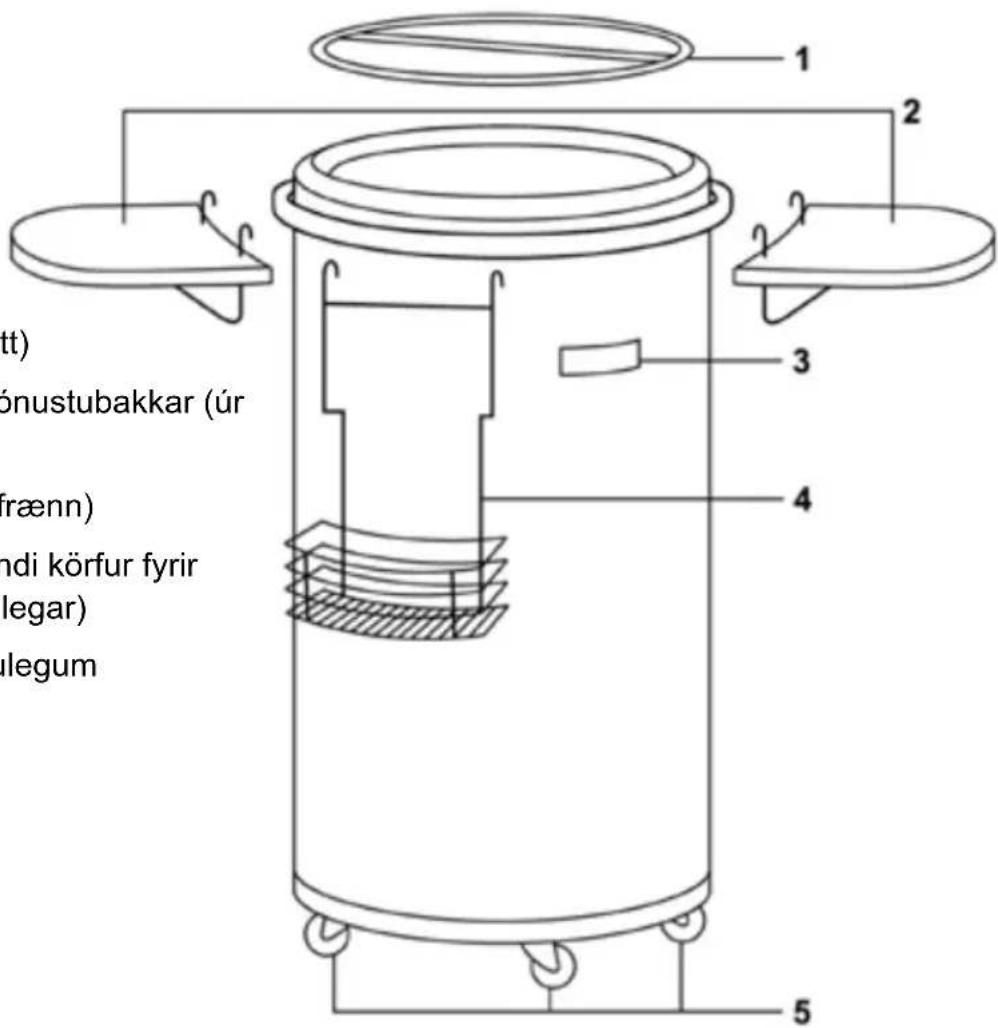

ÍHLUTIR OG VIRKNI

1. Lok (gegnsætt)
2. Losanlegir pjónustubakkar (úr plasti)
3. Hitastillir (stafrænn)
4. 2 utanáliggjandi körfur fyrir flöskur (losanlegar)
5. Hjól með kúlulegum

FYRIR NOTKUN

Symbol of a trash bin crossed out by two crossed lines, with a blank rectangular base below (no text or numbers present)
