MR718 - Hob Maestro - Free user manual and instructions

Product Type	Electric Contact / Open Grill
Brand	Maestro
Model	MR718
Power Consumption	2000W
Voltage	220-240V AC
Frequency	50 Hz
Protection Class	I
IP Rating	IPX0
Cooking Surface	Non-stick coated top and bottom plates
Modes	Contact grill (closed) and open grill (flat position)
Preheating Time	Approximately 3-5 minutes
Cooking Time	3 to 8 minutes depending on food
Dimensions (approx.)	40 x 30 x 15 cm
Weight (approx.)	4 kg
Material	Metal frame, plastic housing, non-stick coating
Safety Features	Ready light and power light; unplug when not in use
Cleaning	Wipe with damp cloth; do not immerse; use plastic utensils
Storage	Cool dry place; wrap cord around base after cooling
Intended Use	Household only; not for commercial use
Included Accessories	None

Frequently Asked Questions - MR718 Maestro

How do I use the grill as a contact grill?

Close the grill, plug it in, and preheat until the ready light turns on (about 3-5 minutes). Open, place food on the bottom plate, close, and cook for 3-8 minutes until the ready light turns on again or food is golden brown. Use the handle to open and a plastic spatula to remove food.

How do I use the grill as an open grill?

Unplug the grill, slide the hinge release lever on the right arm toward you, and push the handle back until the cover rests flat on the counter. This creates a large flat cooking surface. Preheat and cook as desired.

Why does smoke appear during first use?

A small amount of smoke or odor is normal during the first use due to dust or factory preservatives burning off. It should disappear after a few minutes of operation.

Can I use metal utensils on the non-stick plates?

No, metal utensils can damage the non-stick coating. Always use plastic or wooden spatulas to avoid scratching.

How should I clean the grill?

Unplug and let cool completely. Wipe the exterior and cooking plates with a clean damp cloth. Do not immerse in water or use abrasive cleaners. Remove excess fat regularly to prevent ignition.

What foods can I cook?

The grill is designed for meat, fish, hamburgers, vegetables, and sandwiches. Avoid bone-in chicken as it may not cook evenly on an open grill. Do not use sugary or jam-containing foods.

Is it safe to leave the grill unattended while plugged in?

No, never leave the appliance unattended when connected to the power supply. Always unplug after use and keep away from children.

What should I do if the power cord is damaged?

If the cord is damaged, stop using the appliance immediately and have it replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazards.

How do I store the grill after use?

Unplug, clean, and dry the appliance completely. Store in a cool dry place, away from children. Allow the unit to cool before wrapping the cord around the base.

What does the ready light indicate?

The ready light turns on when the grill has reached the correct cooking temperature (preheating complete). During cooking, the light may cycle off and on as the thermostat maintains temperature.

USER MANUAL MR718 Maestro

Black and silver flat-screen grater with metal frame (no text or symbols visible)

EN Description of the appliance____3

DE Gerät 8

Functionality, design and conformity to the quality standards guarantee to you reliability and convenience in use of this device.

Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use of subsequent owners.

The electric grill is designed for cooking meat, fish, hamburgers, garnishes from vegetables in (domestic) conditions.

This grill model will become an indispensable assistant for the preparation of healthy, healthy and delicious food. The grill allows cooking using only natural oils and fats contained in the product, without adding them to the frying surface.

Under condition of observance of user regulations and a special purpose designation, a parts of appliance do not contain unhealthy substances.

Technical specifications

Model: MR-718

Electrical supply:

Alternating current- AC;

Rated voltage 220-240V;

Rated frequency 50Hz;

Power consumption 2000W

Protective class I

Protection class IPX0

Description of the appliance

Picture1 (page 2)

1. Handle
2. Upper Housing
3. Right Lifting Lever
4. 180°Angle Pull Rod
5. Upper Grill Non-stick Plate
6. BOTTOM Grill Non-stick Plate
7. Ready Light
8. Power Light

Safety instructions

When using your appliance, basic safety precautions should

always be followed, including the following: SPECIAL INSTRUCTIONS

WARNING!

NEVER immerse the appliance, cable or plug in any liquid. DO NOT allow water and moisture on the electrical parts of the device.

NEVER touch the appliance with wet or damp hands.

Only plug the appliance into an outlet with an earthed (ground) contact.

Otherwise, there is a risk to get an electric shock!

• DO NOT let children or untrained persons use the appliance without supervision.
• DO NOT leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.
• DO NOT use the power cord or the appliance in order to pull the plug out of the socket.
• DO NOT leave the appliance exposed to the weather (rain, sun, etc).
• DO NOT leave the appliance without supervision when it is connected to the power supply.
• Close supervision is necessary when the appliance is used near children.
• Always use the appliance on a dry, level surface.
• Always unplug from the plug socket when not in use and before cleaning.
• Do not operate the appliance if damaged, after an appliance malfunctions or it has been damaged in any manner, return to at authorized service engineer for repair.
• In the interest of safety, regular periodic close checks should be carried out on the supply cord to ensure no damage is evident.

Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned be authorized service engineer.

• Do not let the cord hang over the edge of a table or counter or touch hot surfaces. Allow unit to cool before wrapping cord around base for storage.
• Do not touch any hot surfaces, do not store or cover the appliance until it has full cooled down.
• Do not place this appliance on or near a hot gas or electric burner, in or where it could touch a heated oven, or a microwave oven.
• Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning this appliance.
• Caution-bread may burn. When using this appliance, allow adequate air space above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.

CAUTION is required on surfaces where heat may cause a problem – an insulated heat pad is recommended.

Do not use the toaster without the slide out crumb tray in place.

The crumb tray should be cleaned regularly. Do not allow crumbs to build up in the tray.

- Do not use this appliance with any foodstuff product containing sugar content or with products containing jam or preserves.

• If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY. DO NOT USE THE APPLIANCE FOR ANYTHING OTHER THAN INTENDED USE.
• Do not use it for commercial purpose.

Actions in extreme situations:

• If a device tumbled into water, immediately, unplug the device, not touching to the device or water.
• In case of appearance from appliance of smoke, sparkling, strong smell of a burn isolation, immediately stop use the device, unplug the device, appeal to the nearest service center.

Operation

Before startup

• Make sure that all the parts of appliance don't have damages.
• Put the grill on a stable non-slip surface, away from curtains and flammable substances.

CAUTION! Is required on surfaces where heat may cause a problem – an insulated heat pad is recommended.

Provide adequate air space above and on all sides for air circulation.

Warning!

During the first switching-on of the device, a specific smell or a small amount of smoke may appear, caused by dust or factory preservatives entering the heating elements. This is normal, they should disappear after a few minutes of operation

• Do not touch the hot surfaces of the appliance.
• Do not move the appliance in the connected state.

Warning!

• Do not use the appliance to defrost food.
• Do not use metal accessories to prevent damage to the non-stick coating.

HOW TO USE

Before using the appliance for the first time, peel off any promotional materials and packaging materials, and check that the cooking plates are clean and free of dust. If necessary, wipe over with a damp cloth. For best results, pour a teaspoon of vegetable oil on to the non-stick plates. Spread over with an absorbent kitchen towel and wipe off any excess oil.

COOKING

To Use as a Contact Grill

• Close the Grill Toaster and plug it into the wall outlet, you will notice that the power light will come on, indicating that the Grill Toaster has begun preheating.
• It will take approximately 3-5 minutes to reach baking temperature, the preheating is completed when the ready light will turn on.
• Open the Grill Toaster, put the sandwich, meat or other foods on the bottom cooking plate.
• Close the Grill Toaster. The ready light will go off again, which means it will start heating.
• Cook for about 3 to 8 minutes, the ready light goes on again, or until golden brown, adjusting the time to suit your own individual taste.
• When the foods is cooked use the handle to open the lid. Remove the food with the help of a plastic spatula. Never use metal tongs or a knife as these can cause damage to the non-stick coating of the cook plates.
• Once you are finished cooking, disconnect the plug from the wall outlet and leave unit open to cool.

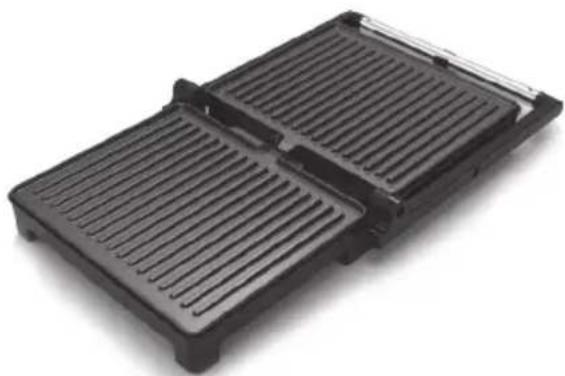

To Use as Open grill

- Place Grill Toaster on a clean flat surface where you intend to cook.

The Grill Toaster can be positioned in flat position.

• Upper plate/cover is level with lower plate/base. The upper and lower plates line up to create one large cooking surface. The Grill

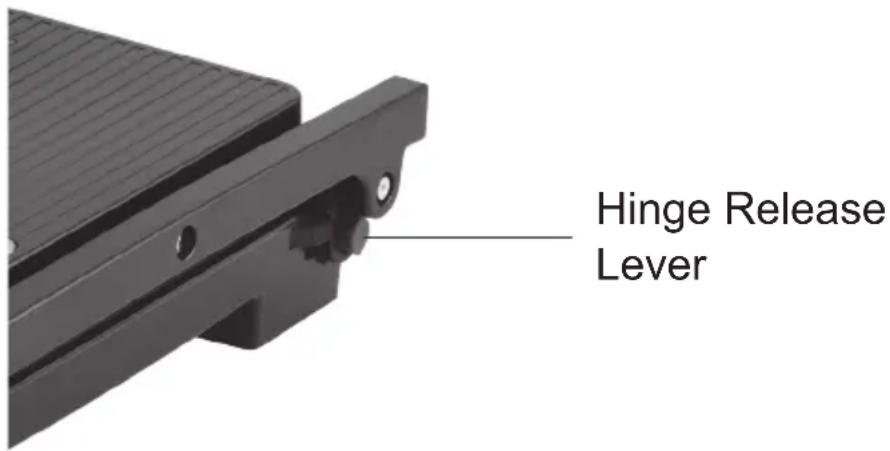

Toaster to this position, locate the hinge release lever on the right arm.

Angle button• With you left hand on the handle, use your right hand to slide the lever toward you. Push the handle back until the cover rests flat on the counter. The unit will stay in this position until you lift the handle and cover to return it to the closed position.

• Use the Grill Toaster as an open grill to cook burgers, steak, poultry (we do not recommend cooking bone-in chicken, since it does not cook evenly on an open grill), fish and vegetables.
• Cooking on the open grill is the most versatile method of using the Grill Toaster. In the open position, you have double the surface area for grill.

Black plastic kitchen grater with slatted side panels and a flat top (no text or symbols visible)

Flat Position

- You have the option of cooking different types of foods on separates without combining their flavors, or cooking large amounts of the same type of food. The open position also accommodates different cuts of meat with varying thicknesses, allowing you to cook each piece to you liking.

Cleaning

Warning!

Before cleaning the appliance in any way, make sure that the appliance plug is not connected to the socket.

Before cleaning unplug the appliance and let it cool completely.

Never place it in water or any other liquid.

Regularly remove excess fat to prevent its ignition. Burning fat can cause serious bodily injury.

- Do not use abrasive cleansers. Simply wipe the exterior with a clean damp cloth and dry thoroughly.

Storage

- Before cleaning unplug the appliance and let it cool completely.

- Clean and dry appliance before storage.

- Keep the appliance in cool dry place, away from children and persons with reduced mental or physical abilities.

Environmental protection

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Subject to technical modifications!

Black rectangular kitchen grater with slatted side and side panels (no text or symbols visible)

Flat Position

Uwaga!

Black plastic kitchen grater with slatted side and side panels (no text or symbols visible)

Flat Position

Current electric alternativ;

Frecventa nominala: 50 Hz;

Atentie!

Black plastic kitchen grater with side slats and heat sink (no text or symbols visible)

Flat Position

Black plastic grater with slatted side panels and heat sink (no text or symbols visible)

Flat Position

Чистка и уход

ВНИМАНИЕ!

Увага!

Black plastic kitchen grater with slatted side panels and ventilation slots (no text or symbols visible)

Flat Position

Чищення та догляд

УВАГА!

Made in P.R.C. for Maestro

Apollo Corporation Limited ADD: Room 801-2, 8/F., Easey Commercial Building, 253-261 Hennessy Road, Wanchai, Hong Kong, Apolllo Корпорейшн Лимитед Адрес: Рум 801-2, 8/F, Изи Комершиал Билдинг, 253-261 Хеннесси Роад, Ванчай, Гонконг Аполло Корпорейшн Лімитед Адреса: Рум 801-2, 8/F, Ізі Комершиал Білдінг, 253-261 Хеннессі Роад, Ванчай, Гонконг
