Product Type	Ultraslim Paintable Panel Heater
Brand	ElectriQ
Model	EPPH5W
Power Consumption	550W
Voltage	220-240V
Frequency	50/60 Hz
Dimensions (W x H x D)	600 x 800 x 10 mm
IP Rating	IP20
Installation Options	Wall-mounted or free-standing with provided stands
Control Methods	Touch panel, remote control, and smartphone app (Tuya Smart)
Smart Features	WiFi connectivity, voice assistant compatible (Google Home, Amazon Echo), smart scenes and automation
Display	LCD screen with temperature and mode indicators
Temperature Range	Adjustable, default 25°C
Timer	On/off timer up to 24 hours
Child Lock	Yes, hold button for 3 seconds to activate/deactivate
Safety Features	Overheat protection, tip-over switch (implied), child lock, IP20
Cleaning	Wipe with soft dry cloth; do not use water or chemical solvents
Spare Parts / Repairability	No user-serviceable parts; contact authorized service center
Warranty	Standard manufacturer warranty (contact support)
Compliance	CE, Directive 2014/53/EU
Weight	Approximately 4 kg (estimated)

Frequently Asked Questions - EPPH5W ElectriQ

How do I connect the heater to WiFi?

Download the Tuya Smart app, then press and hold the SET button for 5 seconds until the WiFi symbol flashes quickly (twice per second) for quick connection. Ensure your phone is on a 2.4GHz network. In the app, add device (Heater), enter WiFi password, and follow prompts. Alternatively, use AP mode by pressing SET again until symbol flashes slowly (once per second).

What should I do if the heater does not turn on?

Check that the power cord is connected, the socket is active, and the power switch on the rear of the unit is turned on. Also ensure the fuse is OK. If the issue persists, contact support.

Can I use the heater in a bathroom?

No, this heater is not intended for use in bathrooms, laundry areas, or similar humid locations. It must be kept away from water and moisture.

How do I set the timer?

For an ON timer (standby): press SET button twice, adjust duration with UP/DOWN, then press POWER. For an OFF timer (operating): press the timer button repeatedly to set duration; the unit will turn off automatically when time elapses.

How do I activate the child lock?

Hold the child lock button for 3 seconds until the child lock icon appears on the LCD. Repeat to deactivate. Lock prevents accidental button presses.

What is the recommended installation height?

When wall-mounting, install the heater at a minimum of 20 cm above the floor. Maintain at least 50 cm clearance from walls or objects for safety and performance.

How do I clean the heater?

Unplug the unit and allow it to cool. Wipe the surface with a soft dry cloth. Do not use water, chemical solvents, or allow moisture into the control panel.

The heater emits a strange smell – is it normal?

Yes, a slight odor during the first few minutes of use or after storage is normal and will dissipate quickly. It is caused by heating of new components.

What are the dimensions of the EPPH5W?

The heater measures 600 x 800 x 10 mm (width x height x depth). It is an ultraslim design suitable for wall mounting or free-standing use.

How can I reset the heater to factory settings?

To reset WiFi settings, press and hold the SET button for 5 seconds to enter connection mode. For a full reset, disconnect power for a few minutes and reconnect. Refer to the manual for detailed instructions.

USER MANUAL EPPH5W ElectriQ

White rectangular electronic device with a small digital display showing '25μ' and '100μ' (no visible text or symbols on the device itself)

ULTRASLIM PAINTABLE 550 WATT PANEL HEATER WITH SMART APP

EPPH5W

Thank you for choosing electriQ

Please read the manual before using this heater

and keep it safe for future reference.

Visit our page www.electriQ.co.uk for our entire product range

SETTLING IN OK?

We hope this has been helpful to you.

We would love to see how you're getting on with your new purchase, so please share any snaps you have on the platform of your choice below.

Our community awaits your uploads - Snap, tag and hashtag away!

@electriQUK #electriQUK

WE'RE HERE TO HELP

Should you have any problems or questions with your purchase, please contact a member of our customer service team.

0330 390 3061

[e-mail]

Mon-Fri | 9am to 5pm

Unit J6, Lowfields Business Park, Lowfields Way, Elland West Yorkshire, HX5 9DA

CONTENTS

SAFETY INSTRUCTIONS 4

INSTALLATION 6

PRODUCT OVERVIEW 7

OPERATION 8

SETTING UP THE APP 9

USING THE APP 14

CLEANING AND MAINTENANCE 19

TROUBLESHOOTING 19

TECHNICAL SPECIFICATIONS 20

SUPPORT 20

PRODUCT FICHE 21

SAFETY INSTRUCTIONS

IMPORTANT

• Carefully read the instructions before operating the unit
• This appliance is for indoor use only.
• Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.
• Installation must be in accordance with regulations of the country where the unit is used.
• If you are in any doubt about the suitability of your electrical supply have it checked and, if necessary, modified by a qualified electrician.
• This heater has been tested and is safe to use. However, as with any electrical appliance use it with care.
• Disconnect the power from the unit before dismantling, assembling or cleaning.
• Avoid touching any moving parts within the appliance.
• Never insert fingers, pencils or any other objects though the guard.
• This appliance can be used by Children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be carried out by children.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 years and less than 8 years shall not plug in, regulate, or clean the appliance or perform user maintenance.
• Children under 3 years should be kept away unless continuously supervised.
• Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• Do not clean the unit by spraying it or immersing it in water.
• Never connect the unit to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a qualified electrician.
• Never operate this appliance if the unit, cord or plug is damaged. Ensure the power cord is not stretched, exposed to sharp object/edges, or routed under the unit.
• Any service other than regular cleaning should be performed by an authorised service representative. Failure to comply could result in a voided warranty.
• Never use the plug as a switch to start and turn off the heater. Use the provided power button located on the control panel.

• Do not use an external timer.

• Do not cover the appliance, or place items close to the unit which may restrict airflow, as this may present a fire risk.

• The heater must not be located immediately below a socket outlet.
• Always place the unit on a dry and stable surface. Do not move or tilt the unit.
• Avoid keeping the unit in direct sunlight for a long period of time.
• The heater is designed to be used at temperatures above -20^ . If it is exposed to temperatures below this, it must be allowed to warm above this level before operation.
• Do not attempt to repair, disassemble or modify the appliance. This unit contains no user-serviceable parts.
• Always unplug or disconnect the appliance from the mains power supply when not in use, or when moving or cleaning it. Do not pull the cord to unplug the heater.
• Keep the heater clean. Do not allow any object to enter the ventilation or exhaust opening as this may cause electric shock, fire, or damage to the heater.
• Do not use the appliance for anything other than its intended use. It is designed for domestic indoor use only.
• There may be a trace of odour during the first few minutes of initial use, or after a period of storage. This is normal and will quickly disappear.
• This appliance has hot and arching or sparking parts inside. Do not use it in areas where gasoline, paint, or any flammable liquids are used or stored.
• This appliance is not intended for use in bathrooms, laundry areas and similar humid locations. Never locate this appliance where it may fall into a bathtub or otherwise become exposed to water.
• The remote contains a lithium battery, keep out of reach of small children. Seek Medical advice if swallowed.
• To prevent battery leakage: Remove the battery from the remote if exhausted or before long periods of storage.
• WARNING: To reduce the risk of fire or electrical shock, DO NOT use this appliance with any solid-state Speed Control Device or any variable speed controllers.

ENERGY SAVING AND UNIT SAFETY PROTECTION TIPS

- Do not cover or restrict the airflow. Do not use in dusty environment.

- For safety and maximum performance, the minimum distance from a wall or objects should be 50cm.

WALL MOUNTING INSTRUCTIONS

Carefully unpack your heater, do not use a sharp object as this may damage the heater.

Empty white square with four corner circular markers (no text or symbols)

Mark the positions of the four holes to be drilled on the wall. (Install the heater at a minimum of 20cm above the floor.) Use a spirit level to ensure that all the holes are level.

Drill the 4 holes with a suitable drill bit for the type of wall.

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Simple line drawing of a hexagonal bolt with a circular head (no text or symbols)

Insert the plastic wall fittings into the holes.

Hold the heater in position against the wall fittings inserted in the previous step.

Simple line drawing of a corner joint with a labeled angle (0°) and number 4, no text or symbols present.

Technical line drawing of a mechanical assembly with a lever and pin (no text or symbols)

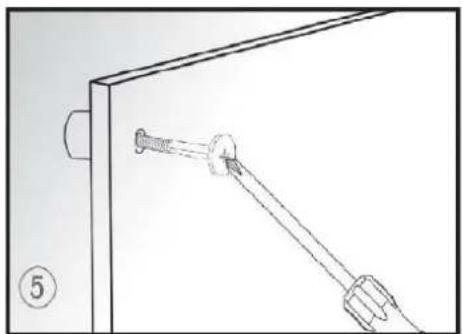

Screw the heater into position through the plastic fittings, ensuring that the heater is secure and in the correct position.

Put the caps onto the head of each screw.

PRODUCT OVERVIEW

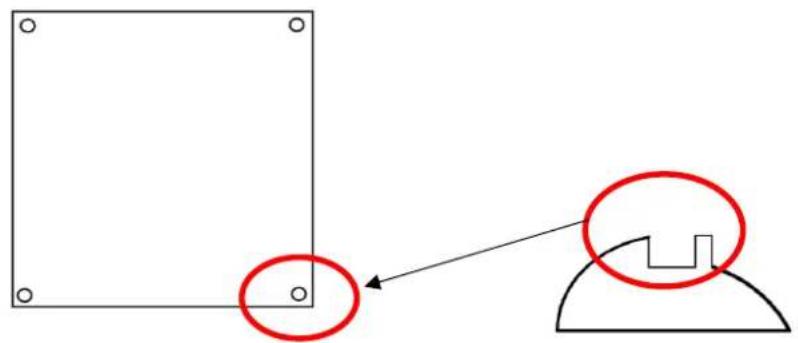

FREE STANDING

Secure the provided stands to the base of the heater using the screws provided.

Pure geometric diagram showing a square with corner holes and a curved shape, no text or symbols present

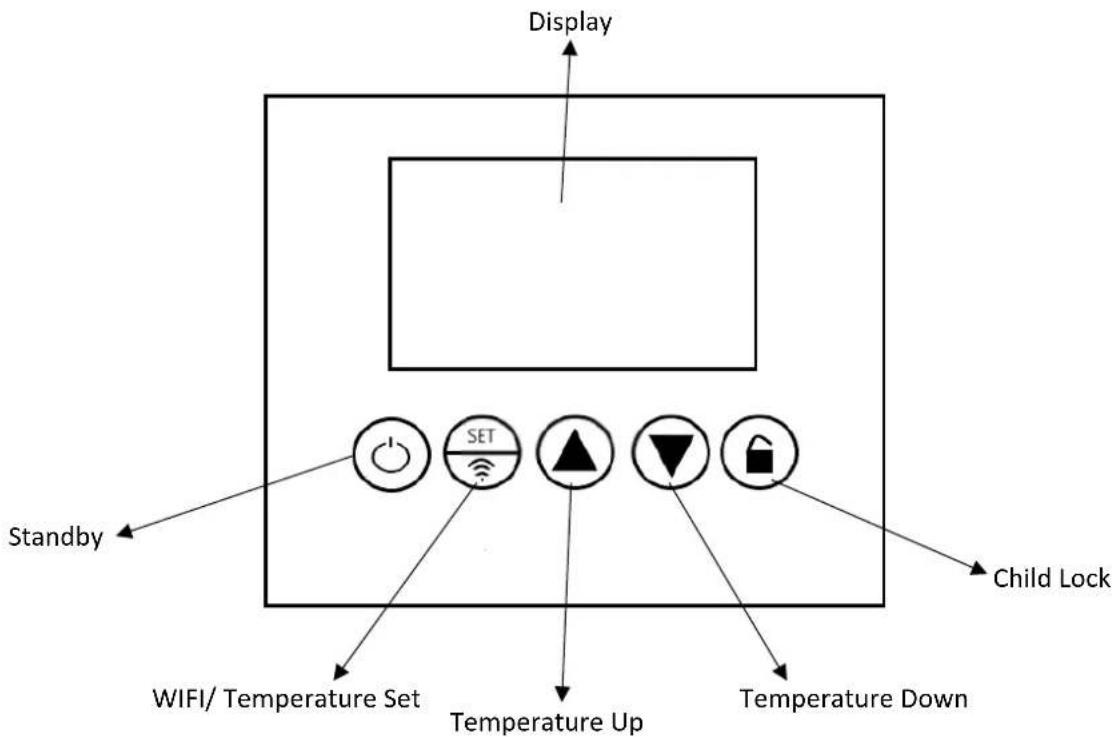

CONTROL PANEL

OPERATION

Connect the power and turn on the unit using the switch on the side of product.

Press the standby button once and the "ON" indicator on the LCD screen will illuminate, the unit will now be powered ON and be set to the default desired room temperature of 25^ C.

SETTING THE DESIRED TEMPERATURE

Press the SET button and the temperature setting indicator will flash, then use the temperature UP and DOWN buttons to adjust the temperature.

Three seconds after the temperature has been changed, the temperature will be automatically saved.

TIMER

The inbuilt timer will allow you to set the unit to turn on or turn off after a set period of time, please note only one timer can be used at any time.

ON TIMER – The timer will turn on the unit automatically after the time set has elapsed.

1. While in standby, press the SET button twice to activate the timer.
2. Adjust the duration using the UP and DOWN buttons
3. Press the POWER button before the time has elapsed and the unit will turn on as normal and the timer will be cancelled

OFF TIMER – The timer will turn off the unit automatically after the time set has elapsed.

1. While the unit is operating, repeatedly press the timer button to set the duration
2. Once the set time has elapsed, the unit will turn off automatically.
3. Press the POWER button before the time has elapsed, the timer will be cancelled and the unit will turn off.

CHILD LOCK

Hold the child lock button for 3 seconds, and the "Child Lock Icon" on the LCD screen will be lit, the buttons on the appliance are deactivated.

To exit child lock, hold the child lock button again for 3 seconds.

CONNECTING THE APPLIANCE TO WIFI

DOWNLOAD THE APP TO YOUR PHONE

Download the" TUYA SMART" app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store.

Android

IOS

MODES AVAILABLE FOR SETUP

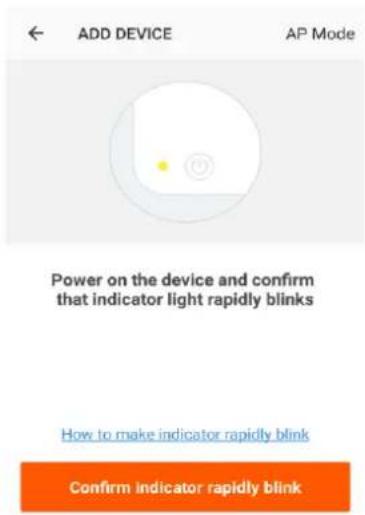

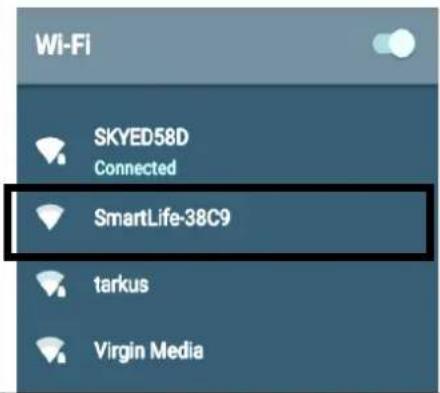

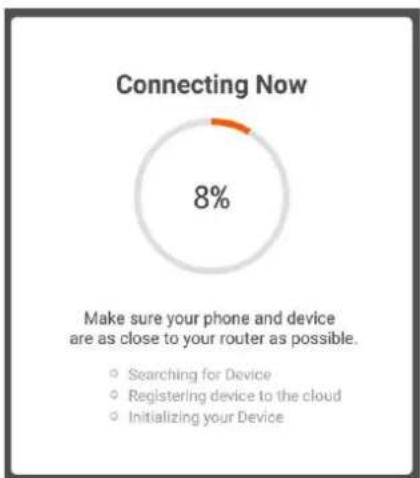

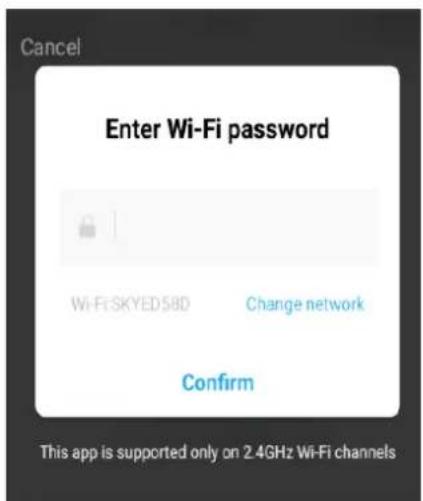

The heater has two different setup modes, Quick Connection and AP (Access Point). The quick connection is a quick and simple way to set the unit up. The AP connection uses a direct local WiFi connection between your phone and the heater to upload the network details.
To turn the WiFi on press and hold the SET button for 5 seconds until the heater bleeps. The WiFi symbol will flash quickly to indicate the unit is in quick connection mode
Please ensure your device is in the correct WiFi connection mode for the connection type you are attempting, the flashing WiFi indicator on your heater will indicate this.

Connection Type	Frequency of Flashes
Quick Connection	Flashes twice per second
AP (Access Point)	Flashes once per second

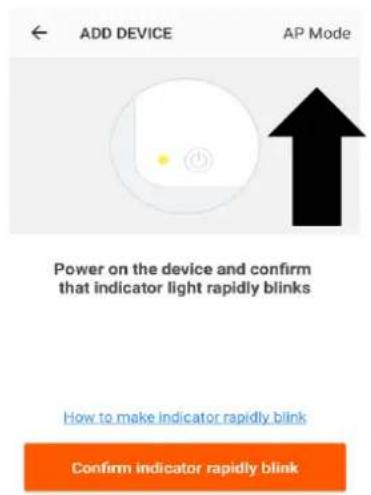

CHANGING BETWEEN CONNECTION TYPES

If the connection has failed then need change to slowly flash state. When the WIFI indicator is flashing at speed, press and hold the SET button again for 5 seconds and the WIFI indicator will begin to slowly flash.

REGISTER THE APP

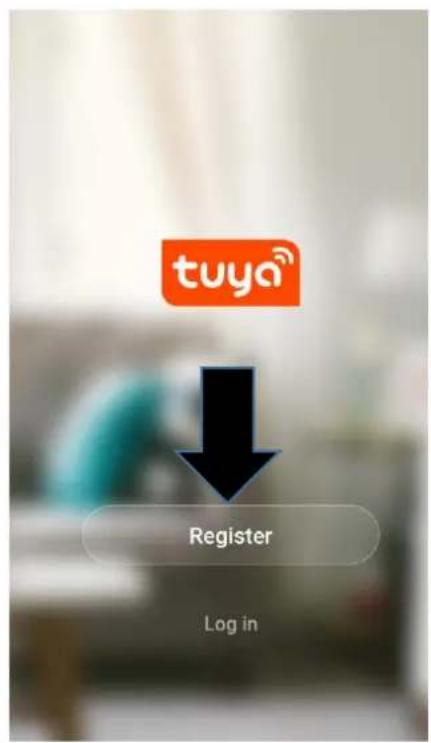

1. Press on the register button at the bottom of the screen.

1. Read the Privacy policy and press the Agree Button.

Privacy Policy

Privacy Policy of Tuya Smart Platform

Update date: 2018.4

Come into force date: 2018.5

So you have purchased our TuyaSmart device

hardware and are starting to use the

TuyaSmart device software and all its

functionalities! Any information you share

with us (e.g. for creating a Tuya Account) will

help us to provide you with services related to

TuyaSmart device and to improve them to

make them even better. We explain here our

ways of collecting and using information, and

how we protect your privacy. In th

policy, "personal data" means info

that can be used to identify an ind

either from that information along

that information and other inform

Disagree

Agree

1. Enter your email address or phone number and press continue to register.

Register

United Kingdom +44

Mobile number/Email

Continue

1. A verification code will be sent by the method selected in step 3. Enter the code into the app.

Verification Code

Verification code has been sent to

Resend(57a)

1

4

7

.

2

5

8

0

3

6

9

—

-

，

×

√

1. Type in the password you would like to create. This needs to be 6-20 characters, with letters and numbers.

Set Password

Password must contain 6-20 letters and numbers

Dana

1. The app is now registered. It will automatically log you in following registration.

Illustration of a person using a laptop with a potted plant nearby (no text or symbols)

Enjoy your smart life

Add Home

Log out

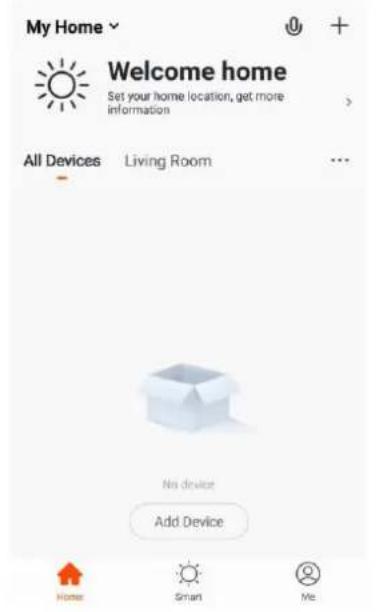

SETTING UP YOUR HOME WITHIN THE APP

TUYA is designed so it can work with a large number of compatible smart devices within your home. It can also be set up to work with multiple devices within different houses as such during the setup process, the app requires that different areas are created and named to allow easy management of all your devices. When new devices are added, they are assigned to one of the rooms you have created.

CREATING ROOMS

1. Press on the ADD HOME button.

Illustration of a person sitting on a blue cushion with a potted plant nearby (no text or symbols)

Enjoy your smart life

Add Home

1. Type in a name for your home,
2. Press on the location button to select the location of your home. (See SETTING YOUR LOCATION below)
3. New rooms can be added by pressing the ADD ANOTHER ROOM option at the bottom. (See ADD ANOTHER ROOM below)
4. Untick any rooms that are not required on the app.
5. Press DONE in the top right corner.

Add Home

Done

Name

Enter your home name

Location

Set geographic location

Smart devices in:

Living Room

Bedroom

Second Bedroom

Dining Room

Kitchen

Study Room

Add another room

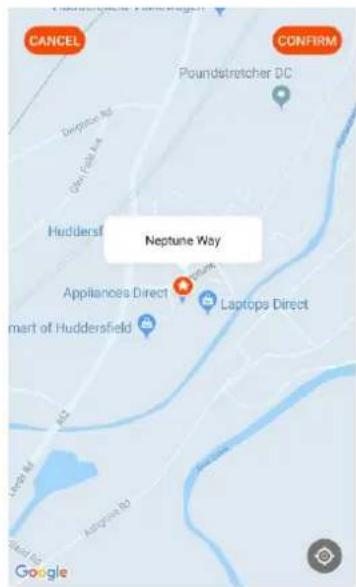

Use your finger to move the orange HOME symbol.

When the symbol is in the approximate location of your home, press the confirm button in the top right corner.

Location details allows the app to be set up later to respond to weather conditions in your area.

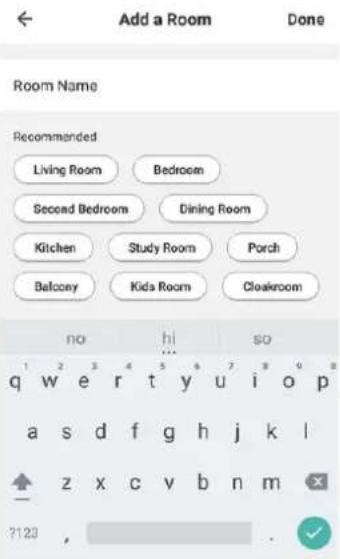

ADD ANOTHER ROOM

Type in the name of the room, and press Done in the top right corner

CONNECTING USING THE QUICK CONNECTION METHOD

Before initiating the connection, make sure the WiFi indicator is flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup)

1. Open app and press "+" to add device, or use the add device button

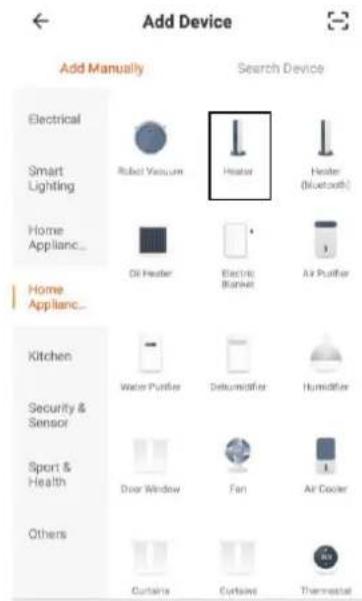

1. Select the type of device as "Heater" within the Home Appliance tab.

1. Press on the orange button at the bottom of the screen.

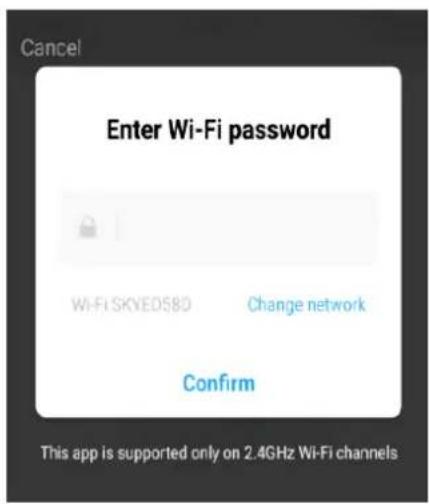

1. Enter your Wi-Fi password and press confirm.

1. This will then transfer the settings to the heater. Wait for this to complete. If this fails, retry.

CONNECTING USING AP MODE (ALTERNATIVE METHOD)

Before initiating the connection, make sure the unit is in standby mode, with the WiFi Indicator flashing once per second. If not follow the instructions for changing the WiFi connection mode. Also ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup)

1. Open app and press "+" to add device, or use the add device button

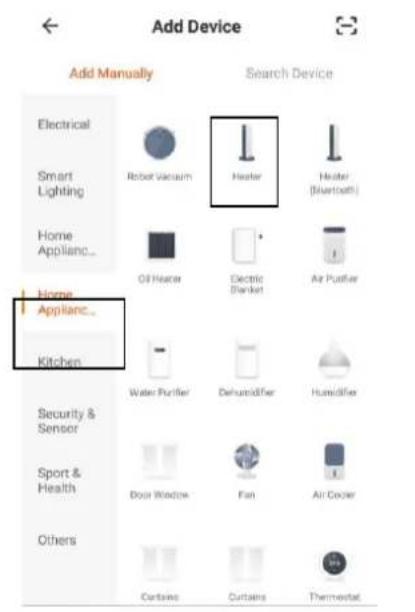

1. Select the type of device as "Heater" within the Home Appliance tab.

1. Press on the AP mode button in the top right of the screen.

1. Ensure the WiFi indicator on the heater is slowly flashing (once per second), then press on the orange button at the bottom of the screen to confirm

1. Enter your WiFi password and press confirm.

1. Go to network settings in your phone and connect to the "SmartLife xxx" connection. There is no password to enter. Then return back to the app to complete setup.

This will then transfer the settings to the heater.

Once the connection process has completed, go back to the network settings on your phone to ensure your phone has reconnected to your WiFi router.

CONTROLLING YOUR APPLIANCE THROUGH THE APP

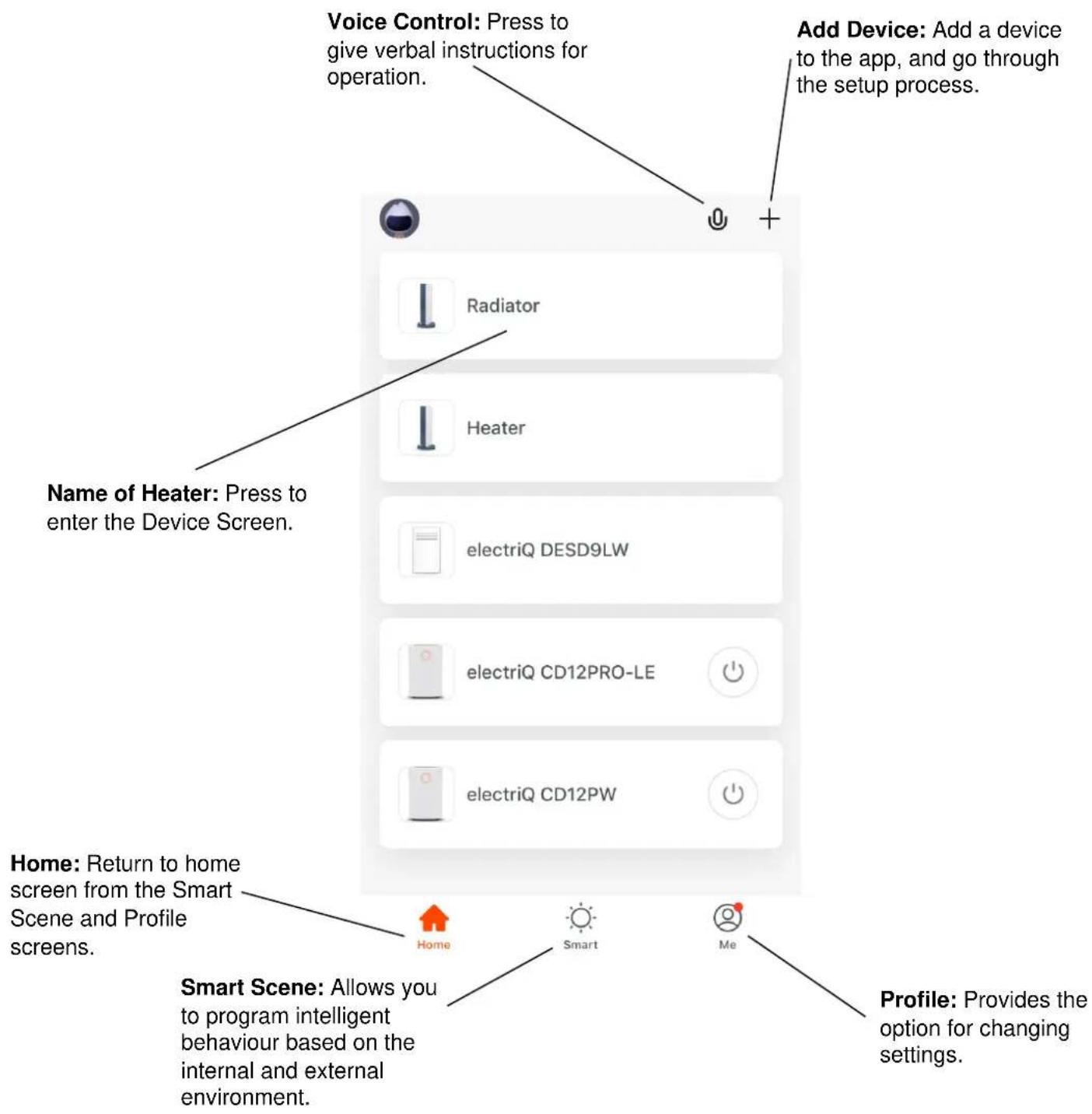

THE HOME SCREEN

NOTE: Due to continuous development of the app, the layout and available features may be subject to change.

Each device has its own entry on the home screen to allow the user to either quickly turn the unit on or off, or to enter the device screen to make other changes.

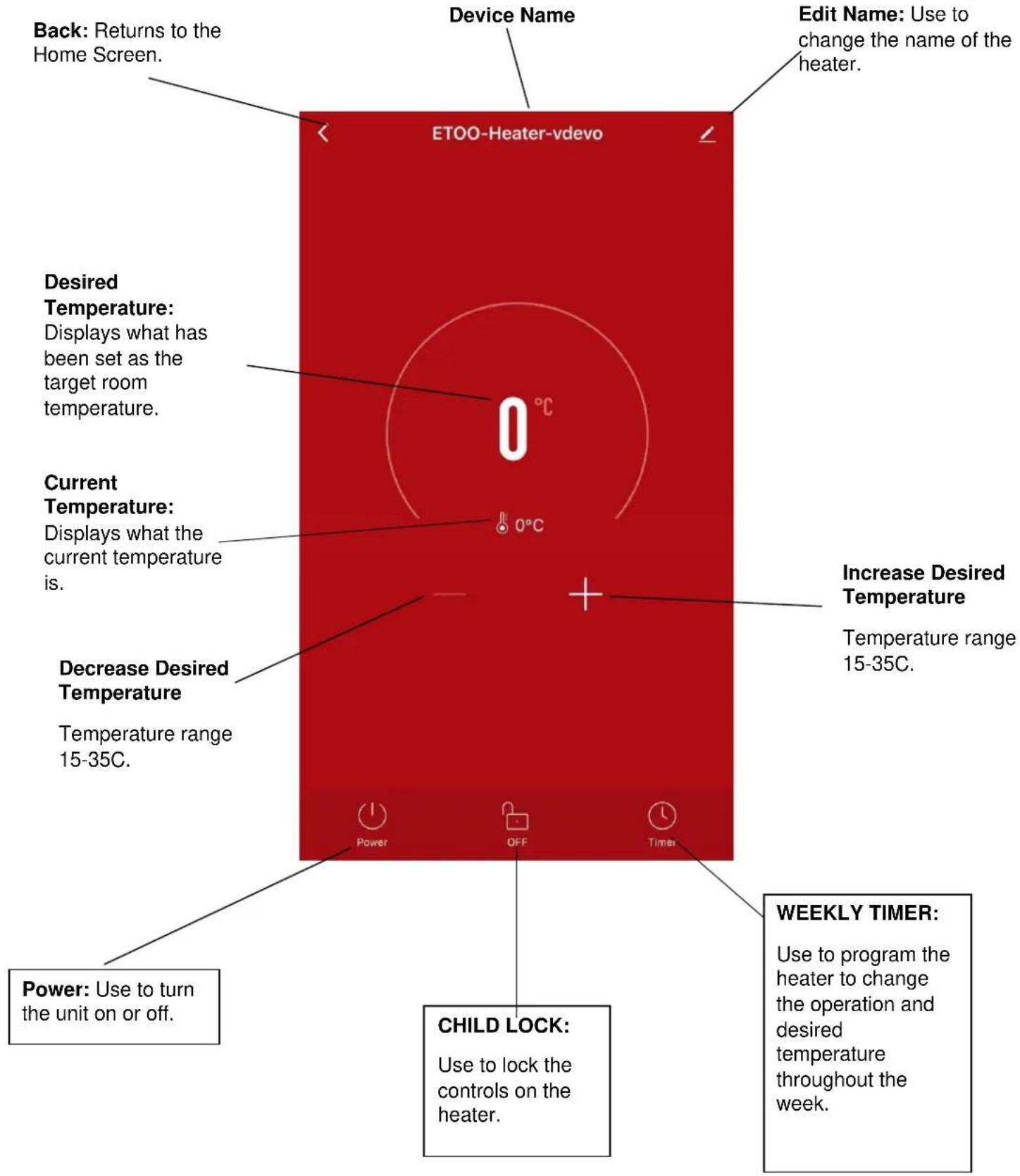

DEVICE SCREEN

The device screen is the main control screen for the heater, providing access to the controls to amend the functions and settings.

SMART SCENES

Smart Scenes is a powerful tool providing the option to customize the operation of the air heater based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories Scene and Automation.

SCENE

Scene allows for a one touch button to be added to the Home Screen. The button can be used to change a number of settings in one go, and can change all the settings within the unit. A number of scenes can easily be setup, allowing the user to easily change between a number of preset configurations.

Below is an example of how to set up a scene:

1. Press on the Smart tab at the bottom of the Home screen

1. Press on the Plus in the top right corner or on Add Scenario to add a smart scene.

1. Press the Pen next to "Please Enter Scene Name" to input the name for your Scene

Show on Dashboard: Leave this on if you require the scene to be displayed as a button on the Home Screen

Press the Red Plus to add the action required. Then select the heater from the list of devices.

1. Chose the function, set the value for the function, and then press the back button in the top right corner, to return to the previous screen.

1. Once all the functions required have been added, press the Save button in the top right corner to finalize and save your new Scene. It will then be saved to the home screen

AUTOMATION

Automation allows an automatic action to be set up for the device. This can be triggered by the Time, and a range of other influences, depending what other TUYA enabled devices you have on the network.

1. Press on the Scene tab at the bottom of the Home screen	2. Press on the Automation tab at the top of the screen.	3. Press on the + at the top of the screen or press on Add Automatic Action

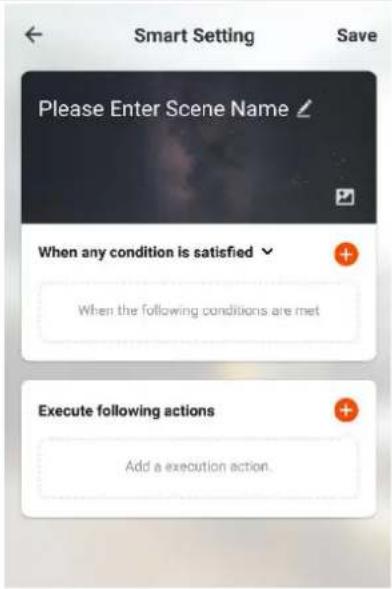

← Select FunctionSwitch >Set Temperature >Mode >Child Lock >Swing >	4. Setup is very similar to the scene setup on the previous page, and includes an extra section for specifying a trigger for the scene to start.Press the Pen next to “Please Enter Scene Name” to input the name for your ScenePress the Red Plus next to “When any condition is satisfied” to add the triggerPress the Red Plus next to “Execute following actions” to add the action required. Then select the heater from the list of devices.	5. Select the condition when the automation should start. A number of triggers can be combined.← Select FunctionSwitch >Set Temperature >Mode >Child Lock >Swing >Countdown Timer >
6. Chose the function, set the value for the function, and then press the back button in the top right corner, to return to the previous screen.	← Select FunctionSet Humidity >Wind Speed >Lock >Shake >	7. Once all the functions required have been added, press the Save button in the top right corner to finalize and save your new scene.The automation is now set up, it can be turned on and off using the toggle on the home page.

[3]

PROFILE TAB

The profile tab gives you the option to edit both your detail, and use the added features of the unit.

Click here to set ni...

HOME MANAGEMENT

Home Management

Message Center

Help Center

More Services

Settings

Home

Smart

Me

Home Management proves options for managing your TUYA account, giving options such as adding a home, adding and removing rooms, and sharing devices with family.

MESSAGE CENTRE

View notifications from devices, if alarms are set up (dependent on device).

HELP CENTRE

Provides assistance using the features provided within the app.

MORE SERVICES

This allows the unit to be integrated with your favorite home automation hardware such as Google Home and the Amazon Echo.

CONNECTION TROUBLESHOOTING

1. Check whether the device is powered on and is in the correct WiFi connection mode, if not please refer to the CHANGING BETWEEN CONNECTION MODES section.
2. Ensure the WiFi password has been entered into the app correctly (Case sensitive)
3. Check that the phone is connected to the WiFi you are connecting the device to.
4. Ensure the network you are connecting it to is 2.4Ghz (5Ghz WiFi networks are not supported), and that there is a strong WiFi signal to the item.
5. If your router is dual band, ensure that the 2.4ghz network has a different network name (SSID). Further advice on changing router settings will be available from your Internet service provider / Router manufacturer.
6. Check the settings on the router. Encryption should be WPA2-PSK and authorisation type should be set to AES
7. Try using the alternative connection method. i.e. If connection is failing when attempting to connect through CF mode, try AP mode.

CLEANING AND MAINTENANCE

ATTENTION: Please shut off the unit and unplug from the mains before cleaning or performing any maintenance.

CLEANING THE SURFACE

- Clean the heater with a duster or a soft wet cloth.

Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. Make sure no water enters the control panel or gaps in the casing.

• Do not run the unit until completely dry.
• Place the heater in its original box or cover to protect it from dust when not in use.
• Store it in a cool dry place.

TROUBLESHOOTING

Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty and may cause bodily harm.

Issue	Possible Reason	Solution
No power	Power cord is unconnectedThere is no power from socketThe power switch on the rear of the unit is turned off.	Connect the power cordCheck socket is turned onEnsure the power switch on the rear of the unit is in the on position
Odour emission from unit	New unit. When the unit is used for the first time the fan motor may produce and odour which will dissipate within a week of use	No action required
Strong vibrations and noise	Unit is not placed on a flat surfaceUnit may be damaged	Place on a flat surface. May put an anti-vibration mat underneathIf the heater is damaged discontinue use and contact the service centre.

If the above solutions do not resolve the problem please contact the service centre.

TECHNICAL DATA

Model no.	EPPH5W
Voltage	220V-240V 550W
Frequency	50 / 60 Hz
Max power	550W
IP Rating	IP20
Product Dimensions	600X800x10mm

electriQ UK SUPPORT

www.electriQ.co.uk/support

Please, for your own convenience, make these simple checks before calling the service line.

If the unit still fails to operate call: 0330 390 3061 or complete the online form

1. Is the unit plugged into the mains?
2. Is the fuse OK?
3. Switch the unit off and wait three minutes to see if the issue is resolved. Restart the unit.

Office hours: 9AM - 5PM Monday to Friday

www.electriQ.co.uk

Unit J6, Lowfields Business Park

Lowfields Way, Elland

West Yorkshire, HX5 9DA

DECLARATION OF CONFORMITY

Hereby, electriQ declares that this heater follows Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://www.electriQ.co.uk/content/declaration-of-conformity

Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary.

Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils. Please remember that this equipment will be further handled during the recycling process, so please be considerate when depositing your equipment. Please contact the local council for details of your local household waste recycling centres.

PRODUCT FICHE

Model Identifier: EPPH5W
Item	Symbol	Value	Unit		Item	Unit
Heat Output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	0.55	kW		manual heat charge control, with integrated thermostat	No
Minimal heat output	P_min	0	kW		manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max	0.55	kW		electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption					fan assisted heat output	No
At nominal heat output	eI_max	N/A	kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	N/A	kW		single stage heat output and no room temperature control	No
In standby mode	eI_B	1	W		two or more manual stages, no room temperature control	No
					with mechanical thermostat room temperature control	No
					with electronic room temperature control	Yes
					with electronic room temperature control plus day timer	No
					with electronic room temperature control plus week timer	Yes
					Other control options (multiple selections possible)
					room temperature control with presence detection	No
					room temperature control, with open window detection	No
					with distance control option	No
					with adaptive start control	No
					with working time limitation	No
					with black bulb sensor	No
Contact Details	electriQ, Unit J6, Lowfields Business Park, Lowfields Way, Elland, West Yorkshire, HX5 9DA

20230317
