AHS801 - Humidifier BLAUPUNKT - Free user manual and instructions

Product Type	Humidifier
Brand	Blaupunkt
Model	AHS801
Type	Ultrasonic
Water Tank Capacity	6 liters
Coverage Area	Up to 40 m²
Humidification Output	300 ml/h
Noise Level	< 35 dB
Power Consumption	25 W
Power Supply	AC 220-240 V, 50 Hz
Dimensions (W x H x D)	24 x 36 x 18 cm
Weight (Net)	2.1 kg
Main Functions	Humidification, automatic shut-off, night mode, aroma diffuser
Control Type	Touch panel with LED display
Filter Type	Ceramic filter (replaceable)
Cleaning	Weekly cleaning of tank and base; descale monthly
Safety Features	Auto shut-off when empty, overheat protection
Spare Parts	Available: filter, atomizer, water tank
Repairability Index	7/10 (user-replaceable parts)
Warranty	2 years

Frequently Asked Questions - AHS801 BLAUPUNKT

How to clean the Blaupunkt AHS801 humidifier?

Turn off and unplug the device. Remove the water tank and rinse with warm water. Use a soft brush to clean the base and transducer. For descaling, use a mixture of water and white vinegar (1:1) and run a cycle. Rinse thoroughly before use.

Can I use essential oils in the AHS801?

Yes, the AHS801 has an integrated aroma diffuser function. Add a few drops of essential oil into the designated aroma tray (not the water tank) to avoid damage.

Why is the humidifier making noise?

Normal operation produces a gentle humming sound (< 35 dB). If noise increases, check for low water level, air bubbles in the pump, or mineral buildup. Clean the unit and ensure it is on a level surface.

Does the AHS801 have an automatic shut-off?

Yes, it features an automatic shut-off function when the water tank is empty, preventing dry operation and ensuring safety.

What type of water should I use?

For optimal performance and to reduce mineral buildup, use distilled or demineralized water. Tap water can be used but may require more frequent cleaning.

How often should I replace the filter?

The ceramic filter should be replaced every 3-6 months, depending on water quality and usage frequency. Refer to the manual for specific part numbers.

What is the recommended room size for the AHS801?

The humidifier is suitable for rooms up to 40 m² (about 430 sq ft) for effective humidification.

How do I reset the filter replacement indicator?

After replacing the filter, press and hold the 'Filter Reset' button (if available) for 3 seconds, or refer to the manual to clear the indicator.

Can the humidifier be used overnight?

Yes, the AHS801 includes a night mode that dims the display and reduces noise, making it ideal for bedroom use.

The humidifier is not producing mist. What should I do?

First, ensure the water tank is filled and properly seated. Check if the unit is on. If still no mist, clean the transducer (the metal disc) with a soft brush to remove mineral deposits. Also verify the power supply.

USER MANUAL AHS801 BLAUPUNKT

Exterior view of a modern water purifier with digital display and control buttons (no text or symbols on main body)

Enjoy it.

Air humidifier Luftbefeuchter Nawilžacz powietrza Zvlhčovač vzduchu Zvlhčovač vzduchu Párásító Vlažilnik zraka

Ovlaživač zraka

ΥΓΡΑΝΤΗΡΑΣ ΑΕΡΑ

ОВЛАЖНИТЕЛ НА ВЪЗДУХ

Umidificator de aer

Oro drėkintuvas

Õhuniisutaja

Important notes

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not

work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Do not add drugs or chemicals to the water tank, base or vapor outlet. Do not add aromatic oils, salt, decalcifying tablets, powders or cleaning agents to water. Use only clean water.
  • Make sure that the water mist outlet is not aimed directly at the walls, furniture, electrical outlets, electrical and electronic equipment.
• Do not block the device ventilation. Keep at least 20 cm free space around the device. Do not block the water mist outlet.

• Do no use the device if there is risk of developing condensation. Moisture may occur on the external or internal device parts if:

• the device is moved from a cold to a warm place,

• the heating system has just been turned on,
• the device is being used in a high moisture area,
• the device is cooled by the air conditioning cooling system.

- Do not tilt or overturn the device and do not attempt to add or drain water when the device is operating.

- Do not remove the water tank from the device base during

the device operation.

• Do not touch the device with wet hands.
- Do not leave water in the humidifier if it is not in use.

- Too much humidity in the room can lead to moisture accumulation causing the growth of bacteria and fungi and damage to walls, furniture and wallpaper.

- The working environment for humidifier is when temperature is between 5 to 40 degrees Celsius, and relative humidity is lower than 80%RH.

- The device should be disconnected from the mains when filling up the tank, placing the water tank in the device, and cleaning the humidifier.

- Do not operate the device, especially the UV lamp, if the HEPA filter and filter cover have not been installed correctly. UV light is dangerous to the eyes and skin, and is a risk to health. The UV lamp can only be replaced through the manufacturer's authorised service.

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)
  Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Voltage: 220-240V\~50/60Hz,

Power: 105W

Water tank capacity: 51

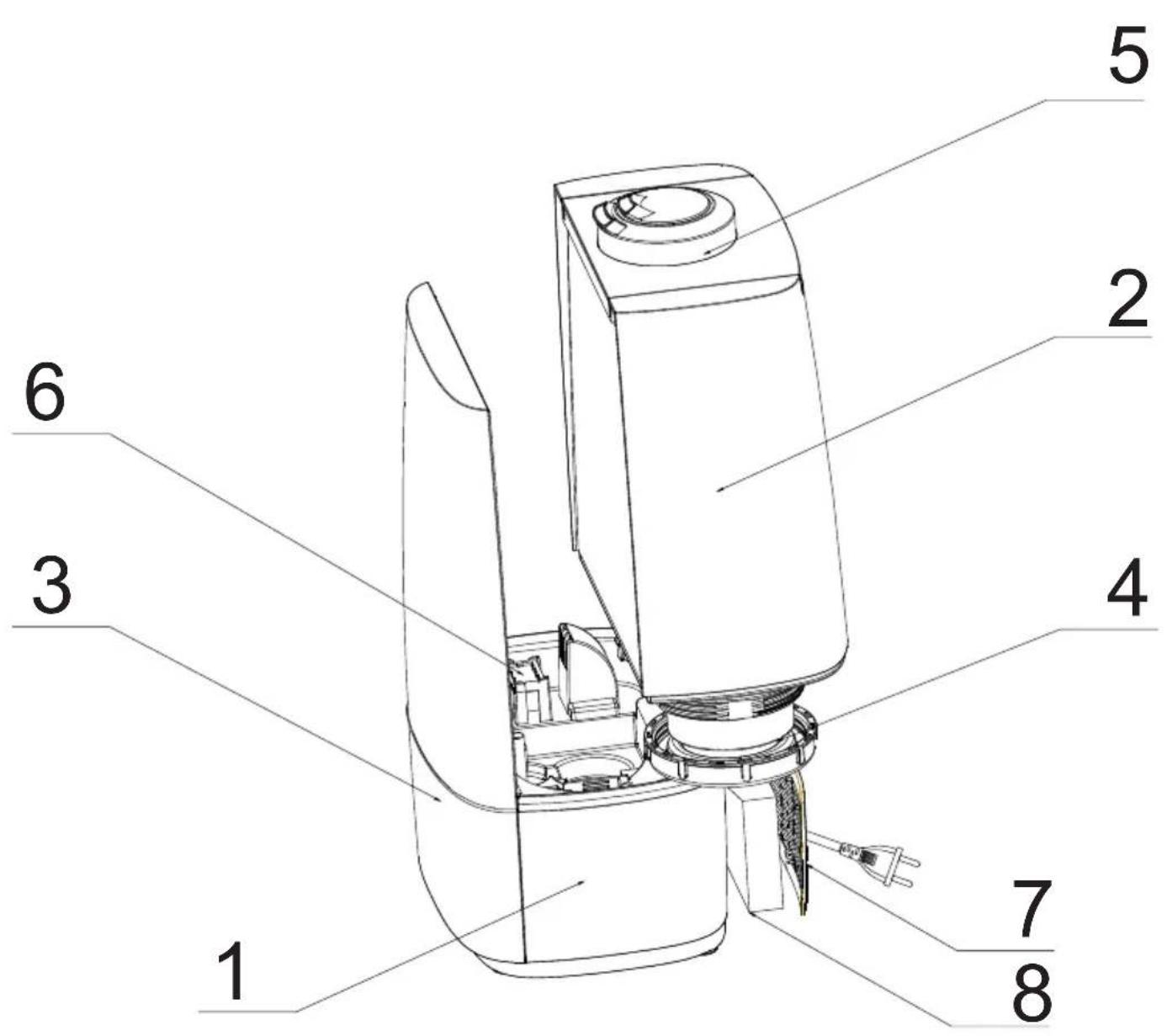

1. Body
2. Water tank
3. Display with control panel
4. Filter with valve

5. Water-mist outlet

6. Aromatherapy attachment

7. Air-filter cover
8. HEPA H13 air filter

USING THE AIR HUMIDIFIER

1. Remove the water tank (2) from the device body (1), unscrew the filter valve (4), and fill the tank (2) with water. Tighten the water tank (2) along with the filter (4). Place the water tank (2) in the body of the device (1).
2. Make sure the water-mist-outlet nozzle (5) is well seated in the appliance.
3. Connect the appliance to a suitable power source. The display lights up for a moment, then turns off, and the device goes into standby mode.

WARNING: When the water tank is empty, the "empty water tank" indicator will appear on the display and the humidifier will stop working. Fill the water tank to continue operation.

BUTTON DESCRIPTIONS

Switch: ⏻ When the push-button is pressed, the humidifier will emit a water mist and the operating parameters can be checked on the LED display. Press this button again to return to standby mode.

Humidification intensity: ☐ The humidification intensity can be adjusted in three steps by pressing this button.

Night mode: ☐ Press this button to start the night mode; the display turns off, and the humidifier goes into automatic mode.

Warning: A long press of the button (3 seconds) will turn off the sounds associated with pressing the function keys. To restore the sounds, hold the button down again.

Humidistat / AUTO mode: A short press of the button activates the constant-humidity mode. Each press changes the target moisture value from 40% to 80% RH. The humidifier will start and stop the humidification of air oscillating around the selected air humidity. When the humidistat mode is started, the humidifier will operate for the first two minutes, regardless of the ambient humidity.

A long press of the button (3 seconds) will start the automatic mode. The automatic mode will maintain a humidity of 55% \~ 68% by adjusting the humidification intensity to the ambient conditions.

Negative ions: ☐ turns on/off the negative ion generator.

Timer / UV lamp: A short press of the button launches the timer; each press sets the time to turn off the device from 1 to 10 hours. A long press of the button (3 seconds) turns on or off the internal UV lamp for air sterilisation.

Hot mist: Pressing the button starts the water-mist heating. To turn off the water-mist heating, press the button again.

THE LED DISPLAY

When the "%" symbol lights up, the display shows the relative humidity of the air.

When the "°C" symbol lights up, the display shows the current ambient temperature.

When the "H" symbol lights up, the display shows the remaining amount of time to turn off the device.

THE AROMATHERAPY FUNCTION

To use the aromatherapy function, follow these instructions.

1. Take out the aromatherapy attachment (6).
2. Apply a few drops of water-soluble aroma oil (for use in humidifiers) on the sponge.
3. Put the aromatherapy attachment in the right place. The aroma will begin to release when the humidifier is switched on.
4. When you want to stop the aromatherapy, or the appliance will be unused for some time, remove the sponge from the aromatherapy attachment and clean it.

CLEANING AND MAINTENANCE

Turn off the device and unplug it.

Remove the water tank and empty it. Then wash it and remove all dirt and sediment from it.

Dry the water tank.

The transmitter and the internal water tank should be regularly desalinated. It is recommended to use water with the addition of citric acid or vinegar.

Do not immerse the device in water.

The humidifier uses a resin filter which reduces the hardness of the water. It is recommended to replace it every 3-6 months (depending on the hardness of the water). Recommended filter: the Blaupunkt ACC001.

Depending on the air purity, the HEPA filter should be changed every 3-6 months. Open the filter cover by pushing it at the left edge and remove it. Clean the sponge filter and replace the HEPA H13 filter and the activated-carbon filter with a new one. Insert the sponge filter and close the filter cover. Recommended filter: Blaupunkt ACC023.
