KT90MAS1NEB - Range hood BERTAZZONI - Free user manual and instructions

Product Type	Range Hood
Brand	Bertazzoni
Model	KT90MAS1NEB
Width	90 cm
Minimum installation height	650 mm above cooking surface
Power supply	220-240 V ~ 50 Hz
Number of speeds	3 + intensive
Control	Touch controls
Lighting	LED (replacement by after-sales service)
Grease filters	Aluminum, dishwasher safe (every 2 months)
Charcoal filter	Replace every 4 months
Delayed shut-off	30 minutes
Intensive speed	6 minutes
Material	Stainless steel
Weight (estimated)	Approximately 18 kg
Safety class	Class I (grounding mandatory)

Frequently Asked Questions - KT90MAS1NEB BERTAZZONI

What is the minimum installation height?

The minimum safety distance between the cooking surface and the hood is 650 mm. If the gas cooker manual specifies a greater distance, that takes precedence.

How to clean the grease filters?

The grease filters should be cleaned every 2 months (more often with heavy use). They can be washed in the dishwasher or by hand with a mild detergent.

When should the charcoal filter be replaced?

The activated charcoal filter cannot be washed and must be replaced every 4 months approximately, or more often with heavy use.

What to do if the lighting stops working?

For replacement of the lighting, please contact the authorized after-sales service.

Can I use the hood without external evacuation?

No, the hood must be connected to an exhaust duct (minimum diameter 120 mm) to discharge air outside. Do not connect it to a chimney flue used for combustion fumes.

How to adjust the motor speed?

Use the touch controls: T2 for 1st speed, T3 for 2nd, T4 for 3rd. For intensive speed, press T4 for 2 seconds (duration 6 minutes).

How to activate delayed shut-off?

Press the T3 button for 2 seconds. The hood will turn off automatically after 30 minutes (motor and lighting).

Is it safe to leave a flame burning under the hood?

No: never leave an open flame under the hood while it is operating. Adjust the flame so that it does not extend beyond the edges of the pan. Monitor deep fryers to prevent oil fire.

What are the safety precautions for electrical installation?

Installation must be carried out by a competent technician. Ensure that the mains voltage matches that on the rating plate. For Class I appliances, proper grounding is mandatory.

Can children use the hood?

This appliance can be used by children aged 8 years and above under supervision. Cleaning and maintenance should not be performed by children without supervision.

USER MANUAL KT90MAS1NEB BERTAZZONI

Line drawing of a vertical cylindrical structure mounted on a base, with no text or symbols present.

IT 3
DE 7
EN 11
FR 14
NL 18
ES 22
DA 26
FI 30
NO 33
SV 36
PL 39

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
  • Regulations concerning the discharge of air have to be fulfilled.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

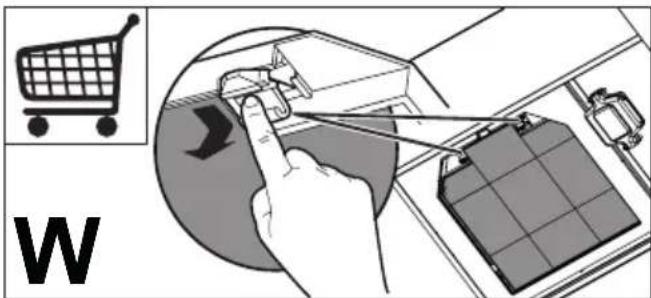

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

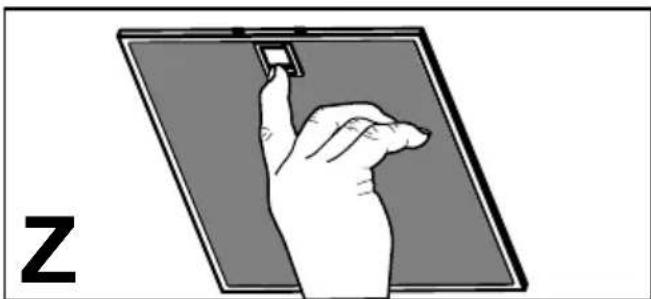

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Button	Function Led
T1	Turns the Motor off. -
T2	Turns the motor on at speed one.	Buttons T1+T2 are on.
T3	Turns the Motor on at speed two.	Buttons T1+T3 are on.
	Press and hold for 2 seconds to enable shutdown with a 30 minute delay (Motor+Lights). It is possible to change the operating speed when this function is enabled.	The respective buttons T1+(T2 or T3 or T4) will flash
T4	Turns the Motor on at speed three.	Buttons T1+T4 are on.
	Press and hold for 2 seconds to activate Intensive speed, which is timed to run for 6 minutes. At the end of this time it will automatically return to the speed set before. Suitable to deal with maximum levels of cooking fumes.	The button flashes.
L	Turns the Lighting System on and off at maximum intensity.	Button on.

5. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").
