Storio 9186 90040 - Kettle Eta - Free user manual and instructions

Product Type	Electric Kettle
Brand	Eta
Model	Storio 9186 90040
Color	Silver with black handle
Material	Stainless steel casing and heating bottom
Capacity	1.7 L (max)
Power	See type label (typical 2000-3000 W)
Voltage	See type label (typical 220-240 V)
Protection Class	I (requires grounded outlet)
Weight	Approx. 0.95 kg
Dimensions (HxWxD)	245 x 220 x 165 mm
Automatic Shut-Off	Yes, via steam sensor after boiling
Control Light	Yes, indicates operation
Water Gauge	Transparent scale with MIN and MAX marks
Lid Type	Manual open/close, steam vents away from handle
Filter	Removable filtration sieve (A6)
Base	Removable stand (B) with central connector
Cord Length	Not specified; standard approx. 0.8-1 m
Safety Features	Boil-dry protection, thermal cut-off, steam sensor
Cleaning	Descale with citric acid; clean filter with brush
Usage	Indoor household use only
Warranty	Subject to proper use; professional service for repairs

Frequently Asked Questions - Storio 9186 90040 Eta

What is the capacity of the Eta Storio 9186 90040 kettle?

The kettle has a maximum capacity of 1.7 liters. Always keep the water level between the MIN and MAX marks on the water gauge.

How do I clean the kettle?

For descaling, fill the kettle with water and add about 50g of citric acid. Boil, let it sit for 10 minutes, then empty and rinse thoroughly. Clean the filter sieve under running water with a fine brush.

Can the kettle be used without the filter?

No, the kettle must not be used without the filtration sieve (A6). It prevents scale particles from pouring into your drink.

Why does the kettle sometimes not turn off automatically?

Ensure the lid is fully closed during operation. If the lid is open, the steam sensor may not activate, and the kettle will not switch off automatically.

What should I do if the kettle boils dry?

The kettle has a heat safety lock that will cut off power if it boils dry. Unplug the appliance, let it cool completely, and do not fill with cold water to speed cooling, as that may damage the heating element.

Is the kettle suitable for children to use?

Children aged 8 years and older may use it under supervision. Children under 8 should be kept away from the appliance and its cord. Cleaning and maintenance should not be performed by children under 8 without supervision.

Can I leave the kettle on the stand when not in use?

It is recommended to unplug the stand from the mains when not using the kettle for extended periods. If left on the stand connected, the kettle may remain in standby mode.

What does the control light indicate?

The control light (A2) illuminates when the kettle is switched on and heating. It turns off automatically when the water reaches boiling point and the kettle shuts off.

How do I descale the kettle?

Use a mixture of citric acid and water. Fill half with water, add citric acid, then top up to 3/4 max. Boil, let stand 10 minutes, empty, and rinse thoroughly with clean water. Repeat if heavily scaled.

What should I do if the power cord is damaged?

The power cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the kettle with a damaged cord.

USER MANUAL Storio 9186 90040 Eta

Modern silver kettle with black handle and 'ETA-' branding, no visible text or symbols on the device itself.

Stainless steel water kettle

eta 9186

STORIO

INSTRUCTIONS FOR USE

Dear customer, thank you for purchasing our product. Keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

• Before the first use, read the instructions for use carefully, look at the picture and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.
• This product can be used by children at the age of 8 years and older if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers.
• Children must not play with the appliance.
• The electric kettle is intended for heating the maximum of 1.7 l of water. If the water level exceeds the maximum recommended amount, hot water may be splashing out.
• WARNING: Do not open the lid if the water is boiling or if it is hot.
• WARNING: Position the lid so that steam is facing away from the handle.
• CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.
• When the appliance is in operation, prevent pets, plants or insects to get in contact with it.
• Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!
• Use the electric kettle with the stand designed for this type only and only for its intended purpose.
• Prevent injuries when handling (e.g. by hot water, steam).
• The appliance is equipped with the heat safety lock which disconnects power supply if the steam sensor fails, if water boils away or if an empty kettle is turned on. If it happens, unplug the appliance from power supply and let it cool down. Do not fill the kettle with cold water in order to cool it down quickly. It could reduce life of the heating element.

- Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.

- The producer is not responsible for damage caused by improper use of the appliance (e.g. burning, scalding, fire) and its guarantee for the appliance does not apply to situations when the safety warnings above are not complied with.

USE OF THE APPLIANCE:

- Use the electric kettle with the stand designed for this type only.

- Never immerse the electric kettle and the stand in water and other liquids (even partially)!

- The kettle may not be used without the filter sieve.

- Never leave the appliance unsupervised and check it during the whole time of water heating!

- This appliance is not intended for outdoor use.

- The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).

- Do not place the appliance near objects or under objects which could get damaged by steam, e.g. walls, kitchen cupboards, sideboards, paintings, or curtains. Leaking steam could damage them.

- Do not use the appliance in an environment saturated with explosive or flammable steams.

- There must be water in the electric kettle before putting into operation. Do not fill the electric kettle with water if it is on the stand.

- Do not touch outer surfaces during operation of the kettle, they are hot and there is a risk of getting burned. Do not touch the lid during and after cooking!

– Before switching on the kettle ensure that the water level is between MIN and MAX marks

- If you are not going to use the electric kettle for longer time, we recommend unplugging the stand from power supply by taking the fork of the power cord out of the socket.

POWER CORD:

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.

- Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!

- The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.

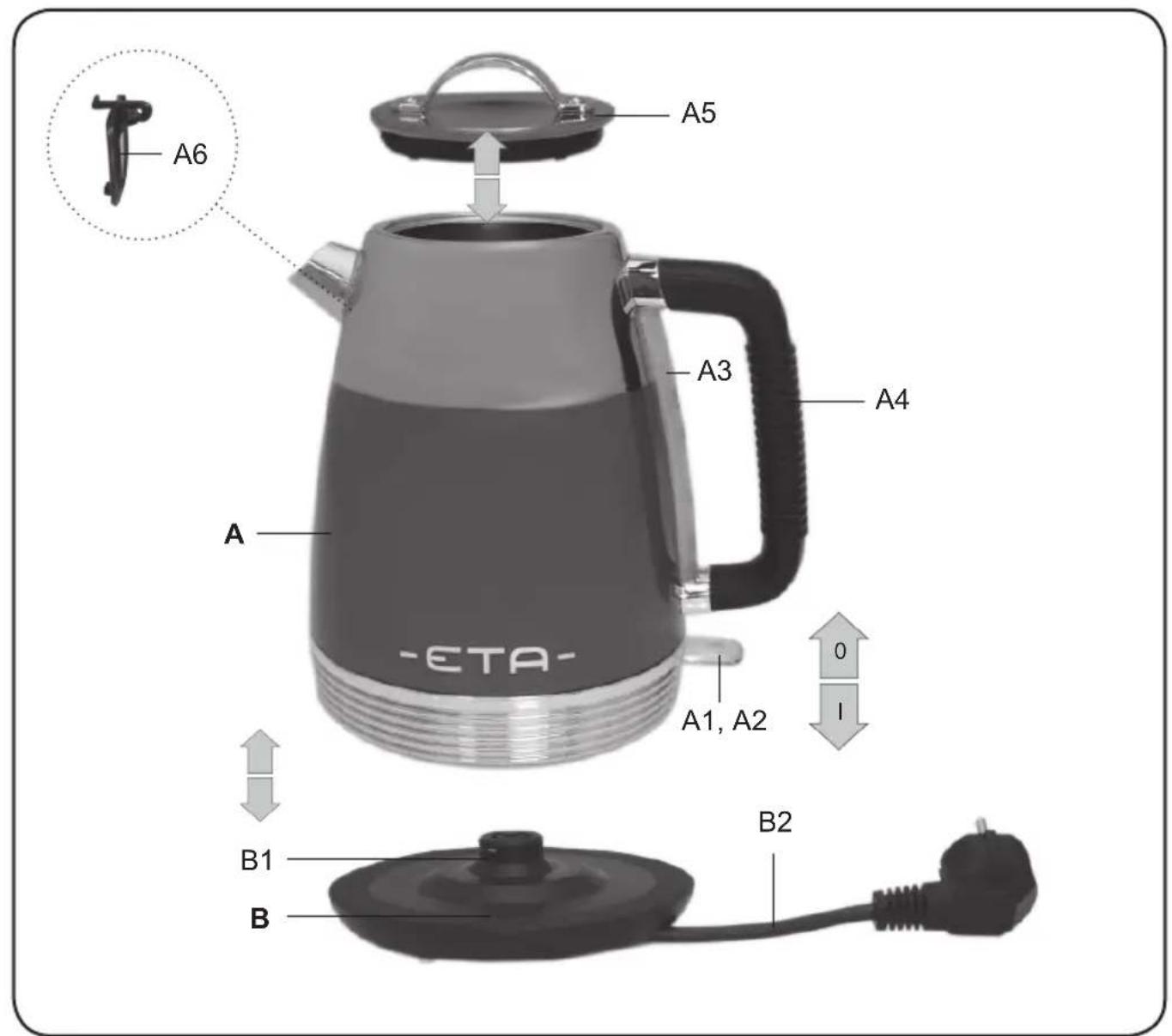

II. DESCRIPTION OF THE APPLIANCE

A – electric kettle

A1 – off/on button 0/I (steam sensor switch*) A4 – handle

A2 - control light A5 - lid

A3 – water gauge A6 – filtration sieve

B – removable stand

B1 – central connector B2 – power cord

* The steam sensor ensures automatic switch off the appliance after reaching the boiling point.

III. INSTRUCTIONS FOR USE

Before the first use, fill the electric kettle with clean water to the maximum level, turn it on and let the water boil. Then pour out the water and repeat the procedure several times (at least five times).

APPLICATIONS

Plug the fork of the power cord to the electric socket. Hold the kettle A on the handle A4. Open the lid A5. Fill the kettle with drinking water. The minimum and maximum amount of water is marked on the water gauge A3. Close the lid. Put the electric kettle on the stand and turn it to the I position by the A1 button. Function of the electric kettle is signaled with the control light A2. After boiling the appliance switches off automatically. Before reaching the boiling point, you can switch off the appliance by turning the A1 button to the 0 position.

ATTENTION

• When heating water, the lid must be closed, otherwise the kettle will not turn OFF.
• In bigger tilting of the electric kettle backwards, particularly when it is filled up to maximum, water can flow out from the electric kettle in the bottom part of the kettle. This does not affect safety or other functions and it does not mean any failure of the electric kettle. In the case of tilting the electric kettle with hot water there is a risk of scalding. Therefore do not tilt the electric kettle.
• Recommendation: When the kettle is not used, do not place it on the stand connected to the mains. If you are going not to use the kettle for a long time, unplug the power cord from the wall socket.
• If the kettle was removed from the stand during boiling, remains in ON position. This means that if you put it back on the stand, it will immediately continue in heating.

IV. MAINTENANCE

Unplug the appliance from power supply by taking the fork of the power cord out of the socket! Clean the kettle only when it is cooled down! Do not use rough and aggressive detergents (e.g. sharp objects, scrapers, diluting agents or other solvents)! The casing of the electric kettle and the heating bottom is made of top-quality stainless steel, but in common use, impurities from water get stuck on them (water scale), particularly above the heating element. It is not rust or another material defect of the kettle container and the appliance is not subject to a complaint for this reason.

Cleaning the kettle

Pour about 50 g citric acid to the kettle with the water scale sediment. Fill the kettle to about one half and mix. After it dissolves, fill the kettle to 3/4 of the maximum amount of water. Place the electric kettle on the stand and turn it on. Before boiling, turn off the kettle, let the solution take effect for about 10 minutes and then pour it out. Clean the kettle thoroughly with clean water. Repeat the whole procedure if the kettle is too soiled. Clean the electric kettle regularly!

Cleaning the sieve (A6)

Take the sieve from the kettle. Clean it from possible sediments in running water using a fine brush. Then put the sieve back in the opposite way.

Expert service must do the large maintenance or to intervene into inside parts of the appliance! Non-observance of the instructions of the manufacturer cancels the right for guarantee repair!

If you are unable to fix the problem, or if you need any further information about the appliance or service centres, please contact your distributor.

V. ENVIRONMENT

Printed signs of materials used for manufacture, packing, components and accessories, as well as their recycling, are on all the pieces if their dimensions enable it. The symbols on the product or in the accompanying documentation mean that the used electric or electronic products must not be disposed together with municipal wastes. Please, hand them over to the collection points designed for their correct disposal, where they will be accepted free of charge. By correct disposal of this product you can help to preserve valuable natural resources and help to prevent possible negative impacts to the environment and to human health, which could be the results of incorrect waste disposal. For further details ask the municipal authorities or the nearest collecting point. Penalties can be charged for incorrect disposal of such wastes, according to national regulations. If the appliance is to be put out of operation definitely, we recommend cutting off the feeder cable, to disable its use.

VI. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Absorbed power (W) shown on the type label of the appliance

Max. volume (I) 1,7

Weight (kg) approximately 0,95

Protection class of the appliance I.

Size, (mm): 220 x 165 x 245

Input in off mode is 0.00 W

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING.
