CHKV310 - Kitchen scale Champion - Free user manual and instructions

Product Type	Kitchen Scale
Brand	Champion
Model	CHKV310
Maximum Weight Capacity	3000 g / 6:9.8 lb.oz / 1200 ml / 42.2 fl.oz
Accuracy	1 g / 0.1 oz / 1 ml / 0.1 fl.oz
Units of Measurement	g, ml, lb:oz, fl.oz
Power Source	1 x CR2032 3V battery
Auto-Off	Yes, after approximately 60 seconds of inactivity
Tare Function	Yes
Display Type	LCD
Measuring Cup Included	Yes, removable and dishwasher safe
Base Material	Plastic with rubber feet
Low Battery Indicator	"LO" on display
Overload Indicator	"EEEE" on display
Cleaning Instructions	Wipe base with damp cloth; cup can be washed in dishwasher
Warranty	2 years (Sweden, Norway, Denmark, Finland)
Intended Use	Domestic use only
Safety Features	Overload protection, auto-off, low battery warning

Frequently Asked Questions - CHKV310 Champion

How do I change the battery in my Champion CHKV310 scale?

Open the battery compartment located on the bottom of the scale. Remove the old battery and insert a new CR2032 battery, ensuring correct polarity. Close the compartment cover.

How do I switch between weight units?

Press the UNIT button repeatedly to cycle through available units: grams (g), milliliters (ml), pounds-ounces (lb:oz), and fluid ounces (fl.oz).

What does 'EEEE' on the display mean?

The EEEE indicator means the scale is overloaded. Remove the product immediately to avoid damaging the scale. The maximum capacity is 3000 g.

How do I use the tare function?

With the scale on and a container on the platform, press the ON/OFF button to reset the display to zero. Then add ingredients; the scale will show only the net weight.

Can I wash the measuring cup in a dishwasher?

Yes, the measuring cup can be immersed in water and cleaned in a dishwasher or with dishwashing detergent. The base should only be wiped with a damp cloth.

Why does my scale turn off automatically?

The scale has an auto-off feature that activates after approximately 60 seconds of inactivity to conserve battery life. You can also turn it off manually by holding the ON/OFF button for 2 seconds.

What does 'LO' on the display mean?

LO indicates the battery is low and needs to be replaced. The scale will switch off automatically after a few seconds.

What is the maximum weight the scale can measure?

The maximum capacity is 3000 g (6.6 lb or 1200 ml). Do not exceed this limit to prevent damage.

How should I clean the scale base?

Clean the base with a soft, slightly damp cloth. Use mild soap if needed. Never immerse the base in water or use harsh cleaning agents.

Does the scale have a warranty?

Yes, Champion Nordic offers a 2-year warranty against manufacturing defects for products purchased and used in Sweden, Norway, Denmark, and Finland. Proof of purchase is required.

USER MANUAL CHKV310 Champion

Please read this instruction manual carefully before use. Keep these instructions handy for future reference.

1. Clean exposed parts with a soft, slightly damp cloth. To remove stains, use a mild soap. Never use detergents, excess water, treated cloths, harsh cleaning agents, or sprays. Do not attempt to lubricate or open scale casing as this will void your warranty.
2. Although your scale is designed to be maintenance-free, it contains sensitive electronic parts. Avoid rough treatment. Do not drop, kick, or jump on it. Treat it with care to ensure the best performance.
3. This scale is designed to read weights up to 3000 g / 6:9.8 lb.oz / 1200 ml / 42.2 fl.oz. To prevent damage, do not place more than 3 kgs on it.
4. Do not store scale where you store cleaning chemicals. The vapors from some household products may affect the electronic components of your scale. Do not store scale on its side.
5. This scale is an extremely sensitive weighing device. In order to prevent run down of the batteries, do not store anything on the scale.
6. Do not dispose of batteries in fire. Batteries may explode or leak. Remove the batteries if the scale will not be used for a long period of time.
7. The appliance must not be immersed into water or other liquids. Should it get wet, it must be wiped off immediately.
8. This appliance can be used by children and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety and they understand the hazards involved.
9. Children shall be supervised to ensure that they do not play with the appliance.
10. Do not place the appliance on or near hotplates, open fire etc.
11. The appliance is not for outdoor use.
12. The appliance must not be used if it has been dropped on the floor, or if it is obvious that the appliance is damaged.
13. Use only new batteries of the correct size. Used batteries should always be removed, as they may leak chemicals which may damage the circuits of the appliance.
14. The batteries must be removed from the appliance before it is scrapped.
15. In the event of battery leakage, prevent skin contact and dispose batteries according to local law.
16. This appliance is intended for domestic use only.
17. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Technical data

Accuracy: 1 g / 0.1 oz / 1 ml / 0.1 fl.oz

Maximum load: 3000 g / 6:9.8 lb.oz / 1200 ml / 42.2 fl.oz

Battery: 1 x CR2032 3V

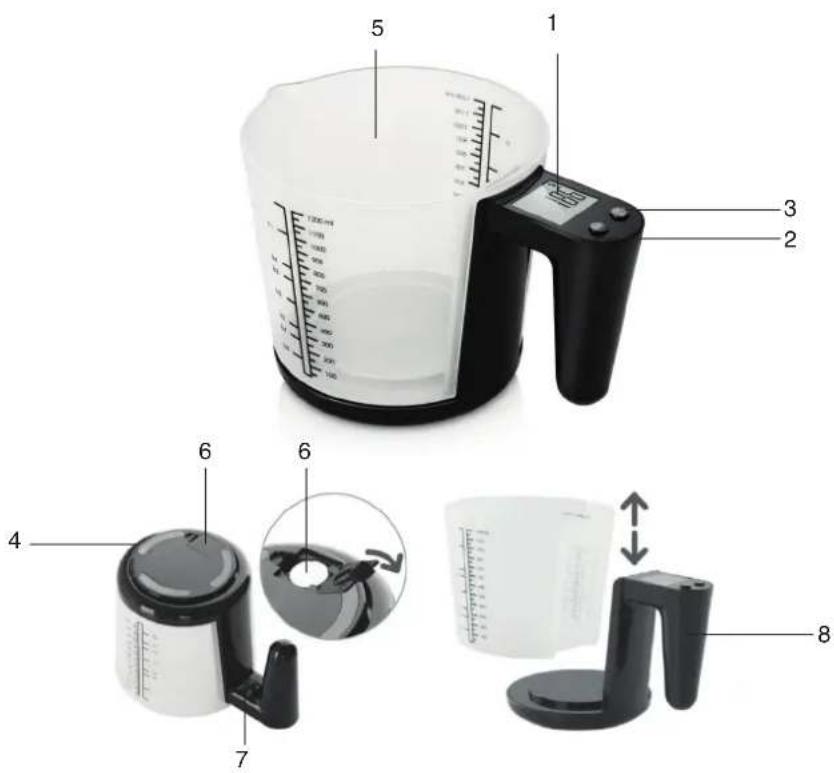

Product features

1. Display
2. Unit selection button
3. On/Off button (reset button)
4. Rubber feet
5. Measuring cup
6. Battery compartment
7. Cup release button
8. Base with handle

EN

Operation

Before first use

1. Unpack the appliance.
2. Insert battery into the battery compartment (6) (see "Replacing batteries").

Using the appliance

1. Place the appliance on a hard and even surface.
   2- Fit the measuring cup (5) onto the base (8). A characteristic "click" will indicate that the measuring cup has been fitted properly.
2. Press the ON/OFF button to switch on the appliance. Wait until the display shows "0".
3. Select your desired unit (see "Selecting weight units").
4. Place products in the measuring cup (do not overload the appliance; the max. weight is 3000 g).
5. Weight of the product will appear on the display in the selected unit.
6. When finished weighing, switch off the appliance by pressing and holding down the ON/OFF button for approx. 2 seconds.

Warning indicators

Replace the battery: The display will show "LO". The appliance will switch off automatically after a few seconds.

Overload indicator: The display will show "EEEE". Remove the product to avoid damage.

Display symbols

Negative value: -

Scale reset (tare): tare

Pounds ounces: lb oz

Ounces: fl.oz

Grams: g

Milliliter: ml

The display will show the "minus" symbol when using the tare function and after removing a measuring cup or other product, after resetting the scale.

Functions

Resetting the appliance - tare

When the appliance is on, and the display shows a different symbol then "0" press the ON/OFF button (zero value setting) (3) to set the zero value.

Automatic switch-off

The appliance will switch off automatically if no operation is performed for approx. 60 seconds. It is recommended to switch off the appliance when finished weighing in order to maximize the battery life time.

Selecting weight units

The appliance is equipped with a weight unit selection function. Ta change the weight unit, press the unit change button UNIT until the desired unit is displayed.

Replacing batteries

1. The battery compartment is located at the bottom of the appliance. Before first use, open the compartment and insert a new battery.
2. To replace a battery, open the cover of the battery compartment (6) and remove the old battery.
3. Insert a new CR2032 battery.
4. Close the cover of the battery compartment.

Cleaning and maintenance

1. Clean with a damp cloth. Do not immerse the base in water or use chemical/abrasive cleaning products. Clean all plastic components immediately if soiled with grease, spices, vinegar or food with an intense taste/color. Avoid contact of the appliance with citrus fruit juices.
2. When removed from the appliance base, the measuring cup may be immersed in water and cleaned with a dishwashing detergent or in a dishwasher. Never use any aggressive, abrasive or alcohol-based cleaning products.
3. Abrasive clothes or sponges may scratch the surface of your applianc.

Warranty

Champion Nordic guarantees that this product is free from manufacturing defects in terms of materials and workmanship during a period of 2 years in Sweden, Norway, Denmark and Finland. This warranty period begins on the day the product is purchased or delivered. Champion Nordic has no obligation to repair or replace products that are not accompanied by a valid proof of purchase. This warranty applies only to products purchased and used for home use and does not cover damage resulting from abuse, failure to comply with the instructions from Champion Nordic, cases in which the product has been modified or subjected to unauthorized repair, improper packaging on the part of the owner, normal wear and tear, or improper handling on the part of a transport company.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

Champion®

Makadamgatan 14 | 254 64 Helsingborg | Sweden

Designed in Sweden | Assembled in China
