CHVK320 - Kettle Champion - Free user manual and instructions

Product Type	Kettle
Brand	Champion
Model	CHVK320 (also CHVK315)
Voltage	220-240 V ~ 50/60 Hz
Power Consumption	1850-2200 W
Capacity	1.7 L
Material	Stainless steel and plastic
Weight	Approx. 1 kg
Dimensions (H x W x D)	Approx. 25 x 20 x 15 cm
Auto Shut-Off	Yes, after boiling
Overheating Protection	Yes, switches off if operated without water
Cordless Operation	Yes, with detachable base
Water Level Indicator	Yes, with scale (0.5 L to 1.7 L)
Temperature Gauge	Yes, temperature window
On/Off Switch	Yes, with indicator light
Lid Type	Pull-up lid handle
Descaling Filter	Yes, removable
Warranty	2 years (Sweden, Norway, Denmark, Finland)
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Boil-dry protection, automatic shut-off

Frequently Asked Questions - CHVK320 Champion

How do I descale the kettle?

Although the kettle has an integral heating element to reduce scale, you can descale using a vinegar solution. Fill to MAX with vinegar solution, boil, let stand for a few hours, empty, then rinse with clean water twice. Do not use ammonia.

Why is my kettle not turning on?

Check that the plug is connected, the base is properly attached, and the kettle is filled with water. If the overheating safeguard activated (operated without water), let it cool for at least 10 minutes before use.

Can I put the kettle in the dishwasher?

No, never immerse the kettle or base in water or put them in the dishwasher. Clean only with a damp cloth.

What is the maximum water capacity?

The maximum capacity is 1.7 liters. Do not fill above the MAX mark to avoid hot water splattering.

How long does it take to boil water?

Boiling time depends on the volume and starting temperature. Typically it takes about 3 to 5 minutes for a full kettle.

Is the kettle suitable for professional use?

No, this kettle is intended only for domestic use, not professional.

What should I do if the power cord is damaged?

Do not use the appliance. Have the power cord replaced by a qualified electrician only.

Can I open the lid while water is boiling?

No, never open the lid when the water is boiling to prevent burns. Wait until it has stopped boiling.

Does the kettle have a warranty?

Yes, Champion Nordic offers a 2-year warranty in Sweden, Norway, Denmark, and Finland. A valid proof of purchase is required.

What is the minimum water level required?

Fill at least 0.5 liters of water to ensure proper operation and prevent dry boiling.

USER MANUAL CHVK320 Champion

EN - English

SV - Svenska

DA - Danske

NO - Norsk

FI - Suomi

General:

1. Please read these instructions carefully and retain them for reference.
2. Use this appliance solely in accordance with these instructions.
3. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4. Children should be supervised to ensure that they do not play with the appliance.
5. Have repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

Electricity and heat:

1. Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
2. Make sure that you always use an earthed wall socket to connect the appliance.
3. Always remove the plug from the mains socket before moving the appliance and when the appliance is not in use.
4. Remove the plug from the wall socket by pulling the plug, not the power cord.
5. Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
6. Certain parts of the appliance may get hot. Do not touch these parts to prevent burning yourself.
7. The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it and does not come in contact with flammable material. The appliance must not be covered.
8. Make sure that the appliance, the power cord or the plug do not make contact with hot services, such as a hot hob or naked flame.
9. Make sure that the appliance, the power cord and plug do not make contact with water.

During use:

1. Never use the appliance outdoors.
2. Place the appliance on a flat, stable surface.
3. Always remove the plug from the wall socket after use, and before cleaning the appliance.
4. Never allow the power cord to hang over the edge of the draining board, worktop or table.
5. Make sure that your hands are dry before touching the appliance, power cord or plug.
6. Never use the appliance in a humid room.
7. Never immerse the appliance, the plug or the power cord in water or other liquid.
8. Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately and do not use the appliance anymore.
9. Use solely the base supplied with the jug kettle. Never use the base for other purposes.
10. Remove the jug from the base, and fill with water from the tap. Never fill the jug above the "max" level.
11. Do not switch on the appliance before you have filled it with water. Fill only with cold water.
12. The jug's lid must remain securely closed whilst the appliance is in use.
13. Never open the lid when the water is still boiling.
14. Use the appliance only to boil or heat water. Never use it for other liquids!
15. Fill the jug kettle with at least 0,5 liter of water.
16. Allow the appliance to cool to room temperature before storage
17. This appliance may not be used through an external timer or by means of a remote control.
18. The appliance is intended only for domestic use, not for professional use.

Technical details

Model No.: CHVK315 & CHVK320

Mains Voltage: 220-240V \~ 50/60Hz

Power consumption: 1850-2200W

Capacity: 1,7L

EN

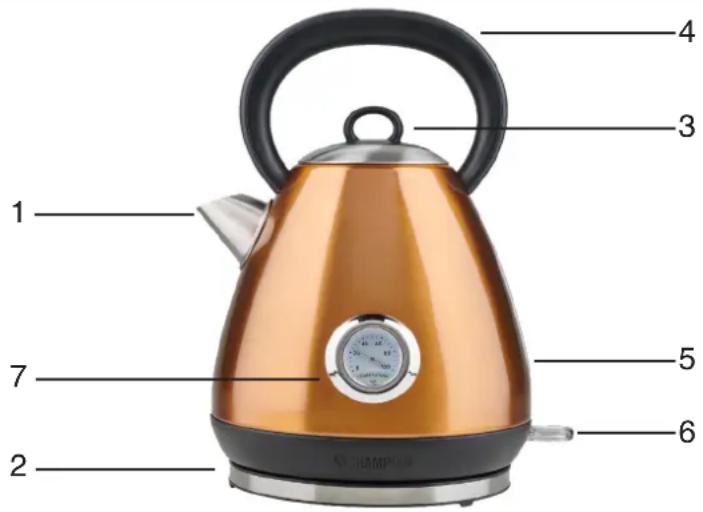

Parts

1. Spout
2. Base station
3. Lid handle
4. Handle
5. Water window with scales
6. On/Off switch with indicator light
7. Temperature window

Operation

Before use for the first time

1. Before first use, remove possible manufacturing process residues by boiling 3 full kettles of water.
2. Dispose this water.

Tip: You can also use vinegar or special descaling agents.

Use

1. Turn the jug so that the spout faces away from you.
2. Pull up the lid handle (3).
3. Fill the jug with the required quantity of water (at least 0,5 liters and a maximum of 1,7 liters). Never fill the water boiler over the "Max". Otherwise the hot water can spatter out of the base.

ATTENTION! Make sure that you do not spill any water on the base.

1. Pull up the lid handle to open the lid.
2. Place the jug on the base and insert the plug in the wall socket.
3. Push down the on/off switch. The on/off pilot light will illuminate.
4. The jug kettle is now switched on, and the water will now begin to heat. The jug kettle switches off automatically a few seconds after the water has come to the boil. The on/off pilot light will now extinguish.
5. Remove the jug from the base by the handle and pour the water out.

ATTENTION! Be careful you do not contact the hot water. It can cause serious burning wounds.

1. When you wish to heat the water without it coming to the boil you can switch off the jug kettle at any time you require.
2. Remove the plug from the wall socket when you have finished using the jug kettle.

Overheating safeguard

The jug kettle is fitted with an overheating safeguard. This will switch off the jug kettle if it is operated without (sufficient) water. Allow the jug kettle to cool down for at least 10 minutes before using it again.

Cleaning and maintenance

EN

1. Remove the plug from the wall socket and allow the appliance to cool.
2. Clean the jug with a damp cloth. Never immerse the appliance in water. Never put the appliance in a dishwasher. Make sure that the electrical connections do not become damp.
3. If the interior of the jug has become severely discolored, then the best way to clean it is with a damp cloth and a little washing soda. After cleaning, rinse the jug very thoroughly.

ATTENTION!

• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Before cleaning, make sure that the appliance is not connected to the power supply and that it has cooled down.

Descaling

This appliance is equipped with an integral heating element, and consequently limescale will not be formed. Consequently, you do not need to descale the appliance. However, if you nevertheless do wish to descale the appliance:

1. Remove the plug from the wall socket and allow the appliance to cool.
2. The jug kettle is fitted with a descaling filter. This filter must be removed for cleaning.
3. Fill the jug with a vinegar solution to the MAX level and bring to the boil.
4. Leave the jug with the vinegar solution to stand for a couple of hours.
5. Empty the jug, fill with clean water to the MAX level, and bring to the boil. Empty the jug. Repeat this process twice.
6. Never use ammonia or other products to descale the appliance. These can be injurious to your health. Use solely a vinegar solution, or special descaling agents available from retailers.

Warranty

Champion Nordic guarantees that this product is free from manufacturing defects in terms of materials and workmanship during a period of 2 years in Sweden, Norway, Denmark and Finland. This warranty period begins on the day the product is purchased or delivered. Champion Nordic has no obligation to repair or replace products that are not accompanied by a valid proof of purchase. This warranty applies only to products purchased and used for home use and does not cover damage resulting from abuse, failure to comply with the instructions from Champion Nordic, cases in which the product has been modified or subjected to unauthorized repair, improper packaging on the part of the owner, normal wear and tear, or improper handling on the part of a transport company.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

Champion®
Makadamgatan 14 | 254 64 Helsingborg | Sweden
