LFP316AS - Range hood ELECTROLUX - Free user manual and instructions

Product type	Range hood
Brand	Electrolux
Model	LFP316AS
Category	Range hood
Dimensions (W x D x H)	60 cm x 50 cm x 30 cm (estimated)
Net weight	Approximately 10 kg
Supply voltage	220-240 V, 50 Hz
Motor power	200 W (estimated)
Number of speeds	3 speeds
Lighting	LED 4 W, type E14 (candle), 220-240 V
Grease filter	Metallic, dishwasher safe
Charcoal filter	Active, not washable, replace every 4 months
Minimum safety distance	65 cm above the hob
Installation mode	Extracting (external evacuation) or recirculating (internal recycling)
Exhaust duct diameter	150 mm (estimated)
Noise level	55-65 dB(A) (estimated)
Controls	Telescopic slider (opening/closing triggers the light)
Main material	Stainless steel
Filter maintenance	Grease filter: clean every 2 months; charcoal filter: replace every 4 months
Annual energy consumption	Not specified (estimated 50-100 kWh/year)

Frequently Asked Questions - LFP316AS ELECTROLUX

How to install the hood in extracting or recirculating mode?

The Electrolux LFP316AS hood can be installed in extracting mode (external evacuation) or recirculating mode (internal recycling). For recirculating mode, an active charcoal filter (not supplied) is required. The choice must be made during installation. Consult the manual for detailed instructions.

How to clean the grease filters?

The metal grease filters must be cleaned at least every 2 months to avoid fire hazards. They are dishwasher safe or can be washed by hand with a mild detergent. Any eventual discoloration does not affect their efficiency.

When to replace the charcoal filter?

The active charcoal filter is non-renewable and must be replaced every 4 months under normal use, or more frequently with heavy use. It cannot be cleaned.

How to replace the LED bulb?

First unplug the hood. Make sure the bulb has cooled down. Replace it with a bulb of the same type: CANDLE LED 4W, 220-240V, E14, ø37mm. Follow the instructions in the manual.

What is the minimum distance between the hood and the hob?

The minimum distance is 65 cm between the cooking surface and the lower part of the hood, unless otherwise specified in the hob's manual. Always respect this distance for safety.

What to do if the hood does not work?

First check the power supply (outlet, fuse). Make sure the telescopic slider is properly open (it triggers the light). If the problem persists, contact an authorized Electrolux after-sales service.

Can I use the hood without a charcoal filter in extracting mode?

Yes, in extracting mode (external evacuation), the charcoal filter is not necessary. Only the grease filters are required. In recirculating mode, the charcoal filter is essential.

How to adjust the motor speed?

The hood has 3 speeds (1, 2, 3). Use the switch or slider to select the desired speed. Position 0 turns off the motor. Speed 1 is for normal use, 2 and 3 for more powerful extraction.

What to do in case of lighting malfunction?

First check that the bulb is correctly inserted and not burnt out. Replace it with an identical bulb (LED 4W E14). If the light still does not turn on, check the telescopic slider mechanism (it controls the lighting). Contact after-sales service if necessary.

How to maintain the exterior of the hood?

Clean the exterior regularly with a soft cloth and a mild detergent. Do not use steam cleaners, sprayed water, abrasive products, or metal scrapers to avoid damaging the stainless steel surface.

USER MANUAL LFP316AS ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

① General information and tips

Environmental information

Subject to change without notice.

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.
• The discharge of air must comply with local authorities regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.
• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to

exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

- When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.

- Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.

- If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- Do not fl ambé under the appliance.

- Do not use to exhaust hazardous or explosive materials and vapours.

- Clean the appliance regularly to prevent the deterioration of the surface material.

- Clean the appliance with a soft cloth regularly.

- Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.

- Clean grease fi Iters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fi re.

- Use a cloth or brush to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

- Only a qualified person must install this appliance.

- Do not install or use a damaged appliance.

- Follow the installation instructions supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

- Before installing the appliance remove all the packaging, the labelling and the protective film.

- Do not install the exhaust air into a wall

cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

- All electrical connections should be made by a qualified electrician.

- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

- If the symbol (回) is not printed on the rating plate, the appliance must be earthed.

- Always use a correctly installed hockproof socket.

- Do not let the electricity mains cable tangle.

• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purpose.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep fl ames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grates.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.

2.4 Service

• To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

2.5 Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. MAINTENANCE

Clean grease fi Iters in relation to use, at least every 2 months to prevent the risk of fi re. Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the fi Iters does not in any way compromise their functioning.

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

4. CONTROLS

1 : fi rst speed motor.

0 : OFF motor.

• 2 : second speed motor.
• 3 : third speed motor.

The opening/closing of the telescopic slide regulates the Lights On/OFF.

5. INSTALLATION METHODS

FILTERING OR DUCTING VERSION ?

The hood may be in fi Itering or in ducting version. Decide from the outset which type is to be installed.

For better efficiency, we recommend installing the hood in the ducting version (if possible).

Ducting version

The hood purifi es the air and evacuates it to the outside through an exhaust duct.

Filtering version

The hood purifi es the air and recycles the clean air back into the room.

6. LIGHTING

Disconnect the hood from the electricity.

⚠ Warning! Prior to touching the light bulbs ensure they are cooled down.

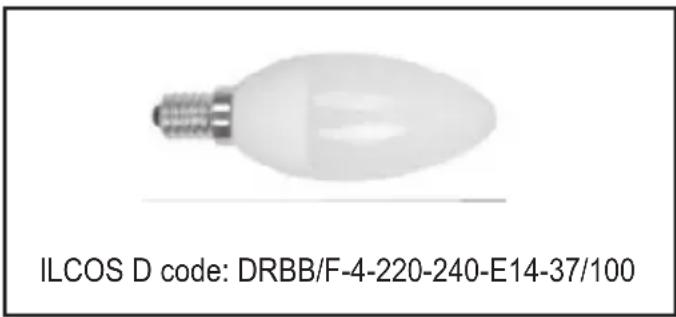

Replace it with lamps of the same type (CANDLE LED 4W, 220-240V, E14, ø37mm).

7. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol

Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office.

INHALT

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands performing a manual maneuver with rotating gears and a moving cart (no text or symbols)

4. BEDIENELEMENTE

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Hand holding a small electronic component with an arrow indicating direction (no text or symbols)

Illustration of hands performing a manual maneuver with rotating components (no text or symbols)

4. COMMANDES

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. RESPECT

DE L'ENVIRONNEMENT

Hand holding a small electronic component with an arrow indicating direction (no text or symbols)

Illustration of hands performing a mechanical press or rolling operation with rotating components (no text or symbols)

4. BEDIENINGEN

AFVOER OF RECIRCULATIE?

Close-up of a white LED light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. ZORG VOOR HET MILIEU

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

4. MANDOS

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

4. COMANDOS

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

4. COMANDI

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands performing a mechanical press or lift operation with rotating blades (no text or symbols)

4. KOMMANDON

Close-up of a single white LED light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. MILJÖSKYDD

KUNDESERVICE OG VEDLIKEHOLD

Vi anbefaler kun bruk av originale reservedeler.

Hand holding a smartphone with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

4. KONTROLLER

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. MILJ∅KONSERNER

Resirkuler materialer med symbolet

1. ⚠TURVALLISUUSTIEDOT

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

4. OHJAIMET

Close-up of a single white incandescent light bulb with screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. YMPÄRISTÖ- KYSYMYKSET

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

4. BETJENING

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Угольный фильтр.

Illustration of hands operating a mechanical device with rotating buttons, showing motion state changes (no text or symbols)

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. OXPAHA

ОКРУЖАЮЩЕЙ СРЕДЫ.

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

4. JUHIKUD

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. KESKKONNA

EEST HOOLITSEMINE

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

4. VADĪBAS ELEMENTI

1 : pirmā ātruma motors.
0 : IZSLĘGŠANAS motors.

FILTRĒJOŠAIS VAI UZSŪCOŠAIS VEIDS?

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. RÜPËJOTIES PAR VIDI

Hand holding a small electronic device with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

4. VALDYMAS

Close-up of a white LED light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. APLINKOS APSAUGA

Hand holding a small electronic device with a black arrow pointing to it, against a plain background (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons, showing two views (no text or symbols)

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons, showing two views (no text or symbols)

4. KEZELŐSZERVEK

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. A TERMÉSZETES KÖRN-YEZET VÉDELME

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons, showing motion state changes (no text or symbols)

4. PŘÍKAZY

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. PÉČE O

ŽIVOTNÍ PROSTŘEDÍ

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

4. OVLÁDAČE

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. STAROSTLIVOST O ŽIVOTNÉ PROSTREDIE

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

4. COMENZI

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

4. STEROWANIE

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. DBAŁOŚĆ O ŚRODOWIS-KO NATURALNE

.electrolux.com/shop

KORISNIČKA PODRŠKA I ODRŽAVANJE

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

4. NAREDBI

1: prva brzina motora.
0 : motor isključen.

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. BRIGA ZA PRIRODNI OKOLIŠ

Materijali sa simbolom trebaju biti recikli-rani. Da bi se materijali za pakiranje poslali na recikliranje, trebali bi ih staviti u pripremljene spremnike za otpad. Otpad od električne i elektroničke opreme treba reciklirati kako bi se zaštitila okoliš i ljudsko zdravlje. Uređaji sa simbolom ne smiju se odlagati s kućnim otpadom. Proizvod treba poslati u lokalni postrojenje za obradu otpada ili se obratite lokalnim vlastima.

KAZALO

1. INFORMACIJE O VARNOSTI....124
2. VARNOSTNANAVODILA....126
3. VZDRŽEVANJE....127
4. UPRAVLJALNI GUMBI....128
5. METODE NAMESTITVE....128
   6.OSVETLJAVA....128
6. SKRB ZA NARAVNO OKOLJE....128

ZASNOVANI ZA VAS

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

4. UPRAVLJALNI GUMBI

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

4. XEIPISTHPIA

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

.electrolux.com/shop

MÜŞTERİ DESTEĞİ VE BAKIM

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

4. KONTROLLER

Close-up of a white LED light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. ÇEVRE KORUMASI

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

4. УПРАВЛЕНИЯ

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. ПАЗЕТЕ ОКОЛНАТА СРЕДА

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

4. КОНТРОЛИ

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7.ГРИЖА ЗА ЖИВОТНАТА СРЕДИНА

.electrolux.com/shop

NDIHMA PËR KLIENTËT DHE MIRËMBAJTJA

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands performing a manual task with two views showing a device and a tool (no text or symbols present)

4. KOMANDIMET

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7.ÇËSHTJET E LIDHURA ME MBROJTJEN E MJEDISIT

Duhet t'i riqarkulloni materialet e shënuar me shenjë

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons, showing motion state changes (no text or symbols)

4. КОМАНДЕ

(LED CANDLE W4, V240-220, 14E, mm37ø)

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

4. التحكم

Hand holding a small electronic component with a downward arrow, no text or symbols visible

Illustration of hands operating a mechanical device with rotating buttons, showing motion state changes (no text or symbols)

استعمال 3.2

2. تعليمات السلام

ترکیب 1.2

Hand holding a small electronic component with an arrow indicating downward motion (no text or symbols)

Conformed to the stipulation on permissible content limitation of some hazardous & restricted chemical substances.

(RoHS compliant)

(According to the Circular No. 30/2011/TT-BCT, Vietnam, dated 10th August, 2011)

EACCE

Pure electrical circuit lines without any symbols
