EFU317W - Range hood ELECTROLUX - Free user manual and instructions

Product type	Range hood
Brand	Electrolux
Model	EFU317W
Dimensions (W x D x H)	60 x 50 x 15 cm
Weight	12 kg
Power supply	220-240 V, 50 Hz
Number of speeds	3 (minimum, medium, maximum)
Lighting	LED, replacement by authorized service
Grease filter type	Washable metal filter (monthly)
Charcoal filter type	Non-washable activated carbon filter (replace every 4 months max)
Minimum installation distance (electric cooker)	43 cm
Minimum installation distance (gas or mixed cooker)	65 cm
Usage	Extraction with external venting or recirculation with charcoal filter
Recommended maintenance	Monthly interior and exterior cleaning, washable grease filter, replace charcoal filter
Safety	Disconnect before maintenance, do not flambé under the hood, monitor frying
Spare parts	Contact authorized Electrolux after-sales service

Frequently Asked Questions - EFU317W ELECTROLUX

How to clean the grease filter?

The grease filter should be cleaned once a month. Use non-abrasive detergents, by hand or in the dishwasher at low temperature and quick cycle. Dishwashing may cause discoloration but does not affect filtering performance.

How often should the charcoal filter be changed?

The activated carbon filter is non-washable and should be replaced after four months maximum, depending on usage frequency and regularity of grease filter cleaning.

What is the minimum distance between the hood and the cooker?

The minimum distance is 43 cm for an electric cooker and 65 cm for a gas or mixed cooker. If the cooker manufacturer's instructions specify a greater distance, that takes precedence.

Can I use the hood without the lamps?

No, it is not recommended to use the hood without the lamps properly installed due to risk of electric shock. Always ensure the lamps are in place.

How to replace the LED lamps?

Replacement of the LED lamps must be carried out by an authorized Electrolux service or a qualified professional. Do not attempt to do it yourself.

What to do in case of hood malfunction?

Before contacting after-sales service, note the model, PNC, and serial number (on the rating plate). Use only original spare parts. Visit www.electrolux.com for support.

Can I install the hood in recirculation mode?

Yes, according to the supplied installation manual, the hood can be used in external venting version or in internal filtration and recirculation version (requires an activated carbon filter).

Is it safe to operate the hood with a gas cooker?

Yes, provided the minimum distance of 65 cm is respected and adequate ventilation of the room is ensured. Never flambé food under the hood.

How to reduce fire risks related to the hood?

Follow the maintenance instructions: clean the grease filter once a month, replace the charcoal filter every 4 months, never leave overheated oil unattended, and do not fry without supervision.

Where is the rating plate of the hood located?

The rating plate is located inside the hood. It indicates the model, PNC, and serial number, needed for after-sales service.

USER MANUAL EFU317W ELECTROLUX

Thank you for choosing this Electrolux product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol Let put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and

electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

Subject to change without notice.

SAFETY INFORMATION

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations. This appliance can be used by children aged from 8 years and above and per sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user main te nance shall not be made by children without supervision. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accor - dance with the maintenance instructions provided in this manual. Failure to follow the instruc tions provided in this user guide regarding the cleaning of the

hood and filters will lead to the risk of fires. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

When connecting the hood to the electrical network, only certified electrical adaptors are allowed and not power strips.

1.SAFETY INSTRUCTIONS

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. Never use the hood without effectively mounted grids. The hood must NEVER be used as a support surface unless specifically indicated. Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type. Use the correct length for the screws which are identified in the Installation Guide. In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2.USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the

model you have, the suction version with

external evacuation or filtering with internal recirculation

In some models ONLY:

As optional accessory is supplied a Non return valve.

This should be installed inside the proper outlet hole housing in same cases only (i.e: in any case there's no protection against accidental backdraft air current from the outside).

3.INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 43cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

4. MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Illustration of a hand using a cutting tool to cut a metal sheet (no text or symbols visible)

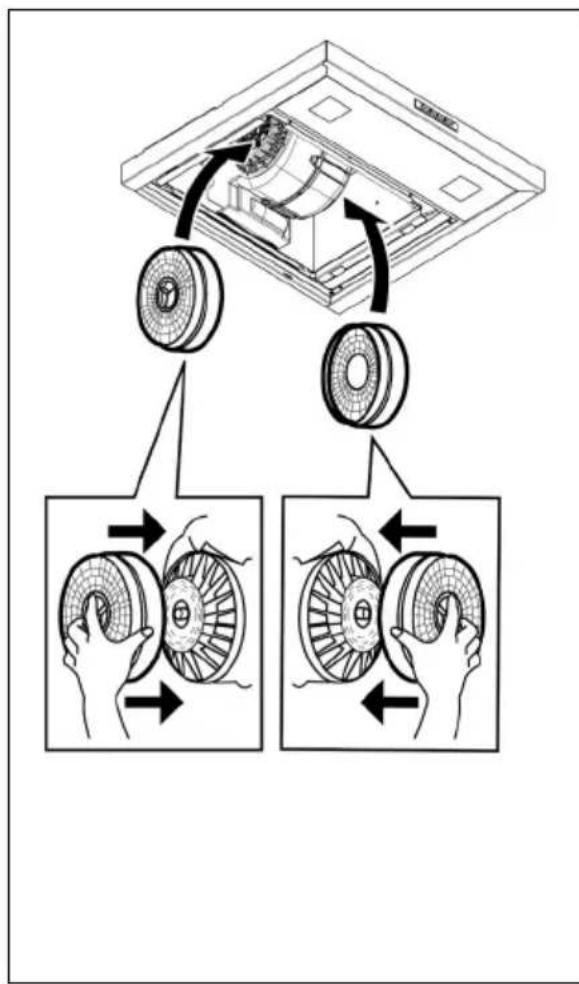

4.2 NON-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

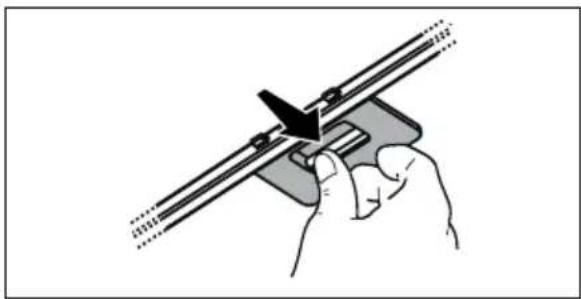

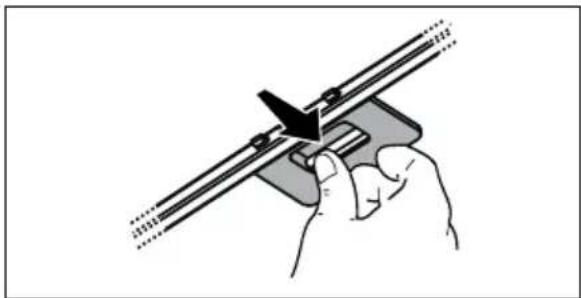

5. CONTROLS

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

The speed control is on the front of the hood.

1 ON/OFF lights

2 OFF motors

3 Minimum suction power

4 Medium suction power

5 Maximum suction power

6. LIGHTING

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

Caution! Do not look directly into the LED light.

To replace lights, contact authorised spare part center.
