FFCD2413US - Dishwasher FRIGIDAIRE - Free user manual and instructions

Product Type	Built-in Dishwasher
Model	FFCD2413US
Brand	Frigidaire
Power Supply	120V, 60Hz, 15A (20A if connected to disposer)
Water Pressure	20 - 120 psi
Water Temperature (Recommended)	At least 120°F (49°C)
Water Consumption (per cycle)	3 - 6.7 gallons (11 - 25 L) depending on cycle
Cycle Time	1 - 3 hours depending on cycle and options
Capacity	Up to 12 place settings
Wash Cycles	Heavy Wash, Normal Wash, 1 Hr Wash
Options	High Temp Wash, Heat Dry, Delay Start 4 Hr, Control Lock
Technology	DishSense™ soil sensing, Precision Direct Wash System
Filtration System	Self-cleaning filter with glass trap for broken glass and debris
Rinse Aid Dispenser	Adjustable, holds enough for 35-140 washes
Detergent Dispenser	Dual cup (pre-wash and main wash)
Rack Features	Upper rack with fold-down cup shelf, lower rack, silverware basket
Safety Features	Control lock, child safety, overfill protector, electrical grounding
Warranty	1 year limited; lifetime limited on stainless steel tub and door liner; 2-5 years on racks and electronic control module
Installation	Built-in, requires 120V grounded outlet
Sound Level	Quieter operation (Precision Direct Wash System)

Frequently Asked Questions - FFCD2413US FRIGIDAIRE

Why does my dishwasher cycle take so long?

Cycle times can vary due to soil sensing technology (DishSense™), which automatically adjusts the length based on load dirtiness. Also, if incoming water is cold, the dishwasher will heat it, extending the cycle. Using options like High Temp Wash or Heat Dry can also increase duration.

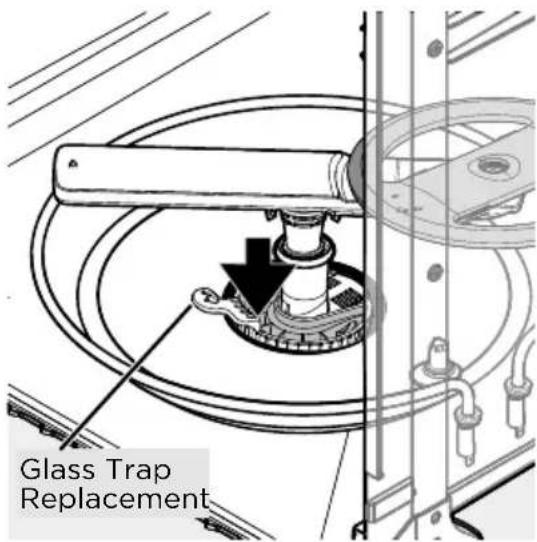

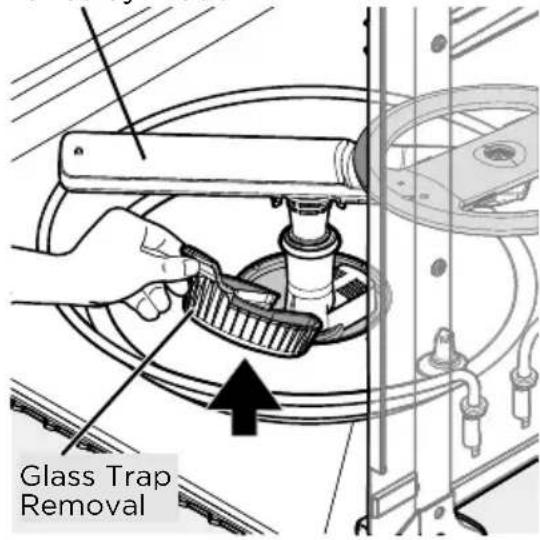

How do I clean the glass trap and filter?

The glass trap is located in the center of the filter. Pull the handle up and out, empty debris, then slide back into place and push down to lock. The filter is self-cleaning, but the trap should be cleaned periodically to maintain performance.

Why are my dishes not drying completely?

For best drying, select the Heat Dry option and ensure the rinse aid dispenser is full. Increase the rinse aid setting if needed. Also, check that the water temperature is at least 120°F (49°C). Plastic items may need towel drying.

What should I do if the dishwasher won't start?

First, check if the circuit breaker is tripped or fuse blown. Ensure the water supply is on, the door is properly latched, and the Start/Cancel pad was pressed after selecting a cycle. Also confirm the Control Lock is not activated.

How much detergent should I use?

The amount depends on water hardness. For soft water (0-3 grains), use 2 teaspoons per cup. For hard water (9-12 grains), fill cups completely. Refer to the Detergent Usage Chart in the manual. Using too much in soft water can cause etching on glassware.

Can I wash plastic items in this dishwasher?

Only place plastic items that are marked 'Dishwasher Safe' in the top rack. Items not marked may melt and create a fire hazard. Check with the manufacturer if unsure.

Why is there water in the bottom of the tub after a cycle?

If water remains, the dishwasher may not be draining properly. Check if the drain hose is kinked, the knockout plug in the food disposer is removed, and the glass trap is clean and properly installed. Ensure the cycle completed fully.

How do I use the Delay Start option?

Press and hold the Options pad for 3 seconds to activate the 4-hour delay. The indicator light will come on. Press Start/Cancel to set the delay. To cancel, press and hold Start/Cancel for 3 seconds.

What does the High Temp Wash option do?

This option heats the main wash water to approximately 155°F (68°C) to help remove food grease and soil, and improve drying. It is automatically selected with the Heavy Wash cycle but can be added to other cycles except Rinse Only.

How do I remove hard water spots and film from dishes?

Run a Normal Wash cycle with no detergent and no metal utensils. After about 10 minutes (at second water fill), open the door and pour 2 cups of white vinegar into the bottom. Close and let the cycle finish.

USER MANUAL FFCD2413US FRIGIDAIRE

Controls and Settings ....6

Operating Instructions ....8

Care and Cleaning 14

Troubleshooting 16

Limited Warranty 19

A13707201 C (January 2026)

Welcome to our family

Thank you for bringing Frigidaire into your home! We see your purchase as the beginning of a long relationship together.

This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn't seem right, the troubleshooting section will help you with common issues.

FAQs, helpful tips and videos, cleaning products, and kitchen and home accessories are available at www.frigidaire.com.

We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you.

Let's make it offi cial! Be sure to register your product.

Keep your product info here so it's easy to find.

Model Number ____

Serial Number ____

Purchase Date ____

NOTE

Very Important Information - Read Before Operating Your Dishwasher! Normal Operating Sounds

This dishwasher does not sound like most dishwashers - IT'S QUIETER.

Your Precision Direct Wash System dishwasher uses energy efficiient motors for the wash and drain portions of the cycle you select. Each cycle has a series of water fills and drains for washing and rinsing dishes. As each cycle begins, you may-or may not- hear the drain motor.

The next sound you will hear is the splashing water as it enters the tub. Then the lower arm rotates and circulates water. This is followed by a pause and a slightly different sound as the upper arms spray water. If you listen closely, you will hear the change in sound as the wash action switches from one arm to the other.

PLEASE BE ADVISED: If you compare this dishwasher to previous models, you may be surprised at what you DON'T hear.

NOTE

Why Energy Efficiient Units run long cycles: Several factors are important to washing dishware. The energy use of the dishwasher was reduced by applying more of the factors that don't use so much energy and less of the ones that use more. As a result, you will see that the wash cycles take longer.

NOTE

The fi Iters will need to be cleaned to maximize wash performance during the life of your dishwasher. See “Recommended Frequency to Clean Your Filters” for a cleaning schedule.

WARNING

When using your dishwasher, follow basic precautions, including the following:

For your Safety:

• Use your dishwasher only as instructed in this Use and Care Manual.
• This Manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating and maintaining any appliance.
• NSF certifi ed residential dishwashers are not intended for licensed food establishments.

- DISHWASHER MUST BE ELECTRICALLY GROUNDED. Read the Installation Instructions for details.

- This dishwasher is designed to operate on regular house current (120V, 60Hz). Use a circuit equipped with a 15 ampere fuse or circuit breaker. Use a 20 ampere fuse if dishwasher is connected with a food disposer.

- Do not operate dishwasher unless all enclosure panels are in their proper place.

- To avoid entrapment and/ or suffocation, remove door or door latch mechanism from any dishwasher that is discarded or not in use.

- Keep young children and infants away from dishwasher when it is operating.

- Do not let children abuse, sit, stand or play on door or racks of a dishwasher.

- Use only detergents and rinse agents recommended for use in a dishwasher.

- Store dishwasher detergent and rinse agents out of the reach of children.

- Do not wash plastic items unless marked: "Dishwasher Safe" or equivalent. Check with manufacturer

for recommendations, if not marked. Items that are not marked dishwasher safe may melt and create a potential fire hazard.

• Disconnect electrical power to dishwasher before servicing.
• If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher.
  • Repairs should be done by a qualified technician.
• Do not tamper with controls.

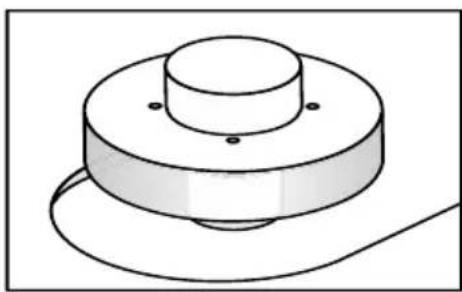

- Do not touch the heating element during or immediately after wash has completed.

- Use care unloading the dishwasher when the Sanitize option has been selected. Contents may be hot to the touch immediately after the end of cycle.

- Water vapor from the vent may be hot to the touch when the Sanitize option has been selected. Use care and do not let small children play around or touch the vent area of the dishwasher.

- When loading items to be washed:

• Locate sharp items and knives so that they are not likely to damage the door seal or tub.
• Load sharp items and knives with the handles up to reduce the risk of cut-type injuries.

- Under certain conditions, hydrogen gas may be produced in a hot water, system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If hot water system has not been used for such a period, before using dishwasher, turn on for several minutes This will release any accumulated hydrogen gas.

Do not smoke or use an open flame during this time.

- Do not store or use combustible materials, gasoline or other fl ammable vapors and liquids in the vicinity of this or any other appliance.

WARNING

To reduce the risk of fire, electrical shock or injury when using your dishwasher, follow the previous basic precautions.

WARNING

Please read all instructions before using this appliance.

Safety Defi nitions

This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

Child Safety

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the dishwasher is unpacked. Children should never use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

Safety Instructions

• DO NOT store or use gasoline, or other fl ammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding fl ammability and other hazards.
• Remove all staples from the carton. Staples can cause severe cuts, and also destroy fi nishes if they come in contact with other appliances or furniture.

SAVE THESE INSTRUCTIONS

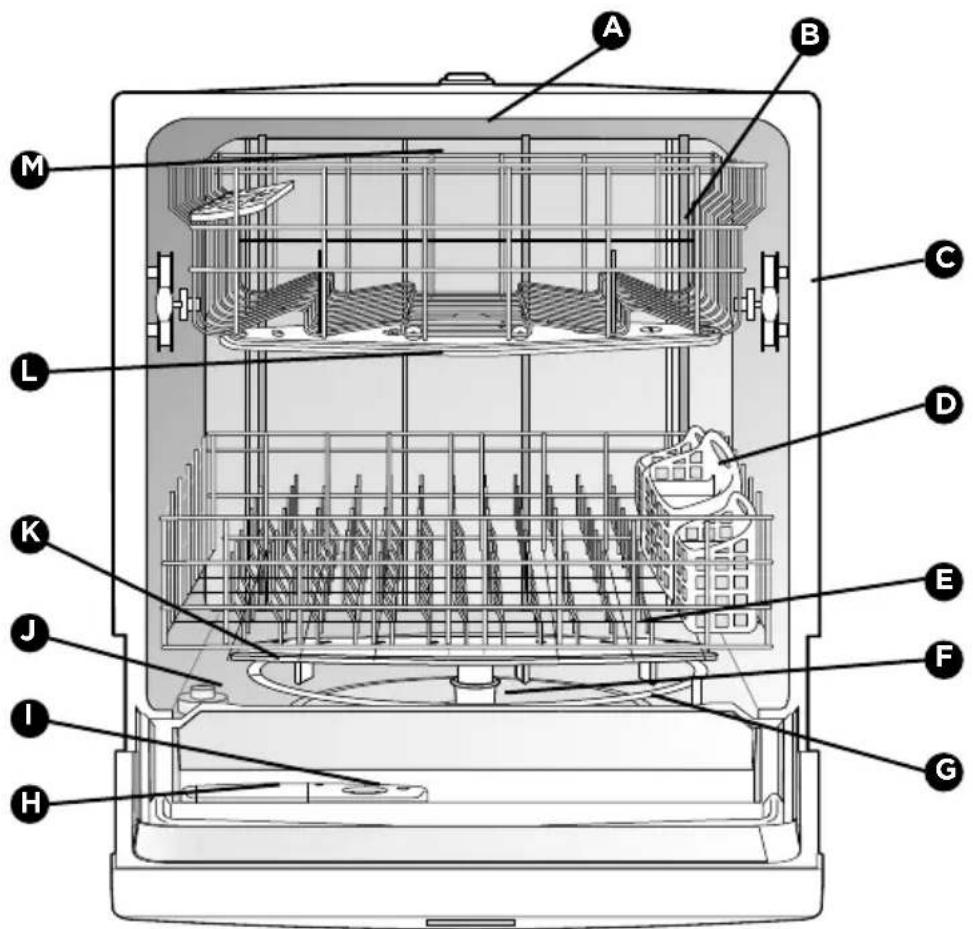

Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. First, the dishwasher drains for a few seconds to remove soils dropped while loading, then fills with water covering the filter area. Water is then pumped through the spray arms. Soil particles go through and across the filter and down the drain as the water is pumped out. This series of steps are repeated as needed. The number of water fills varies with the cycle being used.

Features may vary according to model

A Shower Nozzle

B Top Rack

C Serial Label (located on right side of door)

D Silverware Basket

E Lower Rack

F Glass trap

G Heating Element

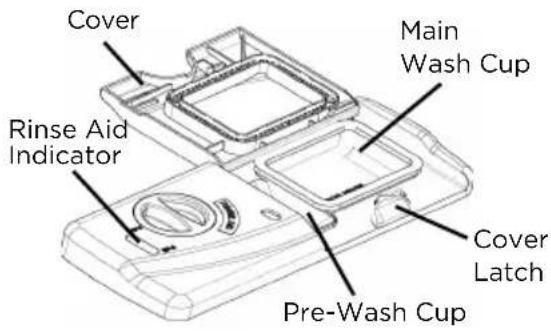

H Detergent Dispenser

I Rinse Aid Dispenser

J Overfi II Protector

K Lower Spray Arm

L Middle Spray Arm

M Cup Shelves

IMPORTANT

Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in Canada) or from an authorized seller.

NOTE

Your dishwasher uses a DishSense™ Technology to understand how much food is on the dishes and then adjusts the cycle accordingly.

CAUTION

Property Damage Hazard

Before starting dishwasher be sure that the water is connected and turned on. Failure to do so may cause damage to the pump seal and result in water leakage.

NOTE

The dishwasher is programmed to remember your last cycle so you do not have to reset each time. To start the dishwasher using the same cycle and options selected on the previous wash, just press the START/CANCEL pad.

Recommended Cycle for typical use:

The Normal cycle with its factory default options of normal temperature and heated dry together provide the best all around performance. This cycle selection is recommended for everyday use and is suitable for a large range of both dish load sizes and food quantities remaining on those dishes.

NOTE

Not all cycles and options available on all models.

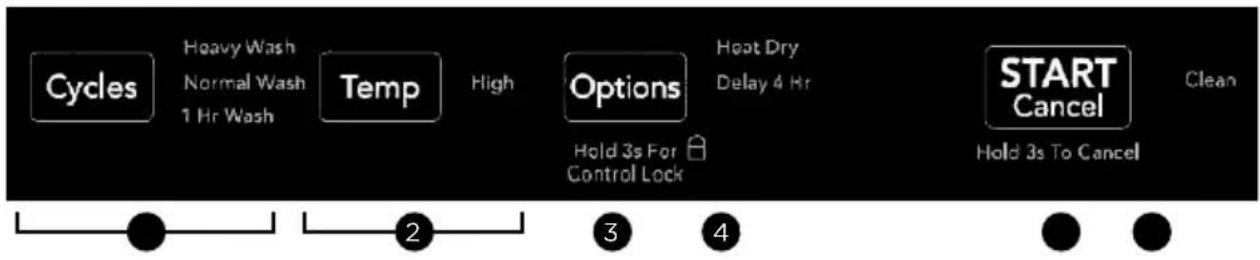

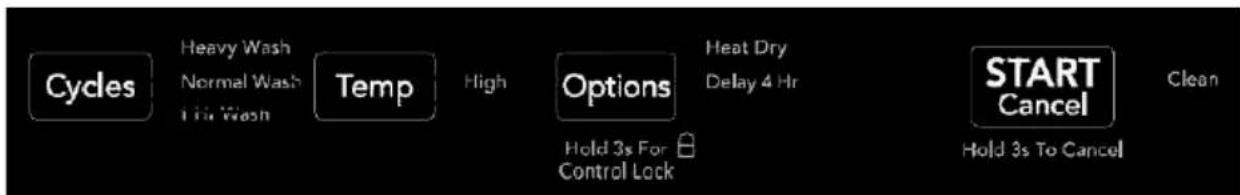

Option Selections

1 Wash Cycle Selections:

Cycle times are approximate and will vary with options selected. Hot water is necessary to activate dishwasher detergent and melt fatty food soils. An automatic sensor will check the incoming water temperature and, if it is not hot enough, the cycle will be lengthened for automatic water heating in the main wash and fi nal rinse of all cycles. This happens even when High temp wash option has not been selected. When High temp wash is selected, an even higher temperature will be reached to handle heavier soil loads.

2 Temp

The programmed cycles default to the Normal cycle option, to choose High, press the Temp pad.

High Temp Option

When the High temp option is selected, the dishwasher heats water in the main wash to approximately 155^ F ( 68^ C).

This increase in water temperature helps the dishwasher detergent remove food grease and soil from dishes more effectively and aids in improved drying performance. High temp option can be used with all cycles except Rinse Only. High temp is automatically provided when the Heavy Wash cycle is selected.

When the High temp option is selected, the light beside the pad turns on and remains on until the end of the cycle. Press the pad a second time to turn off the High temp option.

3 Heat Dry

The Heat Dry option in combination with rinse aid will enhance drying performance. The energy required to use the Heat Dry option costs pennies per cycle; however you will have items in your dish load that will not be completely dry at the end of the cycle.

Select the Normal Wash and High Temp Wash Option along with a Rinse Aid agent for improved drying performance.

Control Lock

To prevent children from accidentally changing the dishwasher cycle or starting the dishwasher, lock the dishwasher controls by pressing the Options pad for 3 seconds while the door is latched. A light on the lock graphic pad illuminates when the controls are locked and no new selections can be made until the lock is released. Press the pad again for 3 seconds to unlock the controls until the indicator light turns off.

4 Delay Time

The Delay Start option automatically delays starting a wash cycle for 4 hours.

Press and hold the Option pad for 3 seconds to activate the 4 hour delay start option. The indicator light will come on and remain on during the time delay until the cycle starts. Press the START/CANCEL pad to set the delay option. If the delay option is interrupted, press the START/CANCEL pad again to resume the delay.

To cancel the Delay Start option and begin the cycle before the delay period is over, press and hold the START/CANCEL pad for 3 seconds.

5 Start/Cancel Button

Press the START/CANCEL pad and immediately close the dishwasher door to start a cycle. Press and hold the START/CANCEL pad for 3 seconds at anytime during the cycle to cancel. When a cycle is canceled, the dishwasher will drain and the light beside the cycle and selected options go out while the START/CANCEL light remains lit. Select the next desired cycle and options once the dishwasher has drained.

6 Status indicator Lights

The Clean light will come on at the end of cycle and remain on until the door is opened.

Operating Instructions Getting Started

1. Load Dishwasher (See Dish Preparation).
2. Add detergent (See Filing the Detergent Dispenser).
3. Add Rinse Aid, if needed (See Rinse Aid).
4. Select desired Cycle (See Cycle and Option Chart). The cycle indicator light will glow when selected.

5. Select desired Option (See Cycle and Option Chart). The indicator light beside the option will glow when selected.

6. Run hot water faucet nearest dishwasher until water is hot. Turn water off.

7. To start, press START/CANCEL pad.
8. Immediately close door to latch.

NOTE

If the dishwasher door is opened while the unit is running, the START/CANCEL pad must be pressed and the door shut immediately to return the unit to the selected cycle and option, this must happen within 10 minutes for the unit to continue the cycle.

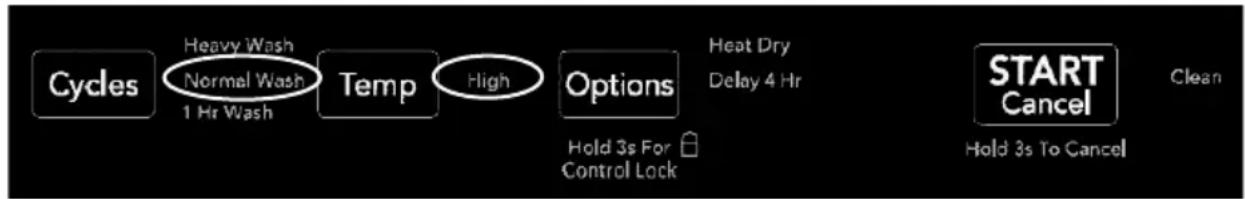

* Select the Normal and High Temp options along with a Rinse Aid agent for improved drying performance.

Cycle and Option Chart

Cycle and intended use Selectable Options Temperature; Drying		Water per Cycle (approx.)	Duration* (ap-prox.)
Heavy WashRecommended for pots, pans, casseroles and dinnerware having light to heavily soiled loads.	High Temp, Heat Dry 6.7 gal.25 L.		2 - 3 Hours
Normal Wash*Recommended for lightly to heavily soiled loads.	High Temp*,Normal Heat Dry	3 - 6.7 gal.11 - 25 L.	112 - 3 Hours
1 Hr. WashRecommended for lightly soiled loads only.	Normal, Heat Dry 5.4 gal.20 L.		1 Hour

*Does not include drying time.

Dish Preparation

Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuously fi Itered wash fl uid will remove remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups.

Illustration of hands using a tool to clean or store items inside a circular container (no text or symbols)

Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. Unless the dishwasher is to be operated at once, it is best to pre-rinse or use the rinse only cycle to rinse off these food soils.

• Load racks so that large items do not prevent the detergent dispenser from opening.
• Check manufacturer's recommendations before washing items in question.
• If the dishwasher drains into a Food Disposer, be sure disposer is completely empty before starting dishwasher.

Loading the Top Rack

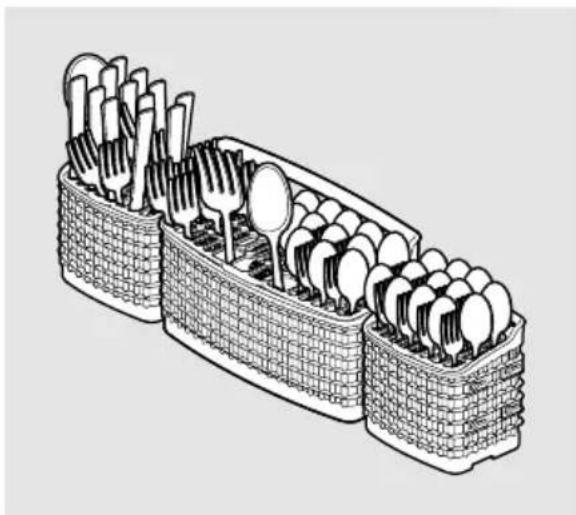

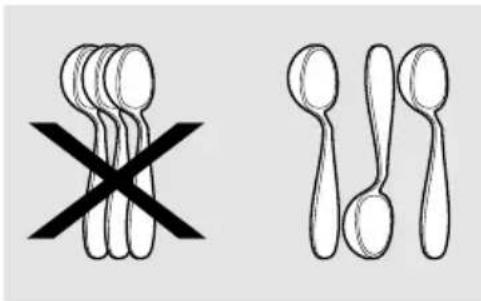

Features and appearance of racks and silverware basket may vary from your model.

The upper rack is designed for fl exibility in loading a wide variety of items including cups, glasses, stemware, small plates, bowls, etc.

Load glasses in top rack only. Damage may occur if placed in bottom rack.

Load plastic items in top rack only. Melting may occur if placed in bottom rack.

Load items with open ends facing down for better cleaning and draining.

Damage may occur if delicate items touch each other during dishwasher operation.

Long-handled knives and utensils can be placed in top rack.

Be sure nothing protrudes through the bottom of the rack to block rotation of middle spray arm.

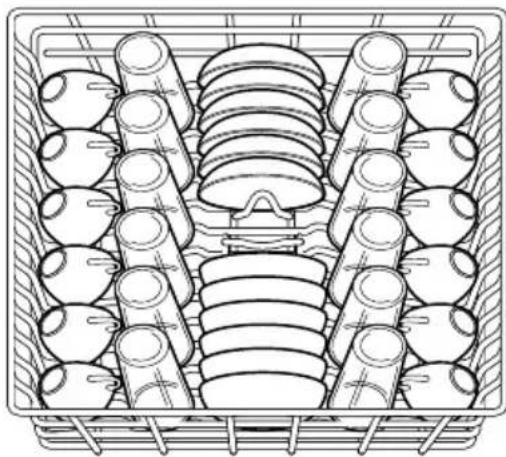

Line drawing of a basket containing multiple cylindrical objects arranged in rows (no text or symbols)

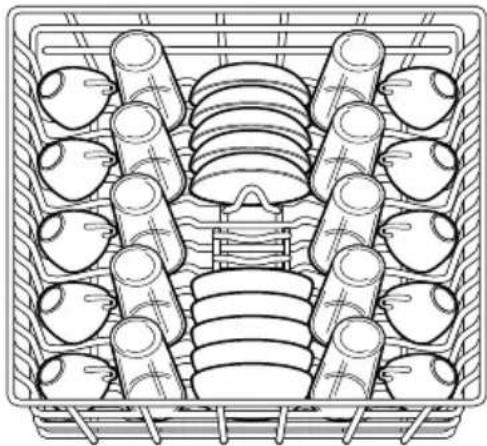

10 place settings standard loading pattern

Cross-sectional diagram of an internal combustion engine cylinder assembly (no text or labels)

12 place settings standard loading pattern

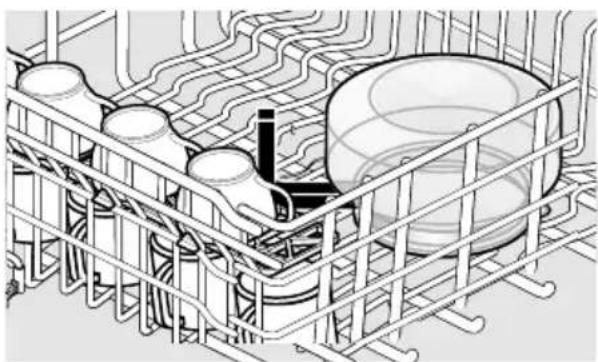

Some models have a fold-down cup shelf or a cup shelf/stemware holder. They can be used to load two levels of cups, juice glasses, and other short items. Stagger items on upper level so that water can reach all inside surfaces. Fold up to load tall glasses.

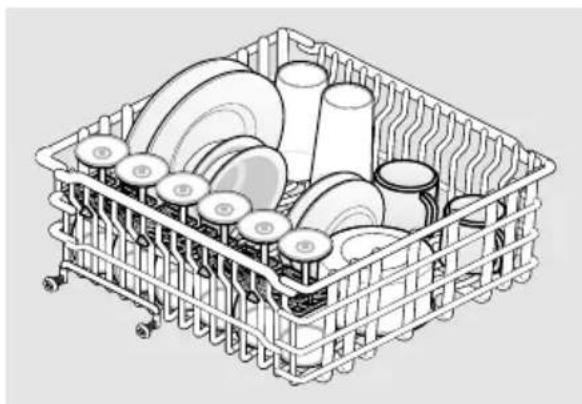

Upper Rack

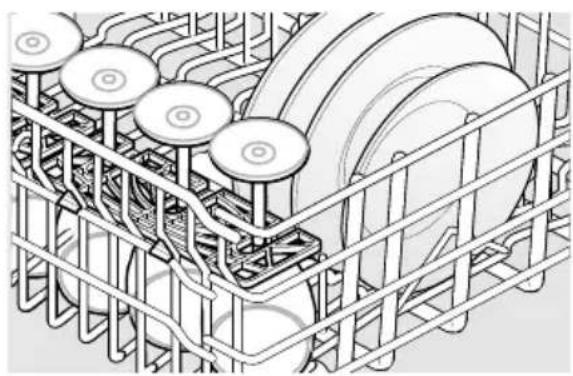

The UPPER RACK option can be used to wash a wide assortment of items when you don't have a full load. Also, when the upper rack fills up with glasses and the lower rack is still empty, you don't have to wait anymore for clean glasses.

STEMWARE HOLDER/CUPSHELF not available on all models.

Line drawing of a shopping basket filled with various kitchen utensils (no text or symbols)

Technical line drawing of a mechanical assembly with pulleys and brackets (no text or symbols)

Illustration of a shopping cart filled with plastic bottles and a large container, no text or symbols present.

Hand holding a wire mesh device with arrows pointing to components (no text or symbols visible)

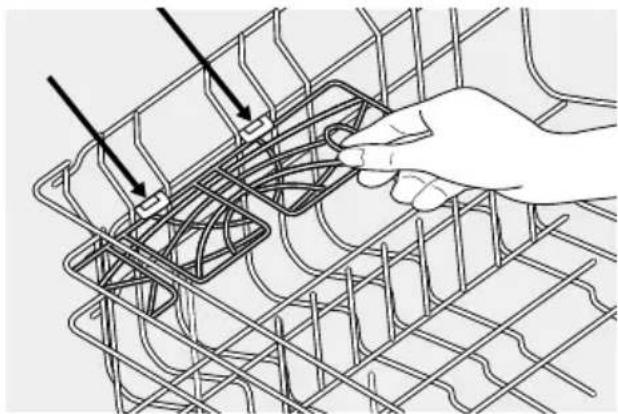

Place the clips of the cup shelf over the horizontal rack wires and push down to attach the cup shelf onto the second wire of the upper rack.

Loading the Bottom Rack

Features and appearance of racks and silverware basket may vary from your model.

The lower rack is best for plates, saucers, bowls, and cookware. Large items should be placed along the edge so they do not block the spray arm rotation. For best results, place bowls, casseroles, and sauce pans with soiled surface facing down or toward the center. Tilt slightly for better drainage.

Make sure tall items do not block spray arm rotation.

Be sure pan handles do not protrude through the bottom of the rack and block the spray arm rotation.

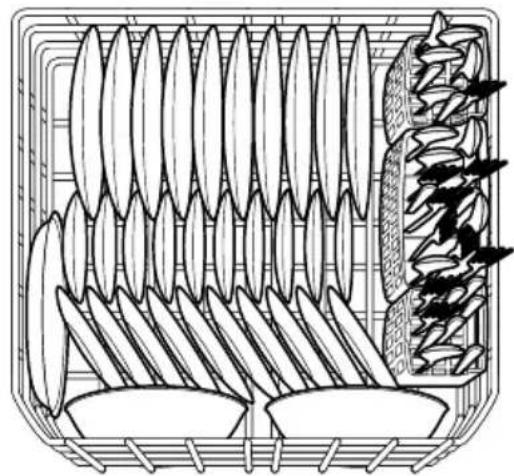

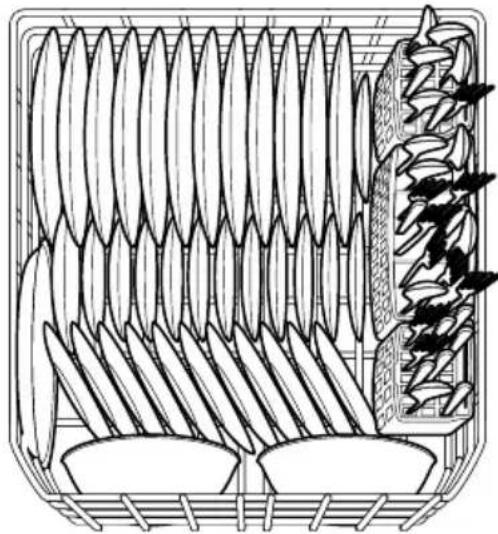

Illustration of a basket containing various leaf-shaped food items, with no visible text or symbols.

10 place settings standard loading pattern.

Illustration of a basket containing various leafy vegetables, with no visible text or symbols.

12 place settings standard loading pattern.

Loading the Silverware Basket

CAUTION

Load sharp items (knives, skewers, etc.) pointing down.

Failure to do so may result in injury.

Features and appearance of racks and silverware basket may vary from your model.

Load the silverware basket while it is in the bottom rack or take the basket out for loading on a counter or table.

Line drawing of a multi-tiered plastic kitchen utensil with cutlery and a spoon (no text or symbols)

Use suggested loading patterns, as shown, to increase washability of the silverware.

Be sure nothing protrudes through bottom of basket or rack to block the spray arm.

Do not mix silver and stainless to avoid damaging the silver fi nish.

When covers are up, mix items in each section of the basket with some pointing up and some down to avoid nesting. Water spray cannot reach nested items.

Two simple line drawings: a crossed-out fork and a pair of spoon illustrations (no text or symbols)

Adding a Dish

To add or remove items after wash cycle starts:

• Unlatch door and wait a few seconds until wash action stops before opening.
• Add the item and wait a few seconds to allow cold air to slowly expand inside dishwasher.
• Close door firmly to latch and press the START/CANCEL pad to resume.

Filling the Detergent Dispenser

The detergent dispenser has two detergent cups. The smaller one is for addition to the pre-wash and the larger is for release to the main wash.

• Use only fresh automatic dishwashing detergent. Other detergents may cause oversuding.
• When using automatic dishwashing detergent tabs, place one tab in main wash cup and close.
• Add detergent just before starting cycle.
• Store detergent in a cool, dry location. Moist or caked detergent may not dissolve properly.

CAUTION

The use of industrial grade detergent can damage the heating coil and other parts of the dishwasher leading to damage to the unit and surrounding property. Use only household grade automatic dishwasher detergents.

If the cover is closed on the Main Wash Cup open by pressing the Cover Latch.

How much Detergent to use

The amount of detergent to use depends on the water hardness. Water hardness is measured in grains per gallon. Using too little detergent can result in poor cleaning and hard water fi Iming or spotting. Using too much detergent in soft water can cause etching to some glassware which is surface damage that appears like a fi Im but cannot be wiped off. Your local water company, water softener company or county extension agent can tell you the water hardness in your area.

Detergent Usage Chart
Cycle Soft	Water(0-3 grains)	Medium Hard Water(4-8 grains)	Hard Water(9-12 grains)	Very Hard Water(Over 12 grains)
HeavyWash orNormalWash	2 teaspoons(each cup:1/4 full)	5 teaspoons(each cup: fi ll to line above “Regular”)	8 teaspoons(each cup:completelyfull)	Each Cup:Completely Full(water softener recommended)
1 Hr. Wash	2 teaspoons(Main Washcup-1/4 full)	5 teaspoons(each cup: fi ll to line above “Regular”)	8 teaspoons(Main Washcup: completely full)	Main Wash Cup:Completely Full(water softener recommended)

As a rule, use 1 teaspoon for each grain above 12. For very hard water, detergent alone may not be enough and then a water softener is recommended to improve water quality and dishwashing performance.

Rinse Aid

Rinse aid greatly improves drying, reduces water spots, fi lming, and lubricates wash arm bearing for proper rotation.

With it water "sheets" off dishes rather than forming water droplets that cling and leave spots.

A dispenser, located next to the detergent cup, automatically releases a measured amount of rinse aid during the last rinse. If spotting and poor drying are problems, increase the amount of rinse aid dispensed by rotating the dial to a higher number. The dial is located under the dispenser cap. The indicator will be dark when full and will show clear when it is time to refi ll.

To add liquid rinse aid, turn dispense cap 1/4 turn counterclockwise and lift out. Pour in rinse aid until liquid touches the indicated fi ll level Replace cap.

Do not overfi ll since this can cause oversudsing. Wipe up any spills with a damp cloth.

The dispenser holds enough for 35 to 140 washes, depending on setting.

Dispenser Opening Indicator

Dispenser Cap
Adjustable Setting

The HEAT DRY option in combination with rinse aid will enhance drying performance. The energy required to use the HEAT DRY option costs pennies per cycle. You may choose not to select the HEAT DRY option; however you will have items in your dish load that will not be completely dry at the end of the cycle.

Water Pressure

The hot water line to dishwasher must provide water pressure between 20 and 120 psi.

Low Water pressure may occur when laundry or showers are in operation. If you experience poor wash performance you may need to wait until water use is reduced before starting dishwasher.

Water Temperature

Hot water is needed for best dishwashing and drying results. Water entering dishwasher should be at least 120°F (49°C) to give satisfactory results.

To check water temperature entering dishwasher:

• Turn on hot water faucet nearest dishwasher for several minutes to clear cool water from pipes.
• Hold a candy or meat thermometer in the water stream to check the temperature.
• If temperature is below 120 °F (49°C), have a qualified person raise the hot water heater thermostat setting.

IMPORTANT

Before starting a cycle, run hot water to clear cool water from pipe.

* Select the Normal Wash and High Temp pads along with a Rinse Aid agent for improved drying performance.

To empty the glass trap:

1. Pull the glass trap handle up and out toward you to remove.
2. Empty any debris collected in the glass trap.
3. Once empty, slide the glass trap back into the same location as when removed, then push down to lock back into position. See image above.

Spray Arm varies by model

NOTE

Hard water may cause lime deposit buildup on the interior of the dishwasher. For cleaning instructions see "Removing Spots and fi lm" section.

WARNING

Burn Hazard

Allow heating element to cool before cleaning the interior.

Failure to do so can result in burns.

Outer Door - Clean outer door with warm soapy water and a dishcloth or sponge. Rinse with clean water and a dry cloth. Do not use harsh cleaners. Inside - The inside of the dishwasher and fi lter are self-cleaning with normal use. If needed, clean around the tub gasket area with a damp cloth. The fi lter is self-cleaning. A glass trap located in the center of the fi lter is designed to collect pieces of broken glass, straws, bones and pits.

Overfi II Protector- keeps dishwasher from overfi lling and is located in the left front corner of the tub.

• Clean occasionally with household cleaner containing vinegar or bleach to dissolve any buildup.
  • Overfi II Protector should move up and down freely about one inch. If it does not move, lift and clean underneath.

3D diagram of a mechanical component with a central cylindrical shaft and flange, no text or symbols present

Care of Drain Air Gap

If a drain air gap was installed for your built-in dishwasher, check to make sure it is clean so the dishwasher will drain properly. A drain air gap is usually mounted on countertop and can be inspected by removing the cover. This is not part of your dishwasher and is not covered by warranty.

Winterizing

A dishwasher left in an unheated place should be protected from freezing. Have a qualified person do the following:

To Disconnect Service:

1. Turn off electrical power to the dishwasher at the supply source by removing fuses or tripping circuit breaker.
2. Shut off water supply.
3. Place a pan under the inlet valve. Disconnect water line from inlet valve and drain into pan.
4. Disconnect drain line from pump and drain water into pan.

To Restore Service:

1. Reconnect the water, drain, and electrical power supply.
2. Turn on water and electrical power supply
3. Fill both detergent cups and run dishwasher through a HEAVY WASH cycle.
4. Check connections to make sure they do not leak.

NOTE

See Installation Instructions for more details on disconnecting and restoring service to your dishwasher.

Before You Call:

Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the result of defective workmanship or material in your dishwasher.

Food Soils Left on Dishes

• Choose another cycle for longer washing time.
• Check rack loading section for proper loading-avoid nesting items.
• Do not overload the dishwasher (See Preparing and Loading Dishes).
• Check to verify that the glass trap is maintained and installed properly (See Care and Cleaning). Home water pressure may be too low-should be 20 to 120 pounds per square inch (psi).
• Check incoming water temperature. It should be about 120°F (49°C). (See Factors Affection Performance).
• Check water hardness. For extremely hard water, it may be necessary to install a water softener. (See Detergent Chart).
• Use Fresh Detergent.
• Make sure items are not blocking the spray arms, preventing them from rotating.

Dishes not Dry

• Selecting Heat Dry or High Temp Wash will improve drying.
• Make sure the rinse aid dispenser is filled.
• Increase the discharge setting of rinse aid. (See Rinse Aid).
• Check the incoming water temperature. Be sure it is at least 120^ (49°C).
• Check for proper loading-avoid nesting items.
• Plastic items may need to be towel dried.
• Cups with a concave bottom will collect water. Load them at the far left of the upper rack so they will be held in a tilted position.
• Containers, bowls, pots/pans, and any dishware with concave surfaces that

can collect water should be placed in the rack facing or angled down so that water is able to drain even from the lowest point.

Drying Tip

- Select the NORMAL WASH and HI-TEMP WASH pads along with a Rinse Aid agent for improved drying performance.

Glassware/Flatware Spotted or Cloudy

• Check water hardness. For extremely hard water, it may be necessary to install a water softener. (See Detergent Chart).
  • Water temperature may be low. Avoid extremely low or high temperatures. (See Factors Affecting Performance).
• Avoid overloading and improper loading. (See Preparing and Loading Dishes).
• Use fresh detergent. Old detergent is ineffective.
• Make sure rinse aid dispenser is filled.
• Check to see that proper amount of detergent is being used for cycle selected. (See Detergent Dispenser).
  • Home water pressure may be too low-it should be 20 to 120 pounds per square inch (psi).

Dishware Chipped

• Load with care and do not overload. (See Preparing and Loading Dishes).
• Place delicate items in top rack.
• Place glasses securely against pins and not over pins.
• Load items so they are secure and don't jar loose when moving racks in and out. Move racks in and out slowly.
• Make sure tall glasses and stemware will clear top of tub when rack is pushed in.
• Fine antique china and crystal should be hand-washed.

Dishware Stained or Discolored

• Tea and coffee can stain cups. Remove the stains by hand washing in a solution of 1/2 cup (120 ml) bleach and one quart (1L) of warm water. Rinse thoroughly.
• Iron deposits in water can cause a yellow or brown film. A special filter installed in the water supply line will correct this problem. (See Removing Spots and Film).
• Aluminum utensils can leave gray/black marks when they rub against other items. Load Properly.
• Certain high acid foods can cause discoloration of stainless steel and plastics if allowed to sit for a long period. Rinse by hand if not operating dishwasher at once.
• Mixing stainless steel and silver utensils in silverware basket can cause pitting of the stainless steel blades. Avoid mixing stainless steel and silver.

Etching

• Using too much detergent especially in soft or softened water causes damage that looks like a film but cannot be removed.
• Adjust the amount of detergent based on the water hardness. (Check Detergent Chart).
• Lower the water temperature by selecting the Normal Cycle.

Dishwasher Won't Fill

• Assure the water supply is turned on.
- Check that the overfi ll protector moves up and down freely. (See Overfi ll Protector section).

Detergent Left in Cups

• Detergent may be old. Discard and use fresh detergent.
• Be sure the dish load doesn't spray from entering the detergent cup.
• Check to see if cycle has been completed.
  • Make sure items do not prevent the detergent dispenser from opening.

Vapor at Vent

• Water vapor escapes from the vent during the drying part of cycle. This is normal.
- Spilled rinse aid can cause foam and lead to overfl owing. Wipe up any spills with a damp cloth.
- Check to see that dishwasher is level. (See Installation Instructions).

Normal Sounds You Will Hear

• Normal sounds include water fi ll, water circulation and motor sounds.
• There is a noticeable change in sound when the wash action switches between the lower and middle spray arm. This is normal since each spray arm has it's own sound.
• It is normal for the dishwasher to pause (no sound) when the wash action is switching between the lower and middle spray arms.

Water in Bottom of Tub

- Water left in the tub bottom after the cycle is complete is not normal. If water remains in the bottom of the tub, the dishwasher may not be draining properly. (See Dishwasher Does not Drain Properly).

Dishwasher Leaks

• Check that the door gasket is pressed into its mounting channel, reaches to the bottom of the tub and does not extend beyond the end rib so as to interfere with door closure.

• Spilled rinse aide can cause foam and lead to overfl owing. Wipe up any spills with a damp cloth.

• Check to see that the dishwasher is level. (See Installation Instructions).

• Avoid oversuding by using the correct amount of detergent designed for automatic dishwashers.
• Check to see that dishwasher is level. (See Installation Instructions).

Dishwasher Won't Run

• Check to see if circuit breaker is tripped or if a fuse is blown.
• Make sure water supply is turned on.
• Check to see if cycle is set correctly. (See Operating Instructions).
• Is dishwasher set for Delay Start Option?
  • Make sure door is closed and latched.
• Make sure START/CANCEL pad is pressed after the cycle has been selected.

Dishwasher Does Not Drain Properly

• If unit is hooked up to a food waste disposer, make sure the disposer is empty.
  • Assure the knockout plug has been removed from inside the food waste disposer inlet.
  • Assure the drain hose isn't kinked.
• Make sure cycle is complete, not in a pause.
  • Assure the glass trap is maintained and installed properly assuring no clogs (See Care and Cleaning).

Cycle Takes a Long Time

• The cycle may have been automatically lengthened to reach key temperatures due to some factor such as a cool water supply or a large load of dishes.
• Delay Start option may have been selected.
• Choose lower temperature options to shorten the cycle.
• Cycles that are soil-sensing adjust automatically to assure a good wash - heavier soils will elicit a longer cycle response.

Dishwasher has an Odor

• Soiled dishes left in dishwasher too long can create an odor.
• There will be a "new" smell when first installed. This is normal.
• Check to see if unit is draining properly. (See Dishwasher Does Not Drain Properly).

Stains on Tub Interior

• Washing large amounts of dishware with tomato based soil can cause a pink/orange appearance. This will not affect performance and will gradually fade over time. Pre-rinsing will reduce the chance of staining. Using no heat dry option will lessen staining.

Opening the door during cycle

- If the dishwasher door is opened while the unit is running, the START/CANCEL pad must be pressed and the door shut immediately to return the unit to the selected cycle and option, this must happen within 10 minutes for the unit to continue the cycle.

Removing Spots and Film

Hard water can cause lime deposit buildup on the interior of the dishwasher. Dishes and glasses may also get spots and fi lm for a number of reasons. (See Glassware/Flatware Spotted or Cloudy section). To remove buildup, and fi lm, clean using the following instructions:

1. Load clean dishes and glasses in normal manner. Do not load any metal utensils or silverware.

2. Do not add detergent.

3. Select the Normal Wash cycle. Close and latch door. Press START/ CANCEL pad.

4. Allow dishwasher to run until it starts the second water fill (approximately 10 minutes).

5. Unlatch and open door and pour 2 cups of white vinegar into the bottom of dishwasher.

6. Close and latch door and allow cycle to finish.

Your appliance is covered by a one year limited warranty. For one year from your original date of delivery, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions. The stainless tub and door liner of your appliance are covered by a lifetime limited warranty. During the lifetime of the appliance, Electrolux will provide a replacement stainless tub or door liner that fails to contain water due to a defect in materials or workmanship if the appliance is installed, used, and maintained in accordance with the provided instructions. In addition, the dishwasher racks and the electronic control module of your appliance are covered by a two through five year limited warranty. During the 2nd through 5th years from your original date of purchase, Electrolux will provide a replacement dishwasher rack or electronic control module for your appliance which has proven to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.

Exclusions

This Warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA, Puerto Rico, or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in commercial setting.
7. Service Calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.
8. Service Calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.
11. Labor or in-home service costs during the additional limited warranty periods beyond the first year from your original date of purchase.
12. Pickup and delivery costs; your appliance is designed to be repaired in the home.
13. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
14. Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to floors, cabinets, walls, etc.
15. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the address or phone numbers below.

This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by Electrolux Consumer Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

USA

1-800-374-4432

Electrolux Consumer Products, Inc.

10200 David Taylor Drive

Charlotte, NC 28262

Electrolux

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

Quebec Right to Repair

Though Frigidaire makes every effort to make replacement parts, repair services and information necessary to maintain or repair our products available to consumers, parts, service and information are not guaranteed, pursuant to section 39 of the Consumer Protection Act, CQLR, c. P-40.1 and sections 79.18 to 79.20 of the Regulation respecting the application of the Consumer Protection Act, CQLR, c P-40.1, r. 3. If you need replacement parts, you may call us at 1 [phone] for service in French or English, or purchase online at Frigidaire Parts | Shop Frigidaire Replacement Parts & Accessories - Frigidaire Appliance Parts.

You may book repair services online at information | Book a service | Frigidaire. Alternatively, our resource library is available at Resource Library | Frigidaire to help you diagnose and resolve issues which may arise during the lifetime of your appliance.

Though most parts are available for purchase, subject to short-term availability constraints, the following appliances and parts are not serviceable

Legend:

Availability of replacement parts, repair services, and information for maintenance or repair.
	Partially Available
	Not Available
	Available

Dishwashers

Replacement tub assemblies are not available.

FRIGIDAIRE

welcome home.

Our home is your home. Visit us if you need help with any of these things:

owner support

accessories

service

registration

(See your registration card for more information.)

Frigidaire.com

1-800-374-4432

Frigidaire.ca

1-800-265-8352
