Product Type	Infrared Ear Thermometer
Model Number	TE-100
Brand	HoMedics
Measurement Range	93.2°F - 109.4°F (34°C - 43°C)
Accuracy	±0.4°F/±0.2°C between 96.8°F - 102.2°F (36°C - 39°C); ±0.5°F/±0.3°C outside range
Measurement Time	Approximately 1 second
Display	4-digit LCD with 0.1°F or °C resolution
Fever Alarm	Visual (frowning face) and audible (triple beep) for readings ≥100°F (37.8°C)
Memory	Last reading stored automatically; displayed at power-on
Temperature Scale	Switchable between °F and °C
Auto-Off	After 30 seconds of inactivity
Power Supply	DC 3V, one CR2032 lithium battery
Battery Life	Approximately 1,700 measurements
Weight	0.10 lbs (with battery)
Dimensions (Approximate)	4.5 x 1.5 x 1 inches
Operating Temperature	60.8°F - 104°F (16°C - 40°C)
Storage Temperature	-4°F - 122°F (-20°C - 50°C)
Water Resistance	Probe tip only is waterproof
Cleaning	Clean probe tip with alcohol swab; do not immerse unit
Intended Use	For human ear canal only; not for oral, rectal, or axillary use
Warranty	3-year limited warranty from date of purchase
Contents	Thermometer, battery, storage case, instruction manual

Frequently Asked Questions - TE-100 HOMEDICS

How do I replace the battery?

Remove the battery cover, press down on the metal clip to release the old CR2032 battery, insert a new one with the + side up, and replace the cover. Remove the battery if not used for over three months.

How do I switch between Celsius and Fahrenheit?

With the unit on, press and release the °F/°C button located behind the battery compartment cover using a small flat instrument. Then press Scan or turn off/on to see the converted reading.

What does the fever alarm indicate?

The alarm activates when the reading is ≥100°F (37.8°C). It shows a frowning face and beeps three times. Note that a lower reading does not guarantee no fever; consult a physician if illness is suspected.

How should I clean the thermometer?

Use a soft, dry cloth for the body. Clean the waterproof probe tip with a cotton swab moistened with alcohol. Do not immerse the unit in water or use strong detergents.

Why does the display show 'Lo' or 'Hi'?

'Lo' means the temperature is below 93.2°F (34°C); 'Hi' means above 109.4°F (43°C). This may indicate improper probe placement, dirty probe, or an actual extreme temperature. Check positioning and clean the probe.

What should I do if I see 'Err' on the display?

'Err' indicates the operating temperature is not within the permissible range (60.8°F - 104°F / 16°C - 40°C). Allow the unit to acclimate to room temperature for at least 30 minutes before use.

Can I use this thermometer on an infant?

Yes, but for infants under 3 months, take three or more readings from the same ear and use the highest reading. Always follow the instructions carefully and consult a physician for accurate diagnosis.

How can I ensure accurate temperature readings?

Clean the probe before each use, position it well in the ear canal, take readings in the same ear, wait at least 5 seconds between measurements, and avoid use after bathing, exercise, or exposure to extreme temperatures for at least 20 minutes.

What is the normal body temperature for this device?

The average normal body temperature is 98.6°F (37°C), but it varies by person. This thermometer converts ear temperature to an oral equivalent. Track your own baseline by measuring at the same time each day.

How long does the battery last?

A new CR2032 battery provides approximately 1,700 measurements. Replace the battery when the low battery symbol appears. If the symbol appears with 'Lo', the battery must be replaced immediately for the thermometer to function.

USER MANUAL TE-100 HOMEDICS

HoMedics Consumer Relations Service Center Dept. 168

3000 Pontiac Trail Commerce Township, MI 48390

3year limited warranty

IMPORTANT PRODUCT NOTICES AND SAFETY INSTRUCTIONS

When using your ear thermometer, basic precautions should always be followed. Please read and follow all instructions and warnings before using this product. Save these instructions for future reference.

Please note that this product is intended for household use only and should not serve as a substitute for the advice of a physician or medical professional. Do not use this device for diagnosis or treatment of any health problem or disease. Measurement results are for reference only. Contact your physician if you have or suspect any medical problem.

This ear thermometer is designed for taking temperatures from the ear canal only. Do not use it to take rectal, oral or axillary temperatures. This device is designed for use in human ears only.

• Use ear thermometer only for its intended use.
• This ear thermometer should only be used under the supervision of an adult.
• Prolonged high fever requires medical attention - especially for young children.
• Stand or sit still while taking a temperature.

• Thermometer should be used in a dry ear canal.

• Gentle force should be used when inserting the probe into the ear. Excessive force may injure the ear canal or eardrum.

• Do not expose the monitor to extreme temperature, very high humidity, or direct sunlight.
• Handle product with care and avoid dropping.
• Do not immerse the unit in water or other liquids.
• Do not disassemble or attempt to repair the unit.
• When not in use, keep thermometer in its storage case and out of the reach of children.
• Never attempt to insert any object into the probe tip.
• Please observe the following regarding batteries:
• Battery liquid can be harmful to the ear thermometer if leakage occurs. When the ear thermometer will not be used for an extended period of time (three months or more), batteries should be removed.
• A worn battery should be replaced immediately with a new one.
• Observe caution when inserting battery to avoid insertion with polarities in wrong direction.

Additional product notices and safety instructions are found in the following sections of this manual:

• Important notes regarding temperature measurement (pg. 13)
• Special situations in which the ear thermometer should not be used (pg. 15)
• Care, maintenance, and cleaning (pg. 15)

One-Second Ear Thermometer

How does this product work?

This ear thermometer is a delicate and high-tech electronic device designed to measure body temperature. This unit provides accurate and reliable temperature readings by detecting infrared heat from the eardrum and surrounding tissue.

The thermometer takes 512 scans of the eardrum and surrounding tissue in just one second and displays the calculated temperature. The temperature displayed represents the measured ear canal temperature converted to the more familiar oral equivalent. This is performed using a mathematical adjustment of the ear canal temperature. Note that this reading will not necessarily be the same as a temperature measured orally at the same time.

When consulting a physician, it is important to communicate that the temperature reading was taken in the ear and converted to an oral equivalent.

What is normal body temperature? What is a fever?

Normal body temperature is a range that varies from person to person, by age, and throughout the day.

The average normal body temperature is 98.6^ F ( 37^ C).

Fever is defined as a body temperature elevated over an individual's normal body temperature.

It is important to determine each person's normal body temperature in order to properly assess whether or not a fever is actually present. This range can easily be determined by tracking temperatures on a consistent basis, using the same ear and measuring at the same time each day.

This ear thermometer converts the ear temperature to an oral equivalent and meets industry standards regarding temperature accuracy. For temperatures between 96.8°F - 102.2°F (36.0°C - 39.0°C), it is accurate to +/- 0.4°F (+/- 0.2°C). See “Product Specifications” (p.17) for more information.

What is the Fever Alarm?

The Fever Alarm is a unique feature that will alert the user anytime a temperature reading is 100^ F ( 37.8^ C) or greater with a visual notice on the display (a frowning face) and a triple beep audio alert (visual alert only in memory mode). For readings at or above this temperature it is LIKELY that a fever is present.

Note: A temperature reading below 100^ F ( 37.8^ C) does not mean that a fever is not present. Likewise, a temperature greater than or equal to 100^ F ( 37.8^ C) does not guarantee the presence of a fever.

Each individual's physiology is different and you should monitor your own body temperature to determine your "normal" temperature range in order to determine when a fever is present. Classification of a temperature as a fever also varies by age.

This product is not intended as a substitute for consultation with a physician. Contact your physician if you feel an illness is present with or without a fever.

A physician should be consulted if any of the following conditions are present: Vomiting, diarrhea, changes in breathing, activity, or appetite, irritability, lethargy, or unusual sleepiness.

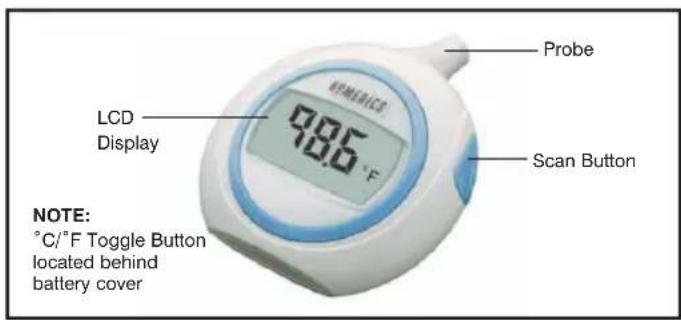

DEVICE DESCRIPTION

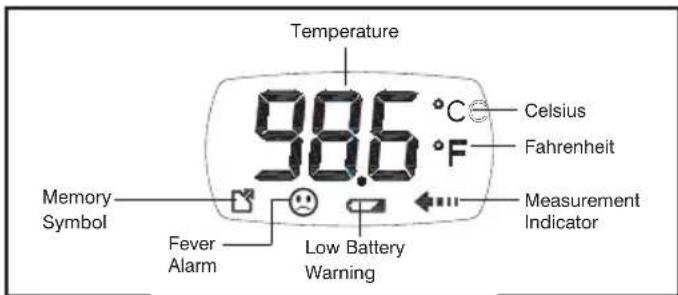

DESCRIPTION OF DISPLAY SYMBOLS

Figure 1

Simple line drawing of a circular object with a handle and a small protrusion, resembling a stylized tool or device (no text or symbols)

Figure 2

Simple line drawing of a funnel with a circular button labeled '+/-' (no text or symbols beyond the label)

INSERTING AND REPLACING BATTERIES

1. Remove the battery cover as shown in Figure 1.
2. Carefully remove the battery by pressing down on the metal clip holding the battery in place. Do not use metal tweezers or a screwdriver to remove the battery.
3. Insert one CR-2032 (3.0 V dc) battery with the plus symbol (+) up as shown in Figure 2.
4. Replace the battery cover.

Note that the thermometer will display a default temperature of 00.0^ F/ 00.0^ C after battery power is restored and until a measurement is taken.

When the low battery symbol appears on the display (Figure 3), the battery should be replaced. When the low battery symbol appears with the "Lo" symbol, the battery must be replaced in order for the ear thermometer to function.

Figure 3

NOTE: Do not discard used lithium batteries in trash. Please turn in at an official collection point. If the monitor will not be used for an extended period of time (three months or more), please remove battery.

CHANGING TEMPERATURE SCALE BETWEEN CELSIUS AND FAHRENHEIT

To switch between Celsius and Fahrenheit readings, simply press and release the “°F/°C” button located behind the battery compartment cover while the unit is on by using a small flat instrument. Once the desired scale is selected, press the “Scan” button to take a new reading or allow the unit to turn off automatically and then turn it back on to view the converted temperature stored in memory.

MEMORY RECALL

This thermometer will automatically store the last temperature measurement in memory. The most recent reading will automatically display when the unit is turned on. Each new temperature reading will replace the temperature stored in the memory.

When viewing a memory reading, the symbol below will appear in the bottom left corner of the display.

HOW TO TAKE A TEMPERATURE READING

1. Always make sure that the waterproof probe has been cleaned with a cotton swab moistened with alcohol since its previous usage.

2. Press and release the "SCAN" button on the side of the device. All display symbols will appear for approximately one second (Figure 1).

1. When the ear thermometer is ready, the display will next show the results from the last reading. The unit is ready for measurement at this point (Figure 2).

1. Press and release the "SCAN" button again with the ear thermometer outside of the ear. An arrow symbol will appear on the display (Figure 3).

1. Insert the probe tip of the ear thermometer into the ear canal within two seconds (Figure 4). It is important that the probe tip be well positioned within the ear canal. Measurement time for the actual reading is approximately one second.

Diagram of a mechanical component with a circular housing and internal structure, labeled 'Figure 4' (no text or symbols on the diagram itself)

1. A beep sound will indicate the end of the measurement. Results of the temperature measurement will be displayed (Figure 5).

If a temperature reading is greater than or equal to 100^ F ( 37.8^ C), the fever alarm will display a frowning face and will beep three times to alert the user that it is likely that a fever is present (Figure 6). THIS DOES NOT MEAN THAT A FEVER IS NOT PRESENT AT A LOWER TEMPERATURE. For more information on the Fever Alarm feature, please refer to the “What is the Fever Alarm?” section of this manual (page 5).

The temperature range of this ear thermometer is 93.2^ F ( 34.0^ C)– 109^ F ( 43.0^ C). If a measurement is below this range, the unit will display “Lo” (Figure 7). If above this range, the unit will display “Hi” (Figure 8).

The unit will display “Err” if the operating temperature is not within the permissible range for measurement (see details in technical section of this manual) (Figure 9).

1. The unit will automatically turn off after 30 seconds of non-use.

IMPORTANT NOTES REGARDING TEMPERATURE MEASUREMENT

• The measurement results that users receive are for reference only. If users have any health concerns, please consult a physician.
• It is not necessary to perform an “ear tug” or pull on the ear before taking a temperature measurement.
• For additional measurements, users should wait at least 5 seconds between readings to ensure accuracy.
• Use the ear thermometer at room temperature, as extremes in environmental temperature can impact accuracy. Unit should be stored at room temperature. Before use, the unit must be at room temperature for at least 30 minutes.
• Clean the waterproof probe with a cotton swab moistened with alcohol between readings. Always keep rubbing alcohol/cleaners away from children.

• It is recommended that you take multiple readings (three or more) in the same ear and use the highest reading in the following special circumstances:

• When taking the temperature of an infant younger than three months.

• When taking the temperature of children under the age of three who have special conditions, such as compromised immune systems, and for whom the absence or presence of a fever is critical.
• When you are first learning how to use this ear thermometer and until you are obtaining consistent readings.
  Note: Slight temperature variations may be observed (+/- 0.3 - 0.5°F or +/- 0.2 - 0.3°C) in consecutive measurements. This is common to all types of thermometers.
• Always take the temperature in the same ear, as readings may differ from one ear to another.
• The ear must be free from excessive earwax buildup or other obstructions in order to take an accurate reading. Note that you should never attempt to clean inside ears, however, as this may result in damage to the eardrum or surrounding tissues. Remove only excess earwax that can be reached with a washcloth. Consult a physician if you suspect excess earwax is present within the ear.
• Ear temperatures may be influenced by external factors, including:
• An ear that has been rested upon or covered
• General exposure to extreme hot or cold temperatures
• Recent bathing or swimming
• Use of hearing aids or ear plugs
  It is recommended that measurement occur at least 20 minutes after these circumstances are no longer present.
• This ear thermometer is for use in human ears only. Do not use for oral, rectal, or axillary temperature measurement.

SPECIAL SITUATIONS IN WHICH THE EAR THERMOMETER SHOULD NOT BE USED

• Pain of any kind is noted during use.
  • Blood or drainage is present in the external ear canal.
• Deformities of the ear canal or face exist that prohibit the thermometer from being properly inserted into the ear canal.
• Ear medication or ear drops have been placed in the ear canal.
• Ear infection of any kind is present.
• Individual has been bathing or swimming, as this may lead to injury of ear tissue, as well as inaccurate readings.

CARE, MAINTENANCE & CLEANING

• Clean the unit carefully with a soft, dry cloth. Do not use any gas, strong detergent, or solvents to clean the device.
• Clean the waterproof probe with a cotton swab moistened with alcohol.
• Never attempt to insert any object into the probe tip.
• Do not immerse the unit in water as this will result in damage to the unit. Waterproof portion of unit is limited to probe tip.
• Do not subject the ear thermometer to extreme temperatures, humidity, moisture, and direct sunlight.
• Do not disassemble the ear thermometer. If in need of repair, refer to the warranty section of this manual.
• Do not subject the ear thermometer to extreme shocks (do not drop on floor).
• When not in use, keep thermometer in its storage case and out of the reach of children.
• The thermometer is initially calibrated at the time of manufacture. If this thermometer is used according to the use instructions, periodic readjustment is not required. If at any time you question the accuracy of

temperature measurements, please contact HoMedics Consumer Relations at 1-800-466-3342.

TROUBLESHOOTING/ERROR CODES

Condition Possible	Cause	Corrective Action
Consistent low temperature readings ("Lo")	Temperature reading is below measurement range (below 93.2°F/34.0°C).The probe is not positioned properly in ear.The waterproof probe is dirty.	Product Design-Measurement range is 93.2°F (34.0°C) to 109.4°F (43.0°C).Contact your physician if you have or suspect any medical problems.Make sure probe is properly positioned against the opening of the ear canalClean the probe with a cotton swab moistened with alcohol.
Consistent high temperature readings ("Hi")	Temperature reading is above measurement range (above 109.4°F/43.0°C).	Product Design-Measurement range is 93.2°F (34°C) to 109.4°F (43°C). Contact your physician if you have or suspect any medical problems.
Consistent error messages ("Err")	Operating temperature is not within the permissible range for measurement.	Product Design-Operating temperature is 60.8°F (16°C) to 104°F (40°C).
Low battery warning Battery power is low.		Replace battery (see "Inserting and Replacing Batteries").
Low battery warning with "Lo" symbol	Battery power is too low for the thermometer to function.	Replace battery immediately (see "Inserting and Replacing Batteries").

PRODUCT SPECIFICATIONS

Model Number	Model Number TE-100
Power Source	DC 3 Volt (lithium battery CR2032)
Battery Life	1,700 Measurements
Sensor	Thermopile
Temperature Indication	In 4 digits, every 0.1°F or °C
Accuracy	+/- 0.4°F/0.2°C between 96.8°F - 102.2°F (36.0°C - 39.0°C)+/- 0.5°F/0.3°C less than 96.8°F (36.0°C)or greater than 102.2°F (39.0°C)
Measurement Range	93.2°F - 109.4°F (34°C - 43°C)
Weight	0.10 lbs (with battery)
Operating Temperature	60.8°F - 104°F (16°C - 40°C)
Operating Humidity	Relative humidity up to 95%(non-condensing)
Storage Temperature	-4°F - 122°F (-20°C - 50°C)
Storage Humidity	Relative humidity up to 95%(non-condensing)
Contents	Ear Thermometer & Battery, Storage Case, Instruction Manual

NOTE: These specifications are subject to change without notice. This ear thermometer meets requirements established in ASTM Standard E1965-98.

HOMEDICS

THERAP

For service or repair, do not return this unit to the retailer. Contact HoMedics Consumer Relations at:

Address:

HoMedics

Consumer Relations

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390

Email:

[e-mail]

Phone:

1-800-466-3342

Business hours:

8:30am - 5pm ET

Monday – Friday

Distributed by HaMedics

Printed in China

LIMITED THREE YEAR WARRANTY

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of three years from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your HoMedics product, mail the product and your dated sales receipt (as proof of purchase), postpaid, to the following address:

HoMedics Consumer Relations

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390

No COD's will be accepted.

HoMedics does not authorize anyone, including, but not limited to. Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE. HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on Internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of Holmedics. This warranty provides you with specific legal rights. You may have additional rights which may vary from country to country. Because of individual country regulations, some of the above limitations and exclusions may not apply to you. For more information regarding our product line in the USA, please visit: www.homedics.com

©2006-2008 HoMedics, Inc. and its affiliated companies, all rights reserved. HoMedics® is a registered trademark of HoMedics, Inc. and its affiliated companies. TheraP™ is a registered trademark of

HoMedics Inc. and its affiliated companies.

All rights reserved.

IB-TE100A

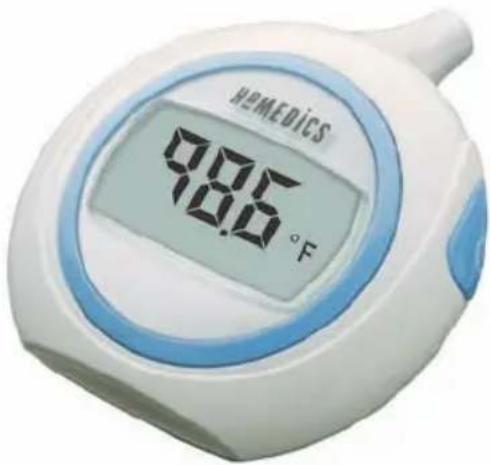

HOMEDICS

THERAIP

Termómetro Auricolar

Deluxe-Lectura en

Un Segundo

TE-100

Garantía limitada

por tres años

Simple line drawing of a circular object with a handle and internal structure (no text or symbols)

Figura 2

CÓMO INSERTAR Y REEMPLAZAR BATERÍAS

Diagram of a mechanical component with a circular ring and curved line, labeled 'Figura 4' (no text or symbols on the diagram itself)
