Product type	Cooker hood
Brand	Bertazzoni
Model	KT60MAS1XB
Dimensions (W x D x H)	60 x 50 x 40 cm
Weight	15 kg
Power supply	220-240 V ~ 50 Hz
Motor power	200 W
Lighting power	2 x 1.5 W LED
Number of speeds	4 (including 6-minute timed boost)
Noise level (max speed)	55 dB(A)
Minimum distance to cooktop	650 mm
Exhaust type	External or recirculation (charcoal filter)
Exhaust diameter	120 mm minimum
Grease filter	Aluminium, dishwasher safe
Charcoal filter	Activated, replaceable (every 4 months)
Maintenance	External cleaning with damp cloth and mild detergent
Safety	Boost function with 6 min timer; safety distance 650 mm
Controls	4 buttons (T1, T2, T3, L) with indicators
Repairability	Spare parts available through authorized after-sales service
Protection class	Class I (grounding required)

Frequently Asked Questions - KT60MAS1XB BERTAZZONI

What is the minimum distance between the hood and the cooktop?

The minimum safety distance is 650 mm. If the manual of your gas cooker indicates a greater distance, follow that one.

How to clean the hood and its filters?

Clean the exterior with a damp cloth and a mild detergent. The grease filters in aluminium can be washed in the dishwasher every 2 months. The charcoal filter cannot be washed and should be replaced every 4 months.

When to replace the charcoal filter?

The activated charcoal filter must be replaced approximately every 4 months of operation, or more often with heavy use. It cannot be washed or regenerated.

Can I use the hood with gas appliances?

Yes, but ensure adequate ventilation of the room to prevent gas backflow. The negative pressure must not exceed 0.04 mbar.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer, its after-sales service or a qualified technician.

How to activate the boost speed?

Press the T3 key for 2 seconds. The hood switches to 4th speed for 6 minutes then returns to the previous speed.

Can the air be evacuated through a chimney flue?

No. Never connect the hood to combustion smoke ducts (boilers, chimneys). Use a dedicated exhaust.

Can children use the hood?

Children over 8 years old may use it under supervision, after receiving safety instructions. Do not let children play with the appliance.

How to replace the lighting?

The replacement of bulbs must be carried out by the after-sales service. Do not attempt to replace them yourself.

Can the hood operate without external exhaust?

Yes, in recirculation mode with an activated charcoal filter. The air is filtered and then returned to the kitchen.

USER MANUAL KT60MAS1XB BERTAZZONI

Line drawing of a vertical cylindrical structure mounted on a base, with no text or symbols present.

IT 3
DE 7
EN 11
FR 14
NL 18
ES 22
DA 26
FI 29
NO 32
SV 35
PL 39

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

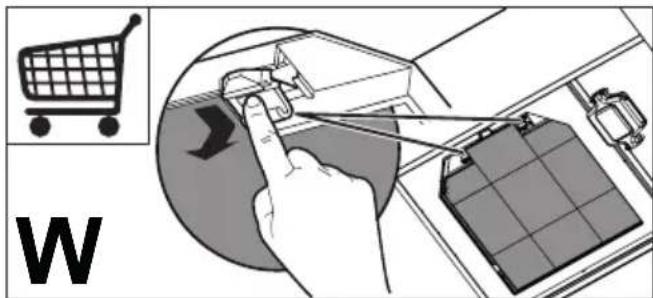

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

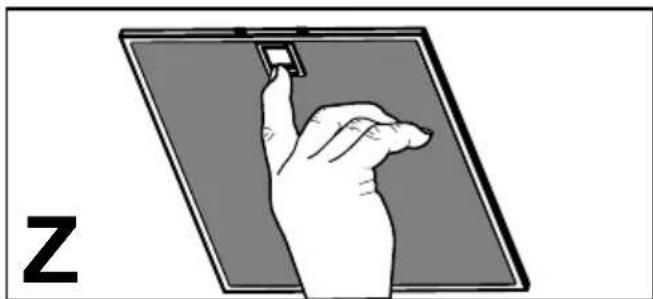

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a device on a tablet screen (no text or symbols)

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

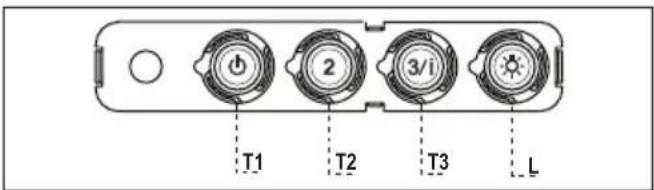

Button	Function Led
T1 Turns the Motor on at Speed one.		On
T2 Turns the Motor on at Speed two.		On
T3 When pressed briefly, turns the Motor on at Speed three.		Fixed
		Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.
- L Turns the Lighting System on and off.		-

Warning: Button T1 turns the motor off, after first passing to speed one.

5. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").
