Product type	Jigsaw
Brand	Black & Decker
Model	KS638
Power	500 W
Power supply	Mains 230 V, 50 Hz
No-load speed	500 – 3000 strokes/min
Blade stroke	20 mm
Max cutting capacity – wood	65 mm
Max cutting capacity – steel	5 mm
Orbital action	4 adjustable positions
Blade change	Tool-free
Blade type	T-shank blades (standard)
Weight	1,8 kg
Dimensions (L x W x H)	250 x 80 x 200 mm
Dust collector	Yes, with vacuum adapter
LED light	Yes
Speed control	Integrated into the trigger
Base	Tilts up to 45°
Maintenance	Clean the tool with a dry cloth, lubricate moving parts if necessary
Noise level	97 dB(A) (sound pressure), 108 dB(A) (sound power)
Vibration	8.5 m/s² (wood), 7.5 m/s² (steel)
Spare parts	Available: blades, base, carbon brushes, switch
Repairability	Repairability index: 8.3/10 (indicative rating)

Frequently Asked Questions - KS638 BLACK & DECKER

What is the power of the Black & Decker KS638 jigsaw?

The Black & Decker KS638 has a power of 500 W, suitable for cutting in wood, metal and plastic.

How to change the blade without a key?

To change the blade without a key, turn the clamping lever located on the nose of the tool, insert the T-shank blade, then release the lever to lock it automatically.

What is the maximum cutting depth in wood?

The maximum cutting depth in wood is 65 mm. For steel, it is 5 mm.

How to adjust the orbital action of the jigsaw?

The orbital action is adjusted using a lever located on the side of the tool. Four positions are available, from 0 (straight cut) to 3 (aggressive cut).

Can I connect a vacuum cleaner to the KS638?

Yes, the jigsaw is equipped with a dust collector with a 35 mm nozzle allowing connection to a vacuum cleaner.

Are the blades universal?

The KS638 uses T-shank blades (standard), compatible with most jigsaws on the market.

How to clean and maintain the jigsaw?

Clean the tool with a dry cloth after each use. Lubricate moving parts with light oil. Check the carbon brushes regularly and replace them if necessary.

Can the base tilt for bevel cuts?

Yes, the base tilts up to 45° to the left and right, with stops at 0°, 15°, 30° and 45°.

How to activate the LED light?

The LED light turns on automatically when you press the trigger and turns off a few seconds after releasing it.

Where to find spare parts for the KS638?

Spare parts (blades, base, carbon brushes, switch) are available on the Black & Decker website or from authorized dealers. Use the model number to identify compatible parts.

USER MANUAL KS638 BLACK & DECKER

Technical line drawing of a hand tool with multiple components, no text or symbols present

KS629 KS630

KS631 KS632

KS633 KS634

KS635 KS638

Australia Black & Decker (A'asia) Pty Ltd Tel: [phone]-288 Maroondah Highway, North Croydon, Victoria 3136 Fax: [phone]
Belgique/België Black & Decker Belgium NV Tel: [phone]Weihoek 1, 1930 Zaventem Fax: [phone]
Danmark Black & Decker Tlf: 70-20 15 10Hejrevang 26 B, 3450 Allerød Fax: [phone]
Deutschland Black & Decker GmbH Tel: [phone]Black & Decker Straße 40, 65510 IdsteinFax: 06126 212435
Ελλάς	Black & Decker (Ελλάς) AEΛεωφ. Συγγρού 154Service: 01 9242876-7Αθήνα 176 71Fax: [phone]
España	Black & Decker de España SACtra. de Acceso a Roda de Bará, km 0,743883-Roda de Bará, TarragonaTel: 977 297100Tlx: 56631 BLADE EFax: 977 299139
France	Black & Decker (France) Sarl Tel: [phone]Le Paisy69570 Dardilly, LyonTlx: 300 250Fax: [phone]
Helvetia	Black & Decker AG ElektrowerkzeugeRütistraße 14, CH-8952 SchlierenSchweiz/SuisseTel: 01 730 69 33Tlx: 54462 BDZH CHFax: 01 730 70 67
Italia	Black & Decker Italia SpAViale Elvezia 2, 20052 Monza (Mi)Tel: [phone]Fax: [phone]Numero verde: 167 21 39 35
Nederland	Black & Decker (Nederland) BVFlorijnstraat 10, 4879 AH Etten-LeurTel: 076 5082000Fax: [phone]
New Zealand	Black & Decker483 Great South Road, Penrose, AucklandTel: 09 579 7600Fax: [phone]
Norge	Black & Decker (Norge) A/S Tel: [phone]Strømsveien 344, 1081 OsloFax: 22-90 99 01
Österreich	Black & DeckerWerkzeugevertriebs GmbHErlaaerstraße 165, Postfach 69, 1230 WienTel: 0222 66 116 0Tlx: 13228 BLACK AFax: 0222 66 116 14
Portugal	Black & DeckerRua Egas Moniz 173, Apartado 19S. João do Estoril, 2768 Estoril, CodexTel: 468 76 13/468 75 13Tlx: 16 607 BLADEC PFax: 467 15 80
South Africa	Black & Decker South Africa (Pty) LtdSuite no 107, PostNet X65, Halfway House 1685Tel: [phone]Fax: [phone]
Suomi	Black & Decker OyRälssitie 7 C, 01510 VantaaPuh: 09-825 45 40Fax: [phone]
	Frälsevägen 7 C01510 VandaTel: 09-825 45 40Fax: [phone]
Sverige	Black & Decker ABBox 603, 421 26 Västra Frölunda, Besöksadr. Ekonomivägen 11Tel: [phone]Fax: [phone]
Türkiye	Black & Decker Elektrikli Ev (Aletleri Türkiye Distribütörü):Vestel Dayanıklı Tüketim, Malları Paz. A.Ü., Eski BüyükdereCad. İETT Garaji Yani, 80650 4. Levent - İstanbulTel: 0 212 282 3600 (10 hat)Fax: [phone]
United Kingdom	Black & Decker210 Bath Road, Slough Tlx: 848317 BAND MHBerkshire SL1 3YDFTel: 01753 574277Fax: [phone]

KÆRE KUNDE,

On the purchase of your Black & Decker product.

To ensure the best results from your power tool please read these safety and usage instructions carefully. If you have any questions or queries after reading this manual please do not hesitate to call your local service and information centre on 0345 230230 (UK only).

¡ENHORABUENA!

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing hands operating a tool with no visible text or symbols

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Mechanical assembly diagram showing a sewing machine needle inserted into a slot (no text or symbols visible)

Hand operating a computer interface with scroll wheel and mouse (no text or symbols visible)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Line drawing of a hand turning a button into a mechanical component (no text or symbols)

Hand pressing a button on a mechanical component (no text or symbols visible)

Diagram showing a hand holding a cable with two attached devices, no text or symbols present

Illustration of a hand holding a small device with a scroll wheel (no text or symbols visible)

Illustration of a hand holding a mechanical device with an upward arrow indicating motion (no text or symbols present)

Nu kan scroller-funktionen anvendes. Brug den ene hånd til at styre saven og den anden til at dreje knappen for at styre klingen langs savlinjen. Klingen kan drejes 360°.

Klingen kan låses i fire positioner - 0°, 90°, 180° og 270° til lige savning på svært tilgængelige steder. For at låse klingen i en af de fire positioner, tryk låseknappen forrest på saven ind og tryk

knappen ned. Når du derefter slipper knappen er klingen låst i den valgte position. For at nulstille, trykkes låseknappen ned igen. For almindelig lige savning med stiksaven, trykkes låseknappen ind og knappen trykkes ned og sålen justeres.

BRUGERTIPS

Savning i laminater

Brian Cooke - Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, United Kingdom

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Mechanical assembly diagram showing a sewing machine needle and screwdriver mechanism (no text or labels)

Technical line drawing of a sewing machine mechanism (no text or symbols)

Hand operating a computer interface with a hand holding a cable (no visible text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Line drawing of a hand turning a button on a sewing machine (no text or symbols)

Hand pressing a button on a mechanical component (no text or symbols visible)

Diagram of a mechanical assembly with attached components and directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a small object with a circular knob, partially covered by a checkered pattern (no text or symbols)

Illustration of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG United Kingdom

Σέγα μιασ ταχύτητασ

ΟΔΗΓΙΕΣ ΑΣΦΑΛΕΙΑΣ

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing hands operating a tool with no visible text or symbols

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a mechanical component (no text or symbols visible)

Hand operating a computer interface with scroll arrows indicating scroll direction (no text or symbols visible)

Illustration of a hand using a tool to interact with a mechanical device (no text or symbols visible)

Line drawing of a hand adjusting a mechanical component with a knob (no text or symbols)

Hand pressing down on a mechanical component (no text or symbols visible)

Diagram showing cable installation with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to press or install a device (no text or symbols visible)

Illustration of a hand holding a mechanical knob with an upward arrow indicating motion (no text or symbols present)

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, HB

Jigsaws user manual

SAFETY INSTRUCTIONS

Warning! When using electric tools, the following basic safety precautions should always be taken to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate the product and save this booklet.

For safe operation:

• Keep the work area clean. Cluttered areas and benches invite injuries.
• Consider the work area environment. Do not expose the power tool to rain and do not use in damp or wet locations. Keep the work area well lit. Do not use the power tool where there is a risk to cause fire or explosion.
• Guard against electric shock. Avoid body contact, where possible, with earthed or grounded surfaces (e.g. pipes, radiators, ranges and refrigerators).
• Keep children away. Do not let visitors touch the tool or extension cord. All visitors should be kept away from the work area.
• Store idle tools. When not in use, tools should be stored in a dry, high or locked place, out of reach of children.
• Do not force the tool. It will do the job better and more safely at the rate for which it was intended.
• Use the right tool. Do not force small tools or attachments to do the job of a heavy duty tool. Do not use the tool for purposes not intended; for example, do not use a circular saw to cut tree limbs or logs.
• Dress properly. Do not wear loose clothing or jewellery as they can be caught in moving parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
• Use safety glasses. Use a face or dust mask as well, if the operation is dusty or if the tool is being used in enclosed spaces.
• Connecting dust extraction equipment. If devices are provided for the connection of dust extraction and collection ensure these are connected and properly used, especially in confined areas.
• Do not abuse the cord. Never carry the tool by its cord or yank it to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges.
• Secure the work. Use clamps or a vice to hold the work. It is safer than using a hand and it frees both hands to operate the tool.

• Do not overreach. Keep proper footing and balance at all times.

• Maintain the tool with care. Keep a cutting tool sharp and clean for better and safer performance. Follow the instructions for lubricating and changing accessories. Inspect the tools cord periodically and, if damaged, have repaired by an authorised service facility. Inspect the extension cord periodically and replace if damaged. Keep the handles dry, clean and free from oil and grease.

• Disconnect the tool when not in use, before servicing and when changing accessories such as blades, bits and cutters.
• Remove adjusting keys and wrenches. Form the habit of checking to see that keys and adjusting wrenches are removed from the tool and replaced in the storage area before switching on.
• Avoid unintentional starting. Do not carry a plugged-in tool with a finger on the switch. Ensure the switch is off when plugging in.
• Use an outdoor extension cord. When a tool is used outdoors, only use an extension cord intended for outdoor use and so marked.
• Stay alert. Watch what you are doing, use common sense and do not operate the tool when tired.
• Check damaged parts. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine whether it will operate properly and perform its intended function. Check for alignment of moving parts, free running of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorised service centre unless otherwise indicated in the product booklet. Have defective switches replaced by an authorised service centre. Do not use the tool if the switch does not turn it on and off.
• Warning! The use of any accessory or attachment, other than recommended in the product booklet, may present a risk of personal injury.
• Have the tool repaired by a qualified person. The electrical tool is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise, this may result in considerable danger to the user.

Save these instructions!

DOUBLE INSULATION

The tool is double insulated. This means that all the external metal parts are electrically insulated

ENGLISH

from the mains power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the tool to be earthed.

Note: Double insulation does not take the place of normal safety precautions when operating the tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

ELECTRICAL SAFETY

Be sure the supply is the same as the voltage given on the rating plate. The tool is fitted with a two-core cable and plug.

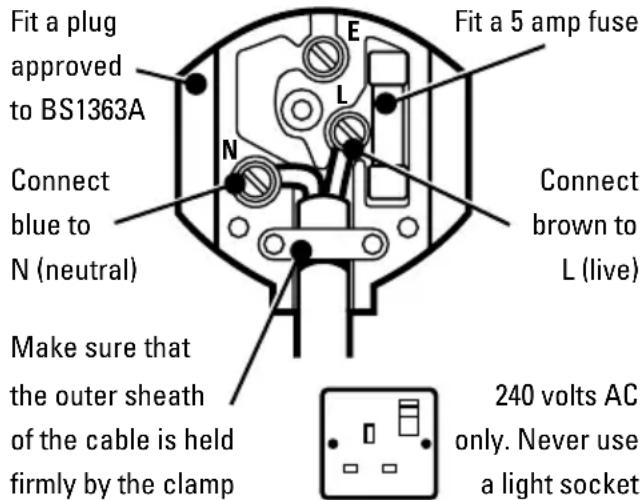

MAINS PLUG REPLACEMENT (UK ONLY)

Should the mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact a Black & Decker service centre or a qualified electrician.

• Disconnect the plug from the power supply.
• Cut off the plug and dispose of safely. A plug with bared copper conductors is very dangerous if engaged in a live socket outlet.
• Only fit BS1363A approved plugs fitted with the correctly rated fuse.

Note: Fuses do not give personal protection against electric shock.

- The cable wire colours, or a letter, will be marked at the connection point of most good quality plugs. Attach the wires to their respective points in the plug (see diagram). Brown is L (live) and blue is N (neutral).

- Before replacing the top cover of the plug ensure that the cable restraint is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws. If the fuse cover is missing or damaged do not use the plug.

For replacement or detachable fuse covers, contact a Black & Decker service centre.

Warning! Never connect live or neutral wires to the earth pin marked E or 12

MAINS PLUG REPLACEMENT (AUSTRALIA AND NEW ZEALAND ONLY)

Should the mains plug or cordset of the product be damaged, it must only be replaced by an authorised Black & Decker service agent because special purpose tools are required.

EXTENSION CABLES

Up to 30m (100ft) of Black & Decker 2-core extension cable (or 3-core extension cordset, in Australia and New Zealand) can be used without undue loss of power.

Note: An extension cable should not be used unless absolutely necessary. Use of an improper extension cable could result in a risk of fire and electric shock. If an extension cable must be used, make sure it is properly wired, contains the correct rated fuse as recommended in its literature and is in good electrical condition.

UNWANTED TOOLS AND THE ENVIRONMENT

Should you find one day that the tool needs replacement or is of no further use, think of the protection of the environment. Black & Decker service agents will accept old tools and will dispose of them in an environmentally safe way.

THE BLACK & DECKER GUARANTEE (UK, AUSTRALIA AND NEW ZEALAND ONLY)

If the Black & Decker product becomes defective due to faulty materials and workmanship, within 24 months from the date of purchase, we guarantee to either replace all defective parts or at our discretion, replace the unit free of charge provided that:

- The product is returned to us or our authorised repairers with evidence of date of purchase.

- The product has not been used for trade, professional or hire purposes.

- The product has not been subjected to misuse or neglect.

- The product has not sustained any damage through foreign objects, substances or accidents.

- Repairs have not been attempted by anyone other than our authorised repair agents.

This guarantee is offered as an extra benefit and is additional to the customers statutory rights.

AFTER SALES SERVICE FOR THE BLACK & DECKER PRODUCT (UK, AUSTRALIA AND NEW ZEALAND ONLY)

Black & Decker offers a nationwide network of authorised service agents. The use of other than genuine Black & Decker accessories and parts may damage or reduce the performance of your Black & Decker product and may also endanger the user. The terms and conditions of the warranty may also be effected.

THE AFTER SALES SERVICE POLICY (UK, AUSTRALIA AND NEW ZEALAND ONLY)

It is our aim that all Black & Decker customers should be totally satisfied with their Black & Decker product and after sales service, but if help or advice is needed please contact a local Black & Decker authorised repair agent manager who will be happy to help. Full details of our unique after sales service can be obtained from any of our Black & Decker authorised repair agents.

ACCESSORIES

The performance of any power tool is dependant upon the accessory used. Black & Decker accessories are engineered to high quality standards and are designed to enhance the performance of your tool. Buying a Black & Decker accessory will ensure that you get the very best from your Black & Decker tool.

TECHNICAL DATA

The level of sound pressure of the tool is in accordance with EEC legislation. It is recommended that you take appropriate measures for the protection of your hearing if the sound level seems uncomfortable. This normally equates to a sound pressure in excess of 85dB (A).

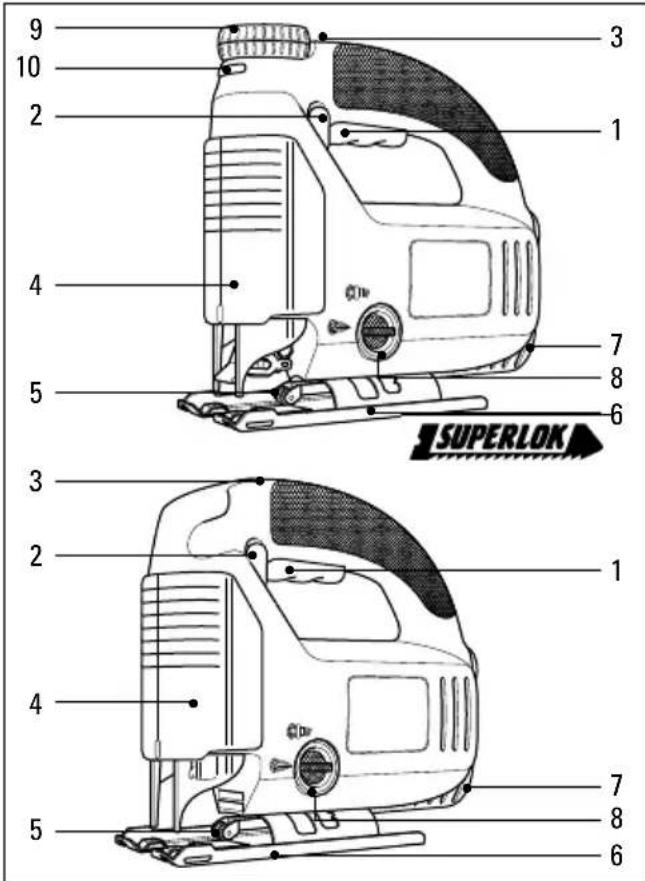

FEATURES

1. Trigger switch
2. Lock-on button
3. Variable speed wheel
4. Dust shroud
5. Blade support roller
6. Shoe plate
7. Dust extraction
8. Variable dust blowing control
9. Scroller knob
10. Scroller lock button

Your jigsaw includes some or all of these features.

Note: This user manual also covers catalogue numbers with a letter suffix. Refer to your carton for details of your product.

FITTING THE BLADE

Manual blade change models (only use these blade types

Disconnect your jigsaw from the power supply.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Slacken the two screws and ensuring blade teeth are facing forward, push blade shank as far as possible into the sawblade holder. Slightly tighten screws alternately to

position the blade, then fully tighten screws. To release, turn both screws one turn anti-clockwise.

Superlok blade change models (only use this blade type

Disconnect your jigsaw from the power supply.

Mechanical assembly diagram showing a hand operating a tool with a bracket (no text or symbols visible)

Lift the lever. Ensuring the blade teeth are facing forward and the blade is positioned towards the back of the blade holder insert the blade shank as far as possible into the saw blade

holder. Release lever and the blade will be clamped securely in place. To release the blade, lift the lever.

ENGLISH

All models

Note: To achieve a greater accuracy of cut, ensure back of blade is touching blade support roller. See 'Blade suport roller' for instructions on how to change position of blade support roller.

To provide greater support and accuracy when cutting, your jigsaw is fitted with a blade support roller. This support should be adjusted so that the roller touches the back of the blade when cutting.

Mechanical sewing machine diagram showing needle insertion and adjustment mechanism (no text or symbols)

To do this, loosen the front screw on the base of the shoe. Push the blade support forward until the roller touches the back edge of the blade. Retighten the screw. Lubricating the

guide roller (5) from time to time with a drop of oil will extend the life of the roller.

For scroller jigsaws only

Note: When using your jigsaw in the scrolling mode, the blade support roller needs to be retracted to allow free movement of the blade.

Technical line drawing of a mechanical assembly with no visible text or symbols

To do this, untighten the front screw on the base of the shoe and retract the support. Re-tighten the screw.

To switch your jigsaw on, fully squeeze the on/off trigger switch (1). To switch your jigsaw off, release the trigger switch (1). When plugging your jigsaw in, ensure the trigger switch is in the OFF position. When continuous operation is required, squeeze the trigger and depress the lock on button (2) and release the trigger. To disengage the lock, squeeze and release the trigger. Always disengage the lock before disconnecting from the power supply.

SAW SHOE ADJUSTMENT FOR ANGULAR CUTTING

The shoe plate (6) can be angled up to 45^ on either side. To do this, disconnect your jigsaw from the power supply.

Hand operating a computer interface with scroll wheel and scrollpad (no text or symbols visible)

Raise or remove the dust shroud (4) and loosen both screws on the shoe plate with a screwdriver. Pull the shoe plate backward a little, and set the desired angular

Diagram of a hand using a tool to interact with a mechanical device, showing directional arrows (no text or symbols)

adjustment according to the scale or push the shoe plate forward for fixed locks at 0°, 15°, 30°, or 45°. Tighten the screws to secure. Although the scale and notches are accurate for most purposes it is advisable for very

accurate angle cutting to use a protractor to set the shoe. Make a test cut on some scrap material to check the accuracy of the angle. To reset the shoe for a square cut, slacken the clamp screws and move the shoe until it is approximately 90° to the blade, and then, whilst applying slight forward pressure on the shoe, retighten the clamp screws. If necessary, re-adjust the blade support roller using only the front screw.

DUST BLOWING

Line drawing of a hand inserting a small object into a sewing machine (no text or symbols)

To aid visibility when cutting, your jigsaw is fitted with a facility which will blow dust away from surface of material being cut. To utilise, lift up or remove dust visor and ensure the variable

blower control is pointing towards the symbol.

DUST EXTRACTION

Your jigsaw with a hose adapter (accessory part), can be fitted to most portable vacuum cleaners.

Hand inserting a coin into a device (no text or symbols visible)

To utilise this facility push adapter into the aperture at the rear of jigsaw and fit vacuum hose in or over the adapter, depending on the hose size. The dust shroud should be attached and in a downwards position and the variable blower control on the side of the jigsaw should point towards the symbol.

Diagram showing cable installation steps with arrows indicating motion (no text or symbols)

ELECTRONIC SPEED REGULATION

For electronic models only

Line drawing of a hand holding a device with a knob and handle (no text or symbols)

The electronic speed control wheel (3) is used to programme the required saw speed depending on the material being worked.

ENGLISH

The correct speed for a particular material can be obtained from the following table:

Material Electronic speed regulation

Wood 6 - max

Metal 2 - 3

Aluminium 3 - 5

PVC 3 - 4

Ceramic 3 - 5

Note: After using your jigsaw for extended periods on stroke settings 1-4, run the saw for 3 minutes at maximum speed to aid cooling.

SCROLLING

For scroller jigsaws only

Before use, remember to retract the blade support roller and ensure the shoe is in the forward position.

The scrolling feature enables you to have maximum control whilst following complex cut lines.

Illustration of a hand holding a mechanical component with an arrow indicating upward motion (no text or symbols present)

To operate, press the button (10) on the front of your jigsaw and the scroller knob (9) will spring upwards. Pull the knob up to its full extent. Your jigsaw is now ready for scrolling mode. Using one hand to guide the jigsaw,

turn the scroller knob to guide the blade along the line of cut. The blade will turn a full 360^ .

The orientation of the blade can be locked in any one of 4 positions - 0°, 90°, 180°, 270° to enable straight cutting in awkward areas. To lock the blade in any of these four positions, push

the button in on the front of the unit, and push the knob down. When the button is released the blade is locked in position. To reset, push the button on the front of the jigsaw. For straight line cutting, press the button on the front of your jigsaw and push the knob down and replace the blade support roller to touch the back of the blade.

HANDY HINTS

Cutting laminates

The blades of your jigsaw cut on the upstroke so any tendency for edge splintering will occur on the face of the material nearest the saw shoe. When sawing thin wood or plastic laminates, use a fine tooth metal cutting blade and cut from the back surface of the

material. To minimise the risk of chipping the edges of plastic laminate, clamp a piece of scrap wood or hardboard to both sides of the laminate to form a sandwich, and saw through the complete assembly. Always select the right blade for the job.

Pocket cutting

The saw blade can be inserted directly into a wood surface without first drilling a pilot hole, thus eliminating a drilling operation.

First measure and clearly mark the surface to be cut. Then tip your jigsaw forward so that the rounded tips of the shoe rest on the work surface but with the blade well clear of it. Switch your jigsaw on and move the saw down until the moving blade is exactly over the chosen point of entry. Lower the rear of the shoe down towards the work slowly, maintaining a firm pivoting pressure on the shoe tips with the blade exactly on the required line. Do not move your jigsaw forward along the cut line until the saw blade has completely entered the material and the shoe comes to rest flat on its surface.

Cutting metal

Your jigsaw can be used for cutting light gauge ferrous sheet and non-ferrous metals such as copper, brass, aluminium, etc.

It is advisable when cutting thin sheet to clamp a backing sheet of soft wood or plywood to the work as this will enable you to obtain a clean cut without vibration and the possibility of tearing the metal. Both metal and wood backing are sawn together. Do not force the cutting blade into the metal as this will reduce the life of the blade and possibly damage the motor. Cutting thin metal will take longer than cutting even a relatively thick piece of wood, so do not be tempted to speed up the operation by forcing the saw.

Spread a thin film of oil along the proposed cutting line before commencing to saw metal. Always select the right blade for the job.

Cleaning

Disconnect your jigsaw from the power supply. Use only mild soap and a slightly damp cloth to clean your jigsaw. Many household cleaners contain chemicals which could seriously damage the plastic. Also, do not use petrol, turpentine, lacquer or paint thinners or similar products. Never let any liquid get inside the tool and never immerse any part of your jigsaw into liquid.

EC DECLARATION OF CONFORMITY

We declare that units: KS638SE, KS635S, KS634S, KS633E, KS632E, KS631, KS630, KS629 conform to

ENGLISH

89/392/EEC, 89/336/EEC, EN55014, 73/23/EEC, EN55104, EN50144, EN61000

A weighted sound pressure 96dB (A)

A weighted sound power 88dB (A)

Hand/arm weighted vibration <2.5m/s²

Brian Cooke - Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG United Kingdom

The Black & Decker policy is one of continuous improvement to our product and as such we reserve the right to change the product specification without prior notice.

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Mechanical assembly diagram showing a sewing machine with a screw and clamped parts (no text or symbols)

Mechanical assembly diagram showing a sewing machine needle inserted into a base plate (no text or symbols visible)

Hand operating a computer interface with scroll wheel and scrollpad (no text or symbols visible)

Diagram of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a hand turning a button into a sewing machine (no text or symbols)

Hand operating a mechanical component with a knob (no visible text or symbols)

Diagram of cable connector components with arrows indicating movement (no text or symbols)

Illustration of a hand holding a small device with a circular knob, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Black & Decker Ltd, Spennymoor, County Durham, DL16 6JG, RU

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a tool with a bracket (no text or symbols visible)

Mechanical assembly diagram showing a sewing machine with screw and gear mechanism (no text or labels)

Mechanical assembly diagram showing a sewing machine needle inserted into a slot (no text or symbols visible)

Hand operating a computer interface with scroll arrows and ports (no text or symbols visible)

Illustration of a hand using a mechanical device to interact with a rotating arm (no text or symbols visible)

Line drawing of a hand inserting a small object into a sewing machine (no text or symbols)

Illustration of a hand turning a button into a mechanical component (no text or symbols visible)

Diagram showing cable installation with connectors and arrows indicating movement (no text or symbols)

Illustration of a hand holding a small device with a knob, no text or symbols present

Diagram of a mechanical component with directional arrows indicating movement (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a tool with directional arrows (no text or symbols)

Mechanical assembly diagram showing a sewing machine with a gear and base mechanism (no text or symbols)

Mechanical assembly diagram showing a sewing machine needle inserted into a slot (no text or symbols visible)

Hand operating a computer interface with scroll wheel and mouse (no text or symbols visible)

Diagram of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a hand turning a button into a sewing machine (no text or symbols visible)

Hand inserting a coin into a device (no text or symbols visible)

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a small device with a knob, no text or symbols present

Illustration of a hand pressing a button on a car (no text or symbols visible)

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing hands operating a tool with a bracket (no text or symbols visible)

Mechanical assembly diagram showing a sewing machine needle inserted into a base with a screw and arrow indicating direction (no text or symbols)

Technical line drawing of a sewing machine needle and screw (no text or symbols)

Hand operating a computer interface with scroll wheel and scrollpad (no text or symbols visible)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Hand holding a circular object with small objects nearby (no text or symbols visible)

Diagram showing a cable being inserted into a bottle, with arrows indicating direction of movement (no text or symbols present)

ELEKTRONISCHE SNELHEIDSREGELING

Line drawing of a hand holding a small device with a circular knob, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Brian Cooke - Hoofd Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a tool with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a sewing machine needle and screwdriver mechanism (no text or labels)

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Hand operating a computer interface with scroll arrows indicating scroll direction (no text or symbols present)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Line drawing of a hand turning a button into a mechanical component (no text or symbols)

Hand holding a circular object with a small inset image, no visible text or symbols

Diagram of cable connectors and plugging (no text or symbols)

ELEKTRONISK HASTIGHETSREGULERING

Illustration of a hand holding a device with a knob and handle, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Brian Cooke - Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a tool with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a sewing machine needle inserted into a component, with no visible text or symbols.

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Hand operating a computer monitor with scroll arrows indicating scroll direction (no text or symbols)

Diagram of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Hand inserting a circular component into a machine (no text or symbols visible)

Hand turning a button into a mechanical component (no text or symbols visible)

Diagram showing cable installation with two connectors and directional arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to press or adjust a device (no text or symbols visible)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Brian Cooke - Engenheiro responsável Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a tool with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a screw inserted into a base plate with a tool, no text or symbols present

Mechanical assembly diagram showing a cutting tool interacting with a workpiece (no text or symbols visible)

Hand operating a computer interface with scroll arrows and control buttons (no text or symbols visible)

Diagram of a hand operating a mechanical device with rotating arrows indicating motion (no text or symbols)

Line drawing of a hand turning a button into a sewing machine (no text or symbols)

Hand operating a sewing machine with a knob (no text or symbols visible)

Diagram showing cable installation with connectors and connectors (no text or symbols)

ELEKTRONINEN NOPEUDENSÄÄTÖ

Vain elektroniset mallit

Illustration of a hand holding a device with a knob and handle (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham, DL16 6JG United Kingdom

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Dra ut kontakten.

Mechanical assembly diagram showing a hand operating a tool with a bracket (no text or symbols visible)

Mechanical assembly diagram showing a sewing machine needle inserted into a slot, with no visible text or symbols.

Mechanical assembly diagram showing a cutting tool interacting with a workpiece (no text or symbols visible)

Hand holding a USB cable connector with directional arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to interact with a mechanical device (no text or symbols visible)

Line drawing of a hand using a circular tool on a sewing machine (no text or symbols)

Hand operating a sewing machine needle with a sewing machine (no text or symbols visible)

Diagram showing cable installation with connectors and a plug, no text or symbols present

ELEKTRONISK HASTIGHETSREGLERING

Illustration of a hand holding a small tool with a circular knob, partially covered by a textured surface (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Brian Cooke - Director of Engineering

Black & Decker, Spennymoor, Co Durham DL16 6JG, UK

Indkøbsdato

Kaufdatum

Ημερομηνία αγοράσ

Date of purchase

Fecha de compra

Date d'achat

Data d'acquisto

Aankoopdatum

Innkjøpsdato

Data de compra

Ostopäivä

Inköpsdatum

Forhandler adresse

Händleradresse

Διεύθυνση αντι ροσώ ου

Address of dealer

Dirección del detallista

Cachet du revendeur

Indirizzo del rivenditore

Adres van de dealer

Forhandlerens adresse

Morada do revendedor

Jälleenmyyjän osoite

Återförsäljarens adress

Navn/Name/Ovoμα/Name/Nombre/Nom/Nome/Naam/Navn/Nome/Nimi/Namn:____Adresse/Adresse/ΔιεύθυνσηAddress/Dirección/Adresse/Indirizzo/Adres/Adresse/Morada/Osoite/Adress:________By/Wohnort/Πόλη/Town/Ciudad/Ville/Cittá/Plaats/By/Localidade/Paikkakunta/By:________Postnr./Postleitzahl/Kωδικόσ/Postcode/Code postal/Código/Codice postale/Postcode/Postnr./Código postal/Postinumero/Postnr.:________Er maskinen en gave?/Ist diese Maschine ein Geschenk?/Η μηχανή είναι δώρο?/Is this product a gift?/¿Ha recibido usted esta herramienta como regalo?/S’agit-il d’un cadeau?/Si tratta di un regalo?/Kreeg u deze

machine cadeau?/Er maskinen en gave?/Recebeu esta ferramenta como presente?/Onko kone lahja?/Är maskinen en gåva?Ja/Ja/Nai/Yes/Sí/Oui/Si/Ja/Ja/Sim/Kyllä/JaNej/Nein/Oχι/No/No/Non/No/Nee/Nei/Não/Ei/NejHvor meget kostede maskinen?/Was war der Preis dieses Werkzeuges?/Ποιά είναι η τιμή του εργαλείου αυτού?/What was the price of this tool?/?Cual fue el precio de esta herramienta?/Prix payé?/Quanto ha pagato questo prodotto?/Wat was de prijs van dit produkt?/Hvor meget kostet maskinen?/Que preço pagou por esta ferramenta?/Paljonko kone maksoi?/Hur myket kostade maskinen?____Er dette din første B&D maskine?/Ist dieses Werkzeug-/Eivαι το εργαλείο αυτό-/Is this tool-/?Es esta herramienta que comprado-/Est-ce-/Questo prodotto è-/Is deze machine-/Er dette din første B&D maskin?/Esta ferramenta é-/Onko tämä ensimmäinen B&D-koneesi?/Är detta Din första B&D-velu?↑

Ja/ein Erstkauf?/?η ρώτη σασ αγορὰ? / your first purchase?/?la primera de este tipo?/?un ler achat?/?il suo primo acquisto?/?uw eerste aankoop?/?Ja/a sua primeira compra?/?Kyllä/JaNej/Ersatzkauf?/?για αντικατάσταση?/?a replacement?/?un reempalzo?/?un achat de remplacement?/?una sostituzione?/?een vervanging?/?Nei/uma substitução?/?Ei/NejForhandler adresse/Händleradresse/Διεύθυνση αντι ροσώ ου /Address of dealer/Dirección del detallista/Cachet du revendeur/Indirizzo del rivenditore/Dealeradres/Forhandlerens adresse/Morada do revendedor/Jälleenmyyjän osoite/Äterförsäljarens adress:Cat. no. K S 6 __/_ __

Venligst sæt kryds i ruden såfremt De ikke måtte ønske at modtage information fra anden virksomhed end Black & Decker.Bitte ankreuzen, falls Sie weiteres Informationsmaterial von Black & Decker erhalten möchten.. Παρακαλείσθε να σημειώσετε εάν δέν θέλετε να άρετε ληροφορίεσ άλλησ εταιρείασ εκτόσ τησ Black & Decker.. Data protection act: Tick the box if you prefer not to receive information from us or others.. Señale en la casilla sino quiere recibir información de otras empresas.. Si vous ne souhaitez pas recevoir d’informations de la part d’autres sociétés que Black & Decker, cochez cette case.. Barrate la casella se non desiderate ricevere informazioni da altre aziende.. A.u.b.dit vakje aankruisen indien u geen informatie wenst te ontvangen van andere bedrijven dan Black & Decker.. Vennligst kryss av dersom De ikke ønsker informasjon fra andre bedrifter enn Black & Decker.. Por favor, assinale com uma cruz se desejar receber informação de outras empresas, além da Black & Decker.. Merkitkää rasti ruutuun, mikäli ette halua vastaanottaa informaatiota muulta taholta kuin Black & Deckeriltä.. Vänligen kryssa för i rutan om Ni inte vill ha information från andra företag än Black & Decker.

Dänmark	Venligt klip denne del ud og send frankert til Black & Deckeridit land.	Per faveore riagilate questa parte, insertela in unna busta confrancobollo e speditea subito dopo J'acquisito del prodottolall'indirizzo della Black & Decker nella vostra nazione (vedi sopra).	Italieno	Italyano
Deutsch	Bitte schiniden Sie diesen Abschnitt ad, stecken ihn in einenfrankierten umschlag und schicken ihn direkt an dieblack & Decker Adresse Ihres Landes.	Knip dit gedelete uit, zend het in een gerfänkerde,geardresseerde envelop direct na uw aankoop naar het	Nederlands
Elianyika	Tapapackau kohute auto to kralatti kcal TaxUpoplore tounalzowo uetd tvv ayopd tou polovto oao otty bluzuvornto Black & Decker otnty elaldoa (Pazc e clav).Please complete this section immediately after the purchase ofyour product and post it to the Black & Decker addresses in yourcountry (above).If you live in Australia or New Zealand, please register by phone.	Norge Venligt klipp ut denne delen umiddelbart etter du har pakkeletut dit product og legg det i en adressent konvolutt itllBlack & Decker (Norge) A/S (se adresse over).Port favor, recorte esta parte, colouge-a num envelope selado eendergado e envile-o logo apos a compra do seu produto paraanderegado e envile-o logo apos a compra do seu produto paraovor, esta tarjeta a la central de Black & Decker en su pais.Decoupez cette partie et envoyez-la sous envelopppe timbreze atradesse de Black & Decker dans voite pays (voir ci-dessus),ceci immediatement agrees votre achat.	Sverige
English	Thankopackau kohute auto to kralatti kcal TaxUpoplore tounalzowo uetd tvv ayopd tou polovto oao otty bluzuvornto Black & Decker otnty elaldoa (Pazc e clav).
Español	Despues de haber comprado su herarmienta envile usted, porforvar, yllia olvean paikalliesen Black & Decker ositteeseen.
Français	Descoupez cette partie et envoyez-la sous envelopppe timbreze atradesse de Black & Decker dans voite pays (voir ci-dessus),	Suomi Leikkaa inti tima osa, laita se ohieseen kuoren ja postitakuor yllia olvean paikalliesen Black & Decker ositteeseen.	Sverige

Australia Belgique/België Weihoek 1, 1930 Zaventem Danmark Hejrevang 26B, 3450 Allerød Deutschland Black & Decker Str. 40, D-65510 Idstein Eλλάς Black & Decker Ελλάσ, Συγρού 154, 17671 Καλλεθέσα España 43883 Roda de Barà (Tarragona) France BP21, 69571 Dardilly Cedex Helvetia Rütistraße 14, 8952 Schlieren, Schweiz/Sz Italia Viale Elvezia 2, 20052 Monza (MI)
Australia Belgique/Belgie: Weihoek 1, 1930 Zaventem Denmark Hejrevang 26B, 3450 Allerød Call 1900 937766 (max. call charge \$2.00 ex. tax)
Deutschland Black & Decker Str. 40, D-65510 Idstein Ελλός Black & Decker Ελλός, Συγρού 154, 17671 Καλλιθέσα España 43883 Roda de Barà (Tarragona)
France BP21, 69571 Dardilly Cedex
Helvetia
Italia

Danmark

Venligst klip denne del ud og send frankeret til Black & Decker i dit land.

Deutsch

Please complete this section immediately after the purchase of your product and post it to the Black & Decker address in your

country (above). If you live in Australia or New Zealand, please register by phone.

Español
