Product type	Condenser tumble dryer (heat pump)
Brand	Candy
Model	CS H8A2DE-88
Height	85 cm
Width	60 cm
Depth	60 cm
Weight	Approximately 45 kg
Power supply	220-240 V, 50 Hz, 6 A minimum
Maximum drying capacity (cotton)	8 kg
Maximum drying capacity (synthetics/delicates)	4 kg
Drum volume	115 liters
Refrigerant	R134a, 0.260 kg (CO2 equivalent: 0.372 t)
Drying programs	15 programs: Mixed, Cotton Eco, White/Cotton, Mix & Dry, Delicates, Shirts, Colors, Baby cotton, Jeans, Sports, Wool, Hypoallergenic, Anti-crease, Refresh, Smart Touch
Special functions	Smart Touch (NFC), Delayed start (1-24h), Anti-crease (up to 6h), Child lock, Quick cycles, Drying level (4 levels)
Control system	Electronic with digital display
Installation type	Free-standing, can be stacked with appropriate kit (specific models)
Regular maintenance	Cleaning the lint filter after each cycle, emptying the water tank, cleaning the condenser regularly
Safety	Automatic shut-off, child lock, overheat protection, stop when door opens
Spare parts	Available through GIAS service (original parts)
Accessories included	User manual, warranty card, energy label, drainage hose kit (depending on model)

Frequently Asked Questions - CS H8A2DE-88 CANDY

How to clean the lint filter?

Pull the filter upwards, open it, gently remove the lint with a soft brush or fingertips. Close and reinsert. Clean it after each cycle to maintain efficiency.

What to do if the dryer does not heat?

Check that the filter and condenser are clean, the load is not too damp, the correct program is selected, and the room is well ventilated. If the problem persists, contact GIAS service.

How to use the Smart Touch function?

Download the Candy Simply-Fi app, enable NFC on your smartphone, turn the selector to Smart Touch, then follow the app instructions by placing your smartphone on the Smart Touch logo.

What is the maximum drying capacity?

The maximum capacity is 8 kg for cotton and 4 kg for synthetics/delicates. Consult the energy label for the exact rated load.

How to empty the water tank?

Gently pull the water collection tank by the handle (weight about 6 kg when full), tilt it to empty the water, then replace it by inserting the base first then the top. The light turns on when it is full.

Can I install the dryer on top of a washing machine?

Yes, but you need to use a suitable stacking kit (part numbers 35100019 or 35900120 depending on the washing machine depth). Follow the instructions provided with the kit.

What does the 'Clean filters' indicator light mean?

It indicates that the filters (door and condenser) need cleaning. Clean the door filter and check the condenser at the bottom of the appliance to ensure optimal drying.

How to adjust the drying level?

Press the drying level selection button (up to 5 minutes after start) to choose between: Ready to iron, Ready to hang, Ready to store, Extra dry.

The drying cycle is too long, what to do?

Check that the filter and condenser are clean, the laundry is well spun, the load is not excessive, and the air inlets/outlets are not blocked. Time may vary depending on humidity.

How to activate the child lock?

Press buttons 4 and 5 simultaneously for two seconds. 'LOC' appears on the display. To deactivate, repeat the same operation until 'Unl' appears.

USER MANUAL CS H8A2DE-88 CANDY

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

By placing the C€ mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

⚠️ Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

Index

1. SAFETY REMINDERS
2. DRAIN HOSE KIT: FITTING INSTRUCTIONS
3. PREPARING THE LOAD
4. CLEANING AND ROUTINE MAINTENANCE
5. WATER CONTAINER

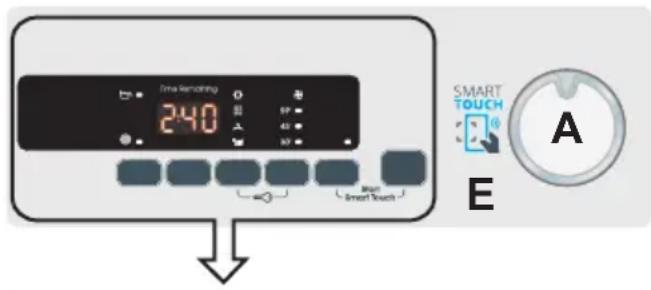

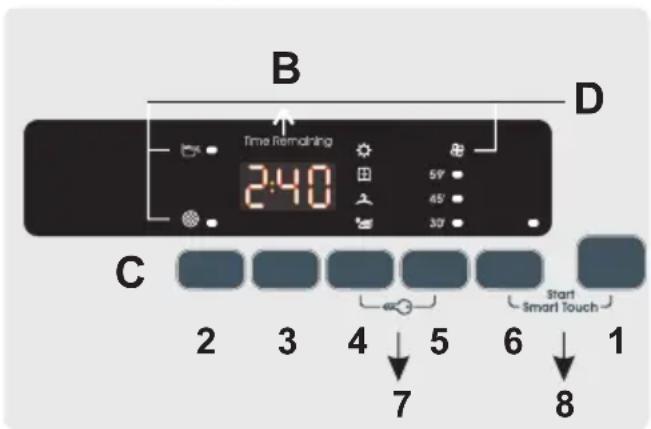

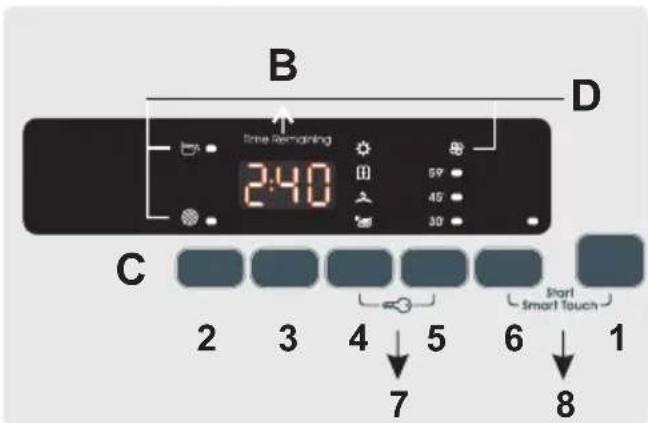

6. CONTROLS AND INDICATORS
7. DOOR AND FILTER AND CONDENSER
8. SELECTING THE PROGRAMME AND SET THE FUNCTION
9. TROUBLESHOOTING CUSTOMER SERVICE

1. SAFETY REMINDERS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance should not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

• WARNING: Misuse of a tumble dryer may create a fire hazard.
• This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

• - Farm houses;
• - By clients in hotels, motels and other residential type environments;
• - Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.

If the appliance is used in a manner inconsistent with this, it

may reduce the life of the appliance and may void the manufacturer's warranty.

Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.
• Do not allow children to play with the machine or its controls.

- WARNING: Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

- WARNING: Where the hot surface symbol is located, the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.

- Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.

- Do not continue to use this machine if it appears to be faulty.

- Lint and fluff must not be allowed to collect on the floor around the outside of the machine.

- The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

- The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

- WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

- Maximum load drying weight: see energy label.

Installation

• Do not use adapters, multiple connectors and/or extensions.
• Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

Important: During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown;

Caution: If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

The Laundry

• Do not dry unwashed items in the tumble dryer
• WARNING Do not tumble dry fabrics treated with dry cleaning fluids.
• WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.
• Always refer to the laundry care labels for directions on suitability for drying.
• Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer.
• Clothes that are dripping wet should not be put into the dryer. Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
• Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be

washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
• Installing the rear of the appliance close to a wall or vertical surface.
• There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.
• Check regularly that the air flowing through the dryer is not restricted.
• Check frequently the fluff filter after use, and clean, if necessary.
• Prevent items from falling or collecting behind the dryer as

these may obstruct the air inlet and outlet

• NEVER install the dryer up against curtains.
• In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the following configuration.

- Stacking kit Mod 35100019: for minimum washing machine depth 49 cm

- Stacking kit Mod 35900120: for minimum washing machine depth 51 cm

The stacking kit shall be one of those mentioned above, obtainable from our spare parts service.

The installation instructions and any fixing attachments are provided with the stacking kit.

⚠ Do not install the product in a low-temperature room or in a room where there is a risk of frost. At temperatures around freezing point, the product may not operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For better product performance, the ambient room temperature must be between 5-35°C. Please note that operating in cold conditions (between +2 and +5°C) might cause some water condensation and water drops on the floor.

Environmental Issues

• All packaging materials used are environmentally friendly and recyclable. Please help dispose of the packaging via environmentally friendly means. Your local council will be able to give you details of current disposal methods.
• To ensure safety when disposing of an old tumble dryer, disconnect the mains plug from the socket, cut the mains power cable, and destroy this together with the plug. To prevent children from shutting themselves in the machine, break the door hinges or the door lock.

European Directive 2012/19/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste.
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a

one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

GIAS Service

To ensure the continued safe and efficient operation of this appliance, we recommend that any servicing or repairs are only carried out by an authorized GIAS service engineer.

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase.

Check that the supply circuit is rated to at least 6A.

Electricity can be extremely dangerous. This appliance must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has been installed.

Contains fluorinated greenhouse gases. Hermetically sealed.

R134a / 0.260 [kg] / CO2 equivalent: 0.372 [t] GWP1430

You may be charged for a service call if a problem with your machine is caused by incorrect installation. ⚠️ If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person. Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.

Adjusting the Feet

Once the machine is in place, the feet should be adjusted to ensure that the machine is level.

2. DRAIN HOSE: FITTING INSTRUCTIONS

To avoid emptying the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

The kit consists of: 1 hose and 1 tap.

WARNING! Switch off and remove the tumble dryer plug from the electricity supply before carrying out any work.

Fit the Hose as Follows:

1. Flip the machine slowly to the right side.

1. Attach the black hose from the kit, (using the connector and pipe clips supplied), to the hose removed from the bridge connection.
2. Connect the new drain hose to the waste water pipe.

1. Once the machine is in place, check the bottom to ensure that the new hose does not kink when pushing the tumble dryer into position.

Connect to the mains electricity supply.

1. The waste water pipe is situated at the right-hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.

Caution: If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

1. Pull the hose off the bridge connection.

3. PREPARING THE LOAD

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or other clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

• Check that the filter is clean before every drying cycle.
• Put dripping wet items into the tumble dryer, this may damage the appliance.

NEVER

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

Do not overload the drum, large items when wet exceed the maximum possible clothes load (for example: sleeping bags, duvets).

4. CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
• Regularly clean the condenser.
• After each period of use, wipe the inside of the drum and leave the door open for a while to allow air to circulate and dry it.
• Wipe the outside of the machine and the door with a soft cloth.
• DO NOT use abrasive pads or cleaning agents.
• To prevent the door from sticking or the build-up of fluff, clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The drum, door, and load can be very hot.

IMPORTANT: Always switch off and unplug the appliance from the electricity supply before cleaning.

For electrical data, refer to the rating plate on the front of the dryer cabinet (with the door open).

5. WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full, the indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine, as an internal reservoir is filled first.

NOTE: If you have the option of drainage near the dryer, you can use the discharge kit to provide permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

To remove the container tank in door drawer

1. Gently pull out the water container holding the handle. (A) When it is full, the water container will weigh about 6 kg.
2. Tilt the water container to empty the water out through the spout. (B)

When empty, replace the water container back as shown; (C) first insert the base of the container into position as shown (1), then gently push the top into position (2).

1. Press the ▷ button to restart the cycle.

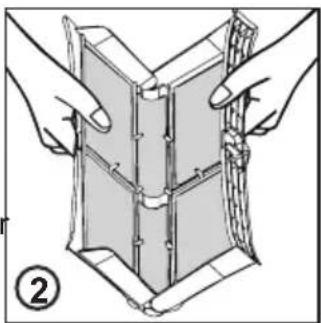

6. DOOR and FILTER

Pull on the handle to open the door. To restart the dryer, close the door and press the Start/Pause button.

WARNING! When the tumble dryer is in operation, the drum and door may be VERY HOT.

Filter

IMPORTANT: To maintain the efficiency of the dryer, check that the fluff filter is clean before each drying cycle.

1. Pull the filter upwards. 2. Open the filter as shown.
2. Gently remove lint using a soft brush or your fingertips.
3. Snap the filter together and push it back into place.

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying, check that the filter is not clogged.

IF YOU CLEAN THE FILTER UNDER WATER, REMEMBER TO DRY IT.

WARNING! If you open the door mid-cycle, before the cool-down cycle has completed, the handle may be hot. Please use caution when attempting to empty the water reservoir during the cycle.

To Clean the Condenser Filter

1. Remove the kickplate.
2. Turn the two locking levers anti-clockwise and pull out the front cover.
3. Gently remove the filter frame and clean any dust or fluff with a cloth from the filter. Do not use water to clean the filter.
4. Remove the sponge gently from its place and then wash the sponge by holding it under a running tap, turning it to remove any dust or fluff.
5. Refit the front cover, ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise.
6. Refit the kickplate.

7. CONTROLS AND INDICATORS

A-Programme Selector - Rotating the knob in both directions, it's possible to select the desired drying program. To cancel the selections or switch off the dryer, rotate the knob to OFF.

B- Display Digit - The display shows the remaining time for drying, the postponed time in case of delayed start selection, and other notification settings.

C-Buttons -

1. Start/Pause Button

To start the selected program and/or suspend it.

2. Time cycle selection

It is possible to transform a cycle from automatic to programmed, up to 3 minutes after the start of the cycle. The progressive pressure increases the time in 10-minute intervals.

After this selection, to reset the automatic drying function it is necessary to switch off the dryer. In case of incompatibility, all LEDs flash quickly 3 times.

3. Delay Start Button

It allows to delay the start of the program from 1 to 24 hours in 1-hour intervals. The selected delay is shown on the display. After pressing the START button, the time shown decreases hour by hour.

If the porthole is opened with a delayed start set, after re-closing the porthole, press start again to resume the countdown.

4. Drying Selection Button

It allows to set the desired dryness level, an editable option up to 5 minutes after the start of the cycle:

• Ready to Iron: It leaves the garments slightly wet to facilitate ironing.
• Dry Hanger: To get garments ready to be hung. - Dry wardrobe: For laundry that can be directly stored. - Extra-dry: To get completely dry garments, ideal for full loads.

This appliance is equipped with the Drying Manager Function. On automatic cycles, each level of intermediate drying, prior to reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached. In case of incompatibility, all LEDs flash quickly 3 times.

5. Rapids Button

It is possible to switch an automatic program to a RAPID program, up to 3 minutes after the start of the cycle. The progressive pressure increases the time (30-45-59 minutes).

After this selection, to reset the automatic drying function it is necessary to switch off the dryer. In case of incompatibility, all LEDs flash quickly 3 times.

6. Anti-crease

This option activates an anti-crease drum movement before the cycle, in case of delayed start, and at the end of the drying cycle. It is activated every 10 minutes, up to 6 hours after the end of the drying cycle. To stop the movements, set the knob to OFF. Useful when it's not possible to remove the laundry immediately.

7. Keylock

This function allows you to block unwanted changes to the set options on the bezel during the drying phase.

Activation/Deactivation: Press buttons 4 and 5 simultaneously for two seconds. The sign "LOC" appears on the display. When unlocking the option, the sign "Unl" appears on the display only once. In case of opening the porthole with the key lock activated, the cycle stops but the lock is kept: to restart the cycle, you must remove the lock and press Start again. When the dryer is off, the option is automatically deactivated.

The key lock can be modified at any time during the cycle.

8. Start Smart Touch

Simultaneously pressing the START/PAUSE and OPTIONS buttons allows a previously downloaded cycle to be started while the Smart Touch position is selected on the programme knob (for downloading cycles from the App, see the relevant section of this user manual).

D-Led

Water tank ☐ - It lights up when it's necessary to empty the condensate water tank.

Filter cleaning ⚙ - It lights up when the cleaning of the filters is requested (the door and the lower filter).

Cooling ⚠ - It lights up when the cycle is in the final cooling phase.

E-

SMART TOUCH area - pressing the START/PAUSE button allows a previously downloaded cycle to start while the Touch position is selected on the programme knob (for downloading cycles from the App, see the relevant section of this user manual).

Power consumption of off-mode	0,20 W
Power consumption of on-mode	0,75 W

Information for Test Laboratory

EN 61121 Programme To Use

-DRY COTTON	-COTTON OR
-IRON DRY COTTON	-COTTON OR WHITES
-EASY-CARE TEXTILE	- OR SYNTHETICDELICATES

The actual duration of the drying cycle depends on the initial humidity level of the laundry, which is affected by the spin speed, type and amount of load, cleanliness of filters, and ambient temperature.

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door, pushing it slowly until you hear the door 'click' shut.
3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).
4. Press the ▷■ button. The dryer will start automatically and the indicator above the button will be continuously lit.

APPAREL CARE

The wool drying cycle of this machine has been approved by The Woolmark

Company for the drying of machine washable wool products, provided that the products are washed and

dried according to the instructions on the garment label and those issued by the manufacturer of the machine. M1530. In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

Maximum Drying Weight
Cottons capacity dec	Max.4 Kg
Synthetics or Delicates

Drying Guide

The standard cycle COTTON DRY (☐) is the most energy efficient and best suited for drying normal wet cotton laundry. The table on the last page shows the approximate time and energy consumption of the main drying programmes.

Technical Specifications

Drum capacity 115
Maximum load See energy label
Height 85 cm
Width 60 cm
Depth 60 cm
Energy class See energy label

If the door is opened during the programme to check the laundry, it is necessary to press ▷ to recommence drying after the door has been closed.

1. When the cycle is nearing completion, the machine will enter the cool down phase, and the clothes will be tumbled in cool air to allow the load to cool down.
2. After the cycle is complete, the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched off or the door is opened.
3. When the programme is complete, the END indicator will light up.

Do not open the door during the automatic programmes in order to achieve proper drying.

1. SELECTING THE PROGRAMME AND SETTING THE FUNCTION

	PROGRAM	PROGRAM DESCRIPTION	CAPACITY(kg)	DRYINGTIME(min)
	Super Easy Iron	A comfortable solution to dry laundry of mixed fabrics minimizing folds, delivering the perfect humidity to iron in the easier way.Before drying it's better to shake off the linens.	2	*
	Cotton	Program Eco normative (hang dry) drying. The most efficient program in energy consumption. Suitable for cottons and linens.	6	*
	Whites	The right cycle to dry cottons, sponges and towels.	Full	*
	Mix&Dry	To dry all together different kind of fabrics as cotton ,linen,mix, synthetics.	4	*
	Synthetics	To dry delicate and synthetic fabrics that need an accurateand specific treatment.	4	*
	Shirts	This specifics cycle has been conceived to dry shirts minimizingtangles and folds thanks specific movements of the drum. It'srecommended to take out the linens immediately after drying cycle.	2.5	*
	Coloured	A delicate and specific cycle to dry dark or colour cotton orsyntethics garments.	4	*
	Baby	This cycle is perfect for baby clothes, when an high hygiene levelis expected.	4	150'
	Jeans	Dedicated to dry uniformly fabrics like jeans or denim. It'srecommended flip over the garments before drying.	4	*
	Sport	Dedicated to technical garments for sport and fitness, dryinggently with special care to avoid shrinking and deteriorationof elastic fibers.	4	*
	Wool	Woolen clothes: the program can be used to dry up to 1 kg oflaundry (around 3 jumpers). It is recommended to reverse allclothes before drying. Timing can change due to dimensionsand thickness of load and to spinning chosen duringwashing. At the end of the cycle, clothes are ready to beworn, but if they are heavier, edges can be a bit wet: it issuggested to dry them naturally. It is recommended tounload clothes at the very end of the cycle. Attention: feltingprocess of wool is irreversible; please dry exclusively clotheshwith symbol (symbol "ok tumble"); this program is notindicated for acrylic clothes.	1	70'
	Antiallergy	One specifics cycle that dry and in the same time helps toreduce the main allergens as dustmites, pet hair, pollens andresidual of powder detergents.	4	220'
	Relax creases	This is a warm cycle that in only 12 minutes helps to relaxe foldsand creases.	2.5	12'
	Refresh	The perfect cycle to remove the bad smells from the linenssmoothing creases.	2.5	*
Smart Touch Customizable setting that interacts with the App on your android smartphone and to downloadthe cycles (see the dedicated section). The factory sets the default programme Auto-Hygiene,which will sanitize the machine.

* The actual duration of the drying cycle depends on the initial humidity level of the laundry, which is affected by the spin speed, type and amount of load, cleanliness of filters, and ambient temperature.

SMART TOUCH

This appliance is equipped with Smart Touch technology that allows you to interact, via the App, with smartphones based on the Android operating system and equipped with NFC (Near Field Communication) function.

Download the simply-Fi App on your smartphone.

The App is called simplyLife and is available for devices running both Android and iOS, for both tablets and smartphones. However, you can interact with the machine and take advantage of the potential offered by Smart Touch only with Android smartphones equipped with NFC technology, according to the following functional scheme:

Android smartphone with NFC technology	Interaction with the machine + contents
Android smartphone without NFC technology	Contents only
Android Tablet	Contents only
Apple iPhone	Contents only
Apple iPad	Contents only

FUNCTIONS

The main functions available using the App are:

• Voice Assistant – A guide to help you choose the ideal cycle with only three voice inputs (clothes/fabrics, colour, drying level).
• Cycles – To download and launch new drying programmes.
• Smart Care – Smart Check-up and a troubleshooting guide.
• My Statistics – Drying statistics and tips for a more efficient use of your machine.

Get all the details of the Smart Touch functions, browsing the App in DEMO mode or go to:

www.candysmarttouch.com

HOW TO USE SMART

FIRST TIME - Machine registration

Enter the "Settings" menu of your Android smartphone and activate the NFC function inside the "Wireless & Networks" menu.

Depending on the smartphone model and its Android OS version, the process of the NFC activation may be different. Refer to the smartphone manual for more details.

• Turn the knob to the Smart Touch position to enable the sensor on the dashboard.
• Open the App, create the user profile and register the appliance following the instructions on the phone display or the "Quick Guide" attached on the machine.

More information, F.A.Q. and the video for an easy registration are available on:

www.candysmarttouch.com/how-to

NEXT TIME – Regular usage

• Every time you want to manage the machine through the App, first you have to enable the Smart Touch by turning the knob to the Smart Touch position.
• Make sure you have unlocked your phone (from stand-by mode) and you have activated the NFC function, then follow the steps mentioned earlier.
• If you want to start a cycle, load the laundry and close the door.
• Select the desired function in the App (e.g.: starting a programme, the Smart Check-up cycle, update statistics, etc...).
• Follow the instructions on the phone display, KEEPING IT ON the Smart Touch logo on the machine dashboard, when requested to do so by the App.

NOTES:

Place your smartphone so that the NFC antenna on its back matches the position of the Smart Touch logo on the appliance (as illustrated below).

If you do not know the position of your NFC antenna, slightly move the smartphone in a circular motion over the Smart Touch logo until the App confirms the connection. In order for the data transfer to be successful, it is essential TO KEEP THE SMARTPHONE ON THE DASHBOARD DURING THESE FEW SECONDS OF THE PROCEDURE; a message on the device will inform about the correct outcome of the operation and advise you when it is possible to move the smartphone away.

Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them.

The replacement of some components of the smartphone (e.g. back cover, battery, etc...) with non-original ones could result in the NFC antenna removal, preventing the full use of the App.

The management and the control of the machine via App is only possible "by proximity": it is therefore not possible to perform remote operations (e.g.: from another room; outside of the house).

WIRELESS PARAMETERS

Parameter	Specifications
Wireless Standard	ISO/IEC 14443 Type A and NFC Forum Type 4
Frequency band	13,553-13,567 MHz (centre frequency 13,560 MHz)
Magnetic field limit	< 42dBμA/m (at 10 meters)

With this, the Candy Hoover Group Srl declares that this appliance marked with CE complies with the essential requirements of the Directive 2014/53/EU. To receive a copy of the declaration of conformity, please contact the manufacturer at: www.candy-group.com

9. TROUBLESHOOTING

FOR SMART TOUCH MODELS

The Candy simply-Fi app has a Smart Check-up function that allows you to confirm the functionality and status of the product at any time. To use Candy simply-Fi APP you will need an Android smartphone with NFC technology.

need

Z

More info can be found on the App.

If the display of the machine is showing an error (by a code or blinking LEDs), you should turn on the App on your Android smartphone, with NFC or selecting "Read the error" on the "Help on line" menu place your smart phone against the Smart Touch log on the control panel. You should now be able to read the fault directory to solve the issue.

What Might be the Cause of...

Defects you can remedy yourself

Before calling service for technical advice please run through the following checklist. A charge will

be made if the machine is found to be working q has been installed incorrectly or used incorrectly. If the problem persists after completing the e

recommended checks, please call Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time.

The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

• Have you selected the correct drying time/programme?
• Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
• Is the dryer overloaded?

The dryer does not operate...

- Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.

- Is the plug properly connected to the mains supply?

• Is there a power failure?

- Has the fuse blown?

• Is the door fully closed?

- Is the dryer switched on, both at the mains supply and at the machine?

- Has the drying time or the programme been selected?

- Has the machine been switched on again after opening the door?

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

Does the filter need cleaning?

The 📋 Indicator is on...

Does the water container need emptying?

Yes

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.
• Has not been installed in accordance with the installation instructions.
• Has been used incorrectly.

Spares

Always use genuine spares, available direct from service.

Service

For service and repairs call your local service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

2. DRAIN HOSE KIT: INSTALLATION INSTRUCTIONS

1. Remove the hose from the connector.

7. COMMANDS AND INDICATORS

COTTON OR COTTON OR WHITE - DELICATES OR SYNTHETICS

Electrical Requirements

6. DOOR AND FILTER

Lint filter indicator

More information, F.A.Q. and the video for an easy registration are available on: www.candysmarttouch.com/how-to

NOTES:

2. FLEXIBLE DRAIN HOSE KIT: INSTALLATION INSTRUCTIONS

6. DOOR AND FILTER

7. CONTROLS AND INDICATORS

Maximum Drying Weight

NOTES:

2. DRAIN HOSE KIT: INSTALLATION INSTRUCTIONS

3. PREPARING THE LAUNDRY

6. DOOR AND FILTER

1. Rapids - It's possible to switch an automatic program to RAPID program, up to 3 minutes after the start of the cycle. The progressive pressure increases the time (30-45-59 minutes).

After this selection, to reset the automatic drying function it is necessary to switch off the dryer. In case of incompatibility, all LEDs flash quickly for 3 times.

-DELICATE OR SYNTHETIC

2

2. DRAIN HOSE: INSTALLATION INSTRUCTIONS

6. DOOR AND FILTER

Filter Status Control Indicator

7. CONTROLS AND INDICATORS

A - Cycle selector -

NOTES:

6. DOOR AND FILTER

7. CONTROLS AND INDICATORS

Maximum Drying Weight

What Might be the Cause of...
