Product Type	Refrigerator-Freezer
Brand	Logik
Model	L185CW16E
Overall Dimensions (W x D x H)	600 mm x 600 mm x 1850 mm
Fresh Food Storage Volume	215 L
Frozen Food Storage Volume	74 L
Climate Class	N, ST (16°C - 38°C)
Energy Consumption	0.745 kWh/24h (272 kWh/year)
Energy Efficiency Class	A+
Noise Level	43 dB
Temperature Rise Time	13 hours
Freezing Capacity	3.5 kg/24h
Rated Voltage	220-240 V AC / 50 Hz
Rated Current	0.45 A
Defrost Type (Fridge)	Auto defrost
Defrost Type (Freezer)	Frost-free
Door Reversible	Yes (user-reversible with tools)
Interior Light	Yes (replaceable by qualified technician)
Number of Glass Shelves (Fridge)	3
Number of Glass Shelves (Freezer)	1
Salad Bins	2 (upper and lower)
Freezer Drawers	3 (2 upper, 1 bottom)
Door Shelves	3 (2 upper fridge, 1 lower fridge)
Accessories Included	Egg tray, ice tray, rear spacers, instruction manual
Weight (approx.)	60 kg

Frequently Asked Questions - L185CW16E Logik

How do I reverse the door swing on my Logik L185CW16E refrigerator?

To reverse the door swing, you will need a Philips screwdriver, flat-bladed screwdriver, and hexagonal spanner. Ensure the unit is unplugged and empty. Tilt the unit backwards and rest it on something solid. Remove the hinge cover, top hinge, and lift off the upper door. Flip the hinge bracket and refit the pin. Remove the middle hinge and lower door. Move hinge hole covers to the opposite side. Swap the bottom hinge pin and bracket. Reassemble in reverse order. We recommend 2 people for this task. Detailed steps are in the manual.

What temperature should I set for optimum cooling?

The thermostat control dial ranges from 0 (off) to 7 (coldest). Position 3 is recommended for normal room temperature. Adjust between 1-4 for colder environments (winter) and 5-7 for hotter environments (summer). The fridge compartment averages 5°C when set correctly.

How do I clean the interior and exterior of the refrigerator?

Remove all shelves and drawers. Clean the interior with a weak solution of bicarbonate soda and warm water, then rinse and dry completely. For the exterior, use a damp cloth and then apply standard furniture polish. Avoid getting polish on the magnetic door seal. Vacuum the condenser grille at the back with a soft brush attachment.

How does the auto defrost and frost-free system work?

The fridge compartment defrosts automatically during the compressor off-cycle. Water drains through a hole into a tray above the compressor where it evaporates. The freezer is frost-free, meaning frost should not accumulate under normal use. If frost builds up (over 10 mm), manually defrost by turning off the unit, removing food, and using a plastic scraper. Never use metal tools or electrical appliances.

Why is my refrigerator making unusual noises?

Most noises are normal. They are caused by the circulation of refrigerant and the compressor motor. With CFC-free gases, these sounds may be more noticeable. This does not affect performance. Common sounds include gurgling, hissing, or clicking. If you hear loud or persistent abnormal noises, contact a qualified technician.

What is the best way to store food in this refrigerator?

Store cooked meats/fish above raw meats to avoid bacterial transfer. Keep raw meats in covered containers on the lowest shelf. Leave space around food for air circulation. Pack or cover food to prevent flavour transfer and drying out. Cool pre-cooked food before placing inside. Limit door openings to maintain temperature.

How can I save energy with this refrigerator?

Place the unit away from heat sources and direct sunlight. Ensure 25 mm clearance on sides and top, 50 mm at rear. Keep doors closed as much as possible. Set thermostat to recommended position 3. Allow hot food to cool before storing. Defrost freezer if frost exceeds 10 mm. Clean condenser grille periodically.

What are the installation clearance requirements?

Leave at least 25 mm free space on both sides, 50 mm at the rear, and 25 mm at the top. The door can open up to 160°; ensure there is more than twice the width and depth of the unit to fully open the door. The floor must be flat and firm. Avoid locations near heat sources or with extreme temperatures (16°C-38°C ambient).

Why does condensation form on the outside of the unit?

Condensation on the exterior is usually due to a change in room temperature or high humidity. Wipe off moisture with a dry cloth. Ensure the door seals are clean and intact. If condensation persists or appears inside, check the door gasket and leveling. Contact a qualified technician if the problem continues.

How should I dispose of my old Logik refrigerator?

This appliance must not be disposed of with household waste. Follow local regulations for waste electrical and electronic equipment (WEEE). Remove doors and locks to prevent child entrapment. Do not damage the refrigerant circuit. Contact your local council or retailer for recycling options.

USER MANUAL L185CW16E Logik

Exterior view of a white refrigerator with a black horizontal stripe at the bottom (no visible text or symbols)

Safety Warnings....7

Unpacking....13

Location....14

Levelling the Unit 14

Installing the Spacers....14

Free Space Requirements 14

Reversing the Door Swing 15

Cleaning Before Use 17

Before Using Your Unit 17

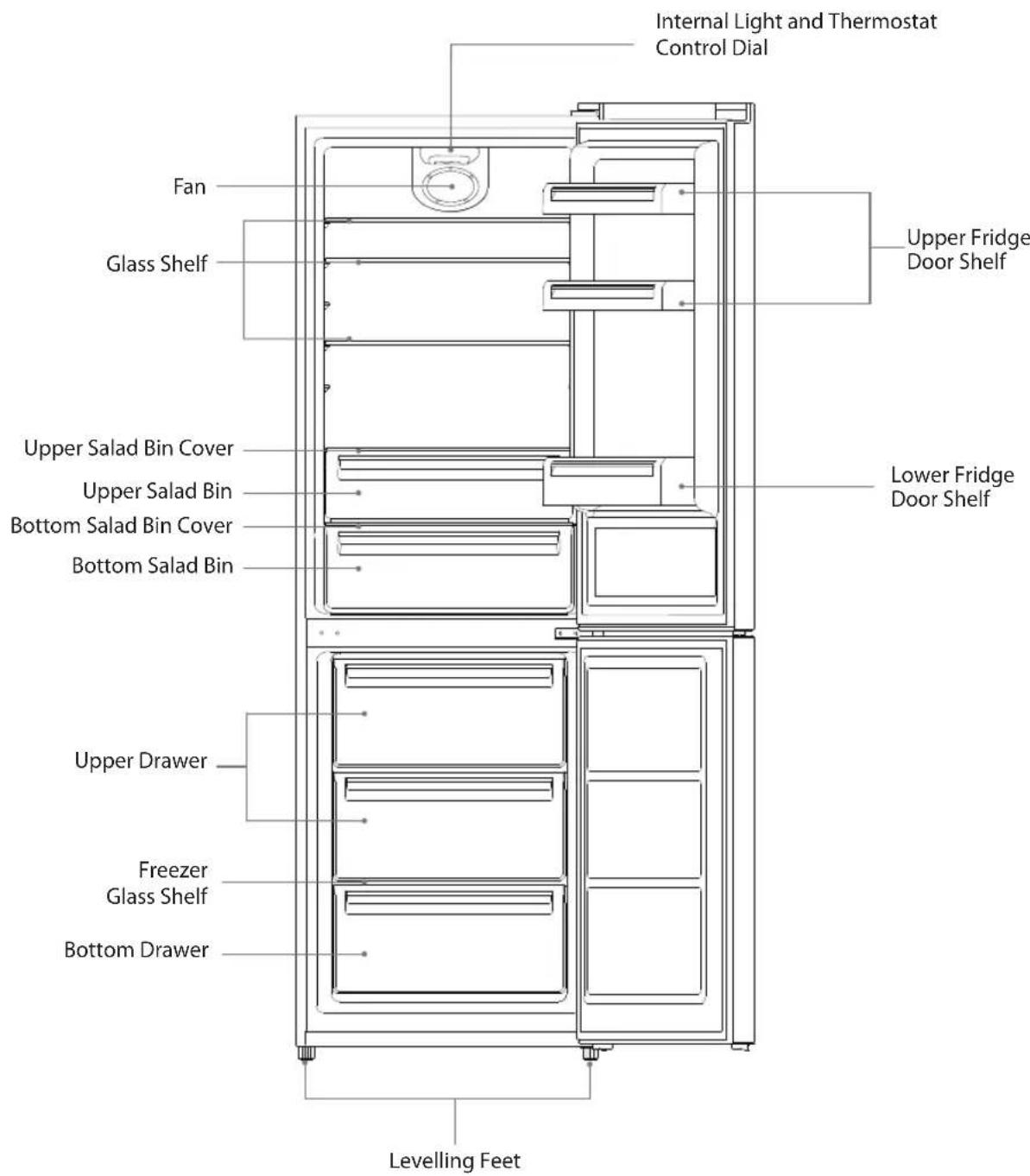

Product Overview....18

Operation 19

Switching On Your Unit....19

Adjusting the Temperature....19

Noises Inside the Unit! 19

Tips for Keeping Food in the Unit....19

Preparations for Freezing 20

Defrosting Frozen Food 20

Cleaning 21

Defrosting 21

Cleaning the Interior and the Exterior of the Unit....21

Maintenance 22

Changing the Interior Light....22

Care When Handling / Moving Your Unit....22

Servicing....22

Switching Off for Long Periods of Time....22

Condensation 22

Disposal 22

Specifications....23

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.

• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:
  – farm houses and by clients in hotels, motels and other residential type environments;
  – bed and breakfast type environments;
  – catering and similar non-retail applications.

• Ensure that the plug is easily accessible to enable disconnection from the mains supply.

• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.
  • The unit must be manoeuvred by a minimum of 2 persons.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children should be supervised to ensure that they do not play with the unit.
• If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (if applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Logik Fridge Freezer.

You must spend some time reading this installation/instruction manual in order to fully understand how to install and operate it.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Simple line drawing of a rectangular frame with a horizontal line and corner markers (no text or symbols)

The Main Unit

Glass Shelf X 3 Freezer Glass Shelf X 1 Upper Salad Bin Cover X 1

Bottom Salad Bin Cover X 1 Upper Salad Bin X 1

Bottom Salad Bin X 1

Upper Drawer X 2 Bottom Drawer X 1

Line drawing of a rectangular box with a lid and side slots (no text or symbols)

Rear Spacer x 2

Upper Fridge Door Shelf X 2

Lower Fridge Door Shelf X 1

Upper Door Hinge Cover

Egg Tray

Pure geometric pattern of nested triangles within a rectangular frame (no text or symbols)

Ice Tray

Instruction Manual

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

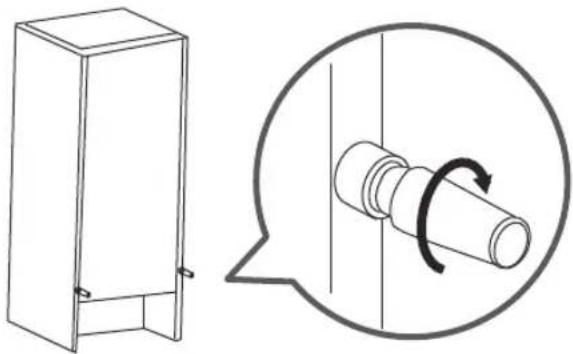

Installing the Spacers

Screw the spacers to the left and right side of the unit's rear part.

Technical line drawing of a cabinet with a magnified inset showing rotational motion around a cylindrical component (no text or symbols)

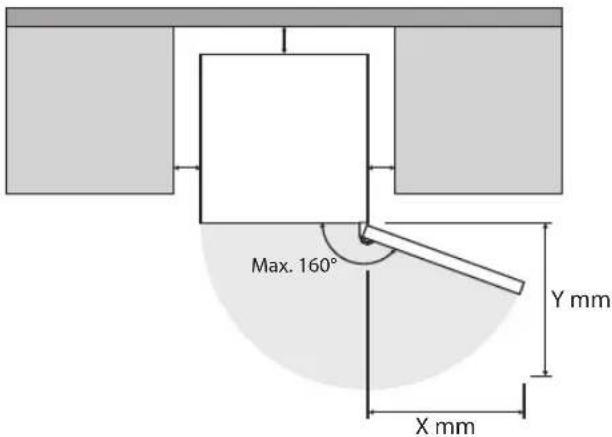

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle of 160^ .

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

• Remove the hinge cover and top hinge. Lift the upper door and place it on a padded surface to prevent it from scratching.

Pure technical line drawing of a mechanical bracket or clamp (no text or symbols)

1. Remove the pin with a screwdriver and flip the hinge bracket. Then refit the pin to the hinge bracket.

2. Remove the top left screw cover.

3. Take off the middle hinge by removing the screws. Lift the lower door and place it on a padded surface to prevent it from scratching.

Technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

GB

INSTALLATION

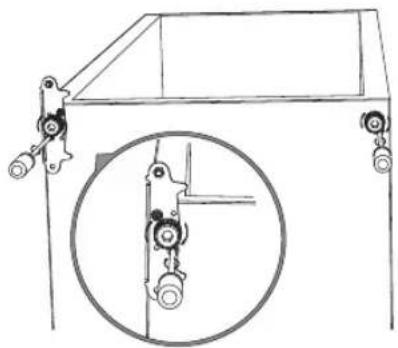

1. Move the hinge hole covers from left side to right side.
2. Remove the lower screws, hinge bracket and levelling feet from the unit bottom.
3. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
4. Refit the levelling feet, hinge bracket and lower screws to the opposite side.

Diagram showing two symmetrical mechanical or structural components with circular features, no text or symbols present.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with no text or symbols

Unscrew Screw

Technical line drawing of a mechanical assembly with a magnified inset showing a circular component detail (no text or symbols)

1. After replacing the lower door, reverse the middle hinge 180^ then screw the middle hinge back onto the opposite side of the unit.

Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge.

Middle hinge

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Carefully set the upper door back into place. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. Screw the other hinge cover.

Pure technical line drawing of two mechanical components with no text or symbols

1. Fix the screw cover to the opposite side. Re-adjust the levelling feet as needed.

Simple line drawing of a corner joint with an arrow indicating direction (no text or symbols)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a damp sponge or cloth. Wipe completely dry before replacing the shelves and drawers. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle. You may damage the cooling circuit if the unit is turned on too soon.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Egg Tray

Isometric view of a rectangular grid pattern with triangular cutouts (no text or symbols)

Ice Tray

Switching On Your Unit

1. Connect the mains cable to the mains socket.
2. Turn the thermostat control dial to the desired position. Bear in mind that the higher the number, the lower the temperature. Position 3 is the recommended setting when operating at normal room temperature. Position 0 turns off the unit.
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be an average of 5^ C.

Simple line drawing of a rectangular object with a circular hole at the bottom (no text or symbols)

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 7 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf at the bottom of the fridge compartment.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
  • To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
  • Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
  • To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

GB

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.

- Leave cooked food to cool completely. Chill food before freezing if possible.

- Consider how you will want to cook the food before freezing it.

- Don't freeze food in metal containers if you may want to microwave it straight from the freezer.

- Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.

- Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Line drawing of a hand pouring liquid from a container into a small container (no text or symbols)

Defrosting Frozen Food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.

2. Drain off and throw away any liquid lost during defrosting.

3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.

4. Cook food as soon as possible after defrosting.

5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted out unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

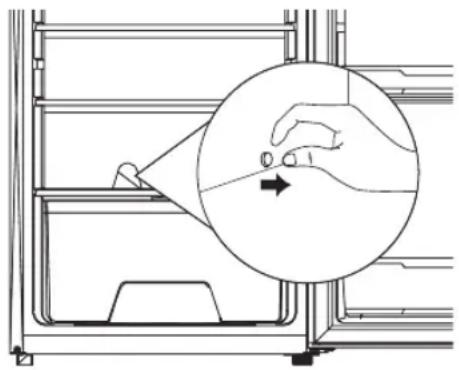

Defrosting

Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

The freezer compartment of this unit is frost-free. With proper use, there should not be any frost accumulated.

However, in case of improper use of the freezer compartment, frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10mm. Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep to keep it cool.
2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment and closing the door. As the solid frost loosens, scrape it away with the plastic scraper.
3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Changing the Interior Light

This is not a user-serviceable part. Please contact a qualified engineer to replace the light for you.

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Model L185CW16E
Appliance Category Category 7 (Refrigerator - Freezer)
Overall Dimension (W x D x H) 600 mm x 600 mm x 1850 mm
Fresh Food Storage Volume 215L
Frozen Food Storage Volume	74L ✦ ✦ ✦ ✦
Defrosting Type	Fridge = Auto
	Freezer = Frost-free
Climate Class N, ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Storage Temperature	Freezer: ≤-18°CFridge: 0-8°C, average ≤4°C
Energy Consumption 0.745 kWh / 24h
Energy consumption 272 kWh per year, based on standard test results for 24 hours.Actual energy consumption will depend on how the appliance is used and where it is located.
Airborne Acoustical Noise 43dB
Energy Grading A+
Temperature Rise Time 13 hours
Freezing Capacity 3.5kg/24h
Rated Voltage AC 220~240V/50Hz
Rated Current 0.45A

Features and specifications are subject to change without prior notice.

Simple line drawing of a two-segment rectangular frame with no text or symbols

Hovedenheten

Glasshylle X 3 Fryser glasshylle X 1 ∅vre salatskuffdeksel X 1

Nedre salatskuffdeksel X 1 ∅vre salatskuff X 1

∅vre skuff X 2 Nedre skuff X 1

Line drawing of a rectangular box with a ruler on top (no text or symbols)

Nedre salatskuff X 1

Avstandsholder bakside x 2

Isometric view of a rectangular frame with internal triangular patterns (no text or symbols)

Isterningbrett

Instruksjonsmanual

Plassering

Innstallering av avstandsstykker

Technical line drawing of a cabinet with a magnified inset showing rotational motion around a cylindrical component (no text or symbols)

Plassbehov

Simple line drawing of a mechanical clamp or bracket with a handle and base (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Simple line drawing of a mechanical lever with a downward arrow indicating force or direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with a magnified inset showing a bracket component (no text or symbols)

INSTALLASJON

Diagram showing two symmetrical mechanical or structural components with circular features, no text or symbols present.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with no text or symbols

Skru løs Skrue

Technical line drawing of a mechanical assembly with a circular inset showing a gear mechanism (no text or symbols)

INSTALLASJON

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Simple line drawing of a corner bracket with an arrow indicating downward motion (no text or symbols)

Rengjøring før bruk

Isometric line drawing of a rectangular grid pattern with triangular cutouts (no text or symbols)

Isterningbrett

NO

Slå på enheten

Simple line drawing of a rectangular frame with a circular cutout at the bottom (no text or symbols)

Justere temperaturen

Line drawing of a hand pouring liquid from a container into a small container (no text or symbols)

Diagram of a hand operating a device with a magnified circular view showing the internal mechanism (no text or symbols)

Simple line drawing of a two-panel refrigerator with no text or symbols

Huvudenhet

Line drawing of a rectangular box with a horizontal tab and measurement markings (no text or symbols)

Nedre salladslåda X 1

Bakre distanser x 2

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Luftcirkulationsbehov

Pure technical line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly with two bolts (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

INSTALLATION

Diagram showing two symmetrical mechanical or structural components with circular features, no text or symbols present.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a gear mechanism (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Pure technical line drawing of two mechanical components with no text or symbols

Simple line drawing of a corner joint with an arrow indicating direction (no text or symbols)

Isometric view of a rectangular frame with internal triangular patterns (no text or symbols)

Islåda

Slå på din enhet

Simple line drawing of a folder or folder with a circular arrow indicating depth (no text or symbols)

Illustration of a hand pouring liquid from a container into a container with a small container inside (no text or symbols)

Tina upp fryst mat

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

Simple line drawing of a refrigerator front view with no text or symbols

Laite

Lasihylly X 3 Pakastimen lasihylly X 1 Yläsalaattilokeron kansi X 1

Line drawing of a rectangular box with a handle and lid (no text or symbols)

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

Jääastia

Käyttöopas

Paikka

Technical line drawing of a cabinet with a magnified inset showing rotational motion around a cylindrical component (no text or symbols)

Simple line drawing of a mechanical component or bracket with a handle and base (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with a magnified inset showing a bracket and adjustment tool (no text or symbols)

ASENNUS

Diagram showing two vertical structures with circular features and arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with no text or symbols

Kierrä auki Ruuvi

Technical line drawing of a mechanical assembly with a circular inset showing a gear mechanism (no text or symbols)

ASENNUS

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a mechanical component with a central knob and curved base (no text or symbols)

Simple line drawing of a corner bracket with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a rectangular object with a circular base and curved top, no text or symbols present.

Illustration of a hand pouring liquid into a container with a flame inside (no text or symbols)

Diagram showing a hand pressing down on a device panel with an arrow indicating motion (no text or symbols present)

Simple line drawing of a two-story refrigerator with a horizontal divider (no text or symbols)

Hovedenheden

Glashylde X 3 Fryser glashylde X 1 Låg til øvre salatbeholder X 1

Nedre salatbeholder X 1

Låg til nedre salatbeholder X 1 ∅vre salatbeholder X 1

Line drawing of a rectangular box with a handle and internal slot (no text or symbols)

∅verste skuffe X 2 Nederste skuffe X 1

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

Isbakke

Brugervejledning

Placering

Technical line drawing of a cabinet with a magnified inset showing rotational motion around a cylindrical component (no text or symbols)

Krav til fri plads

Pure technical line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with a magnified inset showing a bracket and clamping tool (no text or symbols)

INSTALLATION

Diagram showing two symmetrical mechanical or structural components with circular features, no text or symbols present.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with no text or symbols

Skrue ud Skrue

Technical line drawing of a mechanical assembly with a circular inset showing a gear mechanism (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Pure technical line drawing of two mechanical components without any text, numbers, or symbols

Simple line drawing of a corner joint with an arrow indicating direction (no text or symbols)

Rengøring før brug

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

Isbakke

Simple line drawing of a rectangular container with a circular hole at the bottom (no text or symbols)

DK

Illustration of a hand pouring liquid into a container with a small object inside (no text or symbols)

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

DK

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

GB www.knowhow.com/knowledgebank

nowwww.elkjop.no/support

www.lefdal.com/support

SE www.elgiganten.se/support
